Rack Solutions 2URAIL-R7 User manual

Sliding Rail Kit for
Dell Servers
Installation Instructions
P/N: 2URAIL-R7
P/N: 2UARM-R7 (Optional)
Patent(s) Pending

Page 2
Kit Contents
Kit Contents
(2) Inner Rail/Shim Assemblies
(2) Outer Rail/Rack Bracket Assemblies
Rail Hardware:
(5) 8-32 Keps Nuts
(5) 8-32 x .375 Truss Head Screws
Rack Hardware Kit (2 bags):
(12)10-32 Pan Head Screws
(12)12-24 Pan Head Screws
(12)12-24 Cage Nuts
(12)12-24 Square Nuts
Installation Instructions

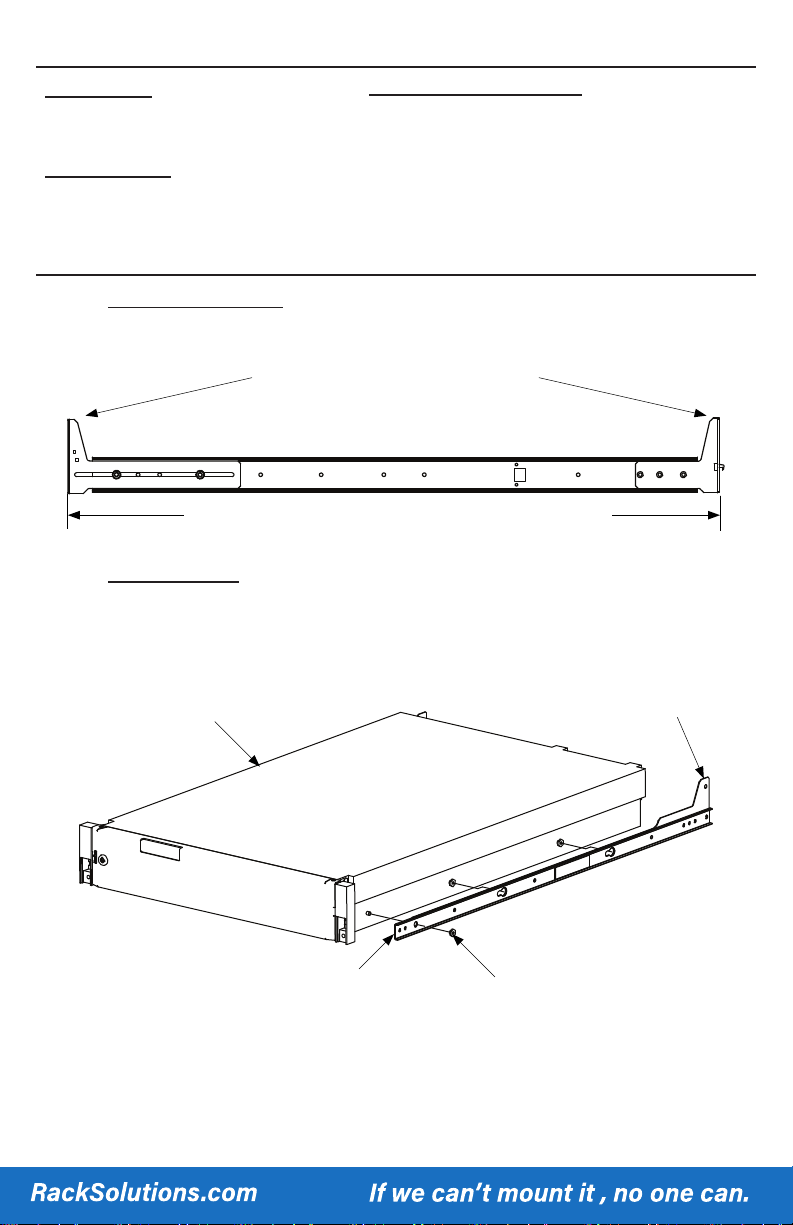

Step 1. Attach Rear Brackets: Attach the rear brackets to the outer rail assemblies, using
included 8-32 x .375 truss head screws and keps nuts. Make sure you attach
them at the desired "Mounting Depth".
Step 2. Rail Attachment: Slide the innertrack of the rail completely out of the outer rail.
You do this by pulling forward on the White Plastic Safety Latch, then out on the
rail. Remove the front Dell Shoulder Nut using a 3/8" wrench, and slide the rail
onto the box. Re-attach the Dell Shoulder Nut which will lock the rail in place.
Repeat for the other side.
Make Sure tabs point in same direction
"Mounting Depth Range 18"-31.5" [457mm - 800mm]
Dell Server Tabs Point Up
Inner Rail/Shim Assembly Shoulder Nuts

Installation Instructions
Page 3
Step 3. Mount Outer Rail Assemblies: Mount both rails in the Rack as shown below.
Step 1a. For Mounting Depth Greater Than 28.3" [719mm]: Use the Short CMA Bracket
attached to the rear of the rack (comes attached on CMA arm).
Step 1b/1c.For Mounting Depth Less Than 18"-28.3" [457mm - 719mm]: Use the Long
CMA Bracket attached to either the Rack or the end of the Rail that is sticking
RXWGHSHQGLQJRQ\RXUFRQ¿JXUDWLRQ
Rail Screws
Rear of Rack
Front of Rack
Rail Screws
Short CMA Bracket
Attached to Rack using
Rack mount screws
28.3"-31.5"
[719mm - 800mm]
Long CMA Bracket
Attached to rear or
Rail using 8-32 x
.375" Screws
18.00"-26.4"
[457mm - 670mm]
Long CMA Bracket
Attached to Rack
using Rack mount
screws
26.4"-28.3"
[670mm - 718mm]
1a 1b 1c
Kit Contents for Cable Management Arm
Cable Arm Hardware:
(1) Cable Management Arm Assembly
(1) CMA Bracket Long
(3) 8-32 x .375 Truss Head Screws
Cable Management Installation Instructions
(3) 8-32 Keps Nuts
(1) 8-32 x .250 Pan Head Screws
(2) 8-32 x .188 Pan Head Screws

Step 3. Attach CMA:$WWDFKWKH&0$%UDFNHWWRWKHLQQHUVKLPXVLQJWKHVSHFL¿HG
hardware.
Warranty Statement
Innovation First, Inc. warrants our products against defects in material and workmanship for a
period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to
repairing or replacing, at our option, any defective product.
Cable Management Installation Instructions
911 949
Step 2. Mount Box: Using two people carefully slide the box into the rails in the rack.
8-32 x .188
(Must be this screw or it
will interfere with the rail)
8-32 x .250
