Rackmount Extreme Value Tower XVT-600 User manual

Xtreme Power Conversion Corporation
920 Bay Vista Blvd. • Englewood, Fl 34223
Tel: [phone]
www.xpcc.com
XVT Xtreme Value Tower
Series UPS’
XVT-600 XVT-800 XVT-1200 XVT-1500
CAPACITY 600VA/360W 800VA/480W 1200VA/720W 1500VA/900W
INPUT Phase Single phase
Voltage Range 94V-144V/±5V
Frequency 60HZ±5Hz
OUTPUT Voltage (battery mode) 120V±10%
Waveform Pure Sine Wave (Typical)
Frequency =AC mode-follow utility Battery mode 60± .5Hz
Frequency Stability <0.5HZ (battery operation)
Transfer Time 4ms (Typical)
PROTECTION Surge Protection 320 Joules
Input Protection Compliance with IEEE 587
Short Circuit Breaker
BATTERY Battery Type 12V Sealed lead acid, maintenance free
Recharge After fully discharged, less than 10 hours to 100% capacity
~Backup Time (full load)
& half load 3 min (full load) ≥8 min (50% load)
Charge Current 1.5A (Max)
Battery Conguration 1x12V/7AH 1x12V/9AH 2x12V/7AH 2x12V/9AH
User Replaceable Yes
INDICATION AC Mode Green LED on, Orange LED on, Red LED off, no beep
Charging Battery Orange LED on
Battery Mode Green LED and Orange LED off, Red LED ash, buzzer slow beep
Battery Low Green LED and Orange LED off, Red LED ash, buzzer fast beep
OTHER Audible Noise at 1m <45dB
Temperature 0-40º
Humidity 0%-90%
Net/Gross Weight 15 lbs (6.8kg)/
15.88 lbs (7.2kg)
16.76 lbs (7.6kg)/
18.09 lbs (8.2kg)
27.57 lbs (12.5kg)/
28.67 lbs (13kg)
31.32 lbs (14.2kg)/
32.42 lbs (14.7kg)
Unit Dimension (L×W×H) 370x95x160 (mm)/14.57x3.75x6.3 (inch) 430x125x220 (mm)/16.93x4.93x8.67 (inch)
Packing Dimension (L×W×H) 400x145x245 (mm)/15.75x5.7x9.65 (inch) 470x180x310 (mm)/18.5x7.1x12.2 (inch)
AGENCY APPROVALS UL 1778, cUL, FCC Class B
OUTLETS 6
CORD LENGTH/COLOR 6 Feet/Black
BEZEL COLOR Brushed Metallic Outer/Black Inner
COMMUNICATIONS USB
INCLUDED IN BOX One User’s Manual, One 6ft USB cable
XVT SPECIFICATIONS
XVTDataSheetFinal.indd 1 3/12/08 6:25:31 PM

www.xpcc.com www.xpcc.com
The Xtreme Value Tower Series (XVT)
UPSs provides the ideal power protec-
tion solution for servers, VOIP equip-
ment, business telephone systems,
desktops and other network grade
equipment. The XVT Series is com-
prised of four models: 600VA, 800VA,
1200VA, and 1500VA.
Xtreme Value is achieved by providing
features commonly available in UPSs of
twice the cost, or more. Thus, these fea-
ture rich, line interactive, network grade
UPSs are provided at prices commonly
seen in standby UPSs. Xtreme features,
Xtreme Reliability and more VA for the
money make the XVT Series the best
choice in network power protection.
OPTIMIZED NETWORK GRADE POWER PROTECTION
Network Grade Power Protection
Best cost to performance ratio in four optimized sizes (600VA, 800VA,
1200VA & 1500VA)
Line Interactive Topology
Provides premium Automatic Voltage Regulation (AVR) to protect sensitive
equipment
Longer Runtimes than competitive models
Provides power during longer outages
User Replaceable batteries
Simplied design allows users to quickly replace batteries when needed
USB Communications
Allows “plug & play” communications between servers, desktops and the UPS
Software CD
Compatible with major operating systems including Windows Vista
Outstanding Warranty
Xtreme Power stands behind the XVT line with a two year electronics
warranty
Quieter Operation
Allows businesses to place the UPS’ virtually anywhere without worrying
about disruption
More Outlets
Provides Greater Flexibility via three battery protected outlets and three
surge protected outlets
Xtreme Pricing
The industry’s most competitive pricing for this feature set and associated
runtimes
Prolonged Battery Life
Wide operating voltage range requires that the UPS requires less power
from the batteries less frequently; therefore extending battery life and
lowering the “Total Cost of Ownership”

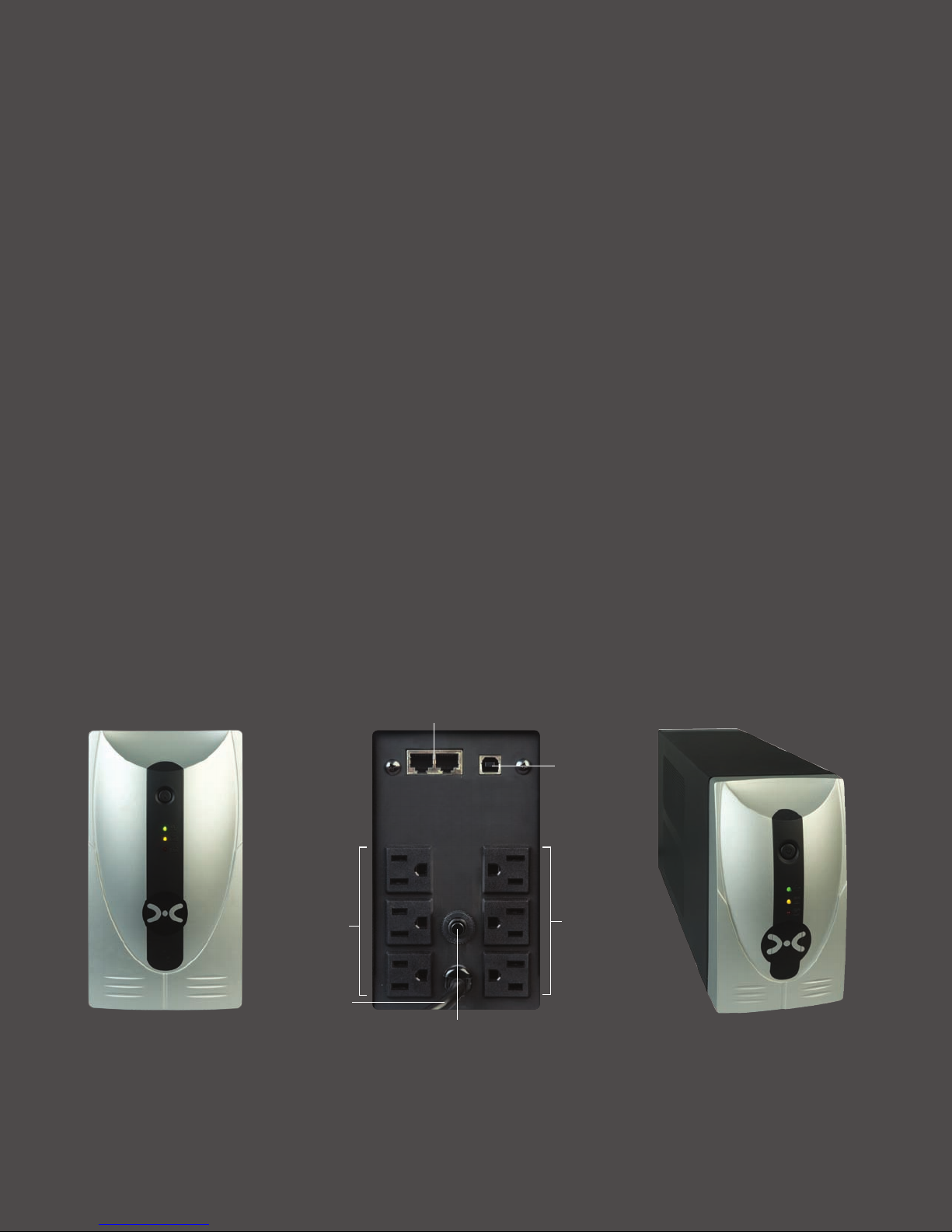

Network/Phone
Protection (Option)
USB
Connector
3 Battery
Protected
Outlets
6 Foot
Power Cord
3 Surge
Only Outlets
Input Breaker
XPRT BATTERY RUNTIMES (TYPICAL)
Model #
XVT-600 1 PC + 1 LCD ~21 Mins
XVT-800 1 PC + 1 LCD ~26 Mins
XVT-1200 1 PC + 1 LCD ~42 Mins
XVT-1500 1 PC + 1 LCD ~50 Mins
As the value leader in power protec-
tion, Xtreme Power Conversion
Corporation, provides uptime and
data center solutions that solve “real
world” customer problems. Recogniz-
ing that the status quo of overpriced
availability solutions had to be chal-
lenged, Xtreme provides more product
features and benets at prices never
before achieved in the market.
CLOSING THE GAP BETWEEN PRICING AND FEATURES
XVTDataSheetFinal.indd 2 3/12/08 6:25:55 PM

www.xpcc.com www.xpcc.com
The Xtreme Value Tower Series (XVT)
UPSs provides the ideal power protec-
tion solution for servers, VOIP equip-
ment, business telephone systems,
desktops and other network grade
equipment. The XVT Series is com-
prised of four models: 600VA, 800VA,
1200VA, and 1500VA.
Xtreme Value is achieved by providing
features commonly available in UPSs of
twice the cost, or more. Thus, these fea-
ture rich, line interactive, network grade
UPSs are provided at prices commonly
seen in standby UPSs. Xtreme features,
Xtreme Reliability and more VA for the
money make the XVT Series the best
choice in network power protection.
OPTIMIZED NETWORK GRADE POWER PROTECTION
Network Grade Power Protection
Best cost to performance ratio in four optimized sizes (600VA, 800VA,
1200VA & 1500VA)
Line Interactive Topology
Provides premium Automatic Voltage Regulation (AVR) to protect sensitive
equipment
Longer Runtimes than competitive models
Provides power during longer outages
User Replaceable batteries
Simplied design allows users to quickly replace batteries when needed
USB Communications
Allows “plug & play” communications between servers, desktops and the UPS
Software CD
Compatible with major operating systems including Windows Vista
Outstanding Warranty
Xtreme Power stands behind the XVT line with a two year electronics
warranty
Quieter Operation
Allows businesses to place the UPS’ virtually anywhere without worrying
about disruption
More Outlets
Provides Greater Flexibility via three battery protected outlets and three
surge protected outlets
Xtreme Pricing
The industry’s most competitive pricing for this feature set and associated
runtimes
Prolonged Battery Life
Wide operating voltage range requires that the UPS requires less power
from the batteries less frequently; therefore extending battery life and
lowering the “Total Cost of Ownership”
Network/Phone
Protection (Option)
USB
Connector
3 Battery
Protected
Outlets
6 Foot
Power Cord
3 Surge
Only Outlets
Input Breaker
XPRT BATTERY RUNTIMES (TYPICAL)
Model #
XVT-600 1 PC + 1 LCD ~21 Mins
XVT-800 1 PC + 1 LCD ~26 Mins
XVT-1200 1 PC + 1 LCD ~42 Mins
XVT-1500 1 PC + 1 LCD ~50 Mins
As the value leader in power protec-
tion, Xtreme Power Conversion
Corporation, provides uptime and
data center solutions that solve “real
world” customer problems. Recogniz-
ing that the status quo of overpriced
availability solutions had to be chal-
lenged, Xtreme provides more product
features and benets at prices never
before achieved in the market.
CLOSING THE GAP BETWEEN PRICING AND FEATURES
