Racktivity ES1100 Series User manual

User
Manual
ES1000 Series
ES1100 Series
EnergySwitch

© 2011 Racktivity NV 2/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Contents
Contents.................................................................................................................................................2
Introduction ...........................................................................................................................................5
Features .............................................................................................................................................5
Applicable Models..............................................................................................................................6
Specifications .....................................................................................................................................7
Electrical Ratings ............................................................................................................................7
Operating Environment..................................................................................................................7
Dimensions.....................................................................................................................................7
User Account Overview ..................................................................................................................8
RS232 Specifications.......................................................................................................................9
CLI Specifications............................................................................................................................9
Safety ...............................................................................................................................................10
Certifications ................................................................................................................................11
Compliance...................................................................................................................................11
Recycling ..........................................................................................................................................12
Servicing & Repair ............................................................................................................................12
Additional Documentation ...............................................................................................................12
Getting Started.................................................................................................................................13
Receiving Inspection.....................................................................................................................13
Inventory ......................................................................................................................................13
Installation ...........................................................................................................................................14

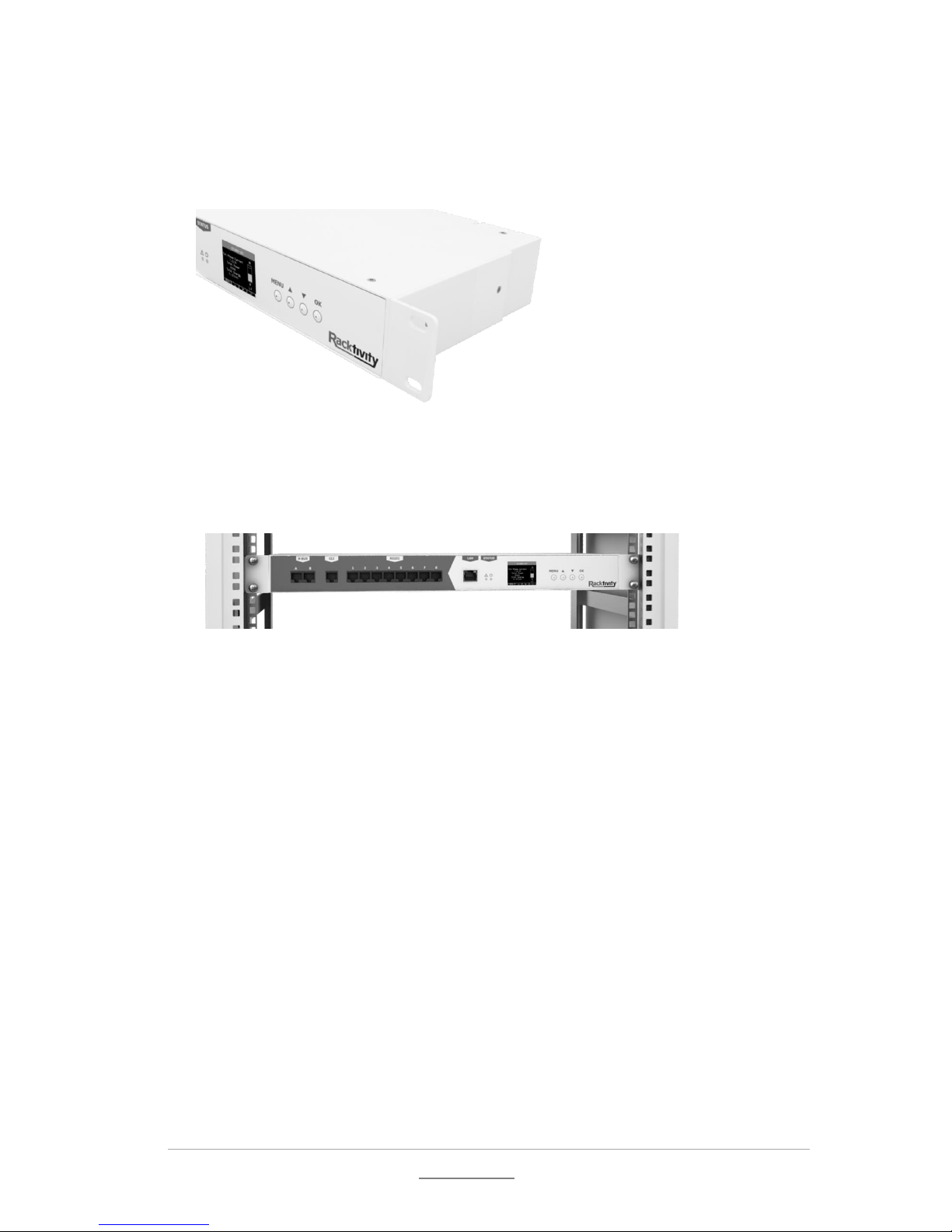

Rack Mounting Instructions..............................................................................................................14
Mounting the EnergySwitch .............................................................................................................15
Connecting the EnergySwitch...........................................................................................................15
Overview ..............................................................................................................................................16
Front Panel .......................................................................................................................................16
Rear Panel ........................................................................................................................................17
Status LEDs .......................................................................................................................................18
Output LEDs (1-8) .........................................................................................................................18
Alarm LED .....................................................................................................................................18
Power LED ....................................................................................................................................18
Quick Configuration .............................................................................................................................19
Using the TFT Panel Display..............................................................................................................19
Activating the Display...................................................................................................................19
Controlling the Display .................................................................................................................19
Hot Keys .......................................................................................................................................19

© 2011 Racktivity NV 3/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Network Settings..............................................................................................................................20
Firmware version 1.2 or higher ....................................................................................................20
Firmware version 1.1 or lower .....................................................................................................22
Web Interface ......................................................................................................................................26
Getting Started.................................................................................................................................26
Supported Web Browsers.............................................................................................................26
Logging in .....................................................................................................................................26
Layout...............................................................................................................................................27
Tabs..................................................................................................................................................28
Power ...........................................................................................................................................28
Environment.................................................................................................................................28
Logging .........................................................................................................................................28
Modules .......................................................................................................................................28
Management ................................................................................................................................29
Settings.........................................................................................................................................29
Network Configuration.....................................................................................................................30
SNMP Configuration.........................................................................................................................31
SNMP Settings ..............................................................................................................................31
Device Settings .................................................................................................................................32
Thresholds........................................................................................................................................32
Resetting Measurements .................................................................................................................34
Startup Delay....................................................................................................................................34
Priority..............................................................................................................................................35
Overheat Protection.........................................................................................................................35
Network Time Protocol (NTP)...........................................................................................................35
CLI.........................................................................................................................................................36
Connecting .......................................................................................................................................36
RS232 ...................................................................................................................................................38
Versions............................................................................................................................................38
UPS Integration ....................................................................................................................................39
Configuration ...................................................................................................................................39
Compatible Devices ......................................................................................................................39
Connecting the UPS ......................................................................................................................39
Enabling the Link ..........................................................................................................................41
Operation .........................................................................................................................................41
Rules.................................................................................................................................................42
Agent Communication..........................................................................................................................44
Configuration ...................................................................................................................................44

© 2011 Racktivity NV 4/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Agent Service................................................................................................................................44
EnergySwitch Configuration .........................................................................................................47
Logging .................................................................................................................................................49
Event ................................................................................................................................................49
Measurement...................................................................................................................................49
Management Information Base (MIB)..................................................................................................51
Upgrade Firmware ...............................................................................................................................52
Obtaining Files..................................................................................................................................52
Troubleshooting ...................................................................................................................................53
Downloading the diagnostics ...........................................................................................................53
Resetting Login Credentials ..............................................................................................................53
Connecting to the Web Interface .....................................................................................................53
Knowing your EnergySwitch’ IP address...........................................................................................53
Support ................................................................................................................................................55

© 2011 Racktivity NV 5/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Introduction
Features
The EnergySwitch PDU Family, EnergyOS and its included EnergyDNA deliver power within the
data center along with the energy utilization and capacity optimization features you demand.
These next-generation PDUs are a step into the future of data center energy management,
leveraging leading-edge EnergyDNA for highly granular visibility into rack-based energy quality
and consumption.
Main Features:
Real-Time, True RMS measurements
Metered and Switched per outlet
Serial out-of-band management ports
Role-based Authentication
Usage and Access Event Logging
Instant-On technology
Physical and Logical current protection
Sequential Outlet startup
Programmable Thresholds and alarms
Support for Racktivity’s EnergySensor family
Flash Upgradable
Ultra-Low power consumption

© 2011 Racktivity NV 6/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Applicable Models
Unless specified otherwise, all information in this document is applicable to the following
Racktivity EnergySwitch ES1000 models:
ES1008-16
ES1108-16

© 2011 Racktivity NV 7/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Specifications
Electrical Ratings
Input:
Voltage
100V - 240V
Frequency
50/60Hz
Current
16A
Output:
Connection
8x C13
Voltage
100V - 240V
Current total
16A
Current per C13
8A
The model number, input and output ratings and certification information for the EnergySwitch
are also shown on the label found on the case of the unit.
Operating Environment
Operating temperature
0°C to 50°C
32°F to 122°F
Storage temperature
-10°C to 60°C
14°F to 140°F
Humidity
5% to 85% RH
non-condensing
Dimensions
Dimensions cm (WxHxD)
48.55 x 4.45 x 14.20
Dimensions inch (WxHxD)
19.00 x 1.75 x 5.59

© 2011 Racktivity NV 8/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
User Account Overview
The EnergySwitch has 3 types (levels) of user accounts: admin, restricted and guest. The
following table shows an overview of the functionality of each type:
admin
restricted
guest
Open website
Yes
Yes
Yes
Open CLI session
Yes
Yes
Yes
View current status (states, data & values)
Yes
Yes
Yes
Toggle outlets
Yes
Yes
No
Edit thresholds
Yes
No
No
Edit outlet names
Yes
No
No
Change SNMP notification settings
Yes
No
No
Edit device settings
Yes
No
No
View & download logs
Yes
No
No
Default user name
admin
restricted
guest
Default password
1234
1234
1234
The same features and options apply to both the website and the Command Line Interface (CLI).
To change the login credentials for the users please refer to the Device Settings chapter.

© 2011 Racktivity NV 9/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
RS232 Specifications
The RS232 ports on the EnergySwitch have the following pin lay-out (as seen on the male plug):
Compatibility
The following brands/devices can be connected directly to the RS232 ports of the EnergySwitch
using a standard straight-through RJ45 patch cable (unless noted otherwise):
Cisco
Cisco devices that have a Console which uses the pin lay-out of the 72-3383-01
Management cable (RJ45 - DB9)
Hewlett-Packard
HP devices that have a Console which uses the pin lay-out of the 5188-3836 Console
cable (RJ45 - DB9) require that Pin3 (RxD) and Pin6 (TxD) are switched
Fortinet
Fortinet devices require that Pin3 (RxD) and Pin6 (TxD) are switched
CLI Specifications
The CLI port on the EnergySwitch has the following pin lay-out (as seen on the male plug):
Pin
Function
1
-
2
-
3
RxD
4
GND
5
GND
6
TxD
7
-
8
-
Pin
Function
1
-
2
-
3
TxD
4
GND
5
GND
6
RxD
7
-
8
-

© 2011 Racktivity NV 10/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Safety
Save these instructions!
This Safety Information contains important instructions that should be followed during
installation and maintenance of the EnergySwitch. It is intended for Racktivity customers who set
up, install, relocate, or maintain Racktivity equipment. Changes and modifications to this unit not
expressly approved by Racktivity could void the warranty.
Electrical Hazard!
Read the following information before installing or operating your EnergySwitch:
Do not work alone under hazardous conditions.
High current through conductive materials could cause severe burns.
Follow all local and national codes when installing the EnergySwitch.
To avoid possible electrical shock and equipment damage, use only the supplied hardware.
The EnergySwitch should be connected to a single-outlet dedicated circuit, protected by a
circuit breaker with the same current rating as the EnergySwitch.
The plug serves as the disconnect for the EnergySwitch. Make sure the utility power outlet
for the EnergySwitch will be close to the EnergySwitch and readily accessible.
Make sure the utility power outlet and the EnergySwitch power cord and plug are in good
condition.
Do not connect the EnergySwitch to an ungrounded utility power outlet.
Do not operate your EnergySwitch with any covers removed or when it is damaged.
This EnergySwitch contains potentially hazardous voltages. There are no user serviceable
parts inside the EnergySwitch. All repairs and service should be performed by authorized
service personnel only.
The power requirement for each piece of equipment connected to the EnergySwitch must
not exceed the individual outlet’s load rating.
The EnergySwitch provides convenient multiple power outlets, but it does not provide surge
or line noise protection for connected equipment.
The EnergySwitch is designed for indoor use only in a controlled environment away from
excess moisture, temperature extremes, conductive contaminants, dust, direct sunlight or
magnetic sources.
The total power requirement for equipment connected to the EnergySwitch must NOT
exceed the maximum load rating for the EnergySwitch.
Do not attempt to mount the EnergySwitch to an insecure or unstable surface.
Never attempt to install electrical equipment during a thunderstorm.
Use of this equipment in life support applications or any medical applications is strictly
prohibited since failure of this equipment can reasonably be expected to cause the failure of
the life support equipment or to significantly affect its safety.
Putting several EnergySwitch units in cascade is NOT allowed.

© 2011 Racktivity NV 11/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
CAUTION:
The EnergySwitch contains a lithium battery and should not be disposed of with general
refuge. Dispose of the lithium battery in accordance with all local codes and regulations for
products containing lithium batteries. Contact your local environmental control or disposal
agency for further details. The battery is not intended to be user replaceable.
Certifications
Not all certifications are applicable to every model. Please check the label on your device.
CE / FCC
This device is designed in compliance with the requirements of the
4 following regulations: EN 55022: Class B, EN 61000-3-2,
EN 6100-3-3 and EN 55024. This device is certified to
comply with Part 15 of the FCC rules.
UL (US & Canada)
This device is in the certification process to comply with rule
UL /CSA 60950-1 (2nd Edition) safety of Information
Technology Equipment (ITE) Part 1. (Might not be applicable
to all ES1000 models)
Compliance
WEEE
Waste Electrical and Electronic Equipment
RoHS
Restriction of Hazardous Substances

© 2011 Racktivity NV 12/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Recycling
The materials used for shipping the EnergySwitch are recyclable, please save them for
later use or dispose of them appropriately.
Servicing & Repair
There are no user serviceable parts inside the EnergySwitch. All repairs and service should be
performed by authorized service personnel only.
Please refer to the Service manual for RMA procedure.
Additional Documentation
Additional documentation regarding the following subjects is available on the Racktivity Support
Website http://www.racktivity.com/support/.
API
oManual
oGUID Overview
o(python) examples
E2Sensor User Manual
Servicing (RMA)

© 2011 Racktivity NV 13/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Getting Started
Receiving Inspection
Inspect the package (see INVENTORY section) and contents for shipping damage and make sure
that all parts were received. Report any damage immediately to the shipping agent and report
missing contents, damage, or other problems immediately to your reseller.
Inventory
Please verify the contents of the box:
Standard Package
Item
Quantity
EnergySwitch
1
Power cable
1
Mounting brackets
2
Mounting bracket screws
4
Retention brackets
8
Quick Start Guide
1
Optional accessories
Item
Quantity
Power cable "commando" plug 16A
1
Mounting brackets with variable depth
2

© 2011 Racktivity NV 14/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Installation
Rack Mounting Instructions
Elevated Operating Ambient
When installed in a closed or multi-unit rack assembly, the operating ambient temperature
of the rack environment may be greater than room ambient. Therefore, consideration should
be given to installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) of 50 ºC.
Reduced Air Flow
Installation of the equipment in a rack should be such that the amount of air flow required
for safe operation of the equipment is not compromised. It is recommended that 2.5cm (1
inch) of clearance be supplied around the sides of the unit.
Mechanical Loading
Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading. The unit should be mounted with screws
suitable for up to 10kg (22lbs).
Circuit Overloading
Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings should be used when
addressing this concern.
Reliable Earthing
Reliable earthing of the unit should be maintained. Particular attention should be given to
supply connections other than direct connections to the branch circuit (e.g. use of power
strips).

© 2011 Racktivity NV 15/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Mounting the EnergySwitch
1. Connect the mounting brackets to the device using the provided screws.
2. Attach the EnergySwitch to a vertical rail in your rack:
Position the EnergySwitch, align the buttons with the rack mounting slots and fix the
EnergySwitch using cage nuts and screws (not included in the package).
Connecting the EnergySwitch
3. The EnergySwitch has a detachable power cord. Attach the included power cord to the
EnergySwitch by inserting the input cable in to the power inlet.
Note: Optionally, a user-supplied power cord can be attached to the EnergySwitch by
connecting it to the IEC inlet. The cord-set should be a UL Listed type SJT or better rated
minimum 14 AWG (1.5mm2) rated 125V or 250V.
4. Connect the input plug to a compatible AC power outlet.
Note: The AC power source should not share a circuit with a heavy electrical load.
5. When using the device for the first time all OUTPUT LEDs will light up consecutively
indicating that the outlets are being activated.
6. The POWER LED (blue) will become active.
Connect your equipment’s input plugs to the outlet plugs of the EnergySwitch.

© 2011 Racktivity NV 16/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Overview
Front Panel
1
R BUS
RS485 peripheral bus connector(s) (for external modules)
2
CLI
RS232 Command Line Interface connector
3
RS232
8 x RS232 Out-of-Band management connectors
4
LAN
Ethernet connector (with connectivity indicator LEDs)
5
OUTLET LEDs
8 blue outlet status LEDs
6
STATUS LEDs
Alarm and power LEDs
7
TFT
Color graphics TFT display
8
MENU
Access menu function or return to the previous screen
9
UP
Move to the previous page or to browse upwards in a list
10
DOWN
Move to the next page or to browse downwards in a list

© 2011 Racktivity NV 17/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Rear Panel
1
INLET
Power inlet
2
OUTLET
8 Power outlets
3
OUTLET LEDs
8 blue outlet status LEDs

© 2011 Racktivity NV 18/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Status LEDs
Output LEDs (1-8)
ON
The corresponding outlet is turned on
OFF
The corresponding outlet is turned off and
the connected device is not receiving input power
Alarm LED
ON
Warning, at least one alarm: visit the Web Interface for more info
OFF
OK, no alarms triggered
Power LED
ON
The EnergySwitch is receiving input power
OFF
The EnergySwitch is unpowered

© 2011 Racktivity NV 19/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Quick Configuration
Using the TFT Panel Display
Activating the Display
When the Power LED is lit and the screen is black, push any of the 4 navigation buttons next to
the TFT Display to activate it. The TFT Panel standby delay can be set at the Settings page on the
Web Interface (the default value is 10 minutes).
Controlling the Display
The TFT Panel is controlled using the UP, DOWN, MENU and OK buttons next to the screen.
Use the UP and DOWN buttons to navigate through the reporting screens or through a selection
list in the menus. Press OK to select the highlighted item and MENU to go back.
When in a menu, the ">" symbol indicates that clicking this item will open a submenu. The "●"
symbol indicates that this menu item leads directly to a setting.
Hot Keys
Several Hot Key combinations are available by using the navigation buttons next to the display.
To activate the functions, press the necessary buttons simultaneously for 4 seconds (until a
notification is shown on screen).
Hot Key
Buttons
Action
Hot Reset
MENU + DOWN
Reboots the device
No outlets toggled, no settings changed
Credential Reset
UP + DOWN
Resets the login credentials
No outlets toggled, login credentials set to default
Factory Reset
MENU + OK
Resets all non-power related settings to factory
defaults (network, …), no outlets are toggled

© 2011 Racktivity NV 20/55
Antwerpsesteenweg 19 - 9080 Lochristi - Belgium - www.racktivity.com v 2013.10.7
Network Settings
There are two methods for setting up the IP address: Dynamic IP address assignment and Manual
Assignment. If you are uncertain which method to use, contact your network administrator for
assistance before continuing the installation process.
Note: As of firmware version v1.2 the EnergySwitch has secure HTTP (HTTPS) enabled by default.
Use ‘https://’ instead of ‘http://’ in your browser to access the web portal.
Firmware version 1.2 or higher
Dynamic IP Address Assignment (DEFAULT)
1. Press the MENU button until the MAIN menu appears, select Network Settings using the
DOWN button and press OK.
2. Within the Network Settings menu, select DHCP. When the value at the bottom of the
screen shows Enabled, the device already has dynamic IP assignment enabled (skip to step
4). If not, press OK and verify that Enabled is displayed at the bottom of the screen.
3. Use the UP button to select Apply Settings and press OK. Press the MENU button to cancel
or the OK button to apply the settings.
