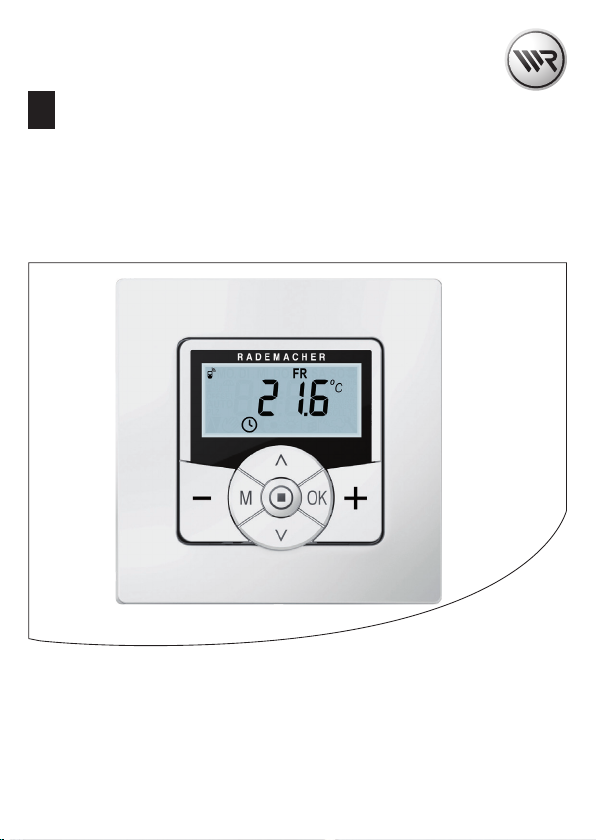

DuoFern Room Thermostat 9485
Instruction manual for the electrical connection and for commissioning
Type: 9485

2
EN
i
Dear Customer,
You have chosen a quality product manufactured by RADEMACHER
with your purchase of a DuoFern Room Thermostat 9485.
Thank you for the trust you have placed in us.
RADEMACHER products have been developed with the greatest
possible convenience in mind. Having applied uncompromising
quality standards and thorough testing, we are proud to be able
to present this innovative product to you.
It’s brought to you by all the highly-qualified
personnel here at RADEMACHER.

3
EN
i
Contents
i Dear Customer, ...................................................................2
1. This manual... ......................................................................6
1.1 How to use this manual .....................................................................6
2. Hazard symbols ..................................................................7
2.1 Levels of danger and signal words.................................................7
2.2 Symbols and depictions used..........................................................8
2.3 Glossary - definition ............................................................................9
3. Included in delivery ........................................................ 11
4. General view of the operating unit.............................. 12
4.1 General view of the installation housing.................................. 14
4.2 Electrical connections...................................................................... 15
4.3 Display and its symbols................................................................... 16
4.4 Views of the standard display....................................................... 18
5. Product description ........................................................ 20
5.1 Overview of functions ..................................................................... 23
5.2 Functions and sample applications............................................ 24
6. Technical specifications ................................................. 30
6.1 Factory settings.................................................................................. 33
6.2 Conduct in the event of a power failure ................................... 34
7. Safety instructions .......................................................... 35
7.1 Intended use ....................................................................................... 36
7.2 Improper use....................................................................................... 37
7.3 Required expert knowledge of the installer............................ 37
8. Safety instructions for the electrical connection...... 38
8.1 Important information prior to the electrical
connection and installation........................................................... 40
8.2 Electrical connection........................................................................ 42
8.3 Connection diagram with a 230 V control valve.................... 43
8.4 Connection diagram with a 24 V control valve....................... 44

4
EN
Contents
i
9. Installation after the electrical connection................ 45
10. Introduction to opening the menus and
setting the functions ...................................................... 46
11. Initial commissioning with the help of the
installation wizard........................................................... 48
12. Manually changing the target temperature .............. 52
13. Switching automatic mode on/off directly
on the standard display ................................................. 53
14. Calling up and displaying weather data..................... 54
15. Menu overview ................................................................ 56
15.1 Menu 1 - Switching automatic mode on/off........................... 58
15.2 Menu 2 - Setting automatic heating phases ........................... 59
15.3 Menu 3 - Setting target temperatures centrally..................... 74
16. Menu 9 - System settings............................................... 76
16.1 Menu 9.1 - Setting the time and date ........................................ 77
16.2 Menu 9.5 - Setting the week programme................................. 78
16.3 Menu 9.7 - Installer settings .......................................................... 80
16.4 Menu 9.7.1 - Setting the heating mode .................................... 81
16.5 Menu 9.7.2 - Setting the sensor offset....................................... 85
16.6 Menu 9.7.3 - Setting the hysteresis / minimum on-time .... 86
16.7 Menu 9.7.4 - Setting the valve protection................................ 87
16.8 Menu 9.7.5 - Setting the frost protection ................................. 88
16.9 Menu 9.7.6 - Setting the valve mode ......................................... 89
16.10 Menu 9.7.7 - Performing a sensor test ....................................... 91

5
EN
i
17. Menu 9.8 - Device settings ............................................ 92
17.1 Menu 9.8.1 - Switching the automatic
summer/ winter time on/off.......................................................... 93
17.2 Menu 9.8.3 - Setting the display lighting.................................. 94
17.3 Menu 9.8.5 - Switching the button lock on/off....................... 95
17.4 Menu 9.8.6 - Setting the holiday mode incl.
the setback temperature................................................................ 97
17.5 Menu 9.8.7 - Setting the party mode incl.
the comfort temperature ............................................................... 99
17.6 Menu 9.8.0 - Displaying the software version.......................101
18. Menu 9.9 - DuoFern settings....................................... 102
18.1 Menu 9.9.1 - Logging DuoFern devices on/off.....................103
18.2 Menu 9.9.2 - Setting the DuoFern mode ................................107
18.3 Menu 9.9.3 - Setting the transmission channel....................109
18.4 Menu 9.9.4 - Switching the weather data on/off ........................110
18.5 Menu 9.9.5 - Displaying the DuoFern address
(radio code)........................................................................................112
19. Logging on to the HomePilot®.................................... 113
19.1 Available actuator settings ..........................................................115
19.2 Available sensor settings..............................................................116
19.3 Sample automation of a temperature dependent
skylight control ...............................................................................117
20. Deleting all settings, software reset.......................... 120
21. Carrying out a hardware reset.................................... 121
22. Error messages............................................................... 122
23. Dismantling.................................................................... 125
24. Simplified EU Declaration of Conformity.................. 126
25. Accessories ..................................................................... 126
26. Warranty conditions ..................................................... 127
Contents

6
EN
i
1. This manual...
...describes how to install, connect and operate the DuoFern
Room Thermostat 9485.
1.1 How to use this manual
◆Before you begin, please read this manual through completely
and follow all the safety instructions
◆Please also read the instruction manuals of the accessories
(if available) as well as the instructions of the respective
connected electrical appliance
◆This manual is part of the product. Please store it in an
easily accessible place
◆When passing the DuoFern Room Thermostat 9485 on to a
third party, this manual must be passed on as well
◆Damage resulting from non-compliance with these
instructions and safety instructions will void the warranty.
We assume no liability for any consequential damage.
i

7
EN
i
2. Hazard symbols
The following hazard symbols are used in this instruction manual:
Danger of fatal electric shock
Danger area / dangerous situation
2.1 Levels of danger and signal words
DANGER!
This hazard will lead to serious injury or death if not avoided.
WARNING!
This hazard may result in serious injury or death if not avoided.
CAUTION!
This hazard may result in minor or moderate injury if not avoided.
ATTENTION!
This hazard may lead to property damage.
i

8
EN

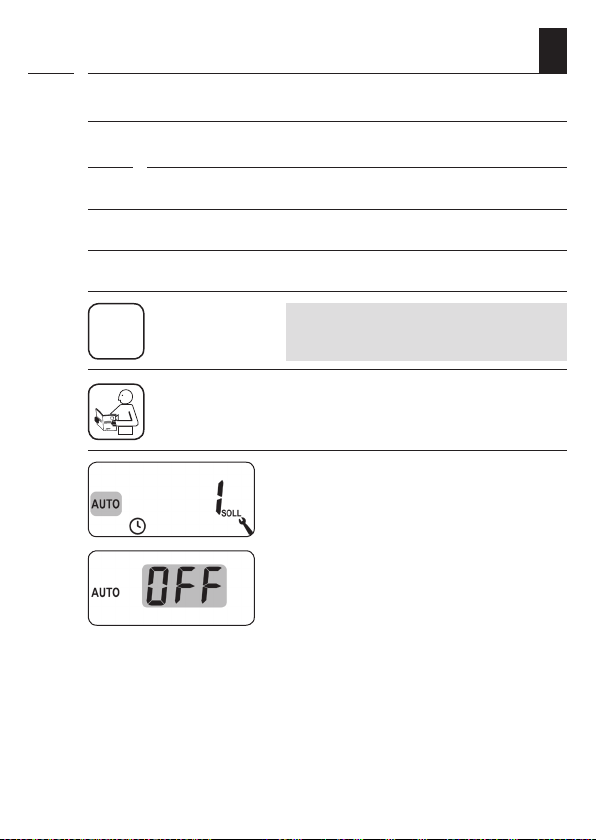

2.2 Symbols and depictions used
Depiction Description
1. Procedures
2.
◆Itemisation
1) or a) Lists
i
Further useful
information
Please read the respective manual
Flashing menu symbols and setting
parameters have a grey background.
Information about opening the
menus and setting the parameters
can be found on page 46.
i

9
EN
i
2.3 Glossary - definition
UW
◆UW = ultra-white (device colour)
DIN 49075
◆German Standard "Cover panels for installation devices for
building into device boxes..."
2014/53/EU
◆European Radio Equipment Directive
ELV
◆Extra low voltage
Electrothermal control valves
Electrothermal valves with the switching states "normally closed
(NC) or normally open (NO)" are often used for heating control.
You can set the respective valve mode on the DuoFern Room
Thermostat 9485 to adapt to the control valve used in each
case.
Valve mode NC (normally closed)
◆The control valve remains closed in an isolated,
de-energised state
Valve mode NO (normally open)
◆The control valve remains open in an isolated,
de-energised state

10
EN
2.3 Glossary - definition
i
Hysteresis / minimum on-time
◆This function prevents an unnecessary large number of
switching operations by setting a minimum on-time
◆This prevents the DuoFern Room Thermostat 9485 tripping
too often if the room temperatures fluctuate
Offset (sensor offset)
◆The temperature measured on site can vary slightly from
the room temperature if the DuoFern Room Thermostat
9485 is installed in a unfavourable position (e.g. behind a
curtain or on a cool exterior wall)
◆An adjustment of the measurement in the range of - 5.0°C
to + 5.0 °C can be carried out using the sensor offset

11
EN
i
3. Included in delivery
Included in delivery
a) 1 x Operating unit (50 x 50 mm)
b) 1 x Frame
c) 1 x Installation housing
d) 1 x Spacer frame, see page 45
e) 1 x Instruction manual (not illustrated)
After unpacking please check and compare...
... the contents of the package with those specified above.
*) Accessories optionally available, see page 126
Remote Sensor 9485-F
a)
b) c)
d)
*)

12
EN
i
4. General view of the operating unit
1)
Pos. Symbol Description
1) Operating unit
2) Display
3)
M
Menu button
◆Open the main menu
◆Back to the previous menu or standard
display
4) Setting buttons
◆Select a menu in the main menu
◆Set the parameters (more / less)
●Short press or press and hold =
gradual or quick setting
◆Switch functions on / off
(On / OFF)
◆Select the display (target (SOLL) /
actual (IST) temperature / time)
3) 4)
5)
6)
7)
8)
9)
2)

13
EN
Pos. Symbol Description
5)
OK
OK button
◆Open the selected menu
◆Confirm and save settings
◆Continue to the next setting
6)
+
Plus button - HOTTER
◆Gradually increase the target
temperature by 0.5 °C
7)
-
Minus button - COLDER
◆Gradually reduce the target temperature
by 0.5 °C
8) SET button
◆Switch the button lock on/off
(only when the button lock function is
activated)
◆Display weather information
9) Bridging contact for a hardware reset
◆See page 121
4. General view of the operating unit
i

14
EN

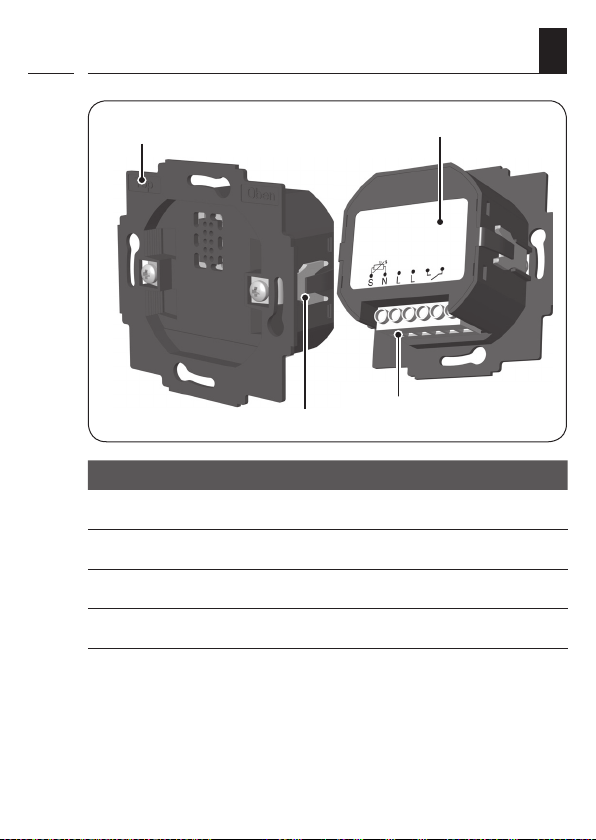

4.1 General view of the installation housing
10)
11)
Pos. Symbol Description
10) Installation housing
11) Claw fasteners and screws
12) Connecting terminals
13) Type plate
i
13)
12)

15
EN
14)
Pos. Symbol Description
14) Remote Sensor 9485-F [ S / N ] - optional
Connect the external Remote Sensor 9485-F
to measure the room temperature.
15) Supply voltage [ N / L ] - 230 V / 50 Hz
Connect the supply voltage.
16) Relay output - potential-free
Connect an electrothermal control valve
(also with extra-low voltage) / electric heater
or the air conditioning.
4.2 Electrical connections
15)
i
16)

16
EN
i
Pos. Symbol Description
17) MO... SO Weekdays (Monday...Sunday)
18) Time / setting parameters
19) DuoFern status
20) Weather information
21) Week programme
22) Rain display
23) OFFSET Sensor offset
24) AUTO Automatic mode
25) Automatic mode off or
manually changed target temperature
26) Heating
4.3 Display and its symbols

17
EN
Pos. Symbol Description
27) Cooling
28) Switching times for the heating phases
29) Brightness display
30) Dusk display
31) Wind display
32) System settings
33) SOLL Target temperature
34) SENSOR Sensor test
35) klx / lx Light intensity (klx = Kilolux / lx = Lux)
36) ° C Temperature unit in degrees Celsius
37) m / s Wind velocity (meters per second)
38) Automatic button lock
4.3 Display and its symbols
i
i
The DuoFern Room Thermostat 9485 has adjustable
LCD backlighting, see page 94, menu 9.8.3.

18
EN
i
4.4 Views of the standard display
Target temperature
Symbols Description
21.5 °C SOLL
The set target
temperature
Actual temperature
Symbols Description
19.8 °C The current room
temperature
/ You can select the desired view
of the standard display using the
set buttons.
Time
Symbols Description
FR The current
weekday
16:30 The current time

19
EN
4.4 Views of the standard display
i

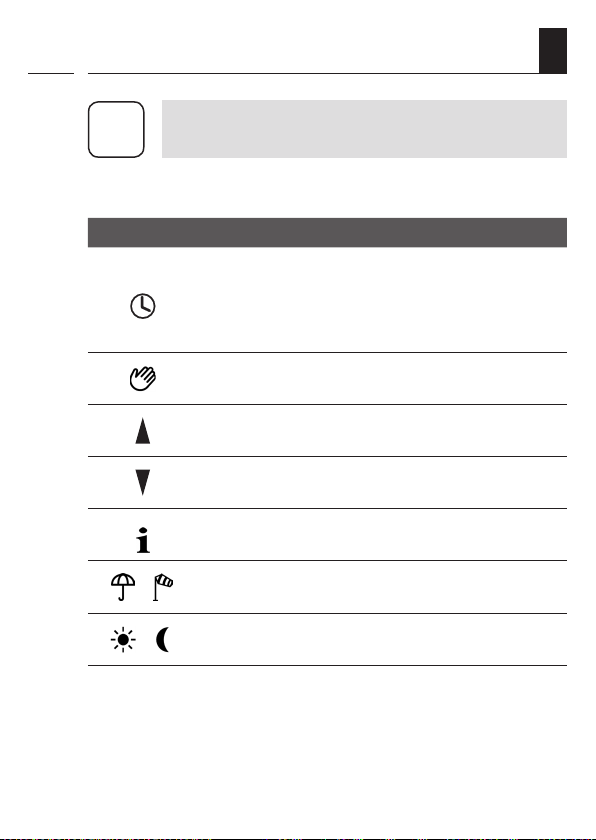

Other symbols can be displayed depending on the
setting of the DuoFern Room Thermostat 9485.
Examples:
Symbols Description
Automatic mode is active.
Heating or cooling is provided at the set
switching times until the room temperature
reaches the target value.
The target temperature has been manually
changed.
Heating is provided as the current room tem-
perature is lower than the target temperature.
Cooling is provided as the current room tem-
perature is higher than the target temperature.
The current weather information from a
DuoFern Environmental Sensor is available.
/ Wind or rain display
/ Brightness or dusk display
i

20
EN
i
5. Product description
The DuoFern Room Thermostat 9485 automatically measures
and controls the room temperature in individual rooms, e.g.
by controlling a radiator, the floor heating or air conditioning.
The temperature is either measured by the built-in sensor or by
the optional external Remote Sensor 9485-F.The room thermostat
has a potential-free relay output.
Support for three heating modes
The DuoFern Room Thermostat 9485 can be used and
configured in three different heating modes, see page 81:
◆Room temperature controller
◆Room temperature controller with limiter function
◆Cooling function
Setting multiple heating phases
Up to six heating or cooling phases (incl. four target temperatures)
can be set for each day.
Setting heating phases centrally in the HomePilot® or
locally in the DuoFern Room Thermostat 9485
The desired use is carried out by selecting the corresponding
DuoFern mode in menu 9.9.2, see page 107.
