Installation & Operation Guide
SPIRIT ZigBee®

1 Scope of Delivery 3
2 Warning Instructions 4
3 This is Spirit ZigBee 5
4 Operating and Display Elements 5
4.1 Buttons 5
4.2 Boost button LEDs 6
4.3 LCD 6
Commissioning 7
Inserting the batteries 7
4.4 Joining a ZigBee network 8
4.5 Mounting on the radiator 9
4.6 Conntection to Amazon Alexa 10
4.7 Adapting 11
4.8 Removing the Spirit ZigBee 12
4.9 Restoring the factory settings 12
5 Local Operation 13
5.1 Setting the target temperature 13
5.2 Activating the child safety lock 13
5.3 Changing the operating mode 13
5.4 Window open detection 14
6 ZigBee Operation 14
Contents
6.1 Basic 15
6.2 Identify 15
6.3 Power conguration 15
6.4 Time 16
6.5 Thermostat 16
6.5.1 Application Version Attribute 17
6.5.2 PI Heating Demand Attribute 17
6.5.3 Errors 17
6.5.4 Current Temperature Setpoint 17
6.6 Attribute Reproting 18
7 Troubleshooting and Error Messages 19
8 Cleaning 19
9 Adapter 20
10 Technical Data 20
11 Support and Contact 20
12 Warranty Information 21

– 3–

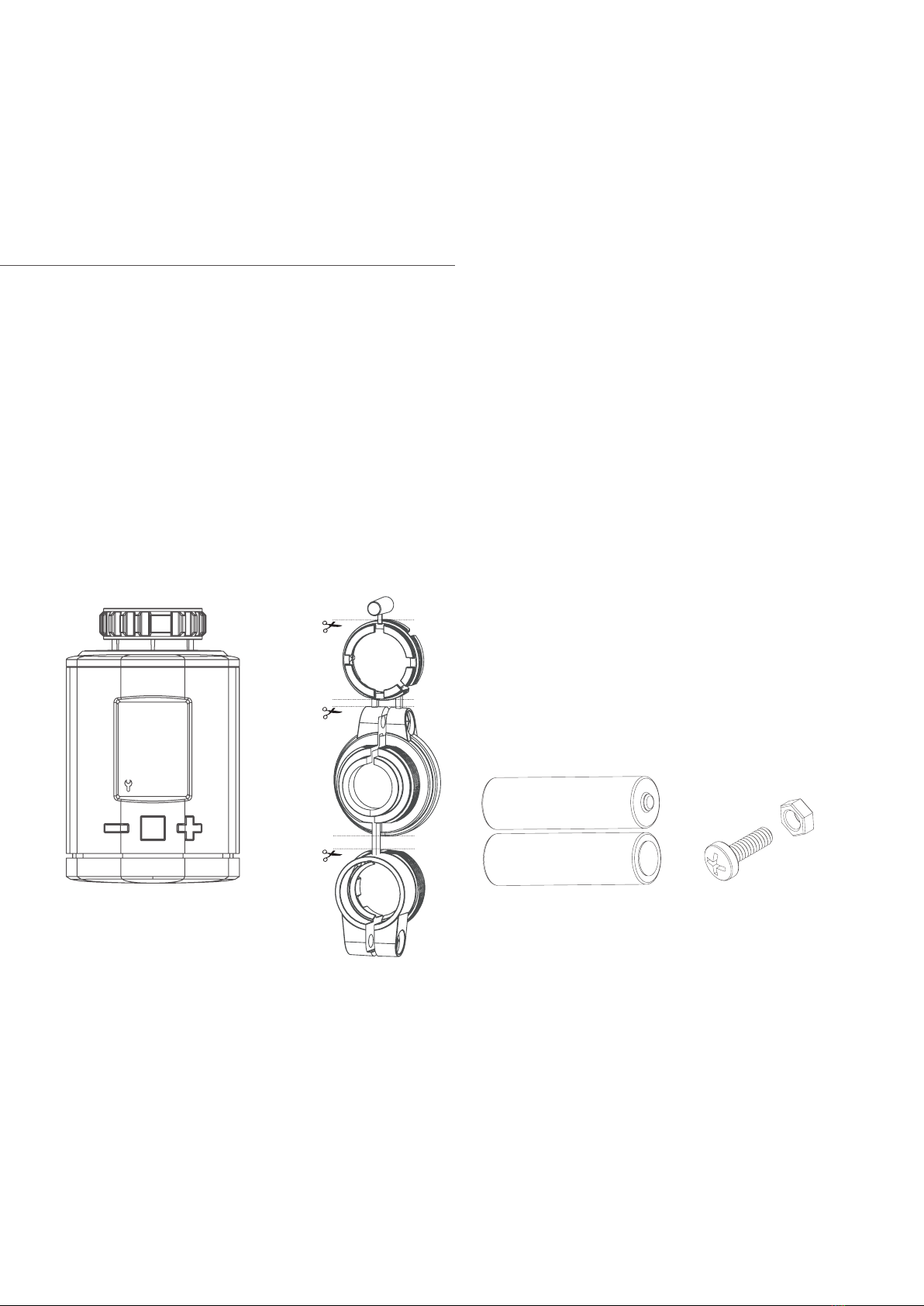

1. Spirit ZigBee Energy-saving thermostat
2. Screw
3. Adapter for Danfoss valves (RA / RAV / RAVL)
4. 2x AA batteries
1 Scope of Delivery
* If you use a RAV adapter, you need to extend the
valve stem with a RAV pin.
RAV
RA
RAVL
RAV pin*
Spirit ZigBee
Energy-saving
thermostat
2x AA batteries Screw for
the adapter

– 4–
WARNING!
This signal word designates a risk with an average degree of risk that can cause death or severe injury
if it is not avoided.
INFORMATION! This signal word warns you against possible property damage.
SAFETY INFORMATION
- The Spirit ZigBee is designed for use in buildings.
- Only use the Spirit ZigBee as described in the operation guide.
- The Spirit ZigBee is only to be used in a dry and dust-free place and not be subjected to direct sunlight.
- Do not continue to use the device should it show obvious signs of damage.
- The Spirit ZigBee is not to be converted, modified or opened.
WARNING! RISK OF EXPLOSION!
An incorrect handling of batteries can result in an explosion.
- Do not heat the batteries up and do not throw them into an open fire.
- Do not place batteries in direct sunlight.
- Protect batteries from strong heat.
- Do not short-circuit the batteries.
- Never attempt to charge non-chargeable batteries.
- Never take batteries apart.
- Never use new and used batteries at the same time.
- Observe the correct polarity when inserting the batteries (+/-).
- Clean the batteries and the contacts in the thermostat before inserting the batteries.
WARNING! RISK OF CHEMICAL BURNS!
Leaking battery acid can cause chemical burns.
- Prevent battery acid from coming into contact with the skin, eyes and mucous membranes
- Should you come into contact with battery acid, immediately rinse the affected area with copious
amounts of clear water and consult a doctor.
WARNING! RISK OF INJURY!
Keep the thermostat and the packaging away from small children as they could swallow small parts and
choke on them.
- Do not let children play with the thermostat or the packaging.
- Keep the batteries out of reach of children. Consult a doctor without delay should batteries be
swallowed.
2 Warning Instructions

– 5–

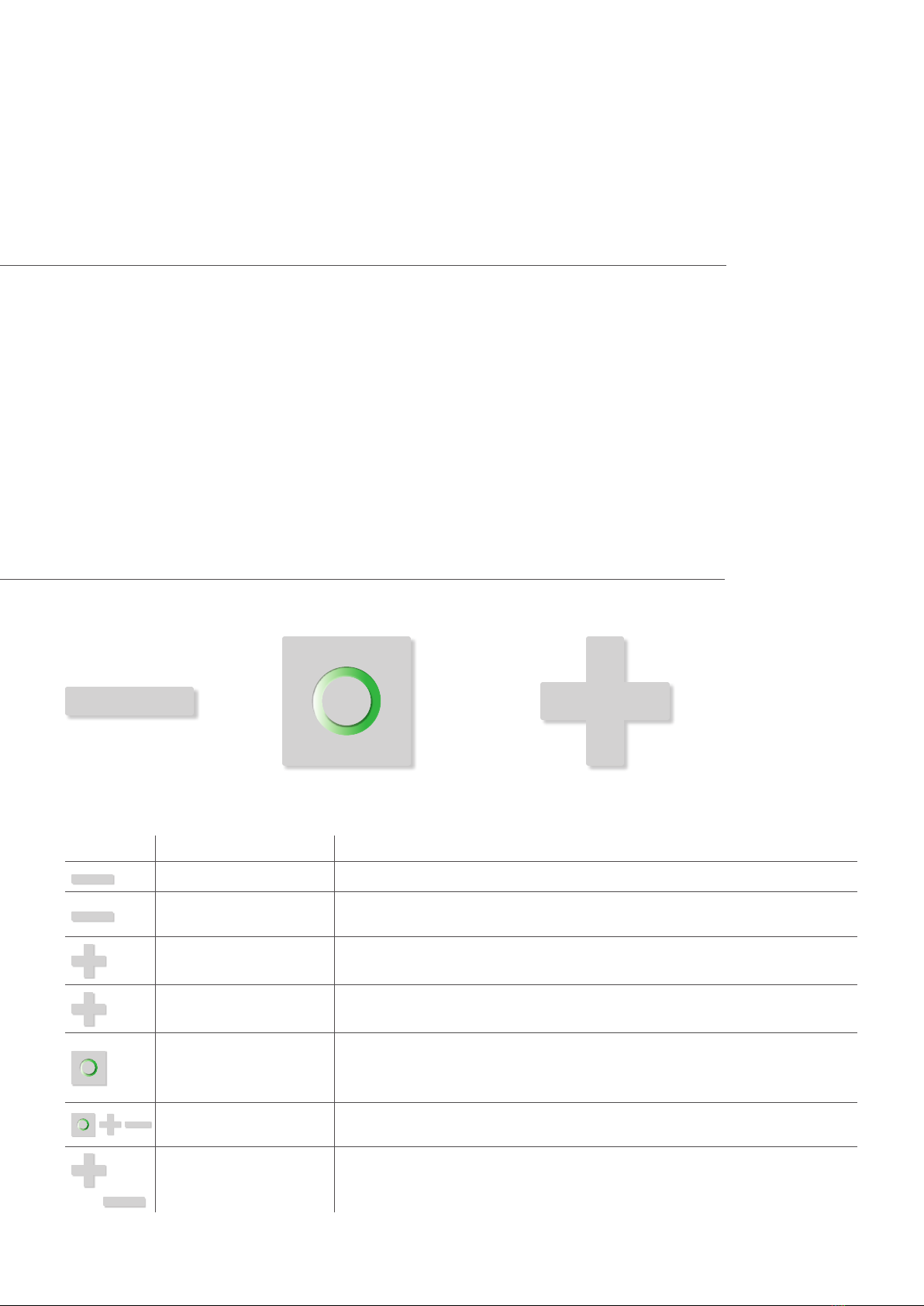

4.1 Buttons
4 Operating and Display Elements
Button Status Meaning
press once Reduce the target temperature by 0.5°.
press and keep pressed in Immediately reduce the target temperature by 0.5°C, then reduce it by 0.5°C every
0.5 seconds as long as the button remains pressed in or the end value is reached.
press once Increase the target temperature by 0.5°.
press and keep pressed in Immediately increase the target temperature by 0.5°C, then increase it by 0.5°C every
0.5 seconds as long as the button remains pressed in or the end value is reached.
press once • Execute the displayed function
• Switch to boost mode.
• Terminate boost mode if in boost mode.
keep pressed for 10
seconds
The duration during which the buttons are pressed is displayed. Release after
10 seconds; the device enables a works reset to be carried out.
&
keep pressed together
for 3 seconds
Activate or deactivate the child safety lock.
Minus Plus Boost
Spirit ZigBee is an energy-saving thermostat for the heating radiator that is compatible with the ZigBee
wireless standard.
As a heating radiator thermostat, the Spirit ZigBee uses the Home Automation Profile 1.2 as
an HVAC compatible terminal device.
3 This is Spirit ZigBee

– 6–
4.2 Boost button LEDs
4.3 LCD
Colour Status Meaning
flashing Over the Air update of the controller software is being carried out.
A controlling of the temperature is not possible.
permanently illuminated Error when taking into operation.
flashing The user is to provide confirmation.
Is used in order to start processes.
illuminated for 5 seconds A process has been successfully completed.
Boost – green Boost – red
Spanner:
Provides information on mechanical processes.
Radio antenna:
Provides information on the radio connection and
add-in procedures.
Is activated if there is a radio connection.
Deletes if there is no longer a radio connection.
Battery: illuminated if the battery power is below 15%.
Padlock: illuminated if the child safety lock has been activated.
Degrees Celsius: illuminated permanently in combination with the target temperatures.
Percent symbol: illuminated permanently in combination with setpoints.

– 7–
The Spirit ZigBee is not installed in a ZigBee net-
work ex works. The Spirit ZigBee is to be added
to an existing network before it can communicate
with other ZigBee devices. This procedure is
referred to as joining.
The Spirit ZigBee can also be removed from a
network again. This procedure is referred to as
leaving.
Both of these procedures are to be initiated by
a primary ZigBee controller. This necessitates
the controller being placed in a joining or leav-
ing mode. Instructions on how you can start the
modi are provided in the Operating Guide for your
ZigBee controllers.
ZigBee devices can only join or leave the network
if the primary controller is in the join/leave mode.
Should the device already be connected to a
network, it initially has to leave this network or the
joining attempt shall otherwise be unsuccessful.
Commissioning
Behaviour in the ZigBee network
The Spirit ZigBee can join any of the ZigBee net-
works, it then being able to be operated together
with other ZigBee-certified devices and/or appli-
cations from other manufacturers.
All non-battery operated network nodes act as
a repeater within the network, regardless of the
manufacturer, an improve the reliability of the
radio network.
Network security
Spirit ZigBee can communicate with other ZigBee
devices in an encrypted form as long as this also
supports an encrypted communication.

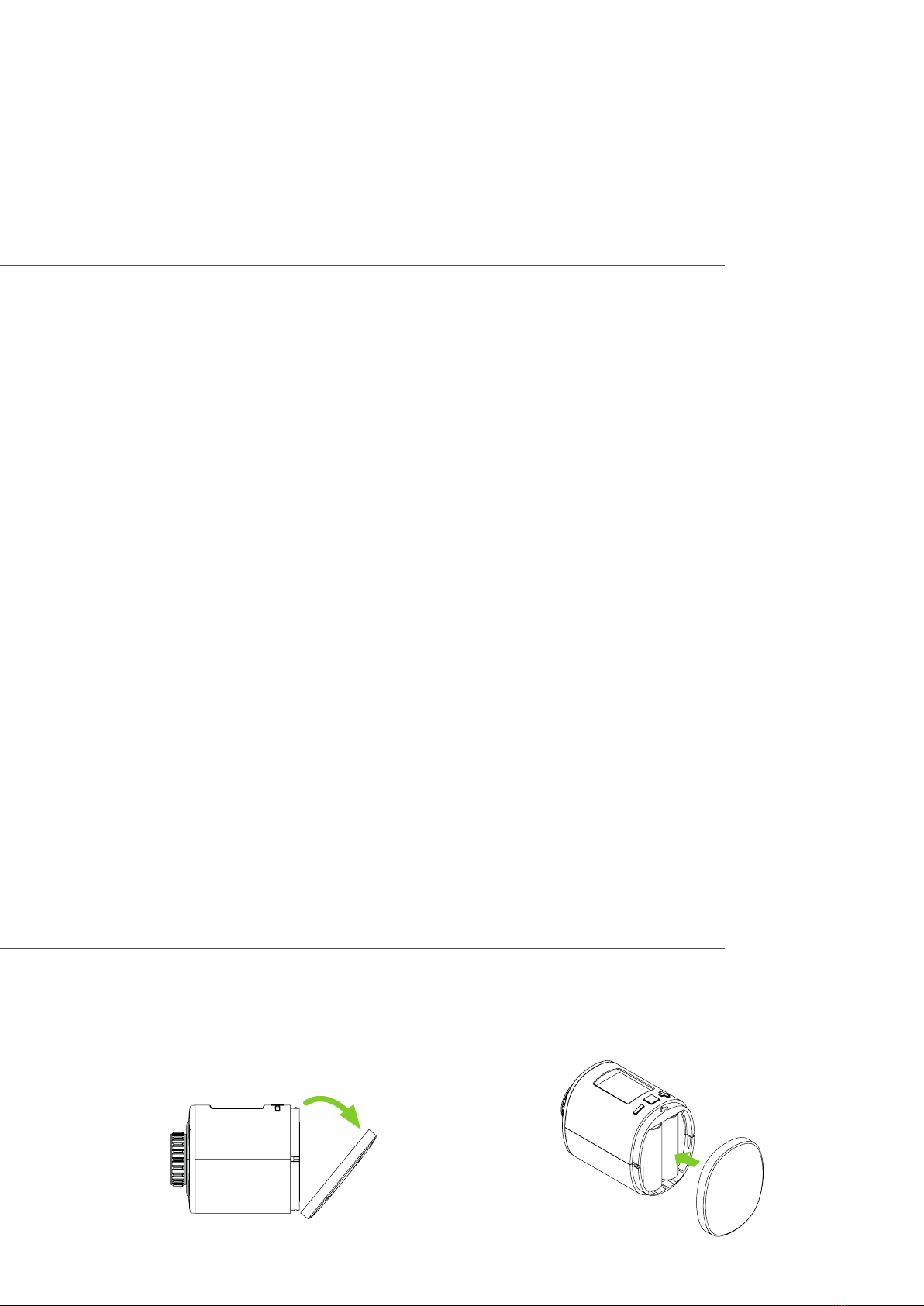

Inserting the Batteries
Remove the cover of the battery compartment by pushing it upwards at the marked point and hanging it out.
Now insert the batteries. Ensure that the polarity is correct! The configuration of your Spirit ZigBee is re-
tained should you replace the batteries later.

– 8–
4.4 Joining a ZigBee network
Join successful
JIN JIN
INS
Installation required.
See next page
Join process
is running
Joining was success-
ful Boost button flash-
es green and requires
confirmation
PRP
After the batteries have been inserted, PrP is displayed and the Spirit ZigBee prepares itself for the instal-
lation. The Spirit ZigBee is set in join mode at factory, this being indicated by a flashing radio symbol on
the LCD display.
If the Spirit ZigBee has successfully joined, the LCD display permanently displays the radio symbol and the
LED flashes green.
Commissioning process will continued by pressing Boost button.
The installation can be carried out when the LCD displays “INS”. Please continue with “4.5 Mounting on
the Heating Radiator” fort.

– 9–
Joining error
JIN ERR
Join process
is running
Boost button
deletes the error
message
Joining failed
3.2.1.
4.5 Mounting on the radiator
After the joining has been completed, “INS” is displayed on the LCD and the Boost button flashes green.
Do not confirm the button yet. Follow the mounting steps. After you have mounted the Spirit ZigBee on the
valve, continue with 4.6 Adapting.
Mounting without an adapter
Mounting with an adapter
4.2.1. 3.
PRP

– 10–
4.6 Connection to Alexa Echo Plus/Echo Show
1. Insert the batteries. Join mode (Jin) is displayed on the LCD display.
2. Open the Amazon Alexa app and use the menu button on the top. Please choose “Add device”.
3. Afterwards, please navigate to “Other”. A new app page opens and shows the button “Discover
Devices”. Please press this button. Alexa will now search for devices.
4. Meanwhile, please press the blinking Boost-button on your Spirit ZigBee. The display shows InS. Please
mount Spirit ZigBee at the radiator. After mounting, please press the green blinking button to start adapta-
tion.
5. Meanwhile, your newly found device Spirit ZigBee will be shown in the app. Now, you can configure it
via the app.
NOTE:
If the connection cannot be established with the first try, please try to make a Reset at your Spirit
ZigBee (p. 12). Afterwards, the display of Spirit ZigBee shows “Jin”. Now, please repeat the above mentioned
steps.

– 11–
Confirm the Boost button in order to start the adapting.
Adapting
INS 22.0°
Confirm Boost
button
Main screen with
target temperature
ADA
Adaption process
is running
Adapting
successful
4.7 Adapting
Adapting error
ER1
Adaptation failed
INS
Confirm Boost
button
ADA
Adaption process
is running
Mech.
Error xy
Buy
adapter
here
Boost button
deletes the error
message

– 12–
Disconnect the Spirit ZigBee from the network before you remove the device. To do so, set your ZigBee
controller to the leave mode. The Spirit ZigBee should display “RES“ and the valve stem moves to the
mounting position. Should a Spirit ZigBee will not leave automatically, manually remove it from ZigBee
network (see 4.9 restoring the factory settings).
Now unscrew the union nut and remove the Spirit ZigBee from the valve.
Press the Boost, Plus and Minis button until the counter in the LCD has reached 10.
Only release the button when the LCD displays “RES”.
The reset will start shortly after the button has been released.
The LCD displays “PrP” and the valve stem moves to the mounting position.
2.1.
Only use the factory reset if your primary ZigBee controller no longer exists or does not function for
other reasons.
PRP
RES
Boost button flashes red.
Release the button as soon as
the LCD displays RES.
Mounting position
is prepared
Node
XXX
removed
4.8 Removing the Spirit ZigBee
4.9 Restoring the factory settings

– 13–
5 Local Operation
The LCD displays the setpoint temperature if Spirt ZigBee is in thermostat mode or displays pi heating demand
if it is in actuator mode.
5.1 Setting the target temperature
The target temperature is changed if Plus and Minus button is used.
The changing will cause different setpoint temperature.
Occupied and Unoccupied heating setpoint can only be changed by rf.
The target temperature takes effect 10 seconds after the last entry is made.
The entry range of the target temperature is 5° - 30°C.
Should the temperature be increased above it respectively, the Spirit ZigBee switches to Boost mode.
5.2 Activating the child safety lock
The child safety lock can activated / deactivated by pressing the Plus and Minus button for 3 seconds.
5.3 Changing the operating mode
Boost mode
Activate / deactivate boost mode by pressing Boost button.
As an alternative, you can press the Plus button until ON appears in the display.
Comfort mode
If the device is not in comfort mode, it can be switched to the comfort mode using the Plus or Minus button.

– 14–
5.4 Window open detection
Should the temperature fall suddenly, the window open detection mode is activated. The Spirit ZigBee
switches to the OFF mode for 15 minutes.
The window open mode is left automatically after 15 minutes and Spirit ZigBee restore its setpoint
temperature.
The sensitivity of the window open detection can be configured.
The window open detection can be terminated at a push of a button.
The window open detection is not executed in the actuator mode (Manufacturer-Specific Mode). The
window open detection can be activated/deactivated by an external window contact.
OFF
window open detection
enabled.
6 ZigBee Operation
Cluster Endpoint Cluster Id Server Client
Basic 1 0x0000 •
Power Configuration 1 0x0001 •
Identify 1 0x0003 • •
Time 1 0x000A •
Thermostat 1 0x0201 • •
OTA 1 0x0019 •

– 15–
6.1 Basic
Cluster
(Chapter)
Attribute Attribute Id Default Value Data
type
Read/Write
(R/W)
Manufactu-
rer Specific
(Y/N)
Reportable
(Y/N)
Basic
ZCL Version 0x0000 0x02 0x20 (int8u) R N N
Application Ver-
sion
0x0001 App Version 0x20 (int8u) R N N
Stack Version 0x0002 0x04 0x20 (int8u) R N N
Hardware Version 0x0003 0x22 0x20 (int8u) R N N
Manufacturer
Name
0x0004 0x1010 0x42 (0-32
byte String)
R N N
Model Identifier 0x0005 SPZBxxxx
(xxxx = Application
Version)
0x42 (0-32
byte String)
R N N
Date Code 0x0006 YYYYMMDD 0x42 (0-16
byte String)
R N N
Power Source 0x0007 0x03 (battery) 0x30 (8-bit
enum)
R N N
Product Code 0x000A 1001 = Eurotronic
Spirit ZigBee
0x42 (0-8
byte String)
R N N
SW Build ID 0x4000 00000000 0x42 (0-16
byte String)
R N N
6.2 Identify
Cluster
(Chapter)
Attribute Attribute Id Default
Value
Data type Read/Write
(R/W)
Manufacturer
Specific (Y/N)
Reportable
(Y/N)
Identify
Identify Time 0x0000 0x0000 0x21 (int16u) RW N N
6.3 Power configuration
Cluster
(Chapter)
Attribute Attribute Id Default Value Data
type
Read/Write
(R/W)
Manufactu-
rer Specific
(Y/N)
Reportable
(Y/N)
Power con-
figuration
Battery Percenta-
ge Remaining
0x0021 0x00 0x20 (int8u) R N Y
Battery Size 0x0031 0x03 (AA) 0x30 (8-bit
enum)
R N N
Battery Quantity 0x0033 0x02 0x20 (int8u) R N N

– 16–
6.4 Time
Cluster
(Chapter)
Attribute Attribute Id Default Value Data
type
Read/Write
(R/W)
Manufactu-
rer Specific
(Y/N)
Reportable
(Y/N)
Time
No client attributes N N
6.5 Thermostat
Cluster Attribute Attribu-
te Id
Default Value Data
type
Read/Write
(R/W)
Manu-
facturer
Specific
(Y/N)
Repor-
table
(Y/N)
Thermostat
Local Temperature 0x0000 0x29 (int16s) R N Y
Pi Heating Demand
(valve position %)
0x0008 0x00 0x20 (int8u) R N N
Local Temperature
Calibration
0x0010 0x00 0x28 (int8s) RW N N
Occupied Heating Set
point
0x0012 0x7D0 (20°C) 0x29 (int16s) RW N N
Unoccupied Heating 0x0014 0x7D0 (20°C) 0x29 (int16s) RW N N
Min Heat Setpoint
Limit
0x0015 0x01F4 (5°C) 0x29 (int16s) R N N
Max Heat Setpoint
Limit
0x0016 0x0BB8 (30°C) 0x29 (int16s) R N N
Remote Sensing 0x001A 0x00 0x18 (8-bit bitmap) RW N N
Control Sequence of
Operation
0x001B 0x02 (Heating only) 0x30 (8-bit enum) RW N N
System Mode 0x001C 0x04 (Heat) 0x30 (8-bit enum) RW N N
TRV Mode 0x4000 0x02 (MANU Mode) 0x30 (8-bit enum) RW Y N
Set Valve Position 0x4001 0x00 0x20 (int8u) RW Y N
Errors 0x4002 0x00 0x20 (int8u) R Y Y
Current Temperature
Set point
0x4003 0x7D0 (20°C) 0x29 (int16s) RW Y Y
Host Flags 0x4008 0x000000 0x24 (int24u) RW Y N

– 17–
6.5.2 PI Heating Demand Attribute
The attribute can only be read. An unsigned integer is supplied when reading, this representing the current
valve position.
0 = Valve closed
255 = Valve opened
6.5.1 Application Version Attribute
With every release of the ZigBee microcontroller’s firmware the application version attribute will be incre-
mented (e.g. from 0x01 to 0x02). A revision history is provided separately
6.5.4 Current Temperature Setpoint
6.5.3 Errors
Bit 7 6 5 4 3 2 1 0
Error reserved reserved Valve not
Moving (E3)
Valve
Movement too
slow (E2)
Valve Adaptati-
on Failed (E1)
reserved reserved reserved
Any value written to Thermostat / Occupied / Unoccupied Heating Setpoint attribute (0x0012 or 0x0014) will
automatically be copied to the Current Temperature Set point attribute (0x4003) to allow operating the TRV
without the need to be aware of the customer specific attributes.

– 18–
6.6 Attribute Reproting
Device Type Pre-Configured
Reporting Interval
Recommended
Reporting Configu-
ration
Cluster Attribute Attribute ID
TRV 43200s (12 Hours) Report twice a day
(or not at all)
Power configura-
tion
Battery Percenta-
ge Remaining
0x0021
TRV Report every 1200s Report every 600s Thermostat Local Temperature 0x0000
TRV Report every 1200s Report every 600s
or on change (or
not at all)
Thermostat Pi Heating Demand 0x0008
TRV Report every 1200s Report every 600s
or on change (or
not at all)
Thermostat Occupied Heating
Setpoint
0x0012
TRV Report every 1200s Report every 600s
or on change (or
not at all)
Thermostat Unoccupied Hea-
ting Setpoint
0x0014
TRV Report every 1200s
or on change
Report every 600s
or on change (or
not at all)
Thermostat Errors 0x4002
TRV Report every 1200s
or on change
Report every 600s
or on change(or
not at all)
Thermostat Current Tempera-
ture Set point
0x4003
TRV Report every 1200s
or on change
Report every 600s
or on change (or
not at all)
Thermostat Host Flags 0x4008

– 19–
7 Troubleshooting and Error Messages
Problem Cause Remedy
Battery icon Batteries do not have enough
power.
Replace the batteries
The radiator does not
heat up.
Boiler water temperature O.K?
Valve does not open, is it calcified
after the summer/heating pause?
Adjust the temperature of the boiler water.
Remove the Spirit ZigBee. Move the valve pin back and
forth manually/using a tool.
The radiator does not
cool down.
The valve does not close com-
pletely. It may be that the closing
point of your valve seal has
shifted.
Remove the Spirit ZigBee.
Move the valve pin back and forth manually – per-
haps an adaption is not possible because you valve
is possibly calcified or the seal no longer performs its
function.
Pressure piece falls
out.
Due to an endless thread the
pressure piece that is situated
at the bottom can fall out if the
device has not been mounted on
the valve.
Remove the batteries from the device.
Insert the pressure piece.
Insert the batteries.
ER1-3 and ERR The error message can be cleared by pressing the Boost button.
ERR Joining failed. ZigBee controller not in join mode or out of range.
ER1 No valve detected Correctly mount the device on the radiator.
Use the correct adapter.
ER2 Closing point not detected Device correctly mounted on the radiator?
ER3 Valve positioning not possible. Valve pin freely moveable?
INFORMATION: RISK OF DAMAGE!
An incorrect handling of the thermostat can cause damage.
- Do not submerge the thermostat in water or in other fluids.
- Do not use abrasive cleaning agents, brushes with metal or nylon bristles or sharp or metallic
cleaning implements such as a knife, a hard spatula etc.
- Clean the thermostat with a soft and dry cloth. Do not apply any pressure to the display.
8 Cleaning

– 20–
9 Adapter
10 Technical Data
Designation Spirit ZigBee
EAN 4260012711233
Article number 700045
Supply voltage 2 x 1,5V LR6/Mignon/AA
Radio frequency 2,4 GHz
Transmission power +8dBm
Mode of application Type 1
Dimensions (W x H x D): 56 x 68 x 89 mm
Weight 176g (inkl. batteries)
Protection type IP20
Degree of contamination 2
Threaded connector M30 x 1,5mm
Other adapters are available for all standard valve manufacturers as accessories. Please go to the EURO-
tronic website: www.eurotronic.org/service/FAQ
11 Support and Contact
Customer Service:
Eurotronic Technology GmbH
Südweg 1
36396 Steinau-Ulmbach
Germany
Telephone: [phone]
Mo.-Fr.: 8:00 - 16:30
Email: [email protected]
Internet: www.eurotronic.org
For technical support for EUROtronic products, please contact EUROtronic by email or telephone:
