Radial Engineering StageBug SB-48 User manual

Circuit type: Non-radiating phantom power supply
Number of channels: 2
XLR connectors: AES standard pin-1 Ground, pin-2 (+),
pin-3 (-)
Phantom output: Switchable +48 / +12 volts DC
Power supply: 15VDC / 400mA external supply
included
www.radialeng.com
TruetotheMusic
Radial Engineering Ltd.
®
®TruetotheMusic
SB-48
POWERBAR
Radial Engineering Ltd. SB-48®Phantom Supply SB-48®Phantom Supply
FEATURES
1. XLR-F INPUTS: Usedto connect the mic signal to the StageBug
SB-48.Phantom power isgenerated inside the SB-48 and injected
into the mic capsule via the F-XLR connectors and mic cable.
2. POWER INPUT AND LED: The power jack accepts Radial’s
15VDC/400mApoweradapter.TheLEDilluminates whenthe power
supply is connected and the SB-48 is active.
3. CABLE CLAMP: Usedto lock downthe power supplycable and
prevent accidental disconnection.
4. XLR-M OUTPUTS: Usedto connect the mic signal to the mixing
console or preamp. Equipped to block other sources of phantom
power and prevent over-powering your condenser mic or active
direct box.
5. +12/48V SWITCH: Used to change the phantom supply from
the standard +48 volts to +12 volts for speciality microphones.
6. FULL-BOTTOM NO-SLIP PAD: Thisprovideselectrical isolation
and plenty of ‘stay-put’ friction to keep the SB-48 in one place. RADIAL ENGINEERING 3 YEAR TRANSFERABLE LIMITED
WARRANTY
RADIALENGINEERINGLTD.(“Radial”)warrantsthisproducttobefree fromdefectsinmaterial
and workmanship and will remedy any such defects free of charge according to the terms of
this warranty. Radial will repair or replace (at its option) any defective component(s) of this
product(excluding finish and wear and tear oncomponents under normal use) for a periodof
three (3) years from the original date of purchase. In the event that a particular product is no
longeravailable,Radialreserves theright toreplacetheproductwithasimilar productofequal
orgreater value. In the unlikely event thatadefect is uncovered, please call 604-942-1001 or
email [email protected] to obtain an RA number (ReturnAuthorization number) before
the3year warranty period expires. The product must be returned prepaid intheoriginal ship-
pingcontainer (or equivalent) to Radial or toanauthorized Radial repair center and youmust
assumetheriskof lossor damage.Acopyoftheoriginal invoiceshowingdateofpurchaseand
thedealer name mustaccompanyany requestforworkto beperformedunderthis limitedand
transferable warranty. This warranty shall not apply if the product has been damaged due to
abuse, misuse, misapplication, accident or as a result of service or modification by any other
than an authorized Radial repair center.
THEREARENOEXPRESSEDWARRANTIESOTHERTHANTHOSEONTHEFACEHEREOF
AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESSED OR IMPLIED,
INCLUDINGBUTNOTLIMITED TO,ANY IMPLIED WARRANTIES OF MERCHANTABILITY
ORFITNESSFORAPARTICULARPURPOSESHALLEXTENDBEYONDTHERESPECTIVE
WARRANTY PERIOD DESCRIBEDABOVE OF THREE YEARS. RADIAL SHALL NOT BE
RESPONSIBLEORLIABLEFORANYSPECIAL,INCIDENTALORCONSEQUENTIALDAM-
AGESOR LOSSARISING FROMTHEUSEOF THISPRODUCT. THIS WARRANTYGIVES
YOUSPECIFICLEGALRIGHTS,ANDYOUMAYALSOHAVEOTHERRIGHTS,WHICHMAY
VARYDEPENDINGONWHEREYOULIVEANDWHERETHEPRODUCTWASPURCHASED.
StageBug SB-48™User Guide - Part# R870 1221 00
© Copyright 2013 all rights reserved
Specifications and appearance are subject to change without notice.
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam BC V3C 5M5
tel: [phone] • fax: [phone]
[email protected] • www.radialeng.com
Stagebug SB-48 SPECIFICATIONS
USERGUIDE
6
4
3
5
1
2

INTRODUCTION
Thank you and congratulations on your purchase of the Radial
StageBug SB-48 dual phantom power supply. We have purposely
written this manual to be short, as most users will likely be familiar
with the use of phantom power. We do suggest that you take a mo-
ment to read through this document to familiarize yourself with the
features that are built into the SB-48. For more detailed information,
please visit the FAQ section on the Radial website. This is where we
post questions and answers that come from users after the product
is released. If you do not find an answer, we invite you to send us an
email at [email protected] and we will do our best to answer your
query in short order.
The StageBug SB-48 is a two channel phantom power supply de-
signedtoprovide condensermicrophonesand active directboxes with
12 or 48 volts of regulated power. The SB-48 can supply one or two
phantom powered devices and allows their use with audio systems
that do not supply phantom power on their own.
The SB-48 features XLR inputs and outputs wired to the AES stan-
dard,an LED powerindicator andcomes complete withpower supply.
An integrated lock-down clamp for the power supply cable protects
against accidental disconnection.To address speciality microphones
that require 12 volts, a recessed ‘set & forget’ switch reduces the
voltage output.
CONNECTION
Before connecting the StageBug SB-48 make sure the sound sys-
tem is turned off and all levels are set to zero. Do not connect the
powersupply until all connections to and from the SB-48 have been
made. This will avoid loud transients that could cause damage to
equipment downstream such as loudspeakers and tweeters. After
use, remember to turn off the PA system before you disconnect the
SB-48’s power supply and the mic lines.

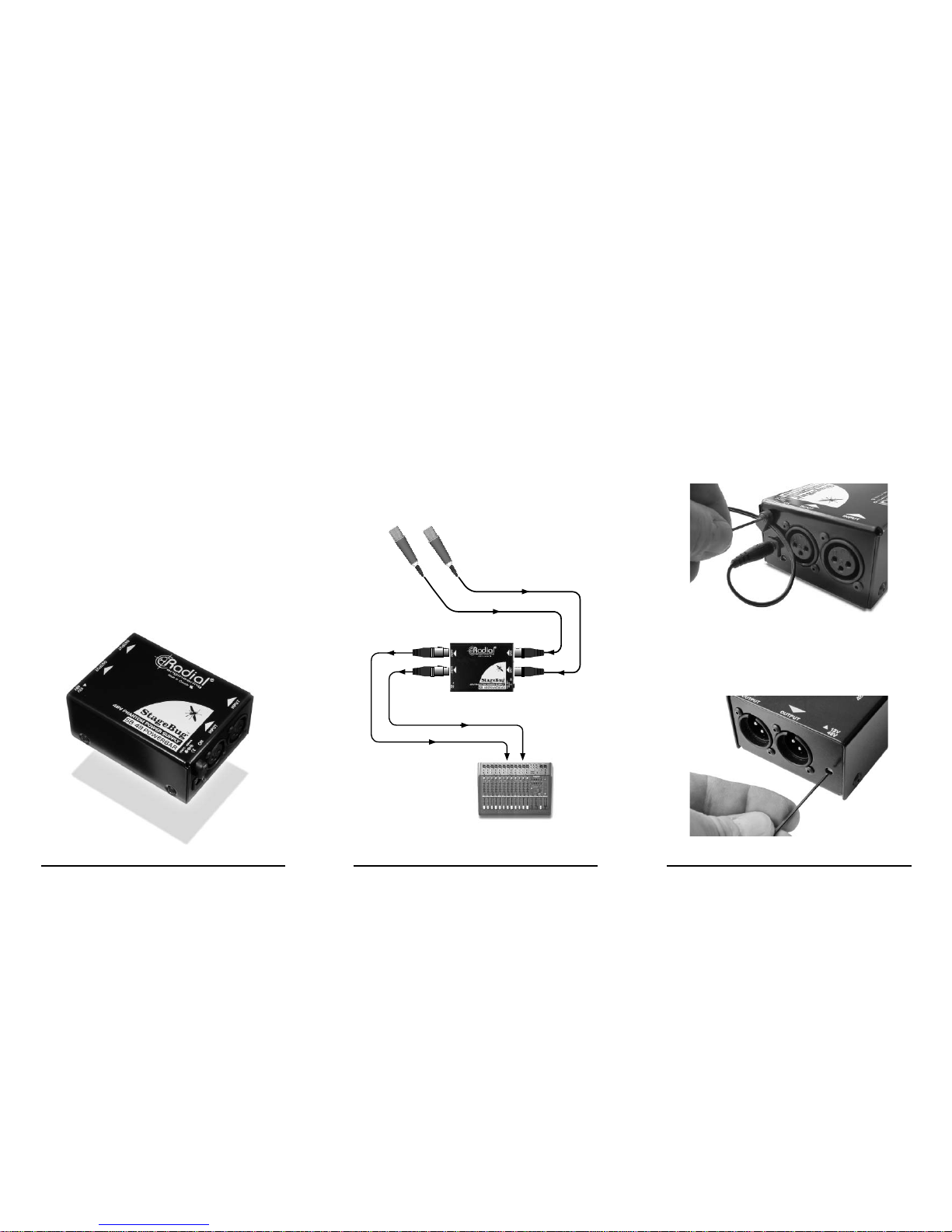

Using balanced XLR mic cables, connect the output of a condenser
microphone or active direct box to the XLR-F input. Next, connect
the XLR-M output to your mixing console or mic preamp. Connect
the second channel following the same steps.
Radial Engineering Ltd. Radial Engineering Ltd. Radial Engineering Ltd.
SB-48®Phantom Supply SB-48®Phantom Supply SB-48®Phantom Supply
CONNECT THE POWER
Afterthe audio connections aremade you can connectthe included
15V/400mAAC/DC power adapter to the SB-48’s power jack. The
power LED illuminates when the SB-48 is active. Turn your audio
system on and test the mic signals at a low volume to ensure the
system is properly connected and the microphones are working.
USING THE CABLE CLAMP
Ahandy cableclamp locatednext tothe powerjack canbe employed
to prevent accidental power disconnection. Use a hex driver to
loosen the cable clamp’s screw a few turns until the cable can be
looped through the clamp and re-tighten.
USING THE 12/48V SWITCH
You can set the phantom power voltage to 12 volts using the
recessed 48/12V switch on the side of the SB-48. Use a small
screwdriver to access the switch. When the switch is in the outward
position the SB-48 will supply 48 volts of phantom power. When set
to the inward position it will supply the mic with 12 volts.
