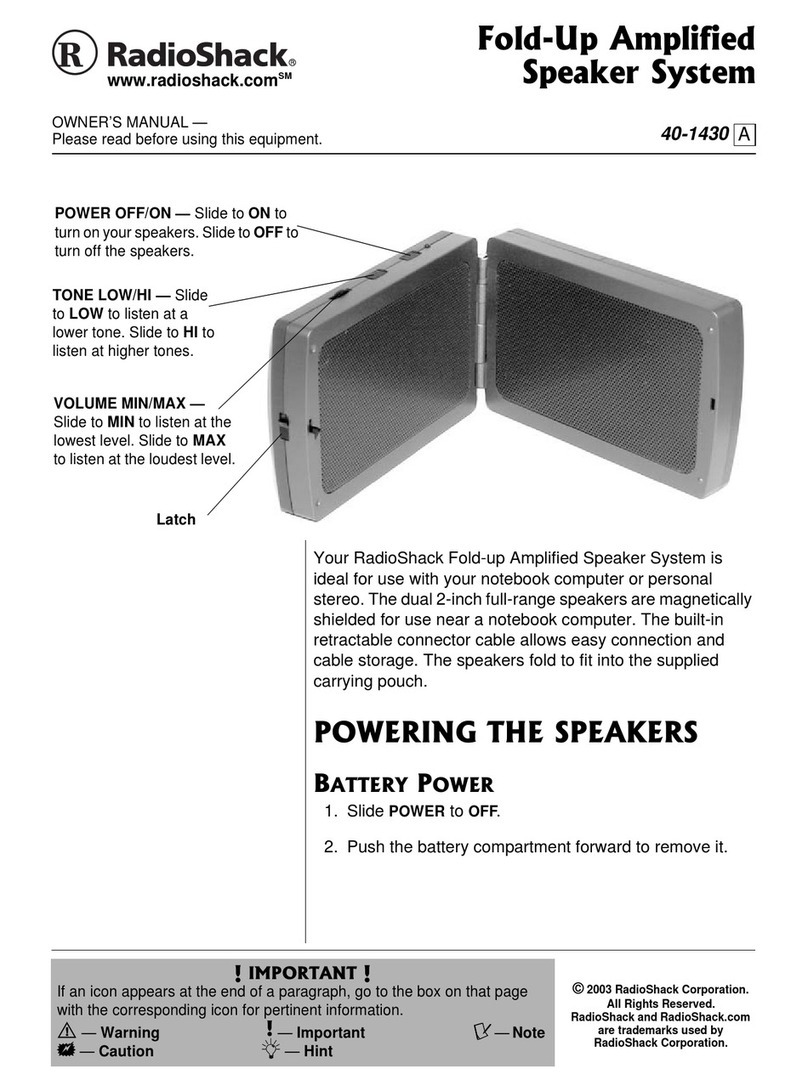

Radio Shack Fold-Up Amplified Speaker System User manual

©2003 RadioShack Corporation.
All Rights Reserved.
RadioShack and RadioShack.com
are trademarks used by
RadioShack Corporation.
OWNER’S MANUAL —
Please read before using this equipment.
www.radioshack.comSM
40-1430
A
Your RadioShack Fold-up Amplified Speaker System is
ideal for use with your notebook computer or personal
stereo. The dual2-inch full-range speakers are magnetically
shielded for use near a notebook computer. The built-in
retractable connector cable allows easy connection and
cable storage. The speakers fold to fit into the supplied
carrying pouch.
POWERING THE SPEAKERS
BATTERY POWER
1. Slide POWER to OFF.
2. Push the battery compartment forward to remove it.
POWER OFF/ON — Slide to ON to
turn on your speakers. Slideto OFF to
turn off the speakers.
T
ONE LOW/HI — Slide
t
oLOW to listen at a
l
ower tone. Slide to HI to
l
isten at higher tones.
V
OLUME MIN/MAX —
S
lide to MIN to listen at the
l
owest level. Slide to MAX
t
o listen at the loudest level.
Latch
Fold-Up Amplified
Speaker System
!IMPORTANT !
If an icon appears at the end of a paragraph, go to the box on that page
with the corresponding icon for pertinent information.
o—Warning !—Important Ô—Note
—Caution Ó—Hint

2
3. Install four AA batteries according to the polarities
marked inside the battery compartment. Ô
4. Replace the battery compartment cover.
5. To test the battery power, slide POWER to ON.The
indicator lights.
AC POWER
You can also power the speakers from a standard AC outlet
using an optional AC adapter (not supplied).
Cautions:
You must use a Class 2 power source that
supplies 6V DC and delivers at least 400 mA.
Its center tip must be set to positive and its
plug must fit the speaker'sDC 6V jack. Using an adapter
that does not meet these specifications could damage
the speakers or the adapter.
Slide POWER to OFF, then connect the AC adapter’s barrel
plug to the portable speaker’s DC 6V jack. Plug the other
end of the AC adapter into a standard 120V AC outlet. Ô
ÔBATTERY NOTES Ô
• Dispose of old batteries
promptly and properly.
• Do not burn or bury batteries.
• Use only fresh batteries of the
required size and
recommended type.
• Do not mix old and new
batteries, different types of
batteries (standard, alkaline, or
rechargeable), or rechargeable
batteries of different capacities.
• If you do not plan to use the
speakers for more than two
weeks, remove the batteries.
Batteries can leak chemicals
that can destroy electronic
parts.
DC 6V Jack Speaker Cable
Stereo Plug
!
ÔNOTE Ô
When you connect AC power, the
battery power is automatically
disconnected.

3
OPERATION
1. Place the unopened speakers on a level surface.
2. Slide POWER to OFF and rotate VOLUME to MIN until it
stops.
3. Pull the speaker cable’s 3.5mm stereo plug on the right
side all the way out and stop pulling when the white
stripe on the cable appears. Insert it into the notebook
computer’s or the stereo’s audio output jack.
4. Push the speaker cabinet’s latch on the left side of the
cabinet up and hold it. Then open the speaker cabinet.
5. Slide POWER to ON. The indicator lights.
6. Adjust VOLUME and TONE as desired.
7. When you finish using the speakers, slide POWER to
OFF. The indicator goes off. Close the speaker cabinet
until it clicks.
8. Disconnect the cable then pull the cable again so it
automatically retracts back into the cabinet. Hold onto
the stereo plug whileretractingthe cable to keep it from
hitting your hand or other objects. Ô
CARE
Keep the speakers dry; if they get wet, wipe them dry
immediately. Use and store the speakers only in normal
temperature environments. Handle the speakers carefully;
do not drop them. Keep the speakers away from dust and
dirt, and wipe them with a damp cloth occasionally to keep
them looking new. 
SERVICE AND REPAIR
If your speakers are not performing as they should, take
them to your local RadioShack store for assistance. To
locate your nearest RadioShack, use the store locator
feature on RadioShack's website (www.radioshack.com), or
call 1-800-The Shack (843-7422) and follow the menu
options. Modifying or tampering with the speaker's internal
components can cause a malfunction and might invalidate
their warranty.
ÔNOTE Ô
• Pulling the cable so it exceeds
the white stripe prevents the
cable from retracting smoothly.
If the cable stops or retracts
back while pulling, slightly pull
the cable to release it for
retraction. Then pull the cable to
the desired length to release it.
• If the cable stops during
retraction, pull it again and hold
it until it completely retracts
back into the cabinet.
CAUTION 
You might permanently damage
your speakers by cleaning them
with a vacuum cleaner. Use a
feather duster or a soft loose cloth
instead.

40-1430
03A03
Printed in China
A
RadioShack Corporation
Fort Worth, Texas 76102
SPECIFICATIONS
Speaker .................................................................................. 2 inches full range amplified speaker (50mm)
Output Power ......................................................................................... 0.5W/per channel maximum power
Frequency Range .................................................................................................................. 200–12,000Hz
Speaker Plug .................................................................................................................... 3.5mmstereoplug
Operating Voltage ................................................................................................................................ DC6V
Power Source ............................................................................................. 4 AA batteries or input 120V AC,
output 6V DC 400mA adapter
Battery Life ............................................................................................................................ About 22 hours
(alkaline batteries, continuous play)
Speaker Impedance .......................................................................................................................... 8Ohms
Drive Current (At 0.5W) ...................................................................................................................... 350mA
Dimensions (WHD ) ...................................................................................................... 6 ×37/8×21/8inches
(155 ×100 ×53 mm)
Weight (including batteries)................................................................................................... 16.58 oz (470g)
