Radio Shack Compact Deluxe CB Walkie-Talkie User manual

Owner’s Manual Please read before using this equipment.
Compact Deluxe
CB Walkie-Talkie
with Digital Weather Alert
21-1679r.fm Page 1 Wednesday, October 18, 2000 2:14 PM

2
ˆ
Contents
Features ........................................................................................................... 4
A Look at Your Walkie-Talkie .......................................................................... 6
Preparation ...................................................................................................... 7
Powering the Walkie-Talkie ........................................................................ 7
Using the Ni-MH Battery Pack ............................................................ 7
Using the AA Battery Case ................................................................. 8
Using AC Power .................................................................................. 9
Using Vehicle Battery Power ............................................................... 9
Connecting an Antenna ........................................................................... 10
Connecting an Optional Antenna ...................................................... 10
Connecting an External Speaker ............................................................. 11
Connecting an External Speaker/Microphone .......................................... 11
Operation ....................................................................................................... 12
Receiving Transmissions and Adjusting Squelch .................................... 12
Transmitting ............................................................................................. 12
Turning the Back Light On/Off .................................................................. 13
Turning the Key Tone On/Off .................................................................... 13
Using the Key Lock .................................................................................. 13
Using Channel 9/19 .................................................................................. 13
Scanning the Channels ............................................................................ 14
Power Save .............................................................................................. 14
Listening to the Weather Band ................................................................. 14
Listening to a Weather Channel ........................................................ 14
Turning Digital Weather Alert On/Off ................................................ 14
Understanding Digital Weather Alert ................................................. 15
Operational Hints .......................................................................................... 16
Common Uses For a CB .......................................................................... 16
Business Uses .................................................................................. 16
Personal Uses .................................................................................. 16
Transmission Courtesy ............................................................................ 16
Maximum Range ...................................................................................... 17
Using Common10-Codes ......................................................................... 17
Care ................................................................................................................ 18
Specifications ................................................................................................ 19
©2000 RadioShack Corporation.
All Rights Reserved.
RadioShack, RadioShack.com, and Adaptaplug are trademarks used by RadioShack Corporation.
21-1679r.fm Page 2 Wednesday, October 18, 2000 2:14 PM

3
ˆ
The FCC Wants You to Know
The Federal Communications Com-
mission (FCC) does not require you
to have a license to operate this CB.
However, the FCC does require that
you read and know Part 95 of
FCC
Rules
. These rules apply to the oper-
ation of a Class D CB. We have pro-
vided a copy of these regulations with
your CB.
Warning: Do not open your CB to
make any internal adjustments. Any
internal adjustments can be made
only by an authorized service techni-
cian.
Unauthorized internal adjustments
and/or modifications can lead to ille-
gal operation as defined by Part 95 of
FCC Rules
. Such illegal operation
can lead to very serious consequenc-
es.
Your CB might cause TV or radio in-
terference even when it is operating
properly. To determine whether your
CB is causing the interference, turn
off your CB. If the interference goes
away, your CB is causing it. Try to
eliminate the interference by either
moving your CB away from the re-
ceiver or contacting your local Ra-
dioShack store for help. If you cannot
eliminate the interference, the FCC
requires that you stop using your CB.
21-1679r.fm Page 3 Wednesday, October 18, 2000 2:14 PM

4Features
ˆ
Features
Your RadioShack Compact Deluxe
CB Walkie-Talkie is a high perfor-
mance CB transceiver that also lets
you tune into local weather service
broadcasts, letting you hear local
weather conditions and forecasts
wherever you travel. This walkie-talk-
ie is perfect for recreational, busi-
ness, or emergency use. You can call
other people who have CBs at home,
in their vehicles, or at camp sites. You
can also connect optional equipment
to your walkie-talkie, such as external
speakers, or a DC power supply and
base station antenna to set up a base
station in your home.
Your walkie-talkie has the following
features.
Seven Weather Channels — let you
select and hear your local National
Oceanic and Atmospheric Adminis-
tration (NOAA) weather broadcasts.
Digital Weather Alert— uses Specif-
ic Area Message Encoding (SAME)
digital information to determine and
display the level of weather events
(does not limit alerts to a specific ar-
ea).
Supplied Ni-MH Rechargeable Bat-
tery and Battery Charger — pro-
vides plenty of power for your walkie-
talkie.
40 CB Channels, Full Legal Power
— lets you use the full range of CB
channels with the full legal power al-
lowed for a handheld CB.
No License Required — you can
use your walkie-talkie without fees,
age restrictions, or licensing require-
ments.
Flexible Antenna with BNC Con-
nector — provides adequate recep-
tion in strong signal areas and is
designed to help prevent antenna
breakage. Or, you can connect an ex-
ternal antenna for better reception.
Instant Channel 9/19 Switching —
lets you quickly tune to emergency
channel 9 or channel 19, making it
easy to report or monitor emergency
situations.
Scan — lets you quickly search all
CB and weather frequencies, so you
can quickly find transmissions in or
about your area.
High/Low Power Button — lets you
save power by selecting a suitable
transmitting power for long or short
distances.
Supplied AA Battery Case — lets
you use inexpensive AA batteries to
power your walkie-talkie.
Four Power Options — let you pow-
er the walkie-talkie using the supplied
Ni-MH battery pack or AA battery
case, external AC power using an op-
21-1679r.fm Page 4 Wednesday, October 18, 2000 2:14 PM

5
Features
tional DC power supply, or DC power using an optional DC cigarette-lighter pow-
er cable.
Your walkie-talkie receives and transmits on these CB channels.
In addition, your walkie-talkie can receive these weather service channels:
Channel Frequency
(MHz) Channel Frequency
(MHz) Channel Frequency
(MHz)
1 26.965 15 27.135 28 27.285
2 26.975 16 27.155 29 27.295
3 26.985 17 27.165 30 27.305
4 27.005 18 27.175 31 27.315
5 27.015 19 27.185 32 27.325
6 27.025 20 27.205 33 27.335
7 27.035 21 27.215 34 27.345
8 27.055 22 27.225 35 27.355
9 27.065 23 27.255 36 27.365
10 27.075 24 27.235 37 27.375
11 27.085 25 27.245 38 27.385
12 27.105 26 27.265 39 27.395
13 27.115 27 27.275 40 27.405
14 27.125
Channel Frequency
(MHz) Channel Frequency
(MHz) Channel Frequency
(MHz)
1 162.400 4 162.475 7 162.550
2 162.425 5 162.500
3 162.450 6 162.525
21-1679r.fm Page 5 Wednesday, October 18, 2000 2:14 PM

6A Look at Your Walkie-Talkie
ˆ

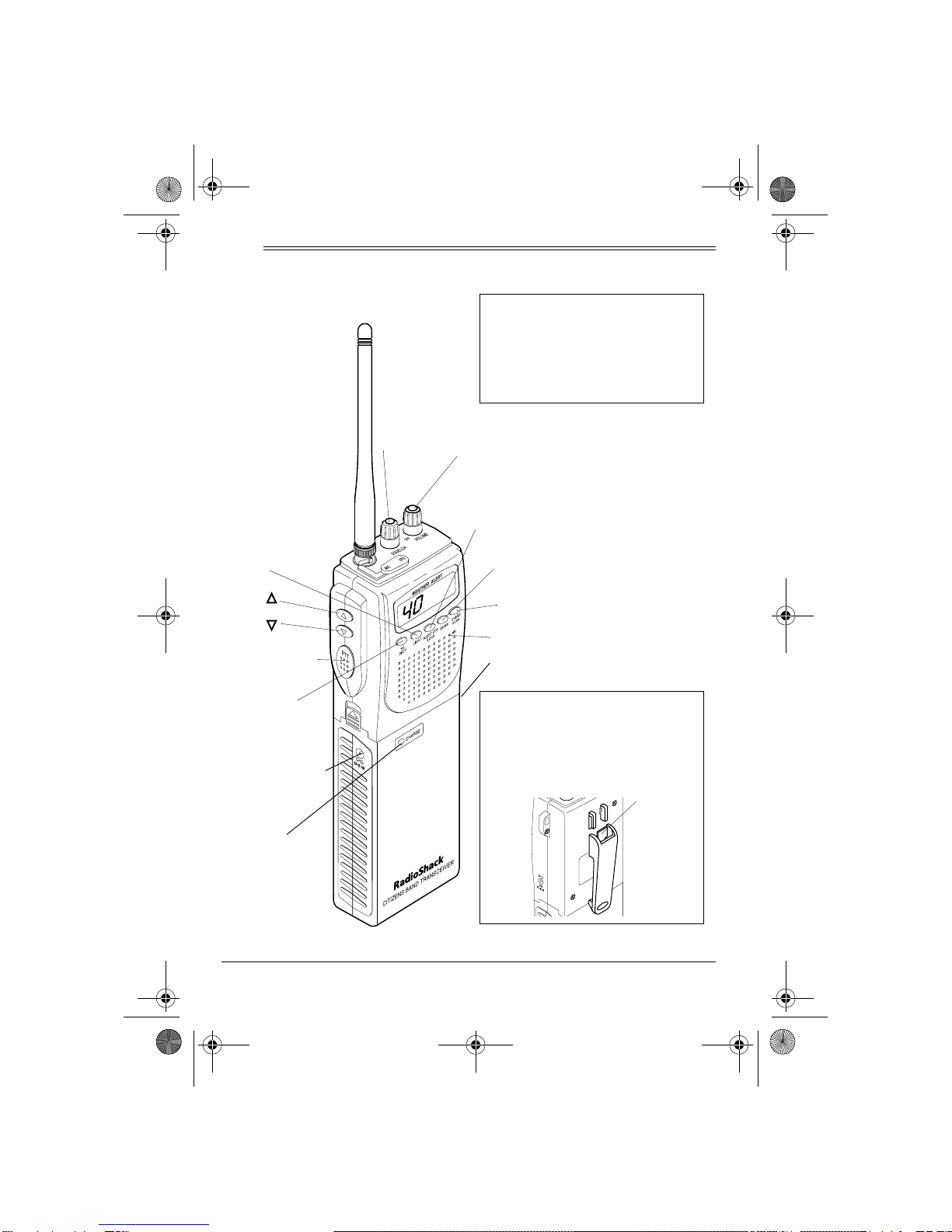

A Look at Your Walkie-Talkie
SQUELCH OFF/VOLUME
PTT
H/L / BEEP
LIGHT
ALERT OFF / LOCK
CB/WX
CH9/19 / SCAN
MIC (Microphone)
Using the Wrist Strap
To attach the supplied wrist strap, thread
thestrap’ssmallloopthrough thewriststrap
hole at the right side of the walkie-talkie.
Then insert the longer loop through the
smaller loop and pull on the strap until the
loop is tight.
Using the Belt Clip
To remove the belt clip, pull the tab on the
back of the walkie-talkie and slide the belt-
clip down.
To reattach the belt clip, slide it up until it
locks into place.
Tab
(Push-to-Talk)
Charging Ni-MH
Jack
CHARGE
Indicator
12V DC Adapter Jack
21-1679r.fm Page 6 Wednesday, October 18, 2000 2:14 PM

7
Preparation
ˆ
Preparation
POWERING THE
WALKIE-TALKIE
You can power your walkie-talkie
from any of these sources:
• supplied rechargeable Ni-MH
(nickel-metal-hydride) battery
pack
• eight AA batteries (not supplied)
using the supplied AA battery
case
• vehicle power using an optional
DC power cord
• standard AC power using an
optional DC power supply
Note: If you attach the supplied AA
battery case to the walkie-talkie, you
can operate the walkie-talkie and re-
charge the Ni-MH battery pack at the
same time. See “Using the Ni-MH
Battery Pack” below and “Using the
AA Battery Case” on Page 8.
Using the Ni-MH
Battery Pack
You can use the supplied Ni-MH
battery pack to power the walkie-
talkie. You must charge the Ni-MH
battery pack (using the supplied bat-
tery charger) for about 18 hours the
first time you use it. It takes about 14–
16 hours to recharge a Ni-MH battery
pack that is fully discharged. You can
charge the Ni-MH battery pack while
it is installed or removed.
Cautions:
You must use a Class 2
power source that sup-
plies 16V DC and de-
livers at least 200 mA. Its center
tip must be set to positive and its
plug must fit the walkie-talkie’s
CHG jack. The supplied battery
charger meets these specifica-
tions. Using a battery charger
that does not meet these specifi-
cations could damage the walkie-
talkie or the battery charger.
• Always connect the battery
charger to the Ni-MH battery
pack before you connect it to AC
power. When you finish, discon-
nect the battery charger from AC
power before you disconnect it
from the Ni-MH battery pack.
• Use only the supplied battery
charger to recharge the Ni-MH
battery pack. Other battery
chargers might damage your
walkie-talkie or the Ni-MH battery
pack.
1. If the walkie-talkie is on, turn
OFF/VOLUME fully counterclock-
wise until it clicks to turn it off.
!
21-1679r.fm Page 7 Wednesday, October 18, 2000 2:14 PM

8Preparation
2. Connect the supplied battery
charger’s barrel plug to the CHG
jack on the side of the Ni-MH bat-
tery pack, then insert the battery
charger’s plug into a standard
AC outlet.
3. To install the Ni-MH battery pack,
slide it onto the walkie-talkie until
it clicks.
Caution: The battery pack fits
onto the walkie-talkie only one
way. Do not force it.

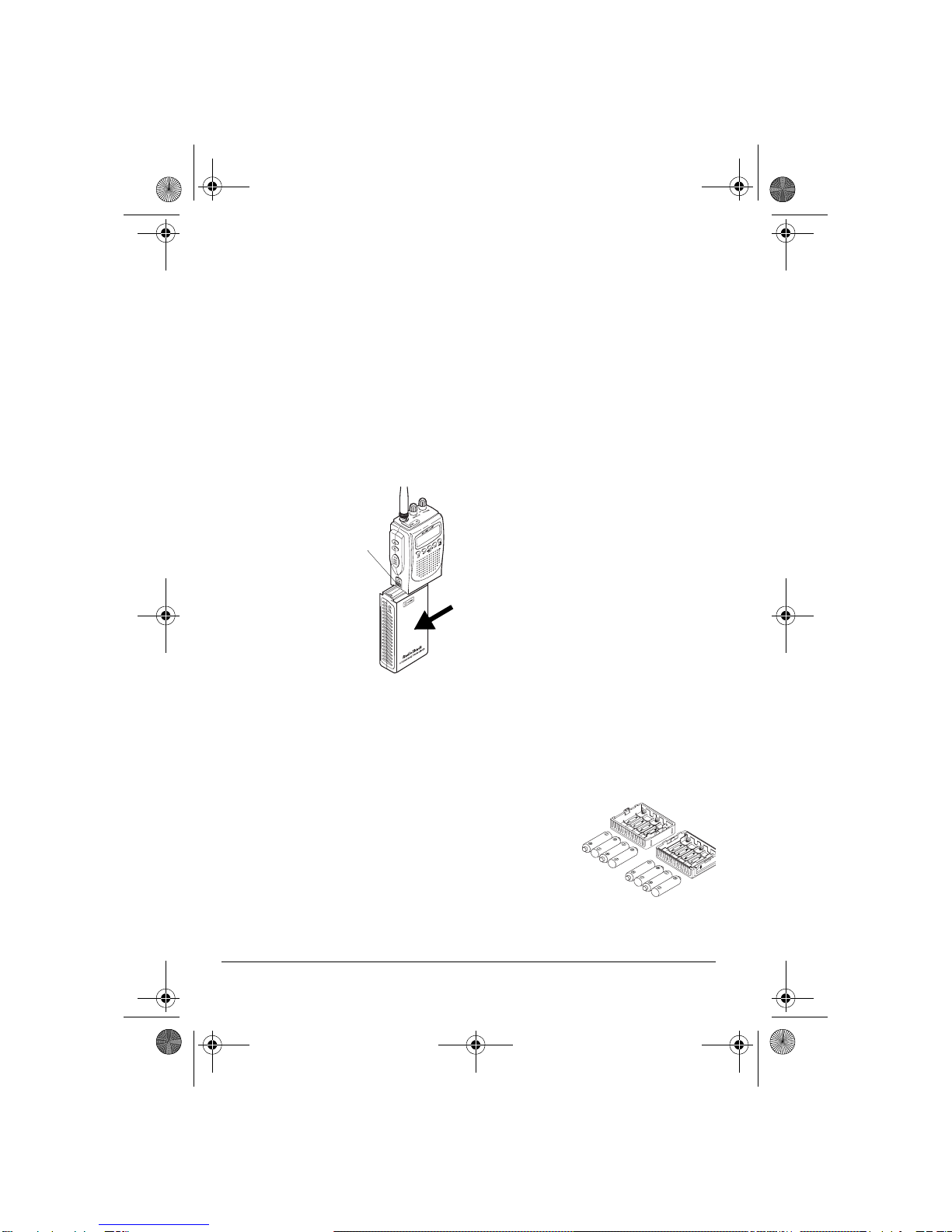

To remove the Ni-
MH battery pack,
slide the case in
the direction of the
arrow as shown
here while holding
up the latch on the
side of the walkie-
talkie.
Notes:
• The Ni-MH battery pack will last
longer and deliver more power if
you occasionally let it fully dis-
charge. To do this, simply use the
walkie-talkie until it no longer
transmits or receives.
• Do not charge the Ni-MH battery
pack at temperatures below 14°F
(–10°C) or above 131°F (55°C).
• Do not overcharge the Ni-MH
battery pack. Overcharging can
severely reduce its useful life.
Using the AA Battery Case
Your walkie-talkie can use eight AA
batteries (not supplied), installed in
the supplied battery case, for power.
For the best performance and longest
life, we recommend RadioShack alka-
line batteries.
Cautions:
• Use only fresh batteries of the
required size and recommended
type.
• Do not mix old and new batteries,
different types of batteries (stan-
dard, alkaline, or rechargeable),
or rechargeable batteries of dif-
ferent capacities.
1. If the walkie-talkie is on, turn
OFF/VOLUME fully counterclock-
wise until it clicks to turn it off.
2. If the battery case is attached to
the walkie-talkie, slide the case
in the direction of the arrow while
holding up the latch on the side
of the walkie-talkie.
3. Pull the halves of the battery
case apart to open it.
4. Place the
batteries
inside
both
halves of
the bat-
tery case,
as indicated by the polarity sym-
bols (+ and –) marked inside.
Latch
21-1679r.fm Page 8 Wednesday, October 18, 2000 2:14 PM

9
Preparation
5. Snap the halves of the battery
case together to close it, then
slide the case onto the walkie-
talkie until it clicks.
Caution: The battery case fits
onto the walkie-talkie only one
way. Do not force it.
When the sound becomes weak or
distorted, appears, or the walkie-
talkie stops operating properly, re-
place the batteries.
Warning: Dispose of old batteries
promptly and properly. Do not burn or
bury them.
Caution: If you do not plan to use the
walkie-talkie with batteries for two
weeks or longer, remove the batter-
ies. Batteries can leak chemicals that
can destroy electronic parts.
Using AC Power
You can power the walkie-talkie using
an optional DC power cord that pro-
vides 12V at 2.5 amps and a regulat-
ed 12V DC power supply, (neither
supplied). Both are available from
your local RadioShack store.
Cautions:
You must use a Class 2
power source that sup-
plies regulated 13.8V
DC and delivers at least 2.5A. Its
center tip must be set to positive
and its plug must fit the walkie-
talkie’s 12V DC PWR jack. Using a
power cord that does not meet
these specifications could dam-
age the walkie-talkie or the
adapter.
• Always connect the power supply
to the walkie-talkie before you
connect it to AC power. When
you finish, disconnect the power
supply from AC power before
you disconnect it from the walkie-
talkie.
Follow these steps to operate the
walkie-talkie from AC power.
1. If the walkie-talkie is on, turn
OFF/VOLUME fully counterclock-
wise until it clicks to turn it off.
2. Insert the power cord’s barrel
plug into the walkie-talkie’s 12V
DC PWR jack.
3. Plug the power cord’s other end
into the DC power supply.
4. Plug the power supply’s cord into
a standard AC outlet.
Using Vehicle Battery Power
You can power the walkie-talkie from
a vehicle’s 12V power source (such
as a cigarette-lighter socket) using a
DC adapter and a size H Adapta-
plug™ connector (neither supplied).
Both are available from your local
RadioShack store.
!
21-1679r.fm Page 9 Wednesday, October 18, 2000 2:14 PM

10 Preparation
Cautions:
You must use a regu-
lated Class 2 power
source that supplies
regulated 12V DC and delivers at
least 2.5A. Its center tip must be
set to positive and its plug must
fit the walkie-talkie’s 12V DC PWR
jack. Using a power cord that
does not meet these specifica-
tions could damage the walkie-
talkie or the adapter.
• Always connect the power supply
to the walkie-talkie before you
connect it to DC power. When
you finish, disconnect the power
supply from DC power before
you disconnect it from the walkie-
talkie.
Caution: You cannot use DC power
to recharge the supplied Ni-MH bat-
tery pack.
Follow these steps to operate the
walkie-talkie from DC power.
1. If the walkie-talkie is on, turn
OFF/VOLUME fully counterclock-
wise until it clicks to turn it off.
2. Insert the Adaptaplug into the
adapter so it reads TIP +, then
insert the barrel plug into the
walkie-talkie’s
12V DC PWR jack.
3. Plug the other end into your vehi-
cle’s 12V power source.
CONNECTING AN
ANTENNA
To attach the supplied flexible anten-
na to the connector on the top of your
walkie-talkie, align the slots around
the antenna’s connector with the tabs
on the walkie-talkie’s BNC connec-
tor. Then slide the antenna’s connec-
tor down over the walkie-talkie’s
connector and rotate the antenna
connector’s outer ring clockwise until
it locks into place.
Connecting an Optional
Antenna
The walkie-talkie’s BNC connector
makes it easy to connect a variety of
optional antennas, including an exter-
nal mobile antenna or outdoor base
station antenna. Your local
RadioShack store sells a wide selec-
tion of antennas.
Always use 50-ohm, RG-58, or RG-8,
coaxial cable to connect an outdoor
antenna. If the antenna is over 50 feet
from the walkie-talkie, use RG-8 low-
loss dielectric coaxial cable. If your
antenna’s cable does not have a BNC
connector, your local RadioShack
store carries a variety of BNC adapt-
ers.
Warning: When you install an out-
door antenna, use extreme caution. If
the antenna starts to fall, let it go! It
could contact overhead power lines. If
the antenna touches the power line,
contact with the antenna, mast, cable,
!
21-1679r.fm Page 10 Wednesday, October 18, 2000 2:14 PM

11
Preparation
or guy wires can cause electrocution
and death. Call the power company to
remove the antenna. Do not attempt
to remove it yourself!
CONNECTING AN
EXTERNAL SPEAKER
In a noisy area, an optional external
speaker, positioned in the right place,
might provide more comfortable lis-
tening. Plug the speaker cable’s 1/8-
inch (3.5-mm) mini-plug into your
walkie-talkie’s
SPK jack. This discon-
nects the walkie-talkie’s internal
speaker.
Your local RadioShack store carries a
selection of suitable speakers.
CONNECTING AN
EXTERNAL SPEAKER/
MICROPHONE
You can use an external speaker/mi-
crophone (not supplied). Plug the
speaker/microphone’s connector into
the walkie-talkie’s MIC and SPK jacks.
This disconnects the walkie-talkie’s
internal speaker.
Your local RadioShack store carries a
selection of suitable speaker/micro-
phones.
21-1679r.fm Page 11 Wednesday, October 18, 2000 2:14 PM

12 Operation
ˆ
Operation
Before you use your walkie-talkie,
you should know how to use it effec-
tively and courteously. “Operational
Hints” on Page 16 contains informa-
tion that will help you get more enjoy-
ment from your walkie-talkie.
RECEIVING
TRANSMISSIONS AND
ADJUSTING SQUELCH
1. Turn SQUELCH fully counter-
clockwise.
2. Rotate OFF/VOLUME clockwise
until it clicks to turn on the
walkie-talkie. A channel number
appears.
3. If necessary, repeatedly press
CB/WX until a channel number
and the signal meter appear (to
select the CB band) or until the
signal meter disappears (to
select the weather band).
4. Repeatedly press8
88
8or9
99
9on the
side of the walkie-talkie to select
the desired channel.
Note: If you press8
88
8when the
walkie-talkie is tuned to channel
40, the channel selector returns
to channel 1. If you
press9
99
9when you are tuned to
channel 1, the channel selector
returns to channel 40.
5. Adjust OFF/VOLUME to the
desired listening level.
6. To cut out background noise
between transmissions, wait until
there is no signal on the channel,
then slowly turn SQUELCH clock-
wise until the background noise
stops.
Note: Do not turn SQUELCH too
far clockwise because you might
cut out weak signals.
7. To turn off the walkie-talkie, turn
OFF/VOLUME counterclockwise
until it clicks.
TRANSMITTING
We recommend you try receiving
transmissions on the walkie-talkie be-
fore you try to transmit. Follow these
steps to transmit.
1. Hold down PTT on the side of the
walkie-talkie. TX appears and
the signal meter shows the out-
put level. Hold the walkie-talkie
about 2–3 inches from your
mouth and speak slowly and
clearly in a normal tone of voice.

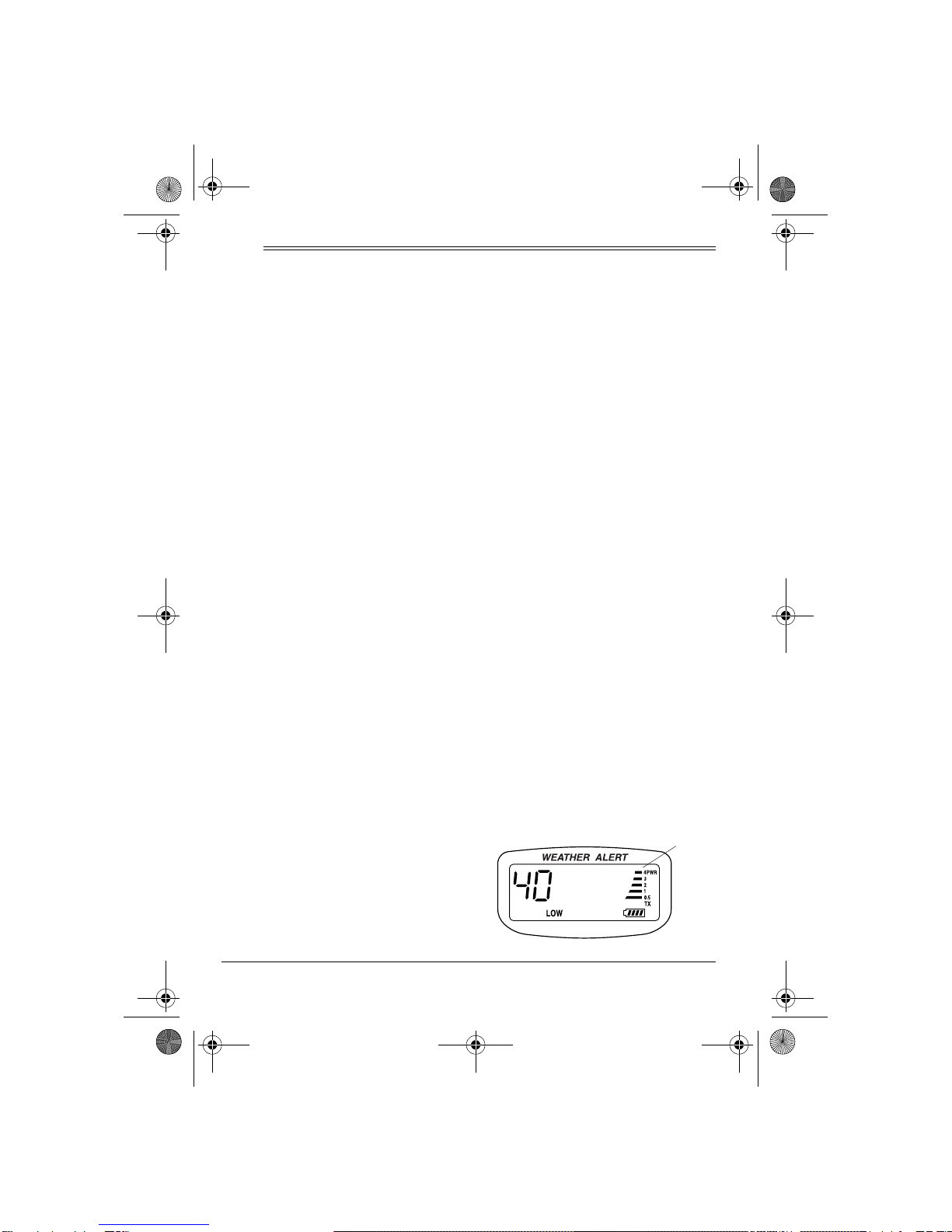

Signal
Meter
21-1679r.fm Page 12 Wednesday, October 18, 2000 2:14 PM

13
Operation
2. When you finish transmitting,
release
PTT.
Note: If you transmit while the
walkie-talkie is displaying a
weather alert (see “Understand-
ing Digital Weather Alert” on
Page 15), the alert tone turns off
and WX flashes. To turn off the
alert tone without transmitting,
press
ALERT OFF.
3. To set the walkie-talkie to a low
power level, press H/L. LOW
appears. To set the walkie-talkie
to its maximum power level,
press H/L again. LOW disap-
pears.
4. To turn off the walkie-talkie, turn
OFF/VOLUME counterclockwise
until it clicks.
TURNING THE BACK
LIGHT ON/OFF
Press LIGHT to turn the back light on
and off. If you do not turn the light off
manually, it automatically turns itself
off after about 5 seconds.
TURNING THE KEY
TONE ON/OFF
You can set the walkie-talkie so it
sounds a tone when you press any
key except PTT.
To turn the key tone on, hold down
BEEP for about 2 seconds. ap-
pears. The walkie-talkie sounds a
beep when you press any key except
PTT. To turn the key tone off, hold
down BEEP for about 2 seconds so
disappears.
USING THE KEY LOCK
You can lock the walkie-talkie’s con-
trols (except PTT and LIGHT) to pre-
vent accidental setting changes.
To lock the walkie-talkie, hold down
LOCK for about 2 seconds until
appears. To unlock the walkie-talkie,
hold down LOCK until disappears.
USING CHANNEL 9/19
You can use CH9/19 to select channel
9 or 19. Press CH9/19 once to select
channel 9 so 09 flashes. Press CH9/
19 twice to select channel 19 so 19
flashes. Press CH9/19 three times to
return to the previously selected
channel.
Important: Channels 9 and 19 are re-
served for motorist assistance and for
reporting emergency information
about accidents, hazardous road con-
ditions, and so on. Always give emer-
gency messages priority on channels
9 and 19.
Note: When you select channel 9 or
19, you cannot press 8#
8#8#
8# or 9#
9#9#
9# to
change channels.
21-1679r.fm Page 13 Wednesday, October 18, 2000 2:14 PM

14 Operation
SCANNING THE
CHANNELS
You can set the walkie-talkie so it
scans the CB or weather channels,
stopping when it receives a strong
signal.
Press CB/WX to select the desired
band, then hold down SCAN for about
2 seconds. SCAN appears, and the
scanner scans through all channels in
the selected band.
To turn off scanning, hold down SCAN
for about 2 seconds.
Note: When you turn on the walkie-
talkie for the first time, the scan fea-
ture is automatically set to on in the
WX mode.
POWER SAVE
If you do not press any key or if the
walkie-talkie does not receive any
signal for about 10 seconds, the
walkie-talkie automatically switches
itself to battery save mode. P.SAVE
flashes.
LISTENING TO THE
WEATHER BAND
The FCC (Federal Communications
Commission) has allocated channels
for use by the National Oceanic and
Atmospheric Administration (NOAA).
Regulatory agencies in other coun-
tries have also allocated channels for
use by their weather reporting author-
ities.
NOAA and your local weather report-
ing authority broadcast your local
forecast and regional weather infor-
mation on one or more of these chan-
nels.
Listening to a Weather
Channel
To hear your local forecast and re-
gional weather information, press CB/
WX to select the desired band. The
walkie-talkie scans through the
weather band then stops within a few
seconds on the strongest weather
broadcast, and WX and the weather
channel number appear.
Note: You cannot adjust the walkie-
talkie’s power level or switch to CB
channel 9 or 19 while listening to a
weather channel.
Turning Digital Weather
Alert On/Off
To turn off the digital weather alert,
press ALERT OFF so WX disappears
when there is no alert signal in the CB
mode. The key tone does not sound
when you press ALERT OFF in this
case. To turn on the digital weather
alert again, press ALERT OFF so WX
flashes.
21-1679r.fm Page 14 Wednesday, October 18, 2000 2:14 PM

15
Operation
Understanding Digital
Weather Alert
Notes:
• The scanner does not display the
actual location referenced by
SAME messages. It uses only
the message portion of the
SAME signal.
• If severe weather threatens, do
not wait for an alert tone; turn on
the weather broadcast and moni-
tor the weather information.
• If a weather signal ends, the
walkie-talkie beeps three times if
the key tone is turned on and
only when the weather signal
ends the first time, then WX
flashes to indicate no signal.
• To turn off the alert tone, press
ALERT OFF.
The weather service precedes each
weather alert with a digitally-encoded
SAME signal, then a 1050 Hz tone.
When you select the CB band, the
digital weather alert function is auto-
matically turned on. When your local
weather station broadcasts a weather
alert signal, the walkie-talkie sounds
an alert tone and displays a code,
showing the level of alert being
broadcast.
During inclement weather conditions,
the weather service broadcasts event
codes (codes that end with A, W, S, or
E), and TOR (tornado), SVR (severe
weather), and RWT (test).
If the walkie-talkie receives any code
ending in A(watch), it sounds a dis-
tinctive watch alert tone for about 10
seconds and WCH (watch) appears.
If the walkie-talkie receives any code
ending in W(warning) or TOR or SVR,
it sounds a distinctive warning alert
tone for about 10 seconds and WRN
(warning) appears.
If the walkie-talkie receives any code
ending in S(statement) or RWT, it
sounds a distinctive statement alert
tone for about 10 seconds and SMT
(statement) appears.
If the digital weather alert feature is
on, WX flashes or lights as described
below when you set the walkie-talkie
to CB mode.
• If the walkie-talkie detects a
weather signal and the WX scan
is on, WX repeatedly lights 2 sec-
onds then flashes twice.
• If the walkie-talkie detects no
weather signal and the WX scan
is on, WX flashes.
• If the walkie-talkie detects a
weather signal and the WX scan
is off, WX lights steadily.
• If the walkie-talkie detects no
weather signal and the WX scan
is off, WX flashes.
21-1679r.fm Page 15 Wednesday, October 18, 2000 2:14 PM

16 Operational Hints
ˆ
Operational Hints
Like most activities, CB radio has its
customs and courtesies. The follow-
ing tips will help you get the most en-
joyment from your walkie-talkie.
COMMON USES FOR
ACB
Business Uses
• Truck drivers and delivery per-
sonnel can learn road and traffic
conditions and get assistance in
locating destinations. A CB is
also good company on long road
trips.
• On construction crews, a CB
quickly pays for itself when you
are calling for additional materi-
als or coordinating the activities
of different work crews.
• For security officers, a CB is
more than a convenience — it is
a must for both safety and effi-
ciency.
Personal Uses
• Keep in touch with home while
driving to work, to the store, or to
a social activity. Let your family
know you are tied up in traffic or
that you will stop by the store on
the way home.
• If you are a two-car (or more)
family, CBs are great for commu-
nicating with family members
while they are in their cars.
• Contact friends or neighbors —
find out “what’s happening” or
plan a get-together.
• Ever have car trouble or run out
of gas on the highway? What an
assurance it is to be able to call
for assistance!
• Camping, fishing, and other
sports are more fun with a CB.
Locate a buddy or find out
“what’s cooking” back at camp.
TRANSMISSION
COURTESY
• Wait for a pause in someone
else’s transmission before you
ask for a break.
• If you do not receive an answer
to your call after a second
attempt, sign off and wait several
minutes before trying again.
• Do not hold down PTT when you
are not talking. (This is called
dead keying.)
• Assist callers with directions,
information about road condi-
tions, and any other reasonable
requests.
21-1679r.fm Page 16 Wednesday, October 18, 2000 2:14 PM

17
Operational Hints
MAXIMUM RANGE
The maximum range and quality of
CB transmissions vary depending on
the following conditions:
• the type and quality of antenna
used
• the height of the antenna’s
mounting location (the higher the
antenna, the better the signal’s
range)
• the surrounding terrain (moun-
tains and tall buildings limit the
range)
• weather conditions
• the number of nearby CBs oper-
ating on the same channel
Note: Your walkie-talkie’s transmis-
sion range is generally line-of-sight.
To ensure maximum range, always
keep fresh or fully-charged batteries
in your CB.
USING COMMON
10-CODES
Citizen’s Band operators have large-
ly adopted the 10-codes for standard
questions and answers. These codes
permit faster communication and bet-
ter intelligibility in noisy areas. While
not all codes are listed, the following
chart contains most of the more popu-
lar ones.
Code Meaning
10-1 Receiving poorly.
10-2 Receiving well.
10-3 Stop transmitting.
10-4 OK, message received.
10-5 Relay message.
10-6 Busy, please stand by.
10-7 Out of service.
10-8 In service
10-9 Repeat message.
10-10 Transmission completed, standing
by.
10-11 Talking too rapidly.
10-12 Visitors present.
10-13 Advise Weather/Road
conditions.
10-17 Urgent business.
10-18 Anything for us?
10-19 Nothing for you. Return to base.
10-20 My location is____.
10-21 Call by telephone.
10-22 Report in person to____.
10-23 Please stand by.
10-25 Can you contact____.
10-26 Disregard last information.
10-27 I am moving to channel____.
10-28 Identify your station.
10-32 I will give you a radio check.
10-33 Emergency traffic.
10-36 Correct time is____.
10-37 Wrecker needed at____.
10-38 Ambulance needed at______
10-41 Please turn to channel_____.
10-42 Traffic accident at_____.
21-1679r.fm Page 17 Wednesday, October 18, 2000 2:14 PM

18 Care
Note: Although this table lists the 10-
codes’ meanings in the form of a
statement, they can also be phrased
as questions (10-6: Are you busy?,
10-20: What is your location?).
ˆ
Care
Keep the walkie-talkie dry; if it gets
wet, wipe it dry immediately. Use and
store the walkie-talkie only in normal
temperature environments. Handle
the walkie-talkie carefully; do not drop
it. Keep the walkie-talkie away from
dust and dirt, and wipe it with a damp
cloth occasionally to keep it looking
new.
Modifying or tampering with the walk-
ie-talkie’s internal components can
cause a malfunction and might invali-
date its warranty and void your FCC
authorization to operate it. If your
walkie-talkie is not performing as it
should, take it to your local
RadioShack store for assistance.
10-43 Traffic tie-up at____.
10-50 Break channel.
10-62 Unable to copy; use telephone.
10-70 Fire at_____.
Code Meaning
21-1679r.fm Page 18 Wednesday, October 18, 2000 2:14 PM

19
Specifications
ˆ
Specifications
RECEIVER
Frequency Coverage .................................... 26.965–27.405 MHz, 162.400–162.550 MHz
Sensitivity ..................................................................................................... 1 µV for 10 dB
Adjacent Channel Rejection ((S+N)/N) ..................................................................... 60 dB
Squelch .......................................................................................... Adjustable from 0.5 µV
Audio Output Power (10% THD) ........................................................................... 400 mW
Current Drain:
Standby ............................................................................................................ 80 mA
Maximum Audio .............................................................................................. 400 mA
TRANSMITTER
Frequency Coverage .......................................................................... 26.965–27.405 MHz
Power Input:
High .................................................................................................................... 5.0W
Low ..................................................................................................................... 1.2W
Power Output:
High .................................................................................................................... 4.0W
Low ..................................................................................................................... 1.0W
Conducted Spurious Emission Harmonics ................................................................ 70 dB
Type of Modulation ......................................................................................................... A3
Frequency Tolerance .............................................................................................. 0.002%
Antenna Impedance ..................................................................................................... 50Ω
Current Drain (@ Max. Modulation):
High ..................................................................................................................... 1.3A
Low ................................................................................................................. 700 mA
Dimensions (HWD) ............................................................................. 21/8× 613/16 ×13/4in
(54 ×172.5 ×45 mm)
Weight (without batteries) ........................................................................................... 11 oz
(318g)
Accessories ............................................................................................. AA Battery Case,
Ni-MH Battery Pack, and Battery Charger
Specifications are typical; individual units might vary. Specifications are subject to change
and improvement without notice.
21-1679r.fm Page 19 Wednesday, October 18, 2000 2:14 PM

21-1679
10A00
Printed in Thailand
RadioShack Corporation
Fort Worth, Texas 76102
Limited Ninety-Day Warranty
This product is warranted by RadioShack against manufacturing defects in material and work-
manship under normal use for ninety (90) days from the date of purchase from RadioShack com-
pany-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS
PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED
WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICU-
LAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED
WARRANTIES CONTAINED HEREIN. EXCEPT AS PROVIDED HEREIN, RadioShack SHALL
HAVE NO LIABILITY OR RESPONSIBILITY TO CUSTOMER OR ANY OTHER PERSON OR
ENTITY WITH RESPECT TO ANY LIABILITY, LOSS OR DAMAGE CAUSED DIRECTLY OR IN-
DIRECTLY BY USE OR PERFORMANCE OF THE PRODUCT OR ARISING OUT OF ANY
BREACH OF THIS WARRANTY, INCLUDING, BUT NOT LIMITED TO, ANY DAMAGES RE-
SULTING FROM INCONVENIENCE, LOSS OF TIME, DATA, PROPERTY, REVENUE, OR
PROFIT OR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES,
EVEN IF RadioShack HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or lim-
itation of incidental or consequential damages, so the above limitations or exclusions may not ap-
ply to you.
In the event of a product defect during the warranty period, take the product and the RadioShack
sales receipt as proof of purchase date to any RadioShack store. RadioShack will, at its option,
unless otherwise provided by law: (a) correct the defect by product repair without charge for parts
and labor; (b) replace the product with one of the same or similar design; or (c) refund the pur-
chase price. All replaced parts and products, and products on which a refund is made, become
the property of RadioShack. New or reconditioned parts and products may be used in the perfor-
mance of warranty service. Repaired or replaced parts and products are warranted for the re-
mainder of the original warranty period. You will be charged for repair or replacement of the
product made after the expiration of the warranty period.
This warranty does not cover: (a) damage or failure caused by or attributable to acts of God,
abuse, accident, misuse, improper or abnormal usage, failure to follow instructions, improper in-
stallation or maintenance, alteration, lightning or other incidence of excess voltage or current; (b)
any repairs other than those provided by a RadioShack Authorized Service Facility; (c) consum-
ables such as fuses or batteries; (d) cosmetic damage; (e) transportation, shipping or insurance
costs; or (f) costs of product removal, installation, set-up service adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
We Service What We Sell
12/99
21-1679r.fm Page 20 Wednesday, October 18, 2000 2:14 PM
