RadioLink AT10II User manual

Radiolink Electronic Ltd
www.radiolink.com
AT10II
(DSSS&FHSS)
Instruction Manual
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink
official website to download the latest version.

Radiolink Electronic Ltd
www.radiolink.com
Thank you for purchasing RadioLink 12-channel remote controller AT10II.
To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up
the device as instructed steps.
If any problems found during the operation process, either way listed below can be used as online tech
support.
1. Send mails to [e-mail] or [e-mail] and we will answer
your question at the earliest.
2. PM us on our Facebook page or leave comments on our Youtube page
3. If the product is purchased from the local distributor, you can also ask them for support and repair as
prefer.
All manuals and firmwares are available on RadioLink official website www.radiolink.com and more tutorials
are uploaded. Or follow our Facebook and Youtube homepage to stay tuned with our latest news.
SAFETY PRECAUTIONS
Never operate models during adverse weather conditions. Poor visibility can cause disorientation and
loss of control of pilots’model.
Never use this product in a crowd or illegal areas.
Always check all servos and their connections prior to each run.
Always be sure about turning off the receiver before the transmitter.
To ensure the best radio communication, please enjoy the flight/driving at the space without
interference such as high voltage cable, communication base station or launching tower.
WARNING
This product is not a toy and is NOT suitable for children under the age of 18. Adults should keep the
product out of the reach of children and exercise caution when operating this product in the presence of
children.
Water or moisture may enter the transmitter inside through gaps in the antenna or joystick and cause model
instability, even out of control. If running in the wet weather(such as game) is inevitable, always use plastic
bags or waterproof cloth to cover the transmitter.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular

Radiolink Electronic Ltd
www.radiolink.com
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

Radiolink Electronic Ltd
www.radiolink.com
CONTENT
1 Part 1. INTRODUCTION OF AT10II SYSTEM..........................................................................1
1.1 AT10II SYSTEM.................................................................................................................1
1.1.1 Function of transmitter...................................................................................................... 1
1.1.2 Transmitter Panel Shows:.................................................................................................2
1.1.3 Compatible receivers.........................................................................................................4
1.1.4 RSSI testing........................................................................................................................ 4
1.2 RADIO INSTALLATION.....................................................................................................5
1.2.1 Guidelines to mount the servos, receiver and battery..................................................5
1.2.2 Receiver and servo connections..................................................................................... 7
1.2.3 Installment of antenna.....................................................................................................10
1.3 RADIO BASIC SETTING................................................................................................ 11
1.3.1 Basic setting of the transmitter...................................................................................... 11
1.3.2 Model type.........................................................................................................................11
1.3.3 Binding............................................................................................................................... 11
1.3.4 Transmitter Displays & Buttons......................................................................................11
2 PART 2. BASIC FUNCTION OF AIRPLANE.......................................................................... 13
2.1 QUICK GUIDE OF ACRO BASIC MENU.................................................................... 13
2.2 QUICK GUIDE: GETTING STARTED WITH A BASIC 4-CHANNEL AIRPLANE.. 14
2.3 AIRPLANE BASIC FUNCTION..................................................................................... 16
2.3.1 Model Select.....................................................................................................................16
2.3.2 Model Type....................................................................................................................... 17
2.3.3 End Point of servo travel adjustment (END POINT, also called EPA).....................19
2.3.4 Trim.................................................................................................................................... 20
2.3.5 SUB TRIM.........................................................................................................................20
2.3.6 Servo Reversing (REVERSE):...................................................................................... 21
2.3.7 Dual/triple rates and exponential (D/R,EXP)...............................................................22
2.3.8 Throttle Cut....................................................................................................................... 25
2.3.9 IDLE DOWN (ACRO only)..............................................................................................26
2.3.10 Fail Safe (F/S).............................................................................................................. 27
2.3.11 Auxiliary Channel Function (including channel 9-10 controls)............................. 28
2.3.12 TIMER submenu (stopwatch functions):..................................................................29
2.3.13 TRAINER:..................................................................................................................... 30
2.3.14 Logic Switch Selection (LOGIC SW):.......................................................................31
2.3.15 SERVO display and cycle submenu:........................................................................32
2.3.16 TELEMETARY............................................................................................................. 32
3 Part 3. ACRO ADVANCE MENU FUNCTIONS...................................................................34
3.1 AIRPLANE WING TYPES (ACRO/GLID):................................................................... 34
3.2 TWIN AILERON SERVOS (5-channel receiver, AILE-2 , ACRO/GLID)..................35
3.3 ACRO ADVANCE FUNCTION MENU..........................................................................35
3.3.1 Program MIX.................................................................................................................... 36
3.3.2 Curve Programmable Mixes (PROG.MIX5-8)(HELI: PROG.MIX5-6 ):................... 39
3.3.3 Flaperon (ACRO/GLID 1A+1F ):................................................................................... 40
3.3.4 FLAP-TRIM.......................................................................................................................41
3.3.5 AILE DIFF (ACRO/ GLID 2A+1F/ GLID 2A+2F).........................................................42
3.3.6 Air Break (ACRO/ GLID).................................................................................................43
3.3.7 ELEV-FLAP mixing (ACRO/GLID):...............................................................................44
3.3.8 Dual Elevator Servos (with a rudder) (AILEVATOR) (ACRO):.................................45
3.3.9 Snap Rolls (ACRO)......................................................................................................... 46
3.3.10 V-Tail (ACRO/ GLID)................................................................................................... 47
3.3.11 ELEVON........................................................................................................................48
3.3.12 Gyro Sense...................................................................................................................49
3.3.13 THR-DELAY (ACRO):................................................................................................. 50

Radiolink Electronic Ltd
www.radiolink.com
3.3.14 THR CURVE (ACRO)................................................................................................. 50
3.3.15 THROTTLE-NEEDLE mixing (ACRO/ HELI):......................................................... 51
4 PART 4 GLIDER MODEL FUNCTIONS...................................................................................53
4.1 SET BASIC MENU OF GLID......................................................................................... 53
4.2 SET GLID TYPE.............................................................................................................. 54
4.3 GLID ADVANCE MENU..................................................................................................55
64.3.1 AILE DIFF (FIND IN ACRO FUNCTION MENU 3.3.5).............................................. 56
4.3.2 FLAPERON (GLID 1A+1F, FIND IN ACRO FUNCTION MENU 3.3.3)................... 56
4.3.3 V-TAIL (FIND IN ACRO FUNCTION MENU 3.3.10)...................................................56
4.3.4 OFFSET (GLID 2A+2F):................................................................................................. 56
4.3.5 START DELAY (GLID 1A+1F only):............................................................................. 57
4.3.6 CHAMBER-FLP............................................................................................................... 57
4.3.7 Camber Mixing:................................................................................................................ 58
4.3.8 BUTTERFLY (crow) mixing............................................................................................ 59
4.3.9 AILE/ RUDD MIX............................................................................................................. 60
4.3.10 ELEV-FLAP mixing (see GLID menu 3.3.7)............................................................61
4.3.11 AILE-FLAP(GLID 2A+2F only):................................................................................. 61
4.3.12 SPOILER MIX (GLID):................................................................................................ 61
4.3.13 FLAP-TRIM (see GLID 3.3.4).................................................................................... 62
4.3.14 CONDITION................................................................................................................. 62
5 Part. 5 HELICOPTER MODEL FUNCTIONS..........................................................................63
5.1 BASIC SETTING WITH HELICOPTER........................................................................63
5.2 HELI-SPECIFIC BASIC MENU FUNCTIONS.............................................................66
5.2.1 Swash Plate Types.......................................................................................................... 66
5.2.2 SWASH AFR (not in SWH1):......................................................................................... 67
5.3 HELI-SPECIFIC ADVANCE MENU FUNCTIONS...................................................... 68
5.3.1 THR-CURVE and PIT-CURVE:..................................................................................... 68
5.3.2 REVO MIX:....................................................................................................................... 69
5.3.3 GYRO SENSE..................................................................................................................71
5.3.4 THROTTLE HOLD...........................................................................................................71
5.3.5 HOVERING ADJUSTMENTS (HOV-THR and HOV-PIT):........................................72
5.3.6 HIGH/LOW PITCH (HI/LO-PIT):....................................................................................73
5.3.7 OFFSET............................................................................................................................ 74
5.3.8 DELAY...............................................................................................................................75
5.3.9 GOVERNORS:.................................................................................................................75
5.3.10 Throttle Mixing (THROTTLE MIX)............................................................................ 77
5.3.11 SWASH-RING..............................................................................................................77
5.3.12 THROTTLE NEEDLE (see ACRO MENU 3.3.15)..................................................78
5.3.13 PROG MIX (see ACRO MENU 3.3.1)...................................................................... 78
5.3.14 CONDITION................................................................................................................. 78
6 Part 6. MULTIROTOR FUNCTIONS.........................................................................................79
6.1 MULTIROTOR BASIC MENU........................................................................................81
6.1.1 MODEL TYPE.................................................................................................................. 81
6.1.2 AUX Channel setting.......................................................................................................81
6.2 ADVANCE MENU FOR MULTIROTOR....................................................................... 81
6.2.1 ATTITUDE.........................................................................................................................81
6.2.2 THROTTLE CURVE (see ACRO 3.3.14).....................................................................82
6.2.3 PROG. MIX (see ACRO 3.3.1)...................................................................................... 82
AT10II Using Tutorials............................................................................................................82

Radiolink Electronic Ltd
www.radiolink.com
1
Part 1 INTRODUCTION OF AT10II SYSTEM
Note that in the text of this manual, beginning at this point, any time we are using a feature's
specialized name or abbreviation as seen on the screen of the AT10II, that name, feature, or
abbreviation will be exactly as seen on the radio’s screen, including capitalization and shown in a
DIFFERENT TYPE STYLE for clarity. Any time we mention a specific control on the radio itself,
such as moving SWITCH A, KNOB VR(B), or the THROTTLE STICK, those words will be displayed
as they are here.
1.1 AT10II SYSTEM
1.1.1 Function of transmitter
Aero basic
•V tail •Twin Aileron Servos
•Elev-flap mix •Twin Elevator Servos
•air brake •Snap roll
•Gyro mixing
Glider (3 wing model: 1A+1F/2A+2F/1A+2F)
•V tail •Twin Ailerons
•Elevon •Butterfly
•Offset
•5 flight conditions (normal, start, speed, distance, landing)
•IDLE- DOWN (ACRO), THR-CUT (ACRO HELI) (engine shut off), and MOTOR CUT (GLID) setups
to allow precise engine/motor control for taxi and landings.
•15 model type memory
•New stick design with improved feel, adjustable length and tension.
•Triple rates available by setting dual rates to 3-position switches.
•Eight SWITCHES, 3 DIALS and 2 SLIDERS; completely assignable in most applications.
•Trainer system includes the “functional” (FUNC) setting, which allows the student to use the
AT10II’s mixing, helicopter, and other programming functions even with a 4-channel buddy box.
(Optional trainer cord required.)
•AT10II transmitter features airplane friendly switch layout, with the trainer switch at the left hand
(Mode 2), and a notched throttle to minimize throttle changes with rudder input. Defaults to ACRO
model type.
•AT10II transmitter features helicopter-friendly switch layout, with idle-up and throttle hold switches
at the left hand, and a smooth, ratchet-less (unsprung) throttle for perfect hovering. Defaults to
HELI (H-1 swash plate type) model type
Helicopter (8 swashplate types, including CCPM)
• 3 Idle Ups • Throttle and Pitch Curves per Condition
• Revo. Mixing • Gyro Mixing including Separate Settings per Condition
• Delay • Governor Mixing
MULTIROTOR:
• ATTITUDE (Normal, attitude, GPS, hover, F/S, Aux)
• Throttle curve
• Mix programmable

Radiolink Electronic Ltd
www.radiolink.com
2

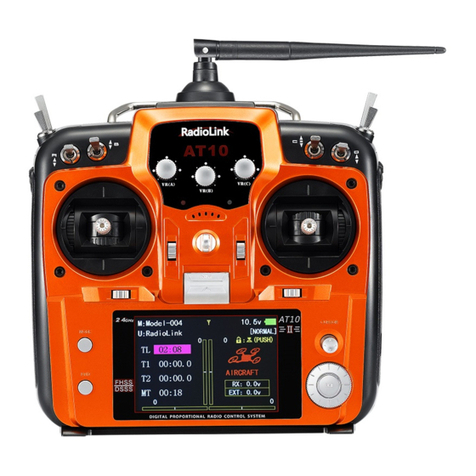

1.1.2 Transmitter Panel Shows

Radiolink Electronic Ltd
www.radiolink.com
3
SWITCH ASSIGNMENT TABLE
• The factory default functions activated by the switches and knobs for a AT10II transmitter are
shown below.
• Most AT10II functions may be reassigned to non-default positions quickly and easily.
Always check that you have the desired switch assignment for each function during setup
Switch/Knob
A or H
Airplane (ACRO)
Sailplane/Glider
(GLID)
Helicopter (HELI)
MULTIROTOR
SWITCH A
CH10
D/R,EXP-CH2(ELEV)
THR CUT
TIMER
LOGIC SW
CH10
D/R,EXP-CH2(ELEV)
MOTOR CUT
TIMER
LOGIC SW
down=BUTTERFLY on
AIL/RUD-MIX
CH10
D/R,EXP-CH2(ELEV)
TIMER
LOGIC SW
CH10
D/R,EXP-CH2(ELEV
)
TIMER
LOGIC SW

Radiolink Electronic Ltd
www.radiolink.com
4
1.1.3 Compatible receivers
AT10II is a 12 channels transmitter, support 2.4G DSSS and FHSS spread spectrum working
synchronously, 16 channels pseudo random frequency hopping.
AT10II sells with dual antenna receiver R12DS which support SBUS and PWM signal output
simultaneous, signal coverage all around, never afraid of hilly terrain.
Besides R12DS, AT10II also compatible with Radiolink R6DS, R9DS, R10DS and super mini 10
channels receiver R6DSM and 12 channels mini dual antenna receiver R12DSM.
R6DS, is a 6 channels receiver when working with PWM signal while it is a 10 channels receiver
when working with SBUS or PPM signal.
R9DS, is a 9 channels receiver when working with PWM signal while it is a 10 channels receiver
when working with SBUS signal.
SWITCH B
CH9
D/R,EXP
-CH4(RUDD)
CH9
D/R,EXP
-CH4(RUDD)
SPOILER-MIX
CH9
D/R,EXP
-CH4(RUDD)
CH9
D/R,EXP
-CH4(RUDD)
SWITCH C
ADVANCED
MENU-
ELEV-FLAP
up = ELE-FLP on
center/down=
IDLE-DOWN
down = AIRBRAKE on
up = ELEV-FLAP on
center = CONDITION
Distance
down = CONDITION
Landing
CH7
GOVERNOR
ATTITUDE
SWITCH D
D/R,EXP -CH1(AILE)
D/R,EXP -CH1(AILE)
D/R,EXP -CH1(AILE)
D/R,EXP
-CH1(AILE)
SWITCH E or
G*
THR- CURVE
down = CONDITION
Start
up = CONDITION
Speed
CONDITION IDLE-UP
THR-CURVE
SWITCH F or
H*
——
——
CH5
GYRO-SENSE
CONDITION IDLE-UP
——
SWITCH G
or E*
GYRO-SENSE
——
CONDITION
THR-HOLD
——
SWITCH H
or F*
——
.——
THR CUT
MOTOR CUT
KNOB A
CH6
(
flap trim if
FLAPERON is off)
CH6
CAMBER-FLP
FLAP-TRIM
HOV- PIT
CH6
KNOB B
CH8
CH8
SPOILER-MIX
HOV-THR
CH8
KNOB C
CH7
(disabled if AIL-DIFF
on)
CH7
HI/LO-PIT
CH7
SLIDER D
——
CH5
——
——

Radiolink Electronic Ltd
www.radiolink.com
5
Pay Attention: AT10II is default 12 channels, you have to setup AT10II to 10 channels first if you
use receivers R6DS, R6DSM, R9DS and R10DS.
How to setup to 10 channels transmitter: power on your AT10II--Press Mode button one second to
into BASIC MENU--into SYSTEM menu--change CH-SELECT from 12CH to 10CH.
Since Radiolink radio control systems are not open source, that Radiolink transmitters just
compatible with Radiolink receivers and vice versa.
1.1.4 RSSI testing
Power on transmitter and receiver, keep transmitter apart from receiver about 30 centimeters and
the antenna straight.
Into the parameter setup menu by press MODE one second, you can check the RSSI in RECEIVE
menu.
The RSSI is 0 to 30dBm is normal when the transmitter is apart about 30 centimeters from the
receiver, the signal is more better the RSSI data is more close to 0.

Radiolink Electronic Ltd
www.radiolink.com
6
1.2 RADIO INSTALLATION
1.2.1 Guidelines to mount the servos, receiver and battery
•Make certain the alignment tab on the battery, switch and servo connectors is orient correctly and
‘key’ into the corresponding notch in the receiver or connectors before plugging them in .When
unplugging connectors, never pull on the wires. Always pull on the plastic connector instead.
• Receiver’s Antenna: In generally receiver’s antenna is longer than remote control, don’t break or
retract it, otherwise shorten the control distance. The antenna must be kept away from conductive
materials, such as metal. Please make distance test before flying.
• If your aileron servos are too far away to plug into the receiver, use an aileron extension cord to
extend the length. Avoid plugging multiple extensions together to obtain your desired length. If the
distance is greater than 50cm or high current draw servos are being used, use heavy servo
extensions.
• Receiver Vibration and Waterproofing: the receiver contains precision electronic part. Be sure to
avoid vibration, shock, and temperature extremes. For protection, wrap the receiver in foam rubber
or other vibration-absorbing materials. It is also a good idea to waterproof the receiver by placing it
in a plastic bag and securing the open end of the bag with a rubber band before wrapping it with
foam rubber. If you accidentally get moisture or fuel inside the receiver, you may experience
intermittent operation or a crash. If in doubt, please contact Radiolink after cares or distributors for
service.
• Always mount the servos with the supplied rubber grommets. Don’t over tighten the screws. No
part of the servo casing should contact the mounting rails, servo tray or any part of structure.
Otherwise vibration will be transmitted to the servo causing damage of servo. Note the small
numbers (1, 2, 3, and 4) molded into each arm on the servo arms. The number indicate how many
degrees each arm is ‘off’ from 90 degrees to correct for minute manufacturing deviations from servo
to servo.
• To center the servos, connect them to receiver and turn on the transmitter and receiver.
Center the trims on the transmitter, then find the arm that will be perpendicular to the pushrod when
placed on the servo.

Radiolink Electronic Ltd
www.radiolink.com
7
• After the servos are installed, operate each servo over its full travel and check that the
pushrods and servo arms don’t bind or contact each other. Also make sure the controls do not
require excess force to operate. If there is an objectionable buzzing sound coming from a servo,
there is probably too much resistance in the control. Find and correct the problem. Even is there is
no servo damage, excess battery drain will result.
• Use the mounting plate from the receiver on/off switch as a template for the cutout and screw
holes, mount the switch on the side of the fuselage opposite the engine exhaust, and where it won’t
be inadvertently turned on or off during handling or storage. Be certain the switch moves without
restriction and ‘snaps’ from ON to OFF, and that the cutout allows full motion of the switch in both
directions.
• When install the switch harness to the helicopter please use the switch cover. Generally
sandwich the frame between the switch and switch cover and securely tighten the screws, Different
models might require different installations. If so, please follow the model’s instruction manual.
• To prevent the servo lead wires from being broken by vibration during flight, provide a slight
amount of slack or extra so that the wire sticks out slightly and fasten it at suitable points. In addition,
periodically check the wire during daily maintenance.
1.2.2 Receiver and servo connections
（1）Airplane servo connection
Receiver output
and channel
AIRPLANE
1
ailerons/aileron-1¹/combined
flap-2&aileron-1¹
2
elevator
3
throttle
4
rudder
5
spare/landing gear/aileron-2¹
³/combined flap-1 and aileron-2² ³
6
spare/flaps/combined flap-1 and
aileron-2²
7
spare/aileron-2¹
8
spare/elevator-24/mixture control
9
spare
10
spare
（2）Glider/Sailplane servo connection
RX output & CH
Glider
GLID（1A+1F）
GLID (2A+1F)
GLID (2A+2F)
ELEVON
FLAPERON
AILE-DIFF
AILE-DIFF

Radiolink Electronic Ltd
www.radiolink.com
8
1
Combined
elev-2&aileron1
elev-1&aileron-2
Combined flap-2
&aileron-1
aileron-1
Aileron-1
2
Combined
elev-1&aileron-2
Elevator/combined
rudder-2&elev-1¹
Elevator/combined
rudder-2&elev-1¹
Elevator/combined
rudder-2&elev-1¹
3
spare/motor
spare／motor
spare／motor
spare/motor/splr-2¹
4
Rudder
Rudder/combined
rudder-2&elev-2²
Rudder/combined
rudder-2&elev-2²
rudder/combined
rudder-1&elev-2²
5
spare/splr-2¹
spare/spoiler-2¹
spare/spoiler-2¹
flap-2
6
Flaps
Combined
flap-1&aileron-2
flaps
flap-1
7
Spare
spare
ailron-2
Aileron-2
8
spare/splr/splr-1¹
spare/splrs/splr-1¹
spare/splrs/splr-1¹
spare/splrs/splr-1¹
9
Spare
spare
spare
spare
10
Spare
spare
spare
Spare
（3）Helicopter servo connection

Radiolink Electronic Ltd
www.radiolink.com
9
The above listed receiver and channels is referred to the channel 1~11 of the receiver R12DS,
connect the receiver with the related servo, you can control the servos by the correspondent switch.
To be clear, the servo connected with the receiver channel 1 is controlled by the radio aileron lever,
servo connected with channel 2 is controlled by elevator lever, servo connected with channel 3 is
controlled by throttle stick, servo connected with channel 4 is controlled by the rudder lever.
Channel 5~11 can be self-set with the related switches by the menu AUX-CH, and the sub menu.
For SBUS signal channel, is output by the 3 pin of 12 row.
Signal working modes:
There are two signal working modes, PWM and SBUS&PWM signal output. Short press ID SET
twice within 1s, the working mode will change.The RED led indicates the PWM output and
BLUE/PURPLE led indicates SBUS signal.
(1) PWM signal output working mode：RED led indicates PWM signal output, 11 channels totally.
(2) SBUS&PWM dual signal output working mode: BLUE/PURPLE led indicates SBUS&PWM
signal output at the same time with 12 channels totally. SBUS signal channel(3 pin of row 11)
outputs 12 channels of SBUS signal while PWM signal channels(3 pin from row 1 to row 10, i.e CH3
to CH12) output PWM signals with 12 channels in total. The actual channel quantity of PWM signal
output depends on that of SBUS signal output used. Eg. If 4 channels of SBUS signal output used,
Receiver output
and channel
Helicopter
1
aileron/cyclic roll
2
Elevator/cyclic pitch
3
Throttle
4
Rudder
5
Spare/gyro
6
Pitch(collective pitch)
7
Spare/governor
8
spare/mixture control
9
Spare
10
spare
11
spare

Radiolink Electronic Ltd
www.radiolink.com
10
then there are only 8 channels of PWM signal output left.
1.2.3 Installment of antenna
1. Receiver Antenna Installment
1Keep antennas as straight as possible and 90° as below, or the effective control range will
reduce.
2Big models may contain metal parts that influence signal emission. In this case, antennas should be
positioned at both sides of the model to ensure the best signal status in all circumstances.

Radiolink Electronic Ltd
www.radiolink.com
11
3Antennas should be kept away from metal conductor and carbon fiber at least half inch
away and no over bending.
4Keep antennas away from motor, ESC or other possible interference sources.
Note Receiver contains some electronic components of high-precision. Be careful to avoid strong
vibration and high temperature.
When all the above steps are complete, please turn off the transmitter and repower on to test if the
receiver is correctly connected with it.
2. Transmitter Antenna Installment
1The transmitter antenna is adjustable so please make sure that the antenna never points
directly at the model when flying as this may possibly decrease the receiver signal.
2Keep the antenna perpendicular to the transmitter to optimize the receiver performance. It
also depends on how you hold the transmitter. But in most cases, adjusting the antenna with
perpendicular position to the transmitter surface will achieve the best result. Please adjust the
transmitter antenna according to the way you hold the transmitter.
3Never grip the antenna when flying as this degrades effective control range.
1.3 RADIO BASIC SETTING
1.3.1 Basic setting of the transmitter
(1) Display language: can be selected the display language of the function name, etc. in each
function menu. The screen reads "LANGUAGE". Change this to the desired language.
(2) Stick Mode: The screen reads "STK-MODE". Change this to the correct mode. Note that this will
NOT change the throttle and elevator ratchets, etc. Those are mechanical changes that must be
done by a service center.
(3) RF Mode: the LED indicator will become solid green when RF Mode is active.
(4) Adjusting Display Contrast: To adjust the display contrast, from the home menu press and hold
the END BUTTON. Turn the DIAL while still holding the END BUTTON: clockwise to brighten and
counterclockwise to darken the display.
(5) User name setting: user name can be set by DIAL and PUSH with letters and numbers.
(6) Alarming voltage:
Transmitter: preset 8.6V, can be self-set
Receiver: preset 4.0V, can be self-set
Ext: preset 10.1V, can be self-set
1.3.2 Model type
Under basic menu, use CURSOR to select MODEL TYPE and enter by pressing PUSH. There are
6 different type included in the system, HELICOPTER, AEROBASIC, GLID(1A+1F), GLID(2A+1F),
GLID(2A+2F), and MULTIROTOR, after model type is selected, press and hold PUSH for 1 second,
when the word “are you sure to change” displayed, model type is changed.

Radiolink Electronic Ltd
www.radiolink.com
12
1.3.3 Binding
Each transmitter has an individually assigned, unique ID code. Receiver should bind to
transmitter before starting operation. Once binding is complete, the ID code will be stored in the
receiver and no further binding is necessary unless the receiver is used with another transmitter.
When you purchase a new R12DS, this procedure is necessary; otherwise the receiver will not
work.
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Power on AT10II and receiver R12DS. The RED LED will be on.
3. Turn on AT10II and it will automatically bind to the closest receiver.
4. There is a black binding button (ID SET) on the side of receiver. Press the button for more than
1 second and release, the RED (by default, could be Purple for SBUS&PWM signal output) LED will
flash, meaning binding process is ongoing.
5. When the LED stops flashing and is always on , binding is complete.
Make sure servos connected with the receiver can be operated by the transmitter.
Note
AT10II is default 12 channels and can be changed to 10 channels. In order to bind to non
12-channel receivers(R6DS,R6DSM,R9DS), channel quantity needs to change to 10 channels.
How to setup the channel quantity of the transmitter: power on AT10II--Long press MODE to enter
BASIC MENU-- Toggle the CURSOR to select and enter SYSTEM --change CH-SELECT from
12CH to 10CH.
Since RadioLink radio control systems are not open source, that RadioLink transmitters are
ONLY compatible with RadioLink receivers.
1.3.4 Transmitter Displays & Buttons
When you first turn on your transmitter, a confirmation double beep sounds, and the screen
shown below appears. Before flying, or even starting the engine, be sure that the model type and
name appearing on the display matches the model that you are about to fly! If you are in the wrong
model memory, servos may be reversed, and travels and trims will be wrong, leading to an
immediate crash.
Start up screen
TL: Shows the cumulated ON times. (Hours: minutes)
T1/T2：T1/T2 timer display.(minutes: seconds)
MT：Model timer display Shows the cumulated ON time for each model.(hours: minutes)
Button instruction
MODE BUTTON:

Radiolink Electronic Ltd
www.radiolink.com
13
Press and hold MODE BUTTON for one second to open programming menus. Press MODE
BUTTON to switch between BASIC and ADVANCE. Press MODE BUTTON to scroll between
conditions in certain functions.
END BUTTON:
Press END BUTTON to return to previous screen. Closes functions back to menus, closes menus
to start-up screen.
PUSH BUTTON:
Press PUSH BUTTON to select a function.
Turn DIAL:
Turn DIAL clockwise or counterclockwise to scroll through choices within an option of a function
Warning and error display
When the transmitter is powered on, warning or error may happen by the following probability:
1. Battery low voltage alarming
Lithium battery 2S-4S can fit for the transmitter, warning voltage can be self-set according to
different battery.
Setting step: power on the transmitter, press and hold MODE one second to enter basic menu,
and press PUSH to enter PARAMETER. Choose TX ALARM by DIAL and PUSH to change relative
data. Suggested min voltage is not less than 7.4V.
When the transmitter voltage is less than the setting voltage, it will beep till the transmitter is
powered off. Most important thing is to land your model plane when the transmitter alarms.
2. Mixing alarm
When the transmitter alarms mixing, it means at least one mixed switch is active. And when it is
inactive, warning will stop then. When the transmitter is powered on, in different model type, mixing
switch is shown as below:
ACRO: throttle cut, idle down, snap roll, air brake
GLID: butterfly, condition
HELI: throttle cut, throttle lock, speed up
If the warning continues even the related switch is set OFF, probably it is because some programs
mixed by one switch and status OFF reversed. Now you need to set mixing alarm again by DIAL.
PART 2. BASIC FUNCTION OF AIRPLANE
Please pay attention that the (BASIC) menu is suitable for all type models (airplane, helicopter,
glider, multicopter). The motor cut will be introduced in Glider (Basic) Menu, except Idle down
&Throttle cut. Helicopter Basic Menu include some extra function (swash plate tilting, throttle and
pitch curves and the tail rotor anti torque mixing under normal flight model) will be discussed in
Helicopter section.
2.1 A QUICK GUIDE OF ACRO BASIC MENU
******WARNING!!!******
TX LOW POWER！
Start up screen

Radiolink Electronic Ltd
www.radiolink.com
14
Mode Select
Switch Up
Stick Up
End Selection
Switch at Center
Stick Right
Dail Left
Switch Down
Stick Down
Dail Right
Turn Knob Right
Stick Left
Dail Right or Left
Turn Knob Left
Press Push Button
2.2 A QUICK GUIDE: GETTING STARTED WITH A BASIC 4-CHANNEL AIRPLANE
This guide is intended to help you acquainted with the radio, to give you some ideas and
direction on how to do. We give you a big picture overview of what we accomplish; a ‘by name’
description of what we’re doing to help you with the radio; then a step-by-step instruction to leave
out the mystery when setting up your model.
For additional details on each function, see that function’s section in this manual.
Goals of Example
Steps
Input for Example
Prepare your
airplane
Install all servos, switched, receivers, etc. per your model’s instructions. Turn on
transmitter then receiver; adjust all linkages so surfaces are nearly centered.
Mechanically adjust all linkages as close as possible to proper control throws.
Check servo direction. Make notes now of what you will need to change during
programming.
BASIC MENU
ADVANCE MENU
Press MODE BUTTON
for more than one
second to enter BASIC
MENU
Press MODE BUTTON to
switch between BASIC and
ADVANCE MENU
Press END BUTTON to
return to Start up screen
Turn CURSOR KEY to scroll through choices within an option
of a function.
Press PUSH BUTTON to select a function.

Radiolink Electronic Ltd
www.radiolink.com
15
Name the model
(Note that you do
not need to do
anything to ‘save’
or store this data).
Open the Basic menu, then
open the PARAMETER
Turn on the transmitter.
for 1second to basic menu. to choose
model
Go to Model Name
to Mode，to Mode name，press PUSH to
setting
Input airplane’s name
Close the Model submenu
To change first character, when proper character is
displayed, push to select.To move to next
character. Repeat as needed.
return to BASIC menu
Need to adjust EN
D-POINT to meet
with the related ser
vo.
In the BASIC menu find the
END POINT
to END POINT，press PUSH BUTTON to set
Adjust end point (EX:
THRO servo)Close the
function
to Throttle Throttle stick until carburetor
closes as desired. until throttle arm just open
carburetor at fully throttle stick. Repeat for each
channel as needed.
With digital trims you don’t shut the engine off with THROTTLE TRIM. Let’s set up IDLE-DOWN and ‘throttle
cut’
Goals of Example
Steps
Input for Example
Idle down setting: Idle
down is to lower the en
gine speed for landing,
snap rolling acrobatic
display, and launching
etc. It is preset OFF an
d mainly used to start e
ngine and glide, then t
o avoid flameout.
From the BASIC menu choose IDLE
DOWN.
to IDLE DOWN，press
Activate and adjust IDLE DOWN
to MIX，press , to ON，
press
C to center position, screen now reads
ON.
to RATE, to increase rate until engine
idles reliably but low enough to sit still.
Optional: change switch C command
to POSI，press ，as you
desired press
Close the function
BASIC menu，again to startup
screen.
THR CUT shuts the
engine off completely
with the flip of a
switch.(Note: Do Not
assign IDLE DOWN and
THR CUT to both
position of a 2 position
switch
From BASIC menu, choose THR CUT
to THR CUT，press
Activate, assign SWITCH and adjust.
Close the function
to MIX，press ，to INH
to SW，press ，to SwC
to POSI, press ，to DOWN
to RATE ，press ，to down
position，throttle stick down until
the throttle barrel closed
