Rage BC-07518-3H User manual

Rubber strap
Patented bike holder
Bike support arm
Hubs
Handle
Upper strap
Safety strap
Buckle
Protective foam pad
Middle strap
Bottom strap
Hook
Rubber foam
1
2
3
4
5
6
7
8
9
10
11
12
13
65
1 3
4
2
After the bike carrier is correctly
placed as illustrated in diagram 3,
tighten the black hubs by flipping
the hub lever inward.
Make sure the teeth of the black
hubs are interlocked evenly.
Begin attaching straps with the
upper pair by pressing the buckle
to release the strap.
Placing the hooks in the most
forward trunk lid opening(between
rear window and trunk lid), and then
pulling on the end of the strap until it
is tight. Caution: Never install the
hook on the plastic spoiler.
Thank you for purchasing bike
carrier from us. First please
check all items in the box: bike
carrier, 6 rubber straps, 4
protective foam pad, 2 Velcro
straps, and 2 tie down straps.
Loosen the black hubs by flipping
the hub lever outward This will
allow the two sections of the rack
frame to move relative to one
another for correct placement on
your vehicle.
Rest the bike carrier on the rear
bumper of vehicle. Note: the
protective rubber pads on lower
frame should be rest between the
bumper and trunk. Rear brace should
rest on the trunk lid and the
supporting arm should be adjusted
10 to 30 degree above the horizon.

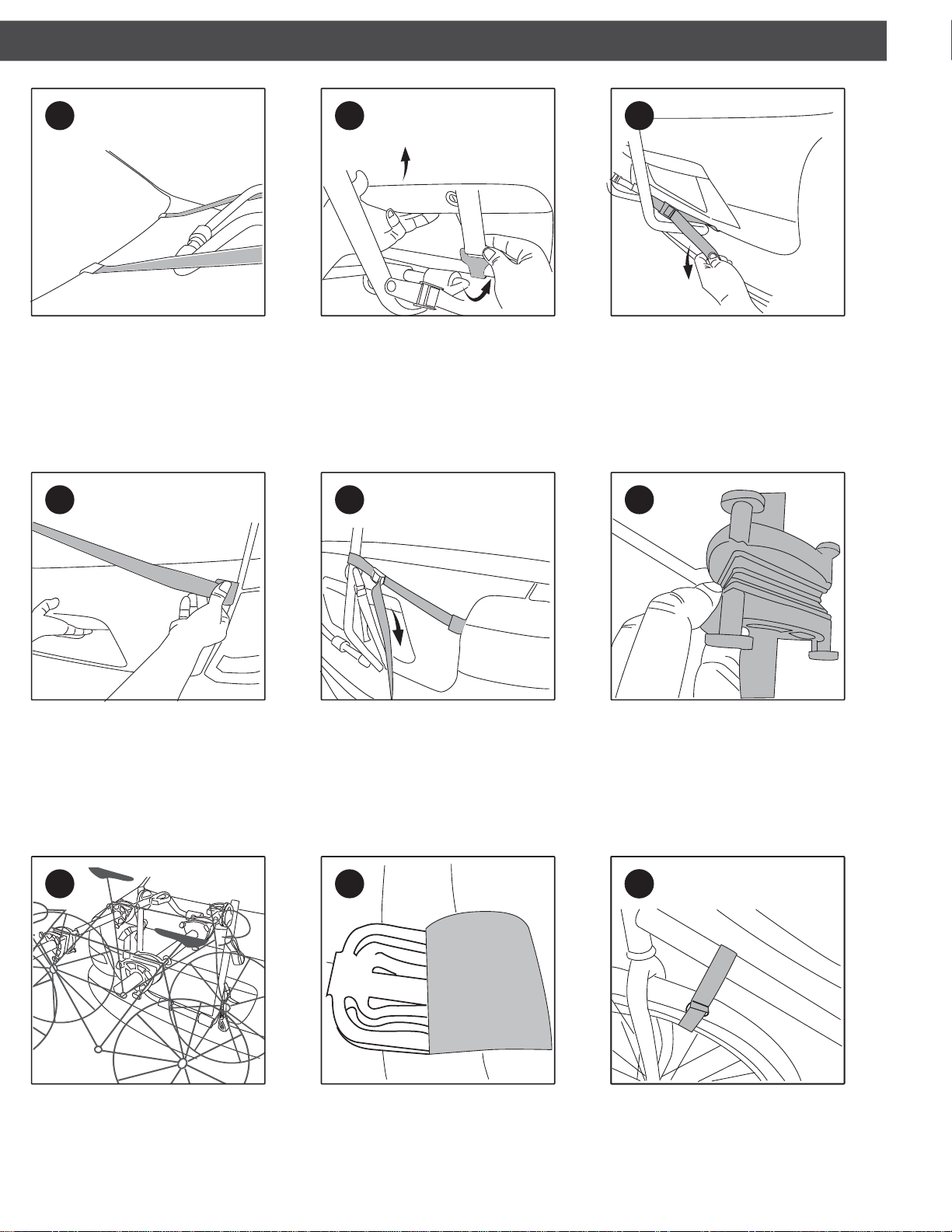

7 98
6
10 1211
13 1514
ITEM:BC-07518-3H NAME:Trunk mounted bike carrier
When you mount your bicycles on the
bike carrier, please note the following
points. First mount the heaviest bike,
Then alternate the direction for the
second bike.If your bike has Y frame
(ex.,lady bike) we recommend using
bike beam which may secure the
handle bar stem andseat tube.
If there is any contact between car
and bike carrier, we recommend
using the protective foam pad.
Using Velcro strap to secure front
wheel and main frame can prevent
the front wheel to wobble.
The side straps with hooks can be
attached to the space between
trunk lid and rear light. Caution: If it
is necessary to open the
trunk/tailgate to install hooks, make
sure the trunk/tailgate is closed
firmly after you install hooks.
After the hooks are attached, pull
them against the buckle until they
are tight. Please double check the
tension of all six straps, tighten
them up if necessary.
The bike holder is patented with
multi-faced surface which features three
diameter(1 inch,1.25in,and 1.5
inch.)First, identify your bike’s tube size
for best fit. Then rotate the bike holder
to preferred surface. Secure one end of
the rubber strap to the knob of the bike
holder. After bikes are mounted,
securethe other end of the rubber strap.
Follow the same procedure in
diagram 6 for the other side. The bottom straps with hooks can be attached to the space between
trunk lid and rear bumper. Caution:
If it is necessary to open the
trunk/tailgate to install hooks,
make sure the trunk/tailgate is
closed firmly after you install hooks.
After the hooks are attached, pull
them against the buckle until they
are tight.

6
16 1817
19 2120
2322
Snap the end of rubber strap into
the protrusion part of the bike
holder. Please double check if it
is fully secured.
After the bike is mounted, pull the rubber
strap over to the protrusion part on the
other end of the bike holder. Double check
if it is fully secured. Caution: overstretching
shortens the life of rubber strap and may
cause serious damage. It is recommended
to check the rubber strap every time you
mount the bikes. Replace worn straps
with new straps from authorized dealers.
The patented bike holder can
secure the bike’s seat tube with
additional rubber strap to prevent
its wobbling during driving.
After mounting your bikes, please
tie up the bikes with the
integrated security strap.
Then, insert the male end of buckle
into the female end of buckle. Pull
the strap until it is tight and make a
knot around the buckle.
When all bikes are mounted,
please double check the tension of
each strap. If necessary, pull the
strap against the buckle until it is
tight. Make a knot around the
buckle and tie the rest of the strap
with the rubber band.
For additional safety, use the tie
down strap to secure the bike to
bike carrier. In addition, if the
law requires that the license plate
cannot be hidden, the auxiliary
license board is recommended.
Diagrams shows how to secure the
tie down strap with the attached
buckle.

ITEM:BC-07518-3H NAME:Trunk mounted bike carrier
CAUTION
1.1 This carrier has been designed and manufactured to attach securely to a variety of vehicles. The
attachment of this carrier to a vehicle is safety critical and beyond the control of the
manufacturer. The user must therefore ensure that the cycle carrier is suitable for use with their
particular vehicle and that both carrier and cycles are securely and safely attached to the
vehicle.
1.2 Roof spoilers (made by ABS) may prevent the correct fitting of the cycle carrier as straps and
carrier framework should be in contact with them when fitted.
1.3 During your journey, frequently check the tension of carrier fixing straps and the security of the
cycles carried.
1.4 Be cautious that the bicycles and bicycle carrier do not come close to exhaust pipe of the vehicle.
1.5 The maximum load for this bicycle carrier is 45 kg. Do not over load.
1.6 Reduce the speed when on rough or dirt road.
1.7 This bicycle carrier is designed for temporary use only, remove when not in use or before going
through a car wash.
