Raider R50ES-001 User manual

i

ii
This page intentionally left blank

iii
Outboards
MULTI-FUEL SUBMERSIBLE ELECTRIC START OUTBOARD ENGINES
The Raider series of outboard motors are dedicated to the Marine Raiders established by the United
States Marine Corps during WWII and are said by many to be the first United States special operations
force. Handpicked from the elite, these men were given specialized training and the best equipment.
They distinguished themselves during the conduct of clandestine amphibious landings, utilizing small
inflatable boats, operating behind enemy lines in direct support of combat operations in the Central
Pacific and Solomon Islands. Even though the Raiders were disbanded at the close of WWII the need for
specially trained warfighters and the requirements for specialized equipment did not. Today’s Special
Operations Forces (SOF) under the United States Special Operation Command (USSOCOM) are expected
to conduct similar and far more demanding missions, to that end and with those warfighters in mind the
Raider (OBM) is specifically developed for SOF that routinely operate within the often unforgiving, highly
demanding, dynamic maritime environment.
WHO WE ARE
 Raider Outboards, Inc. is a-US owned and operated company based in Central Florida near
Kennedy Space Center, located in the Space Port Commerce Park. We design and produce multi-
fuel, submersible, lightweight outboard motors and associated parts that include a Safety Jet;
transom plates; carts and transportation cages. Our markets include Department of Defense
(DOD), Other Government Agencies (OGA), National and Local Law Enforcements and First
Responder Services, Search & Rescue and commercial/retail.
 The Raider patented Safety Jet can be purchased in a kit which retrofits a propeller drive to a jet
pump system. The Safety Jet was designed to improve safety for swimmers and divers in both
real-world and training situations. The Safety Jet is excellent for “brown water” operations where
search and rescue operations routinely happen in which higher probabilities of striking
submerged objects exist. For coastal or beaching operations in unfamiliar waters it provides
additional protection from rocks or coral easily absorbing hits that could ruin propellers when
moving to and from a beach landing site.
 Raider also provides a series of transom plates that are attached to the transom of the Combat
Rubber Raiding Craft (CRRC). The transom plates have single and dual motor configurations. The
transom plates provide centerline alignment and safety if the motor clamps loosen under
vibration. Specialty items like extended handles, extended fuel hose connections, outboard
motor carts and transportation cages are also available.

iv
WHAT WE ARE ABOUT
Raider Outboards develops, manufactures, and provides technical support services for highly reliable
outboard motors for today’s warfighter. Our designs are field proven, and add capacity and capability to
perform the most difficult and demanding maritime missions. Features include;
 Simple and Robust.
 System Redundancy.
 Minimized Electronics.
 Air droppable.
 Bagless submersion.
 Superior dewatering.
 Leader in horsepower to weight ratio.
 25% better fuel efficiency than any other motor in its class.
 Easy to maintain and troubleshoot.
OUR MISSION
Raider Outboards will provide and deliver the most reliable premium products, hands on training, and
highest quality to the customer and serve as the premier outboard motor company to the U.S. Military;
while honoring those who protect, defend, and support our communities and our country.
Chris Woodruff
Director of Engineering
Raider Outboards Inc.
[e-mail]
321-567-2309

v
YOUR RAIDER OUTBOARD MOTOR
a. The Raider R50ES-001 NSN 3HD 2805-01-652-3076 outboard motor is designed specifically for
and specially manufactured for the Department of Defense for use as the main propulsion system
on Combat Rubber Raiding Craft (CRRC). The Raider brings additional capability far superior to
any other motor in its class. This motor can be submerged, without bagging, for extended periods
and quickly restarted; operates on multiple fuels; equipped with an electric start feature utilizing
an engine start battery located under the cowling.
b. We would like to emphasize that optimum motor operational performance can only be assured
on the condition that this manual is read through in its entirety and the maintenance routines
described later are followed carefully. Should difficulty arise with the motor, please follow the
troubleshooting procedures listed throughout the specified sections with in this manual. For any
other issues, questions, or concerns please call 321-383-9585 ext 210 or contact
[e-mail] where our trained staff of subject matter experts will
provide you with any assistance required.
OWNER REGISTRATION AND IDENTIFICATION
a. This Raider outboard has been purchased by the Department of Defense. Every motor has been
delivered under Form DD-250 which contains individual Serial Numbers and Raider Outboards
has a record of every motor delivered.

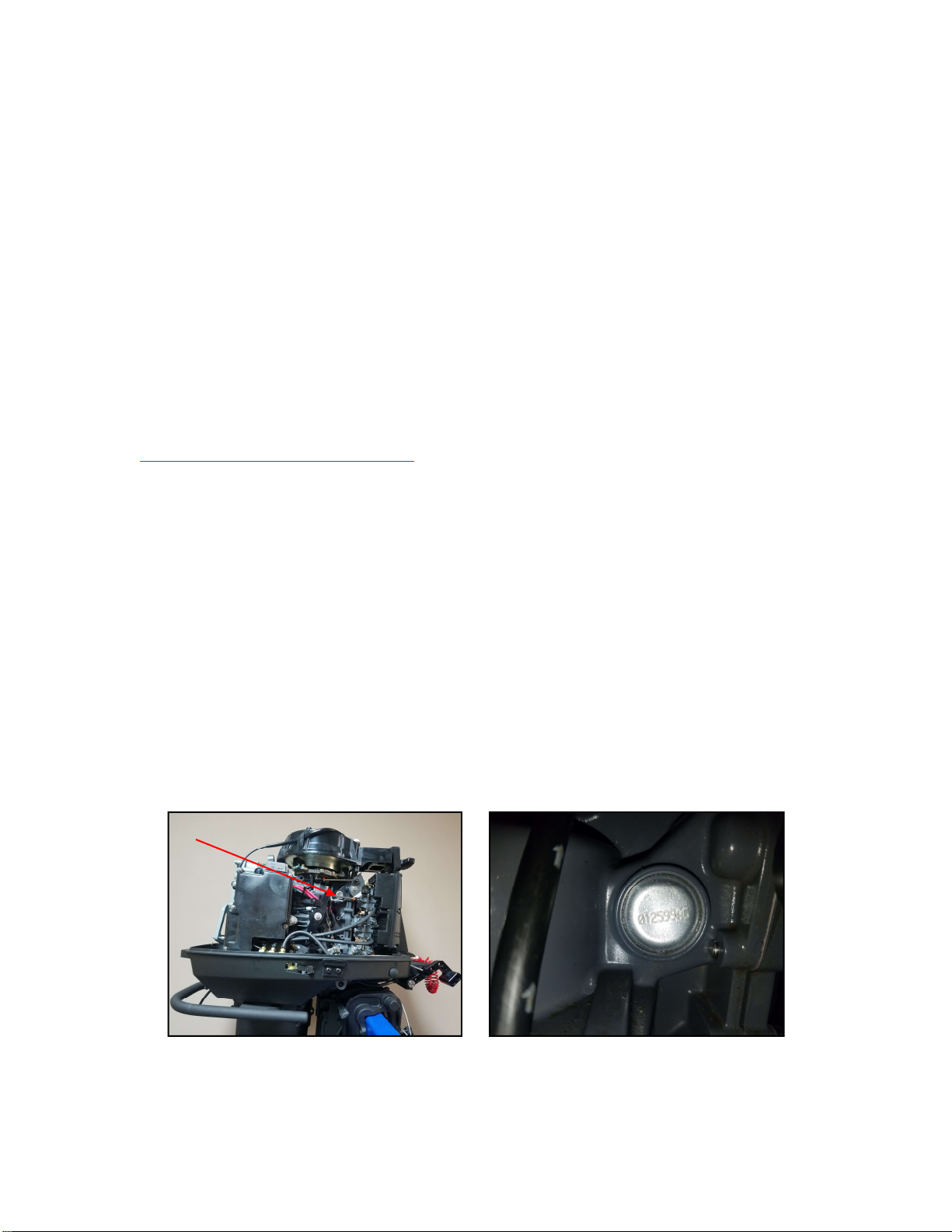

b. Serial Number: In the space provided below, please record the outboard motor's serial number
which is indicated on the starboard side of the cylinder block. The serial number will be needed
in ordering spare parts.
c. Serial Number: _______________________________________________________

vi
LIMITED WARRANTY
a. Raider Outboards Motors are fully guaranteed against defective materials and workmanship for
the period from the date of the Form DD-240 for one year. The limited warranty will not apply to
the normal wear and tear of parts, adjustments, tune-ups, or to any damage caused by:
1. Use or operation NOT conforming to the instructions described in this owner's manual.
2. Damaged caused as a result of parachute failure or improper parachute rigging.
3. Damage, Deterioration, or Corrosion resulting in motor failure due to improper conduct of
Pre and Post Operations Checks. The Raider 40 HP Outboard must be flushed with fresh water
and washed down after use.
4. Improper dewatering. Damage caused by failure to adhere to the dewatering procedures.
5. Damage from accidents, collisions, contact with foreign materials, or submersion without
cleaning.
6. Growth of marine organisms on motor surfaces that exceeds recommended submergibility
times or left in the water between operational periods.
7. Any other careless use or operation issues. (Battery unplugged when not in use)
8. Normal deterioration.
b. The limited warranty does not cover maintenance items. The following items are some examples
not covered by the limited warranty.
c. Spark plugs, anodes, trim-tab, propeller, fuel filter, Starter rope, split-pin, bolt/nut washer, wire
cable. Rubber goods: pump impeller. Oil seal, "O"-ring, fuel line, primer bulb, etc., vinyl tube.
d. The limited warranty will cover only your Raider Outboards 40HP and will not cover the craft the
motor is mounted on, the trailer, equipment, or accessories associated with the product.

vii
THIS MANUAL
a. This owner’s manual provides information that is needed for inspection, procedures to prepare
the motor for an operational cycle, preventative maintenance and troubleshooting of the Raider
50 Outboard Motor. Additional information about specific systems and parts are described within
the service and parts manuals. These manuals including this one may be found on the Raider
Outboards web site raideroutboards.com and may be downloaded for convenience. Should
additional information be required please call or email customer service department at 321-383-
9585 ext 210 or [e-mail].
b. For our users we have built the best outboard motor for long term, it is essential for the
maintainer to prepare the outboard prior to the operational period. To ensure this, the
maintenance and service have to be done properly by a service technician with fundamental
knowledge and skills. This manual is utilized so that our operators can always use their outboard
motor with full satisfaction.

viii
CONTENTS
GENERAL INFORMATION ................................................................................................................................... 1
Safety Information .................................................................................................................................. 1
Notice: Danger/Warning/Caution/Note ................................................................................................. 1
Emergency Stop Switch ........................................................................................................................... 2
Raider Maintenance Tool Kit ................................................................................................................... 2
Raider Emergency Tool Kit ...................................................................................................................... 3
Capabilities/Features .............................................................................................................................. 4
Specifications........................................................................................................................................... 6

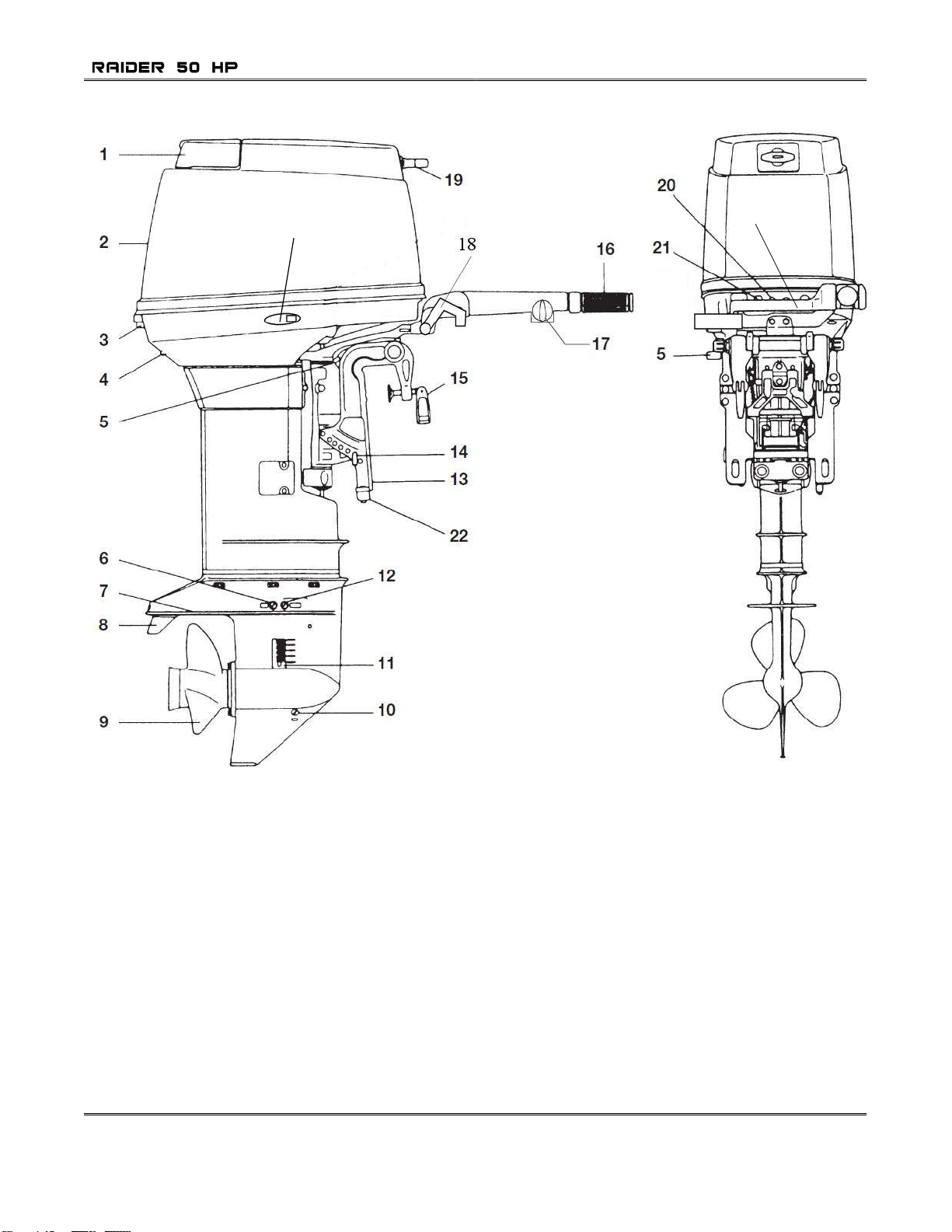

Components and Controls ...................................................................................................................... 8
Fuel Requirements ................................................................................................................................ 18
Consumable Material Requirements .................................................................................................... 20
Break-In ................................................................................................................................................. 21
STANDARD OPERATING PROCEDURES ................................................................................................................ 23
Pre and Post Operations Checks ........................................................................................................... 23
Pre-Operations Checks .......................................................................................................................... 24
Operational Checks ............................................................................................................................... 26
Post Operations Checks ......................................................................................................................... 27
Motor Mounting .................................................................................................................................... 28
Propeller Selection ................................................................................................................................ 29
Starting the Raider 50 HP ...................................................................................................................... 30
Maneuvering ......................................................................................................................................... 33
Trim Adjustments .................................................................................................................................. 34
Shallow Water Running/Beaching ........................................................................................................ 36
Dewatering ............................................................................................................................................ 37
Emergency (Tertiary) Starting ............................................................................................................... 39
MAINTENANCE REQUIREMENTS ....................................................................................................................... 41
Tach/Hour Meter .................................................................................................................................. 42
Spark Plugs ............................................................................................................................................ 43
Carburetor Tuning ................................................................................................................................. 45

ix
Carburetor Disassembly and Cleaning .................................................................................................. 47
Timing .................................................................................................................................................... 52
Cylinder Compression Test .................................................................................................................... 53
Gearcase Pressure and Vacuum Tests .................................................................................................. 55
Long-term Storage (Layup) .................................................................................................................... 56
TROUBLESHOOTING ........................................................................................................................................ 59
APPENDICES.................................................................................................................................................. 61
Pre Operations Checklist ....................................................................................................................... 62
Post Operations Checklist ..................................................................................................................... 66

x
This Page Intentionally Left Blank

SECTION 1
Owner’s Manual General Information
1
GENERAL INFORMATION
SAFETY INFORMATION
As the operator or coxswain of your craft, first and foremost, you are personally responsible for the
safety of the crew, embarked personnel, and any person in the water or in the vicinity of the craft. Safety
is paramount in all operations. Therefore, you should possess thorough knowledge of correct operation
of your craft, its accessories, and the Raider Outboard Motor. This manual details the proper procedures,
correct operation and maintenance of the motor. Additional hands on training courses for both the
operators and technicians are available through Raider.
NOTICE: DANGER/WARNING/CAUTION/NOTE
Before installing, operating or otherwise handling your Raider Outboard Motor, be sure to thoroughly
read and understand this operations section of this manual and carefully follow all of the instructions.
Of particular importance is information preceded by the words "DANGER," "WARNING," "CAUTION," and
"Note." Always pay special attention to such information to ensure safe operation of the outboard motor
at all times.
The following safety statements are found throughout this manual and indicate information which, if
ignored, could result in fatal safety hazards or property damage.
Failure to observe will result in severe personal injury or death, and possibly property damage.
Failure to observe could result in severe personal injury or death, or property damage.
Failure observe could result in personal injury or property damage
This instruction provides special information to facilitate the use or maintenance of the outboard
motor or to clarify important points.

SECTION 1
Owner’s Manual General Information
2
EMERGENCY STOP SWITCH
The Emergency Stop Switch will stall the outboard motor when the stop switch tether is pulled off. This
stop switch tether can be attached to the operator of the outboard motor to minimize or prevent
injuries from the propeller in case the operator falls overboard. We highly recommend use of the
Emergency Stop Switch tether.
RAIDER MAINTENANCE TOOL KIT
The Raider Maintenance Kit (RMK) is a complete tool
set that is specifically designed and provides
Operators and Field Service Technicians with the
necessary tools to perform routine maintenance
actions or intermediate level motor troubleshooting
and repair to the component level. The tools are
stowed and secured in a waterproof case for ease of
transport and protection from harsh environmental
conditions. For inquiries into purchase of the RMK
please contact Raider at [e-mail]
or 321-567-2307 by phone for information.
Accidental activation of the Emergency Stop Switch (such as the tether being pulled out in heavy
seas) could cause passengers to lose their balance and even fall overboard, or it could result in loss
of power in heavy seas, strong currents, or high winds. Loss of control while mooring is another
potential hazard.

SECTION 1
Owner’s Manual General Information
3
RAIDER EMERGENCY TOOL KIT
Included with each Raider Outboard Motor is a
Raider Emergency Field Kit (EFK). This includes tools
for underway troubleshooting and emergency
repairs and spare parts. The tools and parts provided
are contained inside a small waterproof case
designed for easy stowage and is intended to be
carried onboard the craft as part of the operational
load out. This kit is not inclusive and additional items
may be required based on organizational Standard
Operating Procedures (SOP). The EFK includes the
following items:
Part Number Qty Description
SBE110 2 Spark Plug
841150 1 M10 Deep Socket 3/8 Dr
841156 1 M16 Deep Socket 3/8 Dr
841153 1 M13 Deep Socket 3/8 Dr
2292340 1 Stanley 6 way screwdriver
67149 1 Crescent Wrench
375532 1 Pliers
68513 1 3/8 Hex drill socket
63518 1 1800 Weatherproof Pelican Case
500B 7 FT #5.5 Starter Cord
25002 1 2 oz. tube Corrosion Block Grease

SECTION 1
Owner’s Manual General Information
4
CAPABILITIES/FEATURES
Multi-fuel
Dependent upon fuel available. The Raider 50 HP is capable of using multiple fuel sources for operation.
Gasoline, is the recommended fuel but should the mission or situation dictate various types of Heavy
Fuel combined with the Raider Additive may be used. Regardless of fuel type utilized for operations there
still exists the requirement for mixing with 2 cycle oil at the ratio of 50:1.
Submersible
Allows for full submersion, in salt water, without bagging to a depth greater than 65ft for periods
exceeding 24 hours.
Dewatering
Upon recovery to the surface fully operational within 10 minutes. Easy instructions for dewatering are
provided affixed to each engine cowling of every outboard motor. Most operators, with practice and
adherence to the provided instructions, restore the motor to operations within two minutes of surfacing.
Skilled operators are able to achieve lite off in as few as 30 seconds.
Air Deployable
When required is capable of being dropped from both fixed wing and rotary aircraft. Battery cutoffs are
available to preserve start battery life in drop packages for over 180 days. Prior to drop, the operator
enables the start battery should expeditious start be required on the drop zone.
Lightweight
Maneuverable through the hatch of a Submarine or mounting when underway. The motor is easily
maneuvered by two personnel through the hatches of ships or submarines by using the installed
reinforced no slip grab handles and rails. The special rail design allows the motor to be stowed in an
upright position of the deck or pallet instead of laying on its side.
Electric Start
Provides fast starting in duress situations and aids in dewatering. The installed Acid Glass Matt Battery
adds the ability to start the motor without the use of the recoil starter. This capability may prove to be
invaluable where starting the motor is not practical via the primary method due to motor damage,
operator injury, or prevailing environmental conditions will not afford such. When used with dewatering
it rapidly expels any water through the decompression valves.

SECTION 1
Owner’s Manual General Information
5
Tactical Communications Power Interface
Power and charge tactical communications systems. Various types of connectors may be installed per
the requirement of the operator. Power tactical radio systems through battery eliminators, charge cell
phones or even power a spot light.
Bolt on Safety Jet
Prevents injury to personnel from inadvertent contact with the propeller. Moreover, provides increased
reliability during beaching or Search and Rescue applications supporting hurricane relief and emergency
response. Protects crafts propulsion systems when transiting through shallow and flooded areas from
unseen obstructions that when struck would normally render a craft dead in the water.
Transportation Cage and Cart
Allows for safe secure storage of motor when not in use or being transported over the road or by air.
Raider provides two-part system, consisting of a cart and cage. The cart provides a mobile mount for the
performance of maintenance actions and repairs. For safe secure storage the cart maybe locked into
place inside the Transportation Cage. This provides extra protection when conducting movement via
land or by Military Air ensuring your motor arrives in theater ready for immediate operations.
Engine Cover
Protects motor from prevailing environmental conditions should the need require stowage in less than
ideal conditions or outside. A specially designed breathable material allows moisture to evaporate.
Transom Plates
Provides a means for repetitive, expeditious, safe, and secure mounting of the motor on any marine craft
transom. These plates provide a guide for the stern bracket of the motor that will automatically center
the Raider 50 to the keel (center line) of the craft. Then simply tighten the stern bracket screws.

SECTION 1
Owner’s Manual General Information
6
SPECIFICATIONS
ITEM RAIDER 50 HP
3HD 2805-01-652-3076
Overall length 45.1 inches (1145 mm)
Overall width 13 inches (330.2 mm)
Overall height 55.6 inches (1413 mm) (Long Shaft)
Weight 178 lbs. (80.7 kg)
Transom length 550 mm (21.7 in.)
Engine type 2-Stroke
Piston Displacement 697 (42.5)
Bore and Stroke 68 x 64 (2.68 mm x 2.52 mm)
Number of cylinders 3
W.O.T. 5000 – 5800 rpm
Exhaust System Through Hub
Cooling System Water cooling (Rotary rubber impeller)
Ignition System C.D. ignition
Starting System Pull Start; Battery; emergency rope start
Intake System Reed Valve
Lubrication system Fuels pre-mixed with additives
Cooling system Forced Water-cooling
Water temperature control Thermostat (with pressure relief valve)
Ignition System Flywheel Magneto C.D. Ignition
Gear Reduction Gear Ratio 12:23 1.92
Firing Order 1-2-3
Spark Plug NBE1H/10 (stainless steel)
Alternator 12V 280W (Maximum) (13.6 volts regulated)
Battery Acid Glass Mat (AGM), 12VDC @ 10Ah with 175CCA
Trim Angle 4-24 degrees
Trim Angle settings 6 degrees
Maximum tilt-up angle 75 degrees
Transom board thickness 31-70 mm (1.22 – 2.76 in.)
Maximum steering angle 80 degrees
Gear shift Dog clutch (F-N-R) – front location
Electric Start Push button
Throttle Control Tiller Handle
Fuel Bladder/Tank Organizational Dependent
Heavy Fuels 50:1 mix, Raider Elixir Additive
Gasoline 50:1 mix
Engine Oil TC-W3 Synthetic Marine Oil
Gear Oil Synthetic API GL5, SAE#80 to #90 500 ml (16.89 fl. Oz.)

SECTION 1
Owner’s Manual General Information
7
1. Tilt Handle 10. Oil Plug (lower) 19. Starter Handle
2. Top Cowl 11. Water Strainer 20. Stop Switch
3. Hook Lever 12. Oli Plug (upper) 21. Primer
4. Water Check Port 13. Clamp Bracket 22. Anode
5. Reverse Lock Lever 14. Thrust Rod 23. Dewatering Lever
6. Water Plug 15. Clamp Screw 24. Electric Start
7. Anti-Ventilation Plate 16. Throttle Grip
8. Trim Tab 17. Adjust Nut
9. Propeller 18. Shift Lever
23
24

SECTION 1
Owner’s Manual General Information
8
COMPONENTS AND CONTROLS
Cowling
A removable cover of the outboard motor that provides
protection for the powerhead and components during
operation and storage.
Cowling Latch
A mechanism located on the rear portion of the lower
engine cover that provides a means to secure the
cowling in place.
Cowling Retention Strap
Velcro Straps fixed to the cowling and lower engine
cover that prevent the cowling from dislodging during air
drop, motor submersion, or craft capsize.

SECTION 1
Owner’s Manual General Information
9

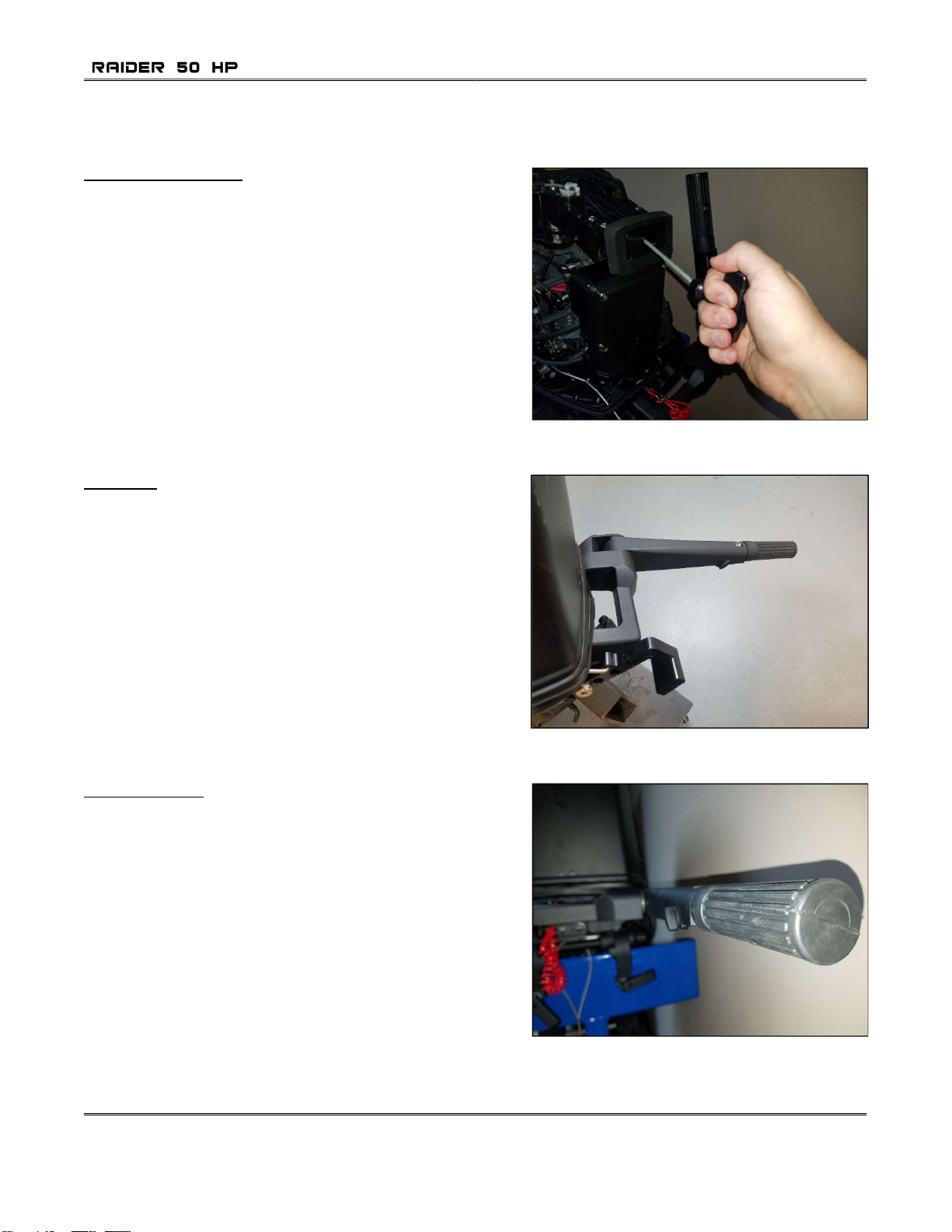

Pull Handle and Cord
T-Handle grip fixed to the leading end of the pull cord of
the recoil starter. Routed through the starter cord
opening of the cowling for operator access. This is the
primary method used to start the motor.
Tiller Arm
Mechanical lever the attaches to the swivel bracket that
allow the operator to steer the craft to port or
starboard. Also provided the mounting structure for the
Throttle Control and Throttle Tension Adjustment.
Throttle Control
Affixed to the end of the Till Arm. Allow the operator to
control the acceleration and deceleration of the motor.
It provides a raised indicator that aligned for ideal
throttle position during motor start.

SECTION 1
Owner’s Manual General Information
10

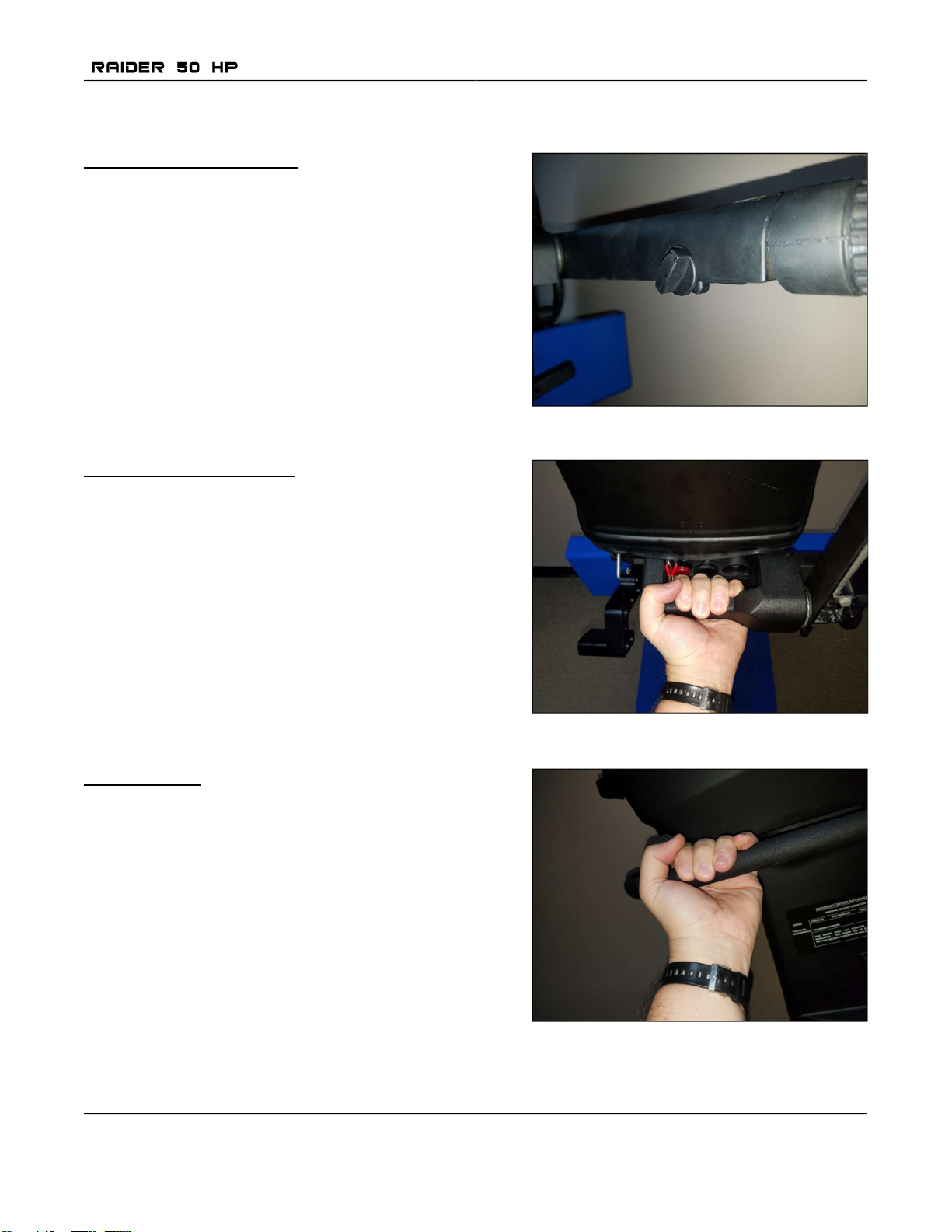

Throttle Tension Adjustment
A control located on the inboard side of the Tiller Arm.
Provides adjustable resistance to movement of the
throttle grip and can be set to operator preference.
Forward Carry/Grab Handle
Located on the forward part of the motor. Provides the
operator with a secure means to lift the motor for
movement or mounting.
Carry/Grab Rail
Located around the left, right, and rear of the motor.
Provides a means for the operator to lift the motor for
movement or mounting. Also provides a means for the
motor to me laid down in the upright position. Coated
with a non-slip surface.
