RainPoint Smart+ HCS008 User manual

USER MANUAL
Model No. HCS008FRF
Water Flow Meter
Sma Garden Irrigation System
+
Web: www.rainpointonline.com
Email：se[e-mail]
WhatsApp: [phone]
US Free Hotline(English): [phone]
(MON-FRI 9�30 AM-5�30 PM PST)
EU Free Hotline(English Deutsch): [phone]
(MON-FRI 9�00 AM-5�00 PM CET )

What in the box
3/4" Faucet Adapter
BSP Thread/ EU-type
(gray screw thread)
3/4" Faucet End
Connector
BSP Thread/ EU-type
3/4" Faucet End
Connector （NH
Thread/ USA-type）
3/4" Faucet Adapter
NH Thread/ USA-type
(black screw thread)
3/4" Faucet End
Connector （BSP
thread/ EU-type）
3/4" Faucet Adapter
BSP thread/ EU-type
( gray screw thread)
Note: B and C will be presented according to the count region, two
sets of accessories will not be included in the product at the same
time.
A. HCS008FRF Water Flow Meter
B.（For NH thread/ USA-type）
C.（For BSP thread/ EU-type）
2
3
4
1 5

1. INTRODUCTION
Front Back
1.2 Specication
• inlet and outlet 3/4”
• water rate 20 L/H to 2400 L/H
• working water pressure 0.5 bar to 8 bar (7-116 psi)
• accuracy ±5%
• communication distance with hub about 60m
• powered by 3*AAA alkaline batteries
• waterproof IPX6
1.3 Product Features
• current water ow rate and consumption checking on both LCD and APP
• hourly, daily and monthly water consumption checking via APP
• split type design
• Liter and Gallon switchable
• sleep mode for saving power
• low power ale notication
• water usage warning and correction on APP
1.1 Product Oveiew
- 01 -

2. CONNECTION AND INSTALLATION
2.1 Flow Meter Connection
1. After the hub is successfully connected. Select the button on the top
right corner of the APP home page to add device, or you can go to the
hub’s home page and use “Sub-devices” to add devices.
- 02 -
This device is a sub-device, please connect the hub of Rainpoint Sma+
series before connecting this device.
Please scan the QR code or search the link to access
the video to connect the device quickly and easily.
Set Video:
https://www.youtube.com/watch?v=P2yXpW3ewkI

2. Find “Flow Meter” or the icon to add the sensor.󶀅
3. Inse the batteries, and then the indicator will quickly blink in red.
Tips：Pull out the detector and use the tool to unscrew the four screws of
the back cover.
- 03 -

4. At the same time, select “NEXT” on the APP and sta searching devices.
5. Keep the sensor and the hub close to each other to connect automatically.󶀅
6. Besides that, you can also re-inse the batteries to reset and reconnect if
you fail to connect for the rst time.
7. After successfully connecting, the real-time water ow rate and other
information will show on the device home page.
- 04 -

2.2 Installation
Option 1: Install the ow meter on
the faucet and tighten it hard.
Option 2: Connect the ow meter
with tubes or hose nozzle.
Note:
1. 1 and 5 are available in dierent type and will be dierentiated by region.
2. Please do not remove the connectors while using.
3. The tting are indivisible pas. Do not split them.
4. The tting and , and are dierent in the type of thread. Do not
change the installation sequence of the ttings.
5. Please follow the ow direction point out on the meter’s body.
6. The work distance is within 320 feet in open area. Please do not leave the
sensor so far from the hub. - 05 -
1
2
3
4
5
1
1
1
2
2
2
2 3 4
3
4
4
4
5
5
5
3/4" Faucet End Connector （NH Thread/ USA-type）
3/4" Faucet Adapter BSP Thread/ EU-type (gray screw thread)
3/4" Faucet End Connector （BSP Thread/ EU-type）
3/4" Faucet Adapter NH Thread/ USA-type (black screw thread)

1. Setting: Basic settings for the sensor
2. Real-time ow rate
3. Data display:
• Current water usage
• Last water usage
• Current time
• Last time
• Totay cumulative
• Total cumulative
4. Chas: Check the water ow in 24 hours, 30 days, and 12 months

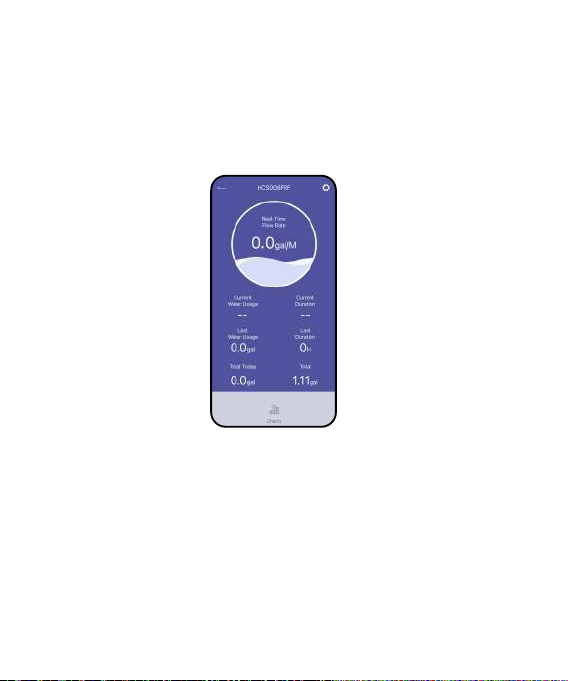

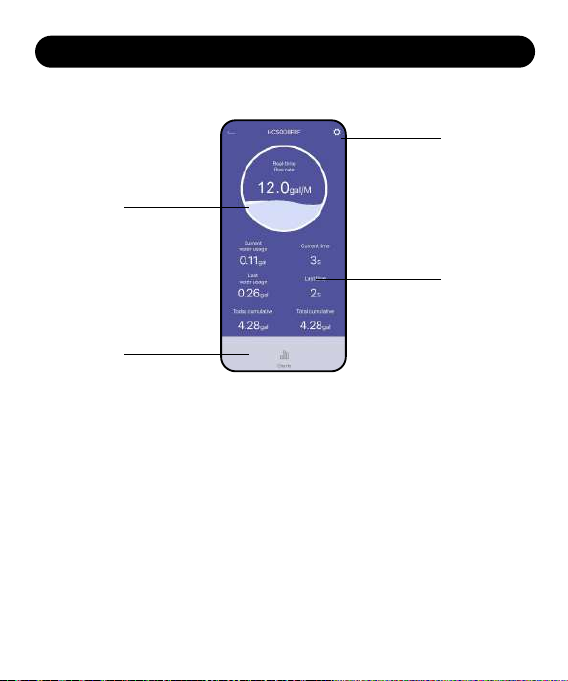

3.1 Device Home Page
3. APP FEATURES AND FUNCTIONS
1
2
3
4
- 06 -

3.2 Basic Setting
Find the icon on the top right corner of the APP home page to＂Settings＂
page. In the basic settings, you can check and manage the device
information, such as name and inteace.
3.3 Special features
Water Usage Warning: Detect the water usage in hours and send a warning
notication if the water usage exceeds the standard.
- 07 -

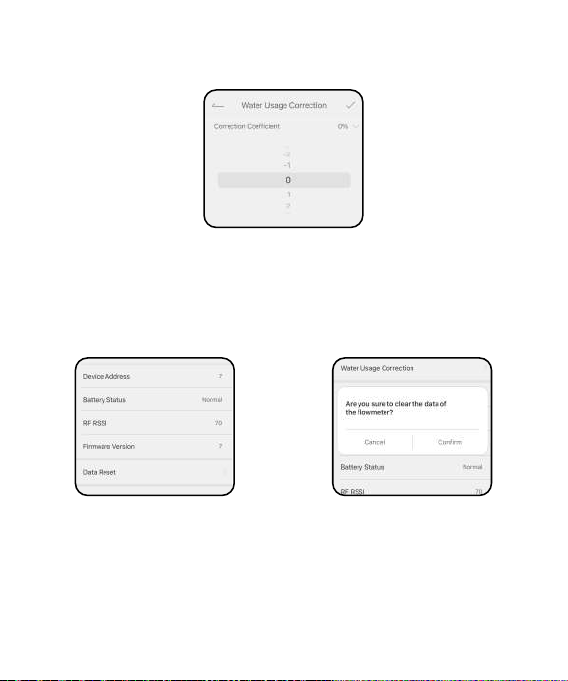

Water Usage Correction: Correct the water usage value in percentage if
needed.
Data Reset: Clear the water usage record in this device.
- 08 -

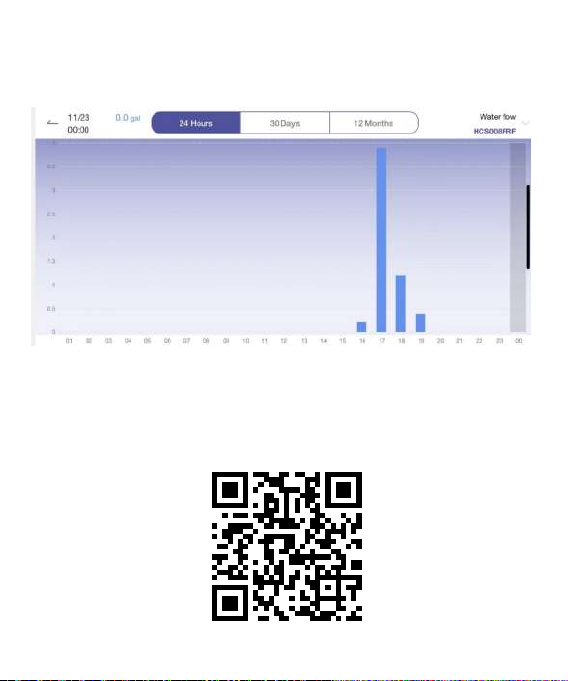

3.4 Chas
Select Chas to review your water consumption hourly, daily and monthly
in a bar graph.
If you need more detail information about the operation, please scan the
QR code or search the link to access the video to check the device quickly
and easily.
Setup Video: http://bit.ly/3WMKuYF

4. TROUBLESHOOTING
Problem Possible Factors Solution may help
Fail to connect
with the hub
Lose
connection or
get oine on
the APP
Data
inaccurate or
incorrect
1. Wi-Fi signal unstable.
2. Distance between
sensor and hub is
too far.
3. WiFi is not 2.4GHz
1. Low batte.
2. Hub disconnected.
3. Wi-Fi signal
unstable.
1. Insucient water
ow in the water
pipe.
2. Not follow the
recommended
ow direction.
1. Wait a little bit and t to
connect one more time by
re-inse the batteries.
2. Stay closer to the hub while
connecting.
3. Please connect 2.4GHz WiFi
before connecting to hub.
1. Change brand new
batteries.
2. Check the hub and
reconnect it if
disconnected.
Then run the water
through out the ow
meter a little bit.
3. Re-inse the batteries
to get into pairing mode
again.
1. Increase the water pressure
or water ow to ll the pipe
diameter.
2. Re-install the ow meter
following the ow direction.
- 09 -

1. The quick
connector is not
tightened on the
ow meter.
2. Batte cover
screws not
tightened.
Water
leakage
Tighten the connectors and
screws before installation.
•Please make sure to use 2.4GHz band WIFI to connect to this product.
•Must tighten the screws before installing.
•Do not mix old and new batteries or dierent types of batteries.
•Under freezing temperatures, please keep the sensor away from snow to
avoid potential freezing damage.
•T to use it following the water ow direction.
RAINPOINT provides a 3-year limited warranty on this product against
manufacturing defects in materials and workmanship.
If you need more help about the product or anything about us, please
contact us US: 1-833-381-5659 (EN)(MON-FRI󶀅9�30󶀅AM-5�30󶀅PM󶀅PST)
EU: [phone] (EN DE)(MON-FRI󶀅9�00󶀅AM-5�00󶀅PM󶀅CET)
Email:󶀅se[e-mail]
5. NOTES
6. WARRANTY
- 10 -
