INSTALLATION MANUAL
CONTENTS
Installation manual 4
In general 4
Chimney 4
Technical data 5
Specifications 5
Dimensional sketches 6
Information plate 10
Installation 12

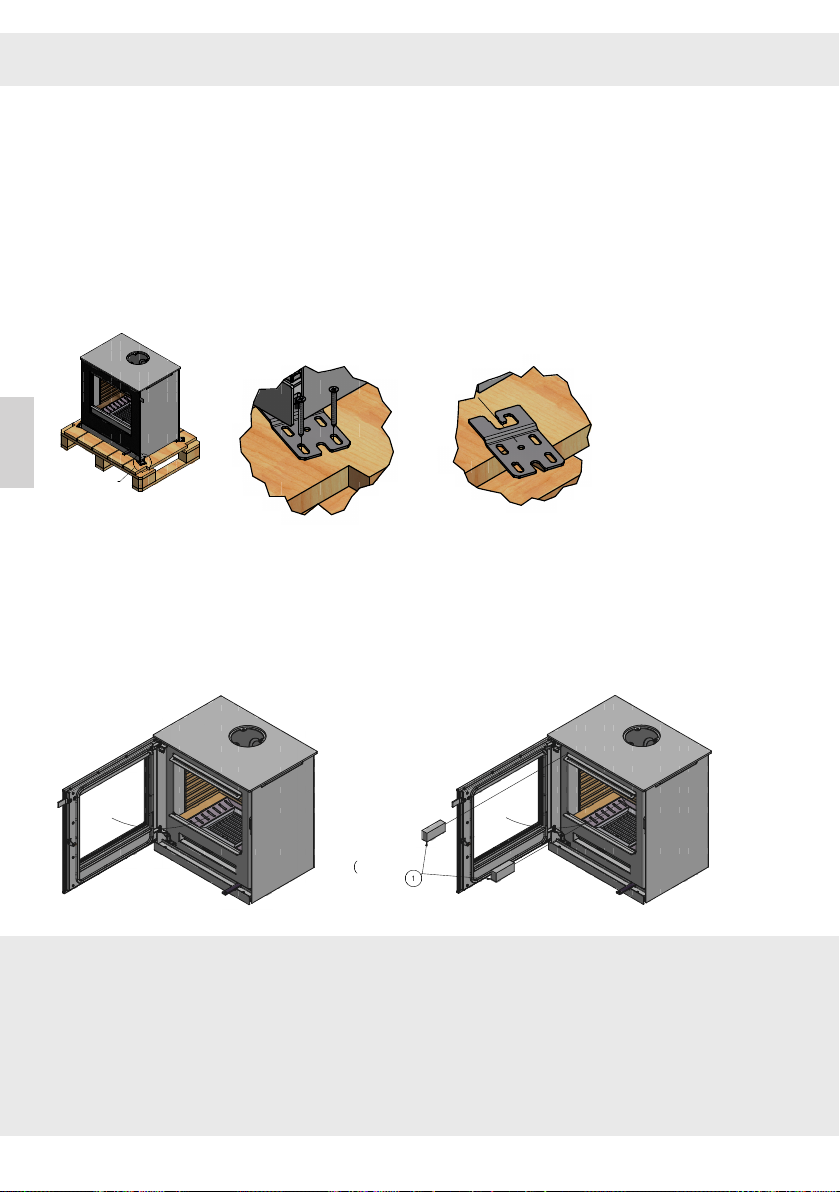

Delivery packaging 12
Disposal of packaging 12
Installation instructions 13
Chimney 14
Installation 15

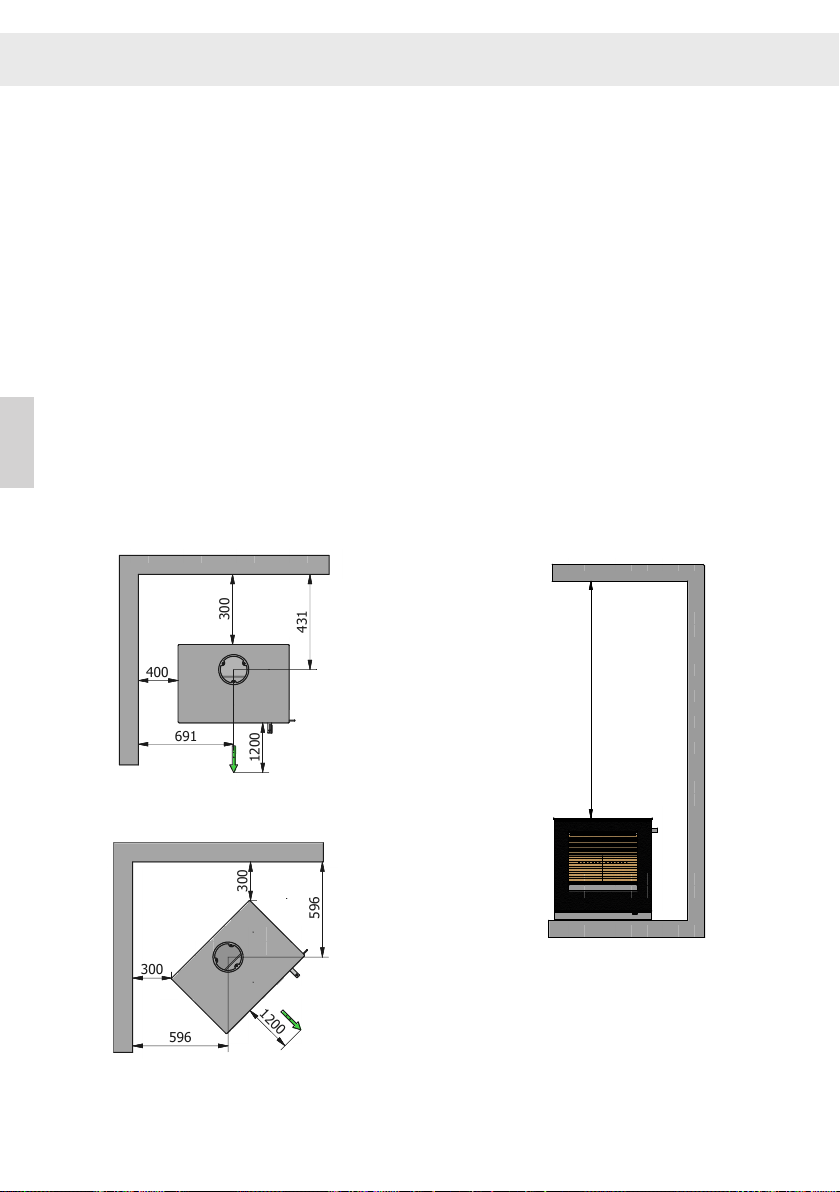

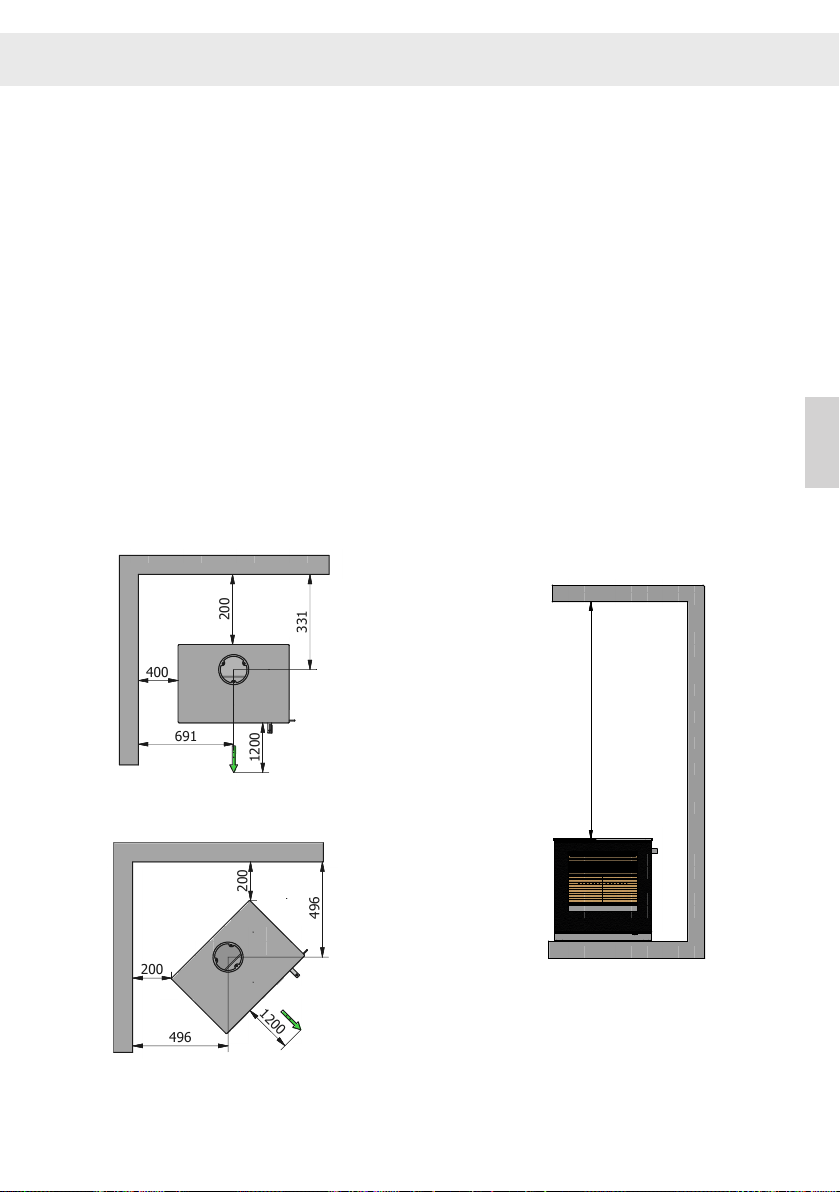

Installation distances 18
Height adjustment 22
Fitting/changing the handle 23
Removing the combustion chamber lining 24
Lubricating hinges 25
installation of smoke outlet for rear outlet 26
Test certificate 27
This manual applies to the following models:
Q-Tee II Glass
Q-Tee II Classic
Q-Tee II C Glass
Q-Tee II C Classic
We are not responsible for typographical errors.

4
GB
INSTALLATION MANUAL
Thank you for choosing your new RAIS or
ATTIKA product! This installation manual
will ensure that your wood stove is in-
stalled correctly and that it will provide
you with comfort and pleasure for many
years to come.
IN GENERAL
It is important to correctly install the
wood stove out of consideration for both
the environment and personal safety.
The installation of the stove must com-
ply with all local rules and regulations,
including those that refer to national and
European standards. A certified chimney
sweeper should be contacted before the
installation is started.
No unauthorised alterations may be
made to the wood stove.
GENERAL INSTALLATION REQUIREMENTS
Before the fireplace insert may be put to
use, the installation must be reported to
your local chimney sweeper.
There must be a plentiful supply of fresh
air in the installation room to ensure
good combustion – if required, through
an Air-System connection. NB: Any me-
chanical air extraction, for example a
cooker hood, can minimise the supply of
air.
The wood-burning stove has an air con-
sumption of at least 7,4 m3/h.
The floor structure must be able to sup-
port the weight of the wood-burning
stove and a chimney. If the existing floor
structure does not meet this require-
ment, suitable measures must be taken
(e.g. installation of a load distribution
plate). Seek advice from a building ex-
pert.
If the wood-burning stove is to be in-
stalled on a flammable floor, national and
local regulations must be complied with,
including for the size of the non-flamma-
ble plate, which must cover the floor in
front of the wood-burning stove to pro-
tect the floor from any embers that fall
out of the stove.
The wood stove must be positioned at
a safe distance from flammable materi-
al. Due to risk of fire, flammable items
(e.g. furniture) may not be positioned
closer to the wood stove than the closest
permitted distance stated in the instal-
lation section. When deciding where to
install your RAIS/ATTIKA wood stove, you
should think about being able to heat
other rooms in the home, so you get the
most out of your new wood stove.
After receiving your wood stove, please
check it for any defects.
CHIMNEY
The chimney must be tall enough to
ensure correct draught conditions,
i.e. -14 to -18 pascal. If the recom-
mended chimney draught cannot
be achieved, problems from smoke
escaping from the door may arise
when lighting the fire. We recommend
adapting the chimney to suit the flue
outlet connector. The flue outlet connec-
tor is 150 mm in diameter.
If the draught is excessive, it is recom-
mended that you equip the chimney
with a regulating damper. If a regulating
damper is fitted, you must ensure that
there is a free flow area of at least 20
cm² at the closed regulating damper.
Remember that there must be unob-
structed access to the access door on the
chimney.
INSTALLATION MANUAL

5
GB
The fireplace insert is tested and approved by:
DTI
Danish Technological Institute
Teknologiparken Kongsvang Allé 29
8000 Aarhus C
Denmark
www.dti.dk
Tel.: [phone]
Fax: [phone]
TECHNICAL DATA
The technical data given below includes specifications, dimensional drawings and the
information plate.
SPECIFICATIONS
Danish Technological Institute ref.: 300-ELAB-1882-EN / 300-ELAB-1882-NS
Q-Tee II Q-Tee II C
Nominal output (kW) 6,5 6,5
Min./Max. Output (kW): 3-8 * 3-8 *
Heating area (m2) 45 - 120 45 - 120
Fireplace insert width/depth/height
(mm) 582 / 410 / 598 660 / 479 / 598
Combustion chamber W x D x H (mm) 446 / 277 / 167** 446 / 277 / 167**
Min. uptake (pascal) -12 -12
Weight (kg) min., depending on the
model:
Efficiency (%) 81 81
CO emission attributed to 13% O2 (%) 0,0791
(989 mg/Nm³)
0,0791
(989 mg/Nm³)
NOx emission attributed to 13% O2
(mg/Nm³) 81 81
Particle emission in accordance with
NS3058/3059 (g/kg) 1,868 1,868
Dust measurement in accordance with
DIN + 13% O2 (mg/Nm³) 14 14
Flue gas flow (g/s) 5,2 5,2
Flue gas temperature (°C) 263 263
Recommended amount of wood (kg)
when stoking the fire (Distributed be-
tween 2 logs, each max. 24 cm)
1,8 1,8
Intermittent operation Stoking should
be done within 60 minutter 60 minutter
*Not verified by test.
**Max. load
