INSTRUCTIONSFORINSTALLATION,
USEANDMAINTENANCE
RAISRINA&RAISVIVA
IMPORTANTINFORMATION
Onfirstlightingthestoveyoumustbecarefulnottotouchthepainted
surfacesanditisMOSTIMPORTANTthatthedooriskeptslightly‘ajar’in
orderforthedoorsealandsealanttocure.
Thiswillpreventthedoorsealstickingtothepaintedbodyandbecoming
damaged.

ENGLISH RAISmanualforRaisRina&RaisViva
2

ENGLISH RAISmanualforRaisRina&RaisViva
3
Revision:
Date :2011
INTRODUCTION ………………………………………………………….. 4
WARRANTY …………………………………………………….………….. 4
SPECIFICATIONS………………………………………………………….. 5
CONVECTION………………………………………………………………. 6
INSTALLATIONINSTRUCTIONS ………………………………….……… 7
CHIMNEY…………………………………………………….…………. 89
HEARTH………………………………………………………………… 9
INSTALLATION………………………………………………..……... 11
COMMISSIONINGANDHANDOVER……………………………… 11

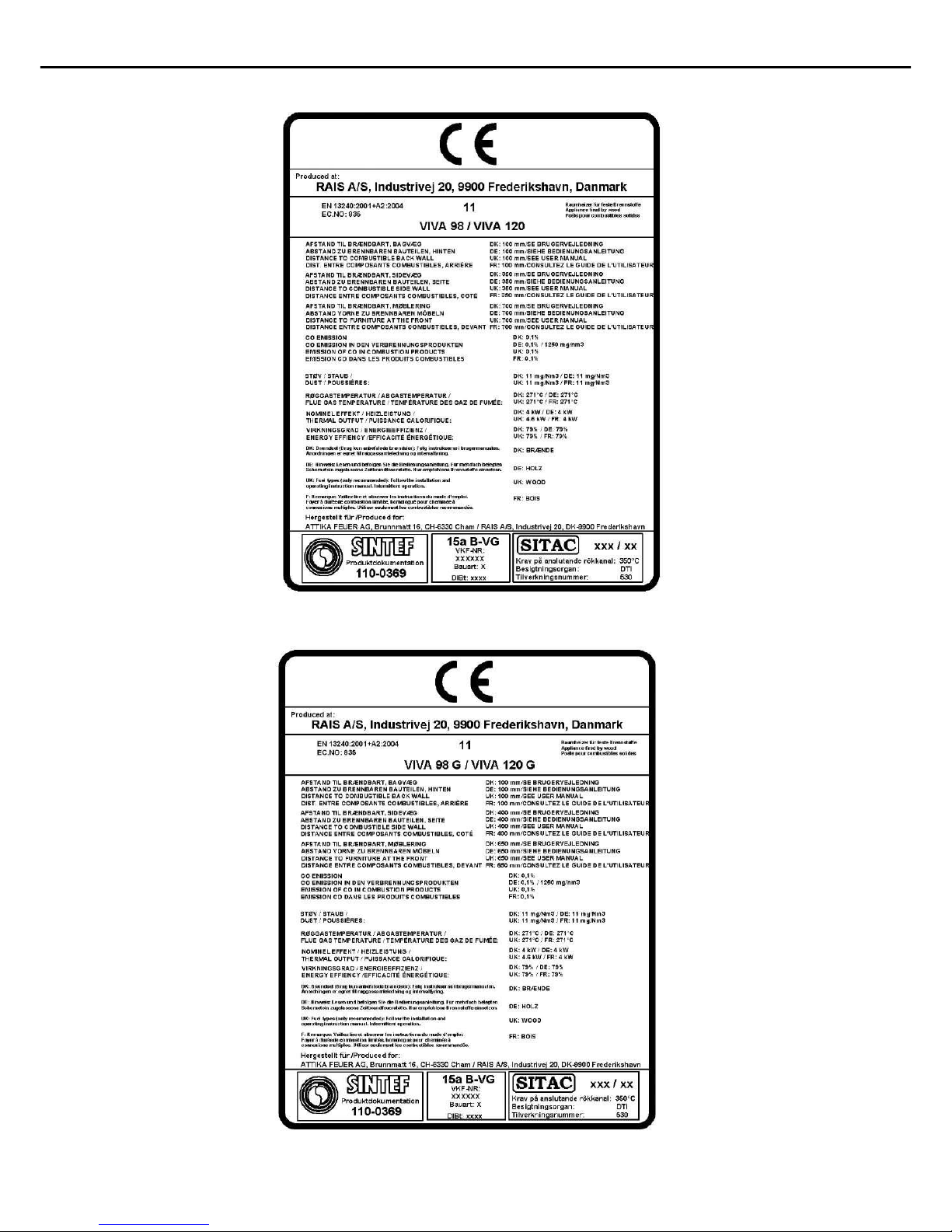

MANUFACTURERSPLATE………………………………………………. 1213
CHANGINGTHECHIMNEYCONNECTION…………………………….. 14
INSTALLATIONDISTANCETOCOMBUSTIBLEWALL…………....... 1520
INSTALLATIONDISTANCETONONCOMBUSTIBLEWALL……… 21
FORTHEINSTALLER……………………………………………………… 21
OPERATINGINSTRUCTIONS…………………………………………….. 26
FUEL…………………………………………………………………………... 26
DRYINGANDSTORAGE…………………………………………………… 27
REGULATIONOFCOMBUSTIONAIR…………………………………… 27
ROOMVENTILATIONANDSTOVES…………………………………….. 27
USINGTHEWOODBURNINGSTOVE…………………………………… 28
FIRSTUSAGE………………………………………………………………… 29
LIGHTINGANDFUELLING………………………………………………… 3031
CLEANINGANDCARE…………………………………………………….. 32
CLEANINGOFTHEFLUEWAYS………………………………………… 33
PROBLEMSOLVING……………………………………………………….. 34
ACCESSORIESANDSPAREPARTS……………………………………. 35
SPAREPARTDIAGRAM…….………..……………………………………. 3645
CERTIFICATEOFCONFORMITY..………………………………………… 46

ENGLISH RAISmanualforRaisRina&RaisViva
4
ARaiswoodburningstoveismorethanjustaheatsource:italsoshowsthatyou
careaboutdesignandqualityinyourhome.
Tomakethemostofyourwoodburningstoveitisimportantthatyoureadthemanual
thoroughlybeforeinstallingandusingit.
Inthecaseofwarrantycoverage,andforgeneralqueriesregardingyourwood
burningstove,itisimportantthatyouknowthestove’sproductionnumber.

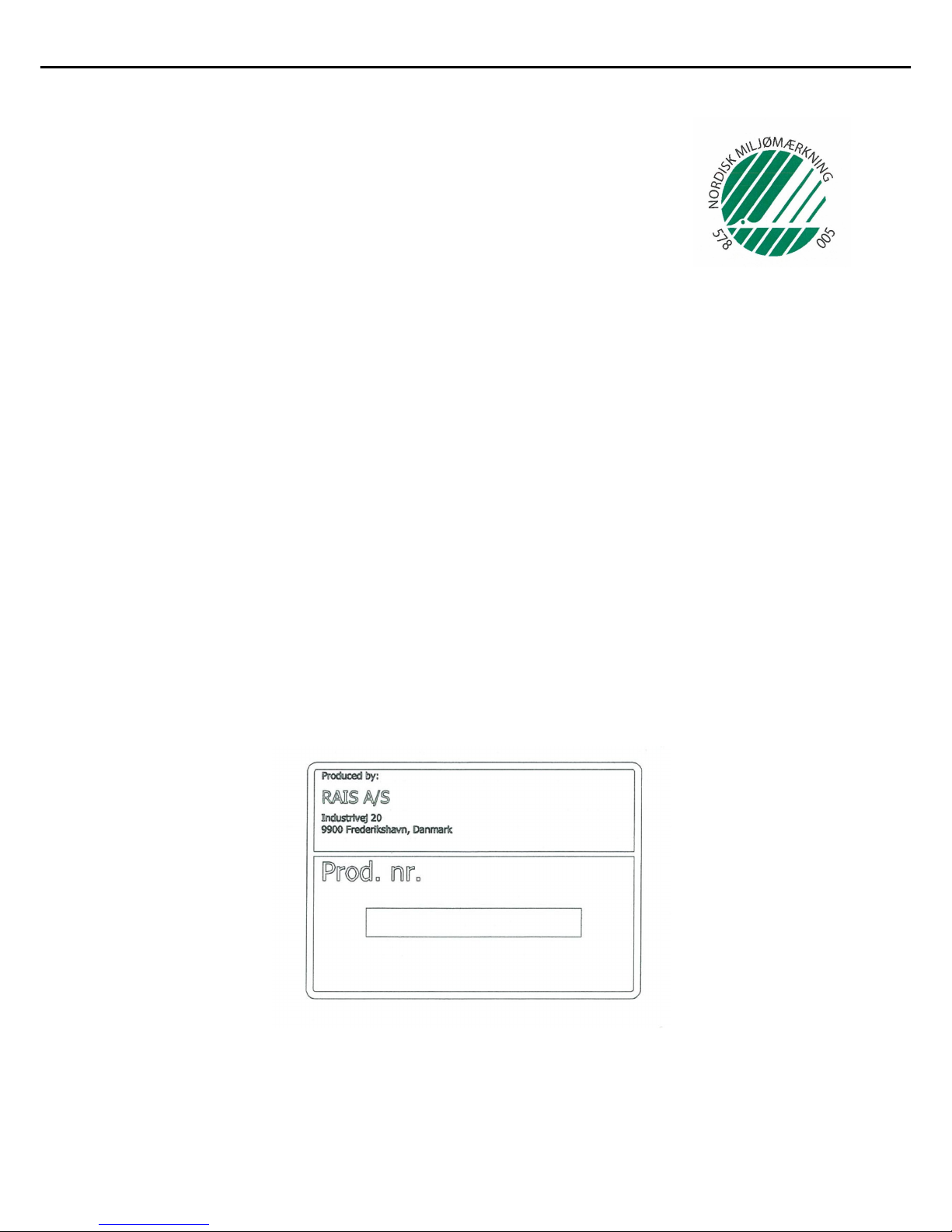

Wethereforerecommendthatyounotedownthenumberinthetablebelow.
Theproductionnumberislocatedatthebackofthestoveatthebottom.
Warranty
YourRaiswoodburningstovecomeswitha5yearwarranty.
Thewarranty,however,doesnotcoverheatinsulatingmaterials,glassandseals.
TheseareavailabletoorderfromyourlocalRaisdealer/stockist.
Anyalterationsmadetothestovewillvoidthewarranty.
Introduction
ThankyouforpurchasingaRaiswoodburningstove.
TheseapplianceshavebeenapprovedbySCA/HETASas
intermittentoperatingappliancesforburningwoodlogsonly.
TheseapplianceshavebeenapprovedforuseinSmokelessZones

ENGLISH RAISmanualforRaisRina&RaisViva
5
Rina90
Nominaloutput(kW): 4.6 Heatingarea(m
2
): Ca.3090
Size,width/depth/height(mm): 461/410/900 Combustionchamberwidth/depth/height(mm). 295/225/393 Recommendedamountofwoodwhenfuelling(kg) (Basedon2  3logsofwoodapprox.25cm)
1.2
Min.uptake/Min.draught(Pascal): 12 Weight(kg):(SteelDoor/GlassDoor) 105 Efficiency(%) 79 ParticlesafterNS3058/3059(g/kg) 1.39 DustmeasuredaccordingtoDin+(mg/Nm
3
) 11
Smokegasmassflow(g/s): 4 Smokegastemperature(°C): 271 Intermittentoperation: Fuellingshould
beundertaken
within3hours
Viva98
Viva98G
4.6
Ca.3090
Ø440/980
295/225/393 320/225/393
1.2
12
98 79
1.39
11
4
271
Fuellingshould
beundertaken
within3hours
Viva120
Viva120G
4.6
Ca.3090
Ø440/1200
295/225/393 320/225/393
1.2
12
104
79
1.39
11
4
271
Fuellingshould
beundertaken
within3hours
Specifications
PleaseNote,thisappliancehasbeentestedbythemanufacturersandworksona3mstraightflue.

ENGLISH RAISmanualforRaisRina&RaisViva
6
Convection
Raisstovesareconvectionstoves.Thismeansthatthestove’sbackandsidepanelsare
notoverheated.Convectionmeansthatthereisacirculationofair,whichensuresthat
theheatisdistributedmoreevenlythroughouttheentireroom.Thecoldairissuckedin
atthebaseofthestoveandupthroughtheconvectionchannel,whichrunsalongthe
stove’scombustionchamber.Theheatedaircomesoutatthetopofthestove,which
ensuresacirculationofwarmairthroughouttheroom.
Thestovesareequippedwithcooldoorhandles  aRaisspecialfeature which
meansyoucouldalmostdoawaywithgloves.Beaware,however,thatallexterior
surfacesbecomehotduringuse  sotakeextremecare.

ENGLISH RAISmanualforRaisRina&RaisViva
7
PleasenotethatitisalegalrequirementunderEnglandandWalesBuilding
RegulationsthattheinstallationofthestoveiseithercarriedoutunderLocal
AuthorityBuildingControlapprovalorisinstalledbyaCompetentPerson
registeredwithaGovernmentapprovedCompetentPersonsScheme.HETASLtd
operatesuchaSchemeandalistingoftheirRegisteredCompetentPersonscan
befoundontheirwebsiteatwww.hetas.co.uk.
COAlarms:
Buildingregulationsrequirethatwheneveraneworreplacementfixedsolidfuel
orwood/biomassapplianceisinstalledinadwellingacarbonmonoxidealarm
mustbefittedinthesameroomastheappliance.Furtherguidanceonthe
installationofthecarbonmonoxidealarmisavailableinBSEN50292:2002and
fromthealarmmanufacturer’sinstructions.
Provisionofanalarmmustnotbeconsideredasubstituteforeitherinstallingthe
appliancecorrectlyorensuringregularservicingandmaintenanceoftheappli
anceandchimneysystem.
HEALTHANDSAFETYPRECAUTIONS
Specialcaremustbetakenwheninstallingthestovesuchthattherequirementsofthe
HealthandSafetyatWorkActaremet.
Handling
Adequatefacilitiesmustbeavailableforloading,unloadingandsitehandling.
FireCement
Sometypesoffirecementarecausticandshouldnotbeallowedtocomeintocontact
withtheskin.Incaseofcontactwashimmediatelywithplentyofwater.
Asbestos
Thisstovecontainsnoasbestos.Ifthereisapossibilityofdisturbinganyasbestosin
thecourseofinstallationthenpleaseseekspecialistguidanceanduseappropriate
protectiveequipment.
MetalParts
Wheninstallingorservicingthisstovecareshouldbetakentoavoidthepossibilityof
personalinjury.
Theseinstructionstogetherwiththoseintheinstructionbookletcover
thebasicprinciplestoensurethesatisfactoryinstallationofthestove,
althoughdetailmayneedslightmodificationtosuitparticularlocalsite
conditions.
InallcasestheinstallationmustcomplywithcurrentBuildingRegulations,
LocalAuthorityByelawsandotherspecificationsorregulationsastheyaffect
theinstallationofthestove.
ItshouldbenotedthattheBuildingRegulationsrequirementsmaybemetby
adoptingtherelevantrecommendationsgiveninBritishStandardsBS8303,
BSEN152871:2007asanalternativemeanstoachieveanequivalentlevelof
performancetothatobtainedfollowingtheguidancegiveninApproved
DocumentJ.

ENGLISH RAISmanualforRaisRina&RaisViva
8
STOVEPERFORMANCE
IntheUKthestovehasbeenapprovedbyHETASLtdasanintermittentoperating
applianceforburningwoodlogsonly.
Itshouldbenotedthatitisanoffencetoburnwoodlogsinthisstoveifitisinstalledwithin
aSmokeControlAreaintheUK,unlessithasbeenaccreditedasaSmokeControl
Exemptappliance(Checkwithyoursupplier/installer).
PREPARATORYWORKANDSAFETYCHECKS
IMPORTANTWARNING
Thisstovemustnotbeinstalledintoachimneythatservesanyotherheatingappliance.
Theremustnotbeanextractorfanfittedinthesameroomasthestoveasthiscancause
thestovetoemitfumesintotheroom.
Chimney
Inorderforthestovetoperformsatisfactorilythechimneyheightmustbesufficientto
ensureanadequatedraughtofapproximately15Pasoastocleartheproductsof
combustionandpreventsmokeproblemsintotheroom.
NOTE:Achimneyheightofnotlessthan4.5metresmeasuredverticallyfromtheoutletof
thestovetothetopofthechimneyshouldbesatisfactory.Alternativelythecalculation
proceduregiveninEN133841maybeusedasthebasisfordecidingwhetheraparticular
chimneydesignwillprovidesufficientdraught.
PleaseNote,thisappliancehasbeentestedbythemanufacturersandworksona3m
straightflue.
Theoutletfromthechimneyshouldbeabovetheroofofthebuildinginaccordancewith
theprovisionsofBuildingRegulationsApprovedDocumentJ.
Ifinstallationisintoanexistingchimneythenitmustbesoundandhavenocracksorother
faultswhichmightallowfumesintothehouse.Olderproperties,especially,mayhave
chimneyfaultsorthecrosssectionmaybetoolargei.e.morethan230mmx230mm.
Remedialactionshouldbetaken,ifrequired,seekingexpertadvice,ifnecessary.Ifitis
foundnecessarytolinethechimneythenafluelinersuitableforsolidfuelmustbeusedin
accordancewithBuildingRegulationsApprovedDocumentJ.
Anyexistingchimneymustbeclearofobstructionandhavebeensweptcleanimmediately
beforeinstallationofthestove.Ifthestoveisfittedinplaceofanopenfirethenthe
chimneyshouldbesweptonemonthafterinstallationtoclearanysootfallswhichmay
haveoccurredduetothedifferenceincombustionbetweenthestoveandtheopenfire.
Ifthereisnoexistingchimneytheneitheraprefabricatedblockchimneyinaccordance
withBuildingRegulationsApprovedDocumentJoratwinwalledinsulatedstainlesssteel
fluetoBS4543canbeused.Thesechimneysmustbefittedinaccordancewiththe
manufacturer’sinstructionsandBuildingRegulations.

ENGLISH RAISmanualforRaisRina&RaisViva
9
Asinglewallmetalfluepipeissuitableforconnectingthestovetothechimneybutisnot
suitableforusingforthecompletechimney.Thechimneyandconnectingfluepipemust
haveaminimumdiameterof150mmanditsdimensionshouldbenotlessthanthesizeof
theoutletsocketofthestove.
Anybendinthechimneyorconnectingfluepipeshouldnotexceed45°.90°bendsshould
notbeused.
Combustiblematerialshouldnotbelocatedwheretheheatdissipatingthroughthewallsof
fireplacesorfluescouldigniteit.Thereforewheninstallingthestoveinthepresenceof
combustiblematerialsdueaccountmustbetakenoftheguidanceontheseparationof
combustiblematerialgiveninBuildingRegulationsApprovedDocumentJandalsoin
thesestoveinstructions.
Ifitisfoundthatthereisexcessivedraughtinthechimneythenadraughtstabilisershould
befitted.Fittingofadraughtstabiliserwillaffecttherequirementforthepermanentair
supplyintotheroominwhichthestoveisfittedinaccordancewithApprovedDocumentJ
(seealsocombustionairsupply).
Adequateprovisione.g.easilyaccessiblesootdoorordoorsmustbeprovidedfor
sweepingthechimneyandconnectingfluepipewhereitisnotintendedforthechimneyto
besweptthroughtheappliance,alsotopermitvisualchecksontheintegrityoftheflue
whentheapplianceisserviced.
Hearth
Thehearthshouldbeabletoaccommodatetheweightofthestoveanditschimneyifthe
chimneyisnotindependentlysupported.Theweightofthestoveisindicatedinthe
brochure.
Thestoveshouldalwaysbeinstalledonanoncombustiblehearthofasizeand
constructionthatisinaccordancewiththeprovisionsofthecurrentBuildingRegulations
ApprovedDocumentJ.
Theclearancedistancestocombustiblematerialbeneath,surroundingoruponthehearth
andwallsadjacenttothehearthshouldcomplywiththeguidanceontheseparationof
combustiblematerialgiveninBuildingRegulationsApprovedDocumentJandalsoin
thesestoveinstructions.
If the stove is to be installed on a combustible floor surface, it must be covered with a
noncombustible material at least 12mm thick, in accordance with Building Regulations
ApprovedDocumentJ,toadistanceof30cminfrontofthestoveand15cmtoeachside
measuringfromthedoorofthecombustionchamber.

ENGLISH RAISmanualforRaisRina&RaisViva
10
Combustionairsupply
Inorderforthestovetoperformefficientlyandsafelythereshouldbeanadequateair
supplyintotheroominwhichthestoveisinstalledtoprovidecombustionair.Thisis
particularlynecessaryiftheroomisdoubleglazedorafluedraughtstabiliseris
operatinginthesameroomastheappliance.Itmaybenecessarytoincreasetheair
ventsizeinpropertywithlowairpermeability(<5.0m
3 /(h.m 2
).
TheprovisionofairsupplytothestovemustbeinaccordancewithcurrentBuilding
RegulationsApprovedDocumentJ.Anopeningwindowisnotappropriateforthis
purpose.
IMPORTANTNOTE:Ifapplicableandtheapplianceisbeingfittedwithinanexisting
fireplacerecess,specialistadviceshouldbesoughtbeforefittinganypermanent
ventilationwithinthisarea.
Connectiontochimney
Stovesmayhaveachoiceofeitherarearortopfluegasconnectorthatallows
connectiontoeitheramasonrychimneyoraprefabricatedfactorymadeinsulatedmetal
chimneyinaccordancewiththeirinstructions.Insomecasesitmaybenecessarytofit
anadaptortoincreasethediameterofthefluetotheminimumrequired150mmsection
ofthechimneyorliner.
ElectricalServices
Theinstallationofanyelectricalservicesduringtheinstallationofthisappliancemustbe
carriedoutbyaregisteredcompetentelectricianandinaccordancewiththe
requirementsofthelatestissueofBS7671
CarbonMonoxideAlarm
AcarbonmonoxidealarmcomplyingwithBSEN50292mustbefittedinthesameroom
astheappliance.Itshouldbepositionedontheceilingatleast300mmfromanywallor,
ifitislocatedonawall,ashighupaspossible(aboveanydoorsandwindows)butnot
within150mmoftheceiling.Thealarmshouldalsobebetween1mand3mhorizontally
fromtheappliance.

ENGLISH RAISmanualforRaisRina&RaisViva
11
Installation
Itisprohibitedtocarryoutunauthorisedalterationstothestove.
Theremustbeplentyoffreshairintheroomwherethestoveisbeinginstalled,in
ordertoensurepropercombustion.Notethatanymechanicalexhaustventilation
e.g.anextractionhoodmayreducetheairsupply.Anyairgrillesmustbeplaced
insuchamanner,thattheairsupplyisnotblocked.
BuildingRegulationsApprovedDocumentJgivesspecificguidanceontherequired
permanentventilationintotheroomforcombustionairofsolidfuelappliances.
Thefloorstructuremustbeabletocarrytheweightofthewoodburningstove,as
wellastheweightofachimney,ifnecessary.
WhenyouchoosewheretosetupyourRAISwoodburningstove,youshould
considertheheatdistributiontotheotherrooms.Thiswillenableyoutogetthebest
useoutofyourstove.
Thestoveshouldbesetupatasafedistancefrominflammablematerials.

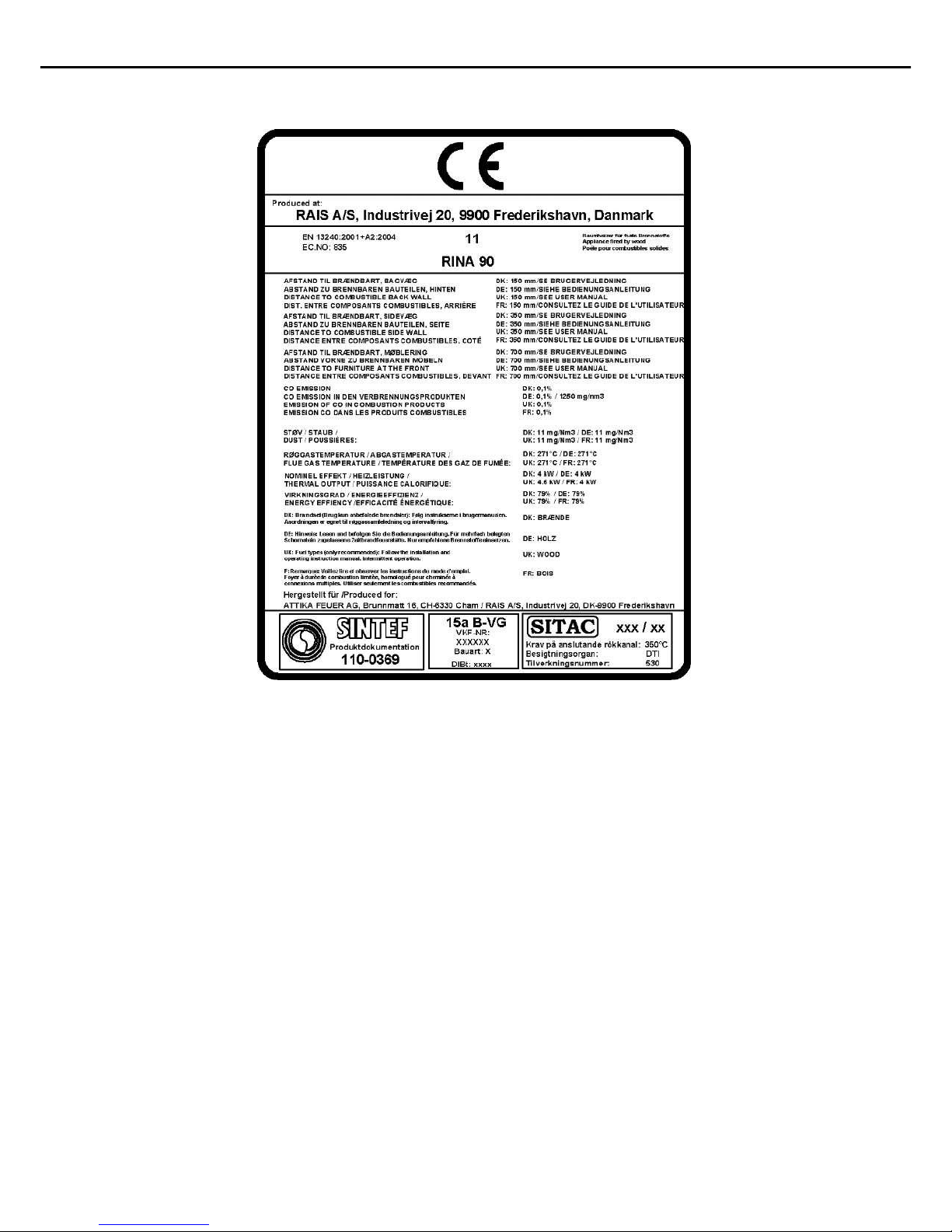

Seethemanufacturer'splateonthewoodburningstove.
Commissioningandhandover
Ensureloosepartsarefittedinaccordancewiththeinstructionsgiveninthe
instructionbooklet.
Oncompletionoftheinstallationallowasuitableperiodoftimeforanyfirecement
andmortartodryout,whenasmallfiremaybelitandcheckedtoensurethe
smokeandfumesaretakenfromthestoveupthechimneyandemittedsafelyto
atmosphere.Donotrunatfulloutputforatleast24hours.
Oncompletionoftheinstallationandcommissioningensurethattheoperating
instructionsforthestoveareleftwiththecustomer.Ensuretoadvisethecustomer
onthecorrectuseoftheappliancewiththefuelslikelytobeusedonthestoveand
warnthemtouseonlytherecommendedfuelsforthestove.
Advisetheuserwhattodoshouldsmokeorfumesbeemittedfromthestove.The
customershouldbewarnedtouseafireguardtoBS8423:2002(ReplacesBS
6539)inthepresenceofchildren,agedand/orinfirmpersons.

ENGLISH RAISmanualforRaisRina&RaisViva
12

ENGLISH RAISmanualforRaisRina&RaisViva
13

ENGLISH RAISmanualforRaisRina&RaisViva
14
Removethecasingknockout.
Removetheprotectivecover/sealandplaceoverthe
holeinthetopmakesurethatthesealispositioned
properly.TightentheassemblyusingthethreeM6nuts.
Theflueoutletspigot,whichcanbefoundinthestoveina
bag,andtheholderfortheupperfluediverterare
assembledwith3M6x20nutsandbolts.
Theupperfluediverter,baffleplateandtopplateare
assembledinreverseorder.
Changingthechimneyconnection

ENGLISH RAISmanualforRaisRina&RaisViva
15
Installationdistancetocombustiblewall
Tofindoutwhetherthewallnexttowherethestoveisgoingtobeinstalledis
flammable,youshouldcontactyourbuildingcontractororthelocalbuilding
authorities.
Thehearthshouldbeabletoaccommodatetheweightofthestove.Thechimney
mustbeindependentlysupportedbywallbracketsoraceilingsupportplate.The
weightofthestoveisindicatedinthebrochure.
Thestoveshouldalwaysbeinstalledonanoncombustiblehearthofasizeand
constructionthatisinaccordancewiththeprovisionsofthecurrentUKBuilding
RegulationsApprovedDocumentJ.
Ifthestoveistobeinstalledonawoodenfloor,itmustbecoveredwithanon
combustiblematerialatleast12mmthick,inaccordancewithUKBuilding
RegulationsApprovedDocumentJ,toadistanceof300mminfrontofthestove
and150mmtoeachsidemeasuringfromthedoorofthecombustionchamber.
Theclearancedistancestocombustiblematerialbeneath,surroundingoruponthe
hearthandwallsadjacenttothehearthshouldcomplywiththeguidanceonthe
separationof
combustiblematerialgiveninUKBuildingRegulationsApprovedDocumentJand
alsointhesestoveinstructions.
Informtheuserthattheappliancehasbeencommissionedandreadytouseand
give
instructiononthesafeoperationofthestove.
TheseInstructionsmustbeleftwiththeuserandtheusershouldbeinstructedto
keeptheminasafeplace.

ENGLISH RAISmanualforRaisRina&RaisViva
16

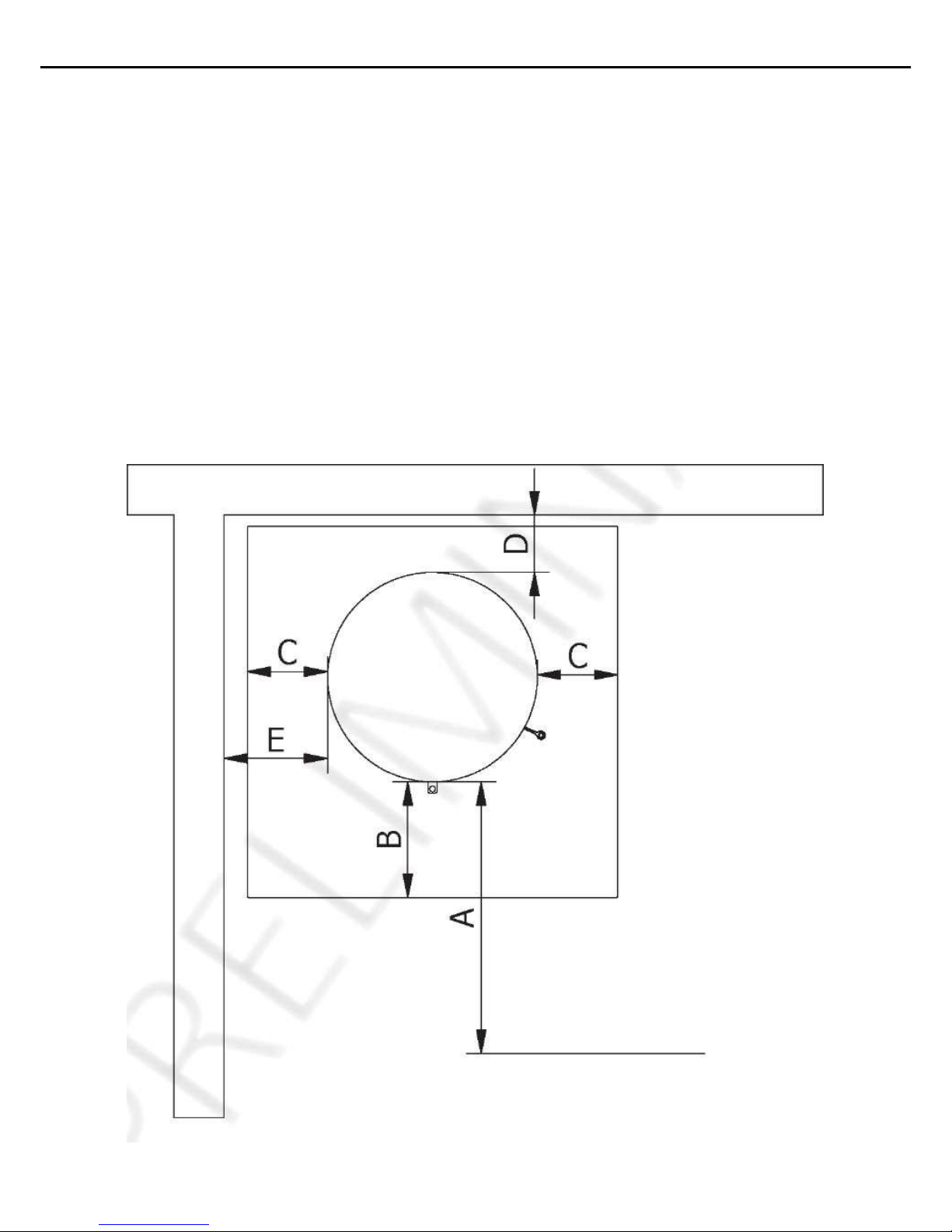

Normalsetupcornersetting
RINA
A. Distancetofurniture 700mm
Distancetoflammablematerials:
B. infront(floor) 300mm
C. totheside(floor) 150mm
D. totherear(floor) 150mm
E. tothesideofthewall 350mm

ENGLISH RAISmanualforRaisRina&RaisViva
17

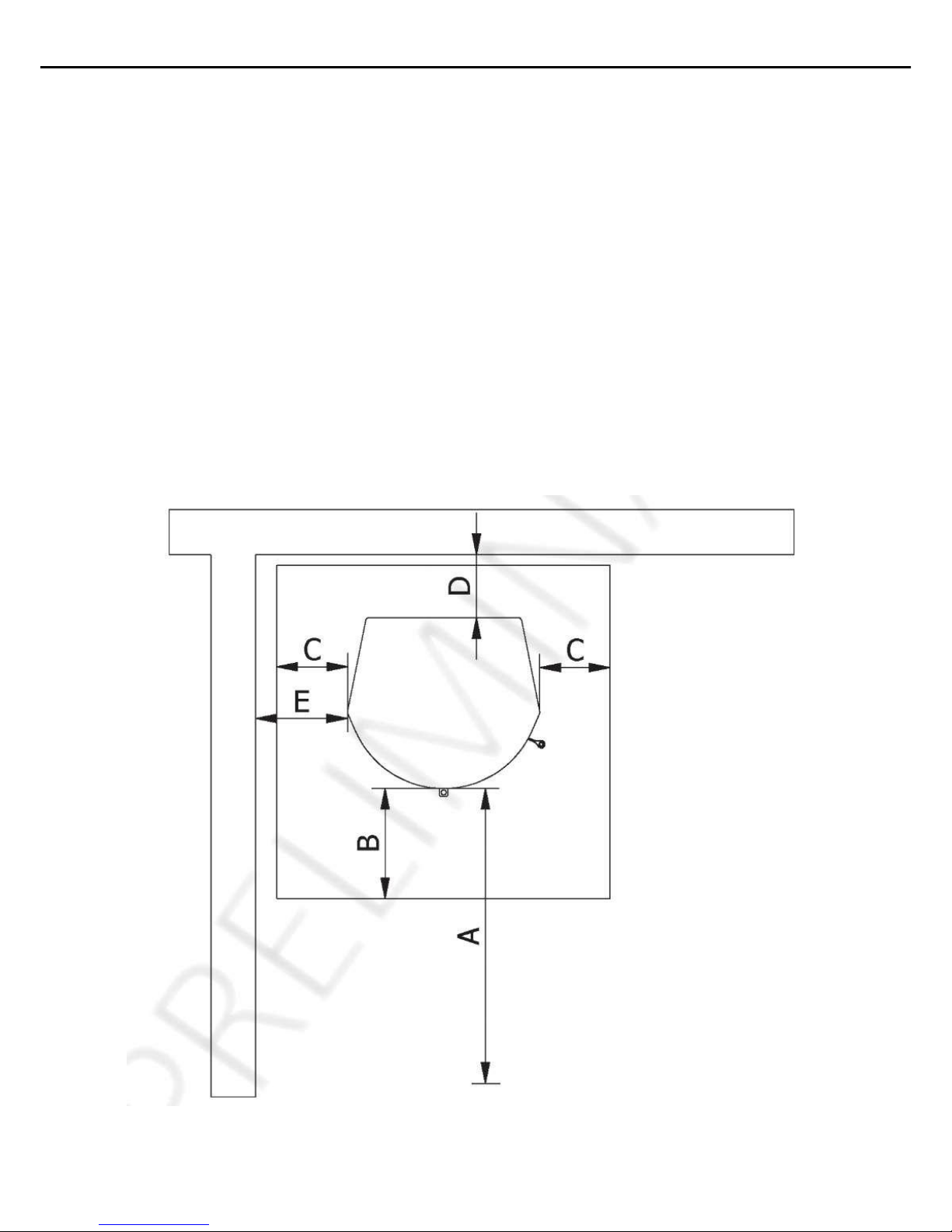

Normalsetupcornersetting
VIVA VIVAG
A. Distancetofurniture 700mm 650mm
Distancetoflammablematerials:
B. infront(floor) 300mm 300mm
C. totheside(floor) 150mm 150mm
D. totherear(floor) 100mm 150mm
E. tothesideofthewall 350mm 400mm

ENGLISH RAISmanualforRaisRina&RaisViva
18

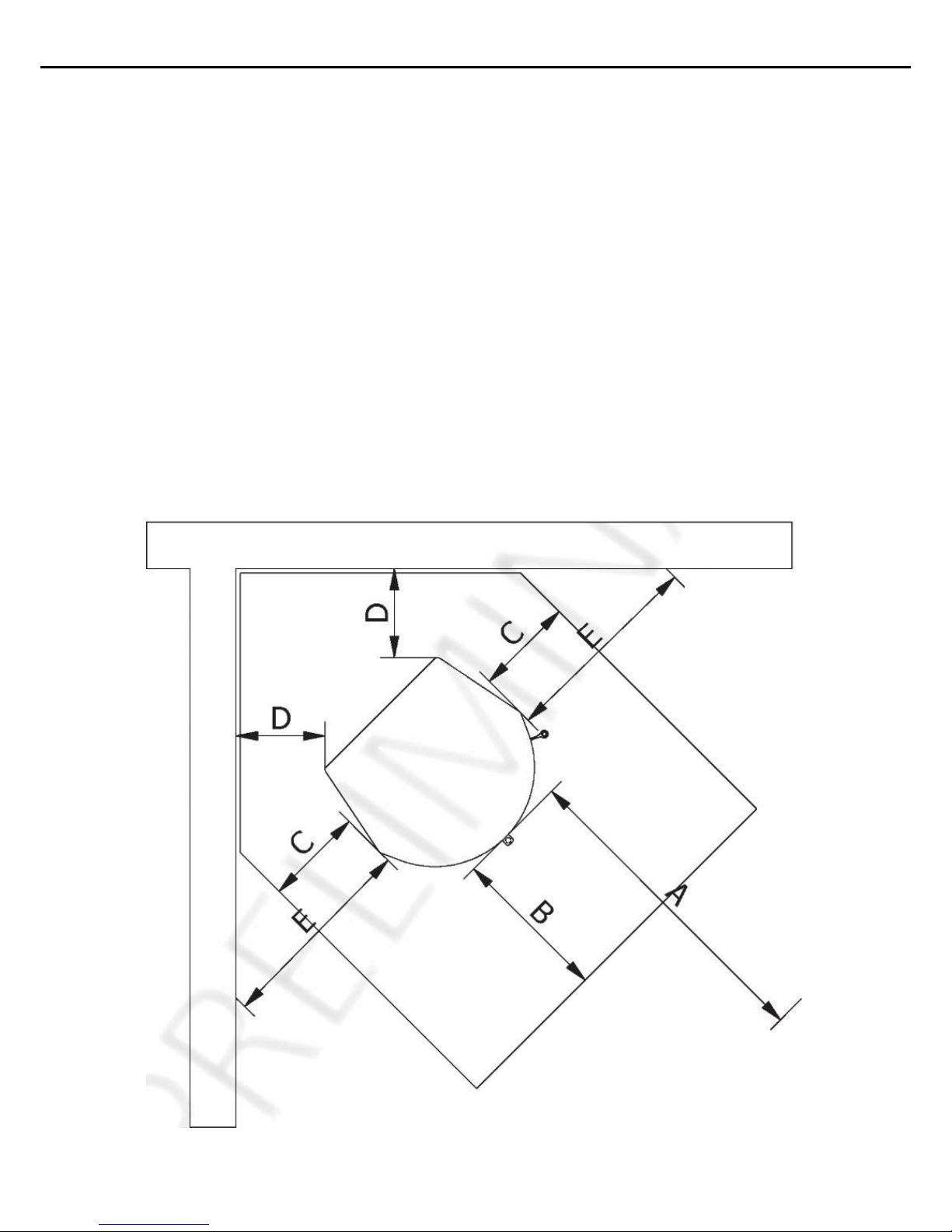

Cornersetting45°fixedsocket
RINA
A. Distancetofurniture 700mm
Distancetoflammablematerials:
B. infront(floor) 300mm
C. totheside(floor) 150mm
D. totherear(wall) 150mm
E. tothesideofthewall 350mm

ENGLISH RAISmanualforRaisRina&RaisViva
19
Cornersetting45°fixedsocket
VIVAVIVAG
Distancetofurniture700mm 650mm
Distancetoflammablematerials:
B. infront(floor) 300mm 300mm
C. totheside(floor) 150mm 150mm
D. totherear(wall) 100mm 200mm
E. tothesideofthewall 350mm 400mm

ENGLISH RAISmanualforRaisRina&RaisViva
20
360°SwivelBase
VIVAVIVAG
Distancetofurniture700mm 650mm
Distancetoflammablematerials:
C. totheside(floor) 300mm 300mm
