Ram Mounts RAM-HOL-PAN11PU User manual
rammount.com
1.800.499.7479
Owner’s Manual
RAM®Powered Dock
for Panasonic FZ-N1 & FZ-F1
RAM-HOL-PAN11PU
RAM-HOL-PAN11PKLU
RAM-HOL-PAN11PCLU
READ BEFORE INSTALLING
Thank you for choosing the RAM® Powered Dock for the Panasonic FZ-N1 & FZ-F1. This holder is ideal for creating a mobile workstation wherever you go.
Read all instructions thoroughly before beginning installation. For additional questions and concerns that may not be covered in this manual, please contact
RAM® Mounts support at rammount.com/support.
1
rammount.com
1.800.499.7479
Safety Precaution
Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle
operation. National Products, Inc does not assume responsibility or liability for any such personal injury, death or property damage.
Non-Locking
RAM-HOL-PAN11PU
Key-Locking
RAM-HOL-PAN11PKLU
Combo-Locking
RAM-HOL-PAN11PCLU
To see more mounting options, visit RamMount.com This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
2
rammount.com
1.800.499.7479
ASSEMBLY
MOUNTING OPTIONS
RAM®Diamond Ball RAM®Square Post Clamp
RAM-247U-4
This clamping base is ideal for forklifts and square posts up to
4” in width; made of powder-coated, marine-grade aluminum
with stainless steel hardware.
Compatible with all RAM®Powered
Docks for the Panasonic FZ-N1;
ball and socket technology allows
for near-infinite adjustability and
mounting options.
RAM®Double Socket Arm
RAM-201U
RAM®Diamond Ball Base
RAM-238U
RAM®Double U-Bolt Ball Base
RAM-235-1U
This base includes zinc-coated double U-bolt hardware to
support any round rail from 1.25” to 1.5” in diameter.
RAM®Tough-Claw™
RAP-404U
Available in alternate sizes, this RAM® Tough-Claw™
can clamp to rails ranging from 1” to 1.875” in diameter
without the use of any tools. Quickly tighten and loosen
the knob to connect to any rail or transfer to alternate
mounting locations easily.
View hundreds of interchangeable mounting components available
at rammount.com/components
Part Index
*not to scale
A
A
B
B
C
C
* Not Included
x 2
x 2
x 1
3
rammount.com
1.800.499.7479
PRODUCT OVERVIEW
DOCKING THE DEVICE
BACK
SIDE
TOPFRONT
6.78"
3.15"
7.85"
3.90"
5
6
1
2
3 4
7
9
10
8
1 2 3
Insert top of device,
pushing upward on the top
cup to expand the dock a
minimum of 7.85 inches.
Push the back of the
device flat against the
cradle.
Carefully release unit so
it makes contact with
pogo pins.
To remove the device simply reverse the above directions
1. Hardware attachment point
2. Guide for device
3. Clearance for headset jack
4. Clearance for power button
5. Spring loaded top cup
6. Cable Retention Option
7. Pogo pins
8. Locking Mechanism
9. Stylus holder
10. Power cable
If pogo pins are damaged in
any way, please do not use the
cradle! PCB must be immediately
replaced to prevent damage to
your device and cradle electronics.
4
rammount.com
1.800.499.7479

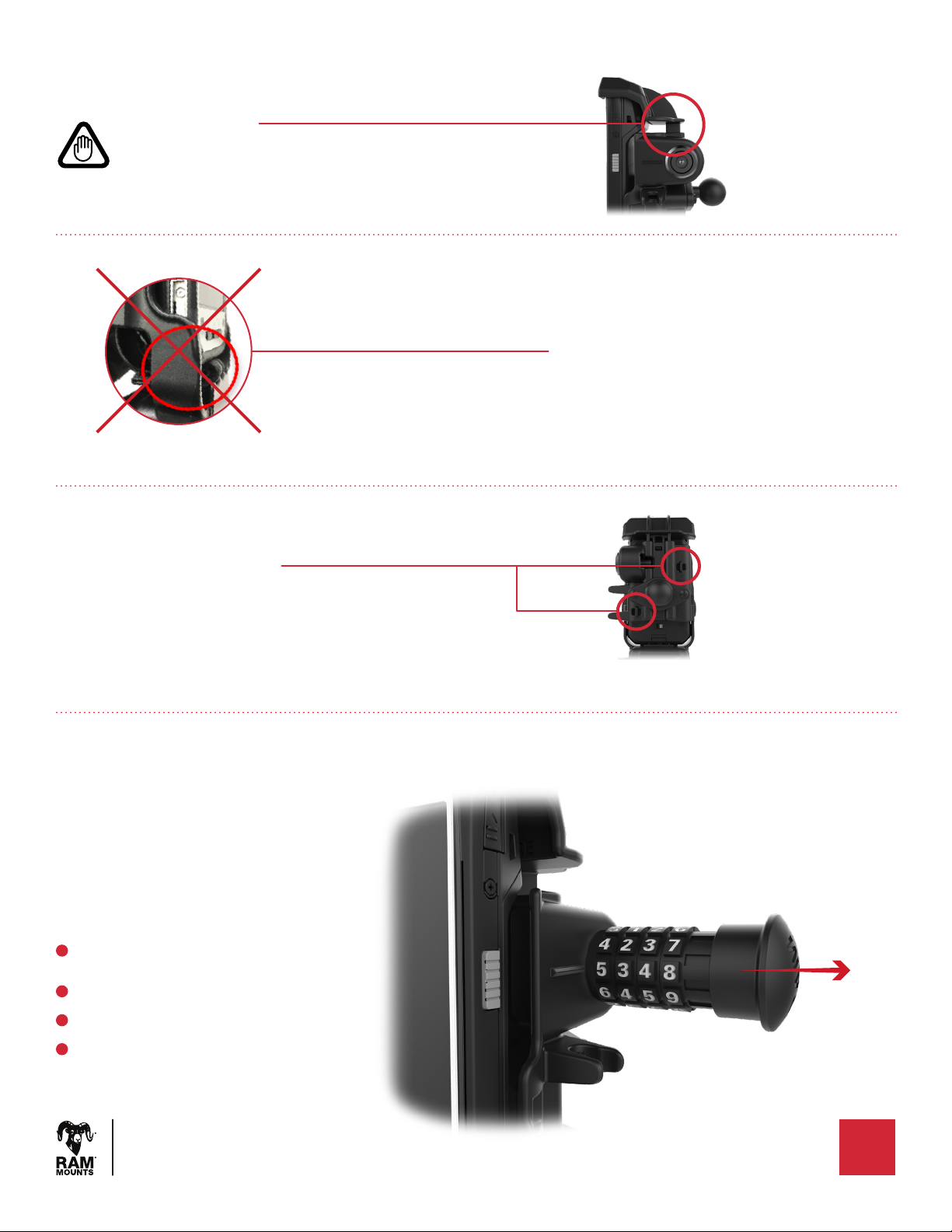

HANDLING CAUTIONS
Pinching Hazard
The cradle is spring loaded and may snap closed, pinching
the skin of your hand if not careful. Avoid close contact
with the top cup of cradle.
Avoid Hand Strap Interference
Ensure hand strap or anything external is not in contact
with the pogo pins. This can damage them and disable the
holder’s charging capabilities.
Charging Cord Placement
Charging cord must be zip-tied to the back of the cradle
to prevent unnecessary strain to the connection point
on the holder.
COMBINATION LOCK
Unlock Mode
To unlock, align factory preset combination, or
current combination (A), and pull plunger (C)
outward away from notched ring (B).
Plunger IN: Device latch will be locked in position
Plunger OUT: Latch will be loose
1
2
3
4
Set lock to unlock mode (see above), with
plunger pulled outward.
Rotate notched ring until it stops.
Set new combination.
Rotate notched ring back to original
position. New combination will be set.
Changing Lock Combination
A
C
B
This manual suits for next models
