RanSpec SC Worktop Freezer models 65000
Description:
Self-contained freezer base unit with 16 gauge reinforced
stainless steel top, and integral backsplash with 45˚ return.
Stainless steel doors on concealed hinges. CFC free, R-404a
refrigeration system. Unit with automatic defrost system, and
heated door frames. 6" high adjustable and movable legs.
Standard Features:
• Available under one piece top with other modular
equipment up to 16' in length
• 6" high legs—adjustable and movable
• Foamed in place “CFC free” urethane insulation
• Refrigeration system utilizes “CFC free” R- 404a
refrigerant, expansion valve for fast recovery, and
digital control for field adjustability
• Automatic coil defrost system
• 45˚ integral stainless backsplash is standard. 90˚ stainless
backsplash is optional.
• Front breathing louver design allows sealing to wall &
curb mounting without special requirements
• Precise temperature settings, LED temperature readout
Specifications:
Options & Accessories:
Stainless Steel Ends
Stainless Steel Back
Casters in lieu of legs
Flat Top with no backsplash
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
Ends at top fitted with recessed heavy duty steel bars for field
bolting units together, producing a hairline seam. Hinged louver
panel to be stainless steel. Exterior body to be corrosion resistant
steel. Door opening frame to be ABS and contain magnetic strip
for positive sealing of gaskets and heater elements to prevent
gasket freezing. Back-up element installed. Work surface to
be at 36" work height. Legs to be 6" high stainless steel with
adjustable bullet foot. Legs mounted to full length channel frame
assembly which is integrally welded to bottom of body assembly.
Legs can be moved left to right to avoid floor obstacles during
installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at
ends only. Stainless steel interior liner to be coved cornered to
form bottom, back and top. One baked enamel finished shelf
provided behind each door. Unit insulation to be CFC free foamed
in place urethane.
DOORS: Door fronts to be 22 gauge stainless steel with 16 gauge
stainless steel handles, magnetic gaskets, ABS door liner and
foamed in place insulation. Hinges are concealed, all stainless
steel with bronze pivot pin in nylon bushing.
REFRIGERATION: Refrigeration system utilizes “CFC free” R-404a
refrigerant. Condensing unit sized and installed for proper cooling
in housing at left end. Interior fitted with Randell evaporator
blower coil for cooling base. Blower coil fitted with expansion
valve for fast recovery and automatic defrost heater system
with timer and safety switches. Unit totally prewired and to be
supplied with 8' cordset for 115V operation. Standard with hot
gas condensate evaporator.

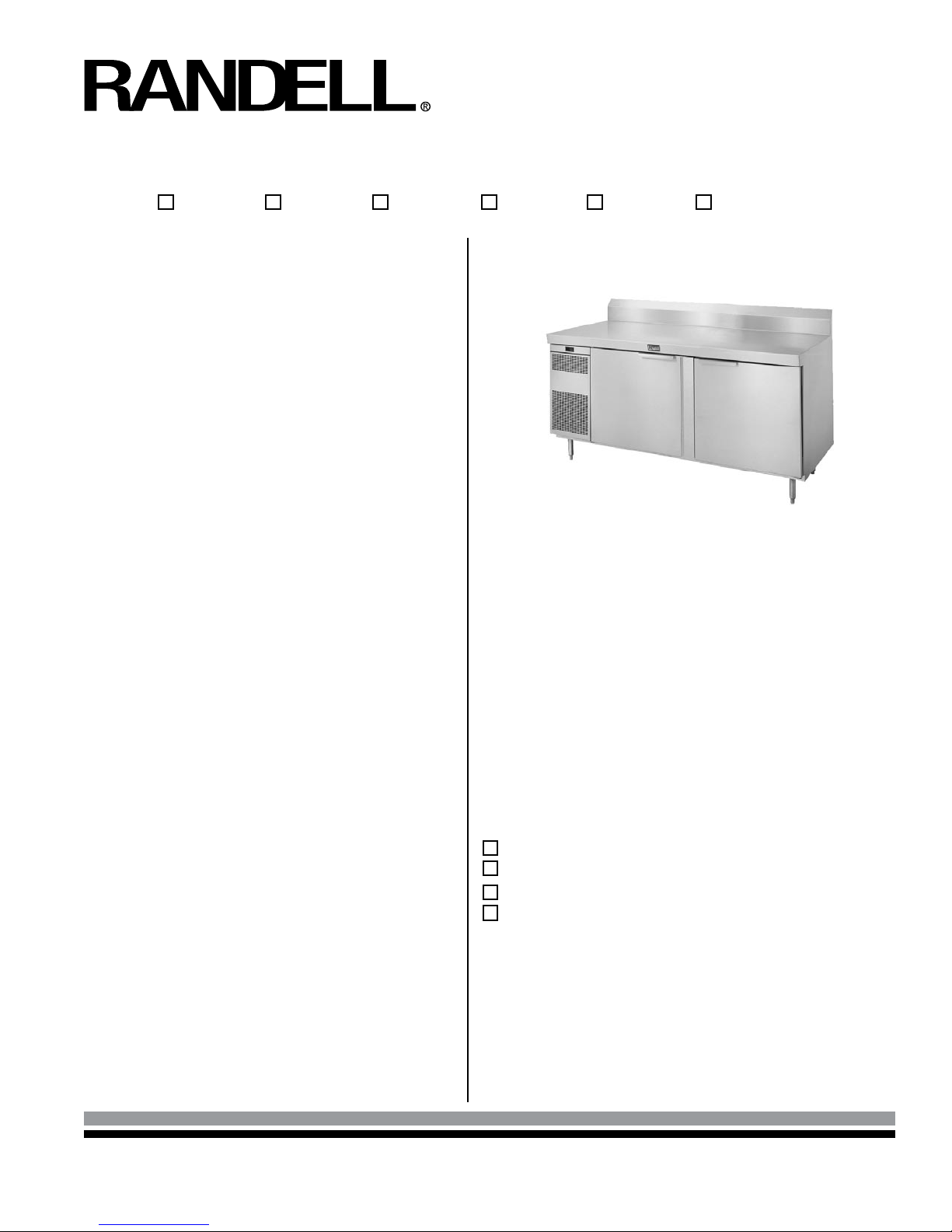

Shown with optional finished end.
Randell RanSpec, Page 25
PP SPEC0140 Rev. A
Revised 08/07
model 65343 65346 65349 65366 65372 65396

1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
65000 Series
J
J-BOX 26" AFF
120V-60-1PH
33"
36"
42.75"
27"FREEZER 27"FREEZER
72"
24"FREEZER 24"FREEZER
66"
27"FREEZER
49"
24"FREEZER
46"
HP
J
21"FREEZER
COMPR. HSG.
43"
24"FREEZER 24"FREEZER24"FREEZER
AFF = ABOVE FINISHED FLOOR
HP COMPRESSOR
JUNCTION BOX 26" AFF
115V/60Hz/1Ph
8' LONG CORD SET
HP
LEGEND
96"
65000 SERIES (COMPRESSOR LEFT) SELF-CONTAINED FREEZERS WITH STAINLESS STEEL TOPS
Length 43” 46” 49” 66” 72” 96”
Model (33" deep) 65343 65345 65349 65366 65372 65396
# of Doors (1) 21" + 8”
coil hsg.
(1) 24" + 8”
coil hsg.
(1) 27" + 8”
coil hsg.
(2) 24" + 4”
mullion
(2) 27" + 4”
mullion
(3) 24" + 4”
mullion
Min. Compr. Hsg. 14” 14” 14” 14” 14” 18”
Storage Cu. Ft.
(33” deep)
5.86 6.84 7.81 13.35 15.30 20.19
Storage Cu. Ft.
(29” deep)
4.92 5.74 6.56 11.21 12.85 16.95
H.P./Refrigerant 1/3HP/404A 1/3HP/404A 1/3HP/404A 1/3HP/404A 1/2HP/404A 3/4HP/404A
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Amps 10 10 10 10.9 10 12.5
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-20P
Ship Wt. (LBS) 415 430 445 545 575 1400
*BTU Design 742 780 818 1258 1334 1786
*BTU System Capacity 1135 1135 1135 1737 1737 2420
*BTU calculations based on 100˚F ambient
SECTION VIEW
