RanServe Fiberglass Frost Top models FTA

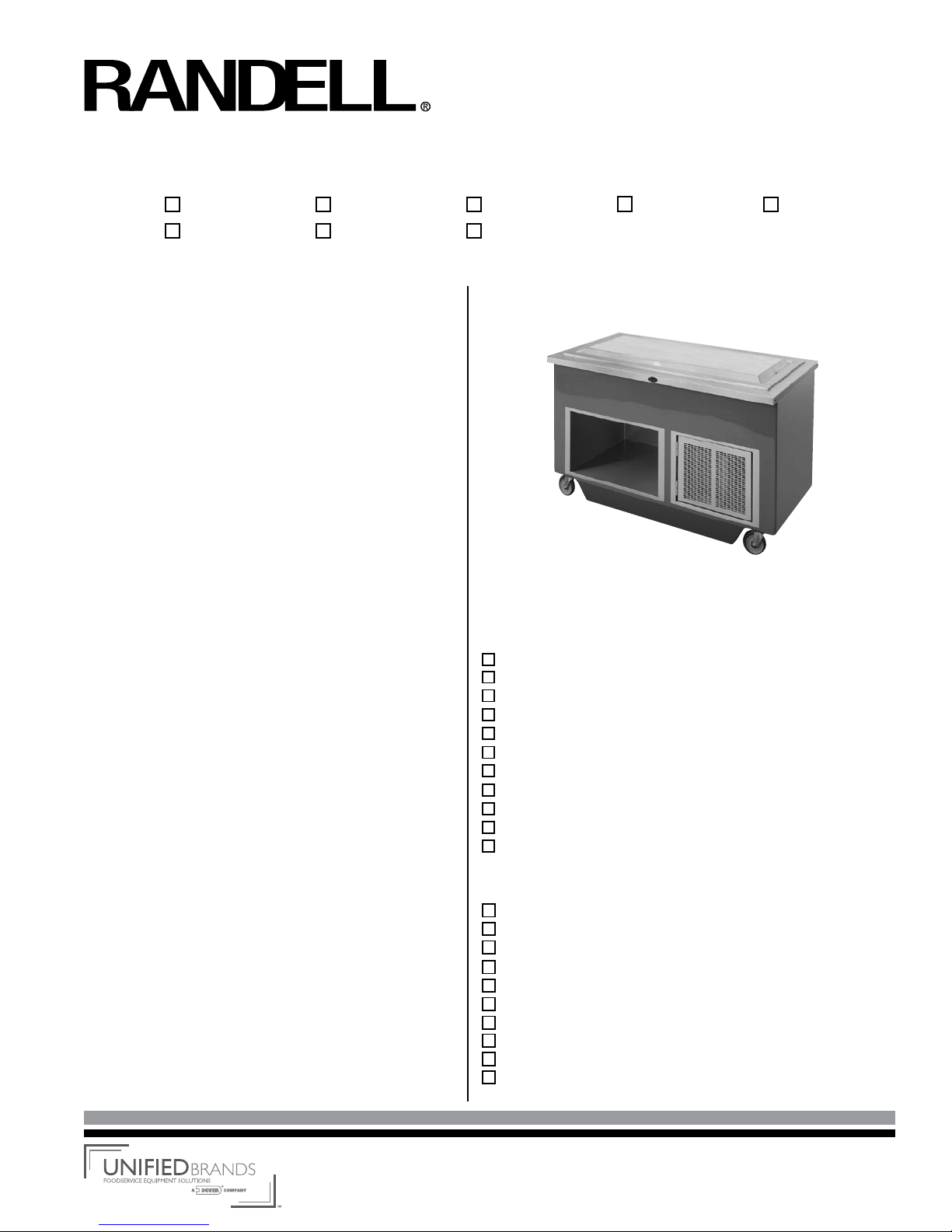

model 14GFG FTA-4S shown
Standard Features:
• Unique integral toe-kick provides neater finish
• Easy access to service the condensing coil through the
hinged louver
• Concealed locking mechanism with easy to use
spring-activated catch
• Hinged access to drain gate valve
• Easy access to thermostat through the hinged louver panel
• Single-Sided louver designed to efficiently cool system
without need for auxiliary louvers on the opposite side
Additional Available Configurations:
•14GFG FTA “S” Series
Same basic construction of standard enclosed base series with
an optional open shelf storage compartment. Available in the
60.25”, 72" and 86" models to offer most efficient space
capacity.
Description:
Randell’s 14GFG FTA Self-Contained Mechanically Cooled Frost
Top Units designed for virtually any cold food serving application,
the 14GFG FTA series is enclosed in brilliant one-piece fiberglass
body and 14 gauge stainless steel top.
Specifications:
CABINET CONSTRUCTION: One-piece molded fiberglass body for
smooth exterior finish. All corners and areas where accessories
are mounted are reinforced internally with metal backers. Unit
to be provided with integral toe-kick.
TOP CONSTRUCTION: Exterior top is standard in reinforced 14
gauge 300 series stainless steel with #4 finish.
FROSTTOP CONSTRUCTION:The Frost Tops are constructed of die
formed stainless steel and are provided with a perimeter trough
and drain. Mechanical (compressor) housing with louvered ac-
cess door.
Randell RanServe, Page 20
Revised 2/07
Available Fiberglass Colors:
Pitch Black
Dark-Bark Brown
Cabernet Wine
British Racing Green
Tin Man Gray
True Blue
Light Sky Blue
Candy Apple Red
Tiger Lilly Orange
Canary Yellow
White
model 14GFG FTA-2 14GFG FTA-3 14GFG FTA-4 14GFG FTA-5 14GFG FTA-6
14GFG FTA-4S 14GFG FTA-5S 14GFG FTA-6S
Options & Accessories:
Canopy
Overshelves
Trayslides
Corian top
Granite top
No kick-plate
Graphics
Sneeze Guards
Elementary School Height
Electrical Distribution System

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models FTA
STORAGE SHELF INFORMATION FOR FTA “S” SERIES
36" & 48" not available with storage shelf (too small)
Model L(A) W(B) H( C ) Ship Wt
14GFG FTA-4S 60.25" 25.5" 14.5" 375
14GFG FTA-5S 72" 37.5" 14.5" 425
14GFG FTA-6S 86" 51.5" 14.5" 475
COMMON DATA FOR FTA SERIES
(INCLUDES THE STANDARD FTA SERIES AND THE”S” STORAGE BASE SERIES)
Model L Top Work Size of
(A) Depth Height Frosted Surface H.P. Volts NEMA Amps Ship Wt.
14GFG FTA-2 36" 30" 35" 23 x 18" 1/4 115V 5-5P 5 250
14GFG FTA-3 48" 30" 35" 35 x 18" 1/4 115V 5-5P 5 300
14GFG FTA-4(S) 60.25" 30" 35" 47 x 18" 1/4 115V 5-5P 5 350
14GFG FTA-5(S) 72" 30" 35" 59 x 18" 1/4 115V 5-5P 5 400
14GFG FTA-6(S) 86" 30" 35" 71 x 18" 1/4 115V 5-5P 5 450
Amp loads may change when adding incandescent light options.
Designed to maintain
frosty-cold appearance.
HP COMPRESSOR
JUNCTION BOX 14" AFF.
115V/60Hz/1PH
9' CORD NEMA #5-15P
AFF. = ABOVE FIXED FLOOR
LEGEND FOR
RANFG FTA
HP
30"
35"
25"
60"
86"
72"
60.25"
48"
J
HP
9' CORD & PLUG
EXTENDIND FROM
BOTTOM OF UNIT
36"
"S" Model
14GFG-FTA DRAWINGS SHOWN, 14GFG FTA-S FRONT VIEW SHOWN AS REPRESENTATION OF “S” MODELS
Drawings are to be viewed in the same order as the chart
