Randell 20048SCF User manual

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

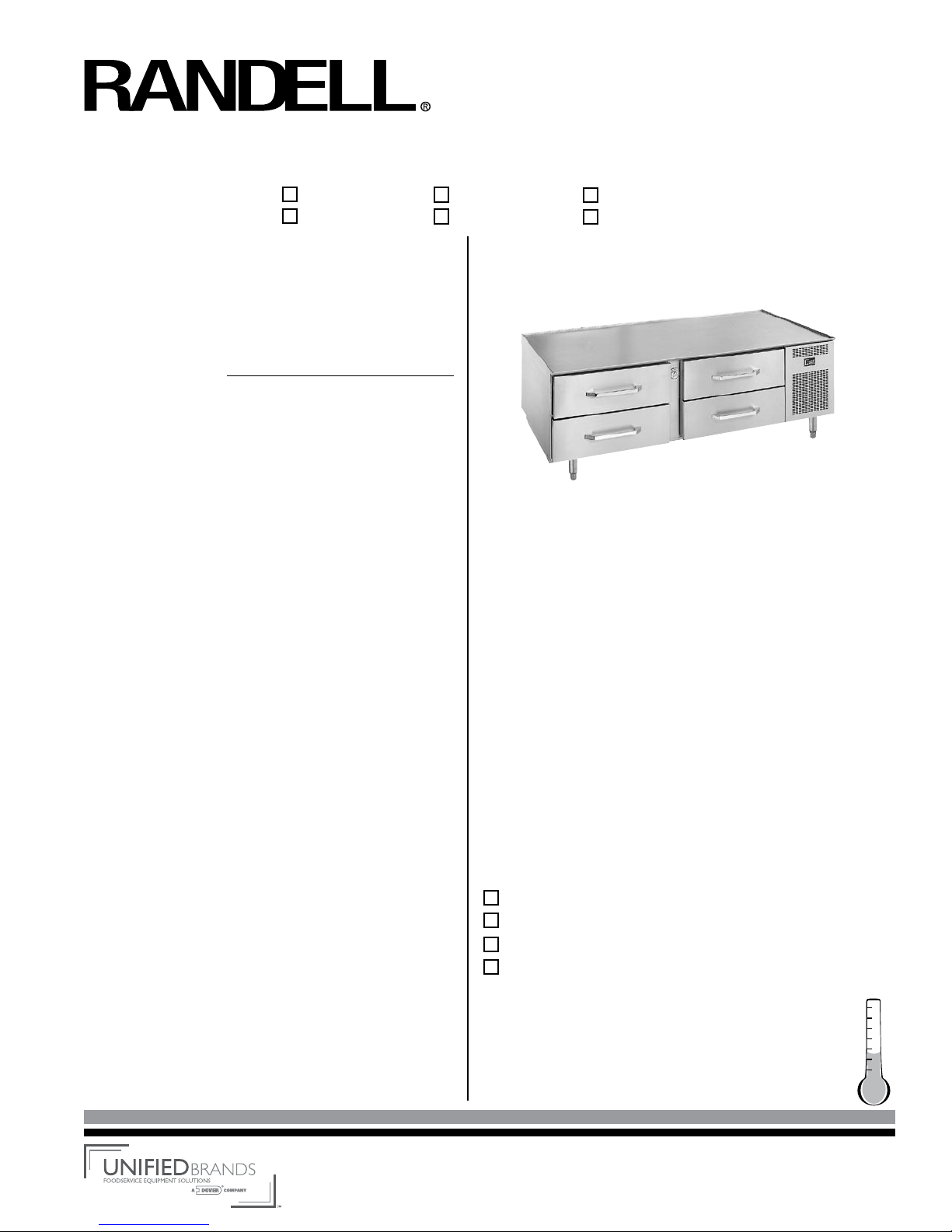

Equipment Stand Self-Contained Freezer Base model 20000SCF
model 20072SCF shown
Specifications:
CABINET EXTERIOR: Cabinet body is constructed of all metal. The
top, front, and louver panel are stainless steel. Full length, 12
gauge steel subtop beneath one piece stainless steel top with
1/2" marine edged. Body ends are stainless steel. 6" stainless
steel legs with adjustable bullet feet are mounted to a heavy
gauge steel frame assembly which is integrally welded to bottom
of assembly. Unit totally prewired to junction box. 9' cordset for
115V operation.
CABINET INTERIOR: Interior of cabinet is fully coved to meet N.S.F.
standard #7.The interior is constructed of anodized aluminum with
coved corners for easy clean-up. Drawer opening frames are A.B.S.
and contain magnetic strip for positive seal of drawer gaskets. Unit
insulated with CFC free, foamed in place polyurethane.
REFRIGERATED DRAWERS: Fully welded, unitized drawer
cartridge assembly - patented. Heavy duty full extension 14
gauge drawer tracks on 1 5/8" heavy duty stainless steel
bearings. Will accommodate (2) 12" x 20" x 4" deep pans per
drawer (pans not included). Quick release allows drawers to be
easily removed for cleaning. Stainless fronts, mounted to drawer
cartridge assembly with easy to grasp drawer handles. Provided
with drawer frame heater to prevent gaskets freezing. Drawers
with press fit magnetic gaskets - (designed for installation &
removal without tools).
REFRIGERATION: CFC free, R-404a refrigeration system to include
condensing unit, Randell blower coil, defrost timer, and factory
set pressure control. Blower coil fitted with expansion valve for
fast recovery. Compressor housing to allow maximum airflow and
includes standard condensate evaporator. Mullion coil, is coated
to resist corrosion, and offers maximum air flow.
Standard Features:
• R-404a self-contained refrigeration system features
expansion valve for fast recovery, and thermostatic
control for operator adjustability
• Hot gas condensate evaporator
• Drawer Cartridge Assemblies are fully removable with
Quick Release feature
• Foamed in place “CFC” free urethane insulation
• Marine edged stainless steel top with 12 gauge steel
subtop to hold the heaviest cooking equipment
• Removable 14 gauge drawer tracks on 1 5/8" heavy
duty stainless steel bearings
• Drawers to accommodate (2) 12"x 20"x 4"
pans per drawer (pans not included)
• 6" high adjustable legs
Description:
32 1/2" deep self-contained freezer base cooking equipment
stand with reinforced stainless steel top. 12 gauge steel subtop,
and full marine edge. Expansion valve refrigeration system with
thermostatic control for operator adjustability. R-404a refrigerant
is “CFC free”. Unit on 6" high adjustable legs.
These units feature our Patented Drawer Cartridge Assembly.
A fully welded, unitized drawer cartridge assembly with a
quick release that allows the refrigerated drawers to be
easily removed for cleaning.3 year warranty on the entire
drawer system.
Randell Equipment Stand, Page 2
Revised 04/07
Options & Accessories:
model, 32” Drawer 20048SCF-32 20072SCF-32 20105SCF-32
model, 27” Drawer 20048SCF 20072SCF 20105SCF
33°F to 40°F 18°F to 22°F33°F to 41°F
Heavy duty casters
Flat top
Length modification of: _______
Compressor on left

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 20000SCF
DT
1/3 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/8.7A
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20048SCF
AFF = ABOVE FIXED FLOOR
LEGEND FOR
27" FREEZER
27" FREEZER
Digital Control
(1) SET OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
48"
25"
J
OC
HP
27" FREEZER
27" FREEZER
(2) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
27" FREEZER
27" FREEZER
COMPR. HSG.
72"
25"
(3) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
27" FREEZER
27" FREEZER
27" FREEZER
27" FREEZER 27" FREEZER
27" FREEZER
105"
25"
32.5"
26"
6"
Digital Control Digital Control
DT
DEFROST TIMER
DT
1/3 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/8.7A
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20072SCF
AFF = ABOVE FIXED FLOOR
LEGEND FOR
DEFROST TIMER
DT
1/2 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/10.9A
DT
1/4 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/6.0A
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20048SCF
AFF = ABOVE FIXED FLOOR
LEGEND FOR
DEFROST TIMER
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20105SCF
AFF = ABOVE FIXED FLOOR
LEGEND FOR
DEFROST TIMER
27” DRAWER SELF-CONTAINED FREEZER MODELS (The load capacity of this equipment stand is rated up to 225 lbs per linear foot)
Model L D H Drawers # of 12x20 Pans HP Volt Amp NEMA Ship Wt.
20048SCF 48” 32 1/2” 26” 2 4 1/3 115/60/1 8.7 5-15P 400
20072SCF 72” 32 1/2” 26” 4 8 1/3 115/60/1 8.7 5-15P 530
20105SCF 105” 32 1/2” 26” 6 12 1/2 115/60/1 10.9 5-15P 675
The Randell Cartridge System! Patented.
• Fully welded 14 gauge unitized Drawer Cartridge assembly.
• 14 gauge drawer tracks on 1 5/8" heavy duty stainless steel bearings.
• Heavy duty full extension tracks to accommodate 12" x 20" x 4" deep pans, two per drawer. Pans by others.
• Quick release allows drawers and liners to be removed without tools.
• Drawers with stainless steel drawer fronts & easy to grasp drawer handles.
27” DRAWER MODELS

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 20000SCF-32
32” DRAWER SELF-CONTAINED FREEZER MODELS (The load capacity of this equipment stand is rated up to 225 lbs per linear foot)
Model L D H Drawers # of 12x20 Pans HP Volt Amp NEMA Ship Wt.
20048SCF-32 53” 32 1/2” 26” 2 4 1/3 115/60/1 8.7 5-15P 400
20072SCF-32 82” 32 1/2” 26” 4 8 1/3 115/60/1 8.7 5-15P 530
20105SCF-32 120” 32 1/2” 26” 6 12 1/2 115/60/1 10.9 5-15P 675
The Randell Cartridge System! Patented.
• Fully welded 14 gauge unitized Drawer Cartridge assembly.
• 14 gauge drawer tracks on 1 5/8" heavy duty stainless steel bearings.
• Heavy duty full extension tracks to accommodate 12" x 20" x 4" deep pans, two per drawer. Pans by others.
• Quick release allows drawers and liners to be removed without tools.
• Drawers with stainless steel drawer fronts & easy to grasp drawer handles.
DT
1/3 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/8.7A
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
AFF = ABOVE FIXED FLOOR
32" FREEZER
32" FREEZER
Digital Control
(1) SET OF CARTRIDGE STYLE DRAWERS, EACH
DRAWER TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
53"
25"
J
OC
HP
32" FREEZER
32" FREEZER
(2) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
32" FREEZER
32" FREEZER
COMPR. HSG.
82"
25"
(3) SETS OF CARTRIDGE STYLE DRAWERS, EACH DRAWER
TO HOLD (2) 12" X 20" X 4"DP PANS
(PANS NOT PROVIDED)
32" FREEZER
32" FREEZER
32" FREEZER
32" FREEZER 32" FREEZER
32" FREEZER
120"
25"
32.5"
26"
6"
Digital Control Digital Control
DT
DEFROST TIMER
DT
1/3 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/8.7A
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20072SCF-32
AFF = ABOVE FIXED FLOOR
LEGEND FOR
DEFROST TIMER
DT
1/2 HP COMPRESSOR
CONDENSATE DRAIN 1/2"
115V/60Hz/1Ph/10.9A
MODEL # 20048SCF-32
LEGEND FOR
JUNCTION BOX 14" AFF
9' LONG CORD SET
HP
J
OC
(NEMA 5-15P)
I.D. VINYL TUBING
MODEL # 20105SCF-32
AFF = ABOVE FIXED FLOOR
LEGEND FOR
DEFROST TIMER
32” DRAWER MODELS
