Custom SC Refrigerated Equipment Stand models 25000A
Description:
Self-contained, CFC free, refrigerated cooking equipment
stand with reinforced stainless steel equipment shelf. Integral
backsplash with 45˚ return. Refrigerated drawers on 16 gauge
stainless steel tracks with 1 5/8" stainless steel bearings and
removable plastic pan. 6" high adjustable legs.

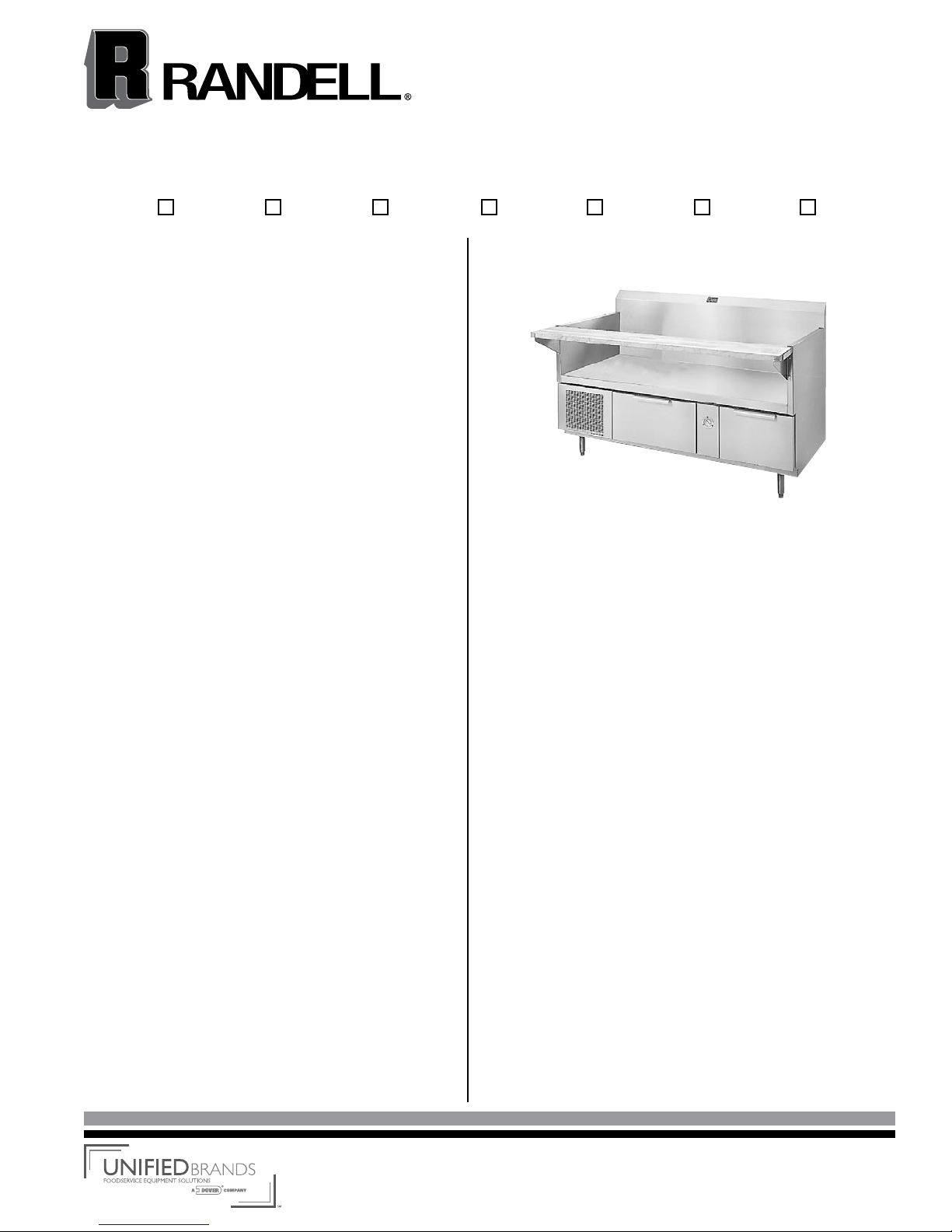

Shown with optional finished end.
Standard Features:
• Available under one piece top with other modular equipment up
to 16' in length
• 6" high legs—adjustable and movable
• 10" wide x 1 1/4" thick laminated maple work board
• Self-closing drawers with removable plastic pan
• Self-contained refrigeration system features expansion valve
for fast recovery, and thermostatic control for field
adjustability, R-134a refrigerant, CFC free
• If unit is fitted with vent, then backsplash will be 3" thick to
meet NFPA 96
• 45˚ integral stainless backsplash is standard. 90˚ stainless
steel backsplash is optional.
• Equipment Rails are optional
Specifications:
EQUIPMENT SHELF: Equipment shelf to be one piece of die-
formed stainless steel with 2" nosing and marine edge. Shelf is
reinforced with welded channel brace assembly.
UNIT BODY: Body ends to be die-formed stainless steel, finished
and polished on the inside, with corrosion resistant exterior. Ends
at top fitted with recessed heavy duty steel bars for splining units
together, producing a hairline seam. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
(If fitted with vent system, standard backsplash to be omitted
and unit fitted with 3" thick backsplash to meet NFPA 96). 10"
wide x 1 1/4" thick laminated maple cutting board provided
with removable supports. Base interior to be ABS thermoplastic
at ends only. Stainless steel interior liner to be coved cornered
to form bottom, back and top. Unit insulated with CFC free,
high density polyurethane expanding foam. Legs to be 6" high
stainless steel, with adjustable bullet foot. Legs mounted to full
length channel frame assembly which is integrally welded to
bottom of assembly. Legs can be moved left to right to avoid
floor obstacles during installation.
DRAWERS: Self-contained refrigerated drawers are located below
equipment shelf. Drawer liners are plastic, removable without
tools, with drawer tracks of 16 gauge stainless steel with 1 5/8"
stainless steel bearings, self-closing. Drawer opening frame to be
ABS and contain magnetic strip for positive sealing of gaskets.
Drawer fronts to be 22 gauge stainless steel with 16 gauge
stainless steel handles, magnetic gaskets, and plastic pan.
REFRIGERATION: Interior fitted with Randell R-134a evaporator
blower coil for cooling base.Blower coil fitted with expansion valve
for fast recovery and thermostatic control for field adjustability.
Condensing unit sized and installed for proper cooling. Units
totally prewired and to be supplied with 8' cordset (NEMA 5-
15P) for 115 volt operation. Hot gas condensate evaporator to be
installed in compressor airflow.
Randell Custom, Page 8
Revised 08/05
model 25348A 25366A 25378A 25384A 25396A 253102A 253114A

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
29" Deep Equipment
Length 48" 66" 78" 84" 96" 102" 114"
Height* 36" 36" 36" 36" 36" 36" 36"
Drawers (1) 24" (1) 18" (1) 24" (3) 18" (2) 18" (1) 24" (3) 24" (3) 24" (2) 18" (1) 24"
H.P. 1/4 1/4 1/4 1/4 1/4 1/3 1/3
Volts 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Amps 6 6 6 6 6 7.5 7.5
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Ship Wt. 293 lbs. 425 lbs. 513 lbs. 558 lbs. 631 lbs. 661 lbs. 734 lbs.
33" Deep Equipment
Length 48" 66" 78" 84" 96" 102" 114"
Model No. 25348A 25366A 25378A 25384A 25396A 25602A 25614A
Height* 36" 36" 36" 36" 36" 36" 36"
Drawers (1) 24" (1) 18" (1) 24" (3) 18" (2) 18" (1) 24" (3) 24" (3) 24" (2) 18" (1) 24"
H.P. 1/4 1/4 1/4 1/4 1/4 1/3 1/3
Volts 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
Amps 6 6 6 6 6 7.5 7.5
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Ship Wt. 293 lbs. 425 lbs. 513 lbs. 558 lbs. 631 lbs. 661 lbs. 734 lbs.
25000A Series
• Equipment shelf depth is 25" deep on 29" deep equipment.
• Equipment shelf depth is 29" deep on 33" deep equipment.
• Inside clearance = total unit length less 3"
* All models with adjustable and movable legs for 35 1/2" to 36 3/4" work height.
ABS DRAWER PANS
Drawer Size Removable Pan Size
18" 11" x 16" x 6"
24" 16" x 16" x 6"
8' LONG CORD SET
CONDENSATE DRAIN 1/2 "
115V/60Hz/1Ph
JUNCTION BOX 14" AFF.
HP COMPRESSOR
AFF. = ABOVE FIXED FLOOR
MODEL # 25000A
PVC 10" AFF.
OC
HP
(NEMA 5-15P)
LEGEND FOR
36" [914] 42.75" [1086]
33"
10" [254]
HP
J
OC
24" REFRIG. 18" REFRIG. 18" REFRIG.
114" X 10" X 1.25"
MAPLE WORK BOARD
24" REFRIG.
111" [2819]
114" [2896]
24" REFRIG. 24" REFRIG.
102" X 10" X 1.25"
MAPLE WORK BOARD
24" REFRIG.
102" [2591]
99" [2515]
24" REFRIG.
96" X 10" X 1.25"
MAPLE WORK BOARD
24" REFRIG. 24" REFRIG.
93" [2362]
96" [2438]
24" REFRIG. 18" REFRIG. 18" REFRIG.
84" X 10" X 1.25"
MAPLE WORK BOARD
84" [2134]
81" [2057]
18" REFRIG.18" REFRIG. 18" REFRIG.
78" X 10" X 1.25"
MAPLE WORK BOARD
78" [1981]
75" [1905]
66" X 10" X 1.25"
MAPLE WORK BOARD
18" REFRIG.24" REFRIG.
66" [1676]
63" [1600]
24" REFRIG.
48" X 10" X 1.25"
MAPLE WORK BOARD
48" [1219]
45" [1143]
18" [457]
17"
