Randell FX Series FX-1A User manual

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.

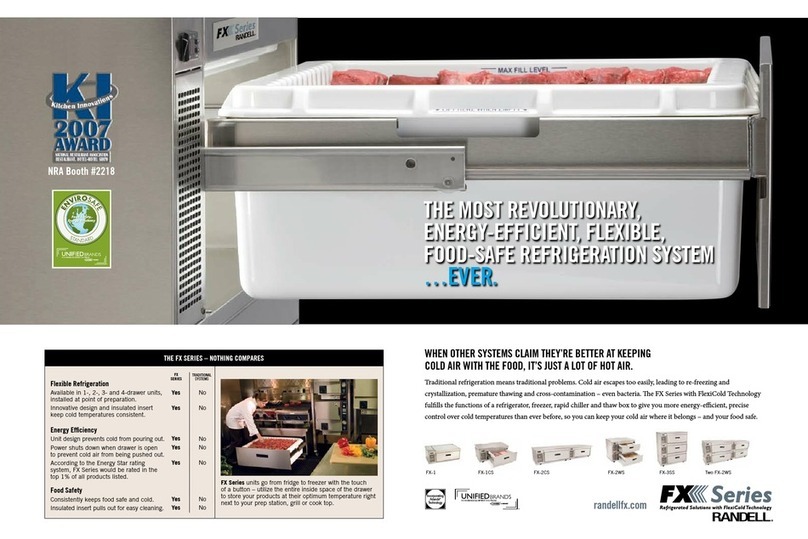

THE MOST REVOLUTIONARY, ENERGY-EFFICIENT, FLEXIBLE, FOOD-SAFE REFRIGERATION SYSTEM
FX Series Refrigerated Drawer model FX-1A (low-height version)
model FX-1A
Standard Features:
• Convertible Refrigeration System (Refrigerator to Freezer)
• Point-of-use Size and Design
• Precise Temperature Control
• Patented In-drawer Cooling System
• Removable Insulated Drawer Compartment
• Ambient Drawer Track System
• Full-Extension Drawer System
• 100% Front Breathing
• Horizontal Gasket is Out of Harms Way
• Individual Compressor Per Drawer
Description:
• Flexible Refrigeration
• Energy Efficiency
• Food Safety
Single refrigerated Insert with unfinished top. The FX Series
revolutionizes point of use refrigeration by allowing the operator
to adjust the temperatures from 0°F (freezer) operation up to
40°F (refrigerator) or any setting in between utilizing its unique
convertible refrigeration system. Using a patented technology that
provides100%in-drawer cooling,thisultra-efficientself-contained
system provides precise temperature control without compromis-
ing operator flexibility.
Specifications:
REFRIGERATION SYSTEM: The FX Series uses a patented in-
drawer cooling system that directs 100% of the cooling inside
the insulated and removable drawer Insert (see below). The
evaporator coil is mounted horizontally above the drawer Insert
with an integral gasket that seals against the insulated drawer
compartment when closed. The refrigeration system operates
only when the drawer is closed, efficiently managing the air-
flow while reducing energy and humidity build-up. Press-fit
removable gasket with magnet-to-magnet seal is standard.
DRAWER SYSTEM: The FX Series drawer system is the only full-
extension, full product view, drawer system that has the drawer
tracks outside the cooled compartment offering a more reliable,
durable system not prone to the cold or debris environment
common in traditional drawer systems. The full-extension tracks
are constructed of 12 gauge stainless steel with a fully integrated
Insert support system. The drawers slide on self-lubricating Delrin
material requiring no lubricating maintenance by the operator. The
drawer box and intermediate tracks are removable without tools
and can only be reinstalled one-direction for proper fit. The drawer
system has been tested with over 300,000 cycles without failure
(90 pound test load).
REMOVABLE INSULATED INSERT: This exclusive design allows
full removal of the refrigerated compartment for cleaning or
pre-loading. Made of high impact ABS plastic with high density
polyurethane insulation. Provides unparalleled insulation value
with no air gaps.
TEMPERATURE STATEMENT: The unit is provided with a electronic
temperature controller that can be easily adjusted by the operator
to any temperature setting between 0°F (freezer) operation up to
40°F (refrigerator).
CABINET EXTERIOR: The cabinet exterior is high grade stainless
steel to allow long use and beauty while providing easy to maintain
and clean surfaces. Optional Stainless steel tops offer the ability to
use the FX Series as a work-top unit or cooking equipment stand.
Randell FX Series, Page 11
PP SPEC0153 Rev. A
Created 12/07
Options & Accessories:
Flange Kit for FX-1 (for installation in equipment or units by others)
Top Kit (46” x 29.5”, 1” thick) for Work Top Application
Top Kit (48” x 33”, 2” thick) for Cooking Equipment Application
Caster Kit (3.5”)
Leg Kit (6”)
Stacking Collar Kit (for 2-3 high)
Additional Insulated Inserts: Qty. _____
Pan Racks
CABINET BASE/INTERIOR: The cabinet interior is high grade stainless steel
to allow long use and beauty while providing easy to maintain and clean
surfaces.
ELECTRICAL: Standard 115 volt with NEMA 5-15 cord and plug; In multi-
stack applications, a jumper cable is available to allow up to three units on
one wall circuit (three units total).

Incorporating
Adande
®
Technology
1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
MODEL FX-1A: SINGLE DRAWER LOW-HEIGHT UNIT WITH UNFINISHED TOP
L D H No. of
Drawers
Storage
(cubic
feet)
Comp.
Size
Amp
Draw
(actual)
Refrig.
Power
Usage
(per day)
Freezer
Power
Usage
(per day)
Volt NEMA
Ship
Weight
(lbs)
46” 29.1” 14.75” 1 3.0 6.1cc 3.9 1.22kw 1.99kw 115 5-15p 245
Model FX-1A
SIDE VIEWSFRONT VIEW
TOP VIEW
