Randell 60324A User manual

1055 Mendell Davis Drive, Jackson, MS 39272
888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Custom SC Upright models 60000A, 62000A & 63000A
Description:
24" long self-contained refrigerated upright unit with stainless
steel top, fronts and sides. Available as a refrigerator, freezer, or
dual-temp. Refrigerators utilize “CFC free”, R-134a refrigerant,
freezers use R-404a. Designed to fit integrally into unit line up.
6" high adjustable and movable legs.
Standard Features:
• Available as refrigerator, freezer,
or dual-temperature unit
• 6" high legs—adjustable and movable
• Self-contained refrigeration system utilizes “CFC free”
R-134a refrigerant. Freezers and dual temps.
utilize R-404a refrigerant.
• Available with refrigerated drawers
(Not available on dual temps)
• Foamed in place “CFC free” urethane insulation
Specifications:
CABINET EXTERIOR: Exterior body ends to be stainless steel. Back
of unit to be corrosion resistant steel. Door opening frames are
ABS and contain magnetic strip for positive seal of door gaskets.
Louver panel to be die-stamped stainless steel. Legs to be 6"
high stainless steel with adjustable bullet foot. Legs mounted to
full length channel frame assembly which is integrally welded
to bottom of body assembly. Legs can be moved left to right to
avoid floor obstacles during installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at
ends only. Stainless steel interior liner to be coved cornered to
form bottom, back and top. One baked enamel finished shelf
provided behind each door. Unit insulation to be CFC free foamed
in place urethane.
DOORS: Door fronts to be 22 gauge stainless steel with 16 gauge
stainless steel handles, magnetic gaskets, ABS door liner and
foamed in place insulation. Hinges are concealed, all stainless
steel with bronze pivot pin in nylon bushing.
REFRIGERATION: Refrigeration system to utilize “CFC Free”
refrigerant. Interior fitted with Randell evaporator blower coil
for cooling base. Blower coil fitted with expansion valve for fast
recovery and thermostatic control for field adjustability. Hot gas
condensate evaporator provided. Unit totally prewired and to be
supplied with 8' cordset (NEMA 5-15P) for 115V operation.
62000A series freezer same as model 60000A series except unit
to have 1/3 hp low-temp condensing unit utilizing R-404a refrig-
erant and automatic, self-defrosting system for freezer operation.
Door frames to enclose heater elements to prevent gasket freezing.
Back-up element installed.
63000A series dual-temp refrig./freezer same as 60000A series
except unit to have 1/2 hp low-temp condensing unit and double
hookup to freezer section on top and refrigerator section utilizing
R-404a. Freezer blower coil to have automatic self-defrosting
system. Freezer door frame to enclose heater element to prevent
gasket freezing. Back-up element installed.

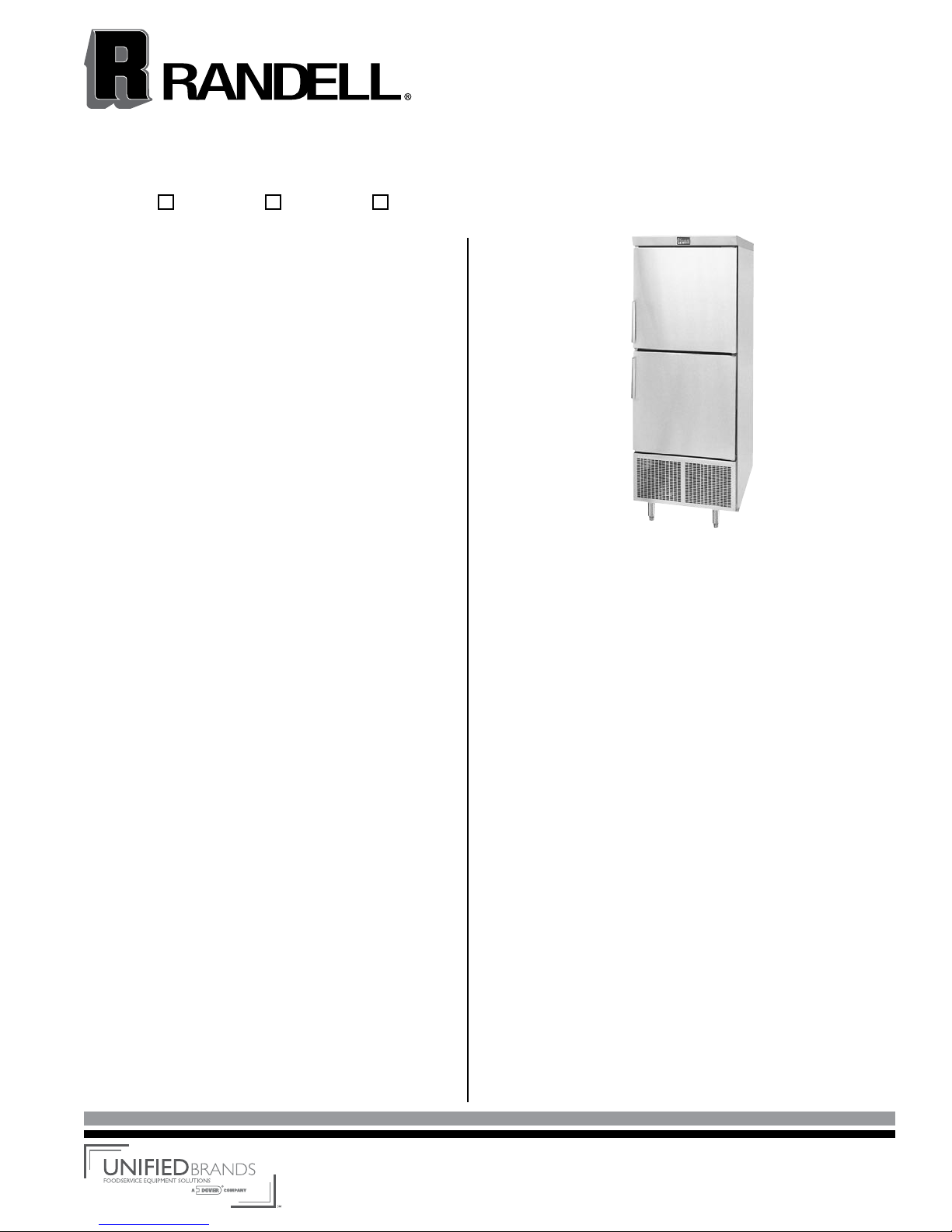

model 60000A shown
Randell Custom, Page 25
Revised 08/05
model 60324A 62324A 63324A

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
* All units on 6" high adjustable, movable legs.
60000A, 62000A, 63000A Series
DOOR OPENING SIZES - INTERIOR DEPTHS
Clearances Through Door Interior Depth Behind Door
Door Width Lt. to Rt. Top to Bottom (unit depths in parentheses)
24" 19 1/4" 20 1/4" (33") - 26" (29") - 22"
• Shelf depth is 25 1/4" on 33" deep equipment,
21 1/4" on deep equipment.
29 " DEEP EQUIPMENT
Length 24"
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 9.48
H.P. 1/4
Volts 115/60/1
Amps 5.4
NEMA 5-15P
Ship Wt. 517 lbs.
33 " DEEP EQUIPMENT
Length 24"
Model No. 60324A
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 11.2
H.P. 1/4
Volts 115/60/1
Amps 5.4
NEMA 5-15P
Ship Wt. 585 lbs.
Refrigerator
Freezer
29 " DEEP EQUIPMENT
Length 24"
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 7
H.P. 1/2
Volts 115/60/1
Amps 11.1
NEMA 5-15P
Ship Wt. 610 lbs.
33 " DEEP EQUIPMENT
Length 24"
Model No. 63324A
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 7.85
H.P. 1/2
Volts 115/60/1
Amps 11.1
NEMA 5-15P
Ship Wt. 610 lbs.
29 " DEEP EQUIPMENT
Length 24"
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 9.48
H.P. 1/3
Volts 115/60/1
Amps 8
NEMA 5-15P
Ship Wt. 625 lbs.
33 " DEEP EQUIPMENT
Length 24"
Model No. 62324A
Height* 73.75"
Doors (2) 1/2 size
Storage
(Cu. Ft.) 11.2
H.P. 1/3
Volts 115/60/1
Amps 8
NEMA 5-15P
Ship Wt. 625 lbs.
ELEC CONDENSATE
26" INTERIOR
DEPTH BEHIND
DOOR
EVAPORATER
LEGEND
6' NEMA 5-15P
120V-60Hz-1Ph
10.4 Amps
10" AFF.
FIXED FLOOR
AFF = ABOVE
J
J-BOX
24"
J
HP
24"
6"
73.5"
33"
0°
FREEZER
38°-42°
REFRIG.
0°
FREEZER
0°
FREEZER REFRIG.
38°-42°
REFRIG.
38°-42°
24"
