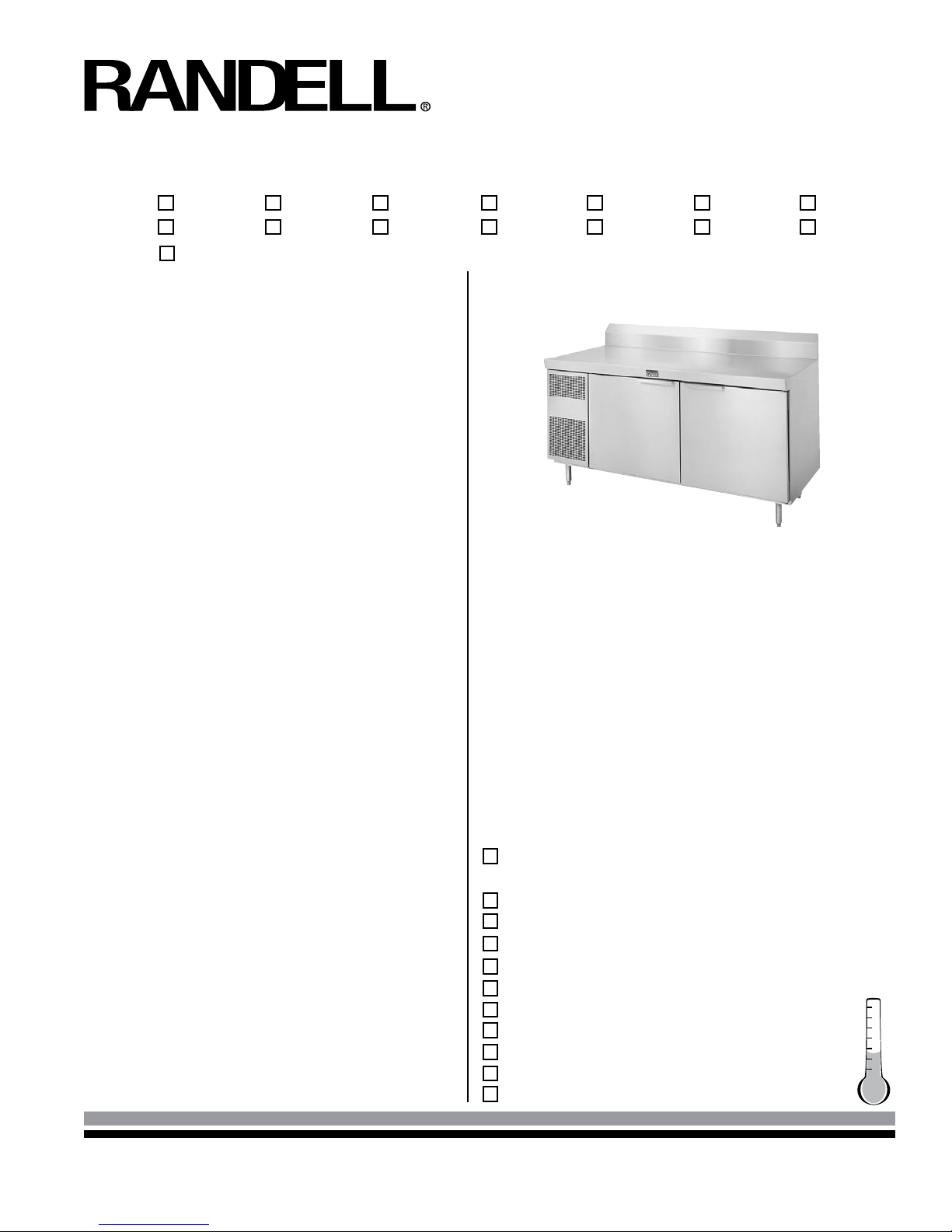

RanSpec SC Worktop Refrigerator models 51000
Description:
Self-contained refrigerated worktop unit with 16 gauge
reinforced stainless steel top, and integral backsplash with
45˚ return. Stainless steel doors on concealed hinges. CFC
free, R-134a refrigeration system. Evaporator blower coil with
expansion valve supplied and installed. 6" high adjustable and
movable legs.
model 51362 shown with
optional finished end
Specifications:
CABINET EXTERIOR: Top to be one piece of die-formed 16 gauge
stainless steel with 2 1/2" nosing. Backsplash to be coved
cornered, with 45˚ return at top and overall height of 6 3/4".
Ends at top fitted with recessed heavy duty steel bars for field
bolting units together, producing a hairline seam. Hinged louver
panel to be stainless steel. Exterior body to be corrosion resistant
steel. Door opening frames are ABS and contain magnetic strip
for positive seal of door gaskets. Work surface to be at 36" work
height. Legs to be 6" high stainless steel with adjustable bullet
foot. Legs mounted to full length channel frame assembly which
is integrally welded to bottom of body assembly. Legs can be
moved left to right to avoid floor obstacles during installation.
CABINET INTERIOR: Base interior to be ABS thermoplastic at ends
only. Stainless steel interior liner to be coved cornered to form
bottom, back and top. One baked enamel finished shelf provided
behind each door. Unit insulation to be CFC free foamed in place
urethane.
DOORS: Door fronts to be 22-gauge stainless steel exterior front
with 16 gauge stainless steel door pulls/handles. The interior
liner is vacuumed formed ABS with integral gasket retainer
for easy cleaning and accepts Randell’s Exclusive Press Fit
Gasket system. Doors are mounted on concealed hinges. One
removable wire shelf is supplied behind each door.
REFRIGERATION: Refrigeration system utilizes “CFC free” R-134a
refrigerant. Condensing unit sized and installed for proper cooling
in housing at left end.Interior fitted with Randell evaporator blower
coil for cooling base. Blower coil fitted with expansion valve for
fast recovery and thermostatic control for field adjustability. Unit
totally prewired and to be supplied with 8' cordset (NEMA 5-15P)
for 115V operation. Hot gas condensate evaporator.
Standard Features:
• Available under one piece top with other modular equipment
up to 16' in length
• 6" high legs—adjustable and movable
• Foamed in place “CFC free” urethane insulation
• Refrigeration system utilizes “CFC free” R-134a refrigerant,
expansion valve for fast recovery, and thermostatic control
for field adjustability
• 45˚ integral stainless backsplash is standard. 90˚ stainless
backsplash is optional.
• Front breathing louver design allows sealing to wall & curb
mounting without special requirements
Options & Accessories:
Patented Drawer Cartridge Systems - Exclusive
Randell Feature + 3 years parts & labor warranty!
No Backsplash for dual sided / Cafeteria Operation
Tray racks for sheet pans (33" dp., 24" doors only)
Cutting boards
Stainless Steel Ends
Stainless Steel Back
Laminate fronts, ends and back options
Casters in lieu of legs
Export voltages
Over-shelving storage options
Compressor on right option
Randell RanSpec, Page 14a
PP SPEC0129 Rev. A
Revised 08/07
model 51338 51341 51344 51347 51356 51359 51362
51365 51368 51377 51380 51383 51386 51389
51395
33°F to 40°F 18°F to 22°F33°F to 41°F

1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Length 77" 80" 83" 86" 89" 95"
Model 33" 51377 51380 51383 51386 51389 51395
# of doors (3) 21" (2) 21",
(1) 24"
(2) 24",
(1) 21"
(3) 24" (2) 24",
(1) 27”
(3) 27"
Min. Compr. Hsg. 14" 14" 14" 14" 14" 14"
Storage Cu. Ft.
33"
17.9 18.86 19.86 20.83 20.51 22.46
Storage Cu. Ft.
29"
15.04 15.36 16.68 17.50 17.23 18.89
H.P./Refrigerant 1/3hp/134a 1/3hp/134a 1/3hp/134a 1/3hp/134a 3/8hp/134a 3/8hp/134a
Amps 6.6 6.6 6.6 6.6 9.2 9.2
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Ship Wt. - lbs. 555 570 585 600 630 660
BTU Design load 1033 1061 1090 1119 1148 1206
BTU System Cap. 2124 2124 2124 2124 3111 3111
51000 Series
NOTE:
If drop-in lowerators are to be installed in this equipment, the overall length of the tube should be no more than 24".
BTU load and capacity ratings based on 100F ambient.
51000 SERIES (COMPRESSOR LEFT) SELF-CONTAINED REFRIGERATORS WITH STAINLESS STEEL TOPS
Length 38" 41" 44" 47” 56" 59" 62" 65" 68"
Model 33" 51338 51341 51344 51347 51356 51359 51362 51365 51368
# of doors (1) 24" (1) 21" +
6" coil hsg.
(1) 24" +
6" coil hsg.
(1) 27" +
6" coil hsg.
(2) 21" (1) 21",
(1) 24"
(2) 24" (1) 24",
(1) 27”
(2) 27"
Min. Compr. Hsg. 14" 14" 14" 14" 14" 14" 14" 14" 14"
Storage Cu. Ft.
33”
5.21 6.18 7.16 8.14 11.07 12.04 13.02 14 14.97
Storage Cu. Ft.
29”
4.38 5.20 6.02 6.84 9.30 10.12 10.94 11.7 12.58
H.P./Refrigerant 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a
Amps 5.2 5.2 5.2 5.2 6.6 6.6 6.6 6.6 6.6
Storage Cu. Ft.
22”
2.8 3.5 4.2 4.9 7.1 7.8 8.5 9.3 10.0
H.P./Refrigerant 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a 1/4hp/134a
Amps 5.2 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0
Volt/Cycle/Phase 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1 115/60/1
NEMA 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P 5-15P
Ship Wt. - lbs. 365 380 395 410 450 465 480 495 510
BTU Design load 374 403 431 460 689 718 746 775 804
BTU System Cap. 1539 1539 1703 1703 1703 1703 1703 1703 1703

1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
51000 Series
LEGEND
AFF = ABOVE FINISHED
FLOOR
HP COMPRESSOR
JUNCTION BOX 26" AFF
115V/60Hz/1Ph
8' LONG CORD SET
(NEMA #5-15P)
HP
21"REFRIG21"REFRIG 21"REFRIG
77"
27"REFRIG 27"REFRIG
68"
27"REFRIG24"REFRIG
65"
24"REFRIG 24"REFRIG
62"
21"REFRIG 24"REFRIG
59"
21"REFRIG21"REFRIG
56"
27"REFRIG
C
47"
C
24"REFRIG
44"
C
21"REFRIG
41"
24"REFRIG
38"
OC
J
HP
COMPR. HSG.
14"
13"
42.75"
36"
33"
Page 14b

1055 Mendell Davis Drive, Jackson, MS 39272, 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
51000 Series
21"REFRIG24"REFRIG 21"REFRIG
80"
27"REFRIG 27"REFRIG 27"REFRIG
95"
24"REFRIG27"REFRIG 24"REFRIG
89"
24"REFRIG 24"REFRIG24"REFRIG
86"
24"REFRIG24"REFRIG 21"REFRIG
83"
27"REFRIG27"REFRIG 27"REFRIG27"REFRIG
122"
24"REFRIG24"REFRIG 24"REFRIG 24"REFRIG
110"
DOOR OPENING SIZES - INTERIOR DEPTHS
Clearances Through Door Interior Depth Behind Door
Door Width Lt. to Rt. Top to Bottom (unit depths in parentheses)
18 " 13 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
21 " 16 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
24 " 19 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
27 " 22 1/4 " 20 1/4 " (33 ")- 26 " (29 ")- 22 " (22 ")- 15.5 "
•Shelf depth is 25 1/4 " on 33 " deep equipment, 21 1/4 " on 29 " deep equipment,
and 14 1/2 " on 22" deep equipment.
SECTION VIEW
