1 Preface
The R&S SMB100B is a new high-performance signal generator developed to
meet demanding customer requirements. Offering excellent signal characteristic
and straightforward and intuitive operation, the signal generator makes signal
generation fast and easy.
1.1 Key Features
The R&S SMB100B is a new high-performance signal generator developed to
meet demanding customer requirements. Offering excellent signal characteristic
and straightforward and intuitive operation, the signal generator makes signal
generation fast and easy.
Outstanding key features of the R&S SMB100B are:
●SCPI macro recorder and code generator for generating executable remote
control code from manual operating steps (for MATLAB®, CVI, etc.)
●Frequency range from 8 kHz to up to 6 GHz
●Excellent SSB phase noise of -134 dBc (meas.) at 1 GHz, 20 kHz offset
●Low wideband noise. For frequencies between 15 MHz and 6 GHz and 30
MHz offset, < 153 dBc (typ.)
●Ultra high output power of 34 dBm (meas.) for 1 GHz
●Compact rack with a height of 2 U and a ¾ 19" width
●Pulse train generation
●5" Graphical User Interface with touchscreen
For more information, see data sheet.
Key Features

Safety and Regulatory Information
R&S®SMB100B
8Getting Started 1422.1045.02 ─ 03
2 Safety and Regulatory Information
The product documentation helps you use the R&S SMB100B safely and effi-
ciently. Follow the instructions provided here and in the Chapter 2.1, "Safety
Instructions", on page 8.
Intended use
The R&S SMB100B is intended for the development, production and verification
of electronic components and devices in industrial, administrative, and laboratory
environments. Use the R&S SMB100B only for its designated purpose. Observe
the operating conditions and performance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you of potential
dangers and gives instructions on how to prevent personal injury or damage
caused by dangerous situations. Safety information is provided as follows:
●In Chapter 2.1, "Safety Instructions", on page 8. The same information is
provided in many languages as printed "Safety Instructions". The printed
"Safety Instructions" are delivered with the R&S SMB100B.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.
2.1 Safety Instructions
Products from the Rohde & Schwarz group of companies are manufactured
according to the highest technical standards. To use the products safely, follow
the instructions provided here and in the product documentation. Keep the prod-
uct documentation nearby and offer it to other users.
Use the product only for its intended use and within its performance limits. Inten-
ded use and limits are described in the product documentation such as the data
sheet, manuals and the printed safety instructions. If you are unsure about the
appropriate use, contact Rohde & Schwarz customer service.
Using the product requires specialists or specially trained personnel. These users
also need sound knowledge of at least one of the languages in which the user
interfaces and the product documentation are available.
Safety Instructions

Safety and Regulatory Information
R&S®SMB100B
9Getting Started 1422.1045.02 ─ 03
If any part of the product is damaged or broken, stop using the product. Never
open the casing of the product. Only service personnel authorized by
Rohde & Schwarz are allowed to repair the product. Contact Rohde & Schwarz
customer service at http://www.customersupport.rohde-schwarz.com.
Lifting and carrying the product
Some products are heavy. A safety label on the casing indicates if a product
weighs more than 18 kg. To safely move the product, you can use lifting or trans-
porting equipment such as lift trucks, cranes, forklifts and hand trucks. Secure the
product, but not by its handles. Excessive force can break the handles.
Choosing the operating site
Only use the product indoors. The product casing is not waterproof and water that
enters can electrically connect the casing with live parts. This can lead to electric
shock, serious personal injury or death if you touch the casing.
Unless otherwise specified, you can operate the product up to an altitude of
2000 m above sea level. The product is suitable for pollution degree 2 environ-
ments where nonconductive contamination can occur. For more information on
environmental conditions such as ambient temperature and humidity, see the
data sheet.
Setting up the instrument
Always place the instrument on a stable, flat and level surface with the bottom of
the instrument facing down.

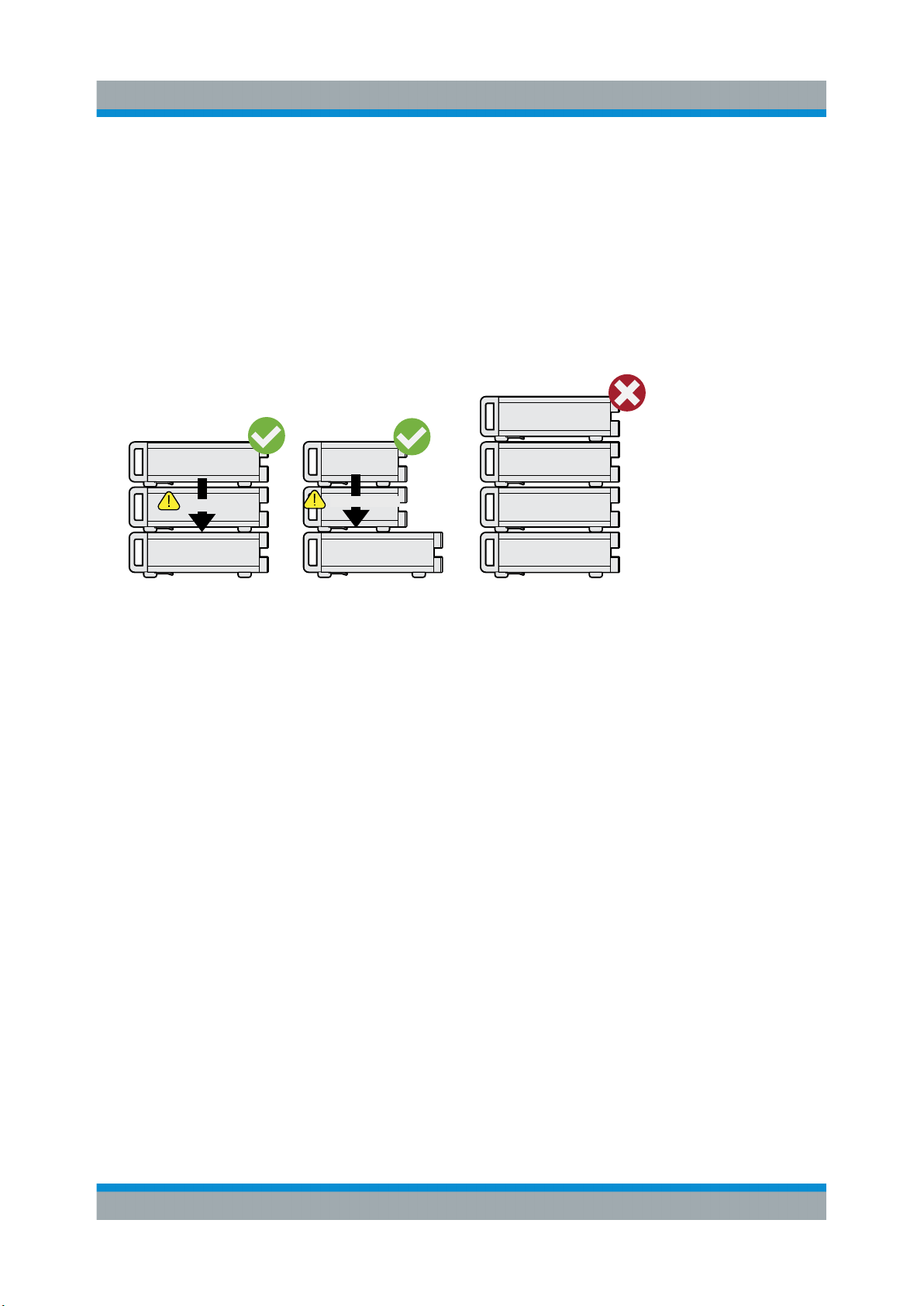

To save space, you can mount several instruments in a rack. If you stack instru-
ments, keep in mind that a stack of instruments can tilt over and cause injury.
If the instrument has foldable feet, always fold the feet completely in or out to
ensure stability. The feet can collapse if they are not folded out completely or if
the instrument is moved without lifting it. The foldable feet are designed to carry
the weight of the instrument, but not an extra load.
Connecting to power
The product is an overvoltage category II product and has to be connected to a
fixed installation used to supply energy-consuming equipment such as household
appliances and similar loads. Be aware that electrically powered products have
risks, such as electric shock, fire, personal injury or even death.
Safety Instructions

Safety and Regulatory Information
R&S®SMB100B
10Getting Started 1422.1045.02 ─ 03
Take the following measures for your safety:
●Before switching on the product, ensure that the voltage and frequency indica-
ted on the product match the available power source. If the power adapter
does not adjust automatically, set the correct value and check the rating of the
fuse.
●If a product has an exchangeable fuse, its type and characteristics are indica-
ted next to the fuse holder. Before changing the fuse, switch off the instrument
and disconnect it from the power source. How to change the fuse is described
in the product documentation.
●Only use the power cable delivered with the product. It complies with country-
specific safety requirements. Only insert the plug into an approved grounded
outlet.
●Only use intact cables and route them carefully so that they cannot be dam-
aged. Check the power cables regularly to ensure that they are undamaged.
Also ensure that nobody can trip over loose cables.
●If the product needs an external power supply, use the power supply that is
delivered with the product or that is recommended in the product documenta-
tion or a power supply that conforms to the country-specific regulations.
●Only connect the product to a power source with a fuse protection of maxi-
mum 20 A.
●Ensure that you can disconnect the product from the power source at any
time. Pull the power plug to disconnect the product. The power plug must be
easily accessible. If the product is integrated into a system that does not meet
these requirements, provide an easily accessible circuit breaker at the system
level.
Cleaning the product
Use a dry, lint-free cloth to clean the product. When cleaning, keep in mind that
the casing is not waterproof. Do not use liquid cleaning agents.
Meaning of safety labels
Safety labels on the product warn against potential hazards.
Safety Instructions

Safety and Regulatory Information
R&S®SMB100B
11Getting Started 1422.1045.02 ─ 03
Potential hazard
Read the product documentation to avoid personal injury or product damage.
Heavy product
Be careful when lifting, moving or carrying the product. Carrying the product requires
at least two people or transport equipment.
Electrical hazard
Indicates live parts. Risk of electric shock, fire, personal injury or even death.
Hot surface
Do not touch. Risk of skin burns. Risk of fire.
Protective conductor terminal
Connect this terminal to a grounded external conductor or to protective ground. This
protects you against electric shock should an electric problem occur.
2.2 Labels on R&S SMB100B
Labels on the casing inform about:
●Personal safety, see "Connecting to power" on page 9.
●Product and environment safety, see Table 2-1.
●Identification of the product, see the serial number on the rear panel.
Table 2-1: Labels regarding R&S SMB100B and environment safety
Labeling in line with EN 50419 for disposal of electrical and electronic equipment after
the product has come to the end of its service life. For more information, see the prod-
uct user manual, chapter "Disposal".
2.3 Korea Certification Class B
이 기기는 가정용(B급) 전자파 적합기기로서 주로 가정에서 사용하는 것을 목적으
로 하며, 모든 지역에서 사용할 수 있습니다.
Korea Certification Class B

Documentation Overview
R&S®SMB100B
12Getting Started 1422.1045.02 ─ 03
3 Documentation Overview
This section provides an overview of the R&S SMB100B user documentation.
Unless specified otherwise, you find the documents on the R&S SMB100B prod-
uct page at:
www.rohde-schwarz.com/manual/smb100b
3.1 Getting Started Manual
Introduces the R&S SMB100B and describes how to set up and start working with
the product. Includes basic operations, typical measurement examples, and gen-
eral information, e.g. safety instructions, etc. A printed version is delivered with
the instrument.
3.2 User Manuals and Help
Contains the description of all instrument modes and functions. It also provides
an introduction to remote control, a complete description of the remote control
commands with programming examples, and information on maintenance, instru-
ment interfaces and error messages. Includes the contents of the getting started
manual.
The contents of the user manuals are available as help in the R&S SMB100B.
The help offers quick, context-sensitive access to the complete information.
All user manuals are also available for download or for immediate display on the
Internet.
3.3 Service Manual
Describes the performance test for checking the rated specifications, module
replacement and repair, firmware update, troubleshooting and fault elimination,
and contains mechanical drawings and spare part lists.
Service Manual

Documentation Overview
R&S®SMB100B
13Getting Started 1422.1045.02 ─ 03
The service manual is available for registered users on the global
Rohde & Schwarz information system (GLORIS, https://gloris.rohde-
schwarz.com).
3.4 Instrument Security Procedures
Deals with security issues when working with the R&S SMB100B in secure areas.
It is available for download on the Internet.
3.5 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
3.6 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S SMB100B. It also
lists the options and their order numbers and optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
See www.rohde-schwarz.com/brochure-datasheet/smb100b
3.7 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/smb100b
Release Notes and Open Source Acknowledgment (OSA)

Documentation Overview
R&S®SMB100B
14Getting Started 1422.1045.02 ─ 03
3.8 Application Notes, Application Cards, White
Papers, etc.
These documents deal with special applications or background information on
particular topics.
See www.rohde-schwarz.com/application/smb100b
Application Notes, Application Cards, White Papers, etc.

Preparing for Use
R&S®SMB100B
15Getting Started 1422.1045.02 ─ 03
4 Preparing for Use
This chapter describes the basic steps to be taken when setting up the
R&S SMB100B for the first time.
4.1 Lifting and Carrying
See also "Lifting and carrying the product" on page 9.
► Use the carrying handle at the side for lifting and carrying the R&S SMB100B.
For mounting the R&S SMB100B in a rack, see Chapter 4.4.2, "Mounting the
R&S SMB100B in a Rack", on page 17.
4.2 Unpacking and Checking
1. Unpack the R&S SMB100B carefully.
2. Retain the original packing material. Use it to protect the control elements and
connectors when transporting or shipping the R&S SMB100B later.
See also chapter "Transporting" in the user manual.
3. Using the delivery notes, check the equipment for completeness.
4. Check the equipment for damage.
If the delivery is incomplete or equipment is damaged, contact
Rohde & Schwarz.
4.3 Choosing the Operating Site
Specific operating conditions ensure accurate measurements and avoid damage
to the R&S SMB100B and connected devices. For information on environmental
conditions such as ambient temperature and humidity, see the data sheet.
Choosing the Operating Site

Preparing for Use
R&S®SMB100B
16Getting Started 1422.1045.02 ─ 03
See also "Choosing the operating site" on page 9.
Electromagnetic compatibility classes
The electromagnetic compatibility (EMC) class indicates where you can operate
the R&S SMB100B. The EMC class of the R&S SMB100B is given in the data
sheet under "General data".
●Class B equipment is suitable for use in:
– Residential environments
– Environments that are directly connected to a low-voltage supply network
that supplies residential buildings
●Class A equipment is intended for use in industrial environments. It can cause
radio disturbances in residential environments due to possible conducted and
radiated disturbances. It is therefore not suitable for class B environments.
If class A equipment causes radio disturbances, take appropriate measures to
eliminate them.
4.4 Setting Up the R&S SMB100B
See also:
●"Setting up the instrument" on page 9.
●"Intended use" on page 8.
4.4.1 Placing the R&S SMB100B on a Bench Top
To place the R&S SMB100B on a bench top
1. Place the R&S SMB100B on a stable, flat and level surface. Ensure that the
surface can support the weight of the R&S SMB100B. For information on the
weight, see the data sheet.
2. CAUTION! Foldable feet can collapse. See "Setting up the instrument"
on page 9.
Always fold the feet completely in or out. With folded-out feet, do not place
anything on top or underneath the instrument.
Setting Up the R&S SMB100B

Preparing for Use
R&S®SMB100B
17Getting Started 1422.1045.02 ─ 03
3. WARNING! A stack of instruments can fall over and cause injury. Never stack
more than three instruments on top of each other. Instead, mount them in a
rack.
Stack as follows:
● It is best if all instruments have the same dimensions (width and length).
● The overall load on the lowest instrument must not exceed 500 N.
● With smaller instruments on top of the lowest instrument, the overall load
on the lowest instrument must not exceed 250 N.
Too many instruments
max. 500 N
Correct Different dimensions
max. 250 N
4. NOTICE! Overheating can damage the R&S SMB100B.
Prevent overheating as follows:
● Keep a minimum distance of 10 cm between the fan openings of the
R&S SMB100B and any object in the vicinity.
● Do not place the R&S SMB100B next to heat-generating equipment such
as radiators or other instruments.
4.4.2 Mounting the R&S SMB100B in a Rack
To prepare the rack
1. Observe the requirements and instructions in "Setting up the instrument"
on page 9.
2. NOTICE! Insufficient airflow can cause overheating and damage the
R&S SMB100B.
Design and implement an efficient ventilation concept for the rack.
Setting Up the R&S SMB100B

Preparing for Use
R&S®SMB100B
18Getting Started 1422.1045.02 ─ 03
To mount the R&S SMB100B in a rack
1. Use an adapter kit that fits the dimensions of the R&S SMB100B to prepare
the instrument for rack mounting. For information on the dimensions, see data
sheet.
a) Order the rack adapter kit designed for the R&S SMB100B. For the order
number, see data sheet.
b) Mount the adapter kit. Follow the assembly instructions provided with the
adapter kit.
2. Lift the R&S SMB100B to shelf height.
3. Grab the handles and push the R&S SMB100B onto the shelf until the rack
brackets fit closely to the rack.
4. Tighten all screws at the rack brackets with a tightening torque of 1.2 Nm to
secure the R&S SMB100B at the rack.
To unmount the R&S SMB100B from a rack
1. Loosen the screws at the rack brackets.
2. Bring the lifting equipment to shelf height.
3. Remove the R&S SMB100B from the rack.
4. If placing the R&S SMB100B on a bench top again, unmount the adapter kit
from the R&S SMB100B. Follow the instructions provided with the adapter kit.
4.5 Important Aspects for Test Setup
Cable selection and electromagnetic interference (EMI)
Electromagnetic interference (EMI) can affect the measurement results.
To suppress electromagnetic radiation during operation:
●Use high-quality shielded cables, especially for the following connector types:
– BNC
Double-shielded BNC cables.
– USB
Double-shielded USB cables.
How to: Chapter 4.8, "Connecting USB Devices", on page 20.
Important Aspects for Test Setup

Preparing for Use
R&S®SMB100B
19Getting Started 1422.1045.02 ─ 03
See also chapter "Troubleshooting and Error Messages" in the user man-
ual.
– LAN
At least CAT6 STP cables.
How to: Chapter 4.7, "Connecting to LAN", on page 20
●Always terminate open cable ends.
●Ensure that connected external devices comply with EMC regulations.
Signal input and output levels
Information on signal levels is provided in the data sheet. Keep the signal levels
within the specified ranges to avoid damage to the R&S SMB100B and connected
devices.
Preventing electrostatic discharge (ESD)
Electrostatic discharge is most likely to occur when you connect or disconnect a
DUT.
►NOTICE! Risk of electrostatic discharge. Electrostatic discharge can damage
the electronic components of the R&S SMB100B and the device under test
(DUT).
Ground yourself to prevent electrostatic discharge damage:
a) Use a wrist strap and cord to connect yourself to ground.
b) Use a conductive floor mat and heel strap combination.
4.6 Connecting to Power
For safety information, see "Connecting to power" on page 9.
1. Plug the AC power cable into the AC power connector on the rear panel of the
instrument. Only use the AC power cable delivered with the R&S SMB100B.
2. Plug the AC power cable into a power outlet with ground contact.
The required ratings are listed next to the AC power connector and in the data
sheet.
Connecting to Power

Preparing for Use
R&S®SMB100B
20Getting Started 1422.1045.02 ─ 03
4.7 Connecting to LAN
You can operate the R&S SMB100B via LAN (local area network) or you can
operate it locally. This section describes how to connect the instrument to a LAN
to operate or control the instrument remotely via a PC in a LAN.
The connector is located on the rear panel.
► Connect the LAN socket via an RJ-45 cable to the LAN.
By default, the R&S SMB100B is configured to use DHCP (dynamic host configu-
ration protocol) and no static IP address is configured.
If switched on and connected to the LAN, the R&S SMB100B displays the
address information on the screen.
Figure 4-1: IP address indication on the screen (example)
See also the chapter "Connecting the Instrument to the Network (LAN)" in the
user manual.
4.8 Connecting USB Devices
USB connectors are located on the front panel and rear panel. You can connect
or disconnect all USB devices from the R&S SMB100B during operation.
To connect USB storage devices
USB storage devices, such as memory sticks, allow easy data transfer from/to the
R&S SMB100B. You can also use them for firmware updates.
► Connect the USB storage device to any of the USB connectors.
Connecting USB Devices
