Range Master GLX390 User manual

GLX390 Hood
Instructions Manual
www.rangemaster.co.uk

EN
2
2
Instructions Manual
INDEX
RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................3
CHARACTERISTICS..............................................................................................................................................................4
INSTALLATION......................................................................................................................................................................6
USE.........................................................................................................................................................................................9
MAINTENANCE....................................................................................................................................................................10

EN
3
3
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accord-
ingly, you may find descriptions of individual features that do not apply to your
specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incor-
rect or improper installation.
• Check that the mains voltage corresponds to that indicated on the rating plate
fixed to the insideof thehood.
• For Class I appliances, check that the domestic power supply guarantees ade-
quate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter
120 mm.The route of the flue must be asshort aspossible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes
(boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas
burning appliances), a sufficient degree of aeration must be guaranteed in the
room in order to prevent the backflow of exhaust gas. The kitchen must have
an opening communicating directly with the open air in order to guarantee the
entryof clean air.
USE
• The extractor hood has been designed exclusively for domestic use to elimi-
nate kitchen smells.
• Never use the hood for purposes otherthan forwhich it hasbeendesigned.
• Never leave high naked flames under the hood when it isin operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making
sure that it does not engulf the sides.
• Deep fat fryers mustbe continuously monitored during use: overheated oil can
burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with re-
duced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use ofthe appliance by a person responsible fortheir safety.
• Children should be supervised to ensure that they do not play with the appli-
ance.
MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out
any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and aneutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection point
for the recycling of electrical and electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product. For more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you purchased the
product.

EN
4
4

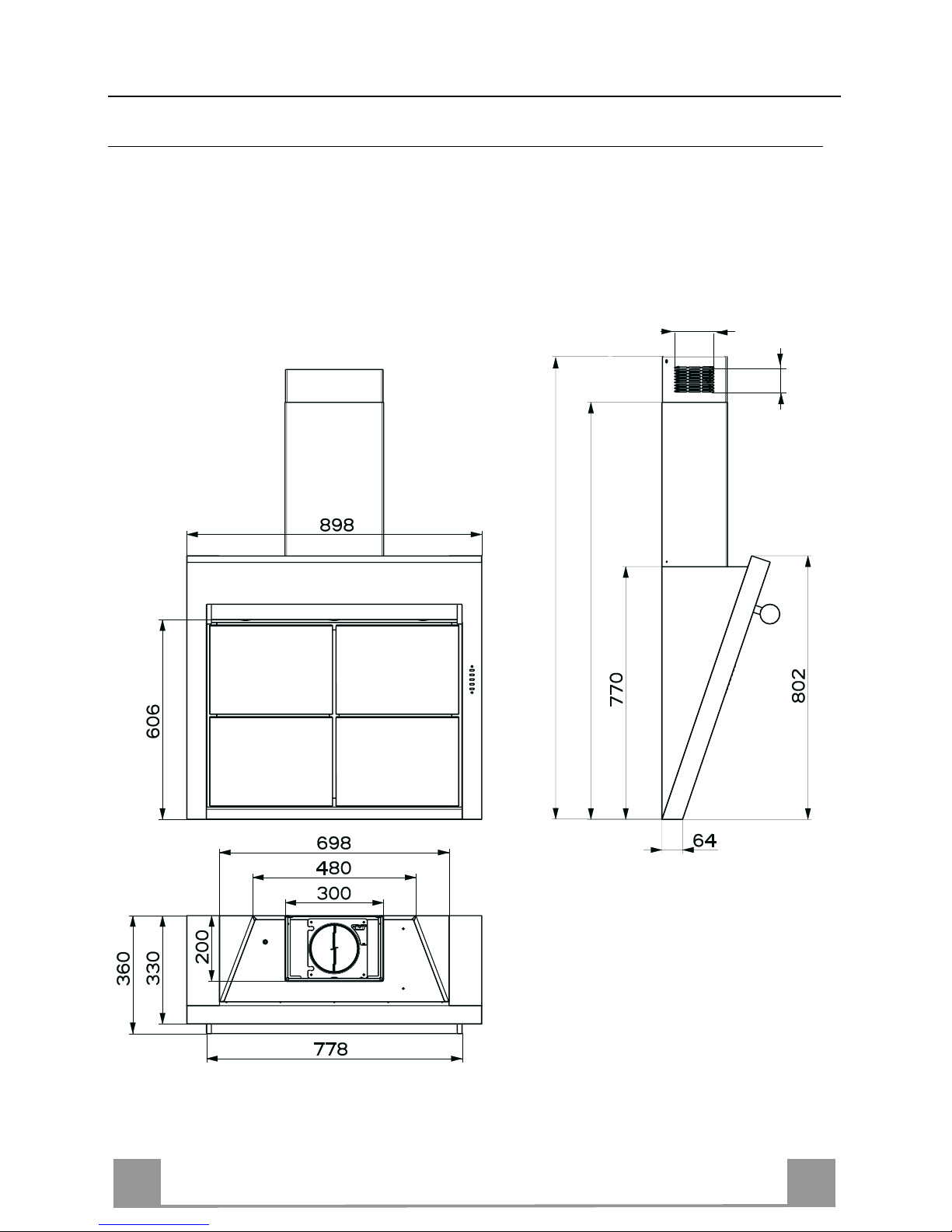

CHARACTERISTICS
Dimensions
1270
MIN. 1390 - MAX. 1600
126
81

EN
5
5
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light,
Blower, Filters
2.1 1 Upper Section
2.2 1 Lower Section
8 1 Directional Air Outlet grille
9 1 Flange
10 1 Adapting ring ø 120-125mm
14.1 2 Air Outlet ConnectionExtension
15 1 Air Outlet Connection
16 1 Filter cover
Ref. Q.ty Installation Components
7.2.1 2 Upper Chimney Section Fixing Brackets
7.3 1 Air Outlet Connection Support
11 6 Wall Plugs
11a 2 Wall Plugs SB 12/10
12a 6 Screws 4,2 x 44,4
12c 10 Screws2,9 x6,5
12d 2 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
1
11
12a
16
12c
12d
8
9
11a
2.1
2.2
12c
12a 7.2.1 11
7.3
14.1
15
10

EN
6
6

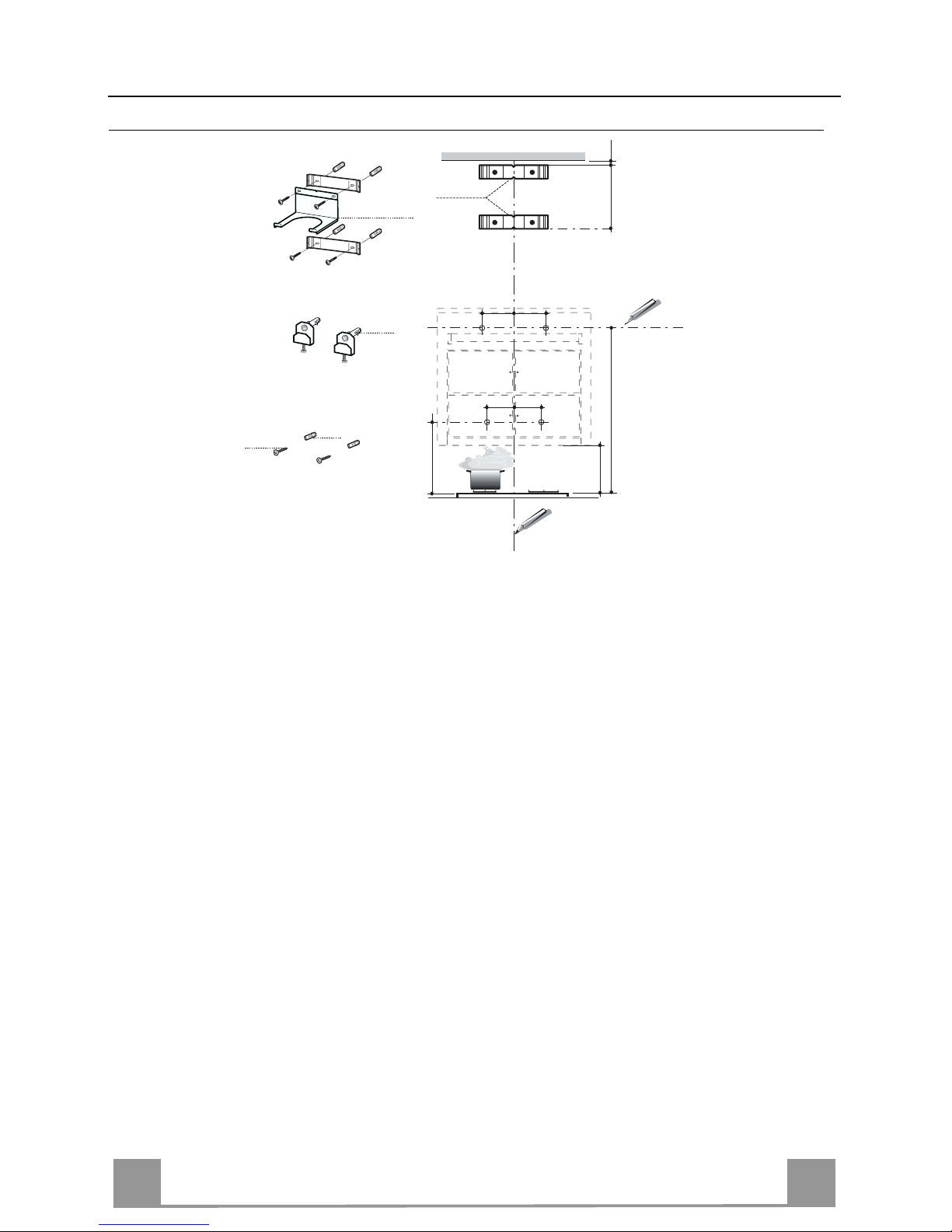

INSTALLATION Wall drilling and bracket fixing
7.2.1
X1÷2
11a
11
12a
112+A
A=Min 250
Max 400
710+A
1
2
1
2
200 200
180 180
A
7.3
On the wall, draw
• a Vertical line up to the ceiling or upper limit, at the centre of the area in which the Hood is
to be fitted;
• a Horizontal line at a minimum of (710 mm + A) above the Cooker Top.
• Mark a point (1) on the horizontal line, 200 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are level.
• Mark a reference point (2) as indicated at 180 mm from the vertical reference line and (112
mm + A) above the Cooker Top.
• Repeat this operation on the other side, checking that the two marks are level.
• Drill at the points (1) marked, using a ø 12 mm drill bit.
• Drill at the points (2) marked, using a ø 8 mm drill bit.
• Insert the bracket plugs 11a into the holes 1and screw into place.
• Insert plug 11 into hole 2.
To install a decorative chimney ( optional )
• Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit align-
ing the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the
upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Drill ø 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
• Fix the lower bracket 7.2.1 using the 12a screws (4,2 x 44,4) supplied.
• Fix the upper bracket 7.2.1 and the air outlet connection support 7.3 together using the 2
screws 12a (4,2 x 44,4) supplied.

EN
7
7

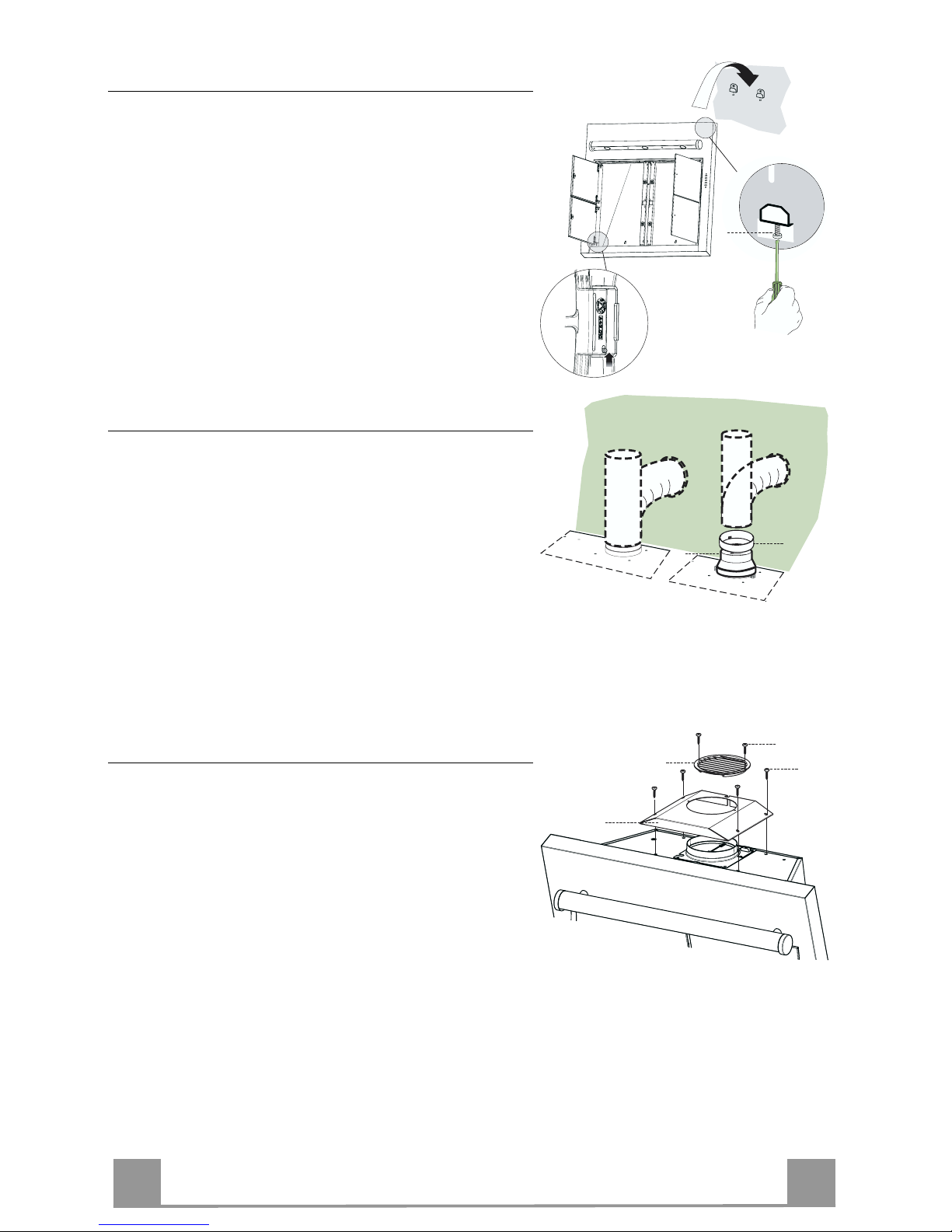

Mounting the hood body
• Open the ducting panels.
• Disconnect the panel from the hood canopy by slid-
ing the fixing pin lever.(A)
• Remove the metal grease filters by turning the han-
dles provided.
• Adjust the two screws Vr, on brackets 11a, to a mini-
mum.(B)
• Hook the hood canopy onto the two brackets 11a.
• From inside the hood canopy, adjust the screws Vr to
set the Hood Canopy level.
• Tighten the safety screw 11.
(A)
(B)
Vr
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to
the chimney using either a flexible or rigid pipe ø 150
or 125 mm, the choice of which is left to the installer.
• To install a ø 125 mm air exhaust connection, insert
the reducer flange 9on the hood body air outlet and
the adapting ring ø120-125 10 on the reducer flange.
• Fix the pipe in position using sufficient pipe clamps
(not supplied).
• Remove any activated charcoal filters.
9
ø 125
10
ø 150
RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the optional
charcoal filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using four
screws 12c (2.9 x 12.5).
• Fix the air outlet grid 8on the recirculation air outlet
using the 2 screws 12d (2,9 x 9,5) provided.
16
12c
12d
8

EN
8
8

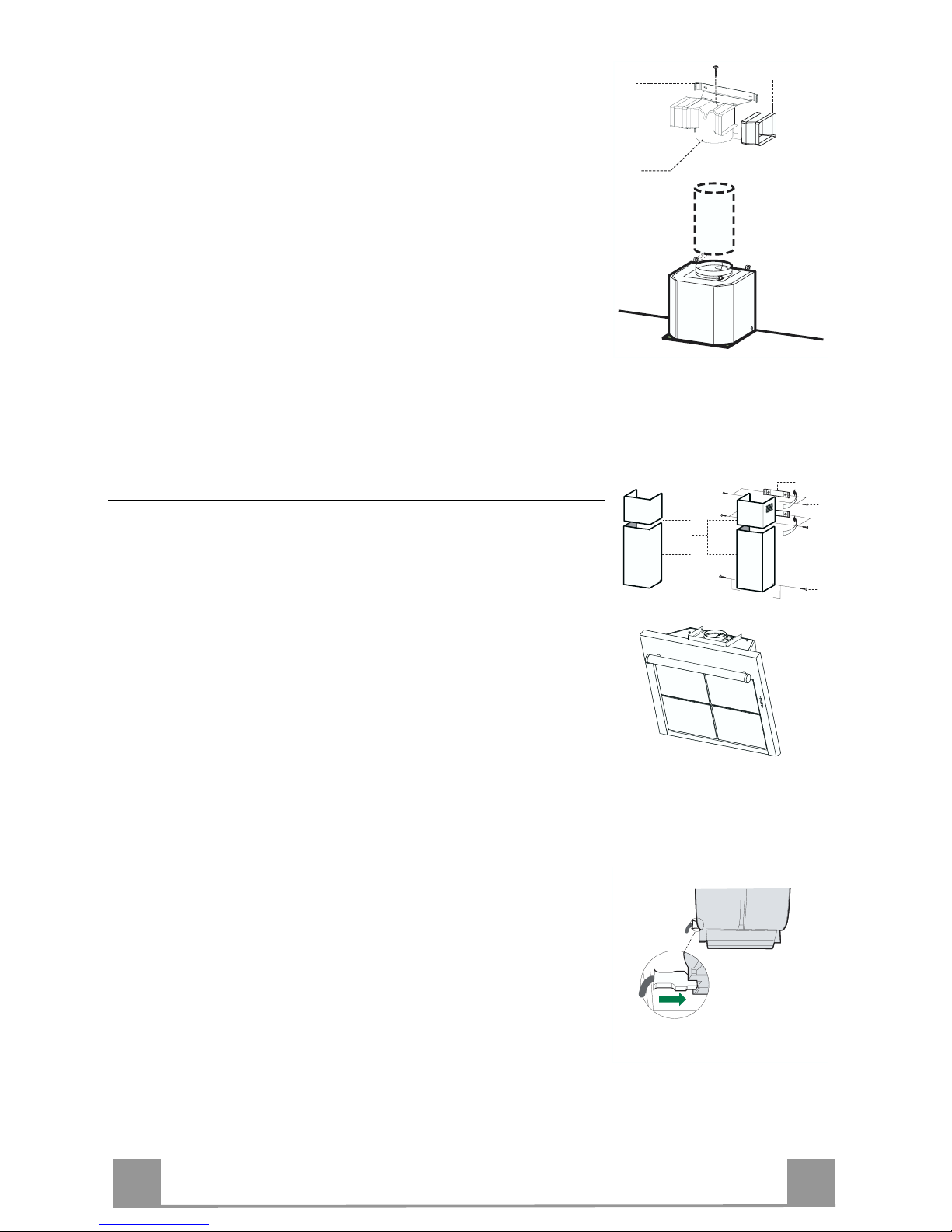

RECIRCULATION VERSION AIR OUTLET
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
• Insert the Connector 15 into the Support bracket 7.3 and fix it
with a screw.
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Connect the air outlet connection 15 to the hood body outlet
using either a flexible or rigid pipe ø 150 mm, the choice of
which is left to the installer.
• Ensure that the activated charcoal filters have been inserted.
ø 150
15
14.1
7.3
Chimney assembly
Upper exhaust Chimney
• Slightly widen the two sides of the upper chimney and hook
them behind the brackets 7.2.1, making sure that they are well
seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x
9,5) supplied.
Lower exhaust Chimney
• Slightly widen the two sides of the chimney and hook them
between the upper chimney and the wall, making sure that they
are well seated.
• Fix the lower part laterally to the hood body using the 2 screws
12c (2,9 x 9,5) supplied.
2.1
2.2
2
7.2.1
12c
12c
2.1
2.2
ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch hav-
ing a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being
sure that the connector of the feeding cable is correctly inserted
in the socket placed on the side of the fan.

EN
9
9
USE Control Panel
The hood can be switched on pushing directly onto the requested speed without firstly having
to select 0/1 button.
KEY LED FUNCTIONS
L 0/1 Light Turns lighting on and off.
T1 0/1 Motor on First speed.
When pressed for about 1 seconds the motor
is switched off.
Flashing 24h Changeover
This is enabled by pressing and holding
the button for approximately 5".It al-
lows a suction level of 100 m3/h with a
noise level of just 28dB(A).Can be en-
abled at any speed, even with the hood
turned off.To disable, press and hold
the button for approximately 5".
T2 Speed on Second speed.
Flashing Delay (30')
Press the button for approximately 2" to enable auto-
matic shutdown with a 30' delay. Suitable to complete
elimination of any residual smells. Can be enabled at
any speed and is disabled by pressing the button T1
briefly.
T3 Speed on Third speed.
T4 Speed Fixed Max. speed
Flashing Intensive speed.
Suitable for the strongest cooking vapours and odours.
The function becomes active when the button is
pushed for about 2 seconds. After 10 minutes of func-
tioning it turns off automatically. This function can be
interrupted by means of pressing any of the buttons.
S1 Led Fixed Indicates that the Metal grease filters saturation alarm
has been triggered, and the filters need to be washed.
The alarm is triggered after 100 working hours. (Re-
set; check the Maintenance-paragraph)
Flashing indicates that the activated charcoal odour filter
saturation alarm has been triggered, and the filter has
to be replaced; the metal grease filters must also be
washed. The activated charcoal odour filter is
triggered after 200 working hours. (Activation and
Reset; check the Maintenance-paragraph)
L
S1
T1
T2
T3
T4

EN
1
0
10
MAINTENANCE
REMOTE CONTROL (OPTIONAL)
The appliance can be controlled using a remote control powered
by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-
AAA type.
• Do not place the remote control near to heat sources.
• Used batteries must be disposed of in the proper manner.
Ducting panels
• Open the ducting panels.
• Disconnect the panel from the hood canopy by sliding the fix-
ing pin lever.
• Clean the outside using a damp cloth and neutral liquid deter-
gent.
• Clean the inside using a damp cloth and neutral detergent; do
not use wet cloths or sponges, or jets of water; do not use abra-
sive substances.

EN
1
1
11
Grease filters
CLEANING METAL SELF- SUPPORTING GREASE FILTERS
Alarm signal reset
• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to
flash.
Cleaning the filters
• The filters are washable and must be cleaned when the LED S1
lights up or at least every 2 months of operation, or more fre-
quently for particularly heavy usage.
• Remove the filters one at a time holding them up with one
hand and pulling the handle downwards with the other hand at
the same time.
• Wash the filters, taking care not to bend them. Allow them to
dry before refitting.
• When refitting the filters, make sure that the handle is visible
on the outside.

EN
1
2
12
Activated charcoal filter (Recirculation version)
The filter is not washable and cannot be regenerated. It must be replaced when led S1 flashes
or at least every 4 months. The alarm signal will only light up when the extractor motor is
switched on.
Alarm signal activation
• In Recirculation version Hoods, the Filter saturation alarm can be enabled on installation or
at a later date. Turn the Lights and the suction Motor off.
• Disconnect the Hood using the Main switch or the double-pole switch on the mains power
supply.
• Restore the connection by pressing and holding T1.
• Release the button. All five LEDs are turned on.
• Within 3 seconds press T1 until LEDs T1 and T4 flash in confirmation:
- LED flashes twice - Activated charcoal filter saturation alarm ENABLED.
- LED flashes once - Activated charcoal filter saturation alarm DISABLED.
REPLACING THE ACTIVATED CHARCOAL FILTER
Alarm signal reset
• Switch off the lights and extractor motor.
• Press button T3 for at least 3 seconds, until the leds start to
flash.
Replacing the Filter
• Remove the metal grease filters
• Remove the saturated activated carbon filters as shown (A).
• Fit the new filters (B).
• Replace the metal grease filters.
A
B
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the light cover by unfastening the screws that hold it.
• Extract the lamp from the Support.
• Replace with another of the same type, making sure that the
two pins are properly inserted in the lamp holder socket holes.
• Replace the light cover.

436004184_ver1
AGA RANGEMASTER LTD.
