Range Video GPC User manual

RangeVideo.com
Instruction for GoPro Connector
Document updated 01/15/2013
Thank you for your purchase! This instruction manual will guide you through the installation and operation of your GoPro Connector.
Please read the entire manual carefully before proceeding.
If, after you read the manual, you have any questions or problems, email us at [e-mail]. Please visit GPC web
page for the full color, electronic version of this manual which may be updated if changes were made after printing, or if you want
to view the manual on your computer.
What is the GPC?
GPC (GoPro Connector ) lets you get live video output from your Gopro and charge its’ battery at the same time. Connect the video
out from GPC to any video transmitter to use the GoPro as your FPV camera and record HD to the SD card at the same time. Never
have to worry about your GoPro running out of battery in flight.
How to start
There are few steps before you can start using your GoPro camera with GoPro connector.
●
Check if GoPro camera is in working order and powers on from internal battery. Check GoPro camera with LCD backpack if
possible.
●
Connect GPC 22 pin socket to GoPro camera
●
Supply 3 pin connector with 5V, GND connect Video Out cable.
●
Power on GoPro camera
●
Enjoy live video
IMPORTANT:
Make sure 3 pin connector is powered with 5V. Otherwise GPC Connector will not work. The GPC works by tricking
the GoPro into believing there is an LCD backpack accessory installed. This is what enables the GPC to get live video out.
Features:
●
Live video to external devices
●
Charge GoPro
●
Works with all GoPro cameras
●
Plug & Play
●
Overvoltage protection
Specification:
●
Operation voltage: 4-6V (5V recommended)
●
Cable length 35cm()13.5inch
●
Over voltage protection : > 6V
●
22 pin connector, 3 pin connector – Power In &
Video Out
Packing List:
Your package should include the
following:
1
(1) GoPro Connector
2
(1) Manual

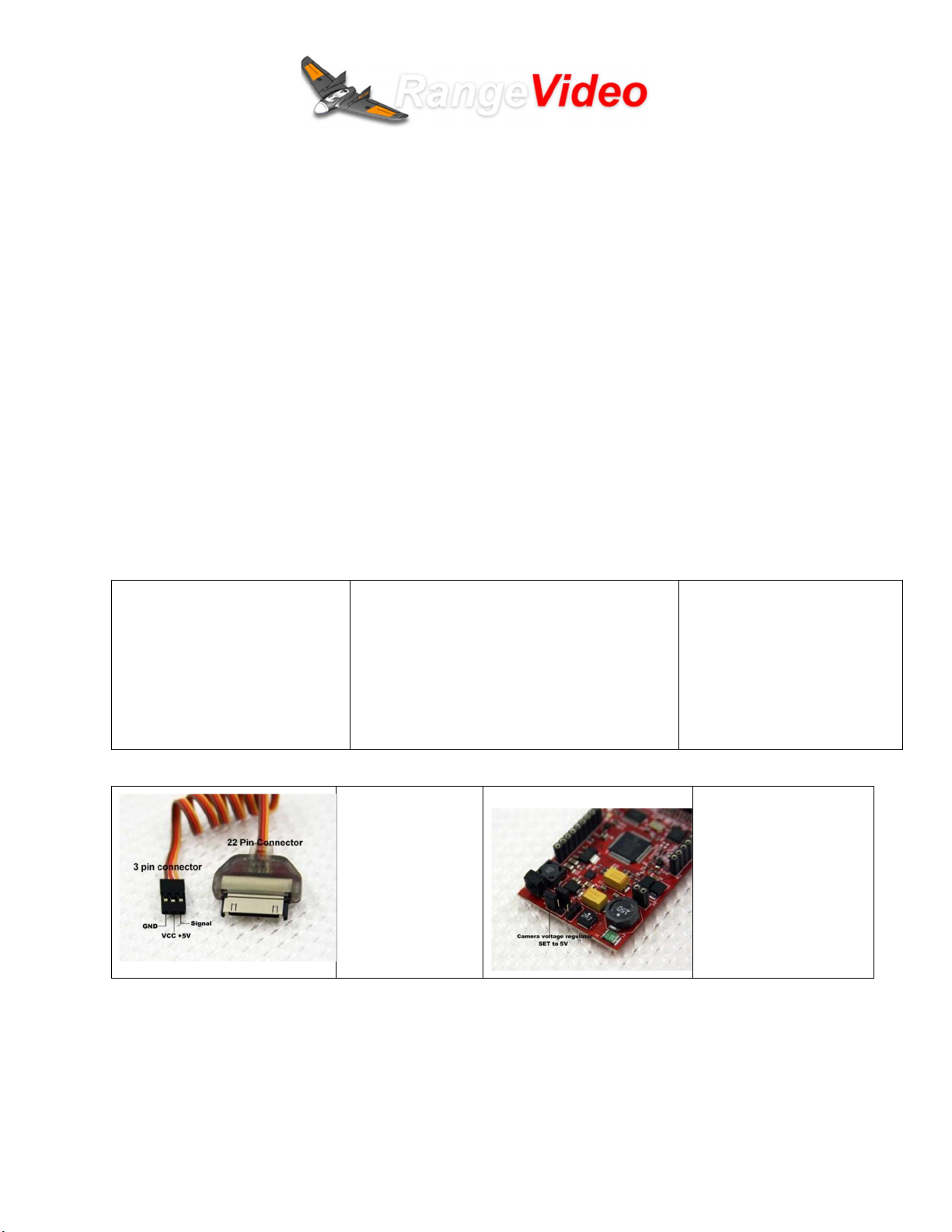

Using GoPro Connector with OSD as FPV camera
3 pin connector Pin out If you use GoPro connector
with OSD then set jumper
Camera Voltage regulator to
5V.
NOTE: IF you set jumper to
12V GoPro connector will not
work

RangeVideo.com
Connect 22 pin
connector to GoPro
camera
Assembly of OSD and GoPro
Camera using GoPro
connector
Troubleshooting
Before troubleshoot make sure you supplied connector with 5V. Check Video out cable and GoPro Camera. GoPro connector works
only with 4-6V (recommended 5V). Check accuracy with voltmeter.
GoPro doesn’t charge from GPC
1
Check if GoPro camera is in working order, powers on
from the internal battery and LCD backpack display
video.
2
IMPORTANT: Check if GPC connector supplied with
5V through 3 pin connector. (see pin out for 3 pin
connector)
Powers on, No video out through GPC connector
1
Check that the GoPro is getting power from GPC.
2
Check if LCD backpack accessory is working.
If LCD is working and Gopro is getting power but there is no
video, then GPC is faulty.
Warranty
RangeVideo warrants the GoPro connector to be free from defects in materials and workmanship for a period of one (1) year from
the date of
original purchase. This warranty is nontransferable. If your unit requires warranty service during this period, we will
replace or repair it at our option. Shipping cost to us is your responsibility. To obtain warranty service, email
[email protected]m for further instructions.
This limited warranty does not cover:
· Problems that result from:
o External causes such as accident, abuse, misuse, or problems with electrical power
o Servicing not authorized by us
o Usage that is not in accordance with product instructions
o Failure to follow the product instructions
