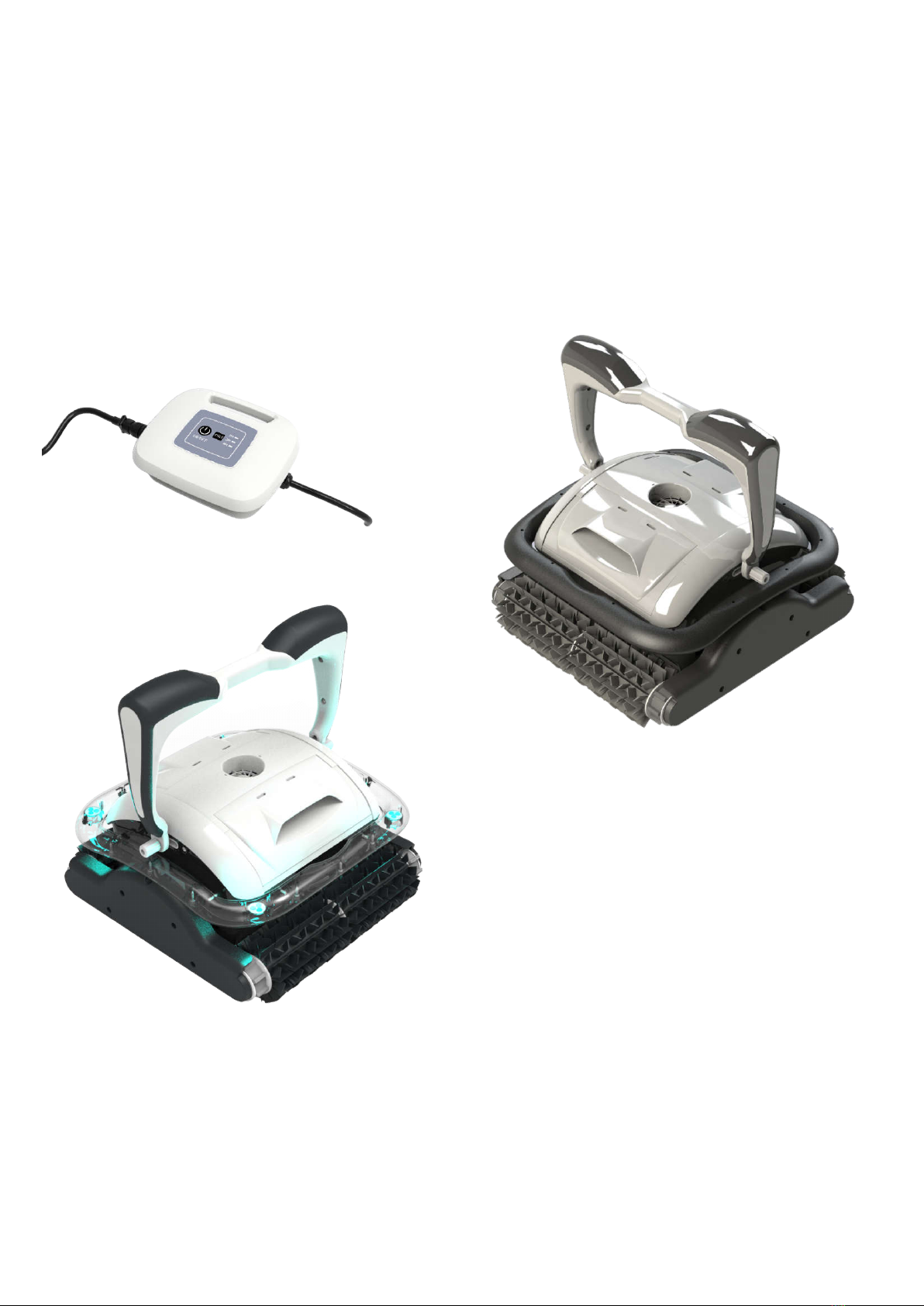

Raptor BCZ94 User manual

ROBOTIC POOL CLEANER
RAPTOR©
BCZ94/BCZ94.L (with LED bar)
USER MANUAL
Thank you for purchasing Robotic Pool Cleaner. If you have any questions or issues, please
contact your local dealer for customer service.

Contents
Important Precautions.........................................................................................................................1
Attention.............................................................................................................................................. 3
I. Introduction.................................................................................................................................. 4
II. Safety............................................................................................................................................ 4
III. Specifications................................................................................................................................5
IV. Operations.................................................................................................................................... 5
4.1 Panel........................................................................................................................................... 5
4.2 Remote control (Optional)......................................................................................................... 7
4.3 Filter cleaning............................................................................................................................. 8
V. Assembly of transport caddy (Optional)..................................................................................... 9
VI. Packing list.................................................................................................................................. 10
VII. Warranty..................................................................................................................................... 11

1
Important Precautions
1. Please read the manual carefully, and use the cleaner according to the manual. We are not
held liable for any loss or injury caused by improper use.
2. Please do not allow children to ride on it or play with it as a toy.
3. In order to prevent severe damage to the cleaner, never power on it when it is out of the
swimming pool.
4. It is forbidden to operate the cleaner when there are people in the pool, and the power supply
should be connected to a leakage-protected and earthed socket.
5. In order to avoid overheating and potential damage for components, never cover the power
supply.
6. In order to avoid any accident or damage, it is strongly recommended to fix the power supply
indoor in at least 3.5m away from the swimming pool edge and connect the power supply with a
fixed holder by using the safety rope.
7. Before power-on, make sure the filters be assembled and the cable be fully released to avoid
any winding, which could affect the cleaner’s performance or cause damage.
8. Hold the top handle when putting the cleaner into or lift it out of the water. Do not pull the
cable.
9. It is forbidden to use the cleaner beyond its working conditions stated in the manual.
10. The cleaner should be stored in a cool and ventilated place, away from direct sunshine.
11. Only professionals can disassemble the cleaner and its power supply, otherwise the warranty
will be invalidated.
12. It is forbidden to drop and hammer the cleaner and power supply.
13. Use the accessories recommended or sold by the manufacturer only.
14. It is strictly forbidden to place chemicals for water treatment inside the cleaner for spraying,
otherwise the warranty will be invalidated.

2

3

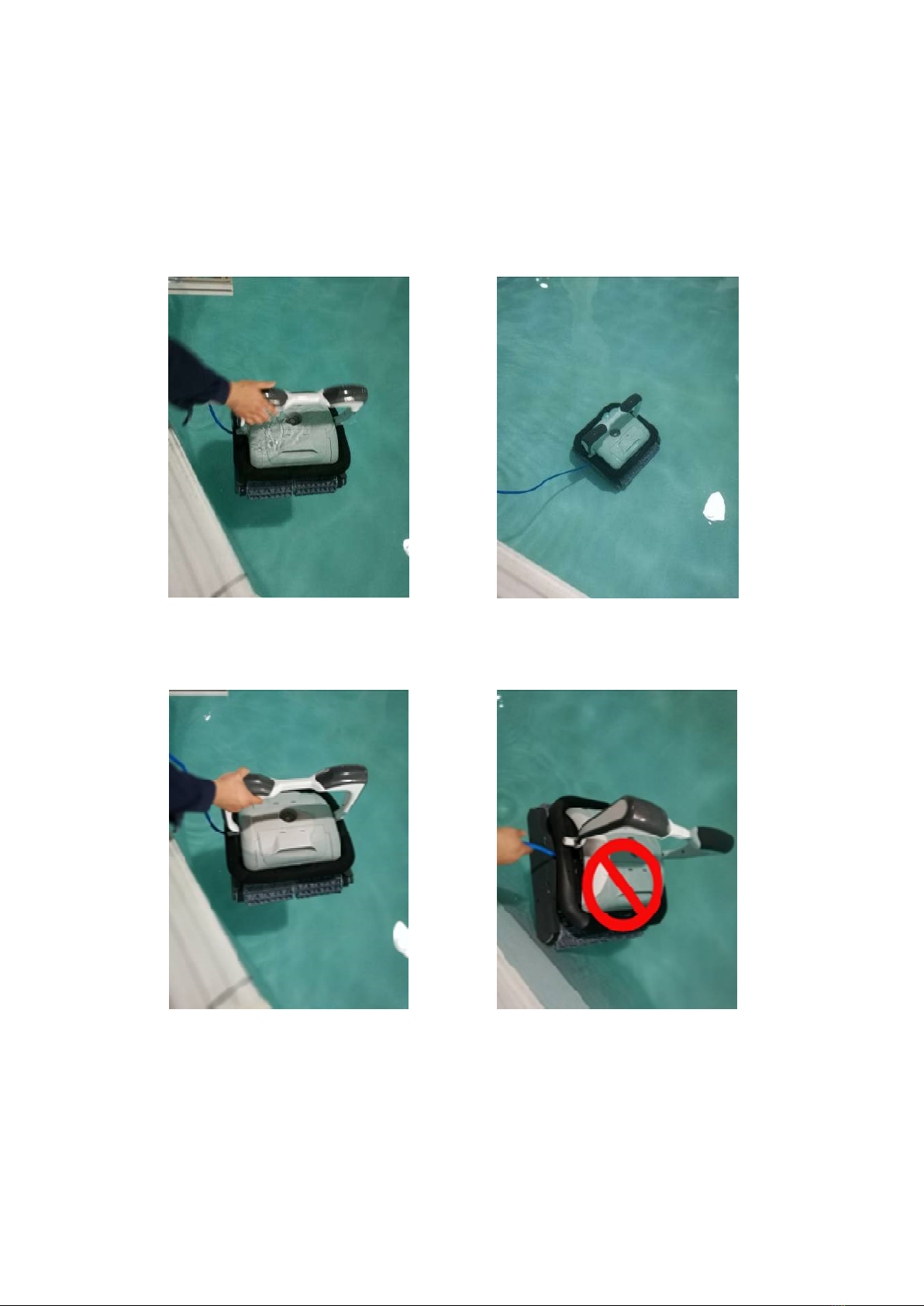

Attention
1. Put into or lift out of the pool with the cleaner bottom towards the wall to avoid any possible
scratches to the pool. Hold the top handle and put it into the pool. Let the cleaner immerse into
the pool floor after emptying the air inside it (the air inside should be exhausted completely,
otherwise its normal working will be affected).
2. Please hold the top handle only and never pull the cable when lifting it out of the pool.

4
I. Introduction
The robotic pool cleaner HJ2032/HJ2032L is a new type of highly efficient and energy-saving
swimming pool cleaning robot. Through its advanced computer-controlled program, it can clean
the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid
of suspended particles without replacing the pool water. It is totally environmental-friendly.
For safe operation, the cleaner works on 20V direct current.
Please read this user manual carefully before use.
II. Safety
Power supply needs to be placed in a proper position so as to reach the coverage for the whole
pool, meanwhile as least 3.5m away from the swimming pool edge.

5
III. Specifications
1. Rated input voltage: 220VAC (230VAC)/110VAC (120VAC)
2. Frequency: 50Hz/60Hz
3. Output voltage: DC20V
4. Power: 200W
5. Cleaning cycle: 2H/3H/4H
6. Cable length: 18m
7. Filter capacity: appr. 20m³/h
8. Filter density: 10μm
9. Moving speed: appr. 12.5m/min
10. IP grade: Cleaner IPX8; Power supply: IPX5
11. Max. water depth: 2m
12. Working temperature: 0°C -40°C
13. Remote distance: >20m
14. Frequency of remote control: 433MHz
IV.Operations
4.1 Panel

6
No. Sign Function Instruction
1 ON/ OFF Power on/ off
Press this button, the cleaner starts to
work;
Press a second time, the cleaner is
stopped.
2 CYCLE To choose working cycle
When the cleaner is on, press this
button to choose preferred working
cycle.
3 Indicators
CYCLE
indicators
2H flashes Cleaner running for 2 hours
3H flashes Cleaner running for 3 hours
4H flashes Cleaner running for 4 hours
2H, 3H and 4H flash
together Working cycle finished
Fault Code Trouble Suggestion
Fault
2H and 3H flash
together, with warning
sound
Pump is
overloaded
Stop the cleaner,
check if anything is
stuck in the impeller
3H and 4H flash
together, with warning
sound
Driving
motor is
overloaded
Stop the cleaner,
check if anything is
stuck in the belt
2H and 4H flash
together, with warning
sound
Cleaner out
of water
Exhaust the air inside
the cleaner, immerge
the cleaner and
restart it.

7

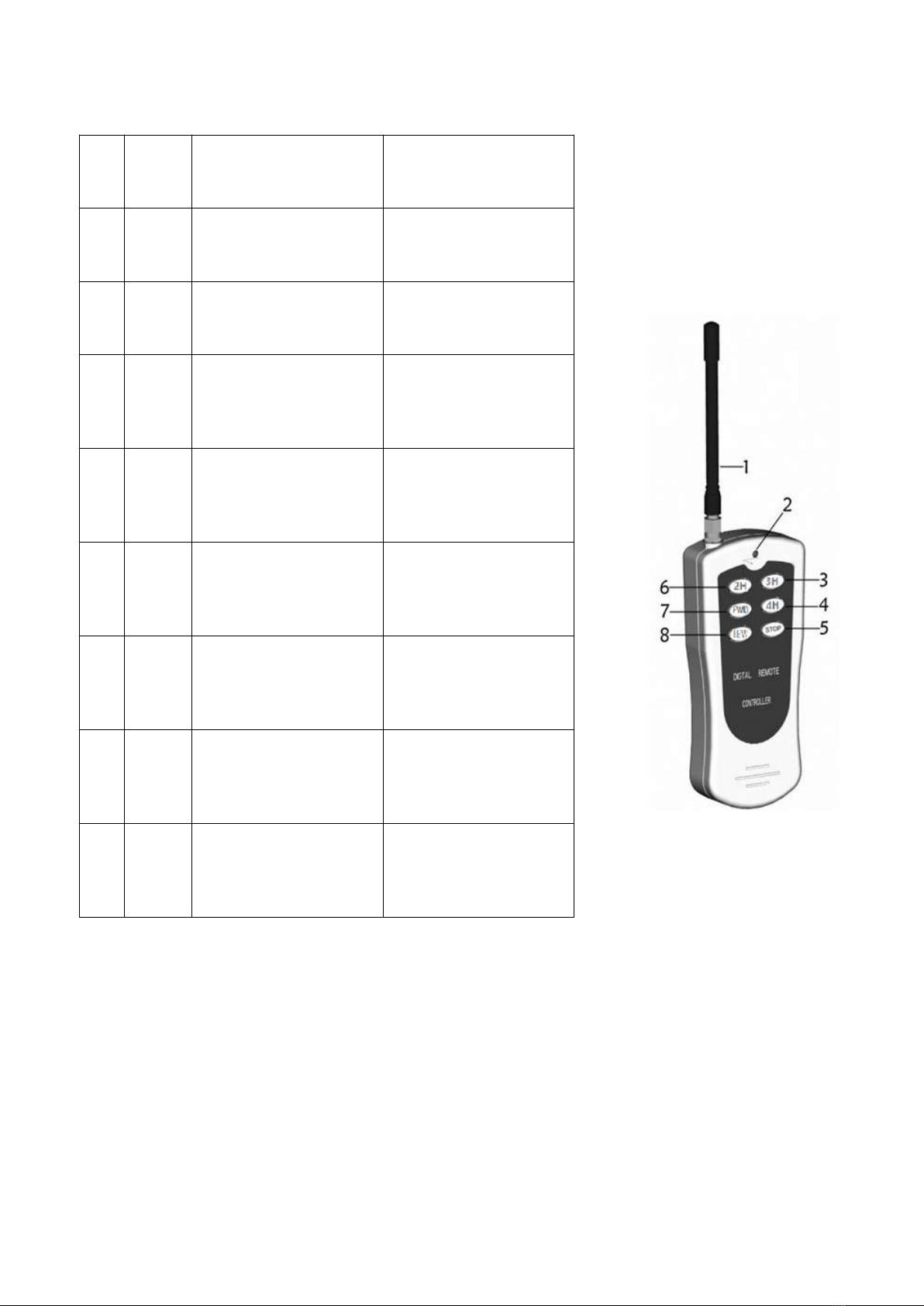

4.2 Remote control (Optional)
No. Sign Function Instruction
1 Antenna Signal reception
2 Indicator Indicates status
3 3H Cleaner running for 3
hours
Press the button, then
the cleaner will work
for 3 hours
4 4H Cleaner running for 4
hours
Press the button, then
the cleaner will work
for 4 hours
5 STOP Stop working
Press the button, then
the cleaner will stop
working
6 2H Cleaner running for 2
hours
Press the button, then
the cleaner will work
for 2 hours
7▲Manual-Walk forward
Press the button, then
the cleaner will walk
forward
8▼Manual-Walk
backward
Press the button, then
the cleaner will walk
backward
Note: Switching between automatic mode and manual mode needs to stop the cleaner by
pressing STOP.

8
4.3 Filter cleaning
1. Lift the filter tray
2. Push the buckles towards the middle and move the filter panel outwards
3. Clean the filters
4. Slide the filter tray along the groove
Center

9

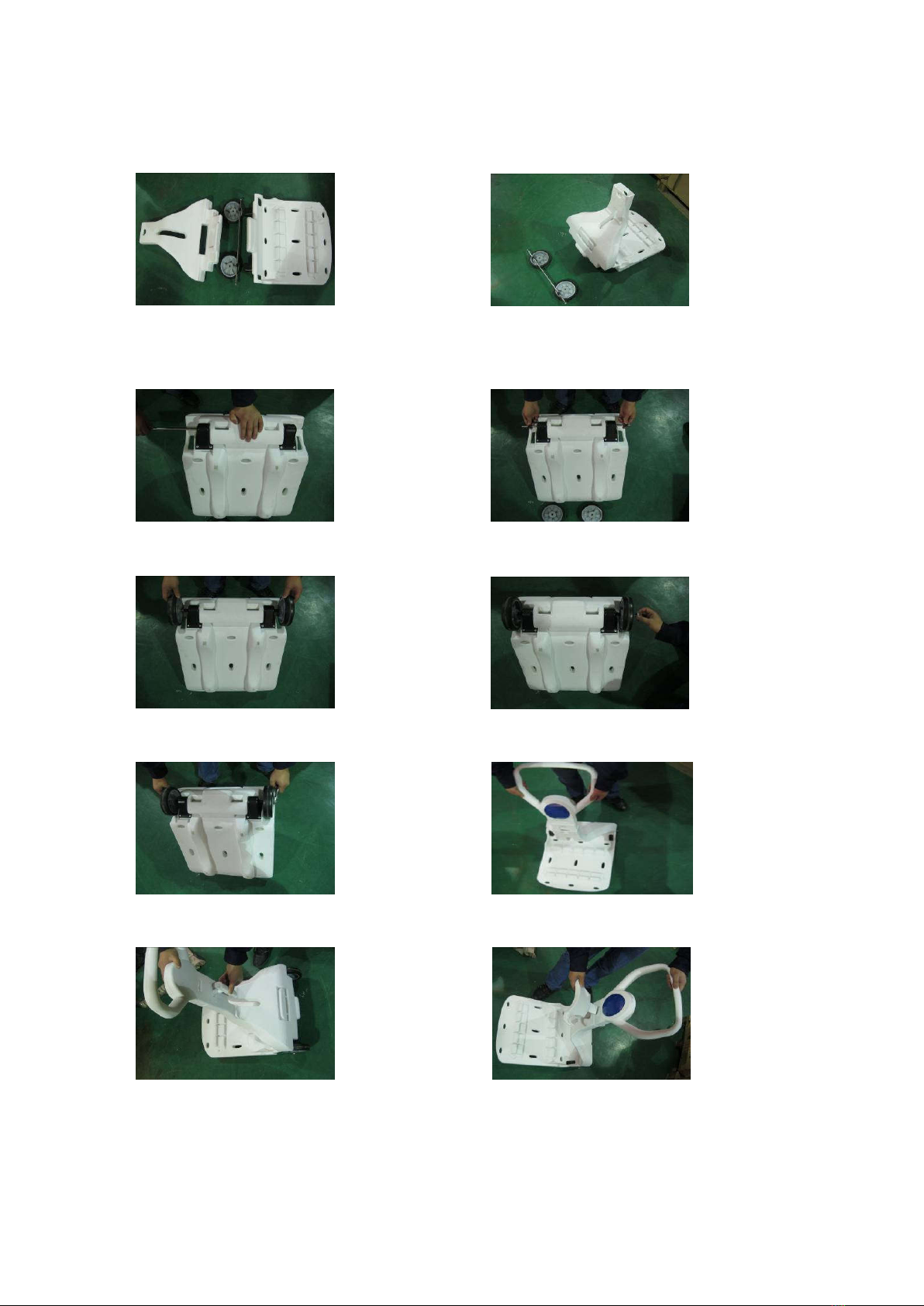

V. Assembly of transport caddy (Optional)
1. Open the package for assembling 2. Put the connection part onto the plate
3. Insert the wheel axle 4. Assemble the protecting cover and axle
cover
5. Assemble wheels 6. Put on the nut
7. Tighten the nut 8. Assemble the top handle
9. Assemble power supply holder 10. Assemble cable holder

10
VI. Packing list
No. Item Name Model QTY (pc) Remark
1
Cleaner
Cleaner body HJ2032/HJ2032L 1 In carton
2 Power supply HJ2032/HJ2032L 1 In carton
3
User manual &
safety rope
1 In plastic bag
4 Foam 4 In plastic bag
5
Remote control
(Optional)
1 In plastic bag
6
Transport
caddy
(Optional)
Top handle 1 In carton
7 Connection part 1 In carton
8 Plate 1 In carton
9
Power supply
holder
1 In carton
10 Cable holder 1 In carton
11 Wheel axle 1 In carton
12 Wheel 2 In carton
13 Nut M10 2 In plastic bag
14 Axle cover 2 In plastic bag
15 Protecting cover 2 In plastic bag

11
VII. Warranty
This product has passed all quality control and safety tests, conducted by the technical
department of the factory.
Warranty information:
1. The warranty is covered for 24 months (only for motors and PCB) from the date of its original
purchase.
2. This warranty is void if the product has been altered, misused, or has been repaired by
unauthorized personnel.
3. The warranty extends only to manufacturing defects and does not cover any damage resulting
from mishandling of the product by the owner.
4. The sales invoice must be presented for any claim or repair during the warranty period.
Please contact your local dealer for any warranty issues.
