RASOR GRT12DT Mounting instructions

USE MANUAL English
CUTTING UNIT
MOD. GRT12DT
ED.1-04/13
Enfocus Software - Customer Support

COMPANY
Rasor®Elettromeccanica S.r.l. was established in Milan in 1946 by the two promoting partners
Spinelli and Ciminaghi. For more than sixty years it has been producing automatic cutting
systems, cutting units for textile applications and electric and pneumatic cutters.
Initially considered as a point of reference for cutting systems in the
textile applications, the Rasor®products are nowadays widely used in
other fields: chemical, automotive, nautical and sport sectors and in
furniture manufacturing.
Rasor®can rely on the professional continuity of three generations,
thanks to the precious support of the promoting partner, to his passion,
dedication and great experience of seventy years.
The main characteristic of Rasor®is that each working phase, starting from the manufacturing
of the product up to its packing and delivery is carried out in Rasor®premises by qualified
operators who have professionaly grown up following the spirit of the company and of its
founders. This ensures the high quality which Rasor® has always considered as essential
since the beginning of its activity.
Following the innovative spirit mentioned above, our company is constantly focused on the
improvement of the product quality, on the study and development of new materials and
technologies.
AKNOLEDGEMENT
Dear Customer,
thank you for choosing a Rasor®Elettromeccanica S.r.l. product.
Rasor®has been a reference point in the field of cutting systems in the textile, clothing,
furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for
years. Its production has been always synonymous with reliability attested by many of
satisfied customers.
Rasor®quality system supervises all the company activities in order to provide the Customer
with a service that meets its needs and expectations in terms of product quality, delivery
reliability and stock of finished products.
All the parts of the devices have been planned and produced to guarantee an optimum
performance. In order to keep the high quality level and the long reliabilty of the Rasor®
products, it is recommended to use only original spare parts and to contact the head
office for any maintenance work.
Enfocus Software - Customer Support
EN
18

1. GENERAL SAFETY RULES
This manual is an integral part of cutting unit GRT12DT and must be carefully
read before using it since it gives important indications with regards to its safe
installation, use and maintenance. Keep it with care.
Before using cutting unit GRT12DT, read carefully the following general safety
rules.
• PACKAGING.
After taking off the packaging make sure that the cutting unit is intact. In
case of doubt do not use it and contact an authorized service centre. Do not
leave pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within
the reach of children or disabled persons since they are potential sources of
danger.
• AVOID DANGEROUS ENVIRONMENTS.
Prevent the cutting unit GRT12DT components from coming in contact with
damp or wet surfaces.
• KEEP CHILDREN AWAY.
Unauthorized persons, in particular children, must be kept away from the
working area.
•FEEDCABLE.
Prevent the feed cable from coming in contact with hot objects, pointed
surfaces or sharp edges. Never pull the feed cable of the machine. It must
never be replaced by the user. If necessary contact professionally qualified
staff.
• KEEP THE WORKING AREA ALWAYS IN ORDER.
The workplace must always be kept in order and well lightened; liquids or oil
traces must not be present.
• ALWAYS USE CUTTING UNITS GRT12DT PROPERLY.
Use the cutting units only to carry out the works they have been designed
for; do not use them improperly.
• OBSERVE THE USE OF THE TOOLS.
Do not cut excessively thick materials and always check blade conditions.
• AVOID ACCIDENTAL STARTINGS.
Before connecting cutting unit GRT12DT, make sure that everything is installed
properly.
• CLOTHING.
Do not use large clothes or accessories that might get stuck in the moving
parts.
• GOGGLES AND PROTECTIVE METAL MESH GLOVES.
Always use goggles, protective metal mesh gloves approved by Rasor®during
use and maintenance operations (according to UNI EN 388:2004 standard).
•SPAREPARTS.
During maintenance and replacement operations use only original spare parts.
Blade maintenance must be only performed by Rasor®technicians.
• INSTALLATION.
Any installation that is not in conformity with these
specifications could jeopardize your safety and cancels the
warranty.
Enfocus Software - Customer Support
EN
19

Customer Care Technical Service
WARNING
Informative letter
The installer and the maintenance man must know the content of this manual. Although
the main features of the machine described in this manual are not subject to change,
Rasor®Elettromeccanica S.r.l. reserves the right to modify the components, details
and accessories it deems necessary to improve the machine or to meet manufacturing
or commercial requirements at any time and without being obliged to update this
manual immediately.
ALL RIGHTS ARE RESERVED ACCORDING TO THE
INTERNATIONAL COPYRIGHT CONVENTIONS,
The reproduction of any part of this manual, in any form, is forbidden without
the prior written authorization of Rasor®Elettromeccanica S.r.l.
The content of this guide can be modified without prior notice. Great care has
been taken in collecting and checking the documentation contained in this
manual to make it as complete and comprehensible as possible.
Nothing contained in this manual can be considered as a warranty, either
expressed or implied - including, not in a restrictive way, the suitability warranty
for any special purpose. Nothing contained in this manual can be interpreted as a
modification or confirmation of the terms of any purchase contract.
Rasor®Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of
explosions and at high risk of fire and they cannot cut wet or damp materials. Moreover, they
cannot work in case of rain.
In case of damage or malfunction, cutting unit GRT12DT must not be used until the Customer
Care Technical Service has repaired them.
For any information, please contact
® ELETTROMECCANICA S.r.l.
Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY
Tel: [phone]; Fax: [phone]
e-mail: [email protected]
web: www.rasor-cutters.com
RASOR
WARNING
The original configuration of the cutting unit must not be changed at all.
On receiving the machine make sure the supply corresponds to what has been ordered.
In case of non-compliance immediately inform Rasor®.
Also make sure the cutting unit has not been damaged during transport.
Enfocus Software - Customer Support
EN
20

2. TRANSPORT AND PACKING
3. PLATE DATA
READ
THE
INSTRUCTION
MANUAL
DO NOT
REMOVE
THE SAFET Y
DEVICES
HIGH
VOLTAGE
SHEARING
RISK
USE
METAL
GLOVES
USE
GOOGLES
1
Serial number
Year of production
Model
Electric data
2
2
12
180
M
0,52
400 2___
3
1
GRT12DT

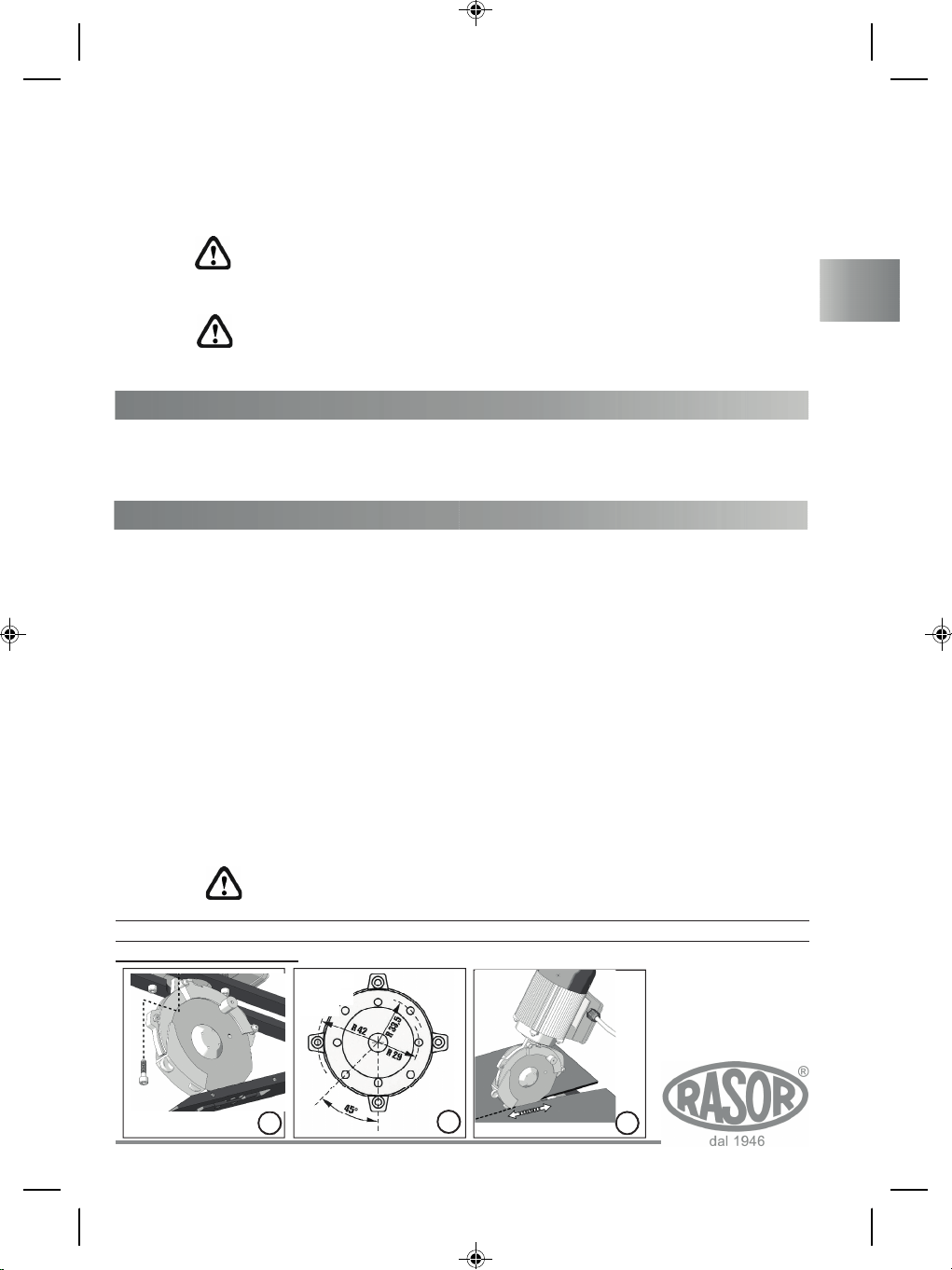

The cutting unit is delivered in a cardboard box, inside which there are various options. The
code of the ordered product and its serial number are indicated outside the package (see
picture 1). The following accessories are contained in a bag inside the package:
1) Poligonal blade;
2) Butterfly wrench for blade nut disassembly;
3) Drift for blade disassembly.
The manufacturer's identification and EC STANDARD 2006/42/EC conformity plate (see picture
below) is located on the front part of the cutting unit.
The plate must not be removed at all, even if the machine is resold. Always refer to
the serial number written on the plate itself when contacting the manufacturer.
Several safety warnings are printed on a card which is applied to the cutting unit feeding
cable; such warnings must be strictly followed by everyone dealing with the machine. The
company is not to be held responsible for damage to property or accidents to
people which might occur if the above-mentioned warnings are not observed. In
such a case, the operator is the only person responsible.
Enfocus Software - Customer Support
EN
21

4. PRODUCT DESCRIPTION
1
2
3
4
10
6
7
9
8
511
12
14 13

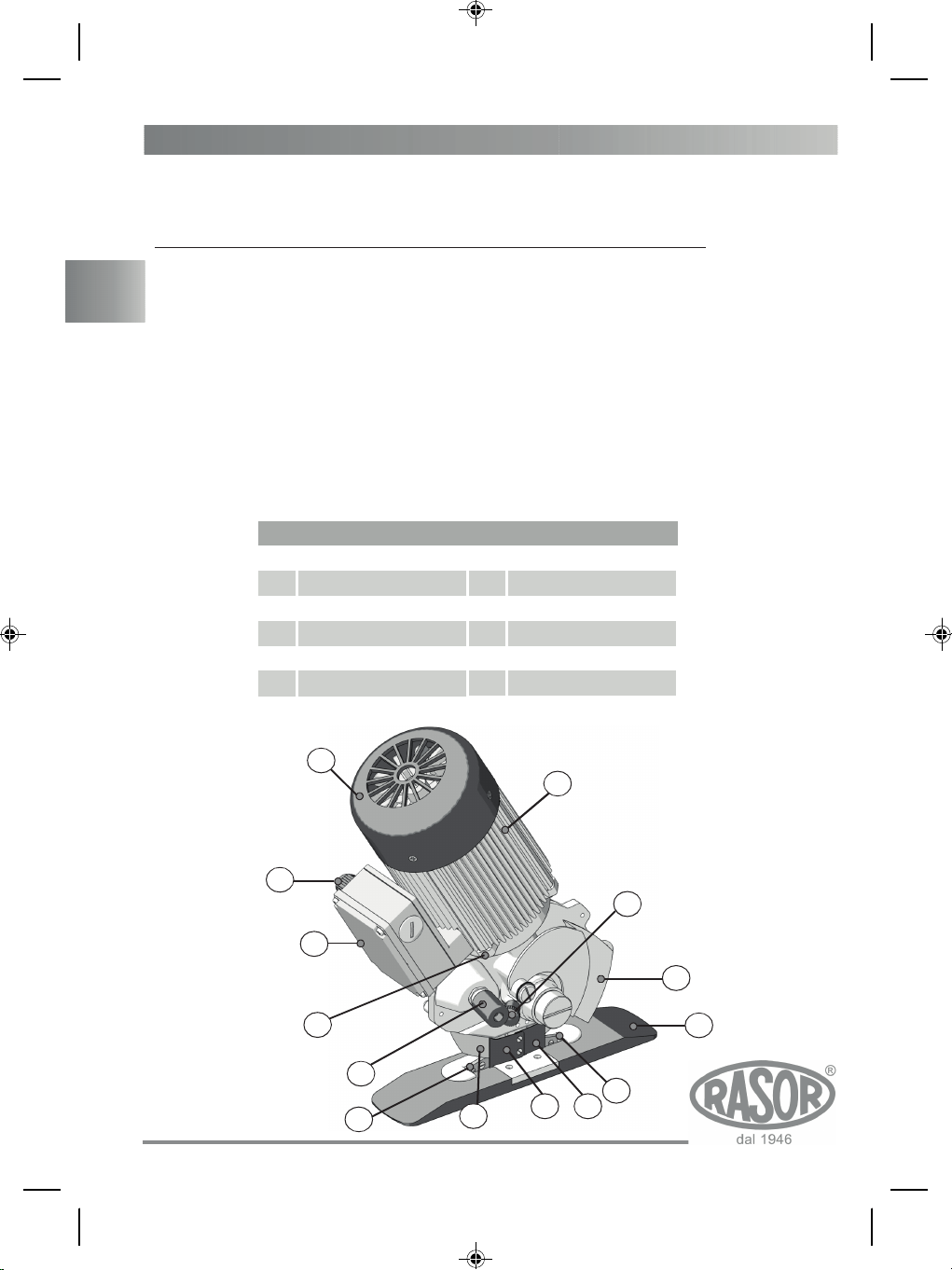

1 Connector block 8 Poligonal blade
2 Motor cover 9 Left spring locking the thread
3 Cable gland 10 Greaser
4 Motor frame 11 Right hard metal counterblade
5 Sharpening button 12 Motor flange with assembly holes
6 Movable front protection 13 Right spring locking the thread
7
A
luminium base covered
withTeflon
®
®
14 Left hard metal counterblade
Device components
The fixture described in this manual is a cutting unit model GRT12DT which can be assembled
on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes
located in the motor support. Cutting unit GRT12DT can operate continuously and bidirectionally
(i.e. back and forth reversing the direction of rotation of the motor) at variable heights
by means of multiple installation. This allows halving the cutting time, making the material run
at a double speed and eliminating the idle time of the return stroke of the unit. By cutting with
the blade and the counterblade always in contact and thanks to the steel upper quality of
the blade supplied, GRT12DT guarantees the clean separation without frayings of the two
borders of the cut material. The three-phase motor with extremely compact dimensions
and extreme reliability with 120 mm diameter blades and two hard metal counterblades,
guarantees cuts with thickness up to 5 cm. A sharpener assembled on the cutting unit head
allows whetting the blade at any moment without disassembling it. After carrying out this
operation, it is possible to start cutting again. A high power motor, perfectly balanced, with
a high number of revolutions and totally free of maintenance, reduces the vibrations to the
minimum, thus making the cutting unit complies with European Directive No. 2002/44/EC
concerning the risks deriving from mechanical vibrations.The mechanical parts are made of
high resistance steel, bronze and aluminium and require lubrication after several working
hours.
Enfocus Software - Customer Support
EN
22

5. TECHNICAL FEATURES
Techincal data are indicative and may vary without prior notice
The size of the cutting unit GRT12DT are indicated aside.
8 side blade Ø 120 mm, in H.S.S. steel
12 side blade Ø 120 mm, in H.S.S. steel
Circular blade Ø 120 mm, in Extra steel
8 side blade Ø 120 mm, in H.S.S. steel
covere d with TIN
12 side blade Ø 120 mm, in H.S.S. steel
covere d with TIN
8 side blade Ø 120 mm, in integral hard
metal
8 side blade Ø 120 mm, in H.S.S. steel
covered with T eflon®
12SHSSTF
Features of the available blades
12SHSS
12CSW
12SMD
12DHSSTN
12SHSSTN
12DHSS
7. FIELD OF APPLICATION
6. NOISE LEVEL
The maximum acoustic pressure level emitted by cutting unit GRT12DT is about 60 dB (A).
Noise tests have been carried out in compliance with Standard UNI EN ISO 11202. The
device noise levels, measured at different distances (without any sound wave filtering system),
vary in the extent of few db (A).
NOTE
It is advisable for cutting unit GRT12DT owners to verify the compliance with the standard
concerning safety of workers: Italian legislative decree 81/08.
Cutting unit GRT12DT has been designed, manufactured and assembled to cut any kind of
fabrics or materials, with the exception of metal, plastic or wood, by means of rotary poligonal
blades. This equipment must not work:
- in areas prone to explosions;
- in presence of fine dust or corrosive gases;
- on wet or damp materials;
- to cut plastic, metal and wooden materials.
It is forbidden to use cutting unit GRT12DT for purposes different from the above-
mentioned ones.
Volt 380
3 phases
Weight 2,300 kg
(without cable)
22 mm
blade center
120 mm with hard metal counterblade
400 rev./min
about 50 mm
Three-phase-Asynchronous, 180 W
(
IP65-CL F
)
0,52 A
4590 g
5500 g
1,5 mt
LUX 200
< 2,5 m/s2
0 ~ 55°C
10 ~ 95% without condensate
Cutting work depth
Motor power
Weight (with feeding cable)
GRT12DT cutting unit features
Blade diameter
Blade speed
Max. absorption
Working temperature
Working humidity
Total weight (with package)
Electric cable length
Minimum light for working
operations
Vibration at the start up
Enfocus Software - Customer Support
EN
23

3
B
A
B
8. USE WARNINGS
9. ELECTRIC CONNECTION
We recommend following the indications below in order to always work in safety conditions.
•All the operations must be carried out complying strictly with the safety rules of the
country where the device is to be installed.
•It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of
the cutting unit.
•The Customer undertakes to comply with and make his staff observe all the rules and
regulations in force concerning safety, prevention of accidents and health in the work
place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and
regulations in force, as well as the special provisions in force in sport and public installations
the Customer declares to know after receiving all the relative necessary information.
•The cutting unit works also without its safety protective device. This protective
device must NEVER be removed.
•Always check the resistance of the material to be cut and the kind of blade which is being used.
•The Customer shall equip his own personnel with all the individual safety protections for
the execution of the works, as well as with the ones which might be prescribed by the
Manufacturer due to specific danger conditions of the plant or of the area where the
personnel must work.
•Do not make any adjustment while the blade is working or while the electric plug is
connected.
•Always pay attention to the electric cable position to prevent it from being cut or damaged
by the blade.
•It is allowed to assemble cutting unit GRT12DT on machines O.E.M. on condition that their
original structure is not modified. Otherwise, the intervention must be certified by Rasor®.
Firstly make sure that the lines are able to feed the cutting unit correcltly, in
compliance with the safety rules (for the feature required see par. 5).
We suggest installing a magnetothermic safety device before the cutting unit and check
that the ground circuit is effective. Before working on the feeding cable pull the plug out.
Check that electric connections and protections correspond to the driving force and the
plate data values (voltage and current), required by the different electric circuits. By referring
to the CEI 11-27/1 standard all the works carried out by means of electric current must be
performed by a staff, who has been provided with all the devices required by the above-
mentioned standard. For the works carried out under voltage,
it is necessary that the employer certifies the suitability, against
formative processes. The cutting unit GRT12DT is supplied with
electric cable connected to the connector block located beside
the motor. The user must connect the cutting unit to the mains
(the cable complies with the CEI 20-22 III Standard). Never
change the length of the cable supplied. If it is necessary, use a
longer cable and replace the one supplied. To connect the new
cable open the cover “A” by unscrewing the 4 cross-slotted
screws “B” (see picture 3). Connect the phase cable to the
terminal board. The minimum section of the connecting cables
must be determined by the operator in charge of the installation.
We recommend to use safety cables and socket IMQ approved.
Check the connection by enabling the cutting unit and verify
the rotation direction. The cutting unit is provided with earthing
WARNING
Enfocus Software - Customer Support
EN
24

45
(yellow-green cable). Possible faulty earthing connections may cause unsafe working
conditions. Possible damages are not at RASOR®s.r.l. charge.
The electric feeding must be supplied by a line protected against overcurrent by means of
the automatic switch (magnetothermal) or delayed fuses with a suitable dimensions. The
current of the safety devices must be as low as possible considering the max. absorption of
the machine (see identification plate).
The operator must arrange a disconnetting switch on the supply line in order to switch off the
machine, if necessary.
6
To reverse the direction of rotation of the motor, the user must install an inverter (not
provided by the manufacturer) upstream of the unit.
WARNING
WARNING
10. RESIDUAL RISKS
11. INSTALLATION AND USE
Even though the cutting unit is safe, operators must pay attention to preserve their and
other people’s safety.


At the end of the working operations, the motor could be very hot.

The cutting blade can work even when the protective device is disassembled.
To install and use the cutting unit manually, proceed as follows:
1) Fix the cutting unit on level squares or angles by means of four 5MA screws, by inserting
them in the four holes located in the motor lower cover (see pictures 4 and 5).
NOTE
The cutting unit can be installed in any position/angle: vertically, laterally and it can be turned
upside down. It is not compulsory for the Teflon base to touch the machine table.
2) Lay the material to be cut;
3) Connect the cutting unit to the electric feeding;
4) Put the material on the cutting foot;
5) Adjust the front mobile protection according to the thickness of the material to be cut (see
picture 6);
6) Carry out the cutting operation.
NOTE
Cutting unit GRT12DT can work in a fixed position (the material has to be moved) or it can
move forward while the material is kept in the same position. Make sure the material to be
cut is properly stretched, preventing it from curling.
WARNING
Never use the two bolts which fix the motor to the cutting part to fasten cutting
unit GRT12DT. This operation may cause the motor shaft to break. In this case,
warranty is not valid.
Enfocus Software - Customer Support
EN
25

13. LUBRICATION
9
WARNING
A
12. BLADE SHARPENING
1
2
8
3
7
After many hours of a continuative use of the cutting
unit, or if it would not be able to cut anymore, it is
necessary to sharp the blade.

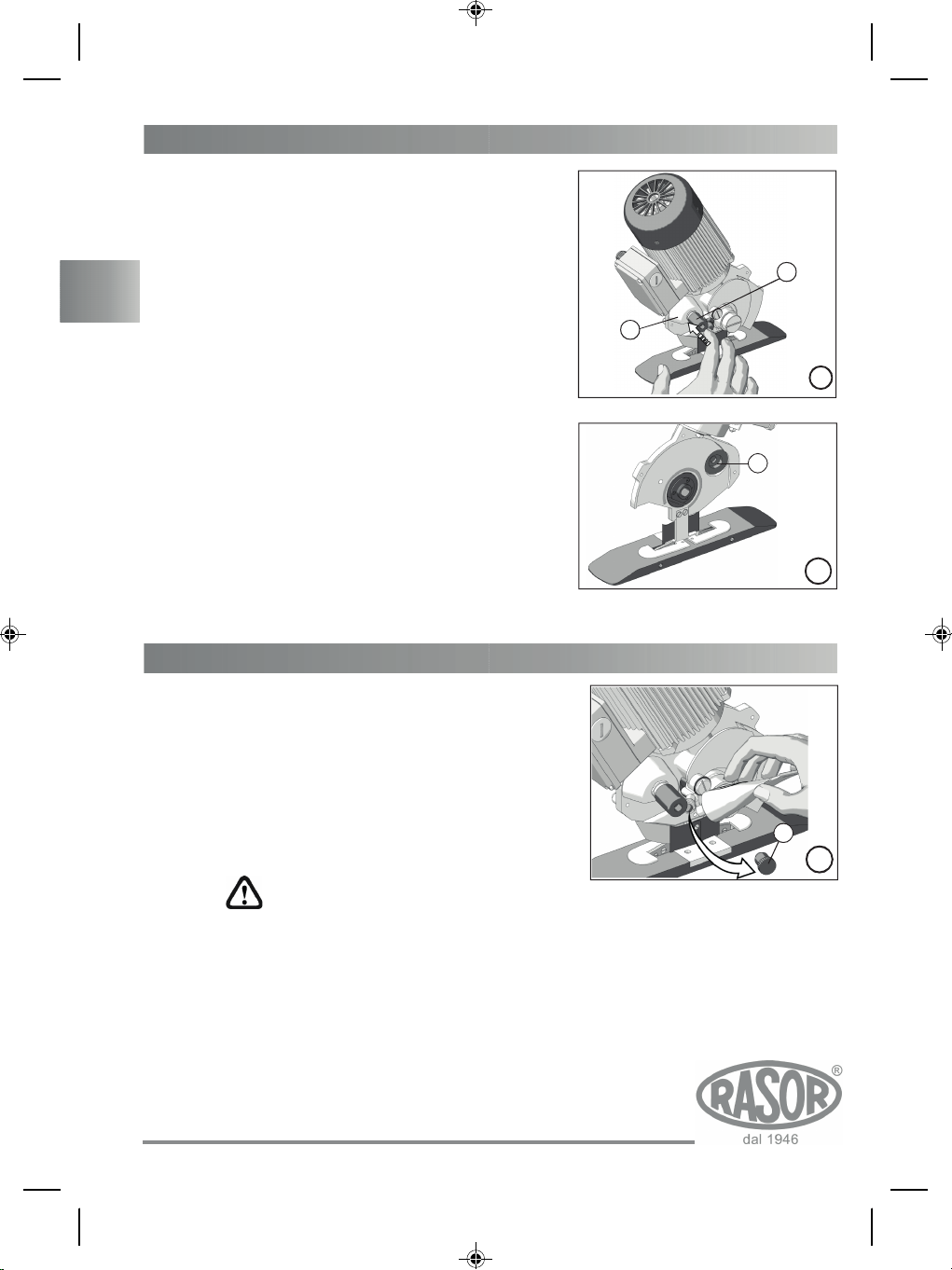

To carry out this operation, start the blade and press
sharpener “2” located on it for 3-4 seconds (by pressing
push button “1”, as shown in picture 7).
Repeat the operation 2-3 times.
If the sharpening operation is not effective, check the
wear of emery grinding wheel “3” (see picture 8).
If emery grinding wheel “3” is too worn or dirty, replace
it.
Every 3-4 working days it is necessary to lubricate the
pair of gears. To carry out this operation, remove the
protective plug “A” located on the motor support of the
cutting unit and fill it with lubricating grease Rasor.
Screw plug “A” again a few turns. Screw plug “A” a few
turns every 2-3 working days (see picture 9).
The blade must never be dirty with grease or oil.
Enfocus Software - Customer Support
EN
26

If the blade is no more able to cut (even after repeating the
sharpening operation several times) it is necessary to replace
it. To carry out this operation, use butterfly wrench “1” and
drift “3” locking the blade (shown in picture 10).
To replace the blade, proceed as follows:
1) Use some protective gloves in compliance with
Italian Legislative Decree 81/08;
2) Remove the movable front safety protection “B”
(see picture 11) by unscrewing pin “E” and the
two washers “F” as shown in picture 12.
Remove the fixed rear safety protection “A” (see
picture 11) by unscrewing the cross-slotted
screw “C” and the cross-slotted screw “D” by
means of the proper screwdriver (not supplied
by the manufacturer) as shown in picture 12.
3) Insert drift “3” (see picture 10) into hole “G”, so
as to lock the blade (the hole on the blade must
correspond to the one on the structure).
4) Use butterfly wrench “1” to unscrew nut “H” and
remove blade “L” (see picture 13).
5) Replace the worn blade with the new one “2”, being
careful to center the blade on the gear, in the correct
position; we remind you to assemble it so that the
side with the writing Rasor can be seen by the
operator.
6) Assemble all the components again and carry out
the sharpening.
11
B
A
10
1
2
3
12
C
D
F
G
L
1
H
13
E
14. BLADE REPLACEMENT
Enfocus Software - Customer Support
EN
27

15. TROUBLESHOOTING


SOLUTION
Check the distance between the blade and the counterblade
Check the kind of fabric
Sharpen the blade
Check the fabric thickness
Check the compatibility between blade and fabric
Make sure that the motor turns correctly
Reduce the feeding speed
Check the counterblade integrity
Carry out the lubrication
Disassemble the blade and remove the material residues
Check the wear of the pair of gears
Check the electric connections on the O.E.M. unit
Check the electric connections
Check the feeding cable
The cutting unit starts slowly, works
intermittently or it does not start

PROBLEM
The cutting unit is noisy
The fabric is not cut or it gets stuck between
the blade and the counterblade

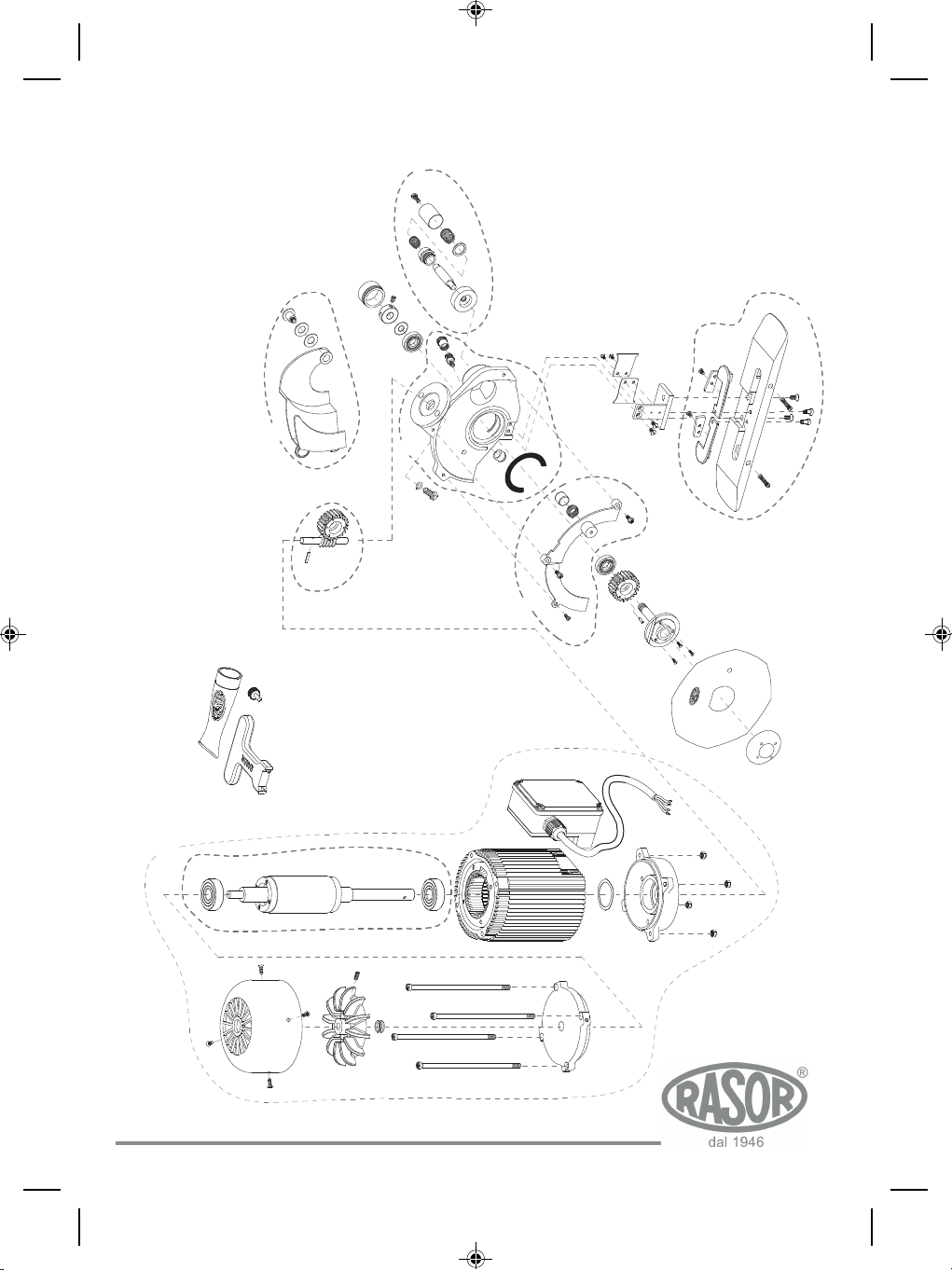

16. SPARE PARTS / EXPLODED VIEW
CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION
12SHSS 8 SIDE BLADE Ø 120 mm, IN H.S.S.
STEEL GRT27 FLAME RETARDANT FEEDING CABLE SW121600 MOTOR BEARING L12 SW1274DT DOUBLE CUTTING BASE mm 216x50x10
GMT1200 COMPLETE MOTOR GRT12, 3-ph 380 V
50 Hz GRT8615 SPACER SW124100 REAR PROTECTION GUARD SW1274DTCP
L
COMPLETE DOUBLE CUTTING BASE
mm 216x50x10
GMT12480 COMPLETE MOTOR GRT12, 3-ph 480 V
60 Hz GRT8616 DOWEL FASTENING THE FAN SW124101 REAR GUARD FIXING SCREW 3x10 MA SW127500 GE4AR BEARING ADJUSTING DEVICE
GMT1260 COMPLETE MOTOR GRT12, 3-ph 380 V
60 Hz SW104102 OILER RING SW124102 REAR GUARD FIXING SCREW 3x5 MA SW127501 ADJUSTING DEVICE FIXING DOWEL
GRT121300 COMPLETE ROTOR SW104103 OILER RING SPRING SW1241CPL REAR PROTECTION SET SW127502 WASHER
GRT121801 WORM SCREW series >2001 SW1076S SPRING WITH DOWEL SW124400 FRONT PROTECTION GUARD SW127600 CLOSING TAP
GRT121801C
PL
COMPLETE PAIR OF GEARS series
>2001 SW107900 SCREW FOR THE COUNTERBLADE HOLDER FIXING SW124402 FRONT GUARD FIXING SCREW SW128600 MEDIUM GRAIN EMERY Ø 30x10x6
GRT126201 GEAR BEVEL series>2001 SW1080C RIGHT COUNTERBLADE HOLDER DT SW1244CPL FRONT PROTECTION SET SW1286CPL COMPLETE EMERY UNIT
GRT12M17 MOTOR FRAME FIXING SCREW SW1080CS LEFT COUNTERBLADE HOLDER DT SW1249DT RIGHT SPRING LOCKING THE THREAD T 101801 ELASTIC PIN
GRT12M18 MOTOR COVER SW108100 RIGHT HARD METAL COUNTERBLADE SW1249DTS LEFT SPRING LOCKING THE THREAD T 104501 PAIR OF CONVEX WASHERS
GRT12M19 MOTOR FAN SW1081S LEFT HARD METAL COUNTERBLADE SW125501DT L-SHAPED REST FOR DOUBLE
CUTTING UNIT T 104700 GREASER CAP
GRT12M21 UPPER MOTOR COVER SW108200 COUNTERBLADE FIXING SCREW SW125502 SCREW FIXING L-SHAPED REST FOR
DOUBLE CUTTING UNIT T 104800 GREASER CAP
GRT12M22 MOTOR COVER FIXING SCREW SW108700 SHARPENER PIN SW1255DT COMPLETE DOUBLE CUTTING MOTOR
MOUNT T 105000 SCREW 2.6MA TO FIX THE SPRING LOCKING THE THREAD
GRT12M24 COMPLETE MOTOR FRAME SW108800 EMERY SPRING Ø 11 mm SW125600 SUBBLADE RING T 105200 MOTOR MOUNT FIXING BOLT
GRT12M25 COMPLETE TERMINAL BOARD SW108900 SHARPENER BUSH SW126101 BLADE GUIDE series> 2001 T 105300 WASHER
GRT12M26 LOWER MOTOR FLANGE SW109000 EMERY SPRING Ø 6 mm SW126102 REFERENCE PIN T 105400 ANTI-FRICTION BUSH
GRT12M27 UPPER MOTOR BEARING SW109100 SHARPENER CAP WITH BEARING SW126103 GEAR RING FIXING SCREWS 2,5MA T 107000 SCREW FOR BASE/PLATFORM/SECTOR
FIXING
GRT12M28 COMPENSATION RING SW109200 SCREW FOR SHARPENER CAP FIXING SW126300 BLADE FIXING RING NUT T 107500 BLADE ASSEMBLING/DISASSEMBLING
WRENCH
GRT12M29 FASTENING NUT SW109300 WASHER SW127201 GEAR BEARING R6 series> 2001 T 107600 DRIFT LOCKING THE BLADE
T 107900 LUBRICATING GREASE
Enfocus Software - Customer Support
EN
28

GRT121300
12SHSS
SW124101
SW126103
SW126102
SW127201
T 105300
T 105200
T105400
SW109200
SW1286CPL
SW108 800
SW109 300
SW128600
SW108700
SW108900
SW109000
SW127201
SW127500
SW127600
T104501
T104501
SW124402
SW1244CPL
GRT 126201
GRT 121801
T 101801
GRT121801CPL
T 107500
GRT1 2M25
GRT1 2M29
GRT1 2M26
GRT1 2M28
GRT1 2M24
GRT1 2M21
GRT8 616
GRT1 2M17
GRT8 615
GRT1 2M18
GRT1 2M22
GRT1 2M27
GMT 1200 ( 3-PH , 380V , 50Hz ) GMT 1260 ( 3-PH , 380V , 60Hz ) GMT 12480 ( 3-PH ,480V , 60Hz )
GRT27
SW121600
GRT12M19
SW126300
GRT 126201
SW109100
T104700
T104800
SW127502
SW124400
SW127501
SW125600
SW104102
SW104103
SW124100
SW126101
SW1241CPL
SW124101
T 107600
T 107900
SW124102
SW1249DT
SW1249DTS
T105000
SW125502
SW12550 1DT
SW108200
SW108200
SW108100
SW1081S
SW1080C
SW1080CS
SW1274DT
SW1076S
SW107900
T107000
SW1255DT
SW1274D TCPL
Enfocus Software - Customer Support

WARRANTY
Rasor®Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated
on the last page of this manual, except in case of different written agreements.
The warranty covers all manufacturing and material defects. Replacement and repair operations
are covered only if carried out by our company and at our workshop. If in-warranty goods
need to be repaired, the customer must always send the complete machine to Rasor®.
Single units will not be repaired under warranty.
The material to be repaired must be sent CARRIAGE FREE.
Once the machine has been repaired, it will be sent CARRIAGE FORWARD to the customer.
The warranty covers neither technicians' intervention on site nor the machine disassembly
from the installation place.
If for practical reasons, one of our technicians is sent to the premises, the customer will be
charged the costs plus the travelling expenses.
The warranty does not include:
failure caused by wrong use or assembly,
failure caused by external agents,
failure caused by lack of maintenance or neglicence;
blades and parts subject to wear.
WARRANTY FORFEITURE:
In case of arrearage or other breaches of contract,
Whenever changes or repairs are carried out on our cutting units without our prior
authorization,
Whenever the serial number is tampered with or cancelled,
Whenever the damage is caused by improper use, bad treatment, bumps, falls and
other causes not due to normal working conditions,
Whenever the unit seems tampered with, dismantled or previously repaired by
unauthorized staff,
In case the cutting units are used for purposes that are different from the ones
described in this manual.
All repair operations carried out under warranty do not interrupt its duration.
All disputes will be settled in the court of justice of Milan (Italy).
We thank you in advance for the attention you will pay to this manual and we invite you to
inform us of any change you deem necessary to improve it and make it more complete.
Enfocus Software - Customer Support

D
DECLARATIO N OF CONFORMITY
(Signature)
Date:
Warranty expiry:
12 months invoice date or receipt
RASOR ELETTROMECCANICA S.R.L.
CUTTING EQUIPMENTS
We hereby certify that the machine specified hereunder complies to the requirements of
Machinery Directive 2006/42/EC, Electromagnetic Compatibility 2004/108/EC and CEI EN
60204-1, Directive 2002/44/EC and to technical rulings UNI EN 414:2002, UNI EN ISO 12100-1
and UNI EN ISO 12100-2.
Noise tests have been carried out according to UNI EN ISO 11202 Standards.
Cutting unit GRT12DT has been produced according to workmanlike standards.
We declare that the above-mentioned goods comply with the standards in force concerning
safety and hygiene at work that can be applied to the material itself according to the Italian
legislative decree No. 81/08 (local law); the above-mentioned goods are not included in the
goods indicated in annex IV of Machinery Directive 2006/42/EC.
1. Category: THREE-PHASE CUTTING UNIT
2. Manufacturer: RASOR®ELETTROMECCANICA S.R.L.
3. Type: GRT12DT
4. Serial number: ..........................................................................................
5. Year of manufacture:................................................................................
6. Country of manufacture: ITALY
7. Additional information: ..............................................................................
Enfocus Software - Customer Support

Enfocus Software - Customer Support
