Rassbach Communications FreedomLINK User manual

Mobile Radio
Installation Instructions

2
November 8, 2018
Tools needed: Drill, 5/16”-screw bit, Phillips screw bit, crescent wrench, 3/4” hole saw, socket set, trim removal
tools, wire puller

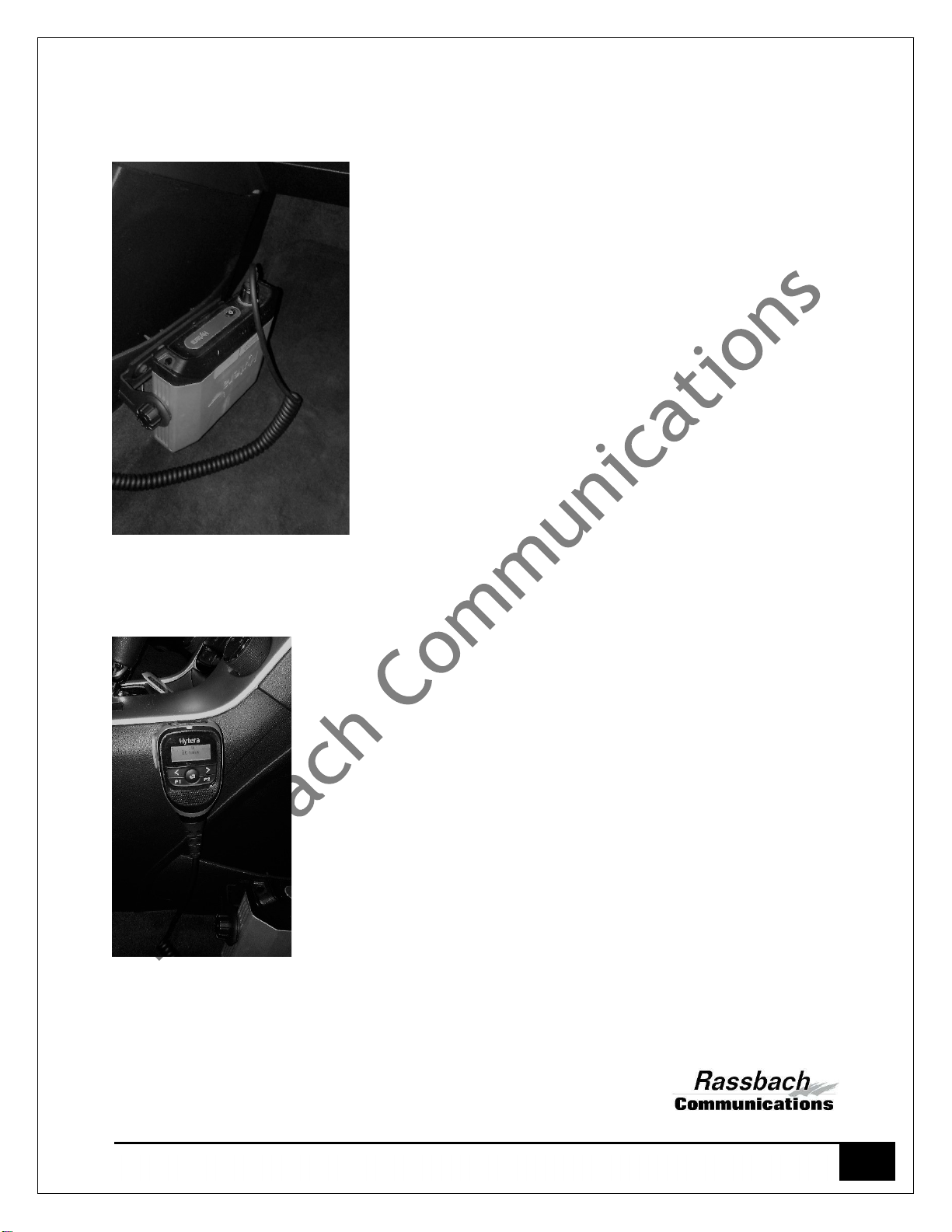

Mount radio bracket on a solid,
steady surface
Use suppled screws or bolts and nuts
Mount the mic clip on a solid, steady
surface that is easily accessible for the
user
Secure with supplied screws
Make sure the mic is free and clear of
buttons and levers

3
November 8, 2018
Attach positive
(red) and
negative (black)
wires to a
constant 12 volts
and properly
cleaned ground
Drill a ¾” hole in the center of the roof
Clean paint off the edge of the hole for
proper grounding
If an ignition kit is
used, attach it to
a known 12-
volt
ignition point

4
November 8, 2018
Install coax though the ¾” hole. Leave
some slack for future service.
Assemble O-ring and brass ring
onto the large antenna base.
Tighten with a crescent
wrench.
Attach antenna to the roof
mount and snug with a
crescent wrench

5
November 8, 2018
Notes:
- If using a gain antenna make sure it is cut to your
frequency.
- Coax connectors require the proper install tools for
the correct installation. If you would like to purchase the
tools please contact us.
- There is also a tool to cut and remove the antenna
hole and paint. If you would like to purchase this tool
please contact us.
END
