Rauch AXMAT DUO User manual

INSTRUCTION MANUAL
ISOBUS
EMC
AXMAT DUO
Please read carefully
before using the
machine.
Keep for future reference.
This instruction manual/assembly in-
struction is to be considered as part of
the machine. Suppliers of new and sec-
ond-hand machines are required to
document in writing that the instruc-
tion manual/assembly instruction was
delivered with the machine and hand-
ed over to the customer.
Version 3.21.00
Original instructions
5902878-b-en-0419

Preface
Dear Customer,
By purchasing the AXMAT special equipment you have shown confidence in our product. Thank
you very much! We want to justify this confidence. You have purchased a powerful and reliable
machine control unit. However, in case of unexpected problems: Our Customer Service is
always ready to help.
Please read this operator's manual and the operator's manual for the machine carefully
before operating the control unit and follow all instructions.
This manual may also describe equipment that is not included in your special equipment.
Please note that damage caused by incorrect operation or improper use is not covered by
warranty claims.
Technical improvements
We are continuously improving our products. Therefore, we reserve the right to make any
improvements and changes to our machine that we consider necessary without notice.
This constitutes no obligation to make such improvements or changes on machines that
have already been sold.
We will be pleased to answer any other questions that you might have.
Yours sincerely
RAUCH
Landmaschinenfabrik GmbH

Table of Contents
I
Preface
1 User instructions 1
1.1 On this operating manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Significance of warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Instructions and procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Listings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.6 Menu hierarchy, keys and navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Layout and function 5
2.1 Overview of supported AXIS fertiliser spreaders . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Settings 7
3.1 Minimum requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Navigation within the menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.3 Fertiliser settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3.1 Application rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.2 Working width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.3 Spreading disc type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.4 Normal disc speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.5 Fertiliser class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.6 Fertiliser charts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Machine settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.4.1 Activating the AXMAT- function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Table of Contents
II
4 Operating the AXMAT system 17
4.1 Preparing for calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.1.1 Scope of delivery and assembly of the field test set. . . . . . . . . . . . . . . . . . . 18
4.1.2 Requirements and conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1.3 Performing a spreading test at a working width of 24 m. . . . . . . . . . . . . . . . 20
4.1.4 Performing a spreading test at a working width of 24 m or greater . . . . . . . 21
4.1.5 Performing a spreading test at a working width of 36 m or greater . . . . . . . 22
4.2 AXMAT calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2.1 Evaluate the results and correct if necessary. . . . . . . . . . . . . . . . . . . . . . . . 25
4.2.2 Adjusting the drop point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.3 Test/diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.4 Operating the AXMAT function in spreading operation . . . . . . . . . . . . . . . . . . . . . . 32
5 Alarm messages and possible causes 33
5.1 Meaning of the alarm messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.2 Failure/alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.2.1 Acknowledging an alarm message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Index A
Terms/conditions of warranty

User instructions
1
1
1 User instructions
1.1 On this operating manual
This operating manual is an integral part of the machine control unit.
The operating manual contains important information for safe, appropriate
and economic use and maintenance of the machine control unit. Adherence
to the manual helps to avoid dangers, reduce repair costs and downtime, and
increases the machine's reliability and service life.
The operator's manual must be kept in an easily accessible location close to
where the machine control unit is used (e. g. on the tractor).
The operating manual does not replace your own responsibility as the operator
and operating personnel of the control unit.
1.2 Significance of warnings
The warning instructions in this manual have been structured according to the
degree of danger and the probability of their occurrence.
Danger signs and symbols inform the user about other construction-related and
unavoidable residual risks that may be encountered when operating the machine.
The warning notes used are structured as follows:
Example
Signal word
Symbol Explanation
n DANGER
Risk to life if warning is not observed
Description of the danger and possible consequences.
Ignoring these warnings will result in very serious or even fatal
injury.
Measures to prevent the danger.

User instructions1
2
Warning severity level
The degree of danger is indicated by the signal word. The levels are classified as
follows:
n DANGER
Type and source of danger
This warning warns of a danger posing an immediate threat to the
health and life of persons.
Ignoring these warnings will result in very serious or even fatal
injury.
Always observe the measures described to prevent this
danger.
n WARNING
Type and source of danger
This warning warns of a possible dangerous situation for the
health of persons.
Ignoring these warnings will result in very serious injury.
Always observe the measures described to prevent this
danger.
n CAUTION
Type and source of danger
This warning warns of a potentially dangerous situation for
personal health or of material and environmental damage.
Ignoring this warning can result in injuries and damage to the
product or the general area.
Always observe the measures described to prevent this
danger.
NOTICE
General information containing application tips and particularly useful informa-
tion, but which constitutes neither warnings nor hazards.

User instructions
3
1
1.3 Instructions and procedures
Steps that the operator must carry out are shown as a numbered list.
1. Instruction for action step 1
2. Instruction for action step 2
Instructions involving only one step are not numbered. The same applies for ac-
tion steps that do not have a specific sequence.
A bullet is placed in front of these instructions:
Handling instruction
1.4 Listings
Listings without a specific sequence are shown with bullet points (level 1) and
dashes (level 2):
Property A
- PointA
- PointB
Property B
1.5 References
References to other text passages in the document are indicated with section
number, headline text and page number:
Example: See also Chapter 3: Settings, page 7.
References to other documents are indicated as note or instruction without exact
chapter or page number:
Example: Please also observe the instructions contained in the manual for
the universal drive shaft.
1.6 Menu hierarchy, keys and navigation
Menus are the entries listed in the Main menu window.
In the menus, submenus and/or menu items are listed in which settings can be
implemented (selection lists, text or number entries, starting a function).
The various menus and buttons of the machine control unit are illustrated in bold
letters:
The hierarchy and the path to the requested menu item are marked with an
>(arrow) between menu, menu item/s:
System / test > Test/diagnosis > Voltage means that you can access the
Voltage menu item via the System / test menu and the Test/diagnosis
menu item.
- The arrow >corresponds to the operation of the scroll wheel and/or the
button at the screen (touch screen).

User instructions1
4

Layout and function
5
2
2 Layout and function
2.1 Overview of supported AXIS fertiliser spreaders
The AXMAT is installed on fertiliser spreaders of the AXIS series at working
widths of 18 m or greater.
AXIS-H 50.2 EMC + W
AXIS-H 50.1 EMC + W (AXMAT Version 4.10.13 for TEEJET job computer)
2.2 Function
The AXMAT special equipment is used for monitoring the distribution of fertiliser
during spreading operation. The cross-distribution on each spreading side is op-
timised by adjusting the respective drop point based on regulation values.
NOTICE
The menu entries on the display can appear in different menu windows, depend-
ing on the version of the machine control unit used. However, the specified paths
remain the same for all machine control unit versions.
NOTICE
Correct functionality of the AXMAT is no longer ensured at a high degree of
humidity in the sensor housing.
 Deactivating the function; see 3.4.1: Activating the AXMAT- function, page 16.

Layout and function2
6
2.3 Structure
The AXMAT special equipment consists of the following assemblies:
Figure 2.1: AXMAT special equipment
[1] Communication module holder
[2] Communication module
[3] Holder for installation on the machine frame
[4] 9 sensor modules per spreading side
[5] 3 sensors per module
1
2
4
5
3

Settings
7
3
3 Settings
3.1 Minimum requirements
Configuration of the AXMAT special equipment is possible when the following
conditions are satisfied.
ISOBUS terminal
The AXMAT special equipment is enabled and calibrated in the machine con-
trol unit by your customer service or specialist technical workshop (Service
menu).
AXIS-H ISOBUS machine control unit of version 4.10.13 or later
You have positioned the collecting vessels from the Field test set PPS special
equipment on your test field.
-4.1.3: Performing a spreading test at a working width of 24 m, page 20.

Settings3
8
3.2 Navigation within the menu
Accessing the main menu
Press the Operating screen/Main menufunction button.
The main menu appears on the display.
Accessing the sub-menu via the touch screen:
1. Press the button of the desired sub-menu.
Windows appear prompting various actions.
Text input
Value input
Settings made in further sub-menus
Quitting the menu
Confirm the settings by pressing the Back key.
You return to the previous menu.
Press the Operating screen/Main menu button.
This returns you to the Operating screen.
Press the ESC button.
The previous settings are retained.
You return to the previous menu.
NOTICE
Important notes regarding the display and the navigation between menus are
provided in chapter 1.6: Menu hierarchy, keys and navigation, page 3.
In the following sections, we describe calling up the menus or menu items via
touching the touch screen or pressing the function buttons.
Observe the operating manual of the terminal used.
NOTICE
Not all parameters are displayed simultaneously in one menu window. You can
use the left/right arrow keys to jump to the adjacent window.

Settings
9
3

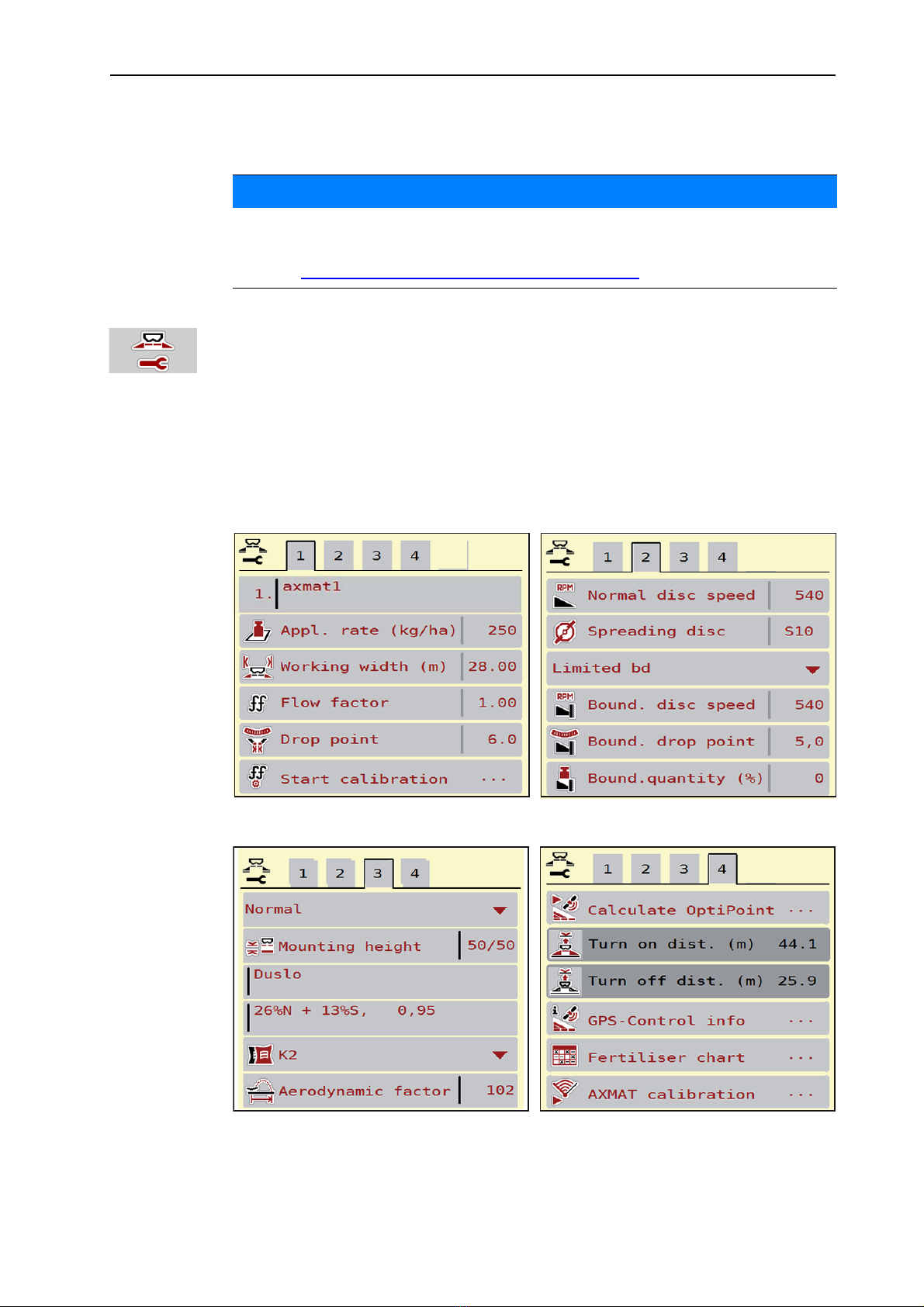

3.3 Fertiliser settings
Default settings
Open a new fertiliser chart.
Carry out fertiliser settings.
- Working width
-RPM
- Spreading disc type
- Fertiliser class
Figure 3.1: Fertiliser settings menu, tab 1 and 2
Figure 3.2: Fertiliser settings menu, tab 3 and 4
NOTICE
When the AXMAT function is activated, the Drop point menu item is greyed-out
and has no function here.
See "Activating the AXMAT- function" on page 16.

Settings3
10
NOTICE
The main settings for the AXMAT function are described here. Further information
on operating the machine control unit is provided in the operating manual provided
with the unit.
Submenu Meaning/possible values Description
Fertiliser name Fertiliser selected from the fertiliser
chart
Page 13
Appl. rate. (kg/ha) Input of target value for the application
rate in kg/ha
Page 11
Working width (m) Determination of the working width to
be spread
Page 11
Drop point The drop point cannot be entered
when the AXMAT function is activated
Normal disc speed Input of the desired spreading disc
speed
Influences the EMC mass flow control
Page 12
Spreading disc Setting of the spreading disc type
mounted at the mineral fertiliser
spreader
(influences the EMC mass flow
control)
Selection list:
S4
S6
S8
S10
S12
Fertiliser class Selection list Page 12
Fertiliser chart Management of fertiliser charts Page 13
Calibrating AXMAT Definition of the target values for regu-
lating the drop point during spreading
operation
Page 24

Settings
11
3
3.3.1 Application rate
In this menu, you can enter the target value for the desired application rate.
Entering the application rate:
1. Call up the Fertiliser settings > Appl.rate. (kg/ha).
The display shows the currently applied application rate.
2. Enter the new value in the input field.
3. Press OK.
The new value is saved in the machine control unit.
3.3.2 Working width
In this menu, the working width can be set (in m).
1. Call up the Fertiliser settings > Working width (m) menu.
The display shows the currently applied working width.
2. Enter the new value in the input field.
3. Press OK.
The new value is saved in the machine control unit.
3.3.3 Spreading disc type
The mounted spreading disc type is preset in the control unit at the factory. If you
have mounted different spreading discs on your machine, you must enter the
correct type in your control unit.
1. Call up the Fertiliser settings > Spreading disc menu.
2. Activate the spreading disc type in the selection list.
The display shows the Fertiliser settings window with the new disc type.
NOTICE
For optimal empty run measurement you must check for correct entries in the
Fertiliser settings menu.
The values in the Disc and Normal speed menu entries must agree with the
actual settings of your machine.

Settings3
12
3.3.4 Normal disc speed
1. Call up the Fertiliser settings > Normal speed menu.
2. Enter speed in rpm.
The display shows the Fertiliser settings window with the new speed.
3.3.5 Fertiliser class
If you know the fertiliser class, enter this directly.
If you do not know the fertiliser class of the fertiliser used, you can determine this
using the "fertiliser identification system DIS" special equipment.

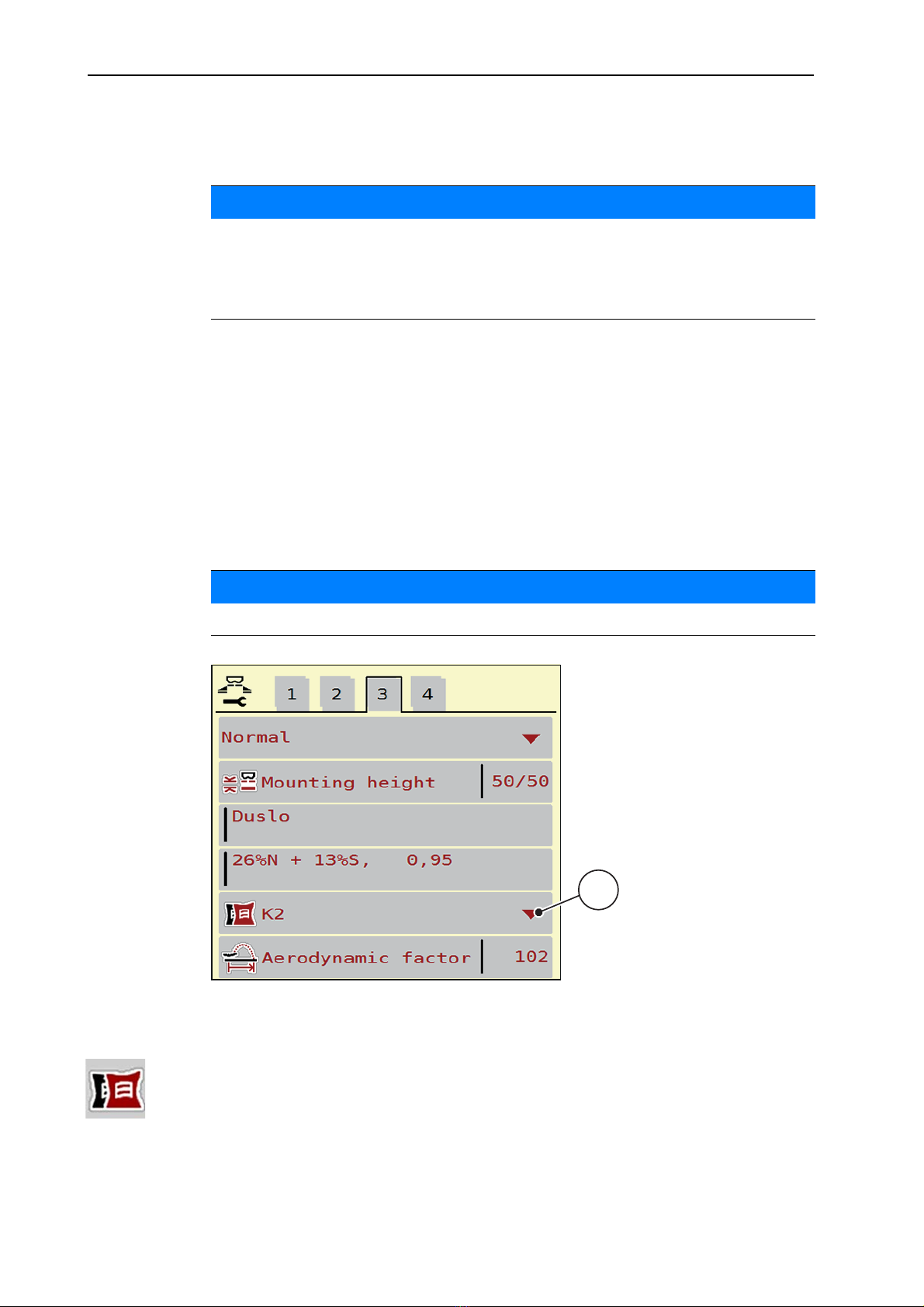

Figure 3.3: Fertiliser settings, page 3
1. Call up the Main menu > Fertiliser settings menu.
2. Call up the Fertiliser class [1] menu entry.
3. Activate the corresponding fertiliser class in the selection list.
NOTICE
For optimal empty run measurement you must check for correct entries in the
Fertiliser settings menu.
The values in the Disc and Normal speed menu entries must agree with the
actual settings of your machine.
NOTICE
The "fertiliser identification system DIS" is available in the Fertiliser Chart App.
1

Settings
13
3
3.3.6 Fertiliser charts
In this menu, you can create and manage your own fertiliser charts
Creating a new fertiliser chart
You can create up to 30 fertiliser charts in the electronic machine control unit.
1. Call up theFertiliser settings > Fertiliser chart menu.
Figure 3.4: Fertiliser charts menu
[1] Display for an active fertiliser chart
[2] Display for a fertiliser chart filled with values
[3] Fertiliser chart name field
[4] Empty fertiliser chart
[5] Chart number
NOTICE
Selecting a fertiliser chart has an effect on the fertiliser settings, the machine
control unit and the mineral fertiliser spreader. The set application rate is
overwritten by the stored value from the fertiliser chart.
1
2
5
4
3

Settings3
14
2. Select an empty fertiliser chart.
The Name field consists of the name of the fertiliser, the working width and
the disc type.
The selection window is displayed.
3. Select the Open and return... option.
The Fertiliser settings menu is displayed, and the selected element is
loaded into the fertiliser settings as the active fertiliser chart.
4. Call up the Fertiliser name menu entry.
5. Enter a name for the fertiliser chart.
6. Editing the parameters of the fertiliser chart.
See chapter 3.3: Fertiliser settings, page 9.
Selecting a fertiliser chart:
1. Call up the Fertiliser settings > Fertiliser chart menu.
2. Select the desired fertiliser chart.
The selection window is displayed.
3. Select the Open and return... option.
 The Fertiliser settings menu is displayed, and the selected element is
loaded into the fertiliser settings as the active fertiliser chart.
Copying an existing fertiliser chart
1. Select the desired fertiliser chart.
The selection window is displayed.
2. Select the Copy element option.
A copy of the fertiliser chart is now on the first free position of the list.
NOTICE
We recommend giving the fertiliser chart the name of the fertiliser. This way,
specific fertilisers can be assigned to fertiliser charts more easily.
NOTICE
Selecting an existing fertiliser chart overwrites all values in the Fertiliser
settings menu with the values stored in the selected fertiliser chart, including
the drop point and normal speed.
The machine control unit will move the drop point to the value stored in the
fertiliser chart.

Settings
15
3
Deleting an existing fertiliser chart
1. Select the desired fertiliser chart.
The selection window is displayed.
2. Select the Delete element option.
The fertiliser chart is deleted from the list.
Managing the selected fertiliser chart via the operating screen
You can also manage the fertiliser chart directly via the operating screen.
1. Press the Fertiliser chart [2] button on the touch screen.
The active fertiliser chart is displayed.
2. Enter the new value in the input field.
3. Press OK.
The new value is saved in the machine control unit.
NOTICE
The active fertiliser chart cannot be deleted.

Settings3
16
3.4 Machine settings
3.4.1 Activating the AXMAT- function
Figure 3.5: Machine settings, page 3
1. Call up the Main menu > Machine settings menu.
2. Set the AXMAT checkbox.
The AXMAT function is activated.
In the Fertiliser settings menu, the Drop point menu entry is
greyed-out: manual entry is not possible.
3. Clear the AXMAT [3] checkbox.
The AXMAT function is deactivated.
NOTICE
The menu entries on the display can appear in different menu windows, depend-
ing on the version of the machine control unit used. However, the specified paths
remain the same for all machine control unit versions.
NOTICE
In the case of an error, the function is automatically deactivated. You must set
the checkbox again in order to reactivate the function.
