raumplus CORNICE 438 User manual

Version 1.0 (2014-10-13)
5.13.2.b
Install
INTERIOR SYSTEM: INSTALLATION INSTRUCTION
CORNICE 438 / 566
5.13.2.c

2
02
07
05
04
03
Version 1.0:
CONTENT:
TOOLS:
(without claim of completeness)
VERSION INFORMATION:
CONTENT AND TOOLS
Redesign / manual and product information added / 438 and 566 combined
nAllen key set
nOpen-ended spanner (13mm)
nPercussion drilling machine
nDrill set metall / stone
nScrewdriver set
Content and tools page
Productinformation page
Accessories page
Assembly Cornice 438 / 566 page
Assembly Cornice 438 / 566
Corner shelf / clothes rod / dresser page
nPencil
nWater level

3
System Information: Cornice
438 mm / 566 mm
500 mm / 3000 mm
100 mm / 2000 mm
Symbol
PRODUCT INFORMATION
GENERAL INFORMATION:

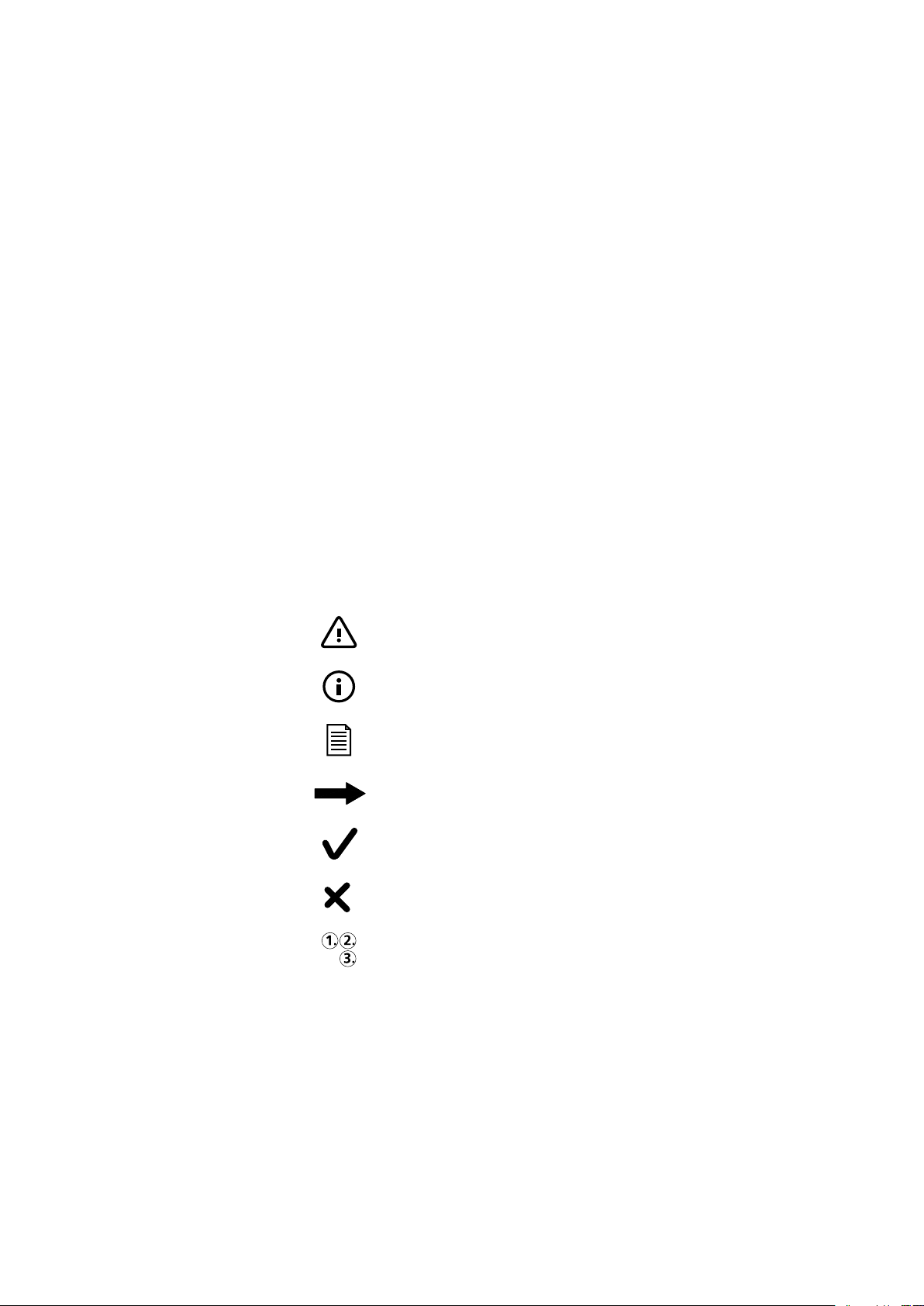

SYMBOLS:
Preparation
nThis manual is part of the product and describes the safe and
proper installation of the system. Read the instruction carefully before installation
n Pleasenotethattheassemblyshouldonlybedonebyqualiedandtrainedstaffin
strict compliance with all details indicated in this document.
 Improperinstallationinvariationfrommanufacturer’sspecicationmaycausedefects
 anddanger,thusendangeringthesafexingoftheproductaswellasthesafetyof
 theprospectiveuser.Theliabilityofthemanufacturershallbeexcludedincaseof
defects and consequential damages resulting from incorrect assembly of this product.
nPlease check the completeness of the delivered parts and check carefully if any
transport damages are visible
nIf any parts are damaged or lost, please immediately contact the responsible supplier.
nItisassumedthatyouhaveexactlyidentiedallcuttingdimensionsaccordingto
the measurement instruction for raumplus-products
Importance
Risk or danger
Advice and information
Additional information /
other documents
„yes“ and „right“
„no“ and „wrong“
Follow the order
SYSTEM:
n2 element depths =
nmin./max. element height =
nmin./max. element width =
Directional data /
direction of movement

4
F:\Technik\Dokumentation\x_Katalog_Detailzeichnungen\Serien Systembeschreibung\Innensystem Cornice\Cornice
Kleiderstange\Cornice-09-90-000.iam
F:\Technik\Dokumentation\x_Katalog_Detailzeichnungen\Serien Systembeschreibung\Innensystem Cornice\Cornice
Kleiderstange\Doku_Cornice-00-00-000.idw
438 / 566
21
6 x 60 mm
8 x 40 mm
40
min.:15 mm
max.: 39 mm
7_ 82.10.016 / 82.10.006 / 82.10.007 / 20.08.5706_ 82.10.0095_ 82.11.020
4_ 82.10.0043_ 82.10.0032_ 82.10.0021_82.10.001
8_ 82.10.012 9_ 80.23.020 / 80.23.025 10_
1_2_3_4_
5_6_7_
ACCESSORIES
1_ Bottom connector one-sided (type A)
2_ Bottom connector one-sided (type B)
3_ Bottom connector both-sided
4_ Clothes rod connection Cornice
5_ Cover prole 234 mm / 362 mm
6_ Cover
7_ Spacer / wall connector / position plate
8_ Rod carrier, round
9_ Cothes rod, round / PVC rod
10_ Cornice frame element
8_9_10_
Dowel
Screw

5
13
64 64 64 64
Cornice 438 /566
ASSEMBLY INSTRUCTIONS
3_
1_ Note the minimum distances
Minimum distance
to the ceiling=50mm
Rotating shelf unit=
150mm
Distance
to the wall
22 mm
Distance
to the wall
25 mm
2_ Preparation of the frame
Slide the cover onto
the frame before
starting the istallation
4_ The bottom connector can be mount in 64 raster.

6
13
7_
8_
Cornice 438 / 566
ASSEMBLY INSTRUCTIONS
8_ Mount the wall connector.7_ Check alignment / positioning caps.
6_5_

7
185 mm
185 mm
22 mm
22 mm
2_ Start the assembly in the corner.
1_
ASSEMBLY INSTRUCTIONS
Cornice 566 with corner shelf / clothes rod / dresser

8
82.10.003
82.10.001
82.10.004
82.11.020
82.10.001
82.10.003
1_
ASSEMBLY INSTRUCTIONS
2_ Now start the adjustment.
Cornice 566 with corner shelf / clothes rod / dresser

9
4
13
4_
3_
ASSEMBLY INSTRUCTIONS
Cornice 566 with corner shelf / clothes rod / dresser
Depending on the
the fl oor condition
and the distribution,
you should set one
more wall connector in
the lower third
of the frame

10 raumplus GmbH • Dortmunder Straße Bremen • Germany • Tel: +49 (0) 421 / 579 50 0 • Fax: +49 (0) 421 / 579 50 11 • www.raumplus.com
5_
Cornice 566 with corner shelf / clothes rod / dresser
ASSEMBLY INSTRUCTIONS
