USER MANUAL – RCS Hy-Q-52 1
USER MANUAL
Rev. 20191023
Printing/Typographical errors and model changes reserved.
RCS Hy-Q-52

PLEASE RETAIN THESE ASSEMBLY INSTRUCTIONS FOR FUTURE REFERENCE
If you have any queries concerning the duration and terms of the guarantee, please contact your supplier.
We would also refer you to our General Sale and Supply Conditions, which are available on request.
The manufacturer accepts no liability for any damage or injury caused by failure to follow these
instructions, or from negligent operation or assembly, even if this is not expressly stated in this instruction
manual. In light of our policy of continuous improvement, it is possible that details of the product may di󰀨er
from those described in this manual. For this reason, these instructions should only be treated as
guidelines for the installation of the relevant product. This manual has been compiled with all due care, but
the manufacturer cannot be held responsible for any consequences of errors. All rights are reserved and
no part of this manual may be reproduced in any way.
We would like to inform you about the fact that this RAVAS product is 100% recyclable on the bases that
the parts are processed and disposed o󰀨 in the right manner.
More information can be found on our website: www.ravas.com
USER MANUAL – RCS Hy-Q-52 2

Table of Contents
1. Introduction 4
2. Warning & Safety measures 4
3. Use of the RCS Hy-Q-52 5
3.1 Use (accurate weighing) 5
3.2 Operating key functions of indicator 6
3.3 Display Functions 6
3.4 Start-up: set zero rst 7
3.4.1 Check zero 7
3.4.2 Set zero: manually 9
3.5 Perform a weighing cycle 9
3.6 Error messages 10
3.7 Load indication bar 12
4. Net / Tare / Gross weight 13
4.1 Net weighing: automatic tare 13
4.2 Net weighing: manual tare (Preset Tare) 14
4.3 Net weighing: Reset tare 16
5. ID entry 17
5.1 Activate and edit ID code 17
6. Adding, Print & Clear memory 19
6.1 Add weight to subtotal 19
6.2 Change active total memory 19
6.3 Print single weight 20
6.4 Send Wi 20
6.5 Edit, clear and print total registers 21
6.6 Data storage on USB stick 23
6.7 Alibi memory 24
7. User settings 26
7.1 Changing the time and date 26
7.2 Changing the accuracy mode 27
7.3 Changing the operation language 28
7.4 Changing button functions & positions 29
7.4.1 Changing button function 29
7.4.2 Changing button position 30
7.5 Show/hide buttons on startup 31
8. RAVAS WeightsApp 32
USER MANUAL – RCS Hy-Q-52 3

1. Introduction
2. Warning & Safety measures
When using the RCS HY-Q-52, please carefully observe
the instructions and guidelines contained in this manual.
Always perform each step in sequence. If any of the
instructions are not clear, please contact RAVAS.
This manual describes the use of the RCS Hy-Q-52. Read this manual carefully. The installer
must be informed of the contents of this manual. Follow the contents of the manual precisely.
Always do things in the correct order. This manual should be kept in a safe and dry place.
In case of damage or loss the user may request a new copy of the manual from RAVAS.
Should you have any further questions after reading this manual then you can contact us at:
RAVAS Europe B.V. Phone: [phone]
Toepadweg 7 Fax: [phone]
Postbus 2023 Internet: www.ravas.com
5300 CA Zaltbommel Email: [email protected]
Nederland Changes reserved
READ
CAREFULLY
!
USER MANUAL – RCS Hy-Q-52 4
• All safety regulations that apply to the truck remain valid and unchanged;
• No weighing operations are allowed if any persons or objects are in the vicinity;
around, under or close to the load;
• RAVAS is not responsible for any physical harm done to the operator because of the
presence of the indicator in the cabin;
• Any modications done to the system must be approved in writing by the supplier, prior
to any work being completed;
• It is the sole responsibility of the purchaser to train their own employees in the proper
use and maintenance of this equipment;
• Do not operate this unit unless you have been fully trained in its capabilities;
• Check the accuracy of the scale on a regular basis to prevent faulty readings;
• Only trained and authorized personnel are allowed to service the scale;
• Always follow the operating, maintenance and repair instructions of this truck and ask
the supplier when in doubt;
• RAVAS is not responsible for errors that occur due to incorrect weighings or inaccurate
scales.
IP65
min -10°C
15°F
00
max 40°C
105°F

3. Use of the RCS Hy-Q-52
To get accurate weight readings always pay attention to the following!
3.1 Use (accurate weighing)
USER MANUAL – RCS Hy-Q-52 5
OK
min -10°C
15°F
0
0
max 40°C
105°F

3.2 Operating key functions of indicator
USER MANUAL – RCS Hy-Q-52 6

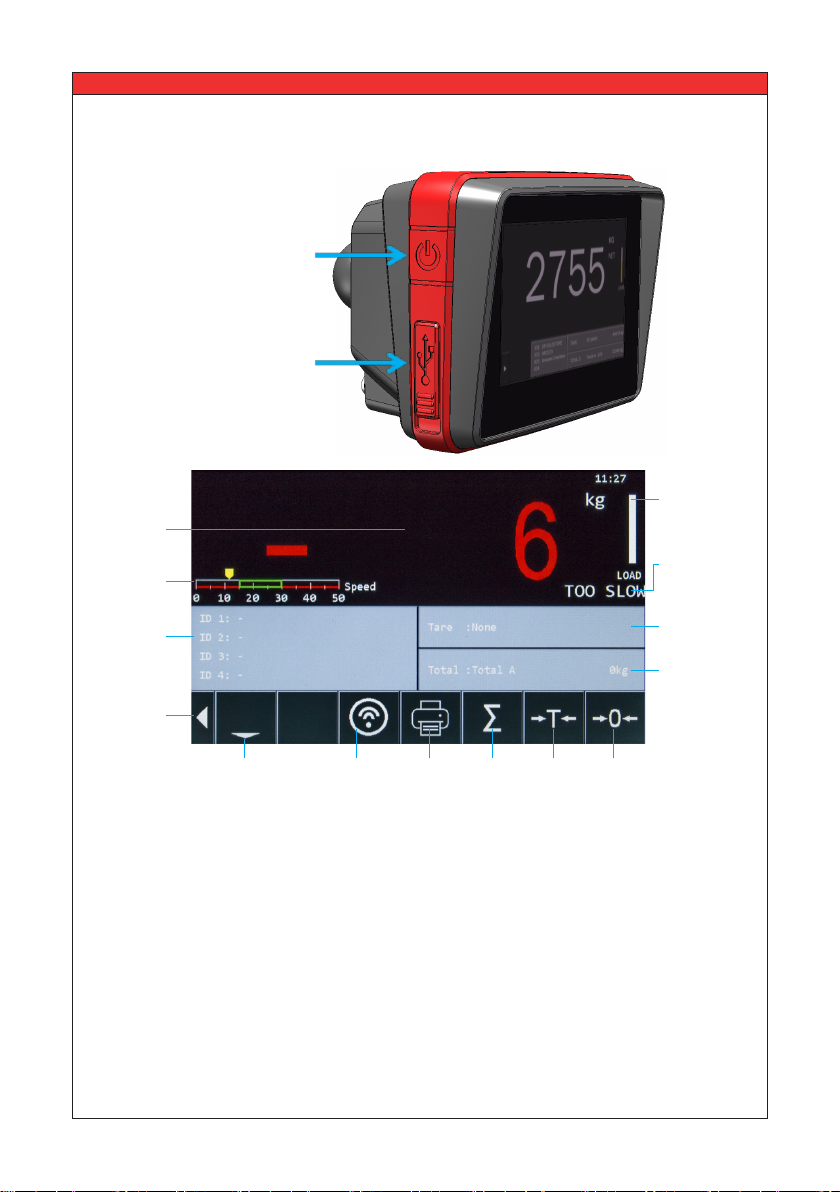

3.3 Display Functions
kg Display shows weight in kilograms
lb Display shows weight in pounds
NET Display shows net weight
TARE Display shows tare weight
MDisplay shows subtotal memory active
Too fast Move forks slower
Too slow Move forks faster
Try constant speed Operate the forks with a more constant speed
Zero out of range Make sure the truck is unloaded while setting a new zero
Out of level Make sure the mast is vertical
Bad calibration No calibration has been saved
Speed
indication
Weight
indication
Active ID’s
+
Custom ID
entry
Scroll through
button menu
Add weight
to active total
Manual
tare
Manual
zero
Active total
+
Total
memory
selection
Overload
indicator
Error message
display
Active tare
+
preset-tare
entry
Print
Show/hide
buttons
On/O
switch
USB input
(not in use)
Wi

After start-up of the indicator and before rst use of the day, you better check the zero point.
The system automatically corrects its zero during the day, so the system weighs correctly with
warm oil/ parts/ sensor.
When the truck starts up the next day, the oil is cooled down and there can be greater
weighing errors than the system can correct automatically. Therefore you need to check the
zero on a cold start-up.
3.4 Start-up: check zero rst
USER MANUAL – RCS Hy-Q-52 7
3.4.1 Check zero
1. Screen after switching on the indicator. 2. Lower the forks, if not on the ground.
3. The yellow arrow guides you in operating the
truck to complete a correct weighing.
4. Lift empty forks with a constant speed until
the blinking yellow arrow at the display
shows you to lower the forks.
Go up Go down

USER MANUAL – RCS Hy-Q-52 8
5. After passing the measuring trajectory the
speed indicator will show the average speed
of the forks if it was incorrect.
The speed should be in between 10 and
35 cm/s.
For error messages see: 3.6 Error messages.
6. Lower the forks with constant speed until the
forks on the display are in their lowest
position.
7. The indicator shows the weight after
completing your zero check.
8. If the weight is red, the weighing was not
correct. If the indicator does not show zero, a
new zero must be set manually. See: 3.4.2

USER MANUAL – RCS Hy-Q-52 9
3.4.2 Set zero: manually
1. Press the zero button. 2. Repeat step: 3-8 of 3.4.1.
3.5 Perform a weighing cycle
1. A weighing cycle can be started at any time in
weighing mode. As soon as you lift the weight
and pass the rst sensor the indicator starts
measuring.
2. To perform a weighing cycle, pick up the load and
lift with constant speed for as long as the yellow
arrow keeps blinking in upward direction. If the
arrow turns in the opposite direction lower the
forks until the weight appears in the display.
For detailed explanation see: 3.4.1 step 3-6
If zero is o󰀨, follow these steps.

USER MANUAL – RCS Hy-Q-52 10
3. If the arrow turns in the opposite direction
lower the forks with a constant speed until the
weight appears on the display.
4. If the weighing was done correctly it appears in
the display without any messages.
For error messages see: 3.6 Error messages
3.6 Error messages
Whenever a weighing was not done correctly the weight will turn red and the error is displayed.
1. Error: Too slow
Move forks faster through weighing trajectory.
2. Error: Too fast
Move forks slower through weighing trajectory.
3. Error: Try constant speed
Try to move the forks faster with a constant
speed through weighing trajectory.
4. Error: Out of level
- Level switch is optional:
make sure the mast is vertical.

USER MANUAL – RCS Hy-Q-52 11
6. Error: Out of level
Tilted more than 2° forwards.
5. Correct: Mast position
Mast is vertical within 2° forward and backward
tilting.
7. Error: Out of zero range
The zero o󰀨set is too high to perform a zero
correction. Check if the forks are empty.
8. Overload
The truck has been overloaded according to its
load diagram.
9. Bad calibration.
There is no calibration saved.

USER MANUAL – RCS Hy-Q-52 12

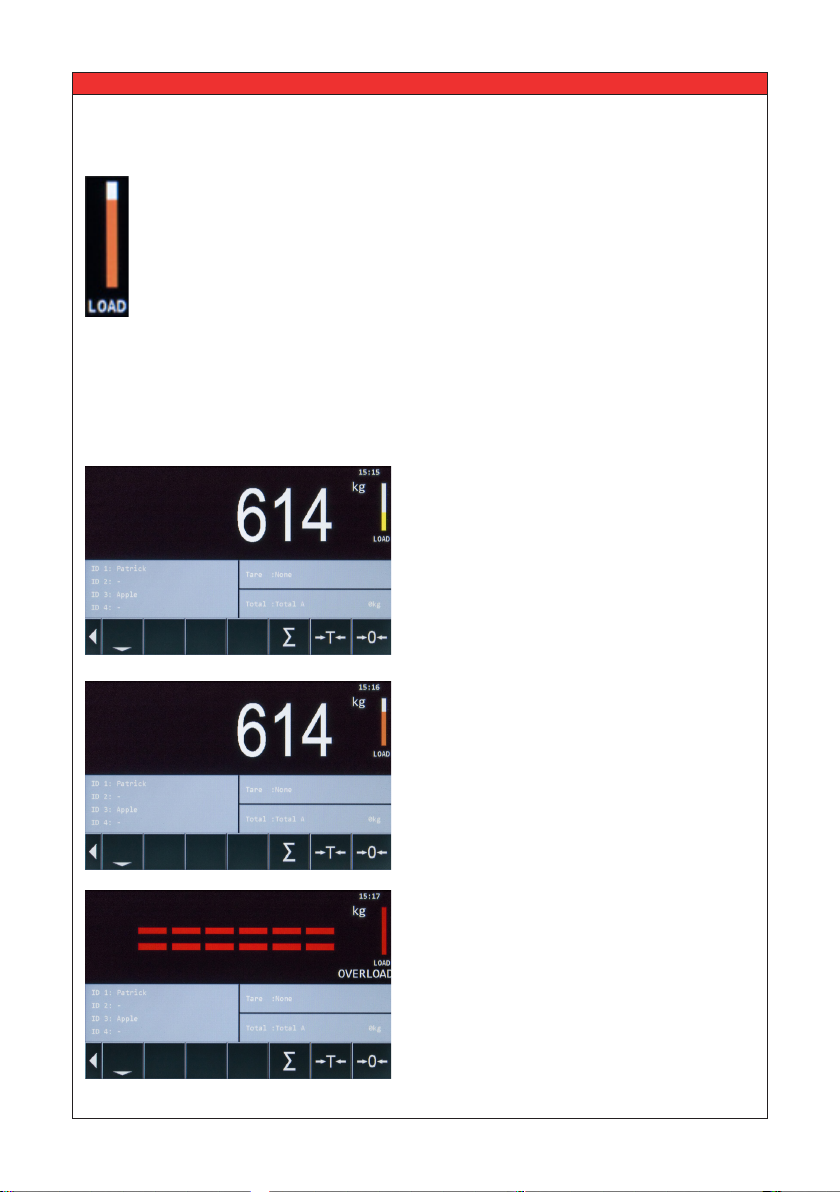

3.7 Load indication bar
This bar shows the actual load indication, based on the actual oil pressure.
You don’t have to perform a weighing for this reading; it is a constant indication of
the load situation.
Yellow = safe
Orange = approaching the maximum capacity of the truck
Red = overload
Warning!
This bar is only an indication of the load.
This indicates a safe loading.
This indicates approaching overload.
This indicates overload.

USER MANUAL – RCS Hy-Q-52 13
4. Net / Tare / Gross weight
EXPLANATION: Net(1) + Tare(2) = Gross(3)
4.1 Net weighing: automatic tare
1. Press the →T← key 2. Pick up the tare weight and perform a
weighing cycle.
See: 3.5 Perform a weighing cycle
3. The indicator is set to zero.
The ‘NET’ sign shows that the tare weight is
activated.
‘Tare:860kg’ shows the tare weight.
4. The system is now ready to perform a
weighing cycle.
Pick up the load and perform a weighing cycle.
See: 3.5 Perform a weighing cycle
1000
1 2 3

USER MANUAL – RCS Hy-Q-52 14
5. The display shows the net value of the load
weight.
Important! To reset the tare see: 4.3 Reset tare.
4.2 Net weighing: manual tare (Preset Tare)
1. Press the TARE eld 2. A pop-up screen appears. Select the desired
Preset Tare eld.
3. If the preset tare you select is empty you have
to enter the tare value. Conrm with ‘Enter’.
4. Name your Preset Tare value.

USER MANUAL – RCS Hy-Q-52 15
5. The ‘NET’ sign shows that the tare weight is
activated. ‘Tare: Container wood 240kg’ shows
the tare weight.
6. Perform a weighing cycle.
See: 3.5 Perform a weighing cycle.
1000
25
7. The indicator now shows the NET weight.
NOTE: To reset the tare see: 4.3 Reset tare.

USER MANUAL – RCS Hy-Q-52 16

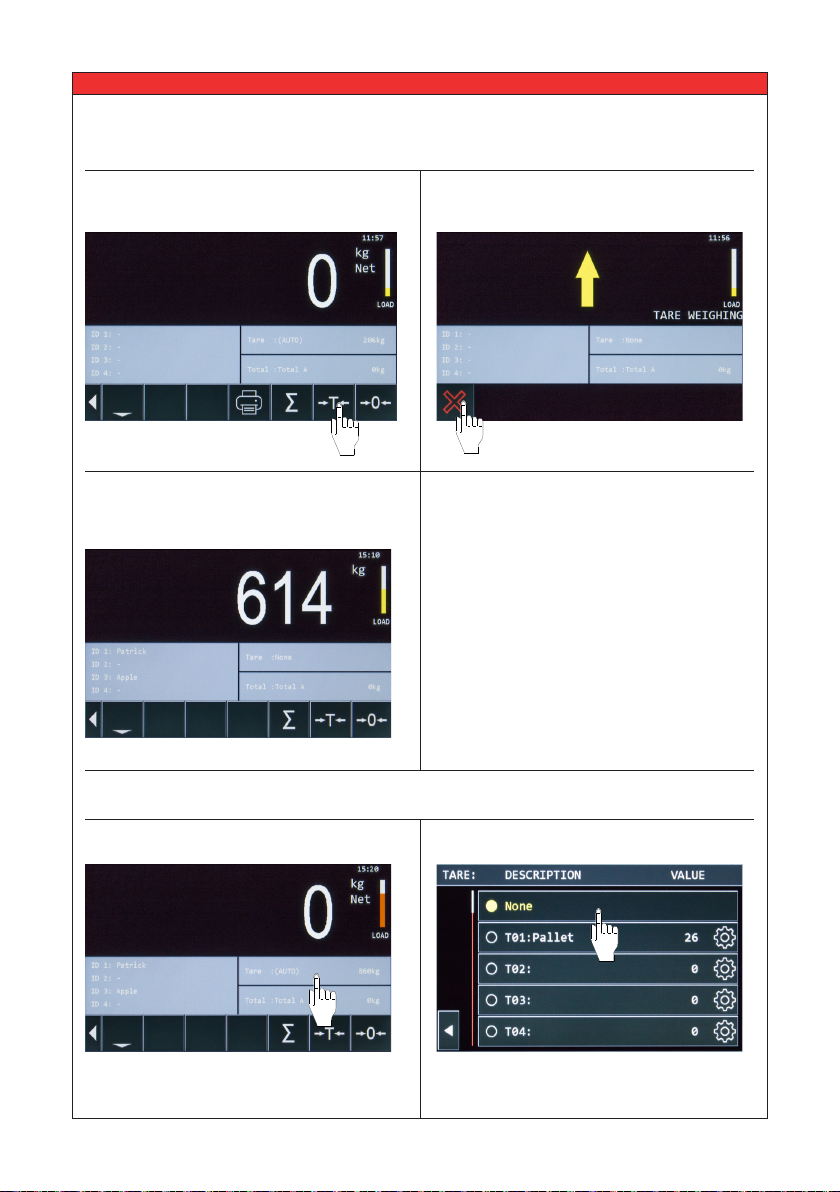

4.3 Net weighing: Reset Tare (two ways)
1. If a tare weight is active press the →T← key. 2. Press the X.
3. The indicator will switch back to the weighing
mode and is ready for the next weighing.
NET sign is gone. In the tare eld ‘None’ is active.
4.3.1 option 1
4.3.2 option 2
1. Press the preset tare button. 2. Select > none.

USER MANUAL – RCS Hy-Q-52 17
5. ID entry
5.1 Activate and edit ID code
The RCS Hy-Q-52 allows you to enter up to 4 ID codes which will be visible on the printout
or when used with data communication.
1. Press the ID eld. 2. On the left side of the button you can activate
the ID elds (only the active ID elds will be
visible on the printout).
3. If you press on the right side of the button an
ID entry eld pops up, which allows you to select
one of the 10 preset ID codes.
Note: they must be named rst on a new system.
To change a name, press the settings symbol.
4. Enter ID code or name.

→
USER MANUAL – RCS Hy-Q-52 18

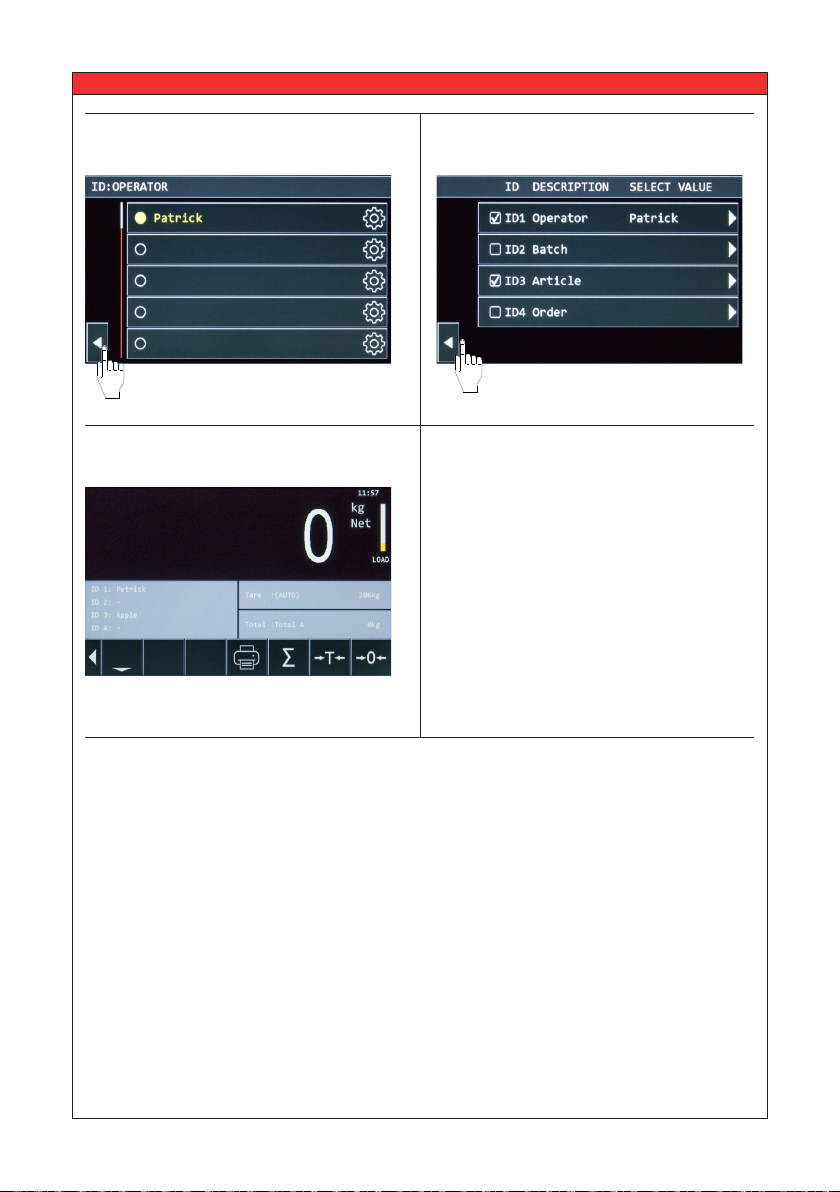

5. After entering one or more ID codes, select your
preferred ID and press the back button.
6. Press the back button to return to the weighing
mode.
7. Your active ID codes will now be showed on the
print out, or when transferrring data.
←

USER MANUAL – RCS Hy-Q-52 19
6. Adding, print, clear memory & send data
6.1 Add weight to subtotal
1. If preferred you can select a total memory,
press the total eld.
2. The weight is added.1. Perform a weighing cycle.
Press the → Σ ← key.
3. The weight has been added to the selected
total memory.
2. Select your preferred total memory.
6.2 Change active total memory

USER MANUAL – RCS Hy-Q-52 20
6.3 Print single weight
1. Perform a weighing cycle. 2. Press the printer key.
3. The indicator is now printing. 4. The weight is printed and the indicator is
ready for the next weighing.
6.4 Send WiFi
1. First a new weight must be on the display.
Press the WiFi button.
2. The indicator is sending.
