Raven CR7 User manual

User manual
(English) (Original)
CR7
QUICKSTART STEERING MANUAL
016-8000-017EN REV. B

PAGE 2/34 | User manual |016-8000-017EN |Rev. B
Raven Industries Inc.

PREFACE | CR7 | QUICKSTART STEERING MANUAL
PAGE 3/34 | User manual |016-8000-017EN |Rev. B
PREFACE
This installation manual is intended for persons
responsible for installing a CR7 kit. The manual
contains important instructions that should be
complied with when commissioning, operating and
servicing the CR7.
This manual has been compiled with the utmost care.
Raven Europe assumes no responsibility for any errors
or omissions in this document.
Any comments or questions can be sent to service-
[e-mail].
Raven Europe or any of its suppliers will accept no
liability for physical or material damage caused
whilst using the CR7.
The installed Raven system produces less than 70dB
(A) noise.
This installation guide uses a number of concepts for
extra attention to a few things:
Hint!:
Provides recommendations on how certain
activities can be performed much easier.
Please note!:
Indicates certain problems that the user
should take note of.
Caution!:
Indicates that the machine can be damaged.
Warning!:
Indicates a risk of injury.

PAGE 4/34 | User manual |016-8000-017EN |Rev. B
Raven Industries Inc.
DISCLAIMER | CR7 | QUICKSTART STEERING MANUAL
DISCLAIMER
The safety instructions contained in the manuals of the tractor or implements must be complied with at all
times.
Always switch off the tractor before installing or repairing hydraulic and electrical components of the
SBGuidance system.
It is strictly prohibited to use the CR7 system on public roads.
It is strictly prohibited to leave a driving vehicle unattended when the CR7 system is switched on. The driver is
always responsible for the direction and course of the vehicle.
To prevent injury or fire, replace defective fuses only with fuses of the same type and amperage.
The SBGuidance the operating system is not able to detect and avoid obstacles. If there is an obstacle in your
path, you will always need to take action for it to be avoided.
Only allow authorized/qualified persons to operate the system. Authorized/qualified persons are defined as:
persons who have read and understood the manual, have been given instructions by a product specialist, and
who are both physically and mentally fit and able to operate the system.
The system contains moving parts! Make sure the immediate environment is clear of people before operating
the system.
In case of system failure or breakdown switch of the tractor and disconnect the electrical power source to
avoid further damage. Contact your dealer for further instructions on how to repair your system.
Always wear personal protective equipment when operating/adjusting/repairing the system outside of the
tractor cab.
In order to prevent power surges from occurring, always start the machine first, before initiating the
SBGuidance control system.
Only touch the touch-screen with your finger or by using a special touch-screen stylus/pen. Operating the
touch-screen with sharp objects may cause permanent damage to the screen.
Always consult your supplier as to which products are best suited first before cleaning the touch-screen with
chemicals or alcohol.
If the terminal is not used for a long period, better remove the terminal from the tractor and store in a heated
environment. This will extend the life span of the electronic components.
To prevent theft, it is better to not let the terminal and GPS-antenna unattended in the tractor on the field.
WARNING!
PAY ATTENTION!

CONTENTS | CR7 | QUICKSTART STEERING MANUAL
PAGE 5/34 | User manual |016-8000-017EN |Rev. B
CONTENTS
PREFACE..............................................................................................................................................................................................................3
DISCLAIMER.......................................................................................................................................................................................................4
CONTENTS.........................................................................................................................................................................................................5
1SETUP WORKING WIDTH......................................................................................................................................................................6
CREATE NEW (MOUNTED) EQUIPMENT ................................................................................................................................6
CHOOSE (MOUNTED) EQUIPMENT FOR THE JOB ..........................................................................................................10
2CREATE GROWER, FARM, FIELD STRUCTURE.............................................................................................................................13
3START FIELD AND JOB ........................................................................................................................................................................14

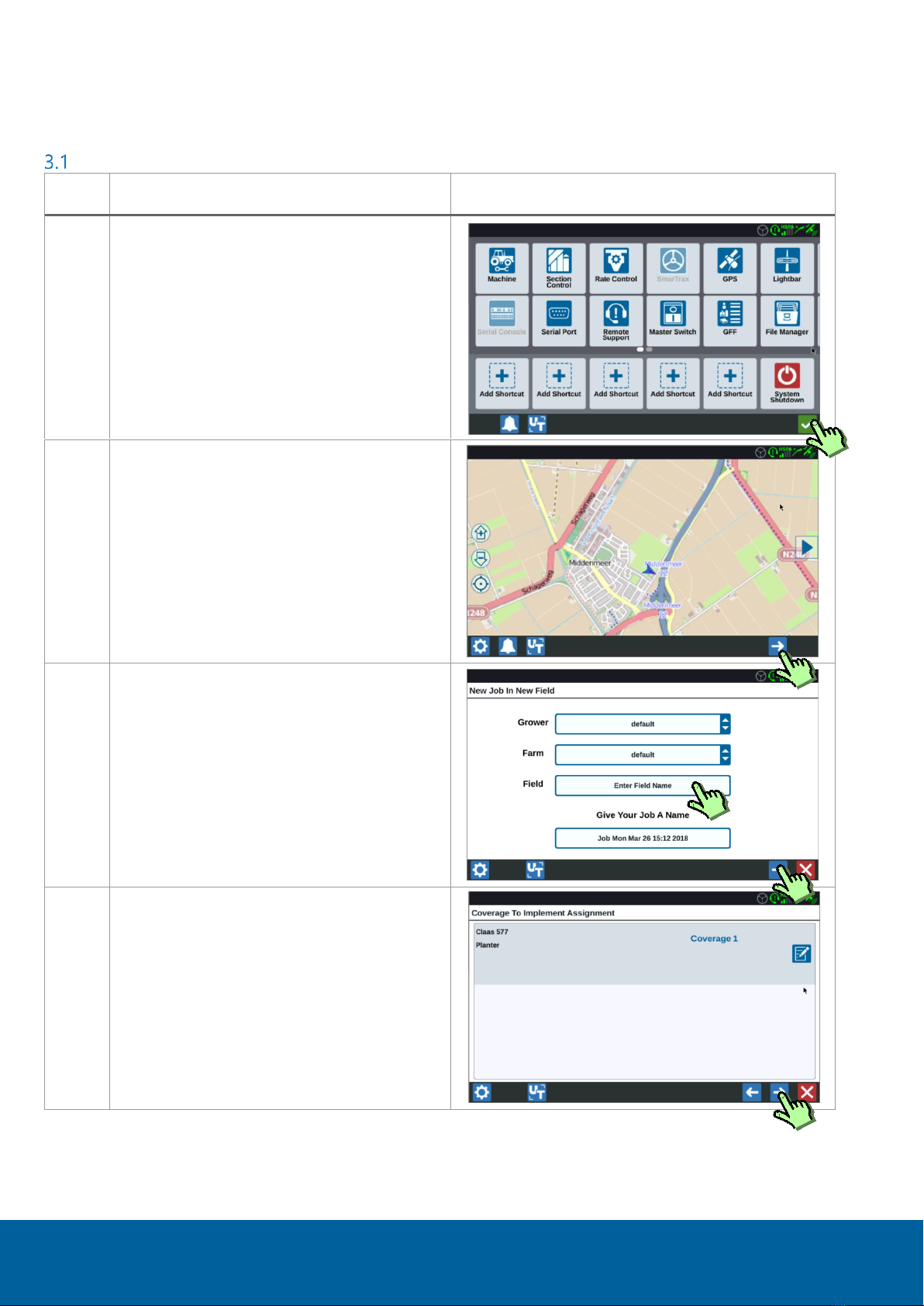

QUICK START NEW FIELD AND NEW JOB..........................................................................................................................14

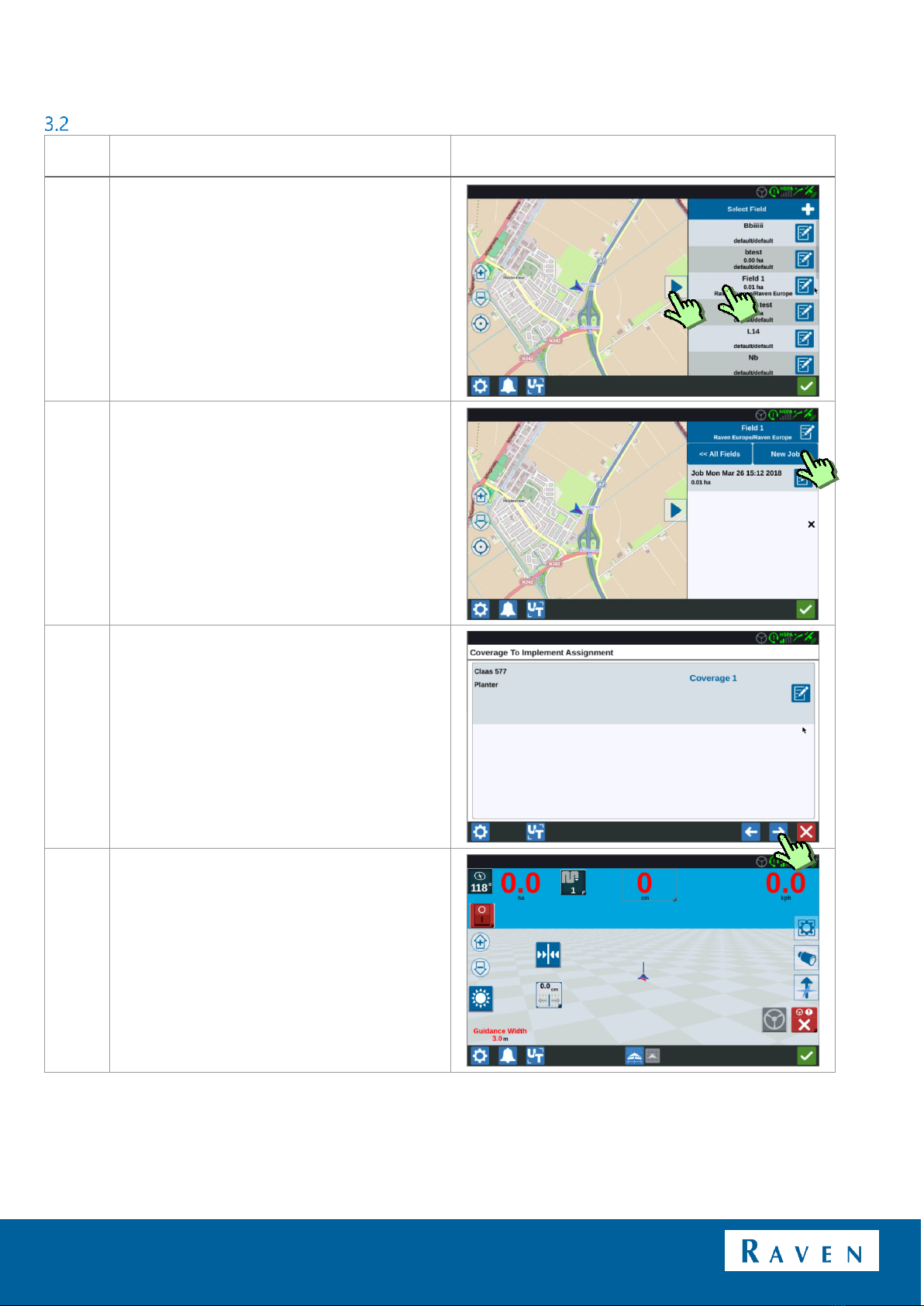

LOAD FIELD AND CREATE NEW JOB IN THE FIELD.........................................................................................................15
4CREATE AND SHIFT-NUDGE AB LINE............................................................................................................................................16

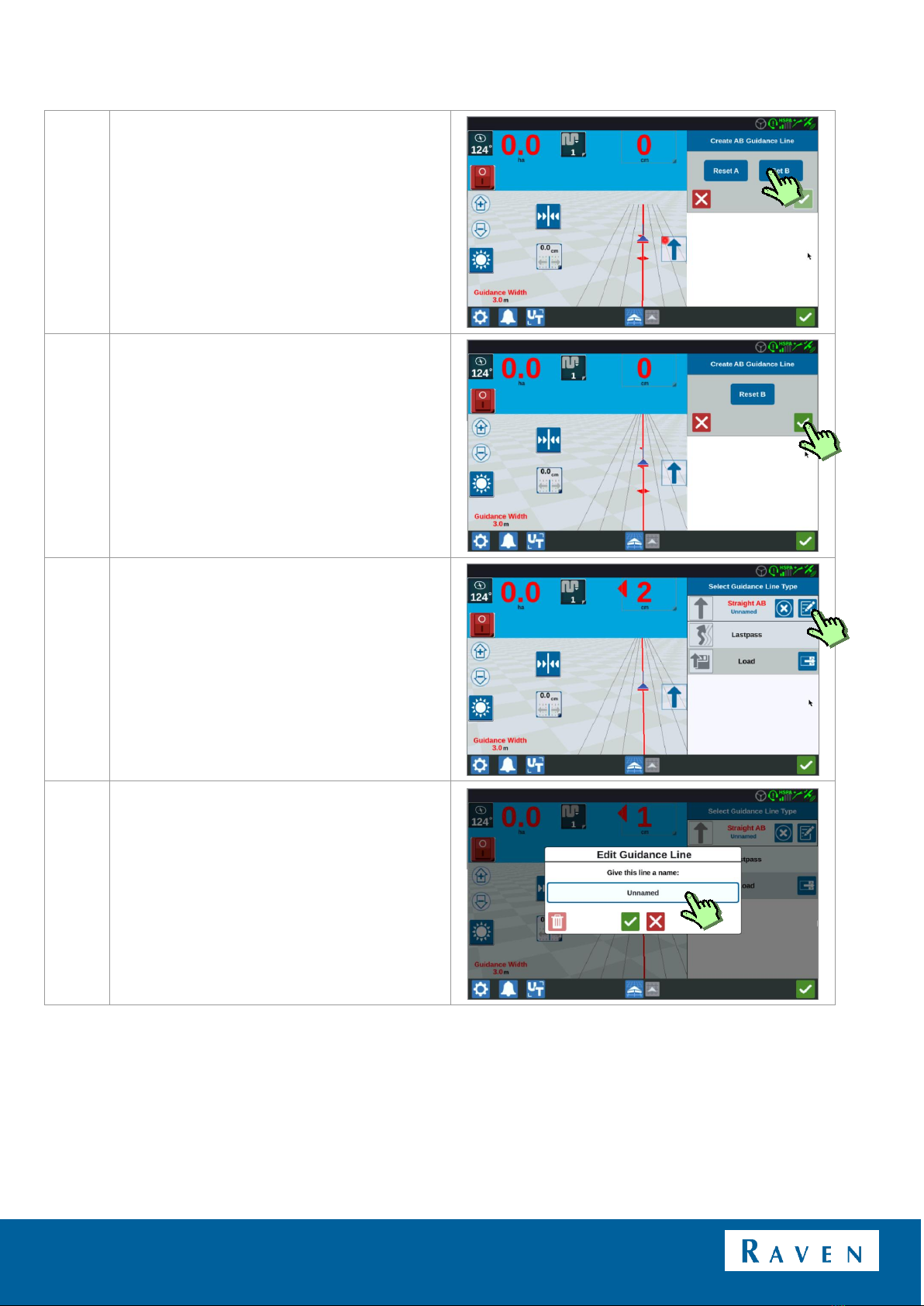

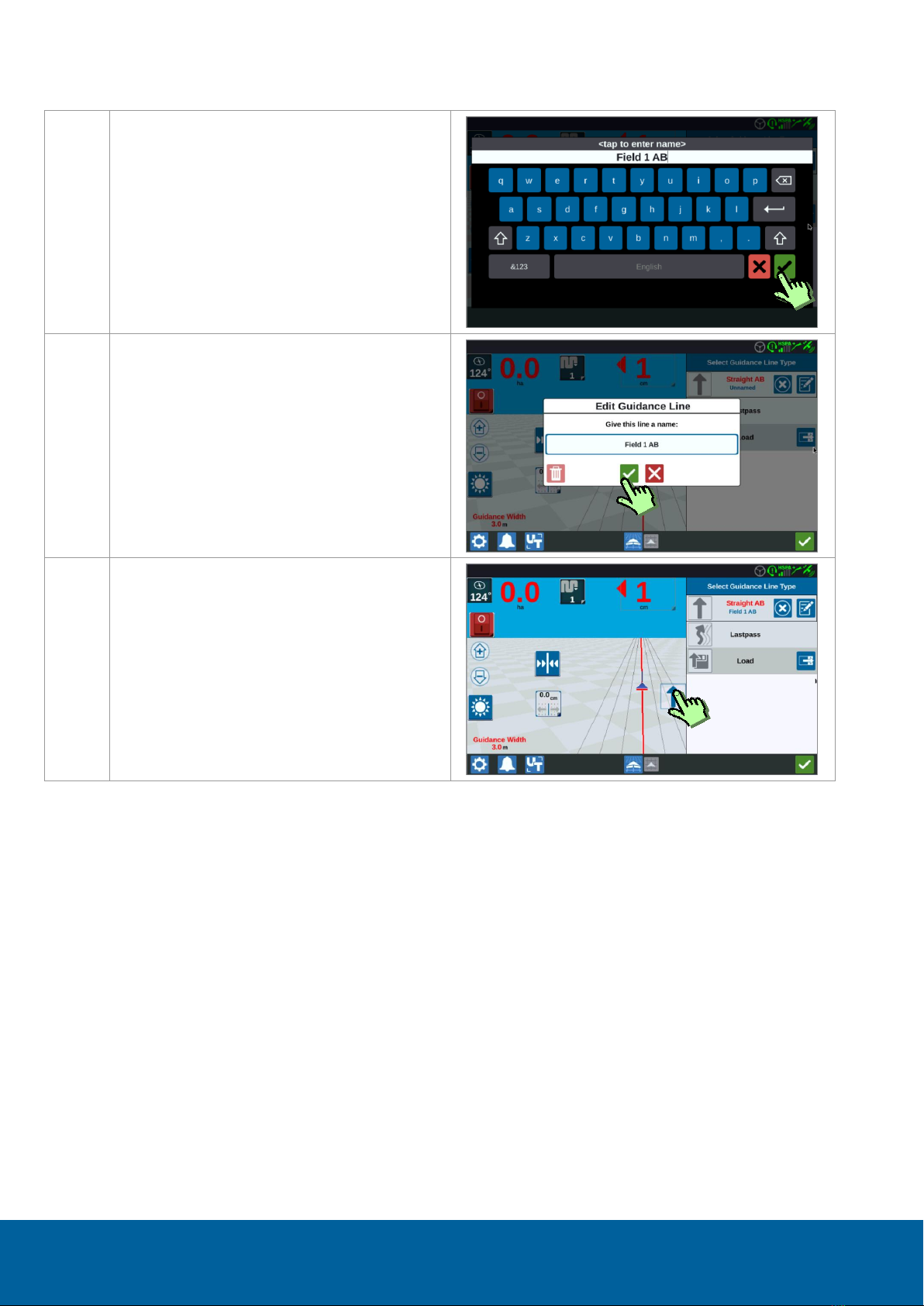

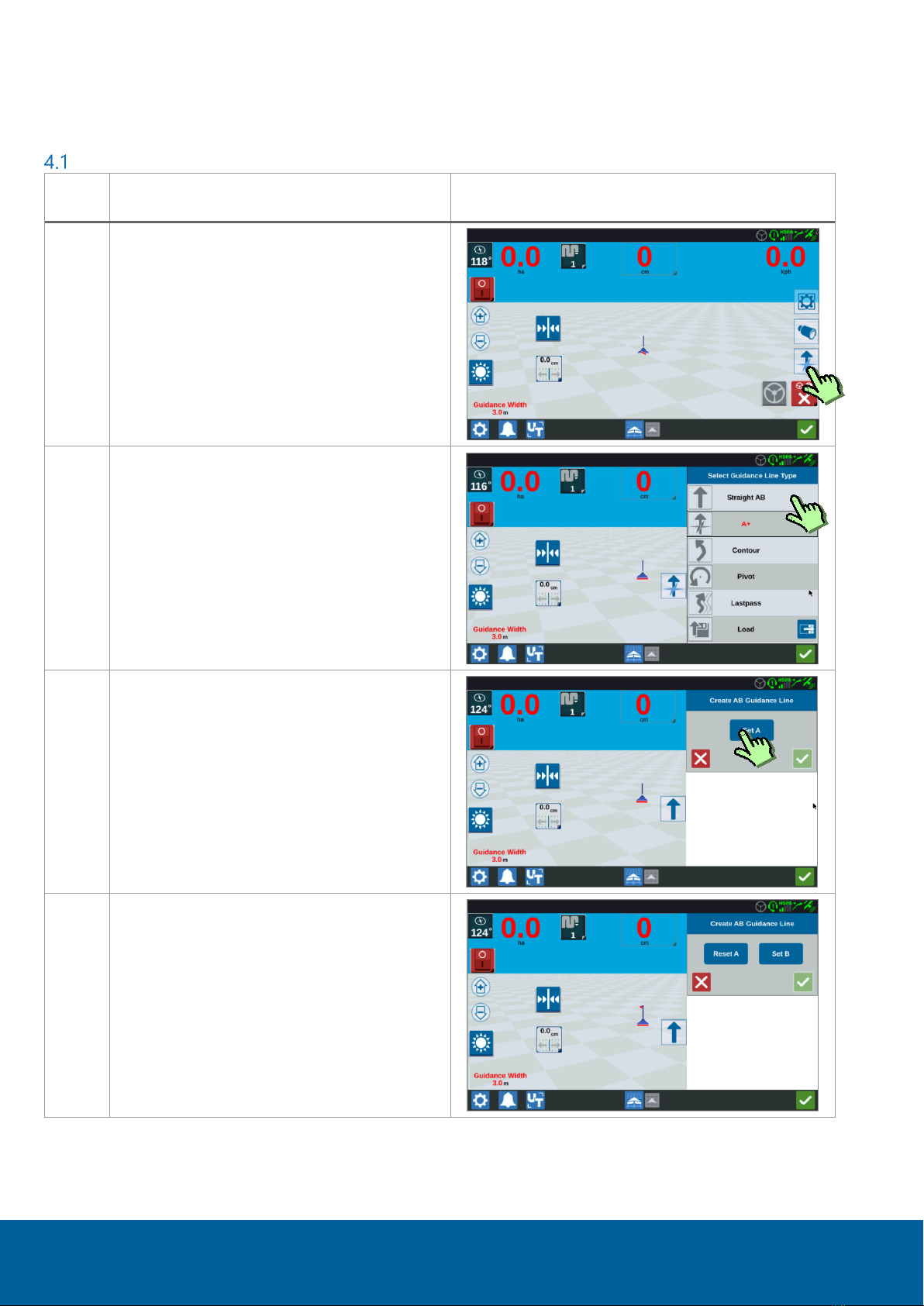

CREATE AB-LINE ...........................................................................................................................................................................16

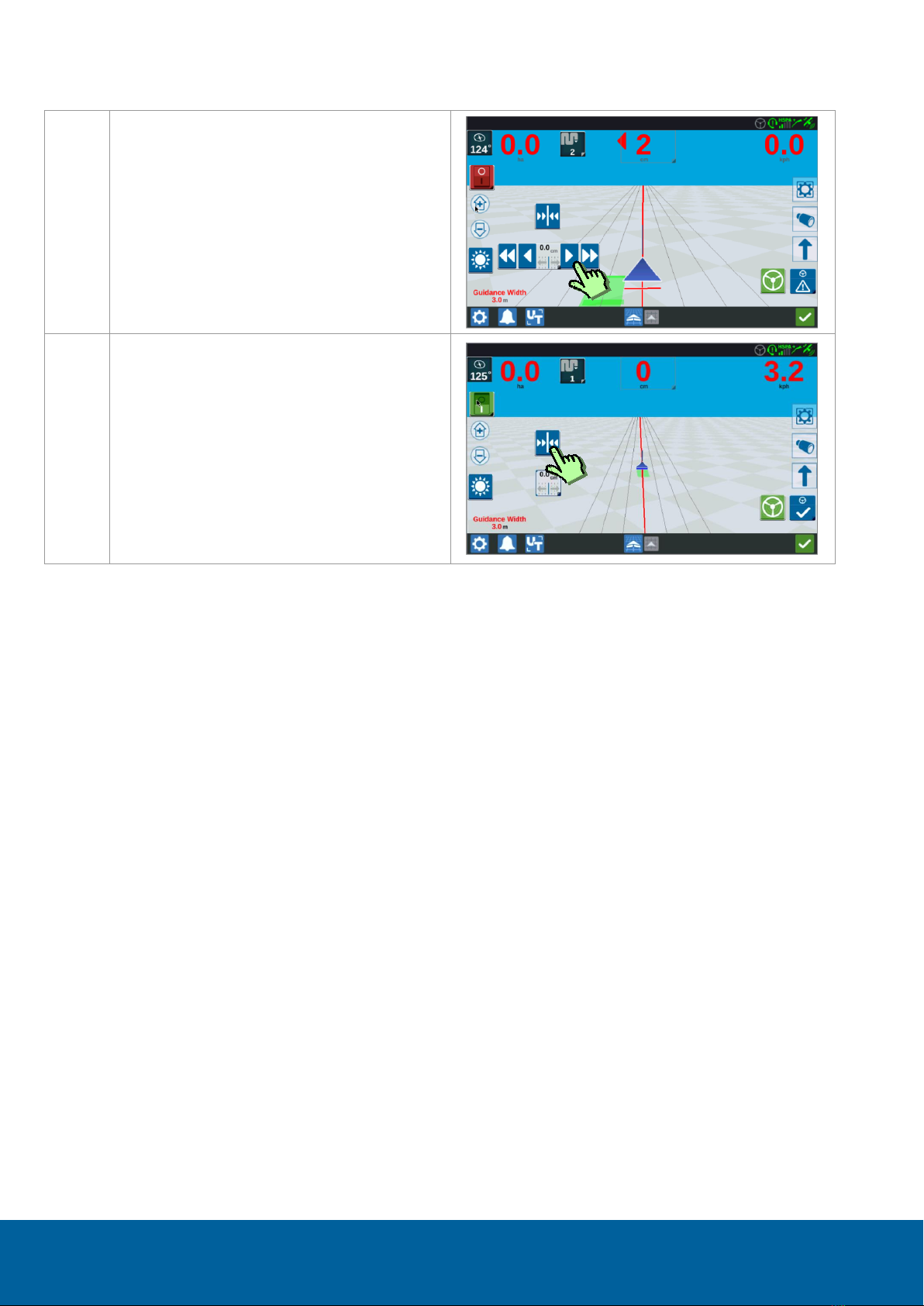

SHIFT –NUDGE AB LINE............................................................................................................................................................19
5DRIVING DIRECTION ...........................................................................................................................................................................21
7CREATE AND LOAD A BOUNDARY (SCOUT FEATURE) ..........................................................................................................22
8IN-JOB SCREEN SETUP........................................................................................................................................................................24
9DAY / NIGHT MODE.............................................................................................................................................................................27
10 MASTER SWITCH COVERAGE CONFIGURATION......................................................................................................................28
11 IMPORT FIELDS, LINES AND/OR JOBS..........................................................................................................................................29
12 EXPORT FIELDS, LINES AND/OR JOBS..........................................................................................................................................32

SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL
PAGE 6/34 | User manual |016-8000-017EN |Rev. B
Raven Industries Inc.
1SETUP WORKING WIDTH

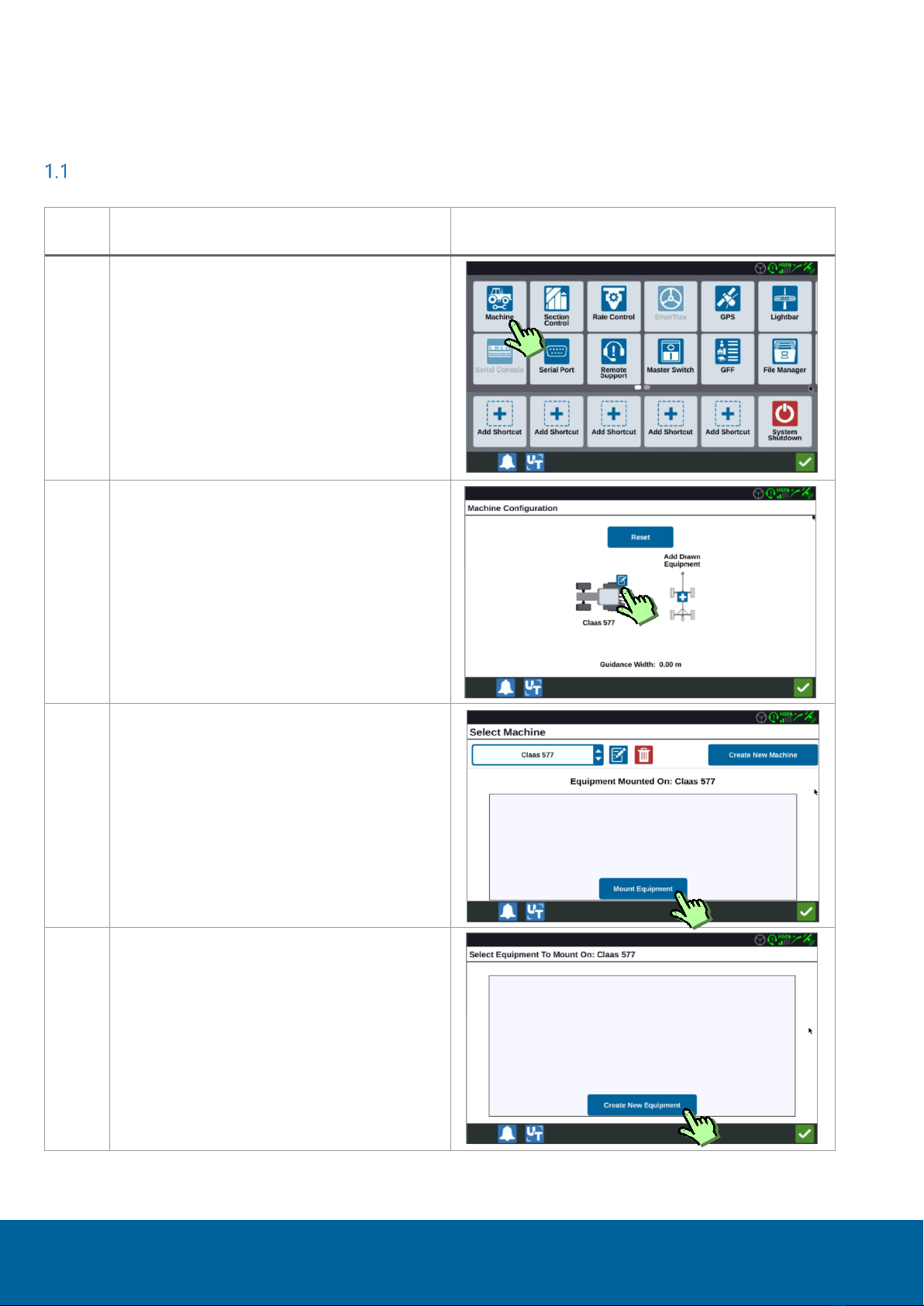

CREATE NEW (MOUNTED) EQUIPMENT
#
Description
Figure
01
Go to the settings and press ‘Machine’. This
will open the Machine Garage.
02
In case of a mounted implement, press on
the already configured tractor.
In case of a Drawn implement, press on the
+sign in ‘Add Drawn Equipment’.
03
Press on ‘Mount Equipment’.
04
Press on ‘Create Equipment’.

PAGE 7/34 | User manual |016-8000-017EN |Rev. B
SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL
05
Press on <enter name> to give the
implement a name.
06
A keyboard pops up. Enter the name and
press on the checkmark.
07
The name is now changed. Press in the boxt
next to ‘Total Width’ to enter the machine
width.
The machine width is the complete width of
the implement.
# of sections is standard on 1.
08
If the Guidance width needs to be different
from the Total Width, enter another value. In
this case, the distance between the Guidance
Lines is 2,80m. The Total Width of the
implement is 3,00m, which means there is
20cm overlap (10 on the left and 10 on the
right).
Press next step.

SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL
PAGE 8/34 | User manual |016-8000-017EN |Rev. B
Raven Industries Inc.
09
In case there are more sections, configure
the sections. In case of just one section, the
section is always the same as the Total Width
(generated automatically).
Press next step.
10
Enter the value from the rear axle to the
reference point of the implement (for
example where the seed hits the ground).
Press next step.
11
If the implement is not in the center of the
machine, enter the offset.
If it is in the center, leave this on 0.
Press the green checkmark.
12
Select Mount Equipment to add more
implements (enter all the machines that are
going to be used with GPS Autosteer).

PAGE 9/34 | User manual |016-8000-017EN |Rev. B
SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL

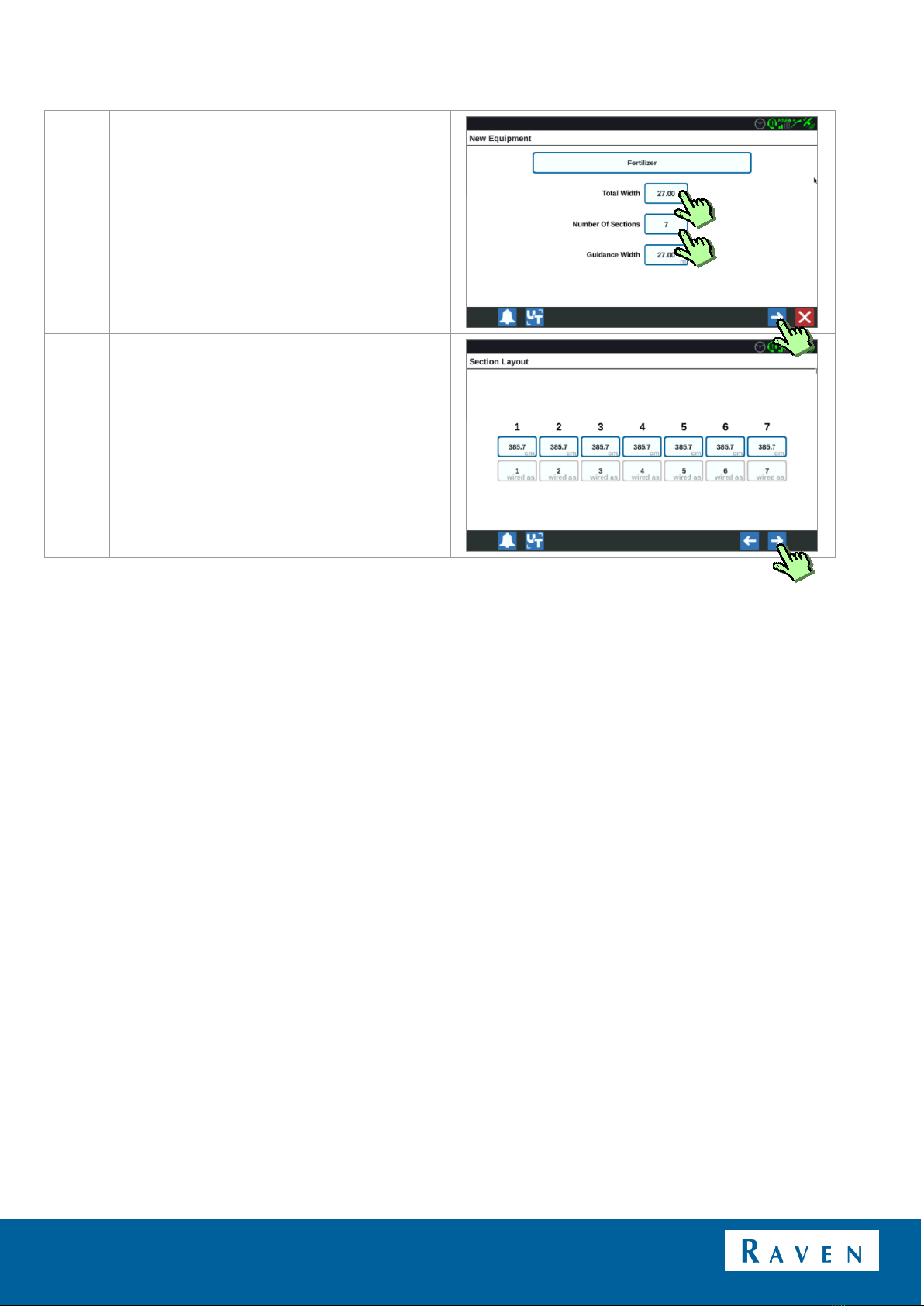

13
In this example is a Fertilizer which has 7
sections. Total width is the same as Guidance
width so there is no overlap.
Enter the # of sections.
Press next step.
14
The sections are automatically configured. If
the width of the sections differ, manually
change the width per section.
Press next step.

SETUP WORKING WIDTH | CR7 | QUICKSTART STEERING MANUAL
PAGE 10/34 | User manual |016-8000-017EN |Rev. B
Raven Industries Inc.

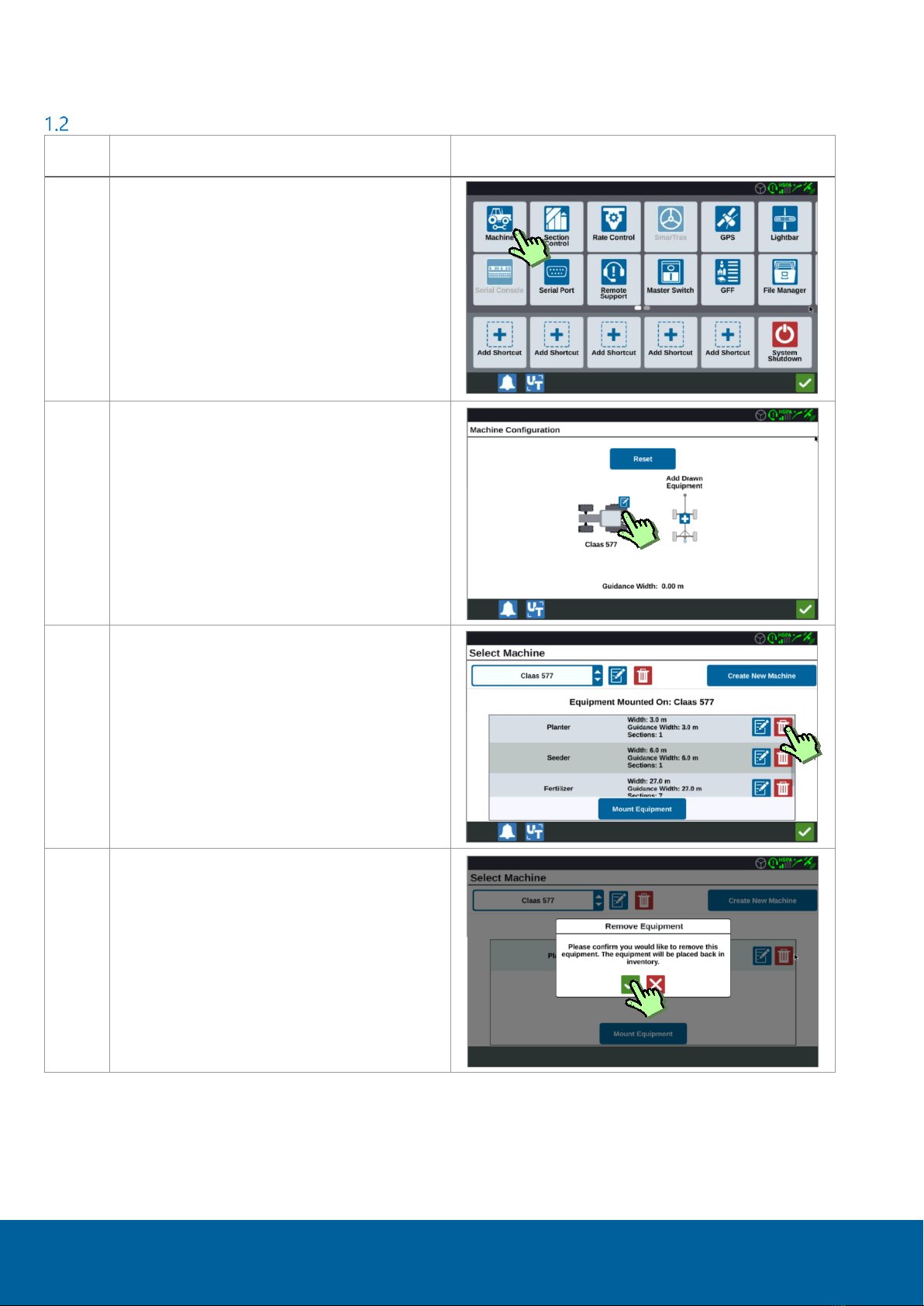

CHOOSE (MOUNTED) EQUIPMENT FOR THE JOB
#
Description
Figure
15
Enter the machine garage.
16
Select the tractor.
17
Delete all the created implements in the
‘Mounted Equipment’ list.
When deleting, the implements are just
removed from the tractor. They are ‘back in
the shed’ and can be chosen when mounted.
Delete all implements in this list (see next
step).
18
Press yes to confirm that the implement is
placed back in the shed and not mounted on
the implement.
