Raven Force Evo User manual

Copyright 2019
Force Evo Injection
System Installation
Manual
016-0171-724 Rev. A 12/20 E36393

016-0171-686 Rev. A 8/18 E31924
We Solve Great Challenges.
DISCLAIMER
While every effort has been made to ensure the accuracy of this document, Raven Industries assumes no
responsibility for omissions and errors. Nor is any liability assumed for damages resulting from the use of
information contained herein.
Raven Industries shall not be responsible or liable for incidental or consequential damages or a loss of anticipated
benefits or profits, work stoppage or loss, or impairment of data arising out of the use, or inability to use, this
system or any of its components. Raven Industries shall not be held responsible for any modifications or repairs
made outside our facilities, nor damages resulting from inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability and accuracy of wireless and
satellite navigation and correction services (e.g. GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot
guarantee the accuracy, integrity, continuity, or availability of these services and cannot guarantee the ability to
use Raven systems, or products used as components of systems, which rely upon the reception of these signals or
availability of these services. Raven Industries accepts no responsibility for the use of any of these signals or
services for other than the stated purpose.

Table of Contents
016-0171-724 Rev. A i
Chapter 1 Important Information.......................................................................................... 1
Safety ...............................................................................................................................................................................1
Agricultural Chemical Safety ..............................................................................................................................................2
Electrical Safety .......................................................................................................................................................................2
Recommendations and Best Practices ................................................................................................................3
Hose Routing ...........................................................................................................................................................................3
Harness Routing ......................................................................................................................................................................3
Chapter 2 Introduction to the Force® Evo Injection System.......................................... 5
Overview .........................................................................................................................................................................5
Care and Use .................................................................................................................................................................5
Chapter 3 Installation and Preparation................................................................................ 7
Raven Dealer .................................................................................................................................................................7
Best Installation Practices .........................................................................................................................................8
Force® Evo Cabinet Mounting ..............................................................................................................................8
Injection Plumbing Installation ..............................................................................................................................9
Point of Injection Plumbing Assembly Procedure ...................................................................................................10
Point of Injection Installation ...........................................................................................................................................11
3-Way Valve and Final Plumbing Procedure ..............................................................................................................11
Cable Connections to the Force® Evo System .............................................................................................12
Injection Rate Calculations ...................................................................................................................................12
Chapter 4 System Operation................................................................................................. 13
System Operation Overview .................................................................................................................................13
Flushing the Force® Evo System .......................................................................................................................13
Procedure to Flush the Injection System .....................................................................................................................13
Charging the Force® Evo Injection System ...................................................................................................15
Charging the Carrier Line with Injected Chemical ...................................................................................................16
Force® Evo System Operation ............................................................................................................................16
Winterizing the Force® Evo Injection System ..............................................................................................17
Chapter 5 System Diagrams and Ordering Instructions ................................................ 19
Raven CANbus Systems .........................................................................................................................................20
ISObus Systems .........................................................................................................................................................24

Table of Contents
ii Force Evo Injection System Installation Manual

CHAPTER
1
Important Information: 1
CHAPTER1 IMPORTANT INFORMATION
SAFETY
Follow the operation and safety instructions included with the implement and/or controller and read this manual
carefully before installing or operating this Raven system.
• Follow all safety information presented within this manual. Review implement operation with your local dealer.
• Contact a local Raven dealer for assistance with any portion of the installation, service, or operation of Raven
equipment.
• Follow all safety labels affixed to system components. Be sure to keep safety labels in good condition and
replace any missing or damaged labels. Contact a local Raven dealer to obtain replacements for safety labels.
Observe the following safety measures when operating the implement after installing this Raven system:
• Do not operate this Raven system or any agricultural equipment while under the influence of alcohol or an
illegal substance.
• Be alert and aware of surroundings and remain in the operator seat at all times when operating this Raven
system. •Do not operate the implement on any public road with this Raven system enabled.
•Disable this Raven system before exiting the operator seat.
•Determine and remain a safe working distance from obstacles and bystanders. The operator is
responsible for disabling the system when a safe working distance has diminished.
•Disable this Raven system prior to starting any maintenance work on the implement or components
of this Raven system.
• Do not attempt to modify or lengthen any of the system control cables. Extension cables are available from a
local Raven dealer.
NOTICE

CHAPTER 1
2 Force Evo Injection System Installation Manual
AGRICULTURAL CHEMICAL SAFETY
Follow all federal, state, and local regulations regarding the handling, use, and disposal of agricultural chemicals,
products, and containers. Triple-rinse and puncture or crush empty containers before properly disposing of them.
Contact a local environmental agency or recycling center for additional information.
• Always follow safety labels and instructions provided by the chemical manufacturer or supplier.
• Always wear appropriate personal protective equipment as recommended by the chemical and/or equipment
manufacturer.
• When storing unused agricultural chemicals:
•Store agricultural chemicals in the original container and do not transfer chemicals to unmarked
containers or containers used for food or drink.
•Store chemicals in a secure, locked area away from human and livestock food.
•Keep children away from chemical storage areas.
• Fill, flush, calibrate, and decontaminate chemical application systems in an area where runoff will not reach
ponds, lakes, streams, livestock areas, gardens, or populated areas.
• Follow all label instructions for chemical mixing, handling, and disposal.
• Avoid direct contact with agricultural chemicals or inhaling chemical dust or spray particulate. Seek immediate
medical attention if symptoms of illness occur during, or soon after, use of agricultural chemicals or products.
• After handling or applying agricultural chemicals:
•Thoroughly wash hands and face after using agricultural chemicals and before eating, drinking, or
using the restroom.
•Thoroughly flush or rinse equipment used to mix, transfer, or apply chemicals with water after use
or before servicing any component of the application system.
ELECTRICAL SAFETY
• Always verify that power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the Raven system or other components.
• To prevent personal injury or fire, replace defective or blown fuses with only fuses of the same type and
amperage.
• Do not connect the power leads to the battery until all system components are mounted and all electrical
connections are completed.
• Always start the machine before initializing this Raven system to prevent power surges or peak voltage.
• To avoid tripping and entanglement hazards, route cables and harnesses away from walkways, steps, grab bars,
and other areas used by the operator or service personnel when operating or servicing the equipment.
WARNING
CAUTION

Important Information: 3
IMPORTANT INFORMATION
RECOMMENDATIONS AND BEST PRACTICES
HOSE ROUTING
The word “hose” is used to describe any flexible, fluid carrying components. Use the following guidelines and
recommendations when connecting and routing hoses while installing or maintaining this Raven system:
• Leave protective caps/covers over hose ends until connecting the end into the hydraulic system to help
prevent contaminants from entering the system.
• Follow existing hose runs already routed on the implement as much as possible. Proper hose routing should:
•Secure hoses and prevent hoses from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect hoses from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop stubble,
dirt clumps or rocks that may fall or be thrown by the implement).
•Protect hoses from sharp bends, twisting, or flexing over short distances and normal implement
operation.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp hoses
securely to force controlled movement of the hose.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
•Avoid areas where the operator or service personnel might step or use as a grab bar.
• Do not connect, affix, or allow hoses to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of hose components.
•Hoses should be protected or shielded if routing requires the hose to be exposed to conditions
beyond hose component specifications.
• Avoid routing hoses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow, ice,
etc.).
HARNESS ROUTING
The word “harness” is used to describe any electrical cables and leads, both bundled and unbundled. Use the
following guidelines and recommendations when connecting and routing harnesses while installing or
maintaining this Raven system:
• Leave protective caps/covers over harness connectors until needed to avoid dirt and moisture from
contaminating electrical circuits.
• Secure the harness to the frame or solid structural members at least every 12 in [30 cm].
• Follow existing harness runs already routed on the implement as much as possible. Proper harness routing
should: •Secure harnessing and prevent the harness from hanging below the implement.
•Provide sufficient clearance from moving components and operational zones around shafts;
universal joints and suspension components; pulleys, gears, belts, and chains; moving linkages,
cylinders, articulation joints, etc.
•Protect harnessing from field debris and surrounding hazards (e.g. tree limbs, fence posts, crop
stubble, dirt clumps or rocks that may fall or be thrown by the implement).

CHAPTER 1
4 Force Evo Injection System Installation Manual
•Protect harnessing from sharp bends, twisting, or flexing over short distances and normal
implement operation.
•Connectors and splices should not be located at bending points or in harness sections that move.
•Ensure sufficient length for free movement of the implement during normal operation and prevent
pulling, pinching, catching, or rubbing, especially in articulation and pivot points. Clamp harnessing
securely to force controlled movement of the harness.
•Avoid abrasive surfaces and sharp edges such as sheared or flame cut corners, fastener threads or
cap screw heads, hose clamp ends, etc.
• Do not connect, affix, or allow harnessing to come into contact with components with high vibration forces, hot
surfaces, or components carrying hot fluids beyond the temperature rating of harness components.
•Harnessing should be protected or shielded if routing requires the hose to be exposed to
conditions beyond harnessing component specifications.
• Avoid routing harnesses in areas where damage may occur due to build up of material (e.g. dirt, mud, snow,
ice, etc.).
• Avoid routing harnesses in areas where the operator or service personnel might step or use as a grab bar.
IMPORTANT: Avoid applying direct spray or pressure washing of electrical components and connections. High pressure
streams and sprays can penetrate seals, cause corrosion, or otherwise damage electrical components.
When performing maintenance:
• Inspect electrical components and connectors for corrosion, damaged pins or housings, etc. Repair or replace
components or harnessing as necessary.
• Ensure connectors are kept clean and dry. Apply dielectric grease to the sealing surfaces of all connections
exposed to moisture, dirt, debris, and other contaminates. Repair or replace harnessing as necessary.
• Clean electrical components with pressurized air, aerosol electrical cleaning agent, or low pressure rinse.
• Remove visible surface water from electrical components and connections using pressurized air or an aerosol
cleaning agent. Allow components to dry thoroughly before reconnecting cables.

CHAPTER
2
016-0171-724 Rev. A 5
CHAPTER 2 INTRODUCTION TO THE
FORCE®EVO INJECTION
SYSTEM
OVERVIEW
The Force®EVO injection system is designed for use on planting and seeding implements with a liquid fertilizer
application delivery system and a carrier product tank already installed. Carrier rate control is not included with the
Force®EVO Injection system, but is available as an optional feature.
NOTE: Contact a local Raven dealer for more information about adding carrier rate control to your existing
Force®Evo injection system.
The Force®Evo injection system has an output range of 1 to 40 oz./min [0.3 to 11.8 dL/min]. The system must be
operated within this range to ensure proper operation of the injection pump and application of injected products.
To help ensure that the minimum injection rate is achieved, the smallest section or implement width for use with
Force®Evo injection system should not be below 8 row units.
NOTE: Refer to the Injection Rate Calculations section on page 12 for information on verifying the pump
output required for an operation.
CARE AND USE
Proper care and maintenance is critical to ensure proper operation of the Force®Evo injection system. Please
review and perform the following maintenance items as appropriate to help ensure the best performance and
longest service life of the Force®Evo injection system:
IMPORTANT: Always wear appropriate personal protective equipment when working with the Force®Evo injection
system. Review proper chemical handling, storage and disposal practices with your chemical provider
before performing system maintenance and refer to the chemical label as necessary when working with
agricultural chemicals.
• Flush and winterize the carrier product lines and injection system at the end of the season or when storing the
implement for periods longer than 3 months.
IMPORTANT: Do not use water to flush the injection pump. Use only RV anti-freeze when flushing or winterizing
the injection system. Using water can have an adverse affect on the chemical.
TABLE 1.

CHAPTER 2
6 Force Evo Injection System Installation Manual

CHAPTER
3
016-0171-724 Rev. A 7
CHAPTER 3 INSTALLATION AND
PREPARATION
RAVEN DEALER
1. Install and mount the chemical cabinet and the injection pump on the planter and install the plumbing parts
that interface the mixer and the point of injection to the carrier.
2. When the chemical box, carrier, and point of injection have been installed, please let the Syngenta
representative know the planter is ready for Direct Contact Inc. to complete the installation.
NOTE: There are two plastic envelopes in the kit with plumbing parts.
One envelope is labeled “THESE PARTS TO BE INSTALLED BY RAVEN DEALER.” The dealer will install
these parts to interface the mixer and injection point to the carrier.
One envelope is labeled “THESE PARTS TO BE INSTALLED BY DIRECT CONTACT.” A representative
from Direct Contact will use the parts in this envelope to hook up the plumbing from the chemical
cabinet to the inlet of the injection pump and hook up the plumbing from the pump calibrator to the
point of injection. Direct Contact Inc. will provide the hose and the clamps for this part of the
installation.
Refer to Figure 2 on page 9.

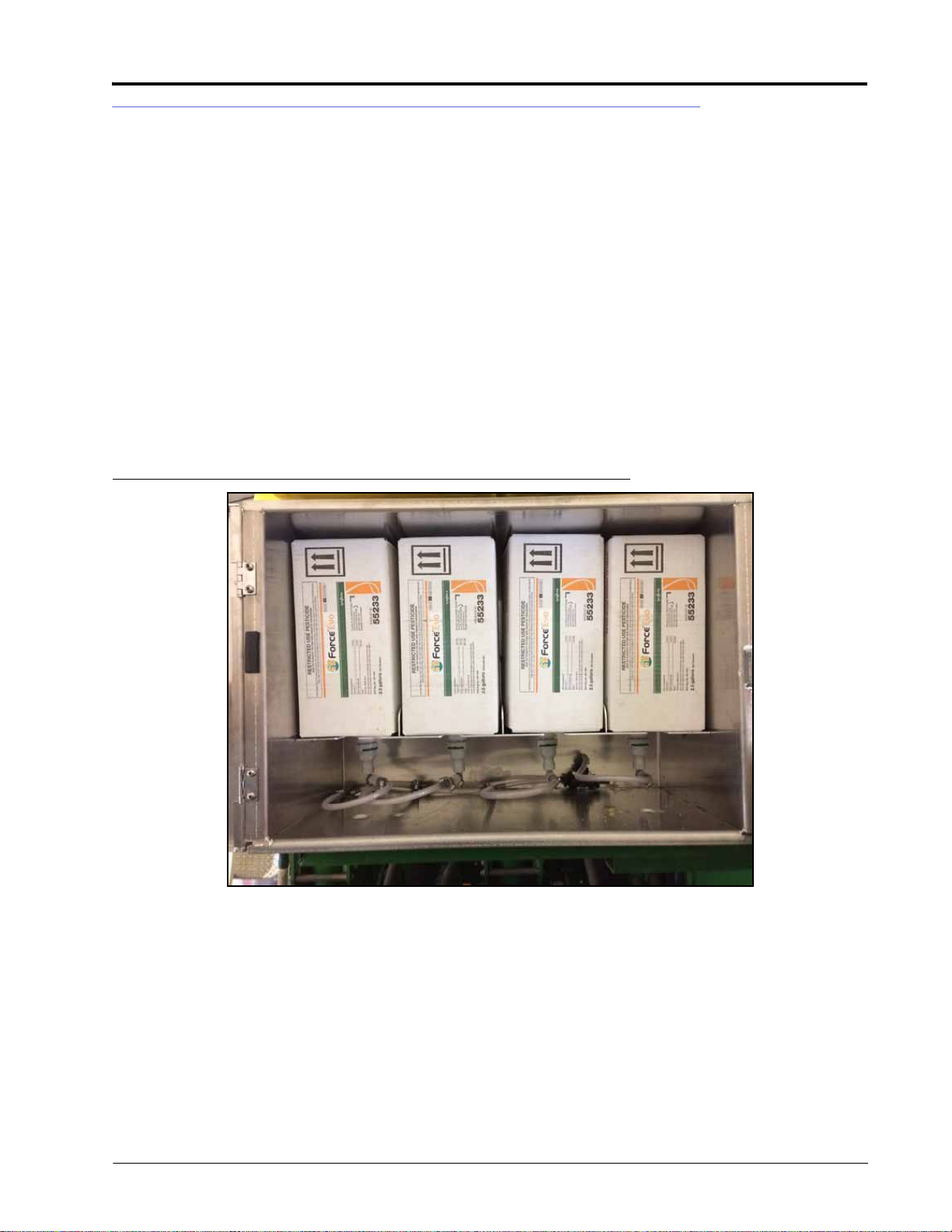

FIGURE 1. Cabinet Mounted on Brackets
+26(127,1&/8'('
$9$,/$%/(.




CHAPTER 3
8 Force Evo Injection System Installation Manual
BEST INSTALLATION PRACTICES
Please review and verify the following items when installing the Force®Evo injection system:
• Select a mounting location where the Force®Evo cabinet assembly, or connected plumbing and hoses, will not
interfere with, or be damaged by, the normal planter folding or leveling functions or operations.
•TheForce
®Evo cabinet must be mounted upright on the implement with the bottom mounting brackets
pointing toward the ground. The injection pump must remain in an upright position (calibrator pointing
upward) at all times during pump operation.
• The cabinet should not be mounted to any wing element which rotates the cabinet away from this orientation
during folding operations to ensure that chemical containers remain in the cabinet rack and connected with the
internal cabinet plumbing.
• The injection pump must remain in an upright position (calibrator pointing upward) at all times during pump
operation. This orientation is important both to ensure proper pump operation and to ensure that the chemical
pouches do not fall off the rack
• The point of injection should be after (downstream) the carrier pump and before (upstream) any manifold or
flow divider in carrier product lines. It is recommended to place the point of injection as close as possible to the
flow divider or manifold to reduce the amount of chemical wasted when flushing the injection system.
• Keep hose lengths as short as possible. Long hose runs will use more chemical for priming and calibration
processes and will create more chemical waste when flushing the injection system.
•TheForce
®Evo cabinet pump and mounting brackets weigh approximately 140 pounds [63.5 kg] without
chemical boxes loaded (add approximately 100 pounds [45 kg] for chemical boxes). Be sure that all materials
and hardware utilized for fabrication of a mounting solution is capable of securing the weight of the injection
cabinet, pump, mounting brackets, and chemicals.
• Make sure to install the supplied carrier and injection check valves to prevent back flow or contamination of the
product reservoirs. The arrow stamped on the check valve must point in the direction of product flow.
• It is not necessary for injected products or chemicals to be measured by a flow meter. Depending upon the
type of applications or chemical mixtures the injection system will normally be used with, it may be more
desirable to place the injection point after any flow meter in the carrier product line. This configuration will
minimize the exposure of the flow meter to corrosive chemicals and may extend the life of the flow meter.
FORCE®EVO CABINET MOUNTING
The following steps may be of assistance while mounting the Force®Evo injection cabinet on the implement.
1. Select a mounting location to provide a stable platform for the Force®Evo injection system. The selected
mounting location should provide adequate clearance for the cabinet and allow normal implement functions
without interference from, or damage to, the cabinet.
2. Fabricate a mounting bracket to secure the cabinet an integral frame member of the implement. The Force®
Evo injection cabinet must be secure to avoid shifting during normal field operation.
3. Use hardware of adequate strength to fasten the fabricated mounting bracket to the brackets attached to the
bottom of the Force®Evo cabinet. Use as many mounting points as possible to ensure that the cabinet is
securely fastened to the implement.

016-0171-724 Rev. A 9
INSTALLATION AND PREPARATION
INJECTION PLUMBING INSTALLATION
The Force®Evo injection system kit is designed to interface with existing 1” carrier product lines. The kit includes
parts for installation of the “point of injection” including check valves and in-line mixer. Review the information in
the following sections for assistance with assembling and installing the injection plumbing and connecting the
Force®Evo injection cabinet to the point of injection.

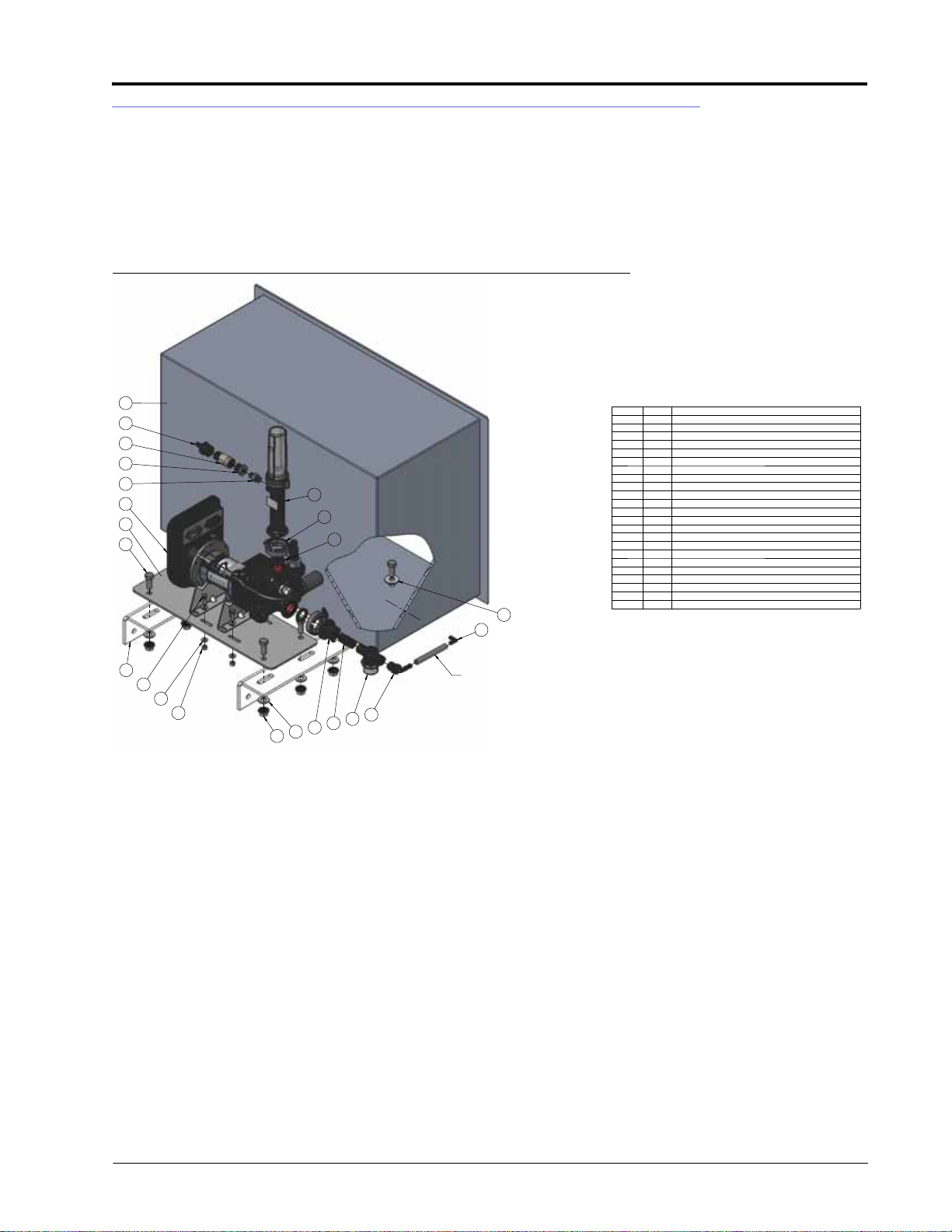

FIGURE 2. Plumbing Components






















+26(127,1&/8'('
,7(0 47< '(6&5,37,21
 6&66,'(.,&.35238032=0,1
 &/26('&$/,%5$7,21$66(0%/<
 ),77,1*)137;+%
  &+(&.9$/9(36,:%/(('+2/(

),77,1*%86+,1*137;137
 ),77,1*3,3(1,33/(137:+(;
 *$6.(7)/$1*(09,721
 &/$039%$1')&
 ),77,1*)/$1*('0;137
  ),77,1*3,3(1,33/(&/26(32/<3523</(1(
  675$,1(5013732/<3523</(1(%/.0(6+
  ),77,1*(/%2:+%;1376732/<
  ),77,1*(/%2:+%;+%
  %2/7;,166+(;+'
  :$6+(5,';2';7+.
  18781&/2&.1</,16(57
  %5$&.(7'8$/&22/(5017-'1+
  &$%,1(7&+(0,&$/6<1*(17$,1-(&7,216
  3/$7(380302817
  %2/7+(;;*5$'(
  :$6+(5,';2';7+.
  :$6+(5,';2';7+.
  187+(;=,1&

CHAPTER 3
10 Force Evo Injection System Installation Manual
FIGURE 3. Plumbing Components Cont.
NOTE: Check valves are used in both the carrier and injection lines to prevent back flow and contamination
of carrier and chemical reservoirs. The in-line mixer should be installed after the point of injection to
ensure even mixing of the injected product.
POINT OF INJECTION PLUMBING ASSEMBLY PROCEDURE
Review the following procedure for assistance assembling the point of injection components shown in Figure 3,
“Plumbing Components Cont.,” as seen above. This assembly procedure must be done in preparation for
connecting the Force®Evo plumbing into the existing carrier product line.
NOTE: Use pipe sealant (not supplied) on all fittings. Tighten all fittings with a pipe wrench as instructed.
1. Locate the supplied 1” tee fitting (item 10) and install the 1/4” plug (item 14). Tighten the fitting until snug.
NOTE: An optional pressure transducer (P/N 422-0000-090) may replace the 1/4” plug to monitor pressure
during field operations. Contact a local Raven dealer for more information.
2. Thread a 1” pipe fitting (item 11) into each of the through ports of the tee fitting.
3. Thread the supplied 1” check valve (item 12) onto one of the pipe fittings. Be sure that the arrow formed on the
check valve body points toward the tee fitting. Tighten the check valve and pipe fitting into the tee fitting.
4. Thread the in-line mixer assembly (item 13) onto the remaining pipe fitting installed into the tee fitting. Be sure
that the arrow on the mixer assembly points away from the tee fitting. Tighten the mixer an pipe fitting into the
tee fitting.
5. Thread the supplied 1” x 1/2” bushing (item 9) into the branch of the tee fitting.
6. Thread the supplied 1/2” x 3/8” bushing (item 8) into the installed bushing and thread the 3/8” pipe nipple
(item 7) into the bushing.
7. Thread the supplied 3/8” check valve onto the pipe fitting. Be sure that the arrow formed on the check valve
body points toward the tee fitting. Tighten the check valve, pipe fitting and bushings to the tee fitting.
8. Thread the 3/8” MNPT to 3/8” hose barb fitting (item 5) into the check valve and tighten.
9. The point of injection plumbing assembly is ready for installation on the implement.
+26(127,1&/8'('











,7(0 47< '(6&5,37,21
 ),77,1*(/%2:+%;1376732/<
 9$/9(:$<32/<137&217,18286)/2:
 ),77,1*+%;137
 ),77,1*(/%2:+%;1376732/<
 ),77,1*+%;137
  &+(&.9$/9(137

),77,1*3,3(1,33/(137
 ),77,1*%86+,1*137;137
 ),77,1*%86+,1*137;137
  ),77,1*3,3(7((;137
  ),77,1*3,3(1,33/(13732/<
  &+(&.9$/9(137
 
0,;(5$66(0%/</2:)/2:137
  ),77,1*3/8*3,3(13732/<

016-0171-724 Rev. A 11
INSTALLATION AND PREPARATION
POINT OF INJECTION INSTALLATION
Review the following steps for information on installing the point of injection assembly into the existing carrier
product line on the implement.
1. Select a point in the carrier product line in which the point of injection plumbing assembly may be installed in
the carrier line. Review the Best Installation Practices section on page 8 for more information on considerations
for the location of the point of injection.
NOTE: Use the point of injection assembly to “layout” or help determine the best installation location. The
point of injection should be as close to the Force®Evo injection cabinet as possible to help reduce
the amount of chemical wasted when flushing the injection system.
2. Install the point of injection assembly so that carrier product flow through the 1” check valve and 1” mixer
follows the arrows formed on the check valve and mixer assemblies. Be sure to use pipe sealant on the check
valve and mixer threads.
3. If necessary for your implement or the existing plumbing, secure the point of injection assembly to an integral
implement frame using appropriate hardware.
3-WAY VALVE AND FINAL PLUMBING PROCEDURE
The 3-way valve provided with the Force®Evo system is required for proper flushing and winterizing of the
Force®Evo injection system and allows the operator to properly dispose of chemicals more easily. Review the
following steps for more information and assistance with installation of the 3-way valve and final plumbing
connections for the Force®Evo injection system.
NOTE: Use pipe sealant (not supplied) on all fittings. Tighten all fittings with a pipe wrench as instructed.
1. Select a location for the 3-way valve (item 2) used with the Force®Evo system. The valve should be located as
close to the point of injection as possible within easy reach of the operator.
NOTE: Keep all hose lengths as short as possible to reduce the amount of chemical waste when flushing or
winterizing the system.
2. Thread the supplied 3/8” hose barb fitting (item 3) into the 3-way valve port opposite of the valve handle.
Tighten the fitting.
3. Thread the supplied hose barb elbow fittings (item 1 and item 4) into the through ports on the 3-way valve as
shown and tighten. The 3/8” hose barb fitting goes toward the 3/8” hose barb fitting at the point of injection.
4. Place two hose clamps over the supplied and press the hose onto the 3/8” hose barb elbow.
5. Place and tighten the hose clamps to secure the hose to the hose barb.
6. Place two hose clamps over the remaining hose and press the hose onto the 1/2” hose barb fitting installed in
the inlet branch of the 3-way valve.
7. Place and tighten the hose clamps to secure the hose to the hose barb.
8. Route the hose to the outlet of the 1/2” check valve at the injection pump.
9. Place the hose clamps over the 3/8” hose and press the hose onto the pump calibrator outlet port.
10. Place and tighten the hose clamps to secure the hose to the hose barb.
NOTE: It will be necessary to know the length of hose used between the injection pump outlet and point of
injection. Measure and record the hose length for use when setting up for field operations.

CHAPTER 3
12 Force Evo Injection System Installation Manual
CABLE CONNECTIONS TO THE FORCE®EVO SYSTEM
Refer to Chapter 5, System Diagrams and Ordering Instructions, for system connection diagrams and review the
Raven Sidekick Pro™ or Sidekick Pro™ ISO manual required cabling connections to the injection pump. For
additional assistance with cabling options, contact a local Raven dealer.
IMPORTANT: If a Raven control console will not be installed to control the liquid carrier, the installer must provide for the
following items:
•When the carrier product is shut off, the injection pump must stop. The carrier control must not
allow the injection pump to operate in a “dead head” condition (e.g. injection pump running with
carrier and section valves closed) at any time.
•When the carrier product is turned on, the injection pump must turn on. The carrier control must
not allow skips in the injected chemical coverage.
INJECTION RATE CALCULATIONS
Before operating the Force®Evo injection system, verify that the system will be able to meet the expected output
of the operation. Adjust the operation speeds or injection rate as necessary to ensure that the injection pump is
capable of performing in the anticipated operation conditions.
To calculate the volume per minute per row unit, use the following formula:
Where FPR is the flow rate per row, Rate equals the target injection rate in oz./acre [dL/ha], spacing is the row
spacing in inches [centimeters] and speed is the normal or maximum vehicle speed during operation in mph [km/
hr].
Multiply the flow rate per row to find the total flow rate for the chemical injection.
FOR EXAMPLE:
Assume that the target rate is 8 oz./acre [5.8 dL/ha], row unit spacing of 30 inches [75 centimeters] and a
typical vehicle speed of 5 mph [8 km/hr] on a 16 row implement.
Therefore, the flow rate is 0.2 oz./min. [0.06 dL/min.] per row and the total flow rate for the chemical injection is
3.2 oz./min [0.96 dL/min.].
English (US) Units Metric (SI) Units
FPR Rate Spacing Speed××
5940 60 000,[]
-----------------------------------------------------------------=
FPR 8305××
5940,
------------------------=
FPR 5.8758××
60 000,[]
-----------------------------=

CHAPTER
4
016-0171-724 Rev. A 13
CHAPTER 4 SYSTEM OPERATION
SYSTEM OPERATION OVERVIEW
The Force®Evo injection system utilizes replaceable chemical boxes housed within the Force®Evo cabinet on a
rack system. No chemical tank to refill or rinse between operations.
When the injection system is empty, disconnect and remove the empty boxes from the cabinet racks and replace
with prefilled boxes.
NOTE: Prior to operating the system after installation, it is recommended to flush the injection lines with RV
anti-freeze to rinse out any manufacturing or installation debris and to check plumbing connections
for leaks. Refer to the Flushing the Force® Evo System section on page 13 for details on flushing and
rinsing the injection or carrier system.
During this cleaning procedure, set the 3-way valve to by-pass the point of injection to prevent debris
from plugging the check valves and in-line mixer. Return the 3-way valve to the inject position after
clean-out is completed.
FLUSHING THE FORCE®EVO SYSTEM
PROCEDURE TO FLUSH THE INJECTION SYSTEM
IMPORTANT: When working with pesticides and other ag chemicals, personal protective gear must be worn. refer to the
chemical manufacturer’s label for required personal protective equipment. Decontaminate all equipment
before making repairs or storing the implement.
It is normally acceptable to leave chemical that has not reached the point of injection in the injection lines for a
short period. As long as the chemical is not mixed and the injection system remains sealed, the chemical should
remain soluble and flow when the field operation resumes within a couple of days.
If the implement will be stored for part of the season, the injection system must be flushed and rinsed thoroughly.
When storing the implement, it is recommended to winterize the injection pump and chemical lines to help ensure
chemical residues do not damage the injection pump. Refer to the Winterizing the Force® Evo Injection System
section on page 17 for details on winterizing the Force®Evo injection system.
NOTE: It is also recommended to flush the injection system prior to the initial operation to rinse out
manufacturing or installation debris.
To flush the injection system:
1. Disconnect and remove the chemical boxes from the cabinet racks. Properly store or dispose of chemical
containers according to the chemical manufacturer’s recommended procedures.

CHAPTER 4
14 Force Evo Injection System Installation Manual
2. Connect the chemical collection container to the 3-way valve at the in-line mixer. Contact a Syngenta supplier
to obtain the chemical collection kit.
3. Place the 3-way valve in the position to by-pass the point of injection and to discharge the system to the
chemical collection container.
4. Next, connect the clean out hose to the quick coupler in the injection cabinet.
5. Secure the open end of the clean out hose above the coupler to keep chemical from flowing out the hose. This
will vent the injection manifold to air.
NOTE: To rinse the injection pump and plumbing, place the open end of the clean out hose in a container of
RV anti-freeze and perform the following steps.
IMPORTANT: Do not rinse with water. Water can have an adverse affect on the chemical.
6. If a Raven control console is installed for carrier control, enter a self test speed of 6 mph [10 km/h] and set the
injection pump to automatic control mode.
NOTE: Do not run the carrier during this procedure.
Refer to the Raven control console manual for details on entering and using the self test speed
feature. The self test speed will clear if any signals are received from an actual speed sensor. To keep
the self test speed from clearing during the rinsing procedure.
7. Toggle the injection pump to automatic control mode.
8. Toggle the master switch and at least 1 section switch to the on position.
9. Run the injection pump for 2 minutes.
10. Toggle the injection pump to the off position.
11. Move the clean out hose to the next coupler and repeat step 7 through step 11 until all box connectors in the
injection cabinet have been flushed or rinsed.
NOTE: Refer to the Winterizing the Force® Evo Injection System section on page 17 for information on
winterizing the Force®Evo system.

016-0171-724 Rev. A 15
SYSTEM OPERATION
CHARGING THE FORCE®EVO INJECTION SYSTEM
Both the carrier and injection systems must be charged with chemical to ensure even coverage during a field
operation. The system must be charged during the initial system start up after installation or when the system is
pulled out of storage.
NOTE: Be sure to flush and rinse the system of antifreeze when the system has been in winter storage.
Charge the carrier system before performing the following procedure.
If the chemical is depleted, the system will need to be recharged before resuming field application.
Replacement Colder quick couplers must be obtained from Syngenta and are not available from
Raven.Couplers that are compatible with Force®Evo and can be identified with the green latch
button.
1. Load chemical boxes into the Force®Evo cabinet.
2. Connect the quick couplers to the chemical boxes.
FIGURE 1. Force®Evo Injection Cabinet Manifold
3. Perform a pump priming procedure. Be sure that the 3-way valve is set to direct chemical to the point of
injection. Refer to the Raven Sidekick Pro™ or Sidekick Pro ISO manual for details on priming the injection
pump.
4. Repeat the priming procedure two more times to draw chemical from the connected boxes and eliminate air
pockets in the cabinet manifold.
5. Perform a pump calibration test to verify pump operation. Refer to the Raven Sidekick Pro™ orSidekick Pro ISO
manual for details on performing a calibration with the closed calibration system.
6. If the pump passes the calibration test, proceed to the Charging the Carrier Line with Injected Chemical section
on page 16 to complete the chemical charging process and prepare the system for field operations.

CHAPTER 4
16 Force Evo Injection System Installation Manual
CHARGING THE CARRIER LINE WITH INJECTED CHEMICAL
Review the following procedure once the injection pump is primed and successfully calibrated to prime the carrier
lines with injected chemical.
1. Measure and record the hose length between the injection pump outlet and the point of injection. Refer to
Table 1, “Calculating Hose Volume,” below and calculate the volume of chemical necessary for the injection
system hose.
TABLE 1. Calculating Hose Volume
NOTE: 1 gallon equals 128 oz [0.379 dL].
2. On the control console, enter a value of zero for the volume tally of injected chemical product.
3. Place the injection pump in automatic control mode and enter a self test speed of 6 mph [9 km/h].
4. Monitor the volume tally for the injected chemical. When the necessary volume required for the injection
plumbing has been dispensed through the pump, set the pump control mode back to off.
5. Measure the hose length from the point of injection to the section tips. To prime the carrier lines with injected
chemical to all sections, record the longest hose length and calculate the volume of chemical necessary for the
carrier lines.
6. Toggle the master switch and all section switches to the on position and monitor the carrier volume until the
calculated volume has been dispensed through the carrier product system.
7. The system should now be fully charged with injected chemical.
FORCE®EVO SYSTEM OPERATION
When the chemical boxes are empty, the system will develop a higher than normal vacuum pressure. When this
occurs, the control console will display a vacuum error.
NOTE: A vacuum error may also occur if the strainer is plugged or a chemical flow restriction has occurred.
Refer to the Raven Sidekick Pro™, Sidekick Pro ISO, or Sidekick PRO ICD manuals for details on using the specific
control console to control the injection system. Review the console specific operation manual for details on setting
up and controlling a liquid carrier during field operations.
Hose Internal
Diameter
Ounces per
Linear Foot of
Hose
Deciliters per
Linear Meter
of Hose
3/8” [0.95 cm] 0.734 0.712
1/2” [1.27 cm] 1.305 1.27
3/4” [1.9 cm] 2.937 2.85
1” [2.54 cm] 5.224 5.07
1-1/4” [3.175 cm] 8.16 7.92
1-1/2” [3.8 cm] 11.75 11.4
2” [5.08 cm] 20.90 20.27
2-1/2” [6.35 cm] 32.65 31.67
3” [7.62 cm] 47.02 45.61
