Rayburn Heatranger 360 K User guide

12/01 EINS 511011
[e-mail]
At the Heart of your Home
Servicing Instructions for
Rayburn Heatranger 360 /D Central Heating Cooker
Consumer Protection Act 1987
As manufacturers and suppliers of cooking and heating products, in compliance with Section 10 of the onsumer
Protection Act 1987, we take every care to ensure, as far as is reasonably practicable, that these products are so
designed and constructed as to meet the general safety requirement when properly used and installed. To this
end, our products are thoroughly tested and examined before despatch.
IMPORTANT NOTICE: Any alteration that is not approved by Aga-Rayburn, could invalidate the approval of the
appliance, operation of the warranty and could also affect your statutory rights.
Control of Substances - Health and Safety Important
This appliance may contain some of the materials that are indicated below.
It is the Users/Installers responsibility to ensure that the necessary personal protective clothing is worn when
handling, where applicable, the pertinent parts that contain any of the listed materials that could be interpreted as
being injurious to health and safety, see below for information.
Firebricks, Fuel beds, Artificial Fuels - when handling use disposable gloves.
Fire cement - when handling use disposable gloves.
Glues and Sealants - exercise caution - if these are still in liquid form use face mask and disposable gloves.
Glass Yarn, Mineral Wool, Insulation Pads, Ceramic Fibre, erosene/Gas Oil - may be harmful if inhaled,
may be irritating to skin, eyes, nose and throat. When handling avoid inhaling and contact with skin or eyes. Use
disposable gloves, face-masks and eye protection. After handling wash hands and other exposed parts. When
disposing of the product, reduce dust with water spray, ensure that parts are securely wrapped.
INTRODUCTION
The Rayburn Heatranger 360 K/D central heating cooker is a simple robust appliance fitted with a reliable,
proven, oil burner which is simple to maintain.
To ensure the best performance from the cooker it should be serviced twice a year; before and after the heating
season by a registered heating installer.
An additional flueing and combustion chamber clean halfway through the heating season may be necessary in
some cases. The cooker cannot be serviced whilst hot, so both oven and boiler thermostats should be turned off
on the evening before the service visit.
Page
1
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

SERVICE SCHEDULE
*IMPORTANT: ISOLATE ALL THE ELECTRICAL SUPPLIES TO THE APPLIANCE.
2.1. Twice a Year.
(a) Service clean of boiler heat exchanger flueways and oven and hotplate flueways together with firebricks -
section 3.2
(b) hange four loose fire bricks from winter to summer arrangement or vice versa - section 3.3
(c) Removal of oil burner for cleaning and inspection -section 3.4
(d) Burner Servicing - section 3.5
2.2 Annually.
As above plus cleaning of oil pump strainer and fuel line strainer - section 3.5.2.
2.3 Post Service Checks - section 6.
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the
safety and performance specification that we require. Do not use reconditioned or copy parts that have not been
clearly authorised by AGA-RAYBURN.
INSTALLATION INSTRUCTIONS
3.1 Preparation.
Ensure that the cooker is cold by turning ‘OFF’ oven and boiler thermostats the evening before the service visit.
Before removing service access covers or the oil burner ensure that ALL electrical supplies to the appliance have
been turned OFF (switch off and remove plug).
The burner can be removed without disconnecting the oil supply pipe. However if the filters are being cleaned or a
pressure gauge fitted to the pump then the oil supply should be turned OFF and arrangements made to catch any
oil which will leak from the oil pump.
3.2 Flueway and Combustion Chamber Cleaning
Lift out the hotplate with the handles provided (see fig. 1). Use the rake and brush to remove debris from the
flueway above the oven and vacuum this area and the top of the firebrick baffles which are fitted above the burner
chamber (see fig 2).
arefully remove the two baffle bricks by separating them and lifting at the front (see fig 3).
Either remove the burner (section 3.4) or protect the burner tube to prevent debris from falling into it.
Remove the enamelled cover behind the LH insulating cover (see fig. 4) and remove the sealing plate (twist clips
on LHS). Remove the boiler flue baffle to expose the boiler outlet flueway which should be scraped and brushed
clean. Remove all debris which will have fallen into the combustion chamber.
REASSEMBLY NOTE: Reassemble boiler flue baffle ensuring that narrow end of baffle marked ‘left’ is on the left
end of flueway and the location brackets are dropped into end sections of flueways. Refit sealing plate and the
enamelled cover in reverse order of removal.
Page
2
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 1 REMOVAL OF HOTPLATE DESN 510145 ‘A’
Fig. 2 OVEN FLUEWAY LEANING DESN 510233 ‘A’
Page
3
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 3 REMOVAL OF BAFFLE BRI KS DESN 510218'A' AND DESN 510145 ‘A’
Brush clean the ribs on the underside of the hotplate. Examine the rope seal in the hob on which the hotplate sits
.
Replace if frayed or damaged.
Examine all firebricks for deterioration. Examine the fireboard floor of the combustion chamber and the chrome-
iron plate on the right hand side of the combustion chamber. Both can be replaced if necessary (consult your
Rayburn Agent).
Before reassembling the baffle bricks and hotplate check that loose firebricks are fitted or removed depending on
the forthcoming season. Refit burner in reverse order of removal before commissioning.
3.3 WINTER AND SUMMER FIREBRIC S
(FIG. 5)
During summer months it is necessary to fit four loose firebricks in the boiler to reduce the amount of hot water
produced. It is recommended that these bricks are fitted and removed by the service engineer during the biannual
services at the end and start of the heating season. The following loose firebricks are supplied with the cooker for
the summer season:
Boiler Back firebrick 3/20291
Boiler Side Rear firebrick 3/20289
Boiler Side Front firebrick RO4F 321131
Secondary Boiler Back firebrick RO4F321057
Page
4
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

The firebricks should be fitted in the following order:
a. Fit the two rear summer bricks by placing the rectangular brick with the rebate to the bottom in the channel
welded
on boilerface above the rear flue outlet. Fit the ‘L’ shape rear summer brick by positioning on floor of
combustion chamber and touching brick already fitted (see diagram 5). Locate back brick retaining bracket in
groove in boiler to retain bricks in position at top. When located, slide both bricks to the right hand side.
b. Locate the side rear firebrick inside the bracket fitted on the base, then push it toward the rear to locate behind
the two rear firebricks.
c. Locate the bottom end of the boiler side front firebrick inside the bracket fitted on the base. Gently push the top
end against the boiler side and secure the top end with a REMOVABLE stainless steel bar. The bar should be
located in brackets welded to the boiler. These four bricks should be removed for the winter season by the service
engineer and stored in a safe place together with removable clip and bar.
After ensuring that the burner chamber is correctly fitted for the forthcoming season, refit the top baffle bricks.
(N.B. These two firebricks are always in place summer and winter). Fit them as far to the RIGHT as possible,
leaving a gap for flue gases on the left hand side only. Replace the hotplate ensuring it seals around it’s edges.
3.4 Burner Removal
Slacken the two grub screws (5mm) holding the burner blast tube to the combustion chamber (fig. 6). Unscrew
and disconnect plug (Fig. 7). Pull the burner out of the combustion chamber (Fig. 8). Disconnection of the oil
supply pipes and burner cable is not necessary.
Fig. 4 BOILER FLUEWAY LEANING DESN 510228
Page
5
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

3.5 Burner Servicing
3.5.1 Twice Yearly Service
Undo the screw holding the blast tube to the burner (fig 9). lean the diffuser and ignition electrodes taking care
not to wipe nozzle tip itself. heck electrode gap and adjust if necessary (see fig. 10). lean inside burner, check
photo-resistor, electrical connectors and that all grommets are in place.
Reassemble
3.5.2 Twice Yearly Service
Annually, clean the oil pump and flue line strainers in addition to the half yearly service.
To Clean Oil Pump Strainer (fig 11).
a. Turn OFF the oil line isolating valve near to the appliance.
b. Break the flexible oil feed pipe joint as the inlet to the pump taking care to collect oil residue from the flexible
pipe and the pump.
c. Remove electricity connection socket from the solenoid .
d. Undo 4 x socket head screws which retain pump end cover.
e. Gently pull off end cover.
f. Remove pump strainer (filter) and wash with clean petrol or paraffin.
g. Re-assemble element and end cover in reverse order of removal.
To Clean Oil Line Filter
a. Turn off the line isolating valve fitted prior to the oil line filter.
b. Follow manufacturer’s instructions to remove filter element from the housing taking care to collect oil residue
from the filter housing,
c. Wash filter thoroughly in clean petrol or parrafin.
d. Re-assemble filter in reverse order of removal.
REPLACEMENT SPARES
IMPORTANT: Isolate the electrical supplies to the appliance.
4.1 Burner
4.1.1 To Replace Burner Nozzle (see fig 10)
N.B. Nozzles should not be replaced or dismantled for cleaning nozzle filters unnecessarily. This should normally
be done if, after carrying out the routine service, the combustion check does not give acceptable results. Nozzles
Page
6
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

should be handled with great care, using clean tools and clean hands.
a. Remove burner assembly as in routine service section - 3.4.
b. Unscrew nozzle from its holder with a correctly fitting tubular spanner to avoid damage to hexagon.
c. Replace nozzle by a new one of the same size, spray angle and spray pattern.
4.1.2 To Clean Burner Nozzle Filter (see fig. 10)
a. Remove nozzle as in 4.1.1.
b. Unscrew filter assembly from the rear of nozzle,
c. Wash filter assembly in clean petrol or parrafin.
d. Refit filter assembly to nozzle in reverse order of removal.
Fig. 5 FITTING FIREBRI K FOR SUMMER USE DESN 510221
Page
7
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

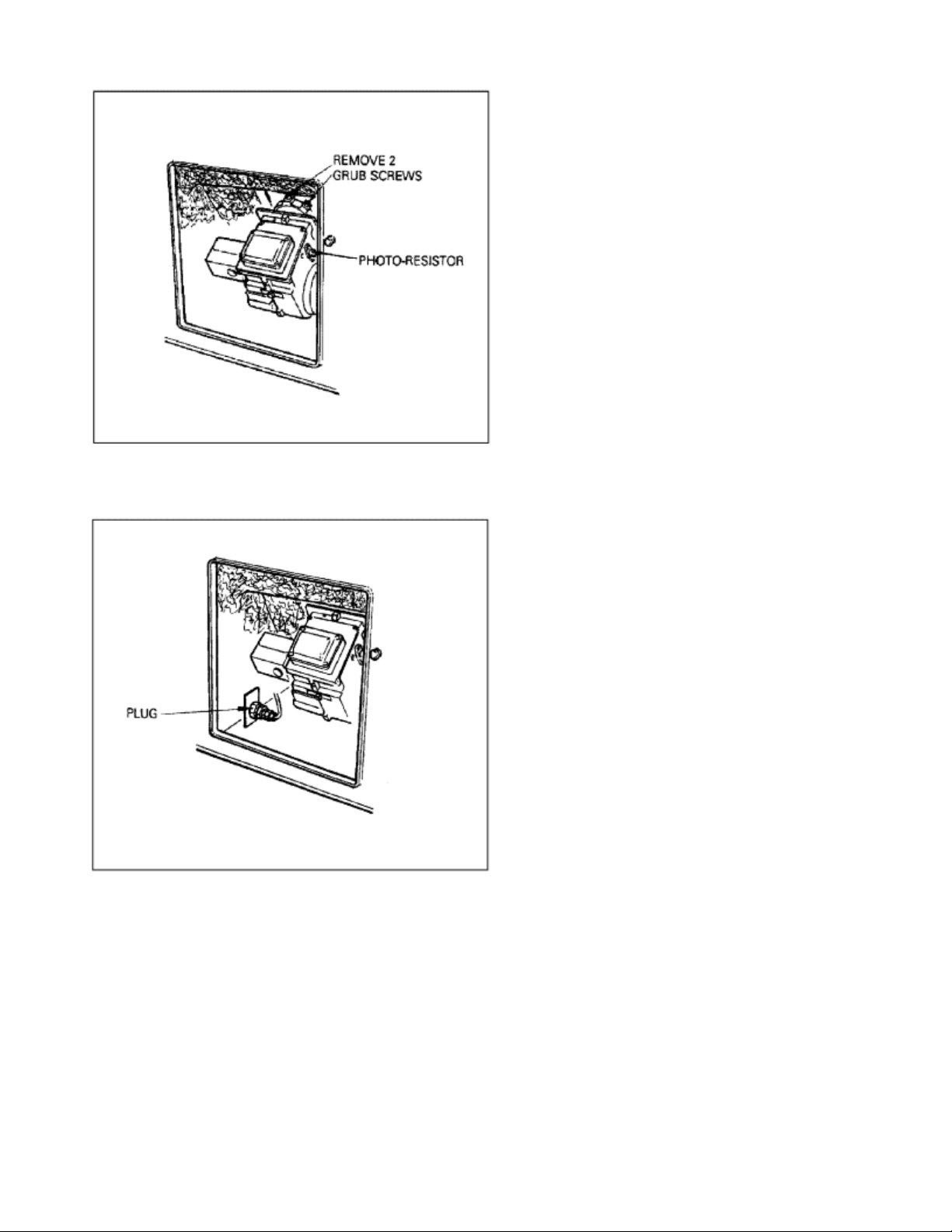

Fig. 6 DESN 510234
Fig. 7 REMOVAL OF BURNER ASSEMBLY DESN 510234
Page
8
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 8 REMOVAL OF BURNER DESN 510236
Fig. 9 BLAST TUBE REMOVAL DESN 510237
Page
9
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 10 BURNER DETAIL DESN 510238
Page
10
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 11 REMOVAL OF BURNER OIL PUMP STRAINER DESN 510239
Fig. 12 REMOVAL OF OIL SOLENOID DESN 510240
Page
11
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 13 OOKER ONTROLS DESN 510217 ‘ ’
4.1.3 To Replace Oil Pump Solenoid Valve (see fig 12)
a. Turn OFF the oil line isolating valve near to the appliance.
b. Remove burner assembly as in routine service section - 3.4.
c. Pull off electricity connection socket from solenoid.
d. Break the flexible oil feed pipe joint as the inset to the pump taking care to collect oil residue from the flexible
pipe and pump.
e. Disengage retaining bolt from solenoid housing tube to remove solenoid coil.
f. Unscrew solenoid housing tube from oil pump with a correctly fitting spanner to avoid damage to hexagon,
taking care to collect oil residue from the oil pump.
g. Fit replacement solenoid valve and assemble in reverse order of dismantling.
4.1.4 Burner Re-commissioning
BLEED AIR FROM OIL SUPPLY LINE. With flexible oil pipe disconnected at the pump end, open the stop valve
slowly and run off some oil into a receptacle to establish an air free supply to the pump. Make the connection oil
tight and leave valve open.
Switch on Electricity.
Turn the oven thermostat to 9. The burner should start and run on pre-purge for 7 to 15 seconds, with the ignition
spark energised, before the solenoid valve opens admitting oil and allowing it to fire. Until all the air from the oil
Page
12
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

pump is flushed out there may be some flame instability resulting in the burner locking out as indicated by the
signal light in the re-set button of the control box (see fig 13). In this event, wait at least one minute, then press
the re-set button to re-start.

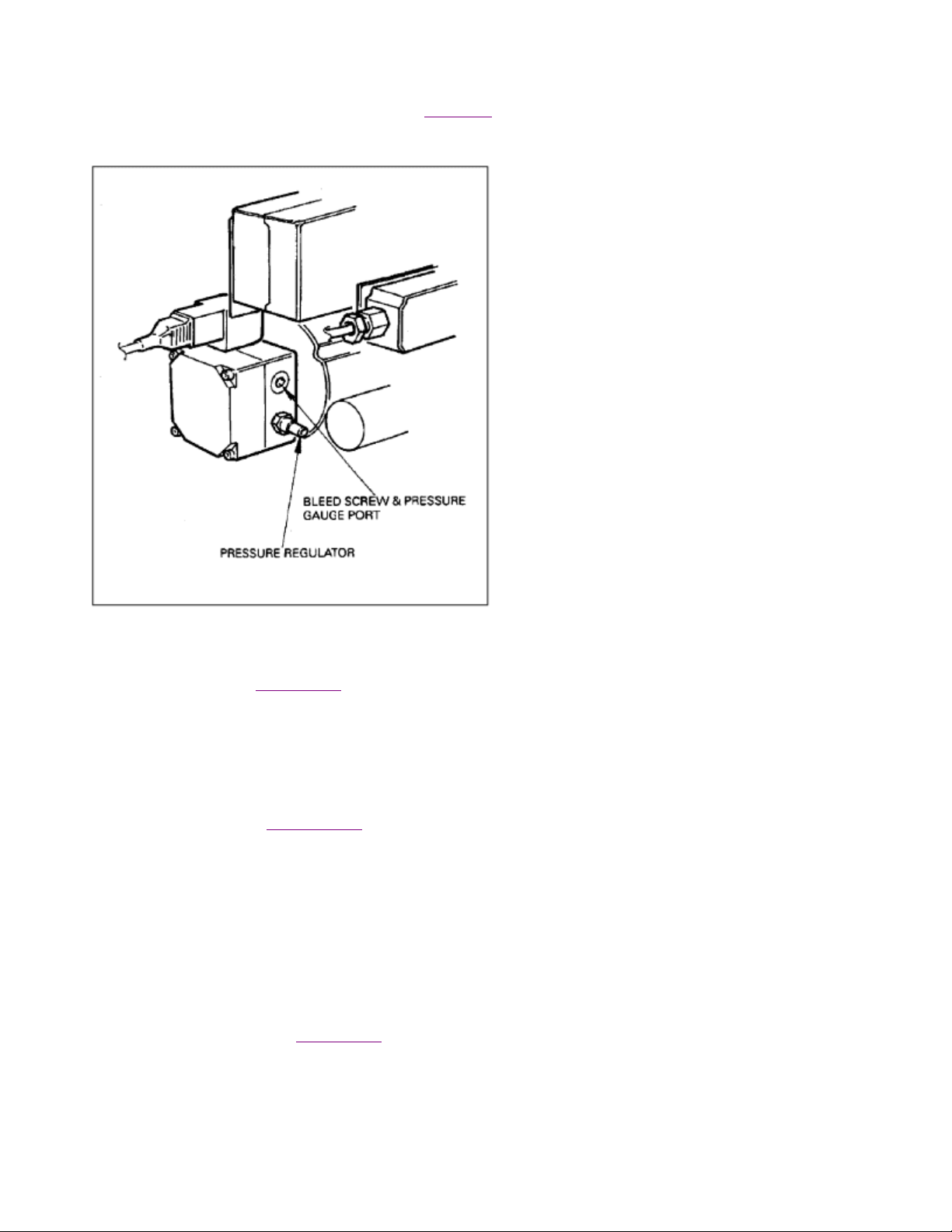

Fig. 14 BURNER OIL PUMP ONNE TIONS DESN 510229
Vent the Oil Pump (see fig 14)
Place a suitable container beneath the pump to collect the excess oil.
Slacken the bleed screw to release the trapped air in the pump. The burner will fire when the bleed screw is re-
tightened. (N.B. The burner may have locked out before all the air was released; repeat as often as necessary.
Check Oil Pressure (see Fig. 14)
Place a suitable container beneath the pump to collect the excess oil.
Unscrew and remove the bleed screw from the pump and fit an oil pressure gauge with R1/8 connection. Restore
the electricity supplies to the appliance. Switch on the burner and check the oil pressure on the pressure gauge. If
the pressure gauge is not indicating the correct reading then adjust the pressure by turning the pressure regulator
clockwise to increase, or anti-clockwise to decrease the pressure until the pressure gauge reads 10bar
(145Ibf/In
2
). Switch off the burner and disconnect all electrical supplies to the appliance. Remove the pressure
gauge and replace the bleed screw.
Check Combustion Air (see fig 15)
Switch on electricity supplies to the appliance. Switch on the burner and set cooker/burner damper control knob to
H (Heating). Remove the enamelled top plate cover panel (A) behind the LH insulating cover where a plugging
screw will be seen. Remove this screw and insert sensing end of portable indicator to check the O
2
(carbon
dioxide). Adjust the burner air intake until 11.5% O
2
of flue gases is recorded on the indicator.
Page
13
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Note: The outer burner door should be closed when checking CO
2
. Ensure that only the baffle bricks are
fitted.
Check Smoke
Remove the O
2
indicator and using the same hole for flue sampling. Insert the housing end of baccarach smoke
pump and check that the smoke in the flue exit does not exceed No.2 on the scale.
Note: The outer burner door should be closed when checking level.
Fig. 15 FLUE GAS SAMPLING AND OMBUSTION AIR ADJUSTMENT DESN 510231
Page
14
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 16 THERMOSTAT MOUNTING AND PHAIL LO ATION DESN 510242 ‘A’
4.2 THERMOSTAT REPLACEMENT (SEE FIG 16).
4.2.1 To Remove Cooker (oven) Thermostat
a. Pull off the two thermostat knobs. Remove two pan head screws securing control cover to L.H. side panel and
remove cover.
b. Disconnect two electrical leads from the thermostat.
c. Unscrew thermostat fixing screws to detach cooker (oven) thermostat from mounting plate.
d. Open oven door and using a screwdriver, remove two fixing screws securing inner L.H. oven side to expose the
located thermostat phial.
e. Remove the phial securing screw and unclip thermostat phial from the L.H. side of roasting oven and reset
phial to face across the oven width instead of facing in depth.
f. Slacken the capillary securing clamp inside the oven and two capillary retaining brackets inside burner housing.
g. Withdraw the capillary and phial carefully out of the oven, across the burner and out through the side casing.
h. Fit replacement thermostat and assemble in reverse order of removal. Electrical leads to be reconnected as
previously (see fig 18 for connections).
4
.
2
.
2
Boiler
Thermostat
Page
15
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

a. Pull off the two thermostat knobs. Remove two pan head screws securing control cover to L.H. side panel and
remove cover.
b. Remove two pan head screws securing rectangular cover to the rear top of the L.H. side panel and remove
cover to expose boiler and pump overrun thermostat phial housing pocket.
c. Remove split pin from the pocket.
d. Withdraw both boiler and pump overrun thermostat phials from the pocket, and separate the two phials from
one another.
e. Disconnect two electrical leads from the thermostat.
f. Unscrew thermostat spindle locknut to detach boiler thermostat from mounting plate.
g. Fit replacement thermostat and assemble in reverse order of removal. Electrical leads to be reconnected as
previously (see fig 18 for connections). The boiler and pump overrun thermostat phials should be assembled
together before fitting into the pocket.
4.2.3 To Remove Pump Overrun Thermostat
a. Pull off the two thermostat knobs. Remove two pan head screws securing control cover to L.H. side panel and
remove cover.
b. Remove two pan head screws securing rectangular cover to the rear top of the L.H. side panel and remove
cover to expose boiler and pump overrun thermostat phial housing pocket.
c. Remove split pin from pocket.
d. Withdraw both boiler and pump overrun thermostat phials from the pocket, and separate the two phials from
one another.
e. Disconnect two electrical leads from the thermostat.
f. Unscrew thermostat spindle locknut to detach overheat thermostat from mounting plate.
g. Fit replacement thermostat and assemble in reverse order of removal. Electrical leads to be reconnected as
previously (see fig. 18 for connections). The boiler and pump overrun thermostat phials should be assembled
together before fitting into the pocket.
4.3 Control Circuit Description - see fig. 18 for wiring diagram.
(see fig. 17 for terminal block and RELAY locations).
The main line voltage to the appliance is applied via terminal ‘L’ on terminal block. Basically the OOKER and
BOILER are connected in parallel with each other and in series with the PUMP OVERRUN thermostat through
RELAY (2).
Some switching is done via the RELAY (1) to segregate the OOKER and BOILER ONTROL and yet keep the
burner LO K-OUT protection in operation.
4.3.1 Cooking
When mains power is switched on and the time switch connections are made (across L4/L5) power is supplied to
Relay (2) through the overheat thermostat. ontacts 1/3 on Relay (2) bring on the circulating pump and contacts
Page
16
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

6/8 will allow the burner to fire. For the ignition sequence to start Live power must be connected to terminal 1 the
Danfoss control box. This is achieved by connecting contact 6 on Relay (2) through either of the operating
thermostats to terminal 1 on Relay (1) and to terminal 1 in control box via connector block L3.
When cooking the oven thermostat priority switch must be on (on cooking). These contacts operate Relay (1)
which
isolates the BOILER thermostat. The connection is completed through the temperature controlled switch
connections of the OOKER THERMOSTAT.
Id the boiler water temperature during the operation of the appliance under the control of the cooker thermostat
rises too high then the pump overrun thermostat will operate. This remove the power from Relay (2) which cuts
out the supply of power to the burner but still keeps the circulating pump operating.
4.3.2. Heating
Since the cooker thermostat has priority, the appliance can be controlled by the boiler thermostat only when the
oven thermostat priority switch is off (on heating). The sequence of events is exactly the same as for cooking
except the circuit is completed now by the temperature controlled switch connections in the BOILER thermostat.
4.3.3 Pump Overrun Thermostat
When the time clock/programmer switches off at the end of the cooking and or heating period the circulating
pump is switched off as well as the cooker. If in the period of time after the pump has gone off the water
temperature in the boiler should rise too much then the pump overrun thermostat will operate and switch on the
pump (but not the burner).
Page
17
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Fig. 17 EXTERNAL ONNE TIONS TERMINAL BLO K DESN 510243
4.3.4 Photo-Resistor (see fig. 6)
The Photo-Resistor is simply removed by pulling the body of the unit sideways from the keyhole slot. The
connecting cables should be traced back to the control box and then removed, noting their positions, refit new
component in reverse order.
4.3.5 Oven Thermostat Priority Switch
a. Pull off the two thermostat knobs. Remove two pan head screws securing control cover to L.H. side panel and
remove cover.
b. Disconnect three electric leads from the priority switch.
c. Press in the switch retaining flanges and pull out the switch from the control cover. Note the position of the
electrical lead connections.
d. Fit replacement switch and assemble in reverse order of removal.
FAULT FINDING
5.1 Control Circuit
The correct operation of the control circuit can be checked as follows. Switch both cooker (oven) and boiler
thermostats to ‘OFF’. onnect the mains supply to terminal L.N and E and with the time switch/programmer
switched off turn the power on. Terminal L4 should be live, if not check pump overrun/cooker over heat
thermostat.
When the time switch/programmer is switched on RELAY 2 can be seen and heard to operate. If not check
terminal L5. If L5 is live then check voltage across RELAY 2 operating coil (Terminals 2 & 7). If L5 is not live then
check time switch contacts.
When RELAY 2 operates then:
L1 is made live and the water circulating pump comes on.
L2/L3 are made live, if none of these are live then check RELAY 2 connections.
If the oven thermostat priority switch is switched ON (illuminated) then the RELAY 1 can be seen and heard to
operate. If not then the fault lies in the oven thermostat priority switch contacts or RELAY 1 operating coil. heck
that there is a main voltage to the operation coil. If not, the fault is in the oven thermostat priority switch contacts.
When RELAY operates:
Terminal 3 on 6-pole socket is made live. If not, the RELAY 1 contacts are faulty. When L3 is made live, the
burner should fire.
Turn Oven Thermostat OFF.
Turn Boiler Thermostat ON.
Oven
Thermostat
Priority
Switch
To
OFF
(
Not
Illuminated
)
Page
18
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

RELAY will not operate:
3 is made live as above. If not, then the fault lies in the boiler thermostat or RELAY 1 contacts.
heck that there is mains voltage in No.4 on the RELAY.
If not, the fault is in the boiler thermostat. If there is power to No.4 on the RELAY, but no power to 3 on the 6-pole
socket, the RELAY 1 contacts are faulty. When 3 on the 6-pole socket is live, the burner should fire.
Page
19
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...

Page
20
of
26
26/10/2006
file://\\server1\docs\NetCDs\Aga%20Product%20Information%20 pares%20and%20Tec
...
