INTRODUCTION
OVERVIEW ( FEATURES )
WHAT’S IN THE BOX
UNIT AT A GLANCE
FUNCTIONS
USING YOUR SPEAKER
ADVANCED FEATURES
SUPPORT
COMPLIANCE & REGULATORY INFORMATION
SAFETY & WARRANTY
Connecting via Bluetooth
Charging Your Device
LED Status
Resetting Device
Top Side
Back Side
Multi-Link
Mounting Configurations
CONTENTS

INTRODUCTION
Introducing your new Impact Speaker– an audio companion as strong as you are.
At Raycon, we believe in creating innovative tech designed to embrace and empower your every day.
We’ve teamed up with expert engineers, leading taste-makers, and platinum artists to design wireless
audio you’ll love to use and every day tech that can take whatever life throws your way. We believe in
the early risers and the one-more-milers of the world. Premium audio, inspired by you.
To get the most out of your Impact Speaker, we strongly encourage you to fully read through this user
guide. You can also visit our support center at www.rayconglobal.com/support. This web page has
more specific guidelines and helpful videos for you to navigate your product. For best performance,
charge fully before first use.
01
https://rayconglobal.com

FEATURES AT A GLANCE
DURABLE
PORTABLE
ADAPTABLE
• Built to last, we put our Impact Speaker to the test. Evaluated to meet the MIL-STD-810 US
Military defense standard for product readiness for harsh or extreme environments. With
an IP67 rating making it water resistant and safeguarded against dust and sand, the Im-
pact speaker can take whatever life throws at you.
MIL-STD-810 certified, IP67 rated
15 hour battery life (at 50% volume) and versatile mounting
Multi-Link, Built-in Microphone, AUX & SIM Card Mode
• Be ready for anything, anywhere. Mount the Impact speaker on your bike, on the wall, on a
tripod with the ¼’’- 20 threaded opening, compatible with most mounting accessories. No
mount? No problem! Strong magnets embedded in the bottom of the speaker allow you
to mount it on any magnetic surface. With a 15 hour battery life, you don’t have to worry
about charging cables and wall-plugs tying you down.
• Make your audio experience meet your needs. Use Multi-Link to create a larger, more
immersive sound system. Have an impromptu team meeting using the built-in microphone.
Listen the way you want to through a wired AUX connection or SD card. The Impact
Speaker is as versatile as you are.
https://rayconglobal.com 02

The Impact Speaker
Quick Start Guide & Compliance Booklet
USB to USB-C Charging Cable
03

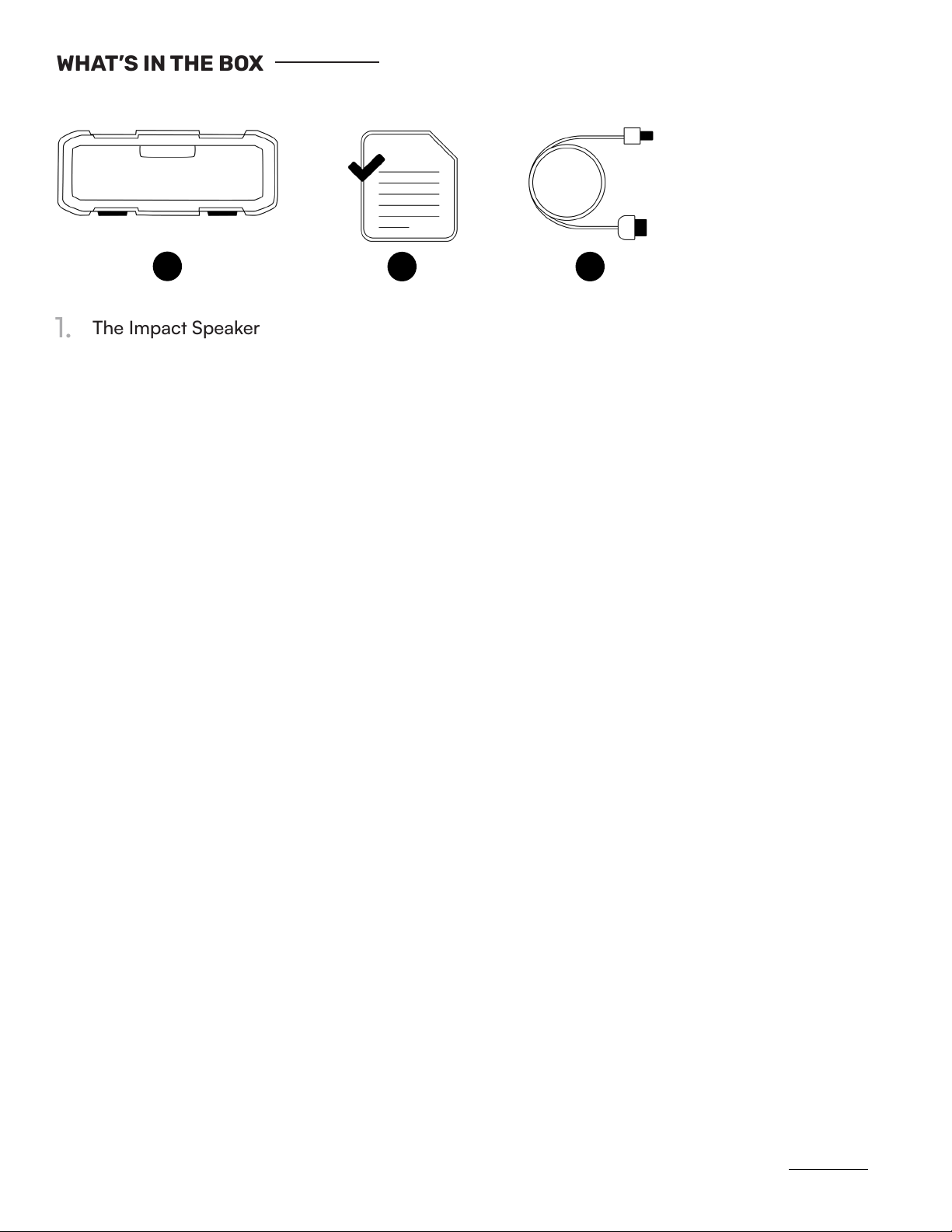

WHAT’S IN THE BOX
1.
2.
3.
https://rayconglobal.com
12 3

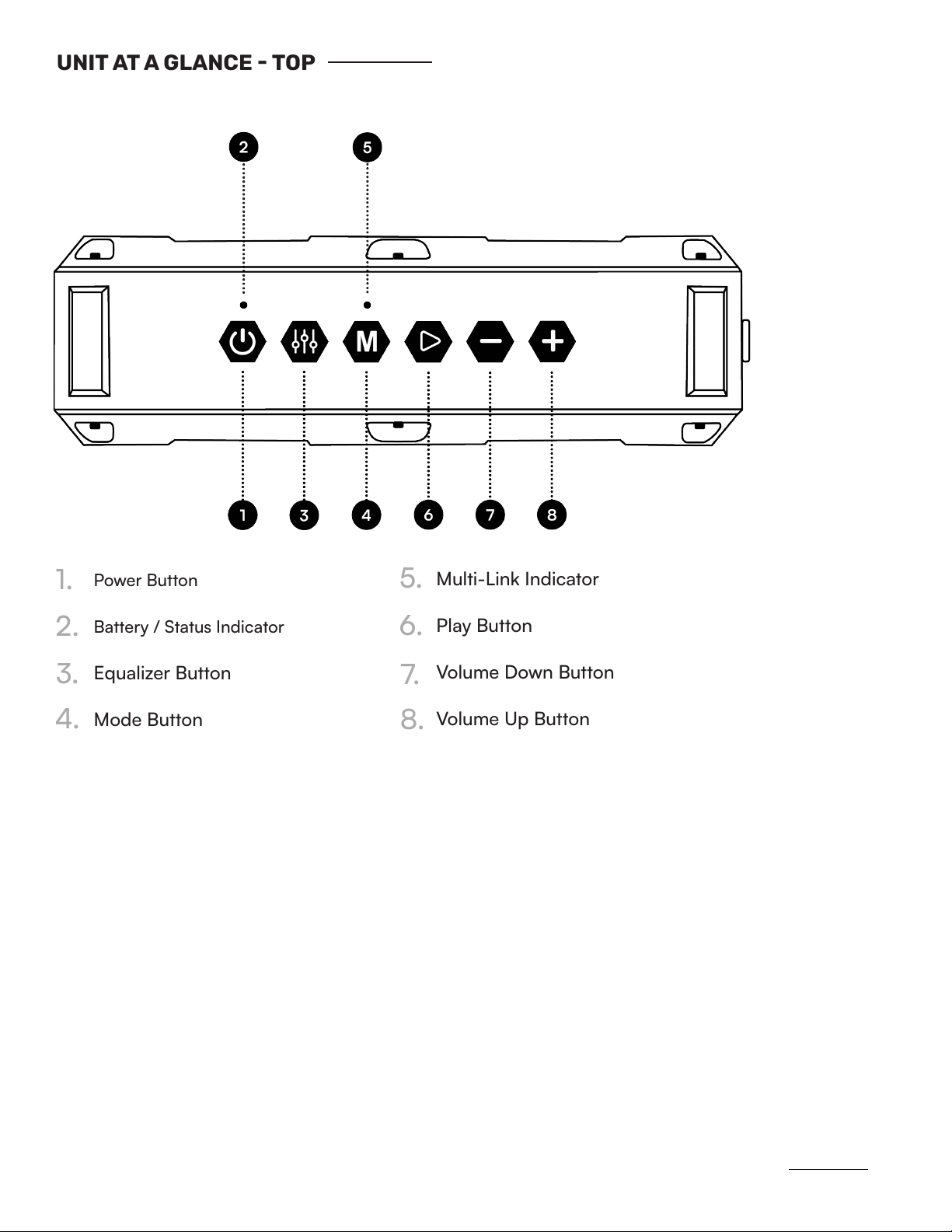

UNIT AT A GLANCE - TOP
https://rayconglobal.com 04
Power Button
Battery / Status Indicator
Equalizer Button
Mode Button
1.
2.
3.
4.
5.
6.
7.
8.
Multi-Link Indicator
Play Button
Volume Down Button
Volume Up Button

UNIT AT A GLANCE - BACK
USB-C Charging Port
SD Card Slot
AUX Port
Charging Indicator
1.
2.
3.
4.
https://rayconglobal.com 05

FUNCTIONS
PLAYBACK CONTROLS
VOICE COMMAND / RE-PAIRING
EQUALIZER CONTROLS
VOLUME CONTROLS
POWER CONTROLS
CALL CONTROLS
(While receiving a call)
Play/Pause
Voice Command
Balanced Sound
Bass Sound
Pure Sound
Pairing Mode
Tap Once
Tap Twice
Tap Once
Tap Once
Tap Once
Hold for 1.5s
Tap Once
Hold for 1.5 Seconds
Tap Once
Hold for 1.5 Seconds
Tap Once
Tap Once
Hold for 3 Seconds Tap Twice
Tap 3 times
Volume Up
Power on
Answer Call
Reject Call
End call
Volume Down
Power o Skip Track
Previous Track
https://rayconglobal.com 06
1.
2.
3.
4.
5.
6.

USING YOUR SPEAKER
CONNECTING VIA BLUETOOTH
Hold “ ” for 1.5 Seconds. Speaker will enter
pairing mode automatically.
From the source device, go to Bluetooth settings and ensure Bluetooth is
on. Search for “The Impact Speaker” and select it to pair.
1.
2.
https://rayconglobal.com 07

CHARGING YOUR DEVICE
Plug the USB-C end into the port Connect the other end of the USB cable
into a wall charger, computer, or a power
bank (2.4 amp minimum)
The indicator light near the port
will glow red until fully charged
Note: When the Battery is low, a sound
prompt will play, followed by a blinking
red light
Allow up 3 hours to fully charge.
The Impact Speaker can last up
to 15 hours on a single charge!
1. 2.
3. 4.
5.
https://rayconglobal.com 08

LED STATUS
STATUS
STATUS
MEANING
MEANING
Speaker is connected to a device
Multi-Link Pairing mode
Blinking White Light
above “M”button
Solid White Light
above “M” button
Multi-Link mode is active ( 2
speakers connected)
Solid Blue Light
Alternating Blue & Red Lights
Solid Red Light
(2 seconds) then o
Blinking Red Light
Speaker is in pairing mode
Shutting down
Battery is low
LED INDICATION
LED INDICATION
LED
“M” LED
https://rayconglobal.com 09

RESETTING DEVICE
SOFT RESET:
HARD RESET:
TURN OFF: Press and Hold Power Button for 3 seconds (Red Light will appear
above Power Button for 2.5 seconds)
While the speaker is On: Press and Hold Power Button for approximately 10-15 seconds
Continue to hold until the speaker restarts and turns back on
• Speaker will power down aer approximately 3 seconds but continue to hold down
Power Button
• Red light will disappear for 1 second before restarting
• Wait until you hear the “Power On” Sound prompt / the Blue light to appear
• The Red LED will appear above the Power button even aer shutting down.
TURN ON: Press and Hold the Power Button for 1.5 seconds (Blue Light will appear
above Power Button for 2.5 seconds)
https://rayconglobal.com 10
1.
1.
2.
2.

MULTI-LINK
ADVANCED FEATURES
WHAT IS MULTI-LINK?
HOW DO YOU LINK SPEAKERS?
Multi-link can be used to tailor your audio experience to your specific needs and preferences.
Using Bluetooth, you can wirelessly connect an additional Impact Speaker and play audio
simultaneously to create a larger, more immersive sound system.
Once linked, you can control the speakers as a group, adjusting the volume and other settings for
all speakers to allow for a more flexible and customizable speaker setup.
https://rayconglobal.com 11
STEP 1 STEP 2
STEP 3 STEP 4
First unpair any connected
devices from both speakers
(enter Pairing mode)
White LED above the Mode
Button “M” will start to blink
while trying to connect
Once connected, the White
LED will turn solid on both
speakers
Hold Play on One Speaker

MOUNTING CONFIGURATIONS
The Neodymium Magnets on the base can mount onto any magnetic metals
¼”-20 Base mount:
Clip onto anything and everywhere - the carabiner can hook onto wherever you
need it to
NOTE: Be careful of placing the Impact Speaker near other electronics that are
sensitive to magnets
Can be used to thread any ¼”-20 standard accessory to the speaker for maximum
mounting potential.
• Examples: Think bike mounts, wall mounts, and more
1.
2.
3.
https://rayconglobal.com 12

TROUBLESHOOTING / FAQ
BLUETOOTH CONNECTION / SOUND INTERFERENCE?
SPEAKER WILL NOT TURN ON?
MULTI-LINK IS NOT WORKING?
HOW DO I USE THE SIM CARD MODE?
HOW LONG DOES IT TAKE CHARGE THE SPEAKER?
HOW LONG DOES THE SPEAKER LAST?
HOW DO I KNOW IF THE BATTERY IS LOW?
• Ensure speaker is within 10 meters (33 feet) of connected Bluetooth device
• Check the battery level: If the battery level of either the speaker or your connected
device is low, it can cause the connection to be weak or to drop.
• Charge the speaker: Make sure the speaker is fully charged by plugging it into a
power source using the provided charger cable.
• Check the Power Button: Make sure the Power Button on the speaker is not stuck or
broken. Press the Power Button firmly to ensure it is engaging.
• Reset the speaker: Follow the Reset Instructions in this user manual to reset the
speaker.
• Confirm both speakers are charged, powered on, and they are both disconnected
from any Bluetooth device and in Pairing Mode.
• Be sure to use only one speaker as the parent device by holding the Play Button on
just one speaker.
• Ensure both speakers are in close proximity of each other.
• First, disconnect the speaker from any previously connected devices
• Insert a SIM Card into the back of the Speaker
• Speaker will automatically switch into “TF Mode”
• When successful, a blinking blue LED will appear above the Power mode indicating
a successful operation and start to play your media files
• It takes approximately 3 hours to fully charge the Impact Speaker from 0%.
• Enjoy epic sounds for 15 hours at 50% Volume
• When the speaker’s battery has 30 minutes le of playtime, the low battery prompt will
begin to broadcast, and the low battery prompt tone will be played every 10 minutes.
https://rayconglobal.com 13

SAFETY & WARRANTY
SAFETY GUIDELINES
SUPPORT
LIMITED WARRANTY
PRODUCT SPECIFICATIONS
• Be wary of any edges, uneven surfaces, and metal parts, including on accessories and
product packaging, to prevent any possible injury or damage.
• Listen to music at proper volume to avoid damaging your hearing and speaker
• Do not store in high temperatures, such as in a hot vehicle or in direct sunlight
• Store in cool and dry area
• Do no modify, repair, or dismantle the product on your own
• Ensure all port covers are securely closed if exposing speaker to liquid, and do not expose
speaker and any of its supplied parts to liquid such as rain for prolonged periods of time.
Please see IP67-Rating for more information
• Do not expose the speaker to water while charging, as doing so may result in damage to
the speaker or the power source
• When cleaning this speaker, use a so dry cloth. For more severe stains, dampen the cloth
with water only. Anything else increases the chance of dissolving the paint or damaging
the plastic
If your device is not functioning properly, please visit www.rayconglobal.com/support for
customer support, and we will be more than happy to help you.
Your Impact Speaker is covered by a limited warranty. Please visit our website at www.
rayconglobal.com/warranty for more details.
Pairing ID: The Impact Speaker
RDID: D970-23E-0123
Bluetooth Version: 5.2
Power Input: DC 5V/1.8A
Charging Time: About 3 hours
Call/Play Time: About 15 hours at 50% volume
Speaker Size: 47 mm
Speaker Power: 20W
Battery Capacity: 2600mAh
Weight: About 1730g
Product Size: 182 (L) x 56 (W) x 74 (H) mm
Bluetooth Operating Range: ≤ 10m
https://rayconglobal.com 14

COMPLIANCE & REGULATORY INFORMATION
FCC WARNING
IC WARNING
RF EXPOSURE STATEMENT:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
This device contains license-exempt transmitter(s)/receiver(s) that
complies with Innovation, Science and Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two conditions:
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. Those limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
• This device may not cause harmful interference, and
• The device must accept any interference received, including interference that may cause
undesired operation. Any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the device.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer on an experienced radio/TV technician for help. The device has been
evaluated to meet general RF exposure statements. The device can be used in portable
exposure conduction without restriction.
• This device may not cause interference.
• This device must accept any interference, including interference that may cause undesired
operation of the device.
https://rayconglobal.com 15
