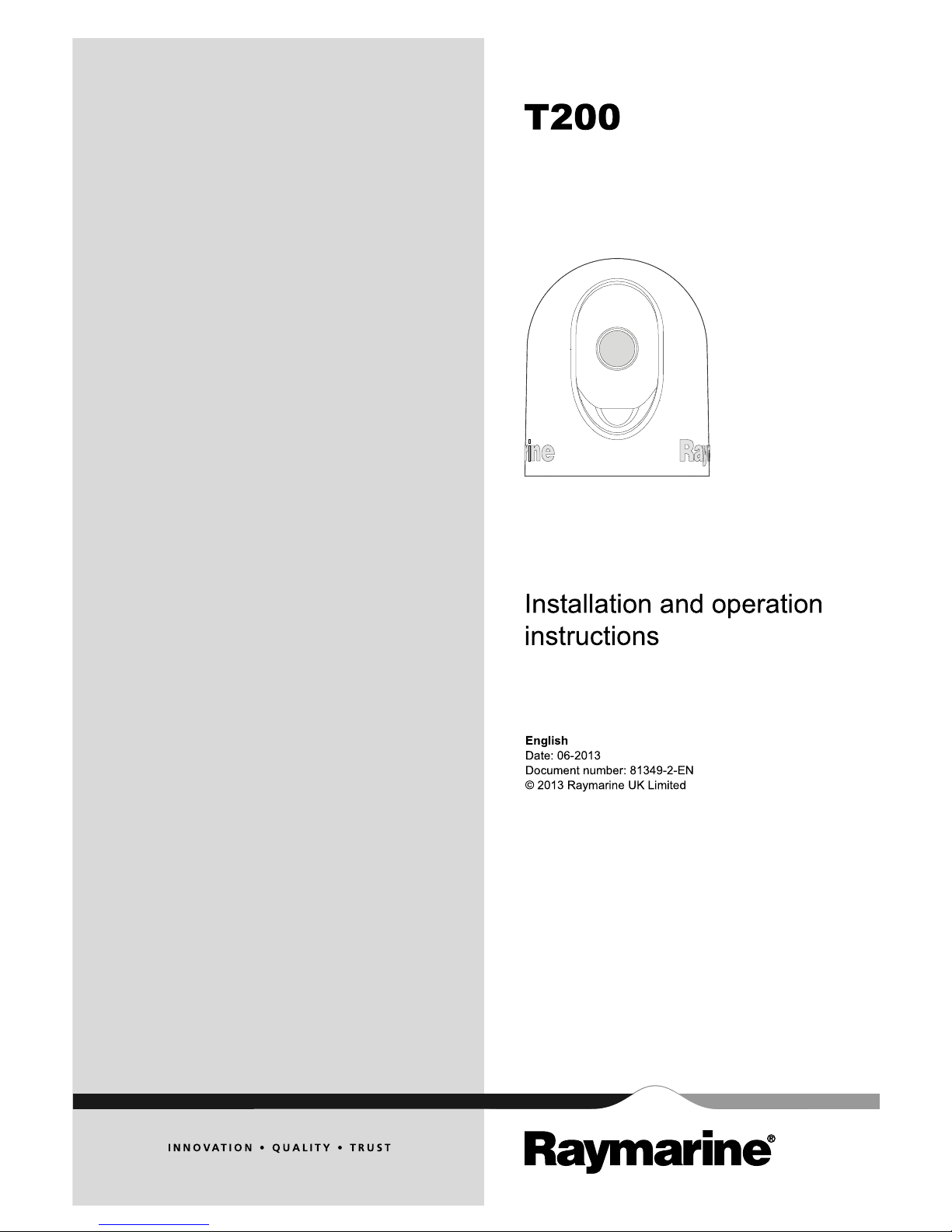

Raymarine E70111 User manual

T200
Installation and operation
instructions
English
Date: 06-2013
Document number: 81349-2-EN
© 2013 Raymarine UK Limited
T200

Chapter1:Importantinformation
Warning:Productinstallationand
operation
Thisproductmustbeinstalledandoperatedin
accordancewiththeinstructionsprovided.Failure
todosocouldresultinpersonalinjury,damageto
yourvesseland/orpoorproductperformance.
Warning:Potentialignitionsource
ThisproductisNOTapprovedforusein
hazardous/ammableatmospheres.DoNOTinstall
inahazardous/ammableatmosphere(suchasin
anengineroomornearfueltanks).
Warning:Productgrounding
Beforeapplyingpowertothisproduct,ensureithas
beencorrectlygrounded,inaccordancewiththe
instructionsinthisguide.
Warning:Switchoffpowersupply
Ensurethevessel’spowersupplyisswitchedOFF
beforestartingtoinstallthisproduct.DoNOT
connectordisconnectequipmentwiththepower
switchedon,unlessinstructedinthisdocument.
Warning:Ensuresafenavigation
Thisproductisintendedonlyasanaidtonavigation
andmustneverbeusedinpreferencetosound
navigationaljudgment.Onlyofcialgovernment
chartsandnoticestomarinerscontainallthe
currentinformationneededforsafenavigation,and
thecaptainisresponsiblefortheirprudentuse.Itis
theuser’sresponsibilitytouseofcialgovernment
charts,noticestomariners,cautionandproper
navigationalskillwhenoperatingthisoranyother
Raymarineproduct.
Warning:Maintainapermanent
watch
Alwaysmaintainapermanentwatch,thiswillallow
youtorespondtosituationsastheydevelop.
Failuretomaintainapermanentwatchputs
yourself,yourvesselandothersatseriousriskof
harm.
Caution:Powersupplyprotection
Wheninstallingthisproductensurethepower
sourceisadequatelyprotectedbymeansofa
suitably-ratedfuseorautomaticcircuitbreaker.
Caution:Serviceandmaintenance
Thisproductcontainsnouserserviceable
components.Pleasereferallmaintenance
andrepairtoauthorizedRaymarinedealers.
Unauthorizedrepairmayaffectyourwarranty.
Cleaningthethermalcamera
Thecamerahousingandlenswillrequireoccasionalcleaning.
Raymarinesuggeststhatyoucleanthelenswhenimagequality
degradationisnoticedorexcessivecontaminantbuildupisseen.
Cleantheinterfacebetweentheyokeandbaseoftentoprevent
accumulationofdebrisorsaltdeposits.
Whencleaningthisproduct:
•DoNOTwipethelenswindowwithadrycloth,asthiscould
scratchthecoating.
•DoNOTuseabrasive,oracidorammoniabasedproducts.
•DoNOTpressurewash.
Particularcareshouldbetakenwhencleaningthelenswindow,
thishasaprotectiveanti-reectivecoatingwhichmaybe
damagedbyimpropercleaning.
1.Switchoffthepowertotheunit.
2.Cleanthecamerabodywithaclean,softcottoncloth.You
canmoistentheclothanduseamilddetergentifrequired.
3.Cleanthecameralens.
•Rinsethelenswithfreshwatertoremovealldirtparticles
andsaltdeposits,andallowtodrynaturally.
•Ifanyspotsorsmearsremain,verygentlywipethelens
windowwithacleanmicrobreclothorsoftcottoncloth.
•Ifnecessary,useisopropylalcohol(IPA)oramilddetergent
toremoveanyremainingspotsormarks.
Wateringress
Wateringressdisclaimer
Althoughthewaterproofratingcapacityofthisproductmeets
theIPX6standard,waterintrusionandsubsequentequipment
failuremayoccuriftheproductissubjectedtocommercial
high-pressurewashing.Raymarinewillnotwarrantproducts
subjectedtohigh-pressurewashing.
Disclaimer
Raymarinedoesnotwarrantthatthisproductiserror-freeorthat
itiscompatiblewithproductsmanufacturedbyanypersonor
entityotherthanRaymarine.
Raymarineisnotresponsiblefordamagesorinjuriescausedby
youruseorinabilitytousetheproduct,bytheinteractionofthe
productwithproductsmanufacturedbyothers,orbyerrorsin
informationutilizedbytheproductsuppliedbythirdparties.
EMCinstallationguidelines
Raymarineequipmentandaccessoriesconformtothe
appropriateElectromagneticCompatibility(EMC)regulations,
tominimizeelectromagneticinterferencebetweenequipment
andminimizetheeffectsuchinterferencecouldhaveonthe
performanceofyoursystem
CorrectinstallationisrequiredtoensurethatEMCperformance
isnotcompromised.
ForoptimumEMCperformancewerecommendthatwherever
possible:
•Raymarineequipmentandcablesconnectedtoitare:
–Atleast1m(3ft)fromanyequipmenttransmittingor
cablescarryingradiosignalse.g.VHFradios,cablesand
antennas.InthecaseofSSBradios,thedistanceshould
beincreasedto7ft(2m).
–Morethan2m(7ft)fromthepathofaradarbeam.A
radarbeamcannormallybeassumedtospread20degrees
aboveandbelowtheradiatingelement.
•Theproductissuppliedfromaseparatebatteryfromthatused
forenginestart.Thisisimportanttopreventerraticbehavior
anddatalosswhichcanoccuriftheenginestartdoesnot
haveaseparatebattery.
Importantinformation

•Raymarinespeciedcablesareused.
•Cablesarenotcutorextended,unlessdoingsoisdetailedin
theinstallationmanual.
Note:Whereconstraintsontheinstallationprevent
anyoftheaboverecommendations,alwaysensurethe
maximumpossibleseparationbetweendifferentitemsof
electricalequipment,toprovidethebestconditionsforEMC
performancethroughouttheinstallation

Chapter2:Handbookandproductinformation
Chaptercontents
•2.1Handbookinformationonpage10
•2.2Productinformationonpage10
Handbookandproductinformation

2.1Handbookinformation
ThishandbookdescribestheinstallationofRaymarineT200
Seriesxedmountthermalcamerasaspartofamarine
electronicssystem.
Thishandbookincludesinformationtohelpyou:
•planyourthermalimagingsystemandensureyouhaveallthe
necessaryequipment,
•installandconnectthethermalcameraasapartofyour
systemofRaymarineelectronics,
•obtainsupportifrequired.
Handbooks
DescriptionPartnumber
T200SeriesInstallationandOperations
Handbook
81349
T200SeriesMountingTemplate87190
2.2Productinformation
TheT200seriesxedmountthermalcamerasconsistofasealed
cameraballassemblyandaremovableoutercover.Theouter
coverisnotintendedtoprovidesealing.Thecameraprovides
analogvideooutputthroughastandardF-typeconnectionand
receivespowerfromitsPoweroverEthernet(PoE)interface.
D12865-1
ThefollowingvariantsoftheT200seriesxedmountthermal
cameraareavailable:
PartnumberDescription
E70111T200–Thermalcamera320x240(9Hz)NTSC
E70110T203–Thermalcamera320x240(30Hz)NTSC
E70113T220–Thermalcamera320x240(9Hz)PAL
E70112T223–Thermalcamera320x240(25Hz)PAL
E70121T250–Thermalcamera640x480(9Hz)NTSC
E70120T253–Thermalcamera640x480(30Hz)NTSC
E70123T270–Thermalcamera640x480(9Hz)PAL
E70122T273–Thermalcamera640x480(25Hz)PAL
Note:TheT200Seriesarexedmountcameraswiththe
panandtiltanglessetduringinstallation.Panandtiltcannot
bechangedremotely.
T200

Chapter3:Planningtheinstallation
Chaptercontents
•3.1Thermalcameracontrollersanddisplaysonpage12
•3.2Installationchecklistonpage12
•3.3Typicalsystemsonpage13
•3.4Partssuppliedonpage14
•3.5T oolsrequiredonpage15
Planningtheinstallation

3.1Thermalcameracontrollersand
displays
Atypicalthermalcamerasystemcomprisesofathermalcamera,
acontrollerandadisplay.Thedisplayandthecontrollermaybe
separateorintegrated.
D12838-1
12
3
5
4
1.Thermalcamera.
2.RaymarineMultifunctiondisplay—Integrateddisplayand
controller.
3.JoystickControlUnit(JCU)—Controlleronly.
4.LaptoporPC—Controlleronly.
5.Videomonitor—Displayonly.
Additionalequipment
Youmayhaveadditionalequipmentaspartofyourthermal
camerasystem:
•Multiplemultifunctiondisplaysandcontrollers.
•SeaT alkhsnetworkswitch–Usedtocreateanetworkof
compatibleRaymarineequipment.
Compatiblemultifunctiondisplays
ThefollowingRaymarinemultifunctiondisplaysarecompatible
withyourthermalcamera.
•cSeries(PoweroverEthernet(PoE)injectorrequired)
•eSeries(PoweroverEthernet(PoE)injectorrequired)
•gSSeries
3.2Installationchecklist
Installationincludesthefollowingactivities:
InstallationTask
1Planyoursystem.
2Obtainallrequiredequipmentandtools.
3Siteallequipment.
4Routeallcables.
5Drillcableandmountingholes.
6Makeallconnectionsintoequipment.
7Secureallequipmentinplace.
8Poweronandtestthesystem.
Schematicdiagram
Aschematicdiagramisanessentialpartofplanningany
installation.Itisalsousefulforanyfutureadditionsor
maintenanceofthesystem.Thediagramshouldinclude:
•Locationofallcomponents.
•Connectors,cabletypes,routesandlengths.
T200

3.3Typicalsystems
Examplec/eSeriessystem
D12839-1
3
2
1
4
5
1Thermalcamera.
2c/eSeriesmultifunctiondisplay(Integrateddisplayand
controller).
3PoweroverEthernet(PoE)injector.
4RayNettoSeaTalkhscable.
5Videocable.
ExamplegSSeriessystem
34
D12840-1
2
1
5
1Thermalcamera.
2gSSeriesmultifunctiondisplay(Integrateddisplayand
controller).
3Ethernetcoupler.
4RayNettoSeaTalkhscable.
5Videocable.
Note:WhenconnecteddirectlytoagSSeriesmultifunction
displaythethermalcameraissuppliedwithpowerover
ethernetfromthedisplay.
ExampleSystemwithJCU
D12841-1
7
98
2
1
3
5
4
6
9
1c/eSeriesmultifunctiondisplay(Integrateddisplayand
controller).
2Thermalcamera.
3Videoinputcable.
4Networkswitch.
5JCU(Optionalcontroller).
6PoweroverEthernet(PoE)injector(Requiredtosupply
powertotheJCU).
7PoweroverEthernet(PoE)injector(Requiredtosupply
powertothethermalcamera).
8RayNetcable.
9RayNettoSeaTalkhscable.
ExamplesystemwithJCUanddisplay
D12842-1
6
78
2
1
3
4
5
8
1VideoDisplay(Displayonly).
2Thermalcamera.
3Videoinputcable.
4JCU(RequiredController).
5PoweroverEthernet(PoE)injector(Requiredtosupply
powertotheJCU).
6PoweroverEthernet(PoE)injector(Requiredtosupply
powertothethermalcamera).
7Networkswitch.
8RayNettoSeaTalkhscable.
ExamplesystemwithPCcontrolleranddisplay
D12843-1
2
6
5
1
7 5
3
4
1VideoDisplay(Displayonly).
2Thermalcamera.
3Videoinputcable.
Planningtheinstallation

4Networkswitch.
5RayNettoSeaTalkhscable.
6PoweroverEthernet(PoE)injector(Requiredtosupply
powertothethermalcamera).
7Laptop(Controlleronly).
3.4Partssupplied
x6 x6 x6
x6
x4
x1
1
5
11
12
13
2 3
4
6
8
7
9
10
D12844-1
ItemDescriptionQuantity
1Thermalcamera.1
2Ethernetcoupler.1
3PoweroverEthernet(PoE)Injector.1
6
6
6
4Mountingkit,consistingof:
•M8nylocknut
•acornnut
•stud
•washer6
5O-ring.1
6Top-downxings.4
7Documentationpack.1
8Groundingstrapsecuringnut.1
2
2
9Videoconnectors:
•FemaletofemaleF-typeconnector
•FemaleF-typetoMaleRCAadaptor
•FemaleF-typetoBNCconnector2
10Zipties.3
111m(3.28ft.)RayNettoSeaTalkhscable.1
127.7m(25ft.)Ethernetcable.1
137.7m(25ft.)Coaxialvideocable.1
Unpackthecameraunitcarefullytopreventdamage.Savethe
cartonandpackingincasetheunithastobereturnedforservice.
Additionalitemsrequired
Tocompletetheinstallationyouwillalsoneedtoobtainthe
followingitems:
T200

•Chassisgroundstrap.
•Compatibledisplay/controllerhardware.
•Cablesforvideoconnections.
•PowercableforPoEinjector(ifusingthePoEinjector).
•Threadlockingcompound(e.g.Loctite242orequivalent),
requiredforallmetal-to-metalthreadedconnections.
•Marinegradesealingtape(e.g.3MScotch-Seal2229or
equivalent).
3.5Toolsrequired
Thefollowingtoolsarerequiredforinstallation.
D12 33 3-1
1 2
3
45
6
ItemDescription
1.Drill.
2.10mm(7/16inch)spanner.
3.6.4mmdrillbit(forbottomdown
installation).
4.Jigsaw(onlyrequiredforJCU
installation).
5.Pozi-drivescrewdriver(onlyrequired
forJCUinstallation).
6.Thread-lock.
Planningtheinstallation

Chapter4:Cablesandconnections
Chaptercontents
•4.1Generalcablingguidanceonpage18
•4.2Connectionsoverviewonpage18
•4.3Chassisgroundconnectiononpage19
•4.4Externalorinternalconnectionsonpage19
•4.5Networkandpowerconnectiononpage20
•4.6Videoconnectiononpage21
•4.7PoEconnectiononpage21
•4.8PCconnectiononpage23
Cablesandconnections

4.1Generalcablingguidance
Cabletypesandlength
Itisimportanttousecablesoftheappropriatetypeandlength
•Unlessotherwisestateduseonlystandardcablesofthe
correcttype,suppliedbyRaymarine.
•Ensurethatanynon-Raymarinecablesareofthecorrect
qualityandgauge.Forexample,longerpowercablerunsmay
requirelargerwiregaugestominimizevoltagedropalongthe
run.
Routingcables
Cablesmustberoutedcorrectly,tomaximizeperformanceand
prolongcablelife.
•DoNOTbendcablesexcessively.Whereverpossible,ensure
aminimumbenddiameterof200mm(8in)/minimumbend
radiusof100mm(4in).
100 mm (4 in)
200 mm (8 in)
•Protectallcablesfromphysicaldamageandexposuretoheat.
Usetrunkingorconduitwherepossible.DoNOTruncables
throughbilgesordoorways,orclosetomovingorhotobjects.
•Securecablesinplaceusingtie-wrapsorlacingtwine.Coil
anyextracableandtieitoutoftheway.
•Whereacablepassesthroughanexposedbulkheador
deckhead,useasuitablewatertightfeed-through.
•DoNOTruncablesneartoenginesoruorescentlights.
Alwaysroutedatacablesasfarawayaspossiblefrom:
•otherequipmentandcables,
•highcurrentcarryingacanddcpowerlines,
•antennae.
Strainrelief
Ensureadequatestrainreliefisprovided.Protectconnectors
fromstrainandensuretheywillnotpulloutunderextremesea
conditions.
Cableshielding
Ensurethatalldatacablesareproperlyshieldedthatthe
cableshieldingisintact(e.g.hasn’tbeenscrapedoffbybeing
squeezedthroughatightarea).
Warning:Productgrounding
Beforeapplyingpowertothisproduct,ensureithas
beencorrectlygrounded,inaccordancewiththe
instructionsinthisguide.
4.2Connectionsoverview
D12845-1
1
3
2
1.Chassisground
2.Analogvideoconnection—IRoutput.
3.Ethernet–T oRaymarinenetworkswitch,multifunction
display,orJCU.
Connectioncarepoints:
•Thecabletailsshouldberoutedtoadryareaofthevesselfor
connection.Alternativelyyoumustensurethatallconnections
aremadewatertight.
T200

4.3Chassisgroundconnection
Thechassisgroundstudshouldbeconnectedtothevessel
groundpoint.
D12846-1
Thenut(supplied)shouldbeusedtosecureagroundstrap(not
supplied)tothebaseofthethermalcamera.Aringterminal
typicallysizedfor#6orM3sizedstudandgauge14togauge16
wireshouldbeusedforthestrap.
Note:Ensurethatthegroundstrapdoesnotinterferewith
mountingthecamera.
4.4Externalorinternalconnections
Thecableconnectionscanbemadeexternallyorinternally.
External
Assupplied,thecameracabletailsextendthroughthebase
andareconnectedexternally:
D12847-1
Internal

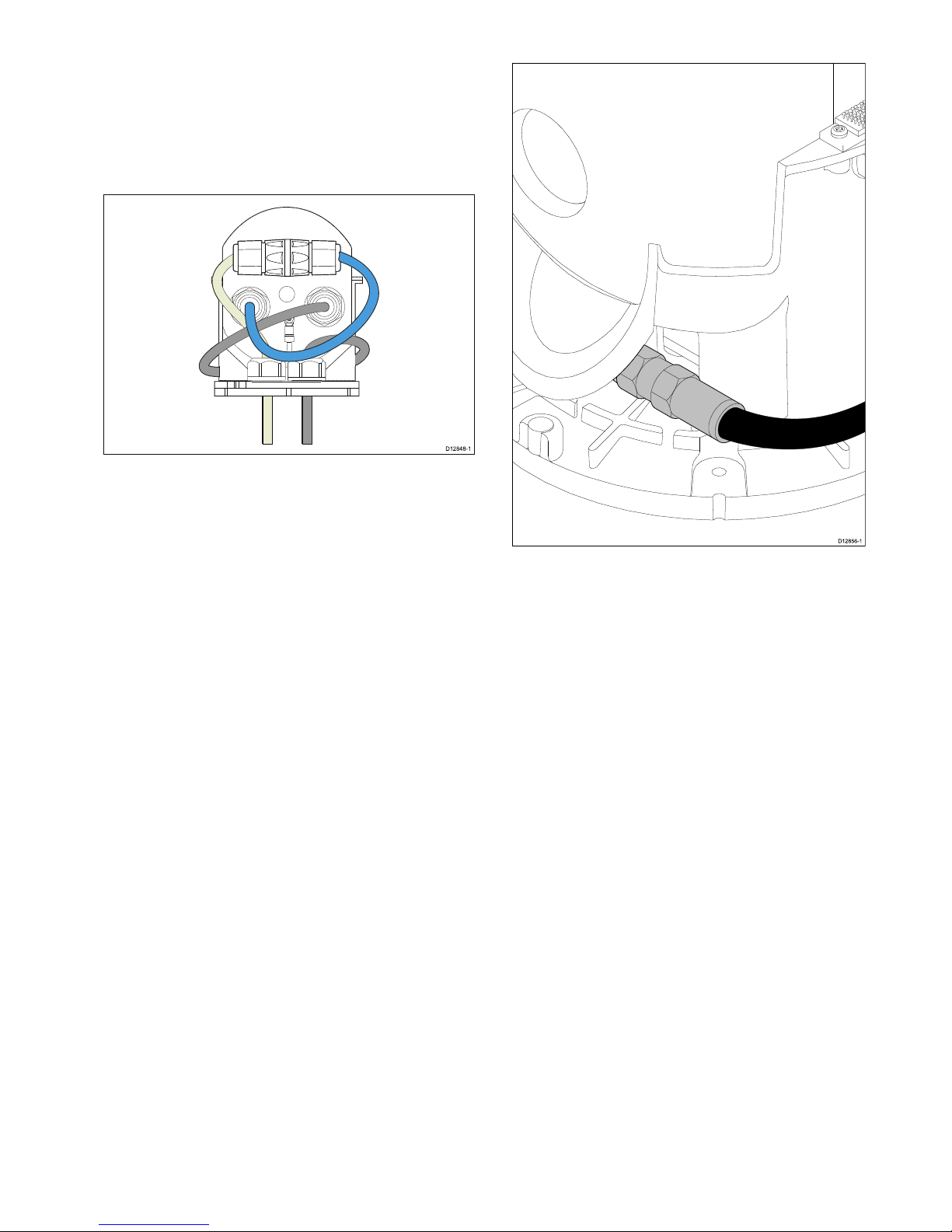

Optionallyyoucanmakethecableconnectionsinternally.
D12848-1
Tomakeinternalconnections,bringthecabletailsupthroughthe
baseandusethesuppliedethernetcouplerandvideoconnector
tomaketheconnectionsinternally.Theethernetcouplercanbe
xedtothecameraballassemblyusingthezipties(supplied).
Cablesandconnections

4.5Networkandpowerconnection
Thethermalcameraissuppliedpowerbyandcontrolledusing
theethernetnetworkconnection.
CameratomultifunctiondisplaywithPoE
FormultifunctiondisplaysthatsupportPoE,thefollowing
suppliedequipmentisrequired:
•RayNettoRJ45SeaT alkhscable.
•Ethernetcoupler.
CameratomultifunctiondisplaywithoutPoE
FormultifunctiondisplaysthatdonotsupportPoE,thefollowing
suppliedequipmentisrequired:
•PoEinjector.
•RayNettoRJ45SeaT alkhscable.
•Ethernetcoupler
Cameratoanetworkswitch
ToconnectthethermalcameratoaRaymarinenetworkswitch,
thefollowingsuppliedequipmentisrequired:
•7.6m(25ft)Ethernetcable.
•Ethernetcoupler
•PoEinjector.
•RayNettoRJ45SeaT alkhscable.
PoweroverEthernet(PoE)injector
APoEinjectorisrequiredwhenconnectingthethermalcamera
toaRaymarinenetworkswitchortoamultifunctiondisplaythat
doesnotsupportPoE.AnadditionalPoEinjectorisrequired
whenconnectingaJCU.
JoystickControlUnit(JCU)
ToconnectaJCUtheethernetcable(suppliedwiththeJCU),
PoEinjectorandaRayNettoSeaT alkhsnetworkcableare
required.TheJCUissuppliedwitha7.6m(25ft)ethernetcable
forthisconnection.Ifyourequireadifferentlengthcontactyour
dealerforsuitablecables.
Note:ThePoEinjectormustbemountedinadryarea.
Networkcables
RayNettoRayNetcables
CablePartnumber
400mm(1.3ft)RayNettoRayNet
cable(female)
A80161
2m(6.56ft)RayNettoRayNetcable
(female)
A62361
5m(16.4ft)RayNettoRayNetcable
(female)
A80005
10m(32.8ft)RayNettoRayNet
cable(female)
A62362
20m(65.6ft)RayNettoRayNet
cable(female)
A80006
50mm(1.97in)RayNettoRayNet
cable(male)
A80162
RayNetright-angledcouplerA80262
RayNetcablepuller5-packR70014
RayNettoRJ45SeaTalkhsadaptercables
CablePartnumber
1m(3.28ft)RayNettoRJ45
SeaTalkhscable
A62360
3m(9.84ft)RayNettoRJ45
SeaTalkhscable
A80151
CablePartnumber
10m(32.8ft)RayNettoRJ45
SeaTalkhscable
A80159
400mm(1.3ft)RayNettoRJ45
SeaTalkhs(female)cable
A80160
T200

4.6Videoconnection
Videocablesandconnectorsarerequiredtoconnecttheanalog
videoconnectiontoasuitabledisplay.
Note:Thevideosignalisanalogonlyandisnotavailable
overethernet.
Videocables
Ifyourequirevideocablesorconnectorsotherthanthose
suppliedwiththeproductpleasecontactyourlocalauthorized
Raymarinedealer.
RaymarinerecommendstheuseofaBNCterminatedRG59
75ohm(orbetter)coaxialcable.
4.7PoEconnection
APoEinjectorisrequiredwhenconnectingthethermalcamera
toanetworkswitchoramultifunctiondisplaythatdoesnot
supportPoE.AnadditionalPoEinjectorisrequiredwhen
connectingaJCU.
ThePoEinjectorrequiresa12V/24Vdcpowersupply.
D12 849 -1
34
1
1
2
112V/24VdcpowersupplyconnectiontoPoEinjector.(Power
cableNOTsupplied;refertoPoEpowerconnectionforsuitable
cables.)
2SeaTalkhsconnection(tonetworkswitchormultifunction
display).
3PoEInjector.
4Ethernetconnection(tothermalcameraorJCU).
PoEpowerconnection
ThePoEinjectorrequiresadedicatedpowercablefordirect
connectiontoa12V/24Vpowersupply.
Theunitisintendedforuseondc“negative”or“oating”ground
powersystems.
Raymarinerecommendsthatallpowerconnectionsaremade
viaadistributionpanel.Allequipmentmustbeeither:
•poweredfromacircuitbreakerorswitch,with5Acircuit
protection,or
•poweredfroma5Aslowblowin-linefuseconnectedtothe
REDpositivewireofthepowercable.
Theunitdoesnothaveapowerswitch.Theunitispowered
whenthepowercableisconnectedtothevessel'spowersupply.
Note:Theunitshouldbemountedsothatthepowercable
canbeeasilyremovedifnecessary.Iftheunitisplacedina
difculttoreachlocation,Raymarinerecommendsinstalling
anon/offswitchonthepowerconnectionatapointthatis
easilyaccessible.
Recommendedpowercablesizes
CablelengthWiresize
FeetMetresAWGmm2
103142.1
154.6142.1
206123.3
257.6123.3
309105.3
Note:
•Cablelengthisthedistancebetweenthepowersource
andtheunit.
•Thesewiresizesgiveatotaldropofabout0.5Vbetween
thepowersourceandtheunit,achievingaminimumvoltage
attheunitof10.5Vwithafullyatbatteryat11V.
Cablesandconnections

Sharingabreaker
Wheremorethan1pieceofequipmentsharesabreakeryou
mustprovideprotectionfortheindividualcircuits.E.g.by
connectinganin-linefuseforeachpowercircuit.
D116 37 -2
2
4 4
1
3
+-
1Positive(+)bar
2Negative(-)bar
3Circuitbreaker
4Fuse
Wherepossible,connectindividualitemsofequipmentto
individualcircuitbreakers.Wherethisisnotpossible,use
individualin-linefusestoprovidethenecessaryprotection.
Warning:Productgrounding
Beforeapplyingpowertothisproduct,ensureithas
beencorrectlygrounded,inaccordancewiththe
instructionsinthisguide.
Groundinginformation(PoEinjectoronly)
Theinformationprovidedinthefollowingsectionappliesonlyto
thePoEinjector.
Grounding—Dedicateddrainwirerequired
Thisproductincludesadedicateddrainconductor(screen)for
connectiontoavessel'sRFgroundpoint.
ItisimportantthataneffectiveRFgroundisconnectedto
theunit.Theunitcanbegroundedbyconnectingthedrain
conductor(screen)tothevessel'sRFgroundpoint.Onvessels
withoutanRFgroundsystemthedrainconductor(screen)
shouldbeconnecteddirectlytothenegativebatteryterminal.
Thedcpowersystemshouldbeeither:
•Negativegrounded,withthenegativebatteryterminal
connectedtothevessel'sground;or
•Floating,withneitherbatteryterminalconnectedtothe
vessel'sground.
Ifseveralitemsrequiregrounding,theymayrstbeconnected
toasinglelocalpoint(e.g.withinaswitchpanel),withthispoint
connectedviaasingle,appropriately-ratedconductor,tothe
vessel’scommonRFgroundpoint.
Implementation
Thepreferredminimumrequirementforthepathtogroundisvia
aattinnedcopperbraid,witha30Arating(1/4inch)orgreater.
Ifthisisnotpossible,anequivalentstrandedwireconductor
maybeused,ratedasfollows:
•forrunsof<1m(3ft),use6mm2(#10AWG)orgreater.
•forrunsof>1m(3ft),use8mm2(#8AWG)orgreater.
Inanygroundingsystem,alwayskeepthelengthofconnecting
braidorwiresasshortaspossible.
References
•ISO10133/13297
•BMEAcodeofpractice
•NMEA0400
Warning:Positivegroundsystems
Donotconnectthisunittoasystemwhichhas
positivegrounding.
T200

4.8PCconnection
Toenablecontrolofthethermalcamerausingthewebinterface,
thethermalcameramustbeconnectedtoalaptopeitherdirectly
orusingnetworkswitch.
D12850-1
2
3
1
1Laptop.
2Thermalcamera.
3PoweroverEthernet(PoE)injector.
ThethermalcameramustbeconnectedtothePoEinjector.
ThelaptopcanbeeitherconnecteddirectlytothePoEinjector
ortoanetworkswitchthatthecamera’sPoEinjectorisalso
connectedto.
Cablesandconnections

Chapter5:Installation
Chaptercontents
•5.1Cameramountingonpage26
•5.2OptionalJCUmountingonpage30
Installation

5.1Cameramounting
Productdimensions
A
B
D12851-1
A151.56mm(6in.)
B176.7mm(7in.)
Cameraorientation
Thecameracanbemountedin2orientationsreferredtoas
“Ballup”and“Balldown”.
D12852-1
Ballup:Thecameraismountedon
topofthemountingsurface.
D12853-1
Balldown:Thecamerais
suspendedupsidedown,belowthe
mountingsurface.
Note:Forballdownmountingyoumustinverttheimage
orientationusingtheWebinterfaceorthecamera’sOn-Screen
Displaymenu.
Invertingthevideoorientation
WhenmountingintheBalldowncongurationtheimage
orientationmustbechangedtoinverttheimage.Ifrequired,the
imageorientationshouldbechangedpriortoinstallation.
Thewebinterfacecanbeusedtoinvertthevideoorientation.
1.SelectSetupfromthewebinterface.
2.ScrolldowntoImageOrientation.
3.ClickthedropdownboxandselectInvert.
Thevideoimageisnowinverted.
4.SelectSaveSettings.
Note:Thevideoimageorientationcanalsobeinvertedusing
theOn-ScreenDisplaymenu:Menu>SystemSetup>
Enable/DisableBall-DownInstallation
Locationrequirement
Whenplanningtheinstallationlocation,considerthefollowing
points:
•Thecameraiswaterproof,andappropriateforabovedecks
mounting.
•Theunderside(inside)ofthecompartmentordeckonto
whichthecameraismountedmustbeweather-tight.You
mustensureprotectionfromwateringresstocablesand
connections.
•Themountingsurfacemustbehorizontal.
•Ifyoucannotaccessbothsidesofthemountingsurface,then
youwillneedtomountthecamera“topdown”.
•Fixingsaresuppliedforamountingsurfaceofupto41mm
(1.6in)thick.Athickersurfacewillrequiretheinstallerto
providealternativexings.
•Thecameramountingsurfacemustbeatleastaslargeas
thefootprintofthecameraitselftoensureanadequateseal
withtheO-ring.
•Thecamerashouldbemountedashighaspractical,
butwithoutinterferingwithanyradar,navigationalor
communicationselectronics.
•Choosealocationthatwillprovidethemostunobstructed
viewinalldirections.
•Choosealocationasclosetothevessel’scenterlineas
possible.Thisprovidesasymmetricalviewwhenlooking
forwardoraft.
•Selectalocationforthecamerathatisatleast7cm(2.75in.)
fromanymagneticcompass.
•Selectalocationthatisatleast1m(3ft)fromdevicesthat
maycauseinterference,suchasmotors,generatorsandradio
transmitters/receivers.
•IfinstallinganoptionalJCU,selectalocationfortheJCUthat
isatleast11cm(4.33in.)fromanymagneticcompass.
Distancetosurfacefrontedge
56.55 mm
(2.23 in.)
D12854-1
Theunitshouldbemountedamaximumdistanceof56.55mm
(2.23in.)fromthefrontedgeofthemountingsurfacetoallow
forthefullrangeoftilt.
Clearanceabovethecamera
Ensuresufcientclearanceisavailableabovetheunittoenable
removaloftheoutercover.
Theunitshouldonlybeinstalledinalocationthathasa
clearanceofatleastdoubletheheightoftheunit.
Removingtheoutercover
Followthestepsbelowtoremovethecamera’soutercover.
D12855-1
T200

1.Placeboththumbsonthecameraballassembly,abovethe
cameralens.
2.Pushyourthumbsdownwards,whilstpullingthecoveraway
fromthebaseofthecamerawiththerestofyourgrip.
3.Oncethecoverisdetached,slideitupandoffthecamera.
Makinginternalconnections
Ifthereislimitedspaceoryouwantthecableconnectiontobe
madeinternallyfollowthestepsbelow.
D12848-1
1.Removethecamera’soutercover.
2.Unscrewthelightgreycablecapturenutsonbothofthe
cableglandsonthebaseofthecamera.
3.Pulltherubberglandsandclampingclawsoutofthebore
holes.
4.Pullbothcablesupthroughthebase.
5.Removetherubbergland,clampingclawandcapturenut
frombothcables.
6.Connectthecamera’sethernetcabletooneendofthe
ethernetcoupler(supplied).
7.Threadtheexternalethernetandvideocablesthroughthe
boreholes.
8.Threadtheexternalethernetcablethroughtherubbergland,
clampingclawandcapturenut.
9.Connecttheexternalethernetcabletotheotherendofthe
ethernetcoupler.
10.Usingthezipties(supplied)securetheethernetcouplerto
therearofthecameraballassembly.
11.Pullanyexcesscablebackthroughtheborehole.
12.Securetheethernetcablebyreassemblingtherubbergland
andclampingclawintotheboreholeandtighteningthe
capturenut.
13.Feedthecamera’svideocablearoundthefrontofthe
cameraballassembly.
14.ApplyLocktitetobothendsofafemaletofemaleconnector.
15.Connectafemaletofemaleconnectortothecamera’svideo
cable.
D12856-1
16.Feedtheexternalvideocablethroughtheborehole.
17.Connecttheexternalvideocabletotheotherendofthe
femaletofemaleconnector.
18.Wrapthevideoconnectionwithmarinegradesealingtape
(e.g.3MScotch-Seal2229orequivalent).
19.Securethevideocabletothefrontoftheballassemblyusing
theziptie(supplied).
20.Pullanyexcesscablebackthroughtheborehole.
21.Securethevideocablebyreassemblingtherubbergland
andclampingclawintotheboreholeandtighteningthe
capturenut.
Installation
