Razer Blade Pro RZ09-0220 User manual

0 | For gamers by gamers™
User Manual
(Model: RZ09-0220)

1 | razer™
1. PACKAGE CONTENTS / REGISTRATION / TECHNICAL SUPPORT
PACKAGE CONTENTS
Razer Blade Pro (Model: RZ09-0220)
Power adapter + regional power cord
Micro-fiber cleaning cloth
Important Product Information Guide
REGISTRATION
Visit razerzone.com/razer-id to sign up for a Razer ID now to get a wide range of Razer
benefits. For example, get real-time information on your product’s warranty status via
Razer Synapse. To learn more about Razer Synapse and all its features, visit
razerzone.com/synapse. If you already have a Razer ID, register your product by
clicking on your email address within the Razer Synapse application and select
Warranty Status from the dropdown list. To register your product online, visit
razerzone.com/registration. Please note that you will not be able to view your warranty
status if you register via the website.
TECHNICAL SUPPORT
What you’ll get:
1 year limited manufacturer’s warranty.
1 year limited battery warranty.
Access to manual and free online technical support at razersupport.com.
For further assistance, please visit razersupport.com/contact-us.
Your product’s serial number
can be found here.

2| For gamers by gamers™
2. DEVICE LAYOUT
A. Array microphone
B. Webcam indicator light
C. 2.0 MP webcam
D. 17.3” IPS Full HD display
E. Power button
F. Stereo speakers
G. Anti-ghosting keyboard
H. Multimedia keys with volume
scroll wheel
I. Multi-touch trackpad
J. Front LED power indicator
K. SDXC card reader
L. Thunderbolt™ 3 port (USB-C™)
M. USB 3.0 ports x3
N. HDMI port
O. Kensington™ security slot
P. DC power port
Q. Ethernet (RJ-45) port
R. 3.5mm combo port

1 | razer™
3. SETTING UP YOUR RAZER BLADE PRO

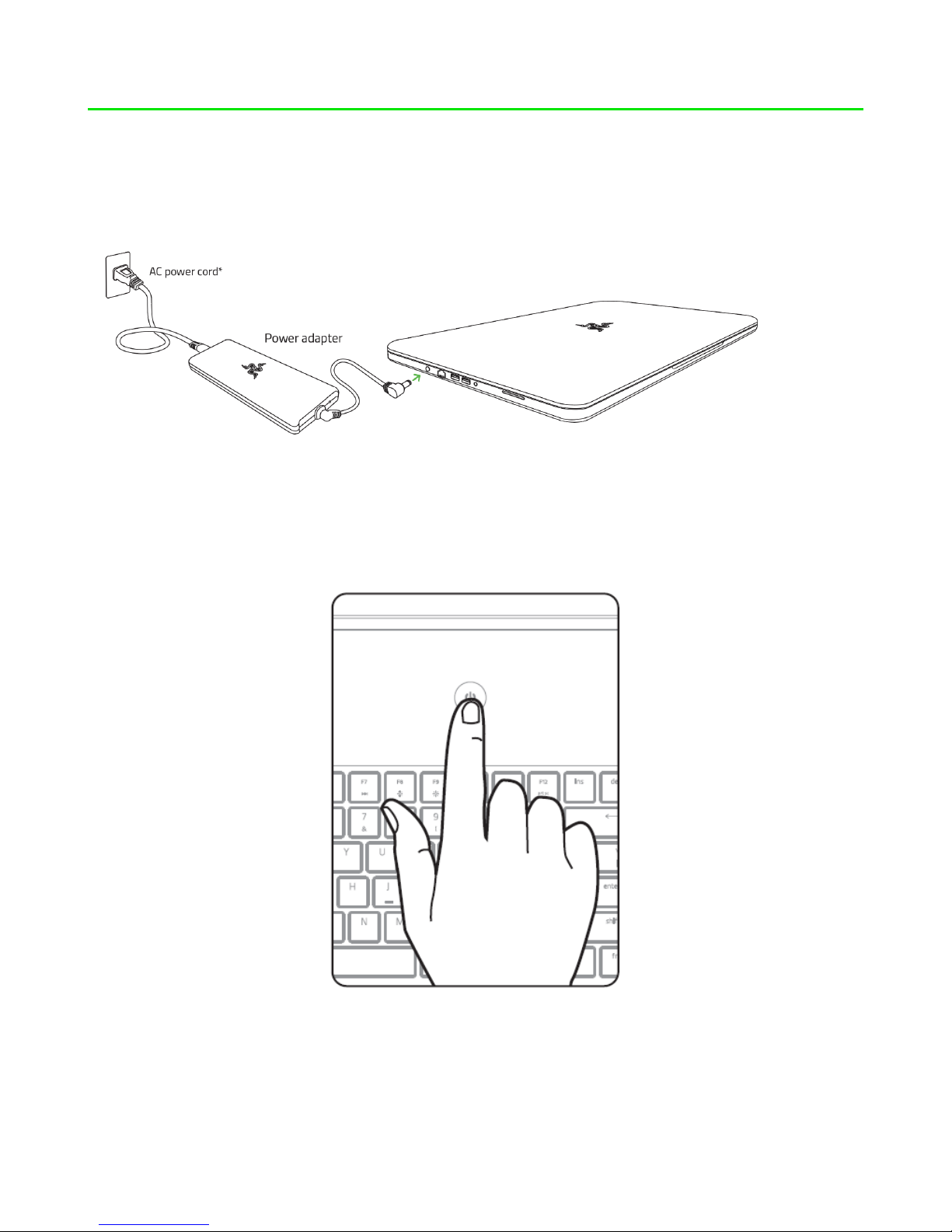

Connect the Power Adapter as follows:
Make sure that the AC plug is properly inserted into the power outlet and the power
adapter. An indicator will light up to show that the adapter is receiving appropriate
power. Insert the power adapter’s connector into the Razer Blade Pro’s power port.
Press the power button to turn on your Razer Blade Pro. For first time use, please fully
charge your Razer Blade Pro or connect it to a power outlet before turning it on. It
takes approximately 3 hours to fully charge the Razer Blade Pro.

2| For gamers by gamers™
CONNECTING TO THE INTERNET
Disclaimer: The screens shown are subject to change based on the current version of your Operating System.
1. Click the wireless network icon ( ) to bring up the wireless network list. The
system will automatically search for wireless networks in range.

3| razer™
2. Click the network you wish to connect to and click Connect.

4| For gamers by gamers™
3. Enter the network password (if any) and select whether to enable network sharing.
Click Next.
4. Once you are connected to the wireless network, click anywhere outside the window
to return to the desktop.

5| razer™
RAZER SYNAPSE ACCOUNT CREATION & INSTALLATION
Razer Synapse allows your Razer Blade Pro and other supported Razer peripherals to
download drivers and firmware updates. Razer Synapse also enables your custom
settings to be stored on cloud servers so that they can be accessed anytime, anywhere.
In addition, Razer Synapse allows you to immediately register your product and get
real-time information on your product’s warranty status.
1. Razer Synapse will start automatically once you enter Windows 10.
2. Register for a Razer Synapse account and confirm your new account.
3. Open Razer Synapse and log into your account.
4. Wait until Razer Synapse automatically downloads and installs the necessary
drivers.

6| For gamers by gamers™
4. USING YOUR RAZER BLADE PRO
STATUS INDICATORS
Sleep
On
Low battery
(10% left)
Low battery
(3% left)
Front LED
indicator
KEYBOARD FUNCTION KEYS
Pressing the “FN” key in combination with the function keys will activate their
secondary functions.
Function key
Secondary function description
The audio volume controls allow you to mute ( ), decrease ( )
and increase ( ) the audio output.
Toggles the monitor output.
The media keys allow you to play/pause ( ) the current track,
return to the previous track ( ) or skip to the next track ( ).
The screen brightness keys allow you to decrease ( ) or increase
( ) the brightness of the Razer Blade Pro’s screen.
The LED control keys allow you to decrease ( ) or increase
() the brightness of your keyboard’s LEDs.

7| razer™
MULTIMEDIA TRACK PANEL FUNCTIONS
The Multimedia Track Panel allows you to quickly control your media. With Razer
Synapse, you can change the functionality of the Multimedia Track Panel to mouse
controls or even customize it to do other functions.
Track panel function
Description
Return to the previous track
Skip to the next track
Scroll up to increase the volume, scroll down to decrease the
volume, and press the scroll wheel to mute the audio output.
Play or pause the current track
Mute audio output
