Razorri PM220A User manual

READ THIS MANUAL THOROUGHLY BEFORE USE AND SAVE IT FOR FUTURE REFERENCE
PM220A
USER MANUAL
FOR PASTA NOODLE MAKER

01
Quick Start Guide
Disassemble and clean before first use
A B C
D E F
G H

02
Quick Start Guide
Make pasta
Confirm the machine is assembled correctly before use.
2. Zero the scale1. Remove the cover 3. Pour the flour
4. Close the cover correctly 5. Select the program
7. Start the program 8. Insert the liquid. 7. Cut pasta based on the desire
6. Prepare the required water
indicated in the display.

Table of Contents
Quick Start Guide
Safety &Warnings
Product Specifications
Parts List
Control Panel
Assembly Instructions
Disassembly Instructions
Noodle Ingredients
How To Make Pasta
Cleaning
Troubleshooting
Error Codes
01
04
07
08
10
12
13
14
16
19
20
22
··············································································
···········································································
···········································································
··········································································
·························································································
···············································································
·····················································································
········································································
························································································
···················································································
·······································································
··································································
03

04
Safety &Warnings
Do not use the device without reading the content of this user manual carefully, which should be
saved for future reference.
The home appliance should only be used following the instructions explained in this operating
manual. Any improper use can generate hazards and/or damage to people or things. We will not
be considered responsible for damages caused, both to the user and to third parties, in case of
incorrect handling or wrong use and/or different from what is explained in this operating manual.
Unpacking
Don't allow children or people with restricted physical abilities to play with the packaging
materials. Plastic bags and polystyrene parts represent a real suffocation danger!
Remove the home appliance and all accessories from the box
Remove the device and any respective accessories from the plastic envelopes, carton packages,
and/or polystyrene parts.
Make sure that all parts are completely dry before reassembling the device.
Assemble the device as shown in this operating manual.
If there are any missing parts or clear aesthetic damages due to collisions or shipping damage,
do not insert the power plug in the socket. Contact customer support for further instructions.
General Safety
ATTENTION: RISK OF ELECTROCUTION
Children or people with restricted physical abilities may struggle to distinguish the hazards of
incorrect usage of electric appliances, therefore do not allow them to use them.
Do not allow children to play with the home appliance. Supervise and help people with restricted
physical abilities for correct and secure use of the home appliance.
This home appliance is not designed to be used with an external timer or additional remote
monitoring systems.
Do not attempt to open, disassemble, or modify the home appliance. Inside the device are
dangerous high voltage electric currents. Do not dismantle, do not open, and do not try to repair
the home appliance by yourself, not even after the warranty period has expired.
Do not use the product for purposes/uses different from what is displayed in this operating
manual.
Make sure that the voltage of the socket corresponds to the voltage shown on the home
appliance's label. If there is no correspondence between what is indicated on the home
appliance's label and the system of the place where it will be used, do not insert the plug in
the socket.

05
Do not leave the home appliance unattended during use or leave switched off while plugged
into the power socket.
Use this home appliance only for domestic use and not professional use.
This home appliance is not adapted to be used by groups, mutual companies, or other situations
however similar to professional use.
If possible, avoid using extension cords or power strips with this device.
Do not use more than one extension cord or power strip connected to each other.
Do not handle or use home appliances with wet hands.
Before cleaning the home appliance, always unplug from the socket.
Remove the plug from the socket when the appliance is not in use.
Switch off the device before removing the plug from the socket.
Remove the plug from the socket by holding it firmly and not by pulling it from the cable.
The voltage shown on the label of the product is present until the product itself remains
connected to the socket.
ATTENTION: RISK OF ELECTROCUTION
Keep away from water! Do not immerse hands in liquid to retrieve the device without removing
the plug from the socket. Do not use home appliances close to bins containing liquids, taps,
sinks, bathtubs, etc.
Do not immerse the device into water or any other liquid. Do not wet the plug. Do not use the
device if it is accidentally wet or even just dampened. Do not wash the home appliance with
water.
If the home appliance accidentally falls into water or other liquids, with dry hands immediately
remove the plug from the power socket.
The utilization of non-original accessories might cause damages to third parties or to the user
and compromise the functionality of the home appliance itself.
The utilization of the device with non-original accessories or incorrect invalidates the warranty
of the product.
An incorrect and inaccurate use may damage the device and cause damage to the user.
Do not hold and lift the home appliance by the cable.
Never twist, kink or wrap the cord around the appliance as this may cause the cord insulation
to weaken and split, particularly where it enters the unit.
Avoid the home appliance's electric cable from contacting with sharp rough edges.
Absolutely do not use the home appliance if It is damaged, the cable or the plug is damaged,
the unit has fallen or gotten wet, or submerged in water. In these cases, it is necessary to
contact customer support for further instructions.

06
Avoid the home appliance being near open flames or other sources of heat.
Avoid using the home appliance in the presence of solvents and or paints, in a corrosive and
explosive atmosphere, in the presence of dust or sawdust, as this will increase risk of fire
and/or explosion.
If this home appliance shows any malfunctions or abnormalities, switch it off immediately
and contactcustomer support.
This unit has been permanently lubricated and requires no further oiling.
ATTENTION: RISK OF CUTTING
Moving mechanical parts! Take care and use caution while handling the device.
Avoid contacting any part while in operation. Keep hands, hair, clothing, spatulas, and other
utensils away from the parts during operation.
Do not touch the parts, especially when the appliance is plugged into the wall outlet.
Never reach into the appliance with your fingers or an object while the appliance is running.
If parts get stuck, unplug the appliance before you remove the ingredients that block the
blades.
Please contact customer support if maintenance is needed during use. Do not disassemble by
yourself.
Please check the power cord, plug, mixing bowl, mixing axle, and other detachable parts for
damage. Please stop using and contactcustomer support if any damage appears. Do not
attempt to disassemble or repair by yourself.
Be sure the detachable parts are assembled to the right position before connecting to power,
to avoid danger.
Do not use the microwave to disinfect components as this may cause deformation and damage.
Do not put the product into water or other liquid, nor rinse it with water or other liquids.
Do not clean the product with steel wool, abrasive cleaners, or corrosive liquids.
Do not expose this product to sunlight in order to avoid the discoloration of appearance.
Do not heat any part of this product.

07
Product Specifications
Product Name
Product Model
Voltage and Frequency
Rated Power
Capacity
Product Dimensions
Product Weight
Cord Length
Pasta Noodle Maker
PM220A
120V~60 Hz
220 W
200 - 600 G
14.2 x 7.5 x 14.2 IN
11.7 LBS
39.4 IN

1
2
3
4
5
6
7
Body
Mixing bowl
Mixing paddle
Top cover
Extruding axle
Metal extruding head
08
7
8
9
10
11
12
Shaping disc
Disc locking nut
Drawer
Liquid measuring cup
Flour measuring cup
Brush with needle and tab
Parts List

09
Spaghetti Cappellini Linguine
Macaroni Radiatori Stella Fusilli Dumpling Wrapper
Choosing a Shaping Disc
The following 7 shaping discs come with the pasta maker allowing you to make a wide variety
of dishes and cuisines.
Only the Dumpling wrapper disc is stainless steel.
Included Molds
Be sure to tighten the Locking nut before attempting to extrude noodles.
The pasta extruding time is related to the shape of the discs.
During operation, it is possible to change the extruding dies only after powering OFF the pasta
maker.

10
Control Panel
Start/Cancel
To start or stop the selected function.
Pressing the Start /Cancel button during operation stops the machine and resets the settings
LED Screen
1. Indicates processing timer Indicates the weight of flour (the Flour icon under the screen is
flashing)
2. Indicated the suggested volume of liquid for the flour in the mixing bowl (the Water icon under
the screen is flashing)
Scale/Zero
To reset the built-in scale. Helps to weigh the flour before any process.
The weight of the lid won't affect the scale.
Please place the machine on a stable flat surface for best accuracy.
Knead
Select Knead and press Start to run the knead-only process, which helps mix dry flour and liquid
into the dough.
The display indicates the countdown time until the end of processing. The machine beeps 3 times
once finished.
Please wait until all parts of the machine stop, then remove the top cover.

11
Quick Noodle
Select Quick Noodle and press Start to run the Quick Noodle process, which makes noodles
automatically (knead and extrude) without resting the dough.
The display indicates the time until the end of processing. The machine beeps 3 times once finished.
Please wait until all parts of the machine stop, then remove the top cover.
Springy Noodle
Select Springy Noodle and press Start to run the Springy Noodle process, which makes noodles
automatically (knead, rest and extrude) by resting the dough for 6 minutes, making noodles chewier.
The display indicates the time until the end of processing. The machine beeps 3 times after finishing.
Please wait until all parts of the machine stop, then remove the top cover.
Extrude
Press Extrude to run the extrude-only process, which helps extrude the well-mixed/leftover dough.
The built-in IECS (Intelligent Extrude Control System) may restart the kneading for better
extruding. The display indicates the time until the end of processing. The machine beeps 3 times
and turns off after finishing.
Please wait until all parts of the machine stop, then remove the top cover.

12
Assembly Instructions
DO NOT PLUG IN BEFORE THE MACHINE IS FULLY ASSEMBLED
1. Insert the mixing bowl into the machine body.
2. Insert the extruding axle into the mixing bowl. Check that the front hole of the extruding axle is
clean from any residues from previous processing.
3. Select the desired molding disc and insert it into the extruding head in the correct position as
the diagram shows. Moisten the mold underneath water for a better extrusion.
Confirm the holes of the shaping disc is clean without any residues of previous dough, to avoid
breakage.
4. Insert the extruding head with the shaping disc on the tip of the extruding axle into the mixing
bowl. Wet the inside of the extruding head with water before applying it.
5. Insert the disc locking nut by spinning it clockwise. Verify that it is fully screwed in.
6. Fully insert the mixing paddle into the mixing bowl.
7. Insert the top cover on the mixing bowl, spin it until the arrow is pointing to the screen and fully
tightened. If that isn’t inserted correctly, the machine won’t allow any process but only displays
E02.
PLEASE WAIT UNTIL ALL PARTS OF THE MACHINE STOP AFTER THE PROCESS IS FINISHED, THEN
REMOVE THE TOP COVER.

13

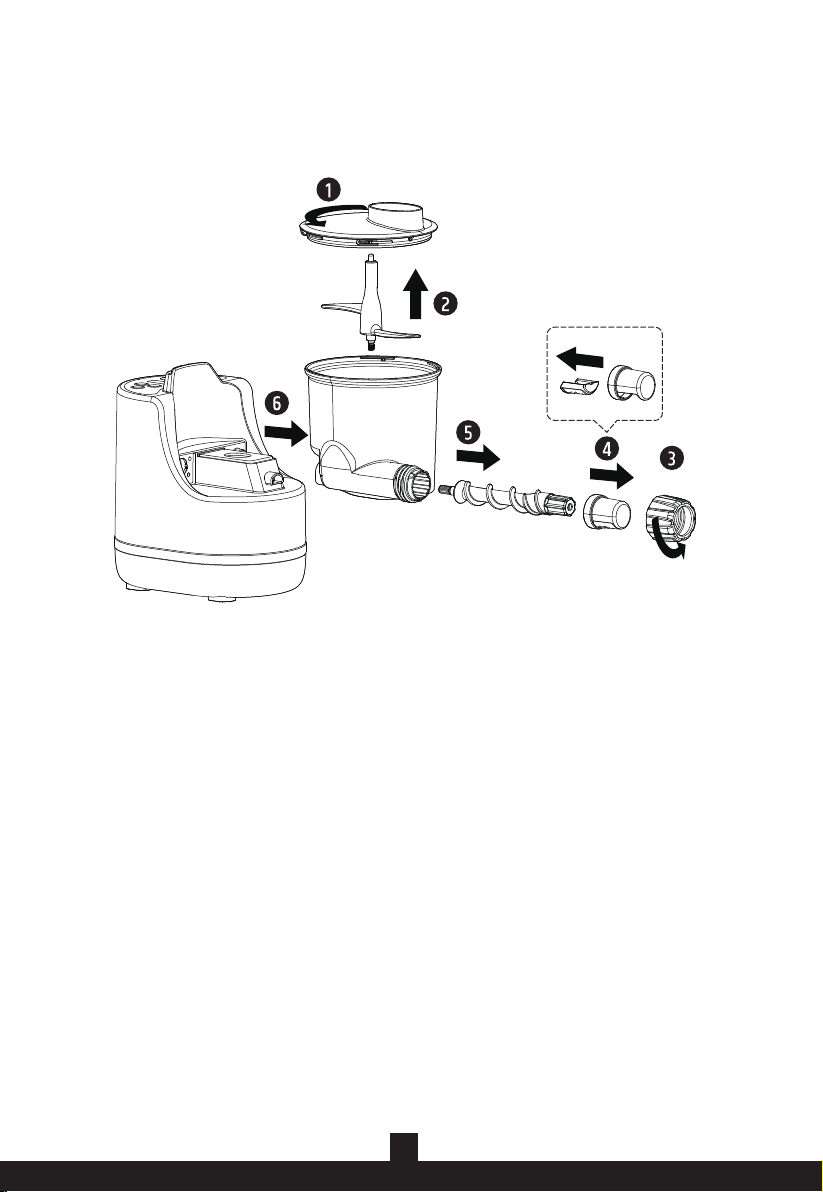

Disassembly Instructions
DO NOT REMOVE ANY PARTS OF THE MACHINE UNTIL AFTER THE PROCESS IS FINISHED AND THE
MACHINE IS UNPLUGGED.
1. Remove the top cover by spinning counterclockwise and lifting it up.
2. Lift the mixing paddle and remove.
3. Unscrew the disc locking nut in a counterclockwise direction.
4. Pull the extruding head out and remove the locking disc from the extruding head.
5. Pull the extruding axle out from the mixing bowl.
6. Remove the mixing bowl from the machine body.

14
Noodle Ingredients
The built-in IECS (Intelligent Extrude Control System) calculates based on the amount of flour in the
mixing bowl and automatically suggests the amount of water needed. This value is intended as a
suggestion, considering different types of flour have their own humidity and ability to absorb and
retain water. Seasonal changes also may affect the water required.
All-Purpose Flour
Note: This is the best flour type to extrude pasta easily with the water ratio indicated.
Once you have done several tests, mark down the amount of water for your preferences
for noodles
Durum / Semolina Flour
Note: Durum flour is finer than Semolina flour, but both are high in protein and gluten strength.
The water retention rates are different from all-purpose flour.
This table provides the flour-liquid ratio based on 200g of flour. If using 400g / 600g flour to make
pasta, double/triple the liquid volume (including egg) to get the proper flour-liquid ratio.
Serve
1-2 People
2-3 People
3-4 People
All-purpose Flour
1 Cup (200g)
2 Cup (400g)
3 Cup (600g)
Water
70 ML
140 ML
210 ML
Juice (instead of water)
80 ML
150 ML
220 ML
Eggs + Water
80 ML (50g+30 ml)
150 ML (80g+70 ml)
220 ML (120g+100 ml)
Flour
Durum / Semolina flour 150g
+ All-purpose flour 50g
Water
65 ML
Juice (instead of water)
70 ML
Eggs + Water
75 ML (50g+25 ml)

15
Make noodles with Egg / Juice
1. It is suggested to calculate 1 egg for 1 cup of flour, 2 eggs for 2 cups of flour, etc. The well-beaten
egg + water mixture must be 5-10ml more than the value indicated on the LCD display.
Example: For 1 meal of 200g flour the machine will suggest 70ml of water. When using an Egg
mixture the total volume must reach 75-80ml (use well-beaten eggs).
2. Juice mixture (should be well mixed into liquid) must be 5-10ml more than the value indicated
on the LCD display.
Example: For 1 meal of 200g flour the machine will suggest 70ml of water. When using the
Juice mixture the total volume must reach 75-80ml.
Gluten-Free Pasta
Note: Because of the different water retention rates between gluten-free flour and all-purpose
flour, it's recommended to include food additives to act as thickeners, such as Xanthan gum,
guar gum, or eggs.
For example, when using 300g of Gluten-free flour, it’s suggested to add liquid that is well mixed
from 6g xanthan gum powder and 100g beaten eggs (no water required) which gives the pasta
richness and more elasticity.
Flour
300g Gluten-free
Liquid
Mixture: 6g Xanthan Gum powder + 100g Eggs (beaten)

16
1. Use the included flour measuring cup to prepare firmly
scooped flour. A light scooping and heavy scooping of 1 cup
can have quite different weights. t, Please follow the recipe
by the weight instead of the cup quantity for best results
2. Confirm the mixing bowl is placed in. Press the Scale/Zero
button to reset the scale then pour the flour into the mixing
bowl.
3. Place the cover and turn it clockwise as shown in the figure
to lock it correctly and activate the machine. The arrow
indicates a magnet of safety that activates the machine for
processing.
CAUTION: If the cover is not closed, the program can’t be
selected and the display won’t indicate the suggested value
of water. If the cover is not well closed, the machine won’t
start kneading and will display E02.
4. Select Quick Noodle or Springy Noodle.
5. Check the indicated volume of water on the screen and
prepare the liquid with the included liquid measuring cup.
How To Make Pasta

17
6. Press the Start/Cancel button and wait 1 second for the
machine to start up.
7. A. Insert the liquid cup on the top directly if it’s just with
water, to let it drip in automatically.
B. Note:But if using mixed liquid (juices, extracts,
eggs mixture, etc.), please pour liquids manually during
the operation of the machine, just in case the thickness
of the mixed liquid affects the result.
8. Cut pasta to desired length as it extrudes.
B
A

18
After fully mixed
A. Too dry and floury
If the dough appears loose and floury, that means
there needs to be more moisture for extruding.
You may see the E09/E16 warning. Please add an
extra 5-10ml of water and press the Extrude button
to restart the extrusion.
B. Perfectly shape is crumbly
The perfect dough for best automatic extrusion will
look like breadcrumbs. Clumps will be larger than
figure A but grainier than figure C.
C. Too wet and doughy
If the dough appears soft like dough for handmade
noodles, it's definitely too wet.
Please turn off the machine, open the cover and
add a spoonful of flour to the mixing bowl. Press
the Knead button and let the dough return to shape
like figure B. Then press the Extrude button to start
the extrusion.
Confirm The Condition of The Dough
B
A
C

19
1. Disassemble all parts of the machine as
described on page 12 and let the dough dry.
2. Use a brush to remove the dough residues from
the bowl. Pull out the two gaskets (a. The bottom of
the mixing bowl, b. The end of the mixing bowl) for
a thorough cleaning.
3. Use a dry cloth and the Brush to remove leftover
dough on the Mixing paddle, especially the grooves (c),
in the gears (d), and in the corners of the parts.
4. Use the awl (please be aware of the sharpness) of
the brush to clean the holes of the discs where there
is dough residue.
Cleaning
Turn off the machine and unplug from the power socket. Wait at least 60-90 minutes to make
sure the machine is totally cooled down.
Do not immerse the machine Body in water.
Do not use a scouring pad, caustic cleaners, or abrasive cleaners (for example, gasoline, alcohol,
and propanol) to clean the appliance.
Clean the appliance each time after use, in case the appliance can't operate properly next time.
The shaping discs and all detachable parts of the appliance are dishwasher-safe, just make sure
the selected dishwasher program is no higher than 140°F (60°C).
a. gasket
b. gasket
dd
c
