Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Read this user manual carefully before you install and use the appliance.
Save it for future reference.
Shaping
discs
Shaping
discs
Cleaning
tools
Cleaning
tools
Angel Hair
Pappardelle/
flat wide
Lasagna,
Ravioli &
Dumpling Skin Metal cores*Penne
Spaghetti** Fettuccine
Water cup
User manual Recipe bookMain unit
Flour cup
Flat cleaning tool
Use the flat cleaning tool for the above shaping discs

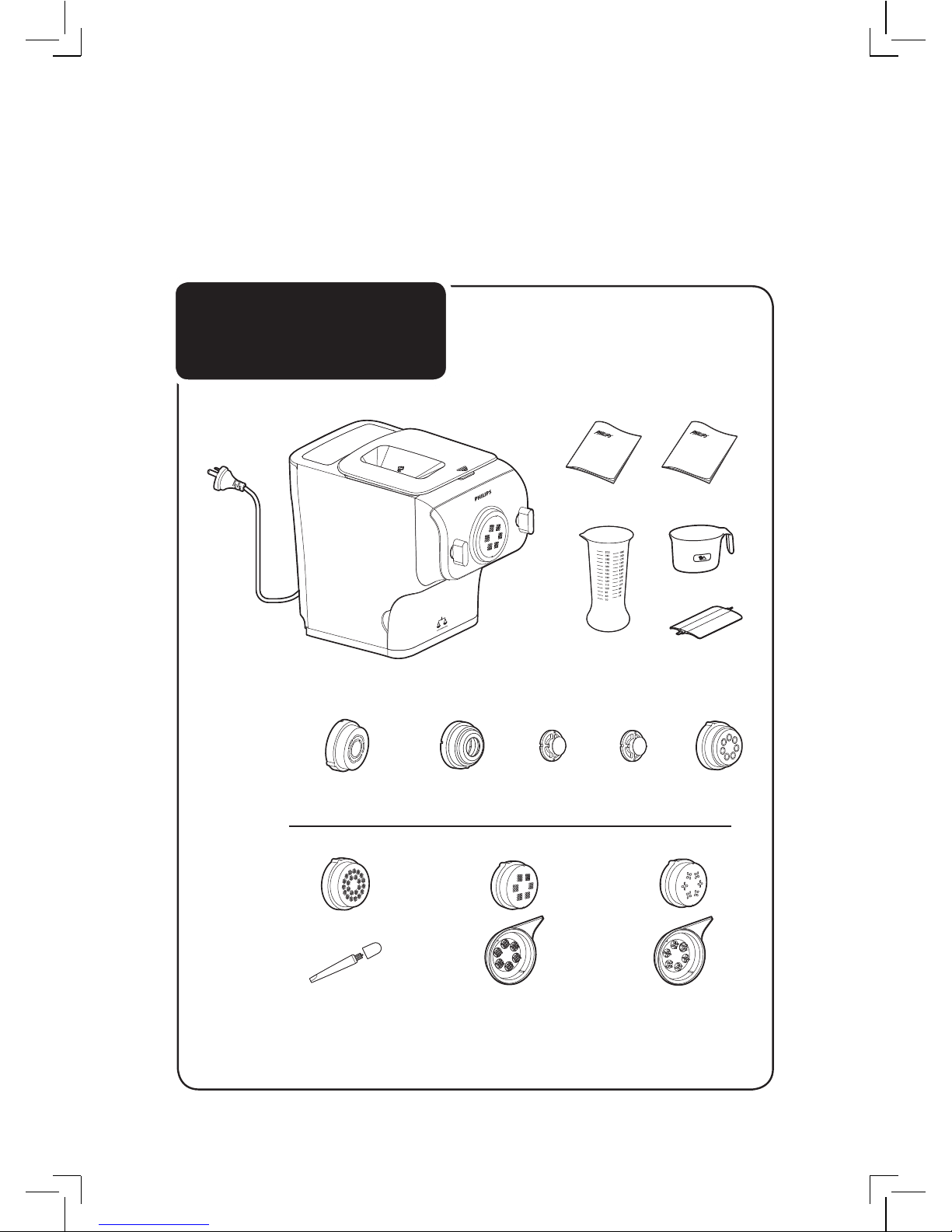

What's in the box
*The Lasagna shaping disc and Ravioli & Dumpling Skin share the same plastic
part but are provided with different metal cores (1.2mm for Lasagna, 0.8mm for
Ravioli & Dumpling Skin).
** The spaghetti shaping disc is assembled on the appliance upon purchase.
Ravioli & Dumpling
Skin 0.8mm
Lasagna
1.2mm

English 3
Disassembling and cleaning before rst use
2
3
4
5
1
1 2
4 5
3

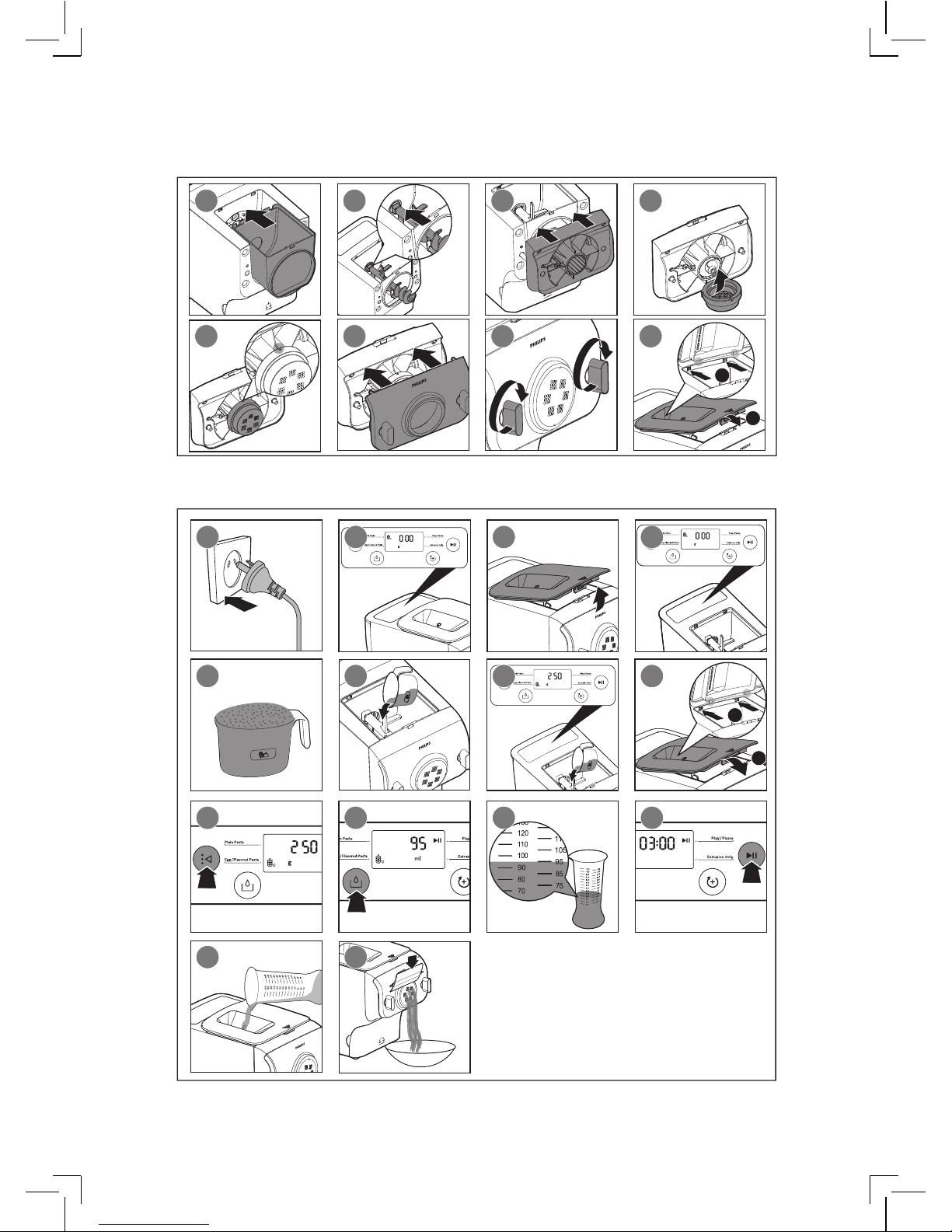

Quick Start
Guide

4 English
Using the pasta and noodle maker
1
2
1 2 3 4
5 6 7 8
9 10 11 12
13 14
Assembling
1
2
1 2 3 4
5 6 7 8

English 5
Contents
What's in the box ����������������� 2
Quick Start Guide ����������������� 3
Important ����������������������� 6
Overview ������������������������10
Disassembling and cleaning before first
use ����������������������������� 12
Assembling ����������������������14
Using the pasta and noodle maker ���16
Cleaning ����������������������� 24
Troubleshooting ������������������27
Product information �������������� 30
Recycling ����������������������� 30
Warranty ������������������������ 31

6English
Important
Safety
Read this user manual carefully
before you use the appliance, and
save it for future reference.
• Before you connect the appliance to the power,
make sure that the voltage indicated on the
bottom of the appliance corresponds to the local
power voltage.
• Make sure that your hands are dry before you
insert the plug into the power outlet.
• Do not immerse the main unit in water.
• To prevent a short circuit or an electric shock,
do not pour water or any liquid into the safety
switch.
• Make sure that the plug is firmly inserted into the
power outlet.
• Never connect this appliance to a timer switch.
• Make sure that the appliance is assembled
correctly before you insert the plug into the
power outlet.
• If the power cord, the plug, or other parts are
damaged, do not use the appliance.
• If the power cord is damaged, you must have it
replaced by Philips, a service center authorized
by Philips or similarly qualified persons to avoid
a hazard.
• Do not replace parts of the appliance by yourself.
• This appliance shall not be used by children.
Keep the appliance and its power cord out of
reach of children.
Warning

English 7
Warning
• This appliance is not intended for use by
persons with reduced physical, sensory or
mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of
the appliance by a person responsible for their
safety.
• Children should be supervised to ensure that
they do not play with the appliance.
• To prevent any accidents, do not use the
appliance if it is damaged for any reason.
• Before using the appliance for the first time,
disassemble and wash the accessories thoroughly
(refer to the chapter “Disassemble and cleaning
before first use”).
• This appliance is intended for household use
only.
• Never use any accessories or parts from other
manufacturers or that Philips does not specifically
reommend. If you use such accessories or parts,
your guarantee becomes invalid.
Caution

8 English
• Do not use this appliance on an unstable or
uneven surface.
• Do not disconnect the power cord before the
processing is complete. If you have to stop
processing, disconnect the power cord before
you perform other operations.
• To better protect the lifetime of the appliance,
we recommend the continuous working time to
be less than 45 minutes. You can restart using
the appliance after 15 minutes.
• If you intend to use the appliance continuously,
clean the shaping disc with the supplied cleaning
tool each time after use. For easy cleaning, do
not soak the shaping disc into water directly.
• Do not bend, jerk, twist, or bundle the power
cord forcibly, nor put it under heavy objects.
• Do not put metal or flammable objects in the
mixing chamber.
• Unplug the appliance when not in use.
• Do not use the appliance near flammable
objects such as table cloth or drapes.
• Pull out the power plug immediately after you
detect smoke.
• When unplugging the power cord, do not pull
the cable but grab the plug part.
Caution

English 9
Caution
• Keep the power plug clean.
• Do not put heavy objects on the appliance.
• This appliance is designed as consumer kitchen
appliance. Do not use for any other purpose.
• Do not move the appliance while it is operating.
• Disconnect the power cord if the appliance
is left unattended and before assembling,
disassembling or cleaning.
• Place the appliance in a dry and well ventilated
place after use.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.

10 English

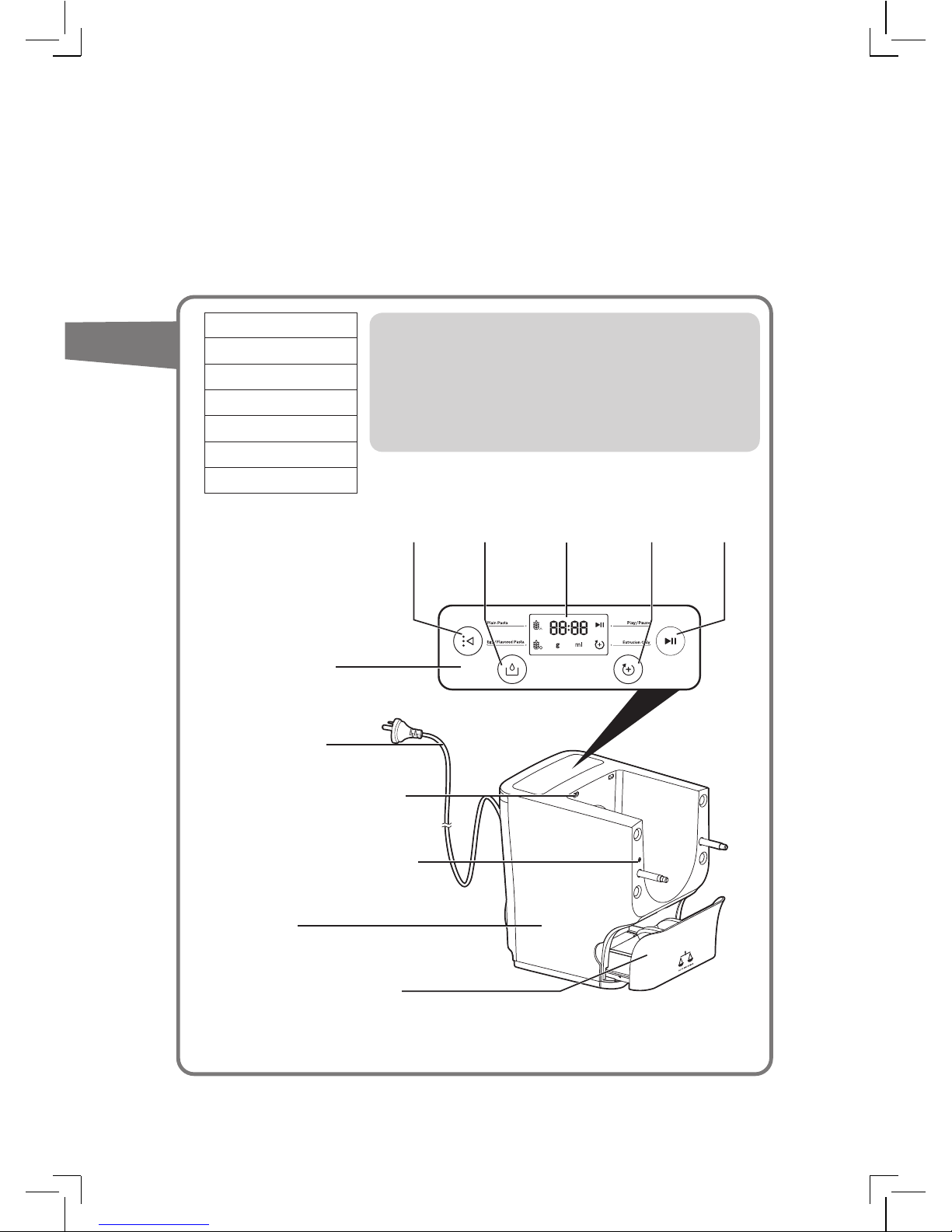

Overview
Mixing
chamber
lid
Disc
holder
Front
panel
Front
panel
knobs
Shaping
discs
Disc holder
safety switch
lever
Mixing
chamber
Mixing
paddle

English 11
Control panel
display
Power cord
Main unit
Disc holder safety switch
Shaping discs storage
Safety switch hole of
the mixing chamber lid
Program
selection
Liquid
calculation
Display
screen
Extra
extrusion
Start/
pause
Program selection - press to select plain
pasta/noodle or egg/flavored pasta/noodle.
Liquid calculation - press to show the required
liquid quantity based on the amount of flour
poured in.
Abbreviations
g = grams
~= approximately
ml = milliliters
mm = millimeters
kg = kilogram
in = inch

12 English
Important

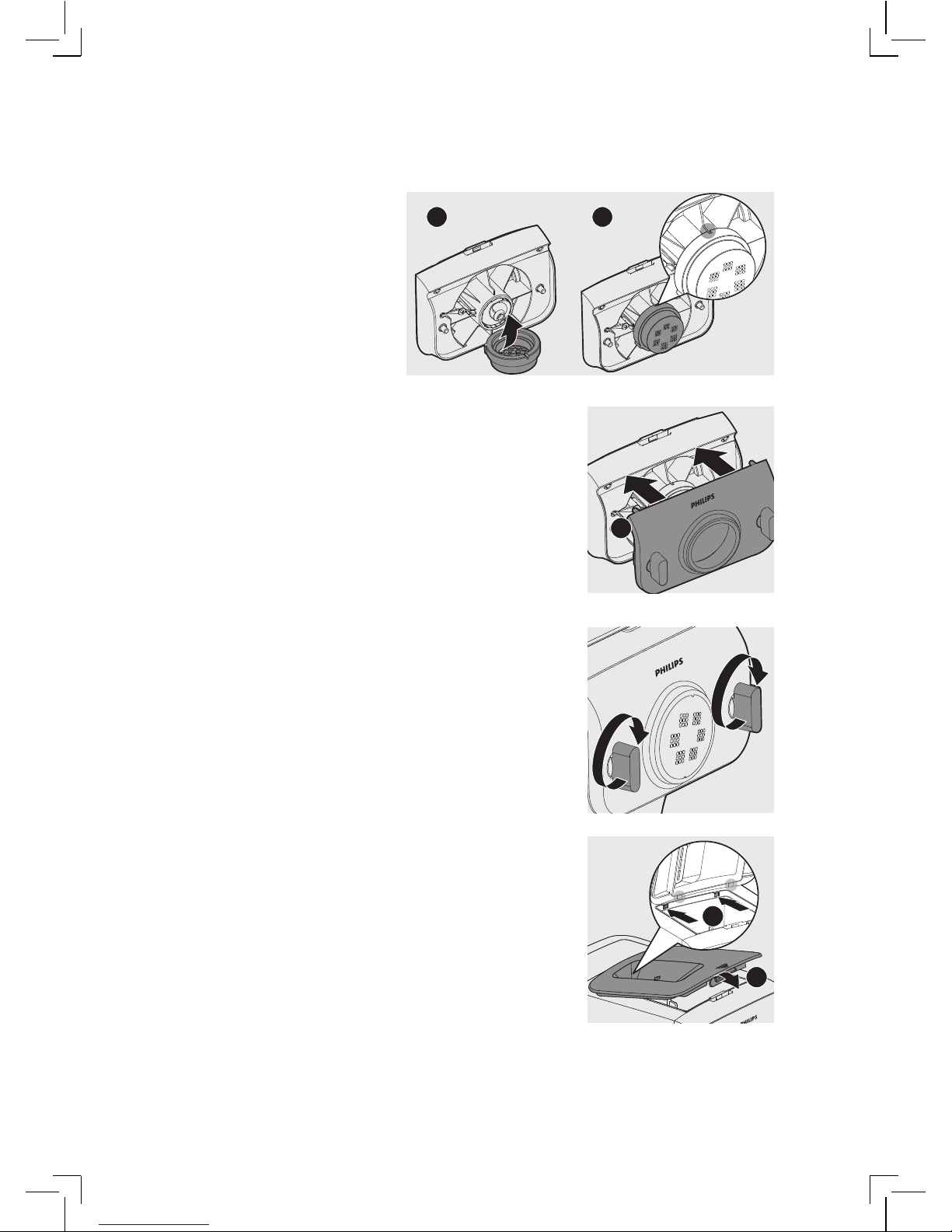

1 Remove the mixing chamber lid from the
appliance.
2 Loosen the front panel control knobs.
Note:
• The front panel is heavy. Take extra caution
when removing it.
Disassembling
and cleaning
before first use

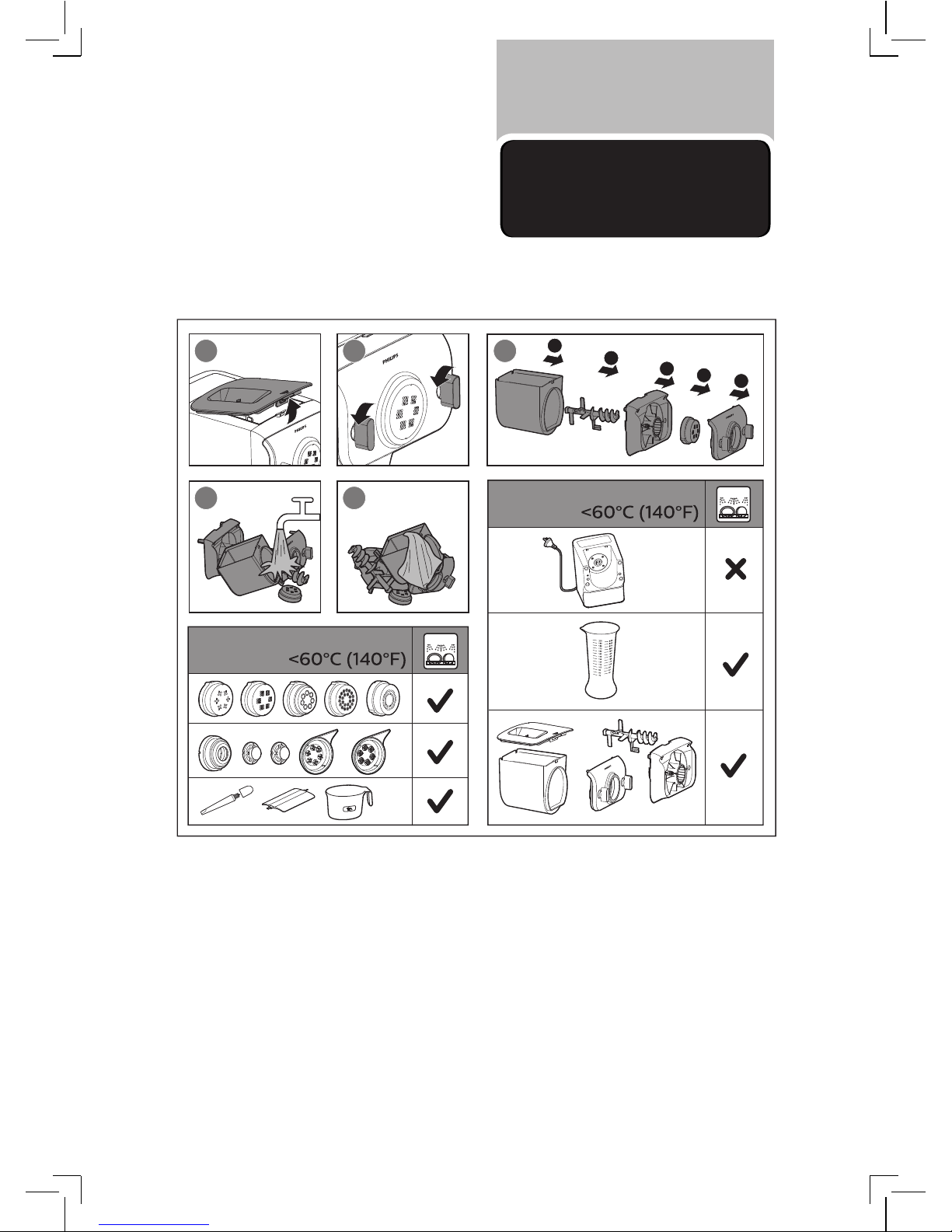

• Before using the appliance for the first time, remove and safely discard
any packaging material and /or promotional labels.
• Take out all parts and accessories, wash and thoroughly dry all parts
and accessories (refer to the chapter "Cleaning").
• Do not use water to rinse or soak the main unit.
• Do not use a scourer or similar cleaners as these will scratch the
plastic surface and affect the lifetime of the pasta and noodle maker.
• The shaping discs and all detachable parts of the appliance are
dishwasher proof. When you clean them in a dishwasher, make sure to
set the temperature below 60ºC (140ºF).
• This appliance is intended for household use only.

English 13
3 Disassemble the front panel, the shaping disc, the shaping disc holder,
the mixing paddle, and the mixing chamber in order.
4 Clean all detachable parts, and wipe them dry.
2
3
4
5
1

14 English
Important
Assembling Follow below assembling steps to
install the pasta and noodle maker.
1 Push the mixing chamber into the
appliance.
2 Point the mixing paddle to the hole in
the main unit. Insert the mixing paddle
all the way into the main unit.
3 Attach the disc holder onto the
appliance.
❶Disc holder safety switch
❷Disc holder safety switch lever
Note:
• Check that the safety switch ❶and
safety switch lever ❷are set as shown
in the illustration to the right.
1
2
• Make sure to tighten the front panel knobs during assembly.
• Make sure the appliance is not plugged in during assembly.

English 15
4 Put the shaping disc onto the disc holder ❶, and make sure it is firmly
fixed on the disc holder ❷.
Note:
• Make sure the inner
cavity of the shaping
disc and disc holder is
properly tted.
5 Attach the front panel to the main unit.
❶Disc holder safety switch lever
Note:
• Make sure the front panel is completely
fastened before using the appliance.
• The front panel is heavy. Take extra caution
when assembling it.
6 Fasten the front panel control knobs.
Note:
• If the front panel or the shaping disc is not
properly assembled, the safety switch will
prevent the appliance from working.
7 Close the mixing chamber lid properly.
Note:
• If the mixing chamber lid is not properly
installed, the safety switch will prevent the
appliance from working.
12
1
1
2

16 English
Important
Using the pasta
and noodle
maker
Preparing the ingredients
1 Connect the power plug to any 230V AC
outlet. The pasta and noodle maker will
sound once, and all indicators will flash
once.
Note:
• Make sure that all the parts are well
assembled before plugging in.
• Place the product on the flat surface and prevent table shaking or
vibration.
• Make sure that all the parts are well assembled before plugging in.
• Do not shake or move the appliance when it is weighing the flour.
• Do not put your hands or any other object on top of the appliance
when it is weighing the flour.
• Do not move or touch the power cord when the appliance is weighing
the flour.
• Do not put less than 200g or more than 500g (2 cups) of flour in the
chamber.
• Press the liquid calculation button after the flour weight is confirmed
on the display.
• Pour in the liquid slowly through the water slot after the appliance start
kneading.
• If you want to dispose of the weighed flour before processing with
the next batch, empty the chamber and restart the appliance by
unplugging and plugging in again.
• Do not put any ingredients that are 60°C / 140°F or above into the
pasta and noodle maker, nor place the pasta and noodle maker in
surroundings with high temperature (60°C / 140°F), for instance in a
high temperature sterilization. This will deform the appliance.
• Never pour water into the mixing chamber before you place the
chamber lid onto the chamber. Do not pour any liquids into the safety
switch hole.

English 17

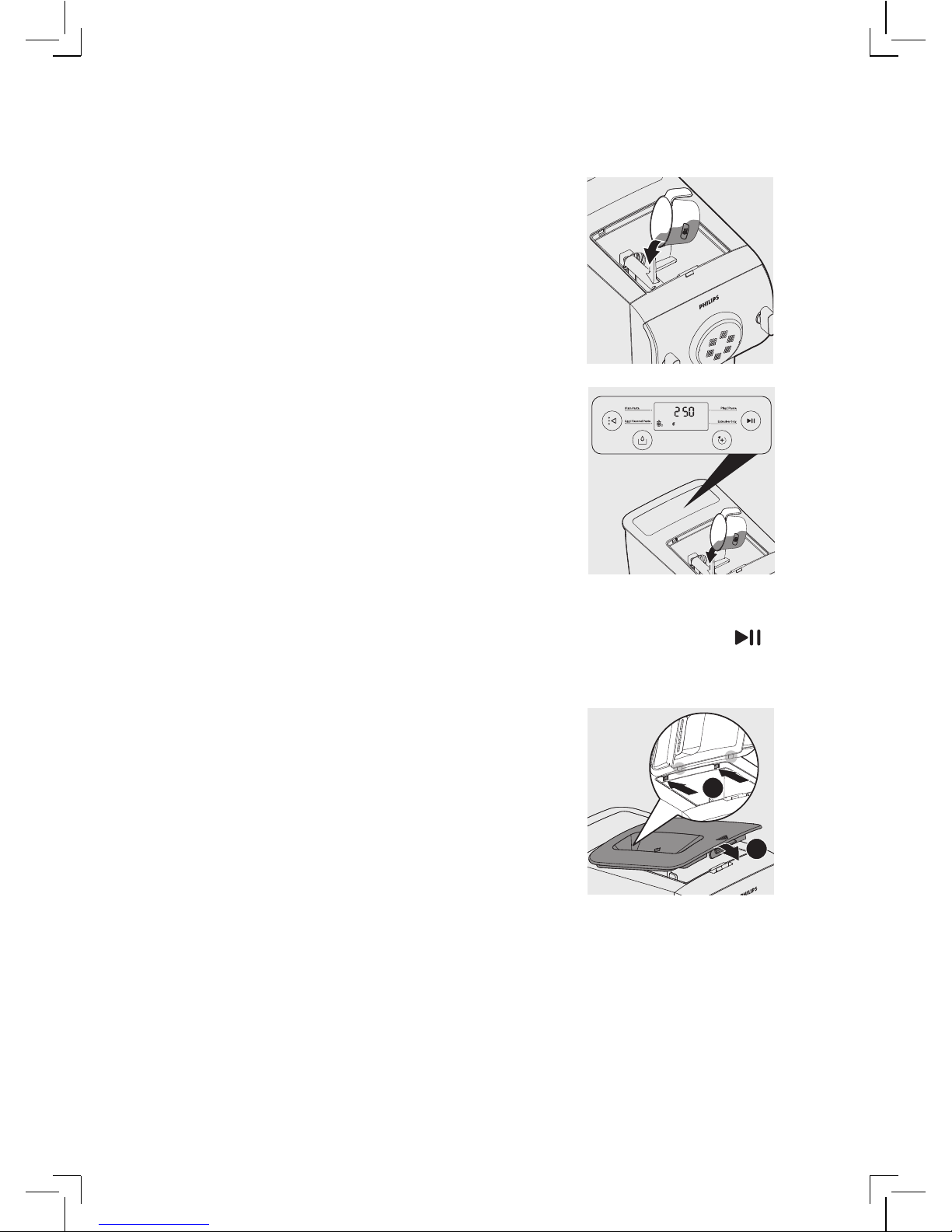

2 Wait until displays on the screen.
3 Remove the chamber lid.
4 Wait until displays on the screen..
5 Measure the flour with the flour cup. One
full cup is equivalent to 1-2 servings..
Note:
• One full cup of flour weighs around 250
gram (1-2 servings).

18 English

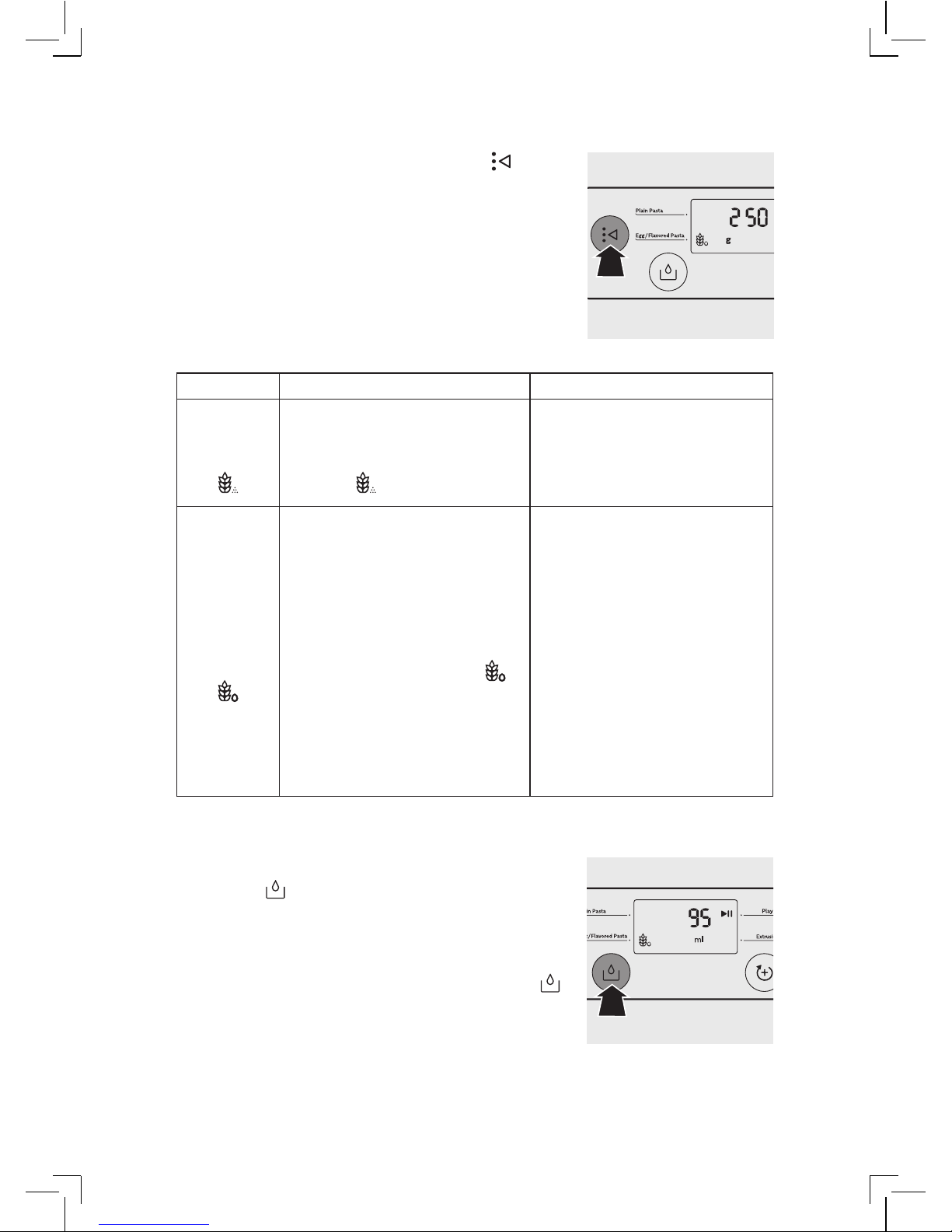

6 Pour the flour into the chamber. If you
want to make 3-4 servings, add a second
cup of flour as you will need 2 cups
(~500g) of flour in total.
Note:
• Do not put less than 200g or more than 500g of
our in the chamber. If you put too little or too much
our in the chamber, the appliance will not operate.
7 The appliance automatically weighs the
flour, and shows the flour weight in
grams.
Note:
• Do not shake or move the appliance when it
is weighing the flour.
• Do not put any object on the appliance
when it is weighing the flour.
• Do not move or touch the power cord when
the appliance is weighing the flour.
• Some recipes (for example cookies, gluten free pasta) require you to
skip the weighing part. In this case, press the start/pause button
for 3 seconds, and the appliance will start kneading and extruding
directly.
8 Close the chamber lid properly.
Note:
• Insert the two hooks into the appliance first
❶, and then push the lid against the main
unit ❷.
• The appliance will not start working if the
chamber lid is not properly closed. During
the pasta/noodle making process, if the
chamber lid becomes loose, the appliance
will automatically stop working.
1
2

English 19
9 Press the program selection button to
choose the type of pasta/noodle you
want to make.
Program Tip Corresponding recipe
Plain
Pasta/
noodle
When you are making pasta/
noodle with flour and water
only, select the "Plain Pasta"
program .
Wheat pasta/noodle
Durum pasta/noodle
Ramen
Udon
Curried pasta/noodle
Egg/
Flavored
Pasta/
noodle
When you are making pasta/
noodle with flour and other
ingredients (eggs or veggie
juice), select the "Egg/
Flavored Pasta" program .
For dumpling sheet or soba,
select this program as well.
Wheat pasta/noodle
Durum pasta/noodle
Dumpling sheet
Whole wheat pasta/noodle
Spelt pasta/noodle
Carrot pasta/noodle
Tomato pasta/noodle
Soba
Beet pasta/noodle
Spinach lasagna/dumpling/
wonton
Fennel pepper pasta/noodle
Pasta nero
Herb pasta/noodle
10 Wait until the flour weight is confirmed,
and then press the liquid calculation
button and the required amount of
water or water and egg mixture displays
on the screen.
Note:
• Only press the liquid calculation button
after the flour weight is confirmed on the
display.

20 English
11 Measure the correct amount of water,
egg mixture or vegetable mixture with
the supplied water cup.
Note:
• Make sure to measure the liquid volume at
eye level on a flat surface.
• When making the egg mixture, crack the
egg into the water cup. Add water up to the
required amount, and then whisk the water
and egg to combine.
• If preferred, 2 eggs can be used instead of 1.
• When making the vegetable mixture, crack
the egg into the water cup. Add vegetable
juice up to the required amount, and then
whisk the juice and egg to combine.
Starting the pasta/noodle making program
Important
• Do not select the extra extrusion program before the dough mixing is
complete. Otherwise, this will damage the pasta and noodle maker
and its lifetime.
• Do not disconnect the power cord before the processing is complete.
If you have to stop processing, press the start/pause button to
stop the working process and then disconnect the power cord from
outlet before performing other operations.
• To better protect the lifetime of the appliance, the continuous working
time should be less than 45 minutes. You can restart using the
appliance after a 15 minute rest.
• If you intend to use the appliance continuously, clean the shaping disc
with the supplied cleaning tool each time after each pasta/noodle
making session. For cleaning ease, do not soak the shaping disc
directly in water.
