ELECTRIC PASTA COOKER
Instructions for installation,
use e maintenance
ADN 656
ADN 641
04/2008

0810_GB_42 - ELECTRIC PASTA COOKER
2· 12
04/2008
CHARACTERISTICS
Supplied by:
Date:
Customer Service:
FAX
e-mail

INDEX
0810_GB_42 - ELECTRIC PASTA COOKER
3· 12
04/2008
1 Diagram 4
2 Characteristics of the appliances 5
3 Technical data 5
4 Installation instructions 6
4.1 Safety rules 6
4.2 Structure, framework and safety devices of the appliances 6
4.3 Assembly 6
4.3.1 Installation premises 6
4.3.2 Statutory regulations and technical requirements 6
4.3.3 Installation 6
4.3.4 Electrical connection 6
4.3.5 Equipotential 6
5 Operation preparation 7
5.1 Preparation and Start-up 7
5.1.1 Start-up 7
5.1.2 Operator training 7
5.2 Maintenance 7
5.3 Replacing parts 7
6 Instructions for use 7
6.1 Safety, cleaning and repair rules 7
6.2 Start-up 8
6.2.1 Emptying the tank 8
6.3 Cleaning and taking care of the machine 8
6.4 Turning the appliance off in case of breakdown 8
6.4.1 What to do in case of failure 8
6.4.2 What to do in case of prolonged period of disuse 8
6.5 Appliance care and frequency of maintenance 8
6.6 Recommendations for handling “stainless steel” industrial
kitchens 9
6.6.1 Useful information on “stainless steel” 9
6.6.2 Warnings and advice for maintenance of “stainless steel”
appliances 9
6.6.3 WEEE Directive 10

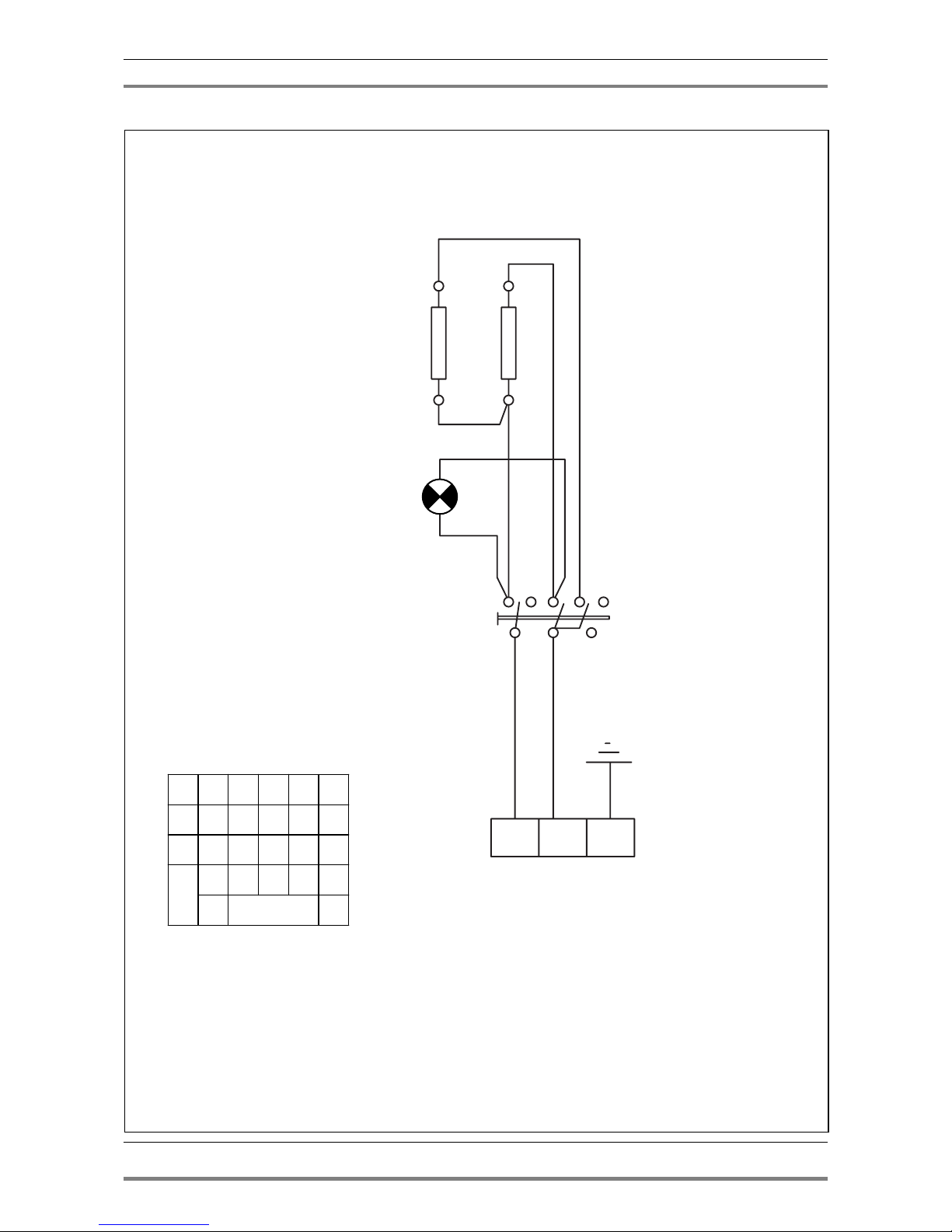

7 Appendix: Electrical diagram 11

0810_GB_42 - ELECTRIC PASTA COOKER
4· 12
04/2008
1 - DIAGRAM
ADN 656
400
600
79
30
86
50
69
535
430
240.8 60
79
2734627
400
103
600
ADN 641
400
700
79
545 55
150 678 60
700
690
310 45
79
400
45
Data plate
Electric power
Electric
power
Data plate
Data plate
Electric power
Electric
power
Data plate

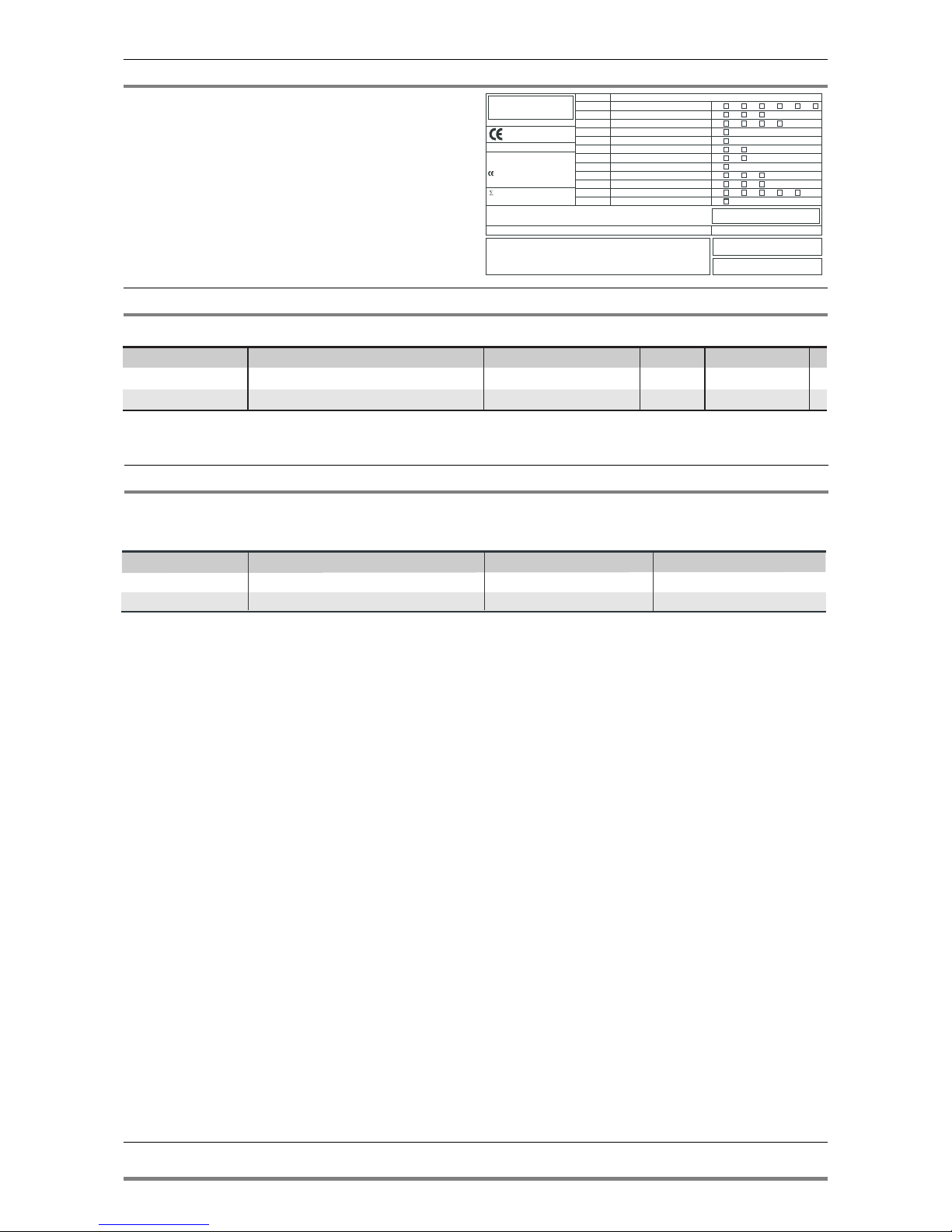

2 - CHARACTERISTICS OF THE APPLIANCES
3 - TECHNICAL DATA
0810_GB_42 - ELECTRIC PASTA COOKER
5· 12
04/2008
These appliances are used for professional purposes.
Installation, repair and use must be carried out by expert personnel.
The data plate is located on the appliance and contains all the data
needed for installation.
Beware of inexpert handling.
Model
ADN 656
ADN 641
Description
Electric pasta cooker
Electric pasta cooker
N˚ Tank
1
1
Capacity
13 l
13 l
Dimensions in mm. (LxDxH)
400 x 600 x 270
400 x 700 x 900
230V
230V
Voltage rating Lead wire Section
3 x 1.5 mm2
3 x 1.5 mm2
Model
ADN 656
ADN 641
3.0 kW
3.0 kW
Total Power
TABLE 1
TIPO/TYPE
CAT/KAT GAS/GAZ G30 G31 G20 G25
II2H3B/P P mbar 30 30 20 -
II2H3+ P mbar 30 37 20
-
-
II2H3+ P mbar 28 37 20 -
25II2L3B/P P mbar 30 30
II2ELL3B/P P mbar 50 50 20 20
II2E+3+ P mbar 28 37 20 25
II2H3B/P P mbar 50 50 20 -
I2E P mbar - - 20 -
--II2H3B/P P mbar 30 30
II2H3+ P mbar 28 37 20 -
--
--
I3B/P P mbar 30 30
I3+ P mbar 28 37
SE FI DK CZ SK SI
IT CH PT
ES IE GB GR
NL
DE
FR BE
AT CH
LU
EE LV LT
EE LV LT
NO MT CY IS HU
CY
MOD.
MOD.
ART.
N.
N.
Qn kW
m3/h
MADE IN ITALY
Predisposto a gas: - Gas preset: - Prevu pour gaz:
Eingestelt für Gas: - Preparado para gas: -
Geschuckt voor:
V AC kW Hz
THE APPLIANCE MUST BE CONNECTED IN COMPLIANCE WITH THE LAWS IN FORCE
AND INSTALLED IN A WELL-VENTILATED ROOM. READ THE INSTRUCTION MANUALS
BEFORE INSTALLING AND USING THE APPLIANCE.
THE APPLIANCE MUST BE INSTALLED BY QUALIFIED PERSONNEL.

4 - INSTALLATION INSTRUCTIONS
0810_GB_42 - ELECTRIC PASTA COOKER
6· 12
04/2008
4.1 Safety rules
• Only a local gas utility technician is authorized to carry out gas
installations and connections. The statutory regulations (applied
in Germany VDE, Austria ÖVE, Switzerland SEV, etc.) and connec-
tion conditions performed by the gas utility must be strictly
observed.
• In compliance with international regulations, when connecting
the appliance to the mains power supply, a device with a mini-
mum aperture of 3 mm between contacts must be fitted
upstream of the appliance, allowing omnipolar disconnection of
the appliance from the mains. Also, a high-sensitivity automatic
differential switch must be installed which protects against direct
or indirect contact with live electrical parts and against current
leakage (maximum current leakage permissible by regulations is
1 mA/kW).
• Connection to a power balance system for the installation in a all
is given through a connection point. Follow the VDE 0100 T 410
connection rules or local rules.
• Compare technical datas on grey stickers to those written on this
manual and present power supply.
• Do not bend, crush or damage the cables against sharp corners.
• Lay the cables so as to avoid contact with extremely hot surfaces.
• Connection to the grid must be carried out with at least a cable
type NYM or H07RN-F.
• The cable - which is totally sheathed – must be led inside the
appliance through the cable clamp and cable raceway installed
on the appliance.
• Ventilation system installation can be carried out only by expert
personnel.
• If the appliance is to be installed near walls, dividing walls, kit-
chen equipment or decorative panelling, these should be in non-
inflammable material. If not, all appliances must be coated with
thermal-insulation fireproof material. Make sure that all fire pre-
vention standards and safety precautions are strictly adhered to.
4.2 Structure, equipment and safety devices
of the unit
Robust steel frame, with 4 height adjustable feet.
Steel outer panelling.
The water is heated by heating element in stainless steel, built to
withstand thermomechanical stress.
Adjustment ranges from a minimum to a maximum position that can
be selected as required.
4.3 Assembly
4.3.1 Installation premises
The appliance must be installed in a well-ventilated room, and if
possible under a range hood (check current regulations).
The appliance can be installed on its own or with other similar
equipment.
If the appliance is to be installed near inflammable walls, a minimum
distance of 150 mm around the sides and back should be allowed.
If this distance cannot be obtained, take proper heat-protection
action such as fitting tiles or thermal radiation protection material
to the walls.
4.3.2 Statutory regulations and technical requirements
During installation of the appliance, the following regulations must
be adhered to:
• Relevant legal directives;
• Local building and combustion regulations;
• "Technical rules for gas systems" worksheet;
• "Technical rules for liquid gas" worksheet;
• “Gas installations in industrial kitchens” worksheet;
• Relative accident prevention standards;
• Local gas utility regulations;
• Local building and fire codes.
4.3.3 Installation
Installation, start-up and maintenance should only be carried out by
expert personnel.
All work required to install the appliance should be carried out in
compliance with all local standards and regulations.
The manufacturers decline all responsibility where poor performan-
ce is due to incorrect installation in disregard of the above condi-
tions.
4.3.4 Electrical connection
Before connecting the unit to the mains, check that:
• The mains voltage corresponds to the values shown on the data
plate;
• The earth is in working order;
• The power cord is suitable to the electrical input of the appli-
ance (see table 1 pag. 5) and approved. The cord must be at
least type H07 RN-F.
The ground wire must be long enough to prevent tug after the
cable lead wires in case of raceway breakage.
Also, up the line from the unit, there must be a device with contact
opening of at least 3 mm which makes it possible to disconnect the
appliance in omnipolar mode.
To this end, for example, safety contactors may be used.
The omnipolar switch must be located near the appliance and be
readily accessible.
4.3.5 Equipotential
The appliance must be hooked up to a unipotential system.The
required terminal is located near the power cable and it is marked
by a tag with a symbol .
The manufacturers cannot be held responsible for any dam-
age due to inadequate or incorrect installation. Under such
circumstances the guarantee will be considered null and void.

5.1 Preparation and Start-up
Before starting up the appliance, remove the protective wrapping.
Then carefully clean the working surface and the external parts with
lukewarm water and detergent, using a damp rag to remove all traces
of anti-rust material applied in the factory, then dry with a clean cloth.
5.1.1 Start-up
Before using the appliance for the first time, thoroughly clean out
the tank (see the chapter 6.3 “Cleaning and taking care of the
machine”).
To start up the appliance, see the instructions for regular use.
5.1.2 Operator training
• Explain and show the user how the machine works according to
the instructions, and hand him this manual.
• Remind the user that any structural alterations or any building
modification or renovation may affect the combustion air supply,
thus requiring a second operation check.
5.2 Maintenance
Attention! Before doing any repair or maintenance
work, unplug the appliance.
• Never leave the appliance on without water in it!
5 - SET-UP FOR OPERATION
0810_GB_42 - ELECTRIC PASTA COOKER
7· 12
04/2008
5.3 Replacing parts
All parts must be replaced by authorized technicians
only!
To replace the following parts first remove all the control knobs and
control panel (after loosening the fixing screws), then extract the
ignition wire.
After any maintenance or repair work, replace the con-
trol panel and the lower panel.
6.1 Safety, cleaning and repair rules
• This appliance is used for the preparation of meals at industri-
al level. Usage and cleaning can be carried only by expert per-
sonnel. Maintenance and repair can be carried out only by
skilled technical personnel.
• These indications must be communicated to all those con-
cerned during internal training.
• Attention! This appliance must be constantly watched over
when being used!
• Grease and overheated oil can catch fire. Use this appliance
only under constant control. Never use water to put out
grease or oil!
• Parts of the appliance and attachments exposed to food
must be cleaned with detergents and rinsed thoroughly with
potable water.
• Do not clean the appliance using water jets or steam,
whether direct or pressurized!
• If the room is being cleaned with water/steam jets or high-pres-
sure equipment, it is necessary to switch off the appliance first!
• Before starting to clean the appliance, disconnect from the
mains.
• Do not use inflammable liquid to clean the appliance.
• Repairs may be carried out only by skilled personnel.
• During repairs, the appliance must undergo voltage
omnipolar insulation (local switch, i.e. safety load cut-off
switch).
• Noise emission values of the appliance in operation are below
70dB (A). This value is compulsory according to certain national
safety standards.
WARNING
Attention! The manufacturer declines all responsibility concern-
ing mistakes included in these instructions due to translating or
printing errors: the manufacturer also reserves the right to
change the product as he see fits, though without changing its
essential features. The manufacturer declines all responsibility for
any non-compliance with the provisions contained in this manu-
al.
6 - INSTRUCTIONS FOR USE

6 - INSTRUCTIONS FOR USE
0810_GB_42 - ELECTRIC PASTA COOKER
8· 12
04/2008
6.2 Start-up
Before using the appliance for the first time, thorou-
ghly clean the tank with lukewarm water and deter-
gent, using a soft cloth to eliminate all trace of the
rust-proofing applied in the workshop. Dry with a clean
cloth.
Check if the water discharge is closed.
Fill the tank with water to the relevant mark. Turn on the main swit-
ch upstream of the appliance: the green indicator light (pos. 2 fig. 1)
come on indicates that the appliance is on.
The switch has 2 working position (pos.1 fig. 1):
POS. 2 bringing to temperature ( max. power, 3,0 kW);
POS. 1 keeping warm (1/2 power, 1,5 kW).
To turn the appliance off, turn the knob to position “0”.
6.2.1 Emptying the tank
The user should place a special container under the discharge.
The bowl should be heat-resistant.
A bowl with these requisites is available separately as an optional
extra from our sales department.
Open the water drain tap.
6.3 Cleaning and taking care of the machine
• Never clean the appliance with jets of water, whether direct or
pressurised!
• Never clean the appliance before it has cooled down.
• Rinse the surface with clean water and a soft cloth to get rid of
all traces of detergent.
• When finished using the appliance, it should be cleaned thorou-
ghly every evening.
• Before starting to clean the appliance, disconnect from the
mains. The surfaces and steel parts should be washed in warm
water using a neutral detergent. Avoid using abrasive or corrosi-
ve detergents which could damage the steel.
• Thoroughly dry the appliance.
• Cleaning the appliance daily guarantees perfect long-term opera-
tion.
6.4 Turning the appliance off in case of
breakdown
6.4.1 What to do in case of failure
In case of breakdown or malfunctioning or failure turn off the
appliance. Switch off any electric power. Call the service centre.
6.4.2 What to do in case of prolonged period of disuse
When the appliance is not to be used for a long time, clean thor-
oughly, cas instructed in the chapter 6.5 “Appliance care and fre-
quency of maintenance”, switch off any electric power.
6.5 Appliance care and frequency of maintenance
Attention! When cleaning, carefully avoid washing the
appliance with direct water jets or high-pressure
water!
Cleaning must be performed when the appliance is cold.
Thorough daily cleaning of the appliance, after disconnecting it, will
keep it in perfect working order and make it last longer. All steel
parts should be cleaned with water and a detergent, using a damp
cloth; do not use abrasive substances or corroding detergents.
Do not use steel wool, which could cause rust to form.
For the same reason, avoid touching the appliance with anything
made of iron. Do not clean with sandpaper and lubricating gel paper.
If absolutely necessary, you may use pumice powder.
If the appliance is extremely dirty, use a synthetic sponge (i.e.
Scotchbrite sponge).
After cleaning the appliance, rinse with clean water and wipe with
a clean cloth.
All maintenance and repair work must be carried out by authorized
technicians only.
The appliance must be checked at least once a year. For this reason,
a service agreement contract is recommended.
6.6 Recommendations for the treatment of
stainless “steel industrial” kitchens
6.6.1 Useful information on “stainless steel”
Industrial kitchens are generally made of “stainless steel” having
the following material codes:
• 1.4016 or 1.4511 = magnetizable chromed steels
• 1.4301, 1.4401 and 1.4571 = non-magnetizable chromed steels
Chromed steels have favourable thermo-technical characteristics. In
fact, they have less of a tendency to warp due to the effect of heat.
Chrome-nickel steels, instead, have good corrosion resistance features.
“Stainless steel” corrosion resistance is given by an inactive coat
that builds up on the surface by coming into contact with oxygen.
The oxygen in the air is already enough to build up the inactive
coat that allows automatic removal of anomalies and damage due
to mechanical actions. The inactive coat builds up or re-builds up
faster if the steel comes in contact with running water containing
oxygen.
A more powerful effect is given by oxidative acids (nitric acid, oxalic
acid). These acids are used if the steel has undergone strong chemi-
cal stresses, hence generally losing its inactive coat.
The inactive layer can be chemically damaged or jeopardized by
reducing agents (oxygen consumption) if they come in contact with
the steel, concentrated or at high temperatures. These active sub-
stances include for instance:
• saline and sulphurous substances
• chlorides (salts)
• concentrated spices such as mustard, vinegar essences, soup
cubes, kitchen salt solutions, etc.
21
Fig. 1

6 - INSTRUCTIONS FOR USE
0810_GB_42 - ELECTRIC PASTA COOKER
9· 12
04/2008
More damage can be caused by:
• outside rust (i.e. from other components, tools or incipient rust)
• iron particles (i.e. file dust)
• contact with non-ferrous metals (element build up)
• lack of oxygen (i.e. no air inlet, water lacking oxygen).
6.6.2 Warnings and advice for maintenance of “stain-
less steel” appliances
• “Stainless” steel equipment surfaces must be kept clean and in
contact with air at all times. When not running, keep appliance
doors open so as to allow air to run through it.
• Regularly remove calcium , grease, starch, and egg white deposits
where rust may build up if there is lack of air. Do not use bleach-
ing products or products containing chloride. Follow all indica-
tions given by the company concerning special soaps and clean-
ing methods to be used for the appliance. If no specific cleaning
recommendations are available, it is necessary, however, to use
detergents having a low chloride content. After cleaning, remove
all soap residues with plenty of clean water and thoroughly dry
the surfaces.
• Minimize contact of “stainless steel” with concentrated acids,
spices, salts, etc. Even acid vapours coming from cleaning the tiles
favour “stainless steel” corrosion.
• Particularly for pots and multiple appliances, it is not recom-
mended to load the cooking chamber only with food having a
high salt content.
It is preferable to cook different food together, i.e. fatty dishes
or vegetables containing acids.
• Avoid damaging the “stainless steel” surface, in particular with
different metals. Residues from other metals help build up the
formation of chemical microelements that may cause rust. At any
rate, it is appropriate to avoid contact between iron and steel
since it produces rust. Any contact between “stainless steel” and
iron (steel wool, pipeline chips, chalybeate waters) can start cor-
rosion phenomena.
• As for mechanical cleaning, it is recommended to use only steel
wool or natural, plastic or steel bristle brushes. Steel wool or
brushes with “stainless steel” can cause rust due to rubbing. Newly
formed rust spots can be removed with slightly abrasive liquid
soaps or fine-grained sand paper. Larger rust spots can be removed
with 2-3% of hot oxalic acid solution. If these cleaning products do
not do the job, a nitric acid (10%) treatment is required.
Attention! These treatments can be carried out only by
expert personnel according to current regulations!

6 - INSTRUCTIONS FOR USE
0810_GB_42 - ELECTRIC PASTA COOKER
10 · 12
04/2008
6.6.3 The 2002/96/EC (WEEE) Directive:
information to users
This informational note is meant only
for owners of equipment marked with
the symbol shown in fig. A on the adhe-
sive label featuring the technical specifi-
cations applied on the actual product
(the label also giving the serial number).
This symbol indicates that the product is classified, according to the
regulations in force, as an item of electrical and electronic equip-
ment and conforms to EU Directive 2002/96/EC (WEEE) meaning
that, at the end of its service life, it must be treated separately from
domestic waste, i.e. it must be handed in free of charge to a separa-
te waste electrical and electronic equipment collection centre or
returned to the reseller when buying a new equivalent item of
equipment.
The user is responsible for delivering the unit at the end of its life
to the appropriate collection facilities. Failure to do so shall result in
the user being subject to the penalties prescribed by the legislation
in force on waste.
Suitable separated collection so that the unit no longer used can be
sent off for environmentally compatible recycling, treatment and
disposal helps avoid possible negative effects on the environment
and on health and facilitates the recycling of the product's compo-
nent materials.
For more detailed information on available collection systems, con-
tact the local waste disposal service or the shop you purchased the
unit from.
Producers and importers fulfil their responsibility for environmental-
ly compatible recycling, treatment and disposal both directly and by
joining a collective scheme.
Fig. A
NOTES

7 - APPENDIX: ELECTRICAL DIAGRAMS
0810_GB_42 - ELECTRIC PASTA COOKER
11 · 12
04/2008
L2
L1
mA 230V
PE
B1
B1
0
0
1
1
2
2
P1
P1
P2
P2
P3
P3
5
5
2
2
1
1
3
3
4
4
X
X
X
X
X
X
X
X
X
X
X
X
R2 R1
H1
B1
P3 P1 P2
12534
mA
B1
H1
R1
R2
Terminal board
Commutator
Green indicator light
Heating element inferior 1500 W
Heating element superior 1500 W
Total power: 3.0 kW
ADN 656
ADN 641

WARNING
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE
FOR ANY INACCURACIES IN THIS BOOKLET DUE
TO COPYING OR PRINTING ERRORS.
DUE TO ITS POLICY OF CONTINUAL PRODUCT IMPROVEMENT,
THE MANUFACTURER RESERVES THE RIGHT
TO MAKE ANY CHANGES DEEMED NECESSARY.
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE
IF THE INSTRUCTIONS CONTAINED IN THIS MANUAL
ARE NOT OBSERVED.
WHIRLPOOL EUROPE srl
V.le Guido Borghi, 27
I – 21025 Comerio – VA
