RCA RACE1202-B User manual

KC-E5
Please read this owner’s manual carefully and thoroughly before
installing and operating your room air conditioner.
Please retain this owner’s manual for future reference after reading it
thoroughly.

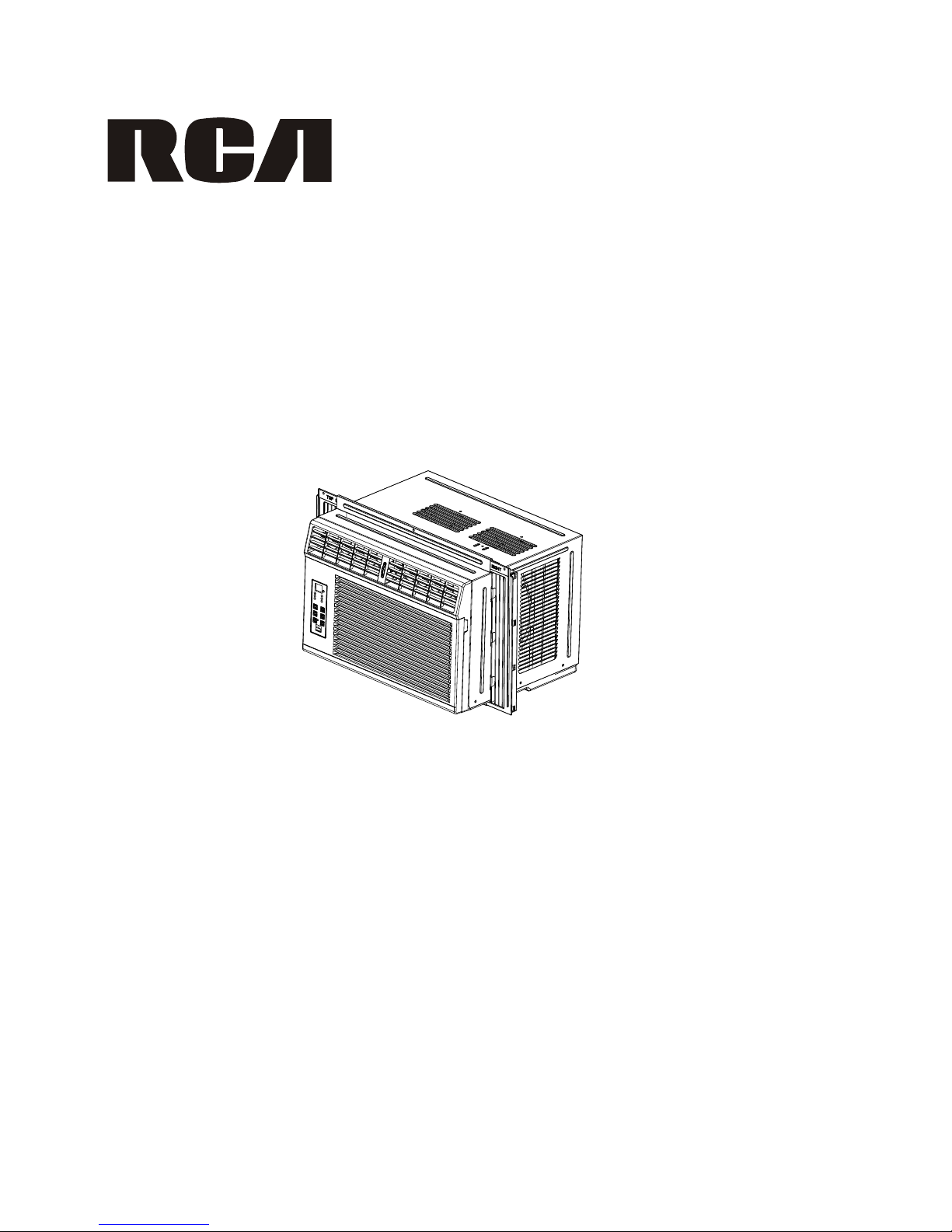

OWNER'S MANUAL
(WINDOW TYPE)
AIR CONDITIONER
MODEL:RACE1202%

1

CONTENTS
Contents…………………………………………………………………………………………..1
Important Safety Instructions…………………………………………………………..2
Product Registration………………………………………………………………………..4
Packaging………………………………………………………………………………………..4
Normal Sounds……………………………………………………………………..…………….4
Air Conditioner Features……………………………………………………….…………5
Operating Instructions………………………………………………………………………..6
Care and Cleaning……………………………………………………………………………11
Energy Saving Ideas………………………………………………………………………..12
Trouble Shooting…………………………………………………………………………..13
Installation Instructions……………………………………………………………………14
French Manual…………………………………………………………………………………20

Important Safety Instructions
NOTE:
This USE & CARE MANUAL provides specific operating instructions for your model. Use the
room air conditioner only as instructed in this USE & CARE MANUAL. These instructions are
not meant to cover every possible condition and situtation that may occur. Common sense and
caution must be practiced when installing, operating, and maintaing any appliance.
NOTE:
The power supply cord with this air conditioner contains a current detection device designed to reduce the risk
of fire.
Please refer to the section Operation of Current Device for details.In the event that the power supplycord is
damaged, it cannot be repaired. It must be replaced with a cord from the product manufactured.
WARNING
Avoid fire hazard or electric shock. Do not use
an extension cord or an adaptor plug. Do not
remove any prong from the power cord.
Grounding type wall
receptacle Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong grounding
plug and current
detection device
To reduce the risk of fire, electric shock, or injury to persons
when using your air conditioner, follow basic precautions,
including the following:
Be sure the electrical service is adaquate for the model
you have chosen. This information can be found on the
serial plate, which is located on the side of the cabinet
and behind the grille.
If the air conditioner is to be installed in a window, you
will probably want to clean both sides of the glass first.
If the window is a triple-track type with a screen panel
included, remove the screen complertely before
installation.
Be sure the air conditioner has been securely and
correctly installed according to the separte installation
instructions provided with this manual. Save this manual
and the installation instructions for possible future use
in removing or reinstalling this unit.
When handling the air conditioner, be careful to avoid
cuts from sharp metal fins on front and rear coils.
Prevent Accidents
To complete electrical rating of your new room air coditioner
is stated on the serial plate. Refer to the rating when
checking the electrical requirements.
Be sure the air conditioner is properly grounded. To
minimize shock and fire hazards, proper grounding is
important. The power cord is equipped with a three-
-prong grounding plug for protection against shock
hazards.
Your air conditioner must be used in a properly grounded
wall receptacle. If the wall receptacle you intend to use
is not adaquately grounded or protected by a time delay
fuse or circuit breaker, have a qualified electrician install
the proper receptacle.
Do not run air conditioner without outside protective
cover in place. This could result in mechanical damage
with the air conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information
2
This air conditoner contains no user-serviceable
parts. Always call an authorized servicer for
repairs.
Do not insert or place fingers or objects into the
air discharge area in the front of the unit.
Do not start or stop the air conditioner by
unplugging the power cord or turning off the
power at the electric box.
Do not cut or damage the power cord.
If the power cord is damaged, it should only be
replaced by an authorized servicer.
In the event of a malfunction (sparks, burning
smell,etc.), Immemediately stop the operation,
disconnect the power cord, and call an
authorized servicer.
Do not operate the air conditioner with wet hands.
Do not pull on the power cord.
Do not drink any water that is drained from the
air conditioner.
WARNING
DANGER! Avoid Serious Injury or Death
WARNING
WARNING
Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance. Read product tabels for
flammability and other warnings.
For Your Safety
WARNING
Or
Power supply cord
with 3-prong grounding
plug

Important Safety Instructions
SAFETY PRECAUTIONS
Provide occasional ventilation during use. Do not direct aif flow at fireplaces or other heat related sources as this could
cause flare ups or make units run excessively.
Do not climb on or place objects on outdoor part of the unit.
Do not hang objects off the unit.
Do not place containers with liquids on the unit.
Turn off the air conditioner at the power source when it will not be used for an extended period of time.
Periodically check the condition of the units installation accessories for any damage.
Do not apply heavy pressure to the radiator fins of the unit.
Operate the unit with air filter in place.
Do not block or cover the intake grille, discharge area and outlet ports.
Ensure that any electrical/electronic equipment is one yard away from the unit.
Do not use or store flammable gases near the unit.
DANGER! Avoid Injury or damage to the unit or other property
READ THIS SECTION BEFORE ATTEMMPTING TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to operating.
Operation of Current Device
Plug in
& press RESET
Remark: The apperance of actual plug
may be slightly different from the line
drawing shown in the figure. The line
drawing is for reference only.
TEST
RESET
POWER
The power supply cord contains a current device that senses
damage to the power cord. To test your power supply cord do the
following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug side.
Press the TEST button. You will notice a click as the RESET button
pops out.
3. Press the RESET button. Again you wil notice a click as the
button engages.
4. The power supply cord is now supplying electricity to the unit.
NOTE:
Do not use this device to turn the uinit on or off.
Always make sure the RESET button is pushed in for correct
operation.
The power supply cord must be replaced if it fails to reset
when either the TEST button is pushed, or it cannnot be
reset. A new one can be obtained from the product
manufacturer.
If power supply cord is damaged, it CANNOT be repaired. It
must be replaced by one obtained from the product
manufacturer.
3

Product Registration, Packaging & Normal Sounds
Product Registration Record Your Model and Serial Numbers
Record in the space provided below the model and serial
numbers. On all models, the serial plate is located on the
outside of the cabinet.
Model Number
Serial Number
Packaging Remove all packaging from inside the carton,
along with any inserts placed into the side
louvers
PACKAGING INSERTS
Normal Sounds
Vibration
Unit may vibrate and make
noise because of poor wall or
window construction or
incorrect installation.
Gurgle/Hiss
“Gurgling or hissing”
noise may be heard due to
refrigerant passing through
evaporator during normal
operation.
4
Fan
You may hear air
movement from the fan.
Condenser
You may hear droplets of water
hitting the condenser, causing
a pinging or clicking sound.
Compressor
The modern high efficiency compressor
may have a high pitched hum or pulsating
noise that cycles on and off.

Air Conditioner Features
Air Conditioner Features ELECTRONIC CONTROL
Before you begin, thoroughly familiarize yourself with
the control panel and remote as shown below and all its
functions, then follow the symbol for the functions you
desire. The unit can be controlled by the touch pad alone
or with the remote.
SLEEP
TIMER SET BUTTON
FAN SPEED BUTTON
HIGH SPEED INDICATOR LAMP
MEDIUM SPEED INDICATOR LAMP
LOW SPEED INDICATOR LAMP ENERGY SAVER INDICATOR LAMP
OPERATION MODE BUTTON
ON/OFF BUTTON
COOL MODE INDICATOR LAMP
FAN MODE INDICATOR LAMP
SET INCREASE BUTTONTEMPERATURE
SET DECREASE BUTTONTEMPERATURE
TIMER INDICATOR LAMP
5
DISPLAY TEMPERATURE/TIME
REMOTE CONTROL
TO REPLACE BATTERY
TAB
Battery Size: CR2025
Turn Remote Control upside down. Squeeze tab
and pull to remove battery tray. Place battery
in tray with POSITIVE(”+”) side facing up,
according to diagram. Re-insert battery tray.

Operating Instructions
NOTE
The following instructions represent the Touch Pad, the same instructions can be used for the
Remote Control.
TO TURN UNIT ON:
DO THIS:
PRESS POWER
BUTTON
YOU WILL SEE:
Note: When unit is turned on
it defaults energy saver
mode and the temperature
is79F(26℃). But if the unit
has been set fan mode before,
it defaults fan mode when
turned on again.In energy
saver mode, fan motor runs
when the compressor runs,
fan motor stops when the
compressor stops. When the
room temperature is above
the set temperature, the
compressor turns back on.
Energy saver mode can also
be initiated by pressing the
button on the remote control.
Energy saver indicator lamp
lights
Low speed indicator lamp
lights
TO OPERATE COOL MODE:
DO THIS:
PRESS
MODE BUTTON
CHOOSE
COOL
YOU WILL SEE:
Note: In this mode the initial
set temperature is 79F(26℃).
Cool mode indicator lamp lights
Low speed indicator lamp
lights
6
Operating Instructions

Operating Instructions
Operating Instructions
(continued)
TO CHANGE TEMPERATURE SETTING: YOU WILL SEE:
DO THIS:
PRESS TO RAISE
PRESS TO LOWER
Note: Tap or hold either up ( )
or down ( ) button until the
desired temperature is seen
on the display. This tempera-
ture will be automatically
maintained anywhere between
61F(16℃) and 88F(31℃).
When the unit is on, at cool
mode the set temperature is
displayed on the display all
along, if you want the display
to read the actual room
temperature. See To Operate
on Fan Onlysection on page
8. At fan mode, ( ) and ( )
buttons are not functional.
Cool mode indicator lamp lights
Low speed indicator lamp
lights
DO THIS:
PRESS TO SELECT
Note:Press the fan speed
button to selet the fan speed in
the order of: low medium
high low.
Cool mode indicator lamp lights
Medium speed indicator
lamp lights
TO ADJUST FAN SPEEDS: YOU WILL SEE:
7

Operating Instructions
Operating Instructions
(continued)
TO OPERATE ON FAN ONLY: YOU WILL SEE:
DO THIS:
PRESS
MODE BUTTON
CHOOSE
FAN
Note:Use this function only
when cooling is not desired,
such as for room air circulation.
You can choose any fan speed
you prefer. During this function,
the display will show the actual
room temperature, not the set
temperature as in the cooling
mode.
Fan mode indicator lamp lights
Medium speed indicator
lamp lights
TIMER: DELAY STOP/START FEATURE YOU WILL SEE HOW MUCH TIME IS CHOSEN:
FIRST
DO THIS:
PRESS
TIMER BUTTON
8
SECOND
DO THIS:
PRESS
UP/DOWN BUTTON
Timer indicator lamp lights
THIRD
DO THIS:
PRESS
MODE BUTTON
CHOOSE MODE

Operating Instructions
9
Note: For Delay Stop , the unit must be in the On position.
First, press TIMER button, then adjust timer setting, tap or hold the UP ( ) or the DOWN arrow ( ) to
change delay timer at 1 hour increments, up to 24 hours. The time will be shown on the display, then the
control will automayically change the display back to the set temperature in 5 seconds.
Note: For Delay Start, the unit must be in the Off position.
First, press TIMER button, then adjust timer setting, tap or hold the UP ( ) or the DOWN arrow ( ) to
change delay timer at 1 hour increments, up to 24 hours. The control will count down the time remaining
until start (3,2,1,etc.). Press mode button to select modes, once energy saver or cool mode is chosen,
the set temperature defaults 79F(26℃). Press fan speed button to select fan speed.The display will
show the hours remaining until the unit start/stop. Pressing the unit On/Off button at any time will
cancel the Delay Start/Stop function. The Delay Start/Stop Feature will work until the unit either starts
or stops. Once that happens the above steps have to be repeated again.
Operating Instructions
(continued)
SLEEP
SLEEP FEATURE:
DO THIS:
PRESS
SLEEP BUTTON
Note:Press the sleep button on the remote
control to start sleep function .
During cooling mode, the set temperature will
increase 2F(1℃) one hour after setting sleep
mode, and will increase 2F(1℃) once more in
the next one hour (that means the set
temperature increases 4F(2℃) within two hours
after setting sleep mode), then the air
conditioner will work at this temperature all along.
During sleep mode, fan speed will be "LOW".
The sleep mode
can also be cancelled at any time during operation
by again pressing the “Sleep”button.
Press
fan speed button during sleep mode, the air
conditioner will stop sleep function.
Note:This feature is a reminder
to clean tne air filter (See Care
and Clean) for more efficient
operation. After 200 hours of
operation the display panel
will flashly displayCF to
remind you of cleaning the air
filter.
FILTER REMINDER, YOU WILL SEE:

Operating Instructions
Operating Instructions
(continued)
FAULT CODES:
Note:If the display reads
t F7,i indicates malfunction
of the room temperature
resistance.1. Check whether
the sensor is abnormal.
2. Check whether the
components of the electrical
control board are abnormal
and whether the capacitor is
creepage.
Note:If the display reads
t F8,i indicates malfunction
of the pipe temperature
resistance.
TO TURN UNIT OFF: YOU WILL SEE:
DO THIS:
PRESS
POWER BUTTON
Fan mode indicator lamp lights
Medium speed indicator
lamp lights
10
Note:All lights are extinguish.

Operating Instructions,Care and Cleaning
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that
you should become familiar with.
The cool circuit has an automatic 3 minutes time delayed start if the unit is turned off and
on quickly. This prevents overheating of the compressor and possible circuit breaker
tripping.
After a power outage, the unit will memorize the last setting and return the unit to the same
setting once power is restored.
Operating Instructions

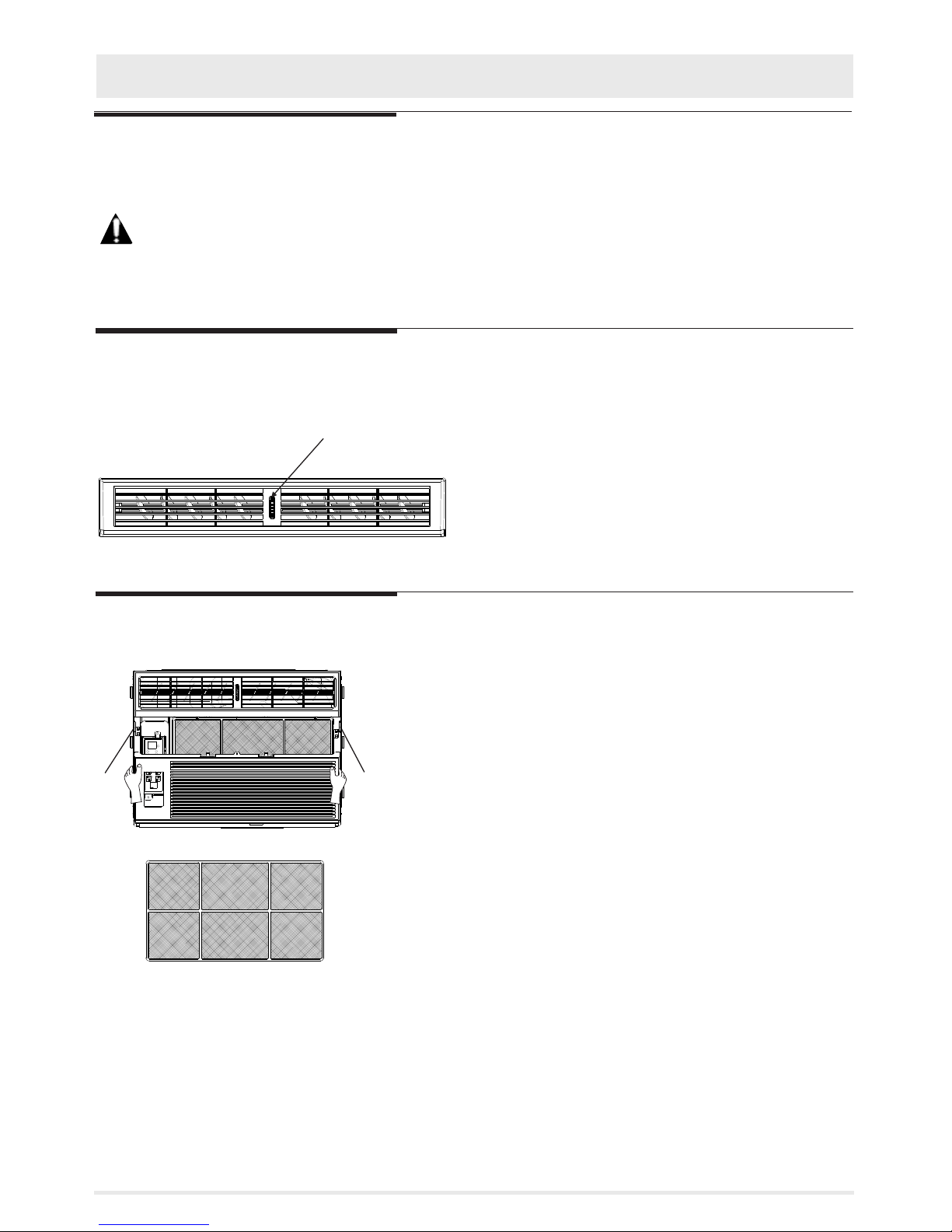

(continued) Air Directional Louvers
Air directional louvers control air flow direction.
Your air conditioner has the louver type
described below.
Auger Type
Rotate the auger wheel on the front grille of the
unit , the airflow can be directed to the left, right,
straight ahead, or any combination of these
directions.
AUGER WHEEL
Care and Cleaning
Air Filter Cleaning
Clean your air conditioner occasingally to keep it looking
new. Be sure to unplug the unit before cleaning to
prevent shock or fire hazards.
The air filter should be checked at least once a month to
see if cleaning is necessary. Trapped particles in the filter
can build up and cause an accumulation of frost on the
cooling coils.
Wash the filter using liquid dishwashing detergent and
warm water. Rinse filter thoroughly. Gently shake
excess water from the filter. Be sure filter is thoroughly
dry before replacing
Or instead of washing, you may vacuum the filter clean.
Cabinet Cleaning
Be sure to unplug the air conditioner to prevent shock
or fire hazard. The cabinet and front may be dusted
with an oil-free cloth or washed with a cloth dampened
in a solution of warm water and mild liquid dishwashing
detergent. Rinse thoroughly and wipe dry.
Never use harsh cleaners, wax or polish on the cabinet
front.
Be sure to wring excess water from the cloth before
wiping aroung the controls. Excess water in or around
the controls may cause damage to the air conditioner.
Plug in air conditioner.
Cabinet Cleaning
11
If you plan to store the air conditioner during the winter,remove it carefully from the window
according to the installation instructions. Cover it with plastic or returnit to the original carton.
Remark: The appearance of actual air
filter may be slightly different from the
line drawing shown in the figure. The
line drawing is for reference only.
Air Filter
Handle
Handle

Energy Saving Ideas
Energy Saving Ideas
Do not block air flow inside with blinds, curtains or furniture, or outside with shrubs, enclosures,
or other buildings.
The capacity of the room air conditioner must fit the room size for efficient and satisfactory
operation.
Install the room air conditioner on the shady side of your home. A window that faces north is best
because it is shaded most of the day.
Close the fireplace damper, floor and wall registers so cool air does not escape up the chimney
and into the duct work.
Keep blinds and drapes in other windows closed during the sunniest part of the day.
Clean the air filters as recommended in the sectionCare and Cleaning.
Proper insulation and weather stripping in your home will help keep warm air out and cool air in.
External house shading with trees, plants or awnings will help reduce the air conditioners work
load.
Operate heat producing appliances such as ranges, washers, dryers and dishwashers during
the coolest part of the day.
12

BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call really necessary. A quick reference to this manual may
help you avoid an unneeded service call.
THE AIR CONDITIONER WILL NOT OPERATE
Check if...
Wall plug disconnected.
House fuse blown or electric breaker tripped.
Power switch is OFF position.
Unit was turned off and then immediately on.
Control knob set warmer than room temperature.
Push plug firmly into wall outlet.
Replace fuse with time delay type or reset circuit breaker.
Turn power switch the ON position.
Turn unit off the wait 3 minutes before restarting.
Wall plug disconnected.
House fuse blown or electric breaker tripped.
Unit was turned off and then immediately on.
Temperature set warmer than room temperature.
Push plug firmly into wall outlet.
Replace fuse with time delay type or reset circuit breaker.
Turn unit off and wait 3 minutes before restarting.
Set the temperature lower .
Then...
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH
Check if...
House fuse blown or electric breaker tripped.
Then...
Fan speed set in low .
The temperature set too warm.
Room temperature below 61F(16℃).
Cooling may not occur until room temperature rises above 61F(16℃).
Temperature sensing tube touching evaporator coil,
located behind front grille.
Remove front grille, and straighten tube away from evaporator coil.
Set fan speed to high .
Set the unit to lower temperature.
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM-ICE
FORMING ON COOLING COIL BEHIND INLET GRILLE.
Check if...
House fuse blown or electric breaker tripped.
Then...
Outdoor temperature below 70F(21℃).
Air filter may be dirty.
The air conditioner set too cold for night-time
cooling.
To defrost the coil, set the air conditioner to fan mode.
Clean filer. Refer to maintenance section of owners manual.
To defrost the coil, set the air conditioner to fan mode.
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM
Check if...
House fuse blown or electric breaker tripped.
Then...
Dirty air filter-air restricted.
Front of unit is blocked by drapes, furniture, etc.
Air distribution is restricted.
Clear blockage in front of unit.
Clean air filter. Refer to maintenance section of owners manual.
Doors, windows, registers, etc. open, cold air escapes.
Close doors, windows registers, etc.
Unit recently turned on in hot room.
Allow additional time to remove stored heat from walls, ceiling, floor
and furniture.
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if...
Then...
Outside temperature is extremely hot.
Set fan speed to high speed to bring air past cooling coils faster.
NOISE WHEN UNIT IS COOLING
Check if...
Then...
Sound of fan hitting water-from the moisture removal system.
This is normal when humidity is high. Close doors, windows and registers.
Window vibration-poor installation.
Refer to installation instructions or check with installer.
Trouble Shooting
The temperature set too warm.
Set the unit to lower temperature.
13

Installation Instructions
READ BEFORE INSTALLING UNIT
INSTALLATION WARNINGS AND CAUTION
The unit is for window mounting only.
Carefully read the installation manual before beginning.
Follow each step as shown.
Observe all local,state,and national electrical codes and by qualified,licensed, authorized personnel
only.
Pay attention to danger and safety notices.
To avoid risk of personal injury, property damge, or product damage due to the weight of this device and
sharp edges that may be exposed:
Air conditioners covered in this manual pose an excessive weight hazard. Two or more perple are
needed to move and install the unit. Wear protective gloves whenever lifting or carrying the unit.
AVOID the sharp metal fins of front and rear coils. To prevent injury or strain, use proper lifting and
carrying techniques when moving unit.
Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of
the unit over an extended period of time.
Handle air conditioner with care.
Make sure air conditioner does not fall during installation.
*
*
*
*
*
*
*
*
*
NOTE:
Window Mounting (5,000~12,000BTU)
SAVE CARTON and these INSTALLATION
INSTRUCTIONS for future reference. The
carton is the best way to store unit during
winter, or when not in use.
DO NOT USE ANY SCREWS OTHER THAN
THOSE SPECIFIED HERE.
FOR SAFETY REASONS, THE TOP RAIL
MUST BE SECURELY FASTENED WITH
ALL FOUR (4) SCREWS.
Qty.
SCREW(ST4X16C)
TOP RAIL
5
4
2
1
2
SCREW( 4X8F)ST
Attention: For detailed content of accessories,
please take our package as major reference.
Philips Screwdriver
1
1
FOAM STRIP(Not adhesive backed)
FOAM STRIP(A )dhesive backed
Mounting Hardware
TOOLS NEEDED
Drill(if piolt holes are needed)
14
CURTAIN SASH
CURTAIN CLIP
CURTAIN 2
The side clip must be
put backside. This side should be
put on the front.
The Side Clip
The Middle Clip

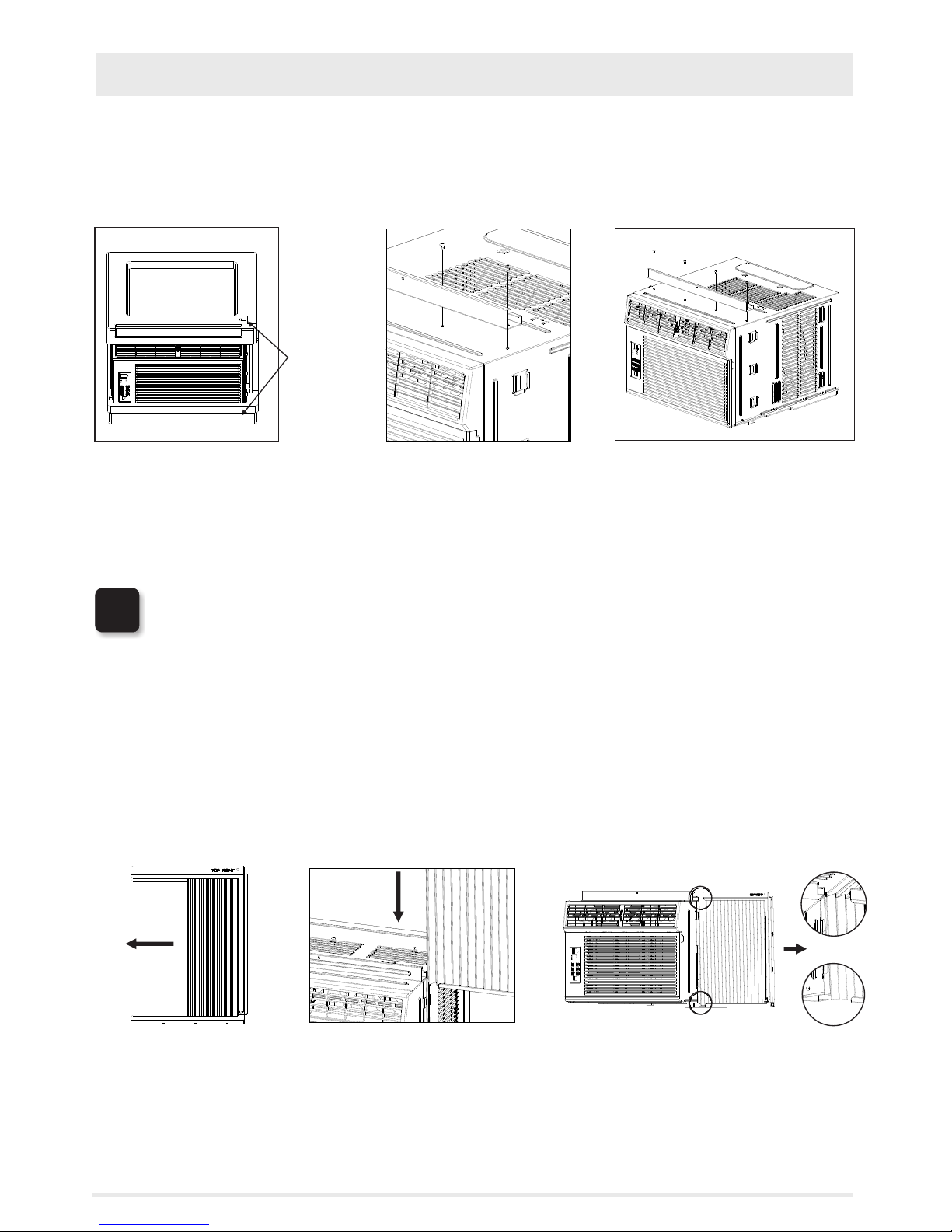

1. Install the curtain into the curtain sash, please note that the side with middle clip should be put inside
the curtain sash, after that insert the curtain clip into the curtain sash, as shown in FIG . Therefore after
the two guide panels are assembled, keep them for later use.
.A
FIG.A
Curtain
Curtain Sash Curtain Clip
BEFORE INSTALLING

Installation
FIG.1 FIG.2 FIG.3
Your air conditioner is designed to install in standard double hung windows with opening widths
of 25.4″to 40.4″(about 645mm to 1025mm)(FIG.4A,FIG.4B).
Lower sash must open sufficiently to allow a clear vertical opening of 15″(about 380mm). Side louvers
and the rear of the air conditioner must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
15
I section
LEFT + RIGHT CURTAIN ASSEMBLY
NOTE: Top Rail and Curtains at each side are offset to provide the proper pitch to the
rear of (5/16). This is necesssary for proper condensed water utilization and drainage.
If you are not using the curtains for any reason, this pitch ro the rear must be maintained.
1Place unit on floor, a bench or a table. There is a Left and Right Curtain - be sure to use
the proper curtain for each side. When installed, the flange for securing the curtain in
place to the window sill will be facing into the room.
A. Hold the curtain in one hand and gently pull back the center to free the open end.See FIG.1.
B. Slide the free end I section of the curtain directly into the cabinet as shown in FIG.2. Slide the
the curtain down. Be sure to leave enough space to slip the top and bottom of the frame into the
rails on the cabinet.
C. Once the curtain has been installed on the side of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments. Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet. See FIG.3.
D. Slide the curtain all the way in and repeat on the other side.
2. The top rail must be assembled on the unit.
A. Remove the air conditioner from the carton and place on a flat surface as shown in .B.
B. Align the hole in the top rail with those on the top of the unit as shown in .C
C. Secure the top rail to the unit with the screws(ST4X10FT) as show in .D
FIG
FIG
FIG
FIG.B FIG.C FIG.D
Packaging

Installation
3Keep a firm grip on the air conditioner, carefully place the unit into the window opening
so the bottom of the air conditioner frame is against the window sill(FIG.6A & FIG.6B).
Carefully close the window behind the top rail of the unit.
FIG.6A FIG.6B
4Extend the curtains out against the window frame (
(FIG.7B for Vinyl-Clad windows).
FIG.7A for wooden windows),
FIG.7A FIG.7B
5Drive locking screws:
A: For wooden windows:
Drive screws(ST4X16FT) through the frame and into the sill (FIG.8A).NOTE: To prevent
window sill from splitting, drill pilot holes before driving screws. Drive (ST4X16FT) locking
screws through frame holes into window sash(FIG.8B).
16
window
frame
Wooden Windows Vinyl-clad Windows
INSIDE OUTSIDE OUTSIDE INSIDE
FIG.4A FIG.4B
25.4″to 40.4″
645mm to 1025mm
15″
380mm
Offset
Exterior
wall
Interior
wall
Inner sill
Wooden Windows Vinyl-clad Windows
25.4″to 40.4″
645mm to 1025mm
15″
380mm
Inner sill
Interior
wall
Offset
Exterior
wall
2Storm Window:
If the air conditioner is blocked by Storm Window, add wood
as shown in FIG.5, or remove storm window before air
conditioner is installed.
If Storm Window Frame must remain, be sure the drain holes
or slots are not caulked or painted shut. Accumulated Rain
Water or Condensation must be allowed to drain out.
FIG.5 1-1/2min Board thickness as
required, for proper
pitch to rear, along
entire sill.Fasten
with nails or screws.
INNER
SILL
INSIDE OUTSIDE
OUTER SILL
STORM
WIDOW
FRAME
(38mm)

Installation
7After the completion of the installation, please check the machines lean as shown
(FIG.10A & FIG.10B).Its necessary for proper condensed water utilization and drainage.
FIG.10A FIG.10B
8Trim the weather seal with a proper length, peel off
the protective backing and plug any
gas if needed as shown FIG.13.
FIG.13
Remove the air conditioner From Window
Turn the air conditioner off, and disconnect power cord.
Remove sash seal from between windows.
Remove screws installed through frame and the sash.
Close (slide) curtains into frame.
Keeping a firm grip on air conditioner, raise sash and
carefully remve.
Be carefully not to spill any condensate water while
lifting unit from window. Store parts WITH air
conditoner.
*
*
*
*
*
17
Wooden Windows Vinyl-clad Windows
INSIDE OUTSIDE INSIDE
H
about
1/4”-1/2”
Bottom Rail Bottom Rail
H1 H2
about 1/4”-1/2”
H= H2H1-
FIG.8A FIG.8B
B: For Vinyl-Clad windows:
Drive (ST4X16FT) locking screws through the frame and into the window sash (FIG.8B).
NOTE: Before driving the screws, use a drill to drill 5 holes through the holes in the frame and
frame extensions into the window sash as shown (FIG.8B).
HH
OUTSIDE

18
Installation
6Cut foam strip and insert it into the space between the upper and lower sashes (FIG.9).
FIG.9
FOAM SEAL

QUICK REFERENCE GUIDE
Only install unit according to the supplied Installation Instructions.
When plugging unit in, always press the RESET button on the
Current Device.
POWER MODE FAN SPEED
To Get Cool
1.Press On/Off button
2.Press Mode to select cool
3.Press Fan Speed to change
speed(Fan runs continuously)
MODE To Save Energy
Press Mode to select Energy Saver
Cooling will turn off once the set temperature is reached.
MODE To Run Fan
Press Mode to select Fan
Fan will circulate air inside the room without air
conditioner cooling.
FAN SPEED
To Compensate for Opening Doors
Press Fan Speed button to increase fan speed.
SLEEP To Go to Sleep
Press the Sleep button on the remote control
Temperature increases4F(2℃) within two hours then
the air conditioner will work at this temperature all long.
TIMER To Enter Timer Start or Timer Stop
Press theTimer button
Timer button is functional when On/Off button is set to
either On or Off. Enter up to 24 hours for automatic turn
on or shut off. When unit is On, the value entered is the
time that the unit will shut off. When unit is Off, the value
entered is the time that the unit will turn on.
Remember:
Your Use& Care Guide has complete descriptions of all these features
and more. Please read it carefully and keep in a safe place.
19
