OWNER'S MANUAL
(WINDOW TYPE)
AIR CONDITIONER
MODEL:RACE5002E

CONTENTS
11
Safety Precautions..................................................................................2
Before Operation ....................................................................................5
Introduction .............................................................................................6
Window Requirements ................................................................8
Operating Instructions...........................................................................12
Maintenance .......................................................................................16
Remote Controller ...................................................................15
Installation.................................................................................................8
Troubleshooting......................................................................................17
Preparation of Chassis...............................................................9
Unit Installation..........................................................................10
Removal from Window...............................................................11
Operation Panel.. ......................................................................12
Function Specifications .............................................................13
Contents.................................................................................................1
French Manual .....................................................................................19

Installation
Don’t use a power cord, a
plug or aloose socket
which is damaged.
• Otherwise, itmay cause a
fire or electricalshock.
Always ground the
product.
• There is risk of fire or
electric shock.
Do not modifyor extend
the power cable.
• There is risk of fire or
electric shock.
Do not disassembleor
modify products.
• It maycause failure and
electric shock.
Always install the expansion
panel(s).
• Improper assemblyor
installation may causeincorrect
operation, including injury, fire,
and poor performance,electric
shock hazards.
Do not use the power cord
near flammable gas or
combustibles such asgaso-
-line, benzene,thinner,etc.
• It maycause explosion or
fire.
Operation
Do not placeheavy object
on the powercord and take
care so thatthe cord should
not be pressed.
Always install adedicated
circuit and breaker.
Do not touch(operate)the
product with wethands.
• There is danger of fire or
electric shock.
• Improper wiring or
installation may causefire
or electric shock
• There is risk of fire or
electrical shock.
WARNING
SAFETY PRECAUTIONS
Do not placethe power cord
near a heater.
• It maycause fire and
electric shock.
Do not allowwater to run
into electric parts.
• It willcause failure of
machine or electric shock.
Use a softcloth to clean. Do
not use wax,thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color,or develop
surface flaws.
If strange sounds, or small
or smoke comes from
product. Turn the breaker
off or disconnect the power
supply cable.
• There is risk of electric
shock or fire.
Do not open the suction
inlet grill of the product
during operation.
• Otherwise, it may electrical
shock and failure.
If water enters the product, turn
off the power switch of the
main body of appliance. Contact
service center after taking the
power-plug out from the socket.
22

Ventilate the room well when
using this appliance
together with a stove, etc.
Turn off the power and
breaker firstly when
cleaning the unit.
Turn off the main power
switch when notusing it for
a long time.
• Anoxygen shortage may
occur.
• Since thefan rotates at high
speed during operation,it
may cause injury.
• Prevent accidentalstartup
and the possibilityof injury.
Do not plug or unplug the
power supply plugduring
operation.
• There is risk of fire or
electric shock.
Do not damageor use an
unspecified power cord.
• It willcause electric shock or
fire.
Do not operatewith wet
hands or indamp
environment.
• It willcause electric shock.
Take care to ensure that
power cable could not be
pulled out or damaged
during operation.
• There is risk of fire or
electric shock.
When gas leaks,open the
window for ventilation
before operating the unit.
• Otherwise, it may cause
explosion, and a fire.
Never touch the metal parts
of the unit when removing
the filter.
• They are sharp and may
cause injury.
Installation
Install the product so that thenoise or hot
wind from the outdoor unit may not cause
any damage to the neighbors.
• Otherwise, it may cause dispute with the
neighbors.
Keep level parallel in installing the product.
• Otherwise, it may cause vibration or water
leakage.
CAUTION
Operation
Do not put a pet orhouse
plant where it will be
exposed to direct air flow.
• It may cause injury.
Do not block the inlet or
outlet of air flow.
• It may cause product failure.
Use a soft cloth to clean. Do
not use wax, thinner, or a
strong detergent.
• The appearance of the air
conditioner may deteriorate,
change color,or develop
surface flaws.
SAFETY PRECAUTIONS
33

Do not stepon the
indoor/outdoor unit anddo
not put anythingon it.
Always insert thefilter
securely.
Clean it every two weeks.
Do not drink water drained
from air conditioner.
• It maycause an injury
through dropping ofthe unit
or falling down.
• Operation without filters will
cause failure.
• It containscontainment
and will makeyou sick.
Be cautious not to touch
the sharp edges when
installing.
Avoid excessive cooling and
perform ventilation
sometimes.
Do not insert the hands or
bars through the air inlet or
outlet during operation.
• It maycause injury. • Otherwise, it may do harmto
your health.
• Otherwise, itmay cause
personal injury.
If the liquid from the batteries gets onto your
skinor clothes, wash it well with clean water.
Do not use the remote if the batteries have
leaked.
• The chemicals in batteries could cause burns
or other health hazards.
If you eat the liquid from the batteries, brush
your teeth and see doctor. Do not use the
remote if the batteries have leaked.
• The chemicals in batteries could cause
burns or other health hazards.
44
SAFETY PRECAUTIONS

Preparation for Operation
1. Contact an installation specialist for installation.
2. Plug inthe power cord properly.
3. Use a dedicated circuit. Overloadingthe line could create a fire hazard.
4. Do notuse an extension cord.
5. Do notstart/stop operation byplugging/unplugging the power cord.
6. If thecord/plug is damaged, have an authorizedServicer install an exact replacement part.
Usage
1. Being exposedto direct airflow for an extended period of time could be hazardous to your
health. Do notexpose occupants, pets, or plants to direct airflow forextended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate theroom when usedtogether with
stoves or otherheating devices.
3. Do notuse this air conditioner for non-specified special purposes (e.g. Preserving precision
devices, food, pets,plants, and artobjects). Such usage could damage the items.
4. The air conditioner is a consumer comfort appliance, not a precision climate control system.
Cleaning and Maintance
1. Do nottouch the metal parts of the unit when removing the filter. Injuries can occur when
handling sharp metal edges.
2. Do notuse water to clean inside the air conditioner. Exposure to water can destroy the
insulation, leading to possible electric shock.
3. When cleaningthe unit, first make sure that the power and breaker are turned off. The fan
rotates at a very high speed during operation. There is a possibility of injury if the unit’s power
is accidentally triggeredon while cleaning inner parts of the unit.
Service
For repair andmaintenance, contact yourauthorized service dealer.
Service
55
BEFORE OPERATION

How and Why
Your room air conditioner provides the following functions to make hot weather living more
comfortable:
1.Cools and circulatesthe room air.
2.Lowers humidity byremoving excess moisture.
3.Filters out summertimedust, dirt, and some airborne impurities.
The air conditionerperforms these functions by drawing the room air througha filter which traps
dust and dirtparticles. The air then passes over a coolingcoil which refrigerates the air and
removes excess moisture.The same air is then returned to theroom-cooler, drier, and cleaner.
Moisture removed fromthe room air is carried to the outside and evaporated.
Normal Sounds
Aside from the regular fan motor and compressor sounds coming from your air conditioner, you will once
in a while hear a pinging sound. This is the result of moisture inside the room air being thrown against the
running fan. This is normal and should not be caused for concern. Also, do not be alarmed if you hear a
slight hissing or gurgling sound coming from your air conditioner after it is off. These are normal coolant
noises.
Your air conditioner is designed to beeasy to operate and to provide plenty of cooling power.
Fan
You may hear air
movement from thefan. Condenser
You may hear droplets of water
hitting the condenser, causing
a pinging orclicking sound.
Compressor
The modern highefficiency compressor
may have ahigh pitched hum or pulsating
noise that cycleson and off.
FIG.1
Capacitance and Running Time
Proper unit size is important in deciding the desired comfort for the area you want to cool. The proper
size is determined by the number of square feet in the area to be cooled.
Whenever the heat or humidity load is above normal, the air conditioner must run longer and more often
to keep the desired temperature you have selected. Under heavy heat load conditions, the air conditioner
may need to run constantly to keep the temperature you want.
66
INTRODUCTION

At times using the high fan setting to circulate the room air may make it comfortable even though you
do not set the air conditioner to cool the air. This will save your cost of use.
Features
77
7. Front Grille
2. Upper guide
5. Vertical louver blades
1. Cabinet
8. Air Filter
9. Inlet grille
3. Operation panel
4. Horizontal louver blades
6. Guide Panel
FIG.2
Using the Air Conditioner
1. Plug in the air conditioner. (To prevent electrical hazards, do not use an extension cord or an adapter plug.)
2. Turn on the power switch.
3. Select the cool mode.
4. Set the fan speed at the high level.
5. Adjust the air direction control tabs for comfortable airflow.
6. Once the room has cooled, adjust the set temperature and fan speed to the setting you find most
comfortable.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the section of important safety
instructions before operating the appliance.
To begin operating the air conditioner after installation, follow these steps:
Note:
If the air conditioner is turned off, a “compressor protection ” is automatically self-activated. The
compressor cannot operate during a “compressor protection”condition. (This is normal) it may take 3
minutes before the “protection circuit” self-deactivates.
INTRODUCTION
1
2
3
4
5
6
7
9
8
??
10
10. Wheel

ITEM NAME OF PARTS Q’TY
A
B
C
D
E
SCREW(ST4X16FT)
GUIDE PANEL(LEFT)
UPPER GUIDE
5
3
1
1
1
ABCD
FIG.3
GUIDE PANEL(RIGHT)
SCREW(ST4X10FT)
E
Attention: For detailedcontent of accessories,please take our package as major reference.
REQUIRED TOOLS:
Tight fitting gloves Standard screwdriver
Pliers Sharp knife
3/8-inch open end wrench oradjustable wrench 1/4-inch hex socketand racher
Tapemeasure Electric drill 1/4-inch drill bit
This air conditioner will be installed into standard double hung windows with actual clear opening widths
of 23 to 37 (about 920mm to 580mm).(FIG.4).
Lower sash must open sufficiently to allow a clear vertical opening of 13 (about 325mm). Side louvers
and the rear of the air conditioner must have clear air space to allow enough airflow through the
condenser for heat removal. The rear of the unit must be outdoors, not inside a building or garage.
WINDOW REQUIREMENTS
23 to 37
13
Sash
FIG.4
Interior wall
Window
Offset
Sill
Inner sill
Exterior
88
INSTALLATION
FGF
G
1
1
FOAM STRIP(Adhesive backed)
FOAM STRIP(Not adhesive backed)

PREPARATION OF CHASSIS
SIDE CURTAINS
Pull the curtains and make them fit into the T shape groove from the top down, then insert and push the
frame into the guides of the air conditioner, as shown in FIG.6.
1
1
FIG.6
2
2
UPPER GUIDE
Fasten the upper guide(ITEM E) on the top of the air conditioner with 3 screws (ITEM A) as shown in
FIG.5.
ITEM A
FIG.5 T SHAPE GROOVE
Open the window and mark center line with pencil in the center of the inner sill, as shown in FIG.8.
4
ROOM SIDE
INNER SILL
CENTER
LINE
FIG.8
LOCATE THE UNIT IN WINDOW
FOAM STRIP
(ITEM F)
FIG.7
Cut the adhesive-backed foam strip(ITEM F) to the window width. Remove the backing from the foam
strip and attach the foam strip to the underside of the bottom window. (FIG.7)
3
FOAM STRIP
99

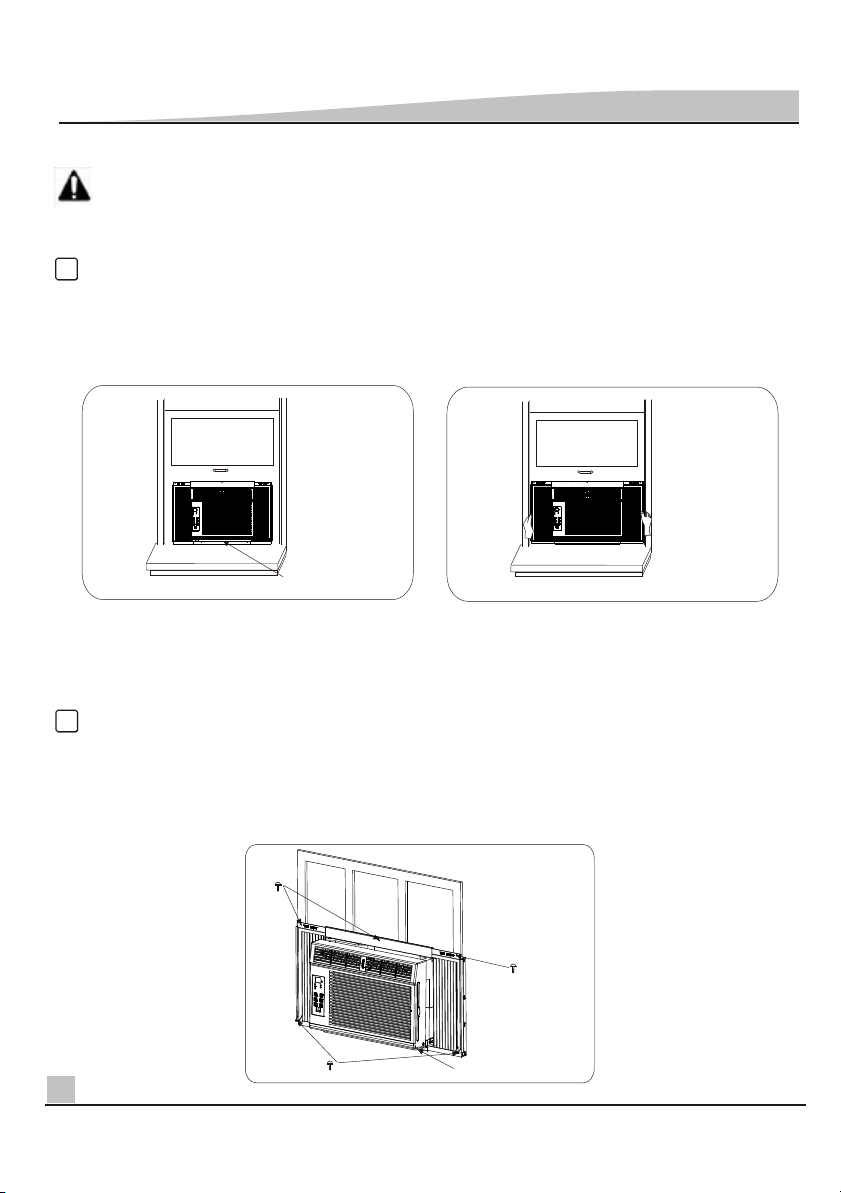

INSTALLATION

UNIT INSTALLATION
Caution: During thefollowing step, holdunit firmly until window sash is lowered to
top channel behindside panel frames. Personal injury or property damage may result
if unit fallsfrom window.
INSTALL THE AIR CONDITIONER ON THE WINDOW
FIG.9
1
Carefully lift the air conditioner and slide it into the open window. Make sure it is put in the center of the
window as shown in FIG.9.
While steadying the air conditioner, carefully bring the window sash down behind the upper guide of the
air conditioner. Extend the guide panels to fill the window opening , as shown in FIG.10.
SECURE THE GUIDE PANELS
2
FIG.11
ITEM B
ITEM B
ITEM G
Fasten the topof the to the sashwith 3 screws
with 2 screws
guide panels (ITEM B),then fastenthe lower part
of the guide panels to thesill (ITEM B),as shownin FIG.11.
FIG.10
CENTER LINE
When the air conditioner is properly installed, it should tilt slightly down at the back. If it is set correctly
in the window, it will hang lower in the back automatically. If it does not, there is a problem with the
installation.
1010
INSTALLATION
Finally, inset the foam seal (ITEM G) in the space between the windowsill and the bottom of the
air conditioner.As shown in FIG.11.
ITEM B

REMOVAL FROM WINDOW
Turn off the air conditioner and disconnect the power cord. Remove the 5 screws installed through the
window and the air conditioner, and save for reinstallation later. Close the guide panels. Keeping a firm
grip on the air conditioner, raise the sash, and carefully tilt the air conditioner away from you to drain any
condensate water. Remove the air conditioner from the window .
CAUTION
When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils.
Make sure air conditioner does not fall during removal.
Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed
to move and install the unit.
To prevent injury or stain, use proper lifting and carrying techniques when moving unit.
Note: Please note that there is a screw on the left and right side of the air conditioner covered by the curtain
fastening strips. Before disassembling the unit please first take out the curtain fastening strips then loose
the screw on each side, as shown in FIG.13.
CURTAIN FASTENING STRIP
SCREW FIG.13
1111
Install a second wood strip(approximately 6 long by 1.5 wide and same thickness as first strip) in the
center of the outer sill flush against the back of the inner sill, as shown in FIG.12.
IF AIR CONDITIONER IS BLOCKED BY STORM WINDOW FRAME
If storm window presents interference, fasten a 2 wide wood strip to the inner window sill across the
full width of the sill. The wood strip should be thick enough to raise the height of the window sill so that
the unit can be installed without interference from the storm window frame. See FIG.12.
Proper clearance enhances the cooling efficiency of the unit and prevents heat radiation of the condenser.
The top of the wood strip should be approximately 0.75 higher than the storm window frame or wood
strip to help condensation to drain properly to the outside.
If the distance between storm window frame and wood strip mounted on top of inner sill is more than 1
two of wood strips are not necessary.
1 MAX
WOOD STRIP
MOUNTED
ON TOP OF
INNER SILL
INNER
SILL
INSIDE OUTSIDE
OUTER SILL
STORM
WIDOW
FRAME
0.75 OLEARANCE
FIG.12
INSTALLATION
3

Caution: If youturn off theair conditioner or switch from cooling to the fan, wait at
least 3 minutesbefore setting tocooling again.
OPERATION PANEL
The control featured in this manual are representative of the many models available. Your model may
look slightly different.
1.ON/OFF button
Turns on/off the air conditioner.
2. FAN SPEED button
Use to set the fan speed in the order of: low medium high low.
1212
OPERATING INSTRUCTIONS
3. OPERATION MODE button
Use to select the operation mode in the order of: COOL mode FAN mode ENERGY SAVER
COOL mode and relative indicator lamps will illuminate.
TIMER SET
button
FAN SPEED
button
High speed
indicator lamp
Medium speed
indicator lamp
Low speed
indicator lamp Energy saver
indicator lamp
OPERATION
MODE button
ON/OFF
button
COOL MODE
indicator lamp
FAN MODE
indicator lamp
SET
INCREASE button
TEMPERATURE
SET
DECREASE button
TEMPERATURE
TIMER indicator
lamp
TIMER SET
button
FAN SPEED
button
High speed
indicator lamp
Medium speed
indicator lamp
Low speed
indicator lamp Energy saver
indicator lamp
OPERATION
MODE button
ON/OFF
button
COOL MODE
indicator lamp
FAN MODE
indicator lamp
SET
INCREASE button
TEMPERATURE
SET
DECREASE button
TEMPERATURE
TIMER indicator
lamp
Or

4. TIMER SET button (Timer range: 1-24 hours)
5. TEMPERATURE ADJUSTMENT button
FUNCTION SPECIFICATIONS
6. AIR FLOW DIRECTION ADJUSTMENT
1313
Moving the wheel on the front grille of the unit , the airflow can be directed to the left, right, straight ahead,
or any combination of these directions.
OPERATING INSTRUCTIONS
Notice: The time of AUTO-OFF will be displayed for 10 seconds , after that the display will change to
display the set temperature but in fan mode the room temperature will be displayed.
1) When the unit is on, press this button once to start timer off function and “01” will be shown on the
display ,every press of this button increases the AUTO-OFF time by 1 hour(24 hours at most), when the
time accumulates to 24 , press this button again the air conditioner will quit timer function. You can refer
to the following:
01 02
quit timer function.
…
24
2) When the unit is off, press this button once to start timer on function and “01” will be shown on the
display ,every press of this button increases the AUTO-ON time by 1 hour(24 hours at most), when the
time accumulates to 24 , press this button again the air conditioner will quit timer function. You can refer to
the following: When the timer on is activated the timer indicator
lamp and the relative mode indicator lamps will flash and other buttons on the control panel are not
functional , modes can be changed by pressing the buttons on the remote controller.
Notice: AUTO-ON time will be displayed all the time before the air conditioner is turned on.
3) The display of AUTO-ON/OFF time will be decreased by one hour.
01 02
quit timer function.
…
24
Button: When the unit is on, at cool mode the set temperature is displayed on the display all along .
Press button once the set temperature will increase 1°F(1 ), every press of this button increases the
set temperature by 1°F(1 ). The range of setting temperature is limited to 88°F(31 ). At fan mode, button
is not functional.
Button: When the unit is on, at cool mode the set temperature is displayed on the display all along .
Press button once the set temperature will decrease 1°F(1 ), every press of this button decreases the
set temperature by 1°F(1 ). The range of setting temperature is limited to 61°F(16 ). At fan mode, button
is not functional.
1. COOL RUNNING
1). Initial set temperature is 79 (26 ).F
2). 3-minute time delay function of the compressor. When the setting temperature is lower than the room
temperature, the compressor starts; when the setting temperature is higher than the room temperature
the compressor stops.
3). The range of setting temperature is 61 -88 .(16 -31 )F F
4). Both fan speed and air flow direction are adjustable.

2. FAN RUNNING
1). In fan mode, the display panel displays the room temperature, and both fan speed and air flow direction
are adjustable.
2). The compressor does not operate during FAN mode.
3. ENERGY SAVER
1). This function is only available during cool running and the fan speed can be adjusted.
2). During ENERGY SAVER fan motor runs when the compressor runs, fan motor stops when the
compressor stops.
5. SLEEP FUNCTION
Press the sleep button on the remote controller to start sleep function and press it again to stop sleep
function . During sleep mode, only the relative function indicator lamp lights.
Notice: Press fan speed button during sleep mode, the air conditioner will stop sleep function.
1414
OPERATING INSTRUCTIONS
After the airconditioner has run for 200 hours and when it is turned off, the display panel will flashly
display”CF” to remindyou of cleaning the air filter.
4.PROMTING FOR CLEANING THE AIR FILTER
During cooling mode, the set temperature will increase 2 one hour after setting SLEEP mode, and
will increase 2 once more in the next one hour (that means the set temperature increases 4
within two hours after setting sleep mode), then the air conditioner will work at this temperature all along.
(1 )
(1 ) (2 )
F
F F
During SLEEP mode, FAN SPEED will be "LOW".

SLEEP
REMOTE CONTROLLER
It sends signalsto the unit.
Signal ejecting window
TIMER SET & TIMER
INCREASE button
ENERGY SAVER button
Used it to initiate or stop energy
saver operation. It is only functional
in cool mode.
FAN SPEED button
TEMPERATURE+
ADJUSTMENT button
TEMPERATURE-
ADJUSTMENT button
ON/OFF button
OPERATION MODE
button
Turns unit ON/OFF.
Press it to change the fan speed
in the order of low-medium-high
-auto-low.
COOL FAN
Press it to select the operation
mode:
In cool mode
decreases the setting
temperature by
every press of this
button
1 . If itis
pressed continuously the
temperature will decrease by 1
every 0.5 second after 1 second.
The range of setting temperature is
61-88 .
(1 )
(1 )
(16 -31 )
F
F
F
In cool mode
increases the setting
temperature by
every press of this
button
1 . If it is
pressed continuously the temperature
will increase by 1 every 0.5
second after 1 second. The range of
setting temperature is 61-88
.
(1 )
(1 )
(16 -
31 )
F
F
F
SLEEP button
Press it once to start sleep function
and press it again to stop sleep
function.
TIMER SET & TIMER
DECREASE button
01 02
…
Press it once,if the airconditioner is settimer
before the displaywill display the time of timer
and you canincrease the time by pressing this
button ,if not,the timer function will be initiated
and “01” will be shownon the unit, which means
the time oftimer is 1 hour. Everypress of this
button increases the timeby 1 hour(24hours
at most).If itis pressed continuously the time will
increase by 1hour every 0.5 second after 1second.
You canrefer to the following: 24
quit timer function.
1.Press it once, if the airconditioner is set timer
before the displaywill display the time of timerand
you can decreasethe time by pressing this button,
if not, thetimer function will be initiated and“01” will
be shown onthe unit, which means the timeof timer
is 1 hour. When thetimer is set 1 hour, press this
button again thetimer function will be stop. 2.When
the time of timer is set by the button “”, you can
decrease the timeby pressing this button. Every
press of this buttondecreases the time by1 hour. If
it is pressedcontinuously the time will increase by
1 hour every0.5 second after 1 second. You can
refer to thefollowing: 24 23 01 quit
timer function.
>
…
NOTICE:
1.To operate, the remote should be within 6 meters of the unit with a clear line of sight.
2.Remove the batteries if the remote controller is not to be used for long periods of time.
For specific usage and function of all buttons, please refer to “ OPERATION PANEL” on Page 12-14.
HEAT mode is not applied to cool only type .
1515
OPERATING INSTRUCTIONS
COOL

TURN THEAIR CONDITIONER OFF AND REMOVE THE PLUG FROMTHE POWER OUTLET.
Air Filter Cleaning
The air filtershould be checked at least twice a month tosee if cleaningis necessary. Trapped
particles in thefilter will build up and block the airflow. This reduces the cooling capacity and
also causes anaccumulation of frost on the cooling evaporator. To clean the airfilter:
Clean the front grille and inlet grille by wiping with a cloth dampened in mild detergent solution, as
shown in FIG.15.The cabinet may be washed with mild soap or detergent and lukewarm water, then polish
with liquid appliance wax.
Air Conditioner Cleaning
To ensure continued peak efficiency, the condenser coils(outdoor side of the unit) should be checked
periodically and cleaned if they become clogged with soot or dirt. Brush or vacuum exterior coils to
remove debris from fins.
How to Remove the Front Grille
1. Put your hands on the handle on the right hand side of the front grille then pull the air filter out, as
shown in FIG.14.
2. Wash the air filter under the faucet with warm water. Be sure to shake off all the water before replacing
the filter.
MAINTENANCE
1. Remove the two screws securing the front grille.
2. Pull the grille up from the bottom and pull the top of the grille away from the case to lift the top tabs out
of their slots, as shown in FIG.16.
1616 ??
??
FIG.16
FIG.14
FIG.15

BEFORE CALLING FOR SERVICE
Check the following list to be sure a service call really necessary. A quick reference to this manual may
help you avoid an unneeded service call.
THE AIR CONDITIONER WILL NOT OPERATE
Check if...
Wall plug disconnected.
House fuse blown or electric breaker tripped.
Power switch is OFF position.
Unit was turned off and then immediately on.
Control knob set warmer than room temperature.
Push plug firmly into wall outlet.
Replace fuse with time delay type or reset circuit breaker.
Turn power switch the ON position.
Turn unit off the wait 3 minutes before restarting.
Wall plug disconnected.
House fuse blown or electric breaker tripped.
Unit was turned off and then immediately on.
Temperature set warmer than room temperature.
Push plug firmly into wall outlet.
Replace fuse with time delay type or reset circuit breaker.
Turn unit off and wait 3 minutes before restarting.
Set the temperature lower .
Then...
AIR FROM UNIT DOES NOT FEEL COLD ENOUGH
Check if...
House fuse blown or electric breaker tripped.
Then...
Fan speed set in low .
The temperature set too warm.
Room temperature below 61°F(16 ).
Cooling may not occur until room temperature rises above 61°F(16 ).
Temperature sensing tube touching evaporator coil,
located behind front grille.
Remove front grille, and straighten tube away from evaporator coil.
Set fan speed to high .
Set the unit to lower temperature.
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM-ICE
FORMING ON COOLING COIL BEHIND INLET GRILLE.
Check if...
House fuse blown or electric breaker tripped.
Then...
Outdoor temperature below 70°F(21 ).
Air filter may be dirty.
The air conditioner set too cold for night-time
cooling.
To defrost the coil, set the air conditioner to fan mode.
Clean filer. Refer to maintenance section of owner’s manual.
To defrost the coil, set the air conditioner to fan mode.
THE AIR CONDITIONER COOLING, BUT ROOM IS TOO WARM
Check if...
House fuse blown or electric breaker tripped.
Then...
Dirty air filter-air restricted.
Front of unit is blocked by drapes, furniture, etc.
Air distribution is restricted.
Clear blockage in front of unit.
Clean air filter. Refer to maintenance section of owner’s manual.
Doors, windows, registers, etc. open, cold air escapes.
Close doors, windows registers, etc.
Unit recently turned on in hot room.
Allow additional time to remove stored heat from walls, ceiling, floor
and furniture.
THE AIR CONDITIONER TURNS ON AND OFF RAPIDLY.
Check if...
Then...
Outside temperature is extremely hot.
Set fan speed to high speed to bring air past cooling coils faster.
NOISE WHEN UNIT IS COOLING
Check if...
Then...
Sound of fan hitting water-from the moisture removal system.
This is normal when humidity is high. Close doors, windows and registers.
Window vibration-poor installation.
Refer to installation instructions or check with installer.
TROUBLE SHOOTING
The temperature set too warm.
Set the unit to lower temperature.
1717

TROUBLE DISPLAY
Er : indicates malfunction of the room temperature resistance.
En : indicates malfunction of the pipe temperature resistance.
Ed : indicates malfunction of anti-icing protection. E1: air filter clean.
TROUBLE SHOOTING
1818

19
CLIMATISEUR D'AIR — CONSIGNES DE SÉCURITÉ
Votre sécurité et celle des autres est très importante.
Nous donnons de nombreux messages de sécurité importants dans ce guide et sur votre appareil. Assurez-vous detoujours lire
tous les messages de sécurité et de vous y conformer.
Voici le symbole d'alerte de sécurité.
Ce symbole vous signale les dangers potentiels de décès et de blessures graves à vous et à d'autres.
Tous les messages de sécurité suivront le symbole d'alerte de sécurité et le mot « DANGER » ou
« AVERTISSEMENT ». Ces mots signifient :
Risque possible de décès ou de blessure grave si vous ne
suivez pas immédiatement les instructions.
Risque possible de décès ou de blessure grave si vous ne
suivez pas les instructions.
Tous les messages de sécurité vous diront quel est le danger potentiel et vous indiquent comment réduire le risque de blessure
et ce qui peut se produire en cas de non-respect des instructions.
CONSIGNES DE SÉCURITÉ
AVERTISSEMENT : Veuillez lire toutes les instructions avant de faire
fonctionner ce climatiseur. Lors de l'utilisation de
cet appareil, des précautions d'usage doivent être
respectées, y compris les instructions suivantes :
1) Le climatiseur d'air doit être branché à une prise électrique adéquate et être correctement
alimenté en électricité.
2) Afin de réduire les risques d'électrocution et d'incendie, assurez-vous de bien avoir mis
l'appareil à la terre. NE COUPEZ OU N'ENLEVEZ PAS LA BROCHE DE MISE À LA
TERRE. Si vous n'avez pas de fiche tripolaire sur votre mur, demandez à un électricien
qualifié d'installer la prise appropriée. La prise murale DOIT être correctement mise à la
terre.
3) Ne faites pas fonctionner le climatiseur si le cordon d'alimentation est éraillé ou autrement
endommagé. Évitez de vous servir de l'appareil si le cordon ou la fiche présente des
fissures ou des dommages dus à l'abrasion, ou encore si l'appareil présente quelque
défectuosité ou dommage que ce soit. Communiquez avec un technicien agréé en
entretien et en réparation pour une vérification, des réparations ou des ajustements.
4) N'UTILISEZ PAS D'ADAPTATEUR OU DE RALLONGE.
5) N'entravez pas la circulation de l'air autour du climatiseur. La sortie d'air ne devrait pas être
obstruée de quelque manière que ce soit.
6) Débranchez toujours le climatiseur avant d'en faire l'entretien ou de le déplacer.
7) N'installez pas le climatiseur et ne le faites pas fonctionner dans un milieu où l'air contient
des gaz combustibles ou des vapeurs huileuses ou sulfureuses. Évitez tout contact entre
des substances chimiques et votre appareil.
