RCA RS-1247 User manual

€_UI_E

Thisdevicecomplies with Part 15of the FCCRules.Operation issubject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may causeundesired operati
In accordance with FCCrequirements, changes or modifications not expresslyapproved by ThomsonConsumer Electronicscouldvoid the
user'sauthority to operate this product.
Thisproduct complies with DHHSRules21 CFRSulxhapter J. Applicable at the date of manufacture.
Thisdevice generates and usesradio frequency (RF)energy, and if not installed and usedproperly, this equipment may causeinterfereno
to radio and tetevisiO_ reception.
Thisequipment hasbeen type tested and found to comply with the limits for a ClassBComputing Device in accordancewith the
specifications of FCCRules.These rulesare designedto provide reasonable protection against radio and television interference in a
residential installation. However, there isno guarantee that interference will not occur in a particular installation.
)f this equipment does causeinterference to radio or televislon reception (which you candetermine by turning the equipment off and on
try to correctthe interference by one or more of the following measures:
•Reorient the recelving antenna (that is,the antenna for the radio or television that isreceiving" the interference).
•Change the position of the unit with respectto the radio or tetevisit_n equipment that is rece_vin9 interfer enca.
•Move the unit away from the equipment that isreceiving interference.
• PIugtheunitint_adi_erentwa_(_ut_ets_thattheunitandth_equipmentrecaivingint_rferenceare_ndi_erentbranchcircuit_
If these measuresdo not eliminate the interference, pleaseconsultyour dea_er or an experienced radio/television technician for addition_
suggestions.Also,the Federal Communications Commission hasprepared ahelpful booklet, "How To Identif_ and Resolve RadioTV
Interference Problems." Thisbooklet isavailable from the U.S.Government Printing Office, Washington, DC20402. Pleasespecify stock
number 004000-00345-4 when ordedng copies.
SAFETY PRECAUTIONS
• Nave€open the cabinet under any circumstances.Any repairsor internal adiustrnentsshould be n_de only by a trained techn{c_an.
•Warning: Never operate this product with the cabinet removed.
•Don_tt_uchthep_ayerwithwethands__fany_i_uidentersthep_ayercabinet_takethe_iayert_atra_nedtechnicianf_rinspecti_n`
• This compact disc player usesalaserto read the musicon the disc. The _asermechanbm corresponds to the cartridge and stylusof a
record player. Although this product incorporates a laserpick-up lens,it iscompletely safe when operated according to directions.
• Discsrotate at high speed insidethe player. Do not usedamaged, warped, or crackeddiscs.FOR YOUR SAFETY
The AC power plug is polarized (one blade iswider than the other) and only.fits iflto AC power outlets one way. I'
the p_ug won't go into the outlet completely, turn the plug over and try to insert it the other way. If it still won't fit, contact a
qualified electrician to change the outlet, or use a different one. DO not attempt to bypass this safety feature.
SERVICE INFORMATION
This product should be serviced onl); by those specially trained in appropriate servicing techniques. For instructions on how to
obtain service, refer to the warranty included _nthis Guide.
FOR YOUR RECORDS
According to some state laws, and in the event that service should be required, you may need both the model number and the
serial numbe_., in the space below, record the date and place of purchase, and the serial number:
Model NO. RS-12471RS-2248 "_
Remote Control NO. CRK29181
Date of Purchase
Place of Purchase
Serial No.
2
WARNING: TO PREVENT RRE
OR ELECTRICAL SHOCK HAZARD
DO NOT EXPOSE TH S PRODUCT
TO RAIN OR MOISTURE. S4UEId4RKII_ ON BOt'TOM/BACKOF PRODU_

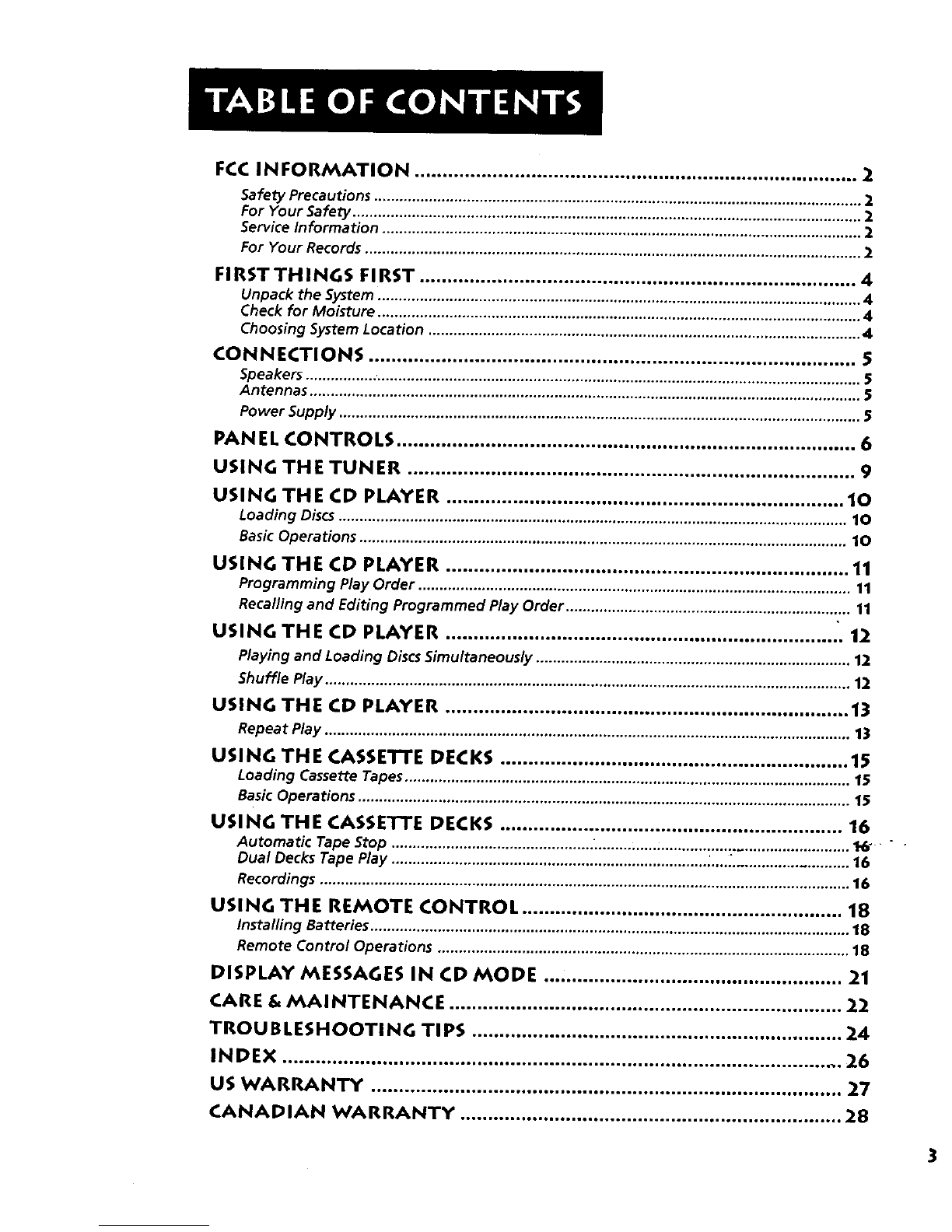

FCC INFORMATION ................................................................................ 2
Safety Precautions .................................................................................................................... 2
For Your Safety ......................................................................................................................... 2
Service Information .................................................................................................................. 2
For Your Records...................................................................................................................... 2
FIRST THINGS FIRST ............................................................................... 4
Unpack the System ................................................................................................................... 4
Check for Mobture ................................................................................................................... 4
Choosing System Location ....................................................................................................... 4
CONNECTIONS ........................................................................................ 5
Speakers ................. ................................................................................................................... 5
Antennas ................................................................................................................................... 5
Power Supply ......................................................................................... 5
PANEL CONTROLS ................................................................................... 6
USING THE TUNER ................................................................................. 9
USING THE CD PLAYER ........................................................................ 10
Loading Discs......................................................................................................................... 10
BasicOperations .................................................................................................................... 10
USING THE CD PLAYER ......................................................................... 11

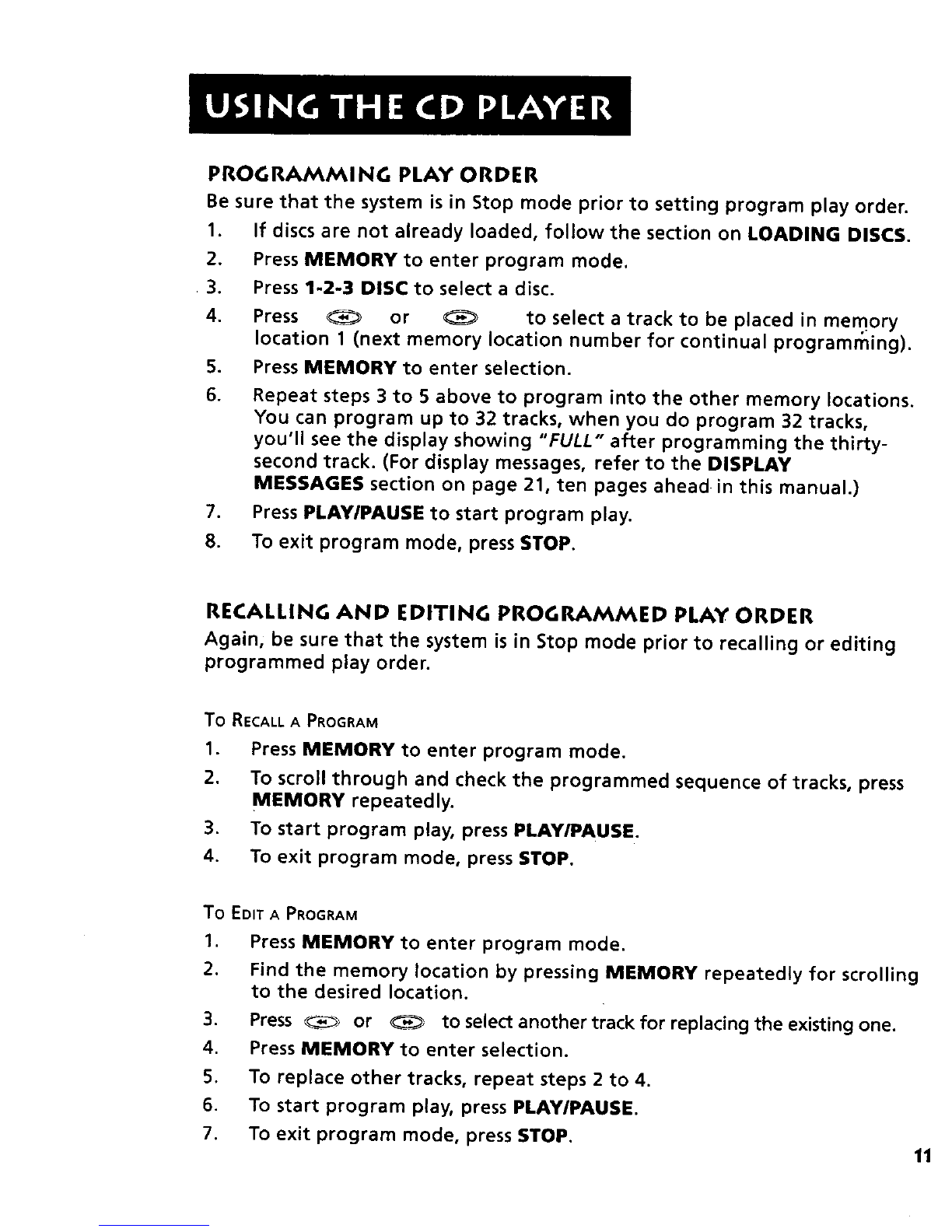

Programming Play Order ....................................................................................................... 11
Recalling and Editing Programmed Play Order .................................................................... 11
USING THE CD PLAYER ........................................................................ 12
Playing and Loading DiscsSimultaneously ......................................................... 12
Shuffle Play............................................................................................................................. 12
USING THE CD PLAYER ......................................................................... 13
Repeat Play ............................................................................................................................. 13
USING THE CASSETTE DECKS ............................................................... 15
Loading Cassette Tapes .......................................................................................................... 15
BasicOperations ..................................................................................................................... 15
USING THE CASSETTE DECKS .............................................................. 16
Automatic Tape Stop ................................................ ......... _.................................................. 1F6_
Dual Decks Tape Play ........................................................................... _....:........................... 16
Recordings .............................................................................................................................. 16
USING THE REMOTE CONTROL .......................................................... 18
Installing Batteries .................................................................................................................. 18
Remote Control Operations .................................................................................................. 18
DISPLAY MESSAGES IN CD MODE ...................................................... 21
CARE & MAINTENANCE ....................................................................... 22
TROUBLESHOOTING TIPS ................................................................... 24
INDEX ..................................................................................................... 26
US WARRANTY ..................................................................................... 27
CANADIAN WARRANTY ..................................................................... 28
•°.
3

4

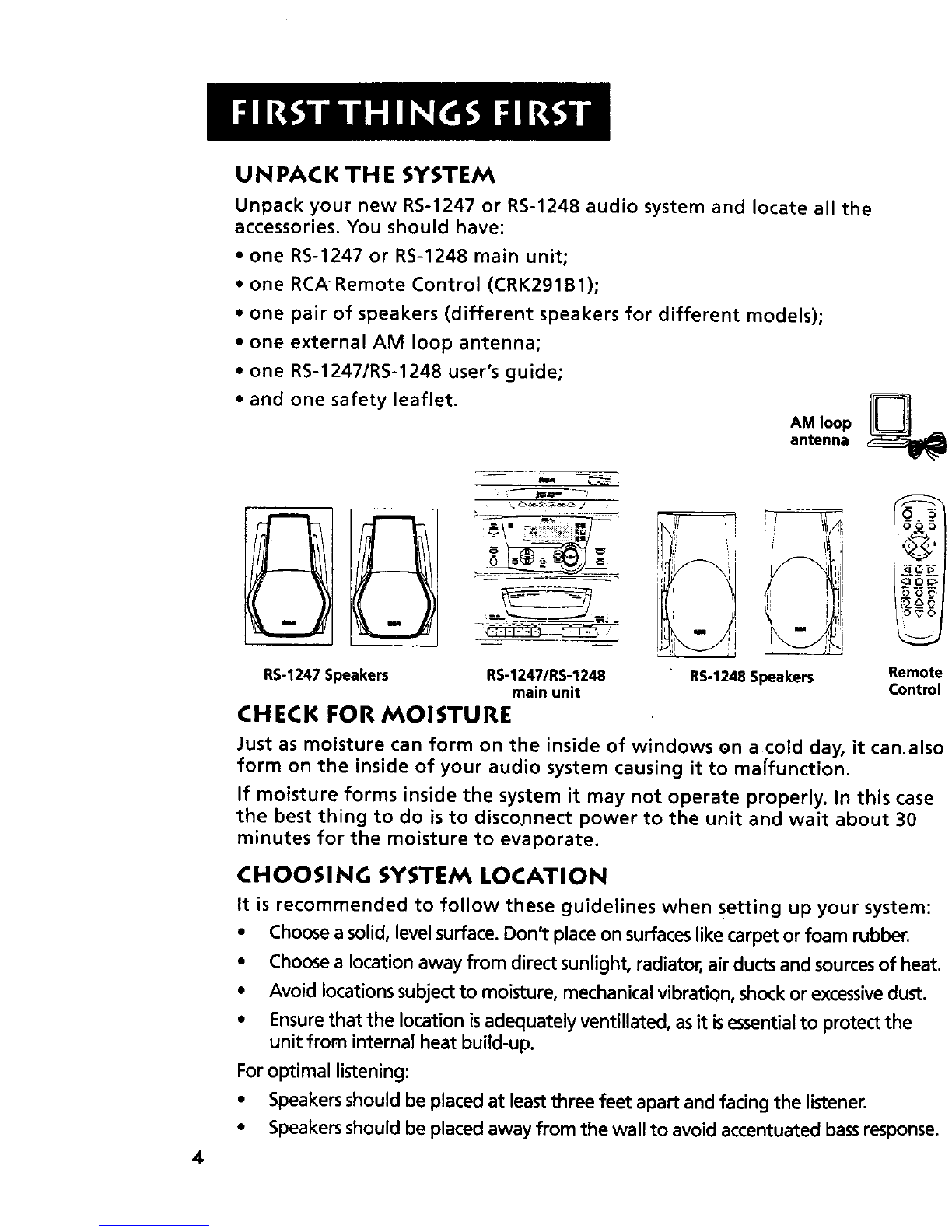

UNPACK TH E SYSTEM
Unpack your new RS-1247 or RS-1248 audio system and locate all the
accessories. You should have:
• one RS-1247 or RS-1248 main unit;
• one RCARemote Control (CRK291B1);
• one pair of speakers (different speakers for different models);
• one external AM loop antenna;
• one RS-1247/RS-1248 user's guide;
• and one safety leaflet. AM loop
antenna
m mm
RS-1247 Speakers RS-1247/RS-1248
main unit
CHECK FOR MOISTURE
RS-1248Speakers Remote
Control
Just as moisture can form on the inside of windows on a cold day, it can also
form on the inside of your audio system causing it to malfunction.
If moisture forms inside the system it may not operate properly. In this case
the best thing to do is to disconnect power to the unit and wait about 30
minutes for the moisture to evaporate.
CHOOSING SYSTEM LOCATION
It is recommended to follow these guidelines when setting up your system:
• Choose a solid, level surface. Don't place on surfaces like carpet or foam rubber.
• Choose a location away from direct sunlight, radiator, air ducts and sources of heat.
• Avoid locations subject to moisture, mechanical vibration, shock or excessive dust.
• Ensure that the location isadequately ventillated, as it isessential to protect the
unit from internal heat build-up.
For optimal listening:
• Speakers should be placed at least three feet apart and facing the listener.
• Speakers should be placed away from the wall to avoid accentuated bass response.

SPEAKERS
If you have purchased our RS-1247, your speakers are identical. If you've
selected our RS-1248, you'd find that the physique of the speakers aren't
identical, 10ut placing either one on the right and the other on the left won't
matter.
Though the speakers for the two models are different, their connections are
very much the same. To connect a speaker wire either to the terminals.of a
speaker or the unit, follow these steps:
1. At the back of a speaker or the unit, press and hold the black tab to open
the (-) terminal, fit in the black speaker wire, release hold.
2. Press and hold the red tab to open the (+) terminal, fit in the red speaker
wire, release hold.
3. Repeat steps 1to 2 above for connecting to the speakers and the unit.
+ RIGHT - - LEFT +
÷ & -Terminals at the
back of the unit
ANTENNAS
This unit comes with two antennas: an AM loop antenna and a FM T-type antenna.
Use the same method of connecting speaker wires to hook the AM loop
antenna.To get better reception, try placing it at various locations.
AM Loop
Antenna
As for the FM T-type antenna, it's already attached to the unit, simply extend it
to the full length, then place it at various locations to get clearer reception.
POWER SUPPLY
Plug the power cord into an AC power outlet, be sure to match the wide
blade of the plug to the wide slot of the outlet. If the plug doesn't fit in, try
plugging it the other way, be sure to plug it in completely.
When the unit is off, the STANDBY light comes on showing that the unit is
still plugged to power. To disconnect power completely, unplug the power
cord at the AC power outlet, the STANDBY light goes off.

VACUUM
FLUORESCENT
DISPLAY
FM STEREO
INDICATOR
CD PLAYER
CONTROL BUTIrONS CD COMPARTMENT
TRAY 1-2-3 DISC OPEN/CLOSE
POWER
PRESET EQ
FUNCTION
PHONES
MEMORY/
DEMO
TUNING
BUTTONS
TUNF.JPRESET
STATIONS
SUPER
BASS
CASSETTE ____ _
TAPE DECKS /
CASSETTE •VOLUME
PLAYER CONTROL
CONTROL
BUTTONS
FM STEREO SOUND EFFECT
BUTTON (PRESET EQ)
INDICATORS
Remote
Sensor Band
Selector
6

VACUUM FLUORESCENT DISPLAY
The vacuum fluorescent display (VFD) shows the current status of the unit
such as volume level, playing disc number, playing track number, selected
play mode, radio frequency, selected Preset EQ, etc,
Further explanation of the display messages will accompany the operational
procedures of each function.
CD PLAYER CONTROL 13U'I-FONS
These control buttons are for CD player, they function only in CD mode.
CD COMPARTMENT TRAY
This tray can store 3 CDs at any one time.
1-2-3 DISC
This button's function is for rotating the disc tray to change discs with/
without opening the CD Compartment Discs Tray.
OPEN/CLOSE
This button is used for opening and closing the CD Compartment Tray.
FM STEREO INDICATOR
This indicator lights when receiving FM radio in stereo mode.
POWE R
To turn on your RS-1247 or RS-1248, press this button. To switch your system
to STANDBY mode, press again, the STANDBY indicator light comes on with
display showing 5TBY.
PRESET EQ
You can press this button to toggle between 5 preset styles of sound effect
(preset equalizers) modes. You have a selection between Jazz, Rock, Classical,
Techno, and Flat.
FUNCTION
Pressthis button to select the 3 functions: Cassette Player, CD Player, and Tuner.
7

PHONES
You can listen to your audio system through a set of headphones (not
included). Take note, when a set of headphones is plugged into the system,
sound output will divert from the speakers to your set of headphones.
MEMORY/DEMO
In Tuner mode, use MEMORY to store up to 32 preset radio frequencies. In
CD mode, use MEMORY to store up to 32 tracks. In Standby mode, press this
button to enter display Demonstration mode.
TUNING BUTTONS
The TUNING + and TUNING - buttons can be used to change radio frequency,
select preset stations or select memory locations during station preset.
TUNE/PRESET STATIONS
In Tuner mode, you can store up to 32 preset station frequencies in memory.
SUPER BASS
Select this function to enhance the bass sound effect of heavy-based sound.
CASSETTE TAPE DECKS
Your RS-1247 or RS-1248 is equipped with dual cassette tape decks: one for
playback only and one for playback plus recording.
CASSE'n'E PLAYER CONTROL BUTTONS
All cassette player operations such as Tape Play, Stop, Revvind, Fast Forward,
Record, and Tape Eject are at the front panel of the system.
VOLUME CONTROL
Press + to increase sound level, press- to decrease sound level.
FM STEREO BUTTON
When the system is in Tuner mode and FM band, you can press this button
and listen to FM radio in stereo mode.
PRESET EQ (SOUND EFFECT) INDICATORS
When you press on the PRESET EQ button repeatedly the indicators light up
one by one indicating your choice of the type of sound effect.
BAND SELECTOR
To choose either FM or AM radio band, press on this button to toggle
between the two bands (make sure that the system is in Tuner mode).
8

L
Your system's tuner is very much similar to the usual ones that you'd find
in other audio systems. It too has tuning buttons, band selector for
choosing between AM and FM radio stations, FM stereo button for stereo
effects when listening to FM radio broadcast, plus a Memory button for
storing your preset radio frequencies.
TUNER OPERATIONS
1. If the system is not already turned on, press POWER to turn system on.
2. Press FUNCTION repeatedly until the display shows Tuner.
3. Press BAND SELECTOR.to choose your desired radio band: AM or FM.
4. For tuning to stations manually, press TUNE PRESET STATION once
or twice so the display does not show PRESET.
5. Now press either TUNING -I- or TUNING - to select aradio frequency.
6. When listening to FM radio stations, press FM STEREO for receiving
stereo broadcast.
PRESETING STATIONS
2.
1
4.
Press BAND SELECTOR to choose your desired radio band: AM or FM.
If the display shows PRESET, press TUNE PRESET STATION once so that
the display no longer shows PRESET.
Press either TUNING -I- or TUNING - to choose a radio-frequency.
Press MEMORY to enter program mode, then press either TUNING -I- or
TUNING -to select a memory location. The display flashes PRESET, press
MEMORY within 5seconds to set that frequency into the memory location.
5. Repeat steps 1to 4 in this section to set up to 32 stations into memory.
RECALLING PRESETING STATIONS
1. Press TUNE PRESET STATION once or twice so the display shows Preset.
2. Presseither TUNING -I- or TUNING - to choose one of the preset stations.
9

I HM
.j_ DISCCHANGER
AUDIOS_TE_ /

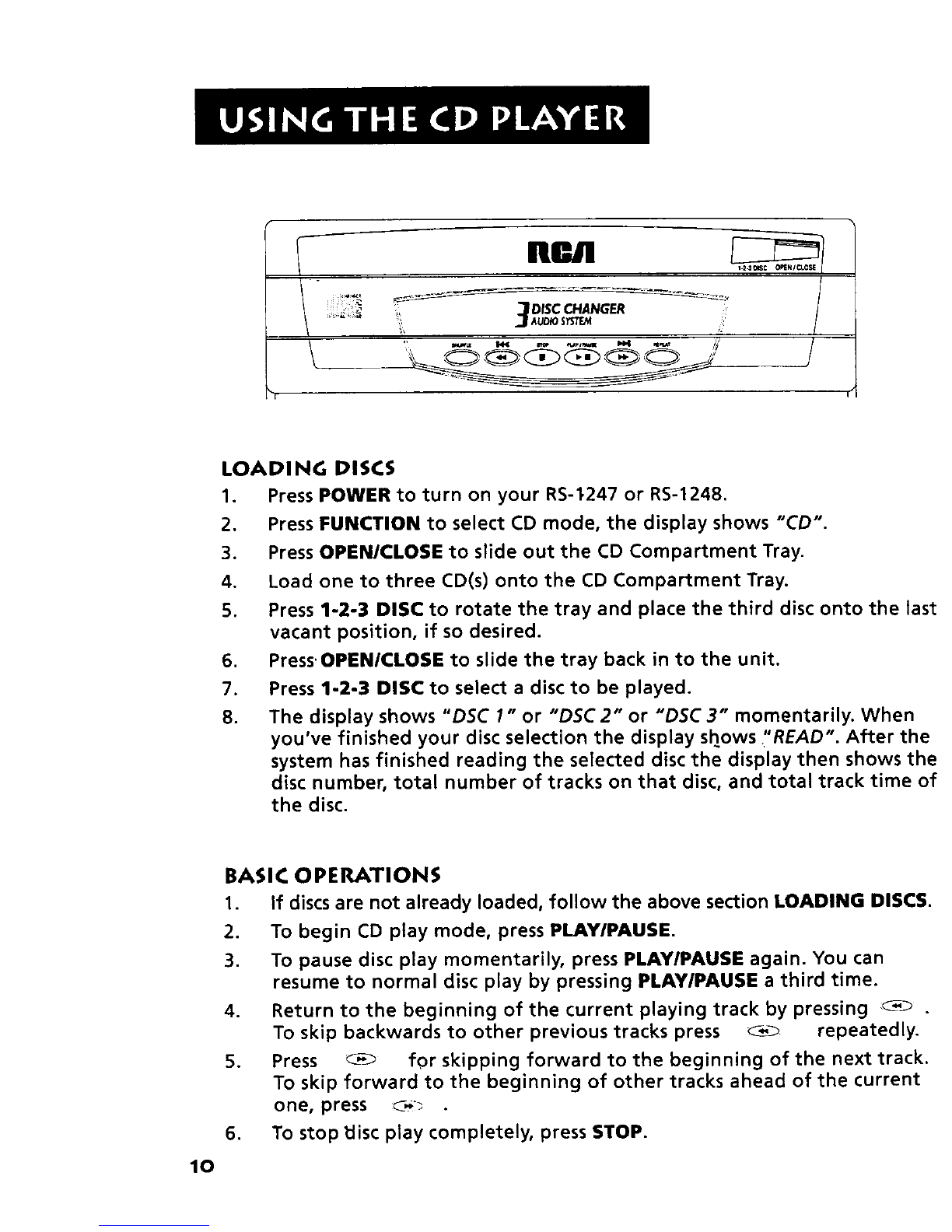

LOADING DISCS
1. Press POWER to turn on your RS-_247 or RS-1248.
2. Press FUNCTION to select CD mode, the display shows "CD".
3. Press OPEN/CLOSE to slide out the CD Compartment Tray.
4. Load one to three CD(s) onto the CD Compartment Tray.
5. Press 1-2-3 DISC to rotate the tray and place the third disc onto the last
vacant position, if so desired.
6. Press.OPENICLOSE to slide the tray back in to the unit.
7. Press 1-2-3 DISC to select a disc to be played.
8. The display shows "DSC 1"or "DSC 2" or "DSC 3" momentarily. When
you've finished your disc selection the display shows "READ". After the
system has finished reading the selected disc the display then shows the
disc number, total number of tracks on that disc, and total track time of
the disc.
10
BASIC OPERATIONS
1. If discs are not already loaded, follow the above section LOADING DISCS.
2. To begin CD play mode, press PLAY/PAUSE.
3. To pause disc play momentarily, press PLAYIPAUSE again. You can
resume to normal disc play by pressing PLAYIPAUSE a third time.
4. Return to the beginning of the current playing track by pressing _-_ .
To skip backwards to other previous tracks press _repeatedly.
5. Press c_ for skipping forward to the beginning of the next track.
To skip forward to the beginning of other tracks ahead of the current
one, press C"_
6. To stop Uisc play completely, press STOP.

PROGRAMMING PLAY ORDER
Be sure that the system is in Stop mode prior to setting program play order.
1. If discs are not already loaded, follow the section on LOADING DISCS.
2. Press MEMORY to enter program mode.
3. Press 1.2-3 DISC to select a disc.
4. Press _ or _ to select a track to be placed in memory
location 1 (next memory location number for continual programrning).
5. Press MEMORY to enter selection.
6. Repeat steps 3 to 5 above to program into the other memory locations.
You can program up to 32 tracks, when you do program 32 tracks,
you'll see the display showing "FULL" after programming the thirty-
second track. (For display messages, refer to the DISPLAY
MESSAGES section on page 21, ten pages ahead in this manual.)
7. Press PLAYIPAUSE to start program play.
8. To exit program mode, press STOP.
RECALLING AND EDITING PROGRAMMED PLAY ORDER
Again, be sure that the system is in Stop mode prior to recalling or editing
programmed play order.
TO RECALL A PROGRAM
1. Press MEMORY to enter program mode.
2. To scroll through and check the programmed sequence of tracks, press
MEMORY repeatedly.
3. To start program play, press PLAYIPAUSE.
4. To exit program mode, press STOP.
To EDIT APROGRAM
1. Press MEMORY to enter program mode.
2. Find the memory location by pressing MEMORY repeatedly for scrolling
to the desired location.
3. Press _ or _to select another track for replacing the existing one.
4. Press MEMORY to enter selection.
5. To replace other tracks, repeat steps 2 to 4.
6. To start program play, press PLAYIPAUSE.
7. To exit program mode, press STOP. 11

PLAYING AND LOADING DISCS SIMULTANEOUSLY
Your 3 Disc Changer Audio System has one other feature that you simply
cannot resist; while the system is playing a disc, you can open the CD
compartment tray to unload the other 2 discs and re-load 2 new ones
without iilterrupting the playing music.
Let's say if you're playing disc 2 and you want to replace discs 1 and 3 with
two other discs. All you'd have to do is press OPENICLOSE once to slide out
the CD compartment tray, unload the two discs you want to replace, reload
one or two other discs, then press OPEN/CLOSE again to slide the tray back
in, and it's done! Now you can listen to the newly loaded discs 1or 3, just
press 1-2-3 DISC for rotating the tray to different discs.
SHUFFLE PLAY
With this function the system plays the tracks out of its original recorded
sequence and you have quite a few choices of how the tracks can be
shuffled. You can:
• Repeatedly shuffle play one disc,
• Repeatedly shuffle play all loaded discs,
• Shuffle play the tracks of all discs (playing each track only once) or
• Shuffle play the tracks of one disc (playing each track only once).
Take your pick and follow the steps to set the system playing the way you like.
REPEATEDLY SHUFFLE PLAY WITHIN ONE DISC
1. If discs are not already loaded or selected, follow the section on
LOADING DISCS.
2. Press REPEAT repeatedly until the display shows "REPEAT 1DISC".
3. Press SHUFFLE and the display shows "SHUFFLE" and begins CD play
automatically.
REPEATEDLY SHUFFLE PLAY ALL D=scs
1. If discs are not already loaded or selected, follow the section on
LOADING DISCS.
2. Press REPEAT repeatedly until the display shows "REPEATALL DISCS".
3. Press SHUFFLE and the display shows "SHUFFLE" and begins CD play
automatically.
12

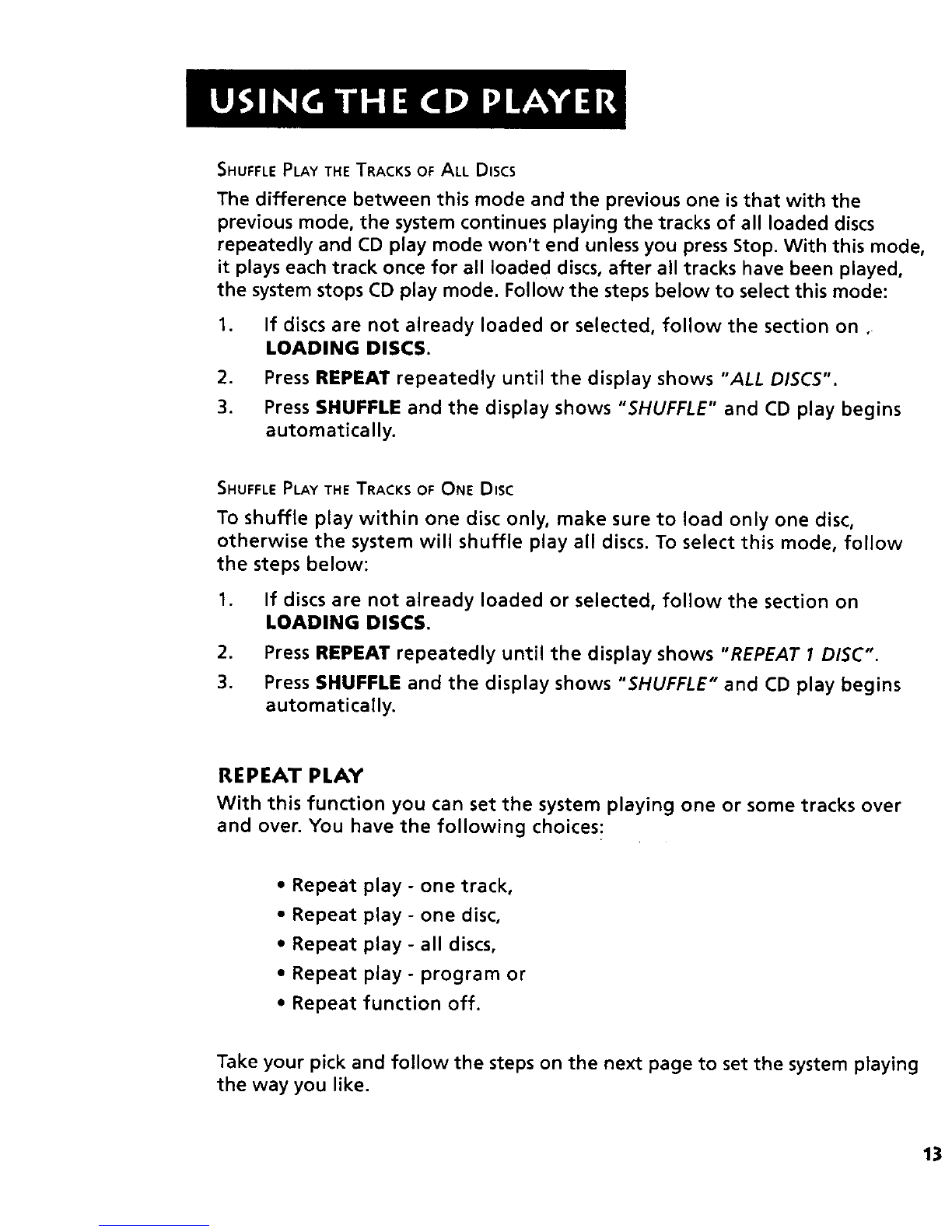

SHUFFLE PLAY THE TRACKS OF ALL Dnscs
The difference between this mode and the previous one is that with the
previous mode, the system continues playing the tracks of all loaded discs
repeatedly and CD play mode won't end unless you press Stop. With this mode,
it plays each track once for all loaded discs, after all tracks have been played,
the system stops CD play mode. Follow the steps below to select this mode:
.If discs are not already loaded or selected, follow the section on,
LOADING DISCS.
.
3.
Press REPEAT repeatedly until the display shows "ALL DISCS".
Press SHUFFLE and the display shows "SHUFFLE" and CD play begins
automatically.
SHUFFLE PLAY THE TRACKS OF ONE DISC
To shuffle play within one disc only, make sure to load only one disc,
otherwise the system will shuffle play all discs. To select this mode, follow
the steps below:
1. If discs are not already loaded or selected, follow the section on
LOADING DISCS.
2. Press REPEAT repeatedly until the display shows "REPEAT I DISC".
3. Press SHUFFLE and the display shows "SHUFFLE" and CD play begins
automatically.
REPEAT PLAY
With this function you can set the system playing one or some tracks over
and over. You have the following choices:
•Repeat play- one track,
•Repeat play- one disc,
• Repeat play- all discs,
• Repeat play- program or
• Repeat function off.
Take your pick and follow the steps on the next page to set the system p|aying
the way you like.
13

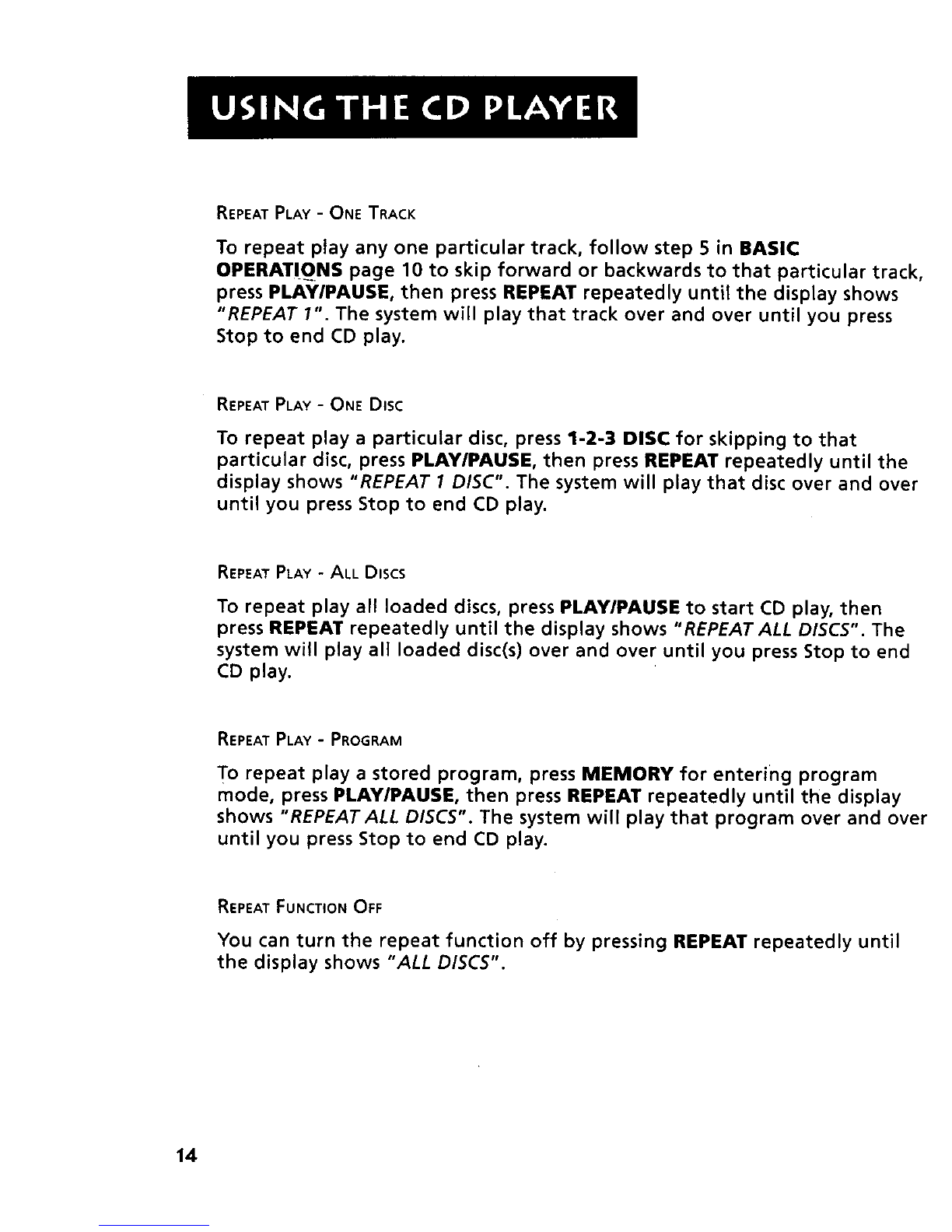

REPEATPLAY -ONE TRACK
To repeat play any one particular track, follow step 5 in BASIC:
OPERATIONS page 10 to skip forward or backwards to that particular track,
press PLAYIPAUSE, then press REPEAT repeatedly until the display shows
"REPEAT 1". The system will play that track over and over until you press
Stop to end CD play.
REPEAT PLAY -ONE D=sc
To repeat play a particular disc, press 1-2-3 DISC for skipping to that
particular disc, press PLAYIPAUSE, then press REPEAT repeatedly until the
display shows "REPEAT 1 DISC". The system will play that disc over and over
until you press Stop to end CD play.
REPEATPLAY - ALL DISCS
To repeat play all loaded discs, press PLAY/PAUSE to start CD play, then
press REPEAT repeatedly until the display shows "REPEATALL DISCS". The
system will play all loaded disc(s) over and over until you press Stop to end
CD play.
REPEAT PLAY -PROGRAM
To repeat play a stored program, press MEMORY for entering program
mode, press PLAY/PAUSE, then press REPEAT repeatedly until the display
shows "REPEATALL DISCS". The system will play that program over and over
until you press Stop to end CD play.
REPEAT FUNCTION OFF
You can turn the repeat function off by pressing REPEAT repeatedly until
the display shows "ALL DISCS".
14

Your RS-1247/RS-1248 audio system comes with dual cassette decks. With
dual cassette decks you can play cassette tapes one after another. Tape deck
1 can record and playback tapes, while tape deck 2 has only a playback
function.
When using cassette tape decks be sure to use the Function button for
selecting Tape mode.
IJ--LT-:pl-I1I1 I -::
LOADING CASSETTE TAPES
1. Press POWER to turn on your RS-1247 or RS-1248.
2. Press FUNCTION to select Tape mode, the display shows "TAPE".
3. Press STOP_JECT at either one or both decks to open one or both doors.
4. Insert a tape with its open edge facing downwards.
5. To dose a deck door, (for deck 1) lightly push on the top left corner of
deck l's door; (for deck 2) lightly push on the top right corner of deck
2's door.
BASIC OPERATIONS
1. Check that your system is loaded with cassette tape('s) in deck 1 and/or
.
3.
4.
deck 2. if tapes are not already loaded, follow the above section on
LOADING CASSETTE TAPES.
To begin tape play at deck 1, press PLAY at deck 1. Tape play at deck 2,
press PLAY at deck 2.
For deck 1, you can rewind or forward wind the tape to the desired
position. To rewind, press REW. To wind forward, press F.FWD.
For deck 1 you can also pause tape play temporarily by pressing PAUSE.
Resume to normal tape play by pressing PAUSE again. Since deck 2 has
no pause function, use the tape stop function instead by pressing
STOP.
5. For deck 1, stop tape play completely by pressing STOP. 15

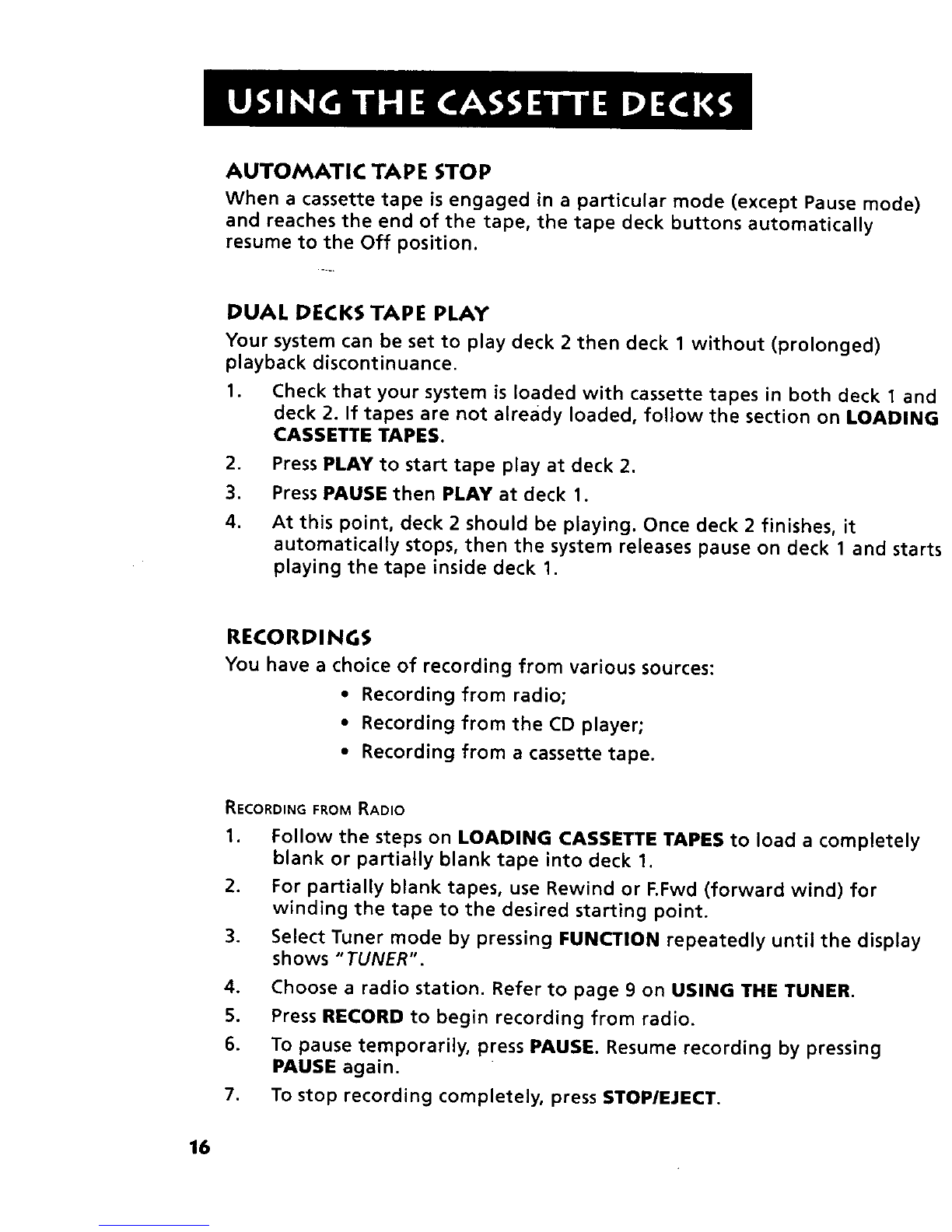

AUTOMATIC TAPE STOP
When a cassette tape is engaged in a particular mode (except Pause mode)
and reaches the end of the tape, the tape deck buttons automatically
resume to the Off position.
DUAL DECKS TAPE PLAY
Your system can be set to play deck 2 then deck 1 without (prolonged)
playback discontinuance.
lp Check that your system is loaded with cassette tapes in both deck 1 and
deck 2. If tapes are not already loaded, follow the section on LOADING
CASSETTE TAPES.
2. Press PLAY to start tape play at deck 2.
3. Press PAUSE then PLAY at deck 1.
,At this point, deck 2 should be playing. Once deck 2 finishes, it
automatically stops, then the system releases pause on deck 1 and starts
playing the tape inside deck 1.
RECORDINGS
You have a choice of recording from various sources:
• Recording from radio;
• Recording from the CD player;
• Recording from a cassette tape.
RECORDING FROM RADIO
1. Follow the steps on LOADING CASSETTE TAPES to load acompletely
blank or partially blank tape into deck 1.
2. For partially blank tapes, use Rewind or F.Fwd (forward wind) for
winding the tape to the desired starting point.
3. Select Tuner mode by pressing FUNCTION repeatedly until the display
sh ows "TUNER".
4. Choose a radio station. Refer to page 9 on USING THE TUNER.
5. Press RECORD to begin recording from radio.
6. To pause temporarily, press PAUSE. Resume recording by pressing
PAUSE again.
7. To stop recording completely, press STOPIEJECT.
16

RECORDING FROM THE CD PLAYER
1. Follow steps 1and 2 of the previous section on RECORDING FROM
RADIO.
.
3.
,
5.
6.
Select CD Player mode by pressing FUNCTION repeatedly until the
display shows "CD".
Load one to three CDs into the CD compartment tray, press 1-2-3 DISC
to select the desired disc, then press <_>, or :_-_ to select the
desired first track you want to record.
Quicky press PLAY/PAUSE twice to pause CD, avoiding immediate CD
play.
At deck 1, press PAUSE then press RECORD.
Now...get ready to release both pauses! Put a finger of one hand on
the CD player's PLAYIPAUSE and put a finger of the other hand on the
deck l's PAUSE. Press on both simultaneously to begin recording.
RECORDING FROM A CASSETTE TAPE
1. Follow steps 1and 2 of the previous section on RECORDING FROM
RADIO.
2. Load the pre-recorded tape into deck 2(this should be the tape that
you want to record from).
3. Select Tape mode by pressing FUNCTION repeatedly until the display
shows "TAPE".
4. At deck 1, press PAUSE then press RECORD.
5. To begin recording, press PLAY at deck 2and the system automatically
releases the Pause on deck 1.
6. To put a pause in the recording, press PAUSE at deck 1. To resume
recording, press PAUSE again.
DON'T INFRINGE !
17

18
INSTALLING BA'PI'ERI ES
The remote control must be inserted with 2
AAA batteries prior use. Follow the steps
below to ensure correct installation.
.Fit tl_b tip of your index finger into A,
slightly push the tab of the battery
compartment lid towards direction B,
lightly lift upwards to detach the lid.
.Before inserting the batteries, observe
the polarities (that is, + and - ) of the
batteries, then relate the polarities to the
engraved diagram inside the battery
compartment. Now insert the batteries.
,After installation of the batteries, replace and
fit the lid to cover the batteries. Lightly push it
close.You should hear a small "CLICK" sound
from the closing of the tab.
REMOTE CONTROL OPERATIONS
1. Press POWER to turn on system.
2. To select one of the available modes: Tuner,
CD or Tape, press TUNER or CD or TAPE.
Note: The RECORD button on the
remote control is inactive for this model.
3. To see a display demonstration of the
system, press DEMO.
4. To turn off system, press POWER again.
FoR SOUND EFFECT AND VOLUME ADJUSTMENTS
.Press SUPER BASS to enhance heavy-
based sound.
.To select one of the five preset sound
effects, press PRESET EQ repeatedly to
toggle between the five Preset EQ (Preset
Equalizers): Jazz, Rock, Classical, Techno,
Flat.
.
.
Press MUTE to silence the sound output.
Resume to normal by pressing MUTE
again.
Adjust the sound output level by pressing
VOL + to increase or VDL - to decrease.
TUNSR CD TAPE
000
r- pLAy _
PAUSE
<2; ©
TRACK STOP TRACK
REPEAT DISC SKIP SHUFFLE
000
RECORD DEMO
0 0
PRESET TUNING SEEK
o o/

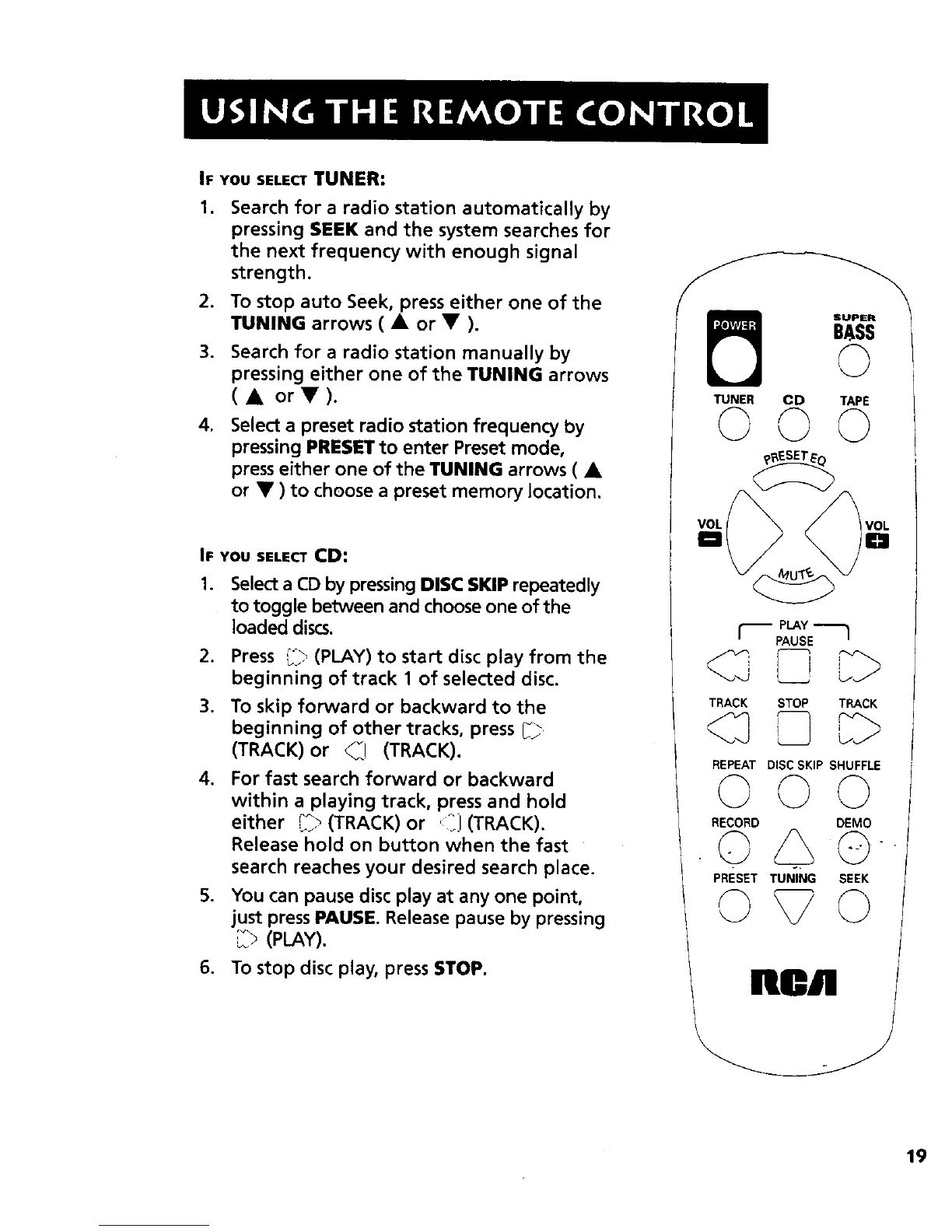

IF YOU SELECTTUNER:
.
.
3.
.
Search for a radio station automatically by
pressing SEEK and the system searches for
the next frequency with enough signal
strength.
To stop auto Seek, press either one of the
TUNING arrows ( • or • ).
Search for a radio station manually by
pressing either one of the TUNING arrows
(• or•).
Select a preset radio station frequency by
pressing PRESET to enter Preset mode,
press either one of the TUNING arrows ( •
or •)to choose a preset memory location.
IF YOU SELECTCD:
1. Select a CD by pressing DISC SKIP repeatedly
to toggle between and choose one of the
loaded discs.
.
3.
,
.
Press _> (PLAY) to start disc play from the
beginning of track 1 of selected disc.
To skip forward or backward to the
beginning of other tracks, press E_
(TRACK) or _! (TRACK).
For fast search forward or backward
within a playing track, press and hold
either _> (TRACK) or :_'_](TRACK).
Release hold on button when the fast
search reaches your desired search place.
You can pause disc play at any one point,
just press PAUSE. Release pause by pressing
_ (PLAY).
6. To stop disc play, press STOP.
BASS
0
TUNER CD TAPE
OOO
i_ PLAY
PAUSE--
TRACK STOP TRACK
REPEAT DISC SKIP SHUFFLE
000
RECORD DEMO
O
PRESET TUNING SEEK
O O
19

.
.

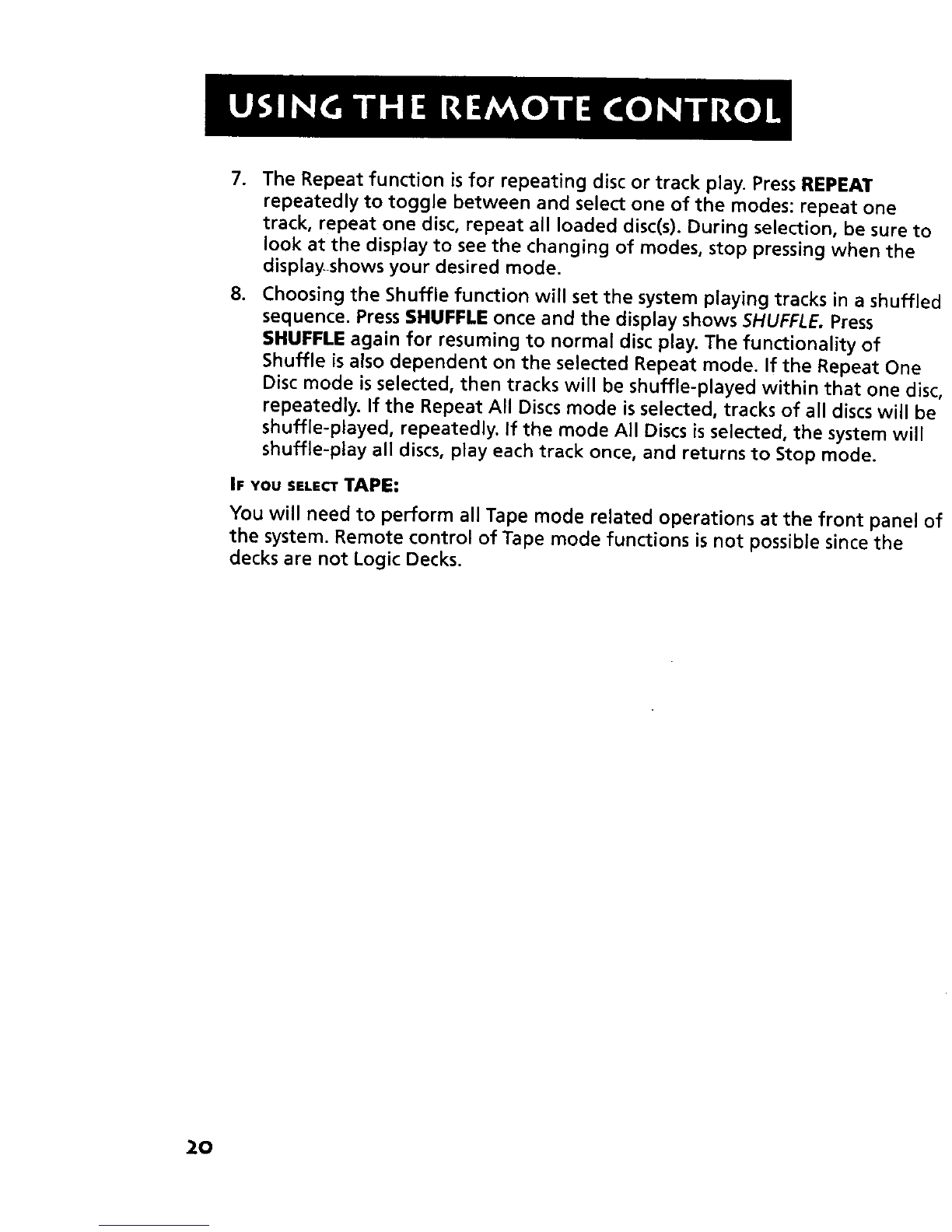

The Repeat function is for repeating disc or track play. Press REPEAT
repeatedly to toggle between and select one of the modes: repeat one
track, repeat one disc, repeat all loaded disc(s). During selection, be sure to
look at the display to see the changing of modes, stop pressing when the
display..shows your desired mode.
Choosing the Shuffle function will set the system playing tracks in a shuffle(
sequence. Press SHUFFLE once and the display shows SHUFFLE, Press
SHUFFLE again for resuming to normal disc play. The functionality of
Shuffle is also dependent on the selected Repeat mode. If the Repeat One
Disc mode is selected, then tracks will be shuffle-played within that one disc
repeatedly. If the Repeat All Discs mode is selected, tracks of all discs will be
shuffle-played, repeatedly. If the mode All Discs is selected, the system will
shuffle-play all discs, play each track once, and returns to Stop mode.
IF YOU SELECT TAPE:
You will need to perform all Tape mode related operations at the front panel o
the system. Remote control of Tape mode functions is not possible since the
decks are not Logic Decks.
20
