RCA J20420YX1J User manual

RCA
COMMERCIAL TV

FOREWORD SAFETY INFORMATION
This publication will explain commercial TV, highlighting
accessories associated with the commercial TV. This manual is
designed to provide a basic understanding of commercial TV,
Clone PRO _M programming, and how third party systems control
the commercial TV.
For model specific information, please refer to the users manual or
the service data.
Note: This publication is to be used only as a training aid. it is not
meant to replace service data or the users manual. The Use and
Care manual, and Electronic Service Information, contain specific
information about parts, safety, alignment procedures and Use and
Care. The information in this manual is as accurate as possible at
the time of publication. Circuit designs and drawings are subject to
change without notice.
CAUTION
Safety information is contained in the appropriate Thomson Service
Data. All product safety requirements must be complied with. Anyone
who defeat safety features or tZailsto perform safety checks may be liable
for any resulting damages and may expose themselves and others to
possible injury.
Web Addresses:
www.service.tce.com (Authorized Service Centers Only)
or
www.thomsoncommercial.com
First Edition Commercial - First Printing
Copyright 2001 Thomson multimedia Inc.
Trademark(s)' Registered Marca(s) Registrada(s)
Printed in U.S.A.
Prepared by
Thomson multimedia Inc.
Technical Training Department
PO Box 1976
Indianapolis, Indiana 46206
U.S.A.
hen O

2

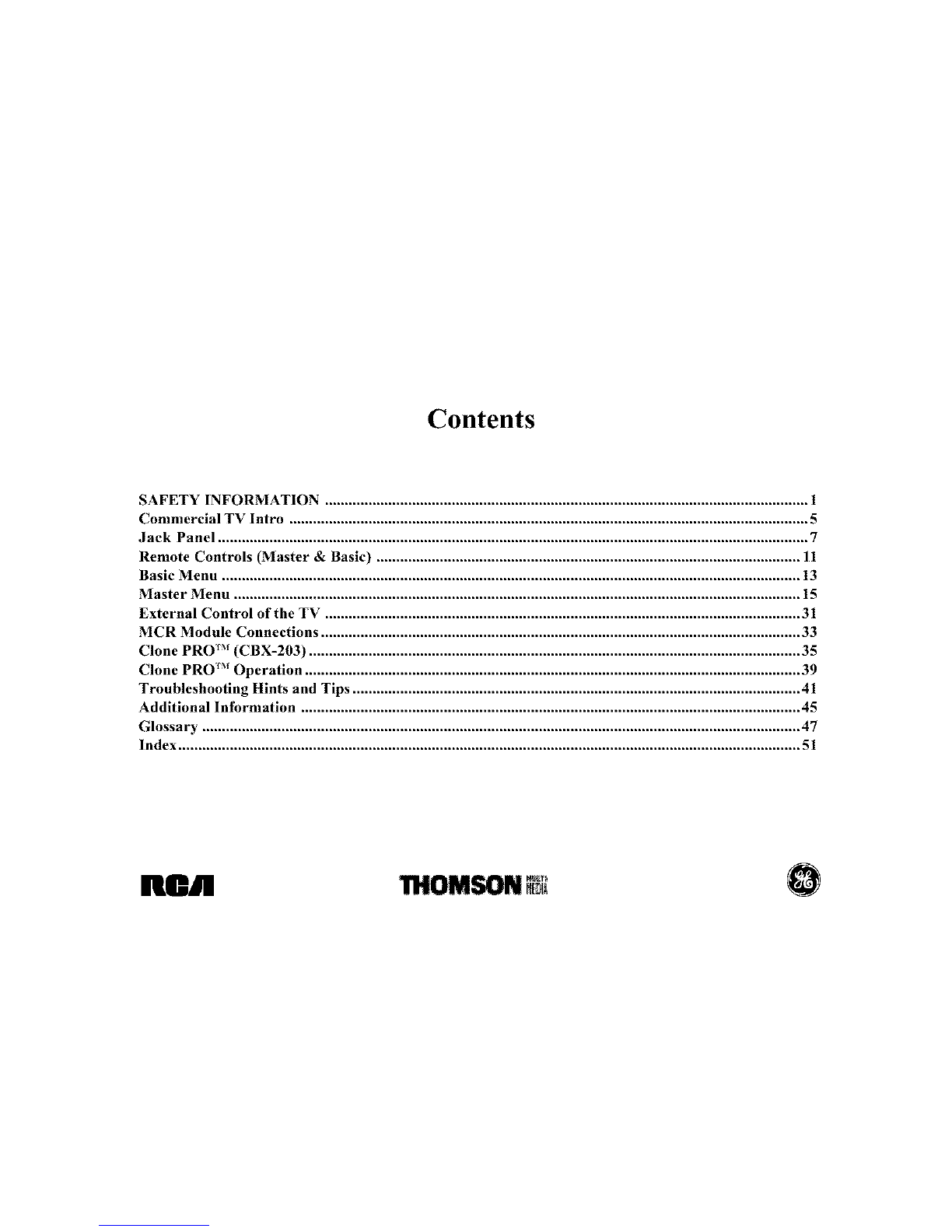

Contents
SAFETY INFORMATION .......................................................................................................................... 1
Commercial TV lntro ................................................................................................................................... 5
Jack Panel ..................................................................................................................................................... 7
Remote Controls (Master & Basic) ........................................................................................................... 11
Basic Menu .................................................................................................................................................. 13
Master Menu ............................................................................................................................................... 15
External Control of the TV ........................................................................................................................ 31
MCR Module Connections ......................................................................................................................... 33
Clone PRO TM (CBX-203) ............................................................................................................................ 35
Clone PRO TM Operation ............................................................................................................................. 39
Troubleshooting Hints and Tips ................................................................................................................. 41
Additional Information .............................................................................................................................. 45
Glossary ....................................................................................................................................................... 47
Index ............................................................................................................................................................. 51
IHtOA

Notes
4

Commercial TV lntro
Commercial TV's differ from non-commercial TV's in many areas. One
in particular is external control of the TV from third-party interactive
systems. Today, most commercial applications incorporate a third-party
control system, Master Antenna Television System (MATV), and some
sort of interactivity.
Commercial TV's:
have to be adaptable to the different types of third-party
systems in use today.
have two setup menus, a basic menu and a master menu.
(The master menu allows more control of set operation and
limits access to features commonly found on the basic menu
of non-commercial TV' s.)
have an interface for a third-party controlling device.
incorporate spill-resistant cabinets, (all grills, seams or other
openingsare designed to minimize the likelihood of cleaning
agents or spills entering the instrument and causing
operational problems).
incorporate integral mounting provisions, (mounting bosses
on the bottom of the cabinet that allow affixing the instrument
to existing mounts, brackets, and plates).
have restricted access to channels and menus, front panel
lockout, IR and wired cloning, and de-commercialization
features. (De-commercialization prepares the commercial TV
for after marked resale.)
RCA commercial TV's are indicated by the letter Jat the beginning
of the model number and GE commercial TV's are indicated by the
letters GH in the model number. An example ofa RCA commercial
model number is J32430.
Commercial TV Application
Professional /Educational TV's arc mainly used in situations that
require televisions to always perform a particular function such as
always turn on with the volume preset and on the same channel. Certain
features and functions are enabled or disabled depending on the appli-
cation, in this application controlling of the TV externally, although
possible, is not common.
Lodging TV's are similar to Professional /Educational in that some
features are disabled and in some cases none of the TV's controls are
enabled, in a Lodging environment, the TV's are typically controlled by
an external device or set-top box connected to the Digital Serial
Communications lntert:ace (DSCI) jack. When connected to the DSCI
other devices can communicate with the TV sending it commands and
getting front panel or remote commands back from the TV. With this
interactivity, the user can send requests to the controller and do more
than the non-commercial TV. For example: Pay-Per-View and room
service can be requested by the customer using the on screen menu
system. The service can then be billed directly to the room account. This
type of interactivity can even include an itemized list of room charges
and advance checkout for the customer.

Healthcaresetsrequireadditionalfeaturesnottypicallyassociatedwith
Pro/EDorLodging.Healthcaresetsrequireclear,3-prong,6-footpower
cord.TheyarealsousedwiththePatientRemotePendant(PRP)that
usesastandardstereoV4plug for controlling the TV. The pendant is a
wired remote control used to control basic functions of the TV. There
are two types of pendants; 1) Smart pendant and 2) "Dumb" pendant.
Smart pendants control TV on/off; volume, and channel +/- much like the
standard remote control does. The "dumb" pendant has channel up and
on/off capabilities only. Both smart and dumb pendants can incorporate
volume control of an external speaker and are hardwired to the TV.
Notes
6

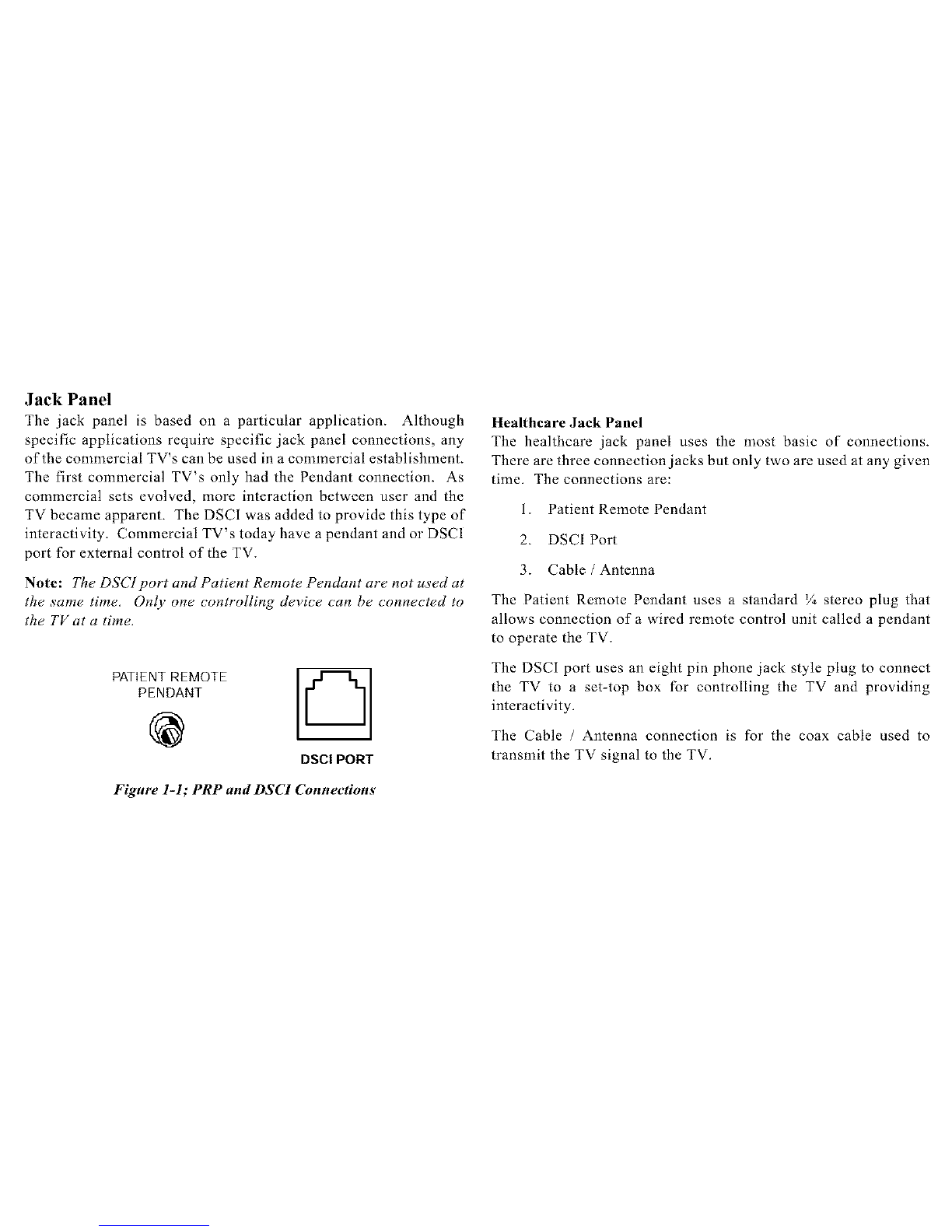

Jack Panel
The jack panel is based on a particular application. Although
specific applications require specific jack panel connections, any
of the commercial TV's can be used in a commercial establishment.
The first commercial TV's only had the Pendant connection. As
commercial sets evolved, more interaction between user and the
TV became apparent. The DSCI was added to provide this type of
interactivity. Commercial TV's today have a pendant and or DSCI
port for external control of _he TV.
Note: The DS(T port and Patient Remote Pendant are not used at
the same time, Only one controlling device can be connected to
the TV at a time.
PATIENT REMOTE
PENDANT
@Chl
DSCI PORT
Healthcare Jack Panel
The healthcare jack panel uses the most basic of connections.
There are three connection jacks but only two are used at any given
time. The connections are:
1. Patient Remote Pendant
2. DSCI Port
3. Cable /Antenna
The Patient Remote Pendant uses a standard V4 stereo plug that
allows connection of a wired remote control unit called a pendant
to operate the TV.
The DSCI port uses an eight pin phone jack style plug to connect
the TV to a set-top box for controlling the TV and providing
interactivity.
The Cable /Antenna connection is for the coax cable used to
transmit the TV signal to the TV.
Figure l-l; PRP and DSCl Connections

AX AX
DSCl PORT
CABLE/
AN[ENNA

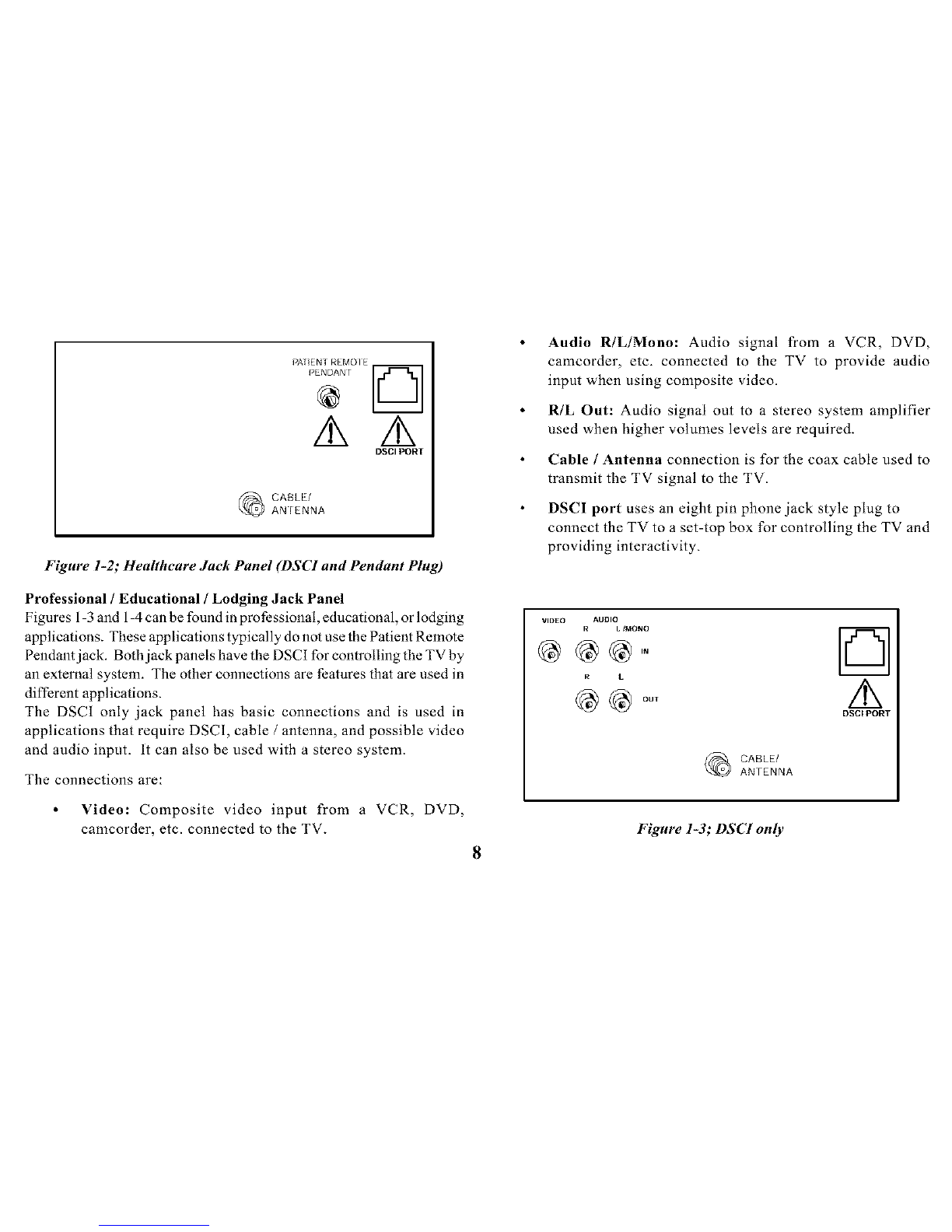

Figure 1-2; Healthcare Jack Panel (DSCI and Pendant Plug)
Professional /Educational /Lodging Jack Panel
Figures L-3and L-4 can be found in profcssionaL, educational, or lodging
applications. These applications typically do not use the Patient Remote
Pendant jack. Both jack panels have the DSCL for controlling the TV by
an external system. The other connections are features that are used in
different applications.
The DSCL only jack panel has basic connections and is used in
applications that require DSCL, cable /antenna, and possible video
and audio input. It can also be used with a stereo system.
The connections are:
Video: Composite video input from a VCR, DVD,
camcorder, etc. connected to the TV.
Audio R/L/Mono: Audio signal from a VCR, DVD,
camcorder, etc. connected to the TV to provide audio
input when using composite video.
R/L Out: Audio signal out to a stereo system amplifier
used when higher volumes levels are required.
Cable /Antenna connection is for the coax cable used to
transmit the TV signal to the TV.
DSCI port uses an eight pin phone jack style plug to
connect the TV to aset-top box for controlling the TV and
providing interactivity.
VIDEO AU[IIO
RL/MONO _--_
@@@,.
RL
@@oo, /k
DSCI PORT
CABLE]
ANTENNA
Figm'e 1-3; DSCI only
8

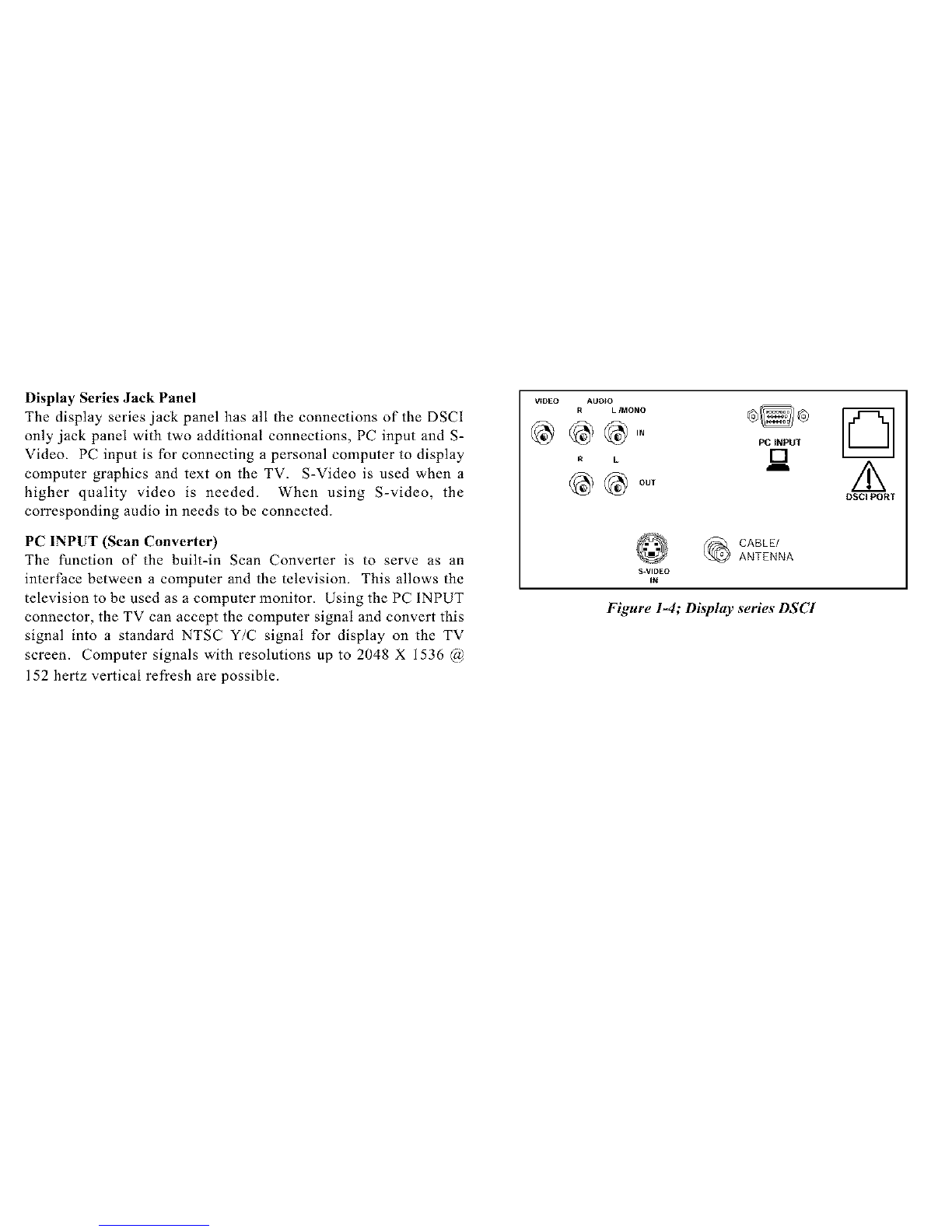

Display Series Jack Panel
The display series jack panel has all the connections of the DSCI
only jack panel with two additional connections, PC input and S-
Video. PC input is for connecting a personal computer to display
computer graphics and text on the TV. S-Video is used when a
higher quality video is needed. When using S-video, the
corresponding audio in needs to be connected.
PC INPUT (Scan Converte O
The function of the built-in Scan Converter is to serve as an
interface between a computer and the television. This allows the
television to be used as a computer monitor. Using the PC INPUT
connector, the TV can accept the computer signal and convert this
signal into a standard NTSC Y/C signal for display on the TV
screen. Computer signals with resolutions up to 2048 X 1536 @
152 hertz vertical refresh are possible.
V_DEO AUDIO
R L IMONO
RL
S.VIDEO
IN
PCtNPUT
[]
CABLE/
ANTENNA
Figure 1-4; Display series DSCI
D
/k
DSCl PORT

Notes
10

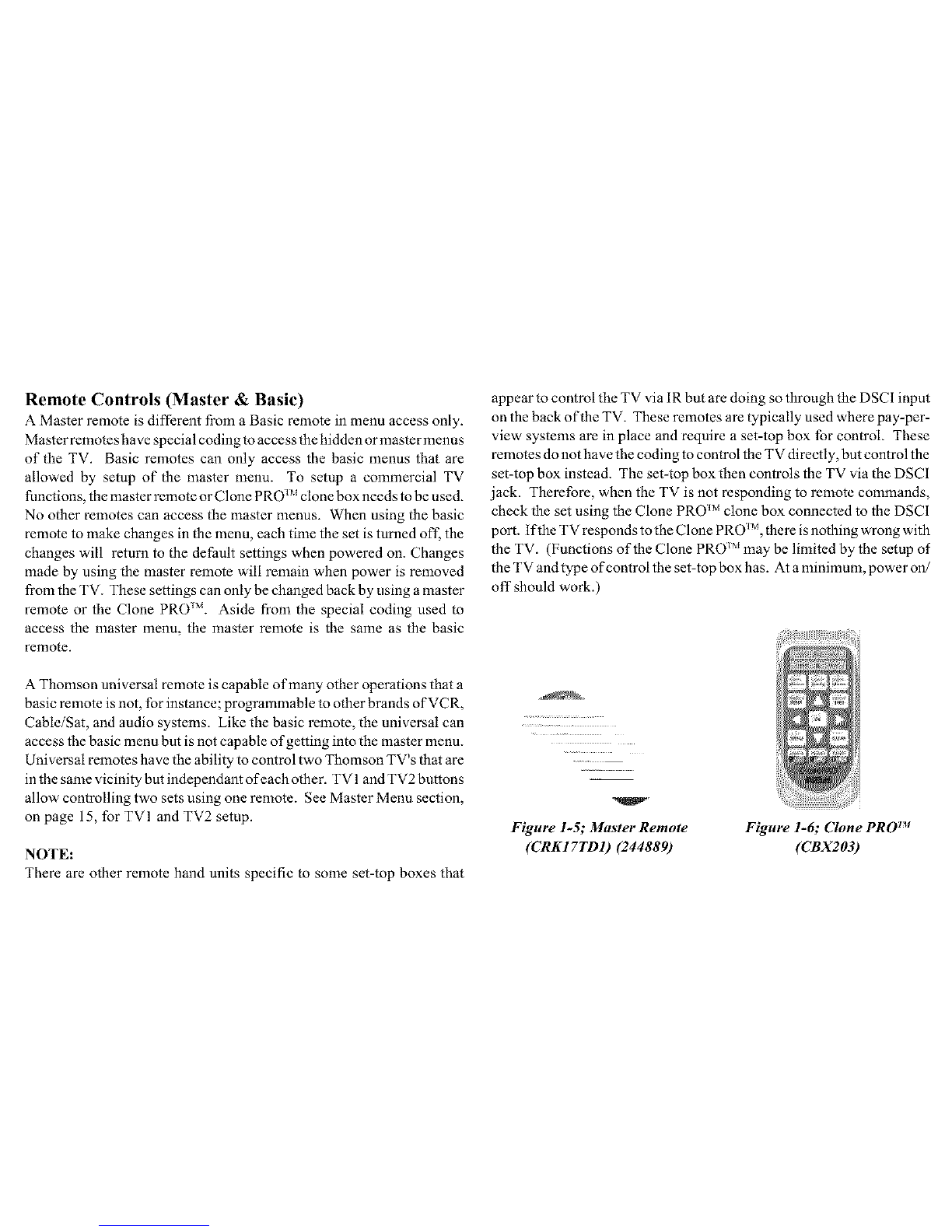

RemoteControls (Master & Basic)
A Master remote is different from a Basic remote in menu access only.
Master remotes have special coding to access the hidden or master menus
of the TV. Basic remotes can only access the basic menus that are
allowed by setup of the master menu. To setup a commercial TV
functions, the master remote or Clone PRO __jclone box needs to be used.
No other remotes can access the master menus. When using the basic
remote to make changes in the menu, each time the set is turned off. the
changes will return to the detZault settings when powered on. Changes
made by using the master remote will remain when power is removed
from the TV. These settings can only be changed back by using a master
remote or the Clone PRO TM. Aside from the special coding used to
access the master menu, the master remote is the same as the basic
remote.
appear to control the TV via 1R but are doing so through the DSCI input
on the back of the TV. These remotes are typically used where pay-per-
view systems are in place and require a set-top box for control. These
remotes do not have the coding to control the TV directly, but control the
set-top box instead. The set-top box then controls the TV via the DSCI
jack. Therefore, when the TV is not responding to remote commands,
check the set using the Clone PRO _Mclone box connected to the DSCI
port. if the TV responds to the Clone PRO _j, there is nothing wrong with
the TV. (Functions of the Clone PRO _Mmay be limited by the setup of
the TV and type of control the set-top box has. At a nfinimum, power on/
off should work.)
A Thomson universal remote is capable of many other operations that a
basic remote is not, for instance; programmable to other brands of VCR,
Cable/Sat, and audio systems. Like the basic remote, the universal can
access the basic menu but is not capable of getting into the master menu.
Universal remotes have the ability to control two Thomson TV's that are
in the same vicinity but independant of each other. TV 1and TV2 buttons
allow controlling two sets using one remote. See Master Menu section,
on page 15, for TVI and TV2 setup.
NOTE:
There are other remote hand units specific to some set-top boxes that
V ¸
Figure 1-5; Master Remote
(CRK I 7TD I) (244889) Figure 1-6; Clone PRO TM (CBX203)

Notes
Figure l-7; Basic Users Figure l-8; Universal Remote
Remote (Basic)
(CRKI7TCI) (244888) (CRK76TKI) (247437)
Note: Numbers in () are stock mtmbers _br ordering remote,
12

Basic Menu
The basic menus are accessed using the basic remote or the front
panel Menu button. The menus that are available, depend on the
restrictions set by the master user and the active input. For instance,
if Basic Menu Access has been set to Disabled in the Access and
Power Options menu, the basic menus will not be available.
Many of the changes made in the basic menu will revert to their
master menu settings the next time the TV is turned on. Most all
the basic menu items function the same as their master counter
parts. Refer to the users manual for more detailed operation of the
menu items that are different.
NOTE: Some.features, such as PC Video Input Controls, are not
available unless that input has been selected prior to entering the
menu. This holds true/or both Basic and Master Menus,
Figure 2-1; Main Menu (Basic)
Notes

Notes
14

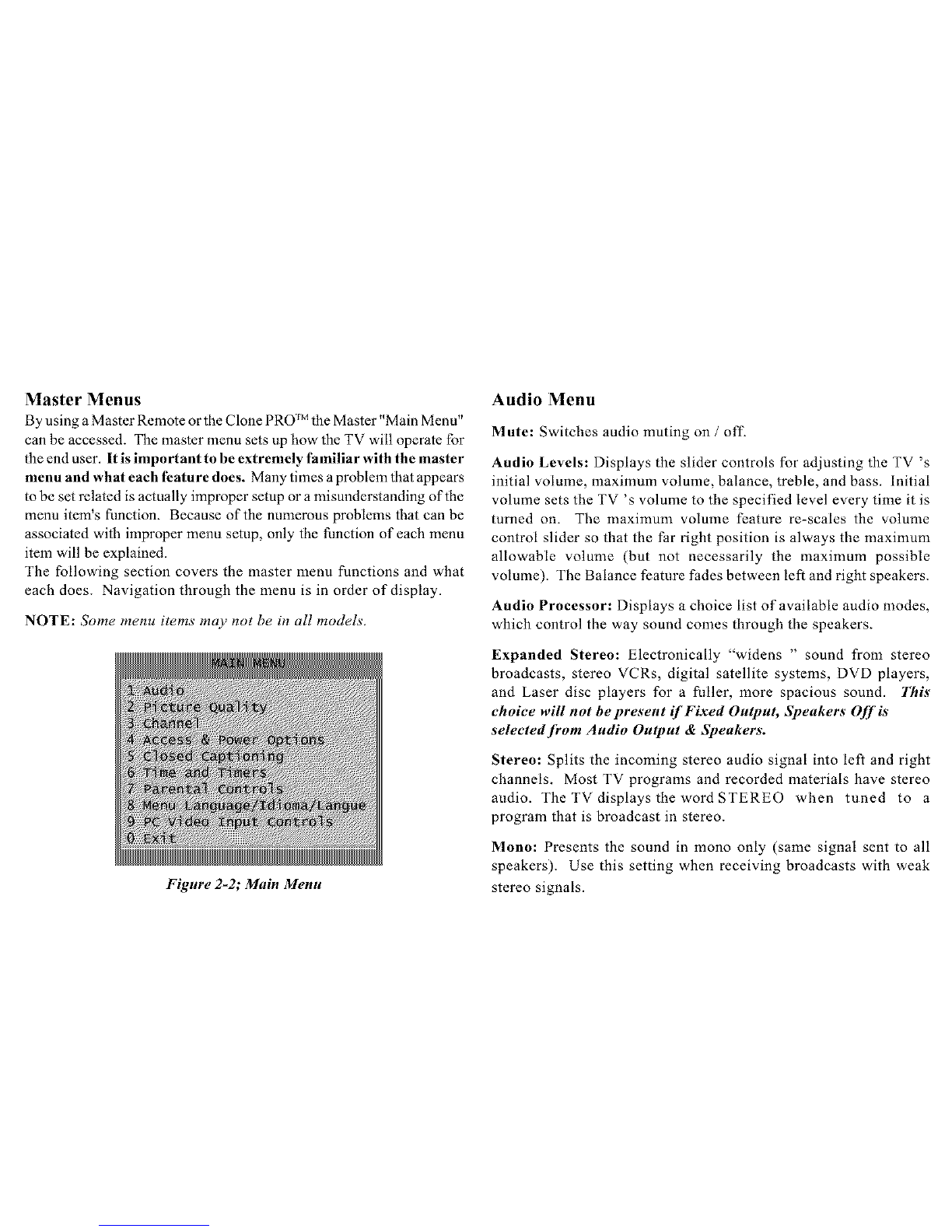

Master Menus
By using aMaster Remote or the Clone PRO ]Mthe Master "Main Menu"
can be accessed. The master menu sets up how the TV will operate for
the end user. It is important to be extremely familiar with the master
menu and what each feature does. Many times a problem that appears
to be set related is actually improper setup or a misunderstanding of the
menu item's function. Because of the numerous problems that can be
associated with improper menu setup, only the function of each menu
item will be explained.
The following section covers the master menu functions and what
each does. Navigation through the menu is in order of display.
NOTE: Some menu items may not be in all models.
Figure 2-2; Main Menu
Audio Menu
Mute: Switches audio muting on /off-
Audio Levels: Displays the slider controls for adjusting the TV's
initial volume, maximum volume, balance, treble, and bass. Initial
volume sets the TV's volume to the specified level every time it is
turned on. The maximum volume feature re-scales the volume
control slider so that the Par right position is always the maximum
allowable volume (but not necessarily the maximum possible
volume). The Balance feature fades between left and right speakers.
Audio Processor: Displays a choice list of available audio modes,
which control the way sound comes through the speakers.
Expanded Stereo: Electronically "widens " sound from stereo
broadcasts, stereo VCRs, digital satellite systems, DVD players,
and Laser disc players for a fuller, more spacious sound. This
choice will not be present if Fixed Output, Speakers Off is
selectedJkom Audio Output & Speakers.
Stereo: Splits the incoming stereo audio signal into left and right
channels. Most TV programs and recorded materials have stereo
audio. The TV displays the word STEREO when tuned to a
program that is broadcast in stereo.
Mono: Presents the sound in mono only (same signal sent to all
speakers). Use this setting when receiving broadcasts with weak
stereo signals.

SecondAudioProgram(SAP):Presentstheprogram'saudioina
secondlanguage,if oneisavailable.TheTV displaystheword
SAPwhenyoutuneto aprogramthatis broadcast with SAP
information. SAP audio is broadcast in mono. SAP is also used
to broadcast a program's audio with descriptions of the video for
the visually impaired.
Audio Output & Speakers: Displays a choice list that let's you
turn the TV's internal speakers on or off and set the audio outputs
to fixed-level or variable control level.
Variable Output, Speakers On: This setting turns the TV's
speakers on and sets the variable output from the TV's audio output
jacks, proportional to the volume setting.
Variable Output, Speakers Off: This setting turns the TV's
speakers off and allows variable output from the TV's audio output
jacks.
Fixed Output, Speakers Off: This setting turns the TV's speakers
off and allows fixed output from the TV's audio output jacks to an
external device such as a surround sound amplifier. When this
[euture is turned on, the TV's volume control, tone controls,
Expanded Stereo, and mute are disabled.
Volume Hold: This setting tarns the TV's speakers on and sets the
audio outputs proportional to the current volume setting. When
this 3"euture is turned on, mute and other volume controls are
disabled. 16
Sound Logic: Turning this feature on reduces the annoying blasts
in volume during commercial breaks to create a more consistent
audio output.
Figure 2-3; Audio Menu

Picture Quality Menu
The Picture Quality menu items allows appearance adjustment of
the on-screen images. Pressing RESET on the remote control
returns all Picture Quality menu settings to their factory defaults.
Picture Adjustments displays the five-slider controls for adjusting
the way the picture looks in the current video input source. (These
settings can be set differently fbr each video input source.)
Contrast: Adjusts the difference between the light and dark
areas of the picture.
Color: Adjusts the richness of the color.
Tint: Adjusts the balance between the red and green levels.
Black Level: Adjusts the brightness of the picture.
Sharpness: Adjusts the crispness of edges in the picture.
When exiting the Picture Adjustments menu, the Save Custom
Picture Preset choice list appears. Sore the settings as a Custom
Picture Preset that way the setting can be returned !f someone
changes the settings.
Picture Presets: DispLays a choice list of four preset picture settings:
Bright Lighting, Normal Lighting, Soft Lighting, or Custom Picture.
Bright Lighting is the default and will be selected if the RESET
or SKIP button is pressed while in this menu.
Auto Color: Displays a choice list to turn on or off the feature that
automatically corrects the color of the picture. (This is especially
useful for tracking realistic flesh tone colors when switching from
channel to channel.)
Color Warmth: Displays a list of three automatic color adjustments:
Cool for a more blue palette of picture colors; Normal and Warm
for a more red palette of picture colors. The warm setting
corresffonds to the NTSC standard of 6500 K.
Picture Tilt: Screen sizes 32" and up have extra-large picture
tubes, which make them vulnerable to the effects of the Earth's
magnetic field. Picture Tilt compensates for this effcct.
Figure 2-4; Picture Quality Menu

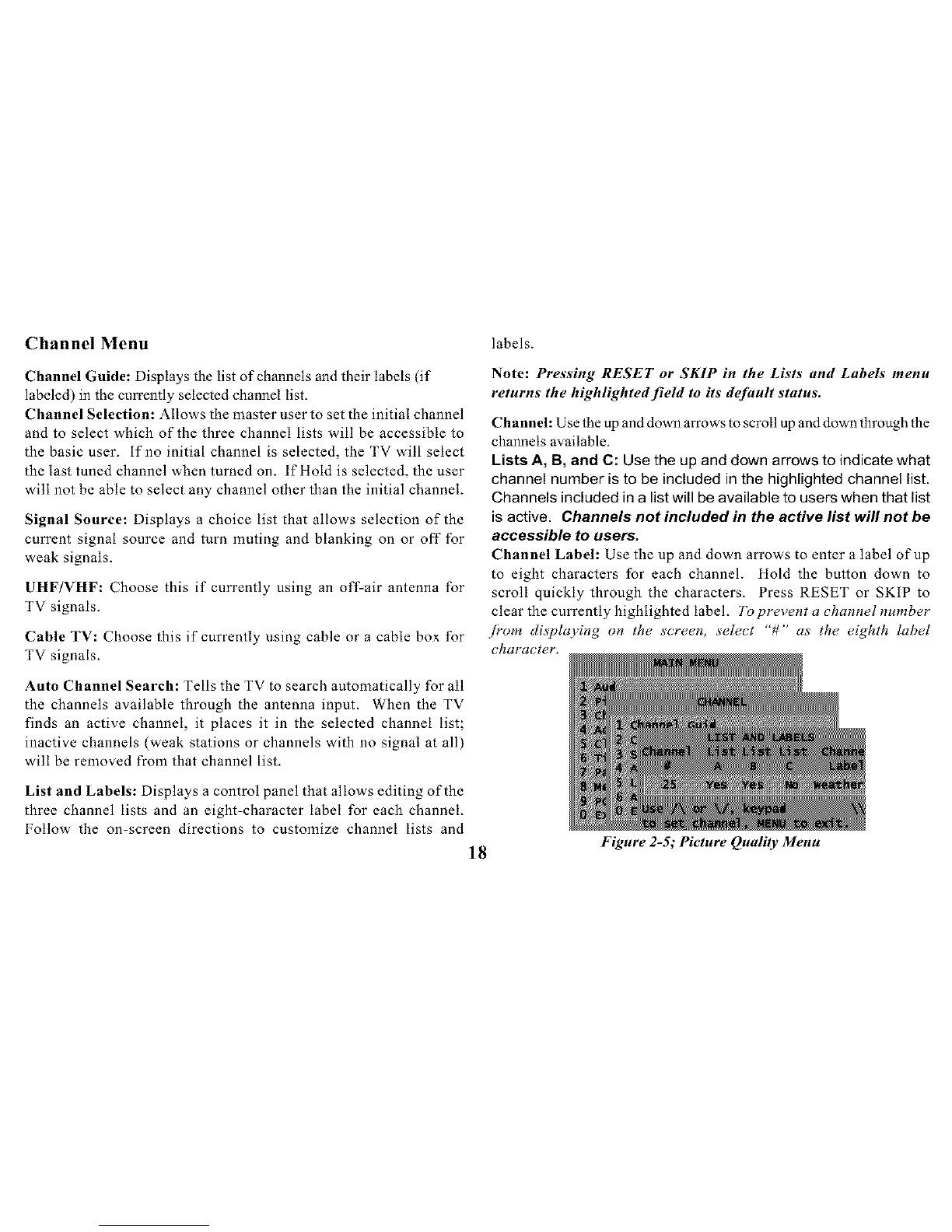

Channel Menu labels.
Channel Guide: Displays the list of channels and their labels (if
labeled) in the cu_xently selected channel list.
Channel Selection: Allows the master user to set the initial channel
and to select which of the three channel lists will be accessible to
the basic user_ If no initial channel is selected, the TV will select
the last tuned channel when turned on. If Hold is selected, the user
will not be able to select any channel other than the initial channel.
Signal Source: Displays a choice list that allows selection of the
current signal source and turn muting and blanking on or off for
weak signals.
UHF/VHF: Choose this if currently using an oft-air antenna for
TV signals.
Cable TV: Choose this if currently using cable or a cable box for
TV signals.
Auto Channel Search: Tells the TV to search automatically for all
the channels available through the antenna input. When the TV
finds an active channel, it places it in the selected channel list;
inactive channels (weak stations or channels with no signal at all)
will be removed from that channel list.
Note: Pressing RESET or SKIP in the Lists and Labels" menu
returns the highlighted field to its default status.
Channel: Use the up and down arrows to scroll up and down through the
channels available.
Lists A, B, and C: Use the up and down arrows to indicate what
channel number is to be included in the highlighted channel list.
Channels included in a list will be available to users when that list
is active. Channels not included in the active list will not be
accessible to users.
Channel Label: Use the up and down arrows to enter a label of up
to eight characters for each channel. Hold the button down to
scroll quickly through the characters. Press RESET or SKIP to
clear the currently highlighted label. Toprevent a channel number
/?om di._playing on the screen, select "#" as the eighth labe!
character,
List and Labels: Displays a control panel that allows editing of the
three channel lists and an eight-character label for each channel.
Follow the on-screen directions to customize channel lists and
18 Figure 2-5; Picture Quality Menu

Auto Tuning: Displays a choice list that allows setup of the TV to
automatically tune to the correct input channel when pressing the
component button (VCRI, DVD, VCR2, or SAT) on a universal
remote.
The component button choices are:
VCR1 : Displays a choice list that lets you select the channel
that the TV tunes to when you press the VCRI button.
VCR2: Displays a choice list that lets you select the channel
that the TV tunes to when you press the VCR2 button.
DVD: Displays a choice list that lets you select the channel
that the TV tunes to when you press the DVD button.
AUX: Displays a choice list that lets you select the channel
that the TV tunes to when you press the AUX button.
SAT: Displays a choice list that lets you select the channel
that the TV tunes to when you press the SAT (or SAT
•CABLE) button.
The input channel choices are: (not all choices are available on
all models)
Ch 3: Choose this if the component is connected to the
antenna jack on the back of the TV, and want the TV to
tune to channel 3 when the specified component button is
pressed. Make sure the component's Ch 3/4 switch is set to
Ch 4: Choose this if the component is connected to the
antenna jack on the back of the TV, and want the TV to
tune to channel 4 when the specified component button is
pressed. Make sure the component's Ch 3/4 switch is set
to channel 4.
VID: Choose this if the component is connected to the
Audio and Video In jacks on the back of the TV and want
the TV to tune to the VID input channel when the specified
component button is pressed.
SVID: Choose this if the component is connected to the S-
VIDEO jack on the back of the TV and want the TV to
tune to the SVID input channel when the specified
component button is pressed.
S-VHS or Super-VHS: This is an extended format of
VHS and improves the picture quality of the signal passing
through the S-VIDEO input. Make sure to also connect
audio cables in order to get sound when using S-Video.
