RCP ADF-819 User manual

Wireless Arm Type Blood
Pressure Monitor
Model # ADF-819

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 2
TABLE OF CONTENTS
INTRODUCTION ............................................................... 4
NOTES ON SAFETY ........................................................... 4
Handling batteries properly ....................................... 5
WHEN TAKING A MEASUREMENT.................................... 5
QUICK START.................................................................... 6
PROPER POSITIONING FOR TAKING A BLOOD PRESSURE
MEASUREMENT ................................................................ 7
PRODUCT OVERVIEW...................................................... 8
Features ....................................................................... 8
Display.......................................................................... 9
Package Contents...................................................... 9
PREPARATION BEFORE USE ........................................... 10
Insert the Batteries ..................................................... 10
Setting the Date and Time ....................................... 11
Setting the Alarm ...................................................... 12
TAKING A MEASUREMENT............................................. 13
Sitting Correctly ......................................................... 13
Applying the Arm Cuff.............................................. 14
Taking the Measurement ......................................... 15
Heartbeat Readings ................................................. 16
Irregular Heartbeat................................................ 16
Regular but Below Normal Heartbeat ................. 17
Regular but Above Normal Heartbeat................ 17
MEMORY FUNCTIONS ................................................... 18

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 3
View Past Readings .................................................. 18
View Average Readings .......................................... 18
Delete Past Readings ............................................... 19
TROUBLESHOOTING ...................................................... 20
STORAGE AND MAINTENANCE .................................... 21
SPECIFICATIONS ............................................................ 22
CONTACT INFORMATION AND NOTICES..................... 23
FCC Compliance Statement ................................... 23

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 4
Model # ADF-819
INSTRUCTION MANUAL
INTRODUCTION
This Blood Pressure Monitor is provided to you by
Remote Care Partners (RCP), for use exclusively
with the health monitoring program from your
provider.
Please read this manual carefully and keep it
handy for future reference
NOTES ON SAFETY
Please read this section carefully to familiarize
yourself with features and operations before
using the unit.
Babies, young children, or individuals who cannot
express their consent are not suitable to take
blood pressure measurements.
Individuals with serious arteriosclerosis are not
suitable to take blood pressure measurements.
Blood pressure readings may change in the case
of pregnancy. Pregnant women can consult their
doctor before taking measurements.
Self-measurement is not medical treatment.
Normal blood pressure is 120/80 or less

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 5
Handling batteries properly
As soon as old batteries run out, replace them
with new batteries.
•Do not use old and new batteries together.
•Align the polarities of batteries correctly.
•When the unit will not be used for more than 3
months, remove the batteries. Otherwise,
batteries may leak and cause damage to the
unit.
WHEN TAKING A MEASUREMENT
Avoid smoking, eating, or exercising for 30
minutes before taking measurements.
Do not allow other people to use your blood
pressure monitor. The blood pressure monitor is
specifically assigned to you and you only.
Allowing other people to use your monitor can
mislead your provider.
Unless otherwise instructed by your provider, you
can take your blood pressure on either arm.
Remove tight-fitting or thick clothing from your
upper arm. The cuff should be placed on bare
skin.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 6
QUICK START
Avoid smoking, eating, or exercising for 30
minutes before taking measurements.
1. Sit upright in a chair with both your feet on the
floor.
2. Apply the blood pressure cuff to the bare skin of
your upper arm. Do not place the cuff over your
clothing.
3. Pull-on the end of the cuff until it wraps securely
around your upper arm. Place your arm on a
table so that the cuff is at the same level as your
heart.
4. Press the "⦶" button on the device. The cuff will
automatically inflate, and the measurement will
start. Do not talk or move around while the
measurement is taking place.
5. When the measurement is complete, the cuff will
automatically deflate, and your systolic & diastolic
pressure values plus the pulse rate will display on
the Blood Pressure monitor.
6. The readings will automatically be transferred to
the RCP SmartHub and sent to your provider.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 7

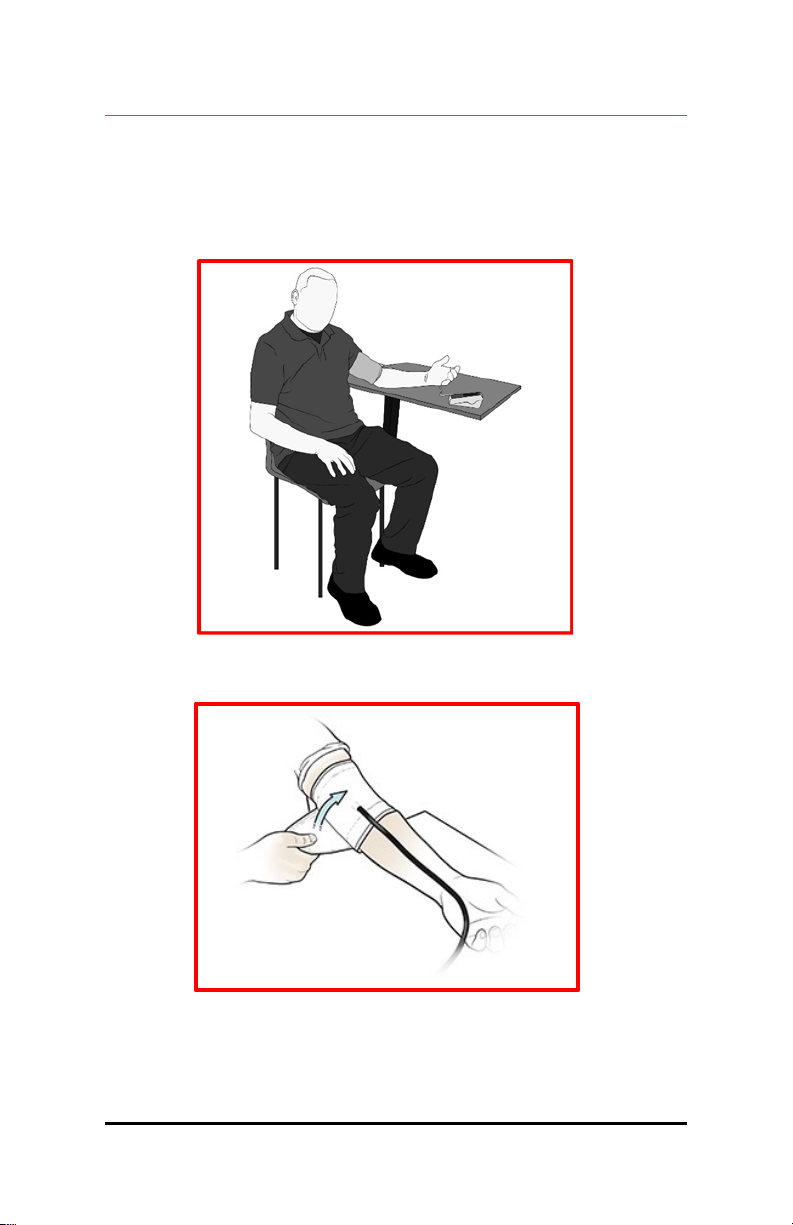

PROPER POSITIONING FOR TAKING A BLOOD
PRESSURE MEASUREMENT

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 8
PRODUCT OVERVIEW
Features
•One-Touch Operation
•Irregular Heartbeat Detector
•Blood Pressure Mode and Clock Mode
•4 User/ 396 Total Memory
•4 Alarm Clock Settings
•5 Mode Averaging Functions - Hour, Day,
Week, Month, and Overall
•Auto-off Power Saving Feature
•Operated by 4 AA batteries

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 9
Display
Package Contents

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 10
PREPARATION BEFORE USE
Insert the Batteries
New batteries were installed in your device before
shipping. Unless instructed by a support person, skip
this section
1. Pull and lift on the lock to remove the battery
cover.
2. Insert 4 AA batteries with the polarities in the
correct direction.
3. Replace the battery cover
4. Press the battery cover lightly until the lock
securely clicks into place.
TIPS
Replace Battery the
battery indicator shows
low voltage

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 11
Setting the Date and Time
Note:
•Set the correct date and time before
taking a measurement.
•Date and time should be reset after
replacing new batteries
1. Press and hold the " " button for a few
seconds until the Year display flashes.
2. Press the "MEMO " or "" button to select
the current year.
3. Press the"" button to confirm Year Setting.
4. Follow the same steps to set the Month,
Date, Hour, and Minute

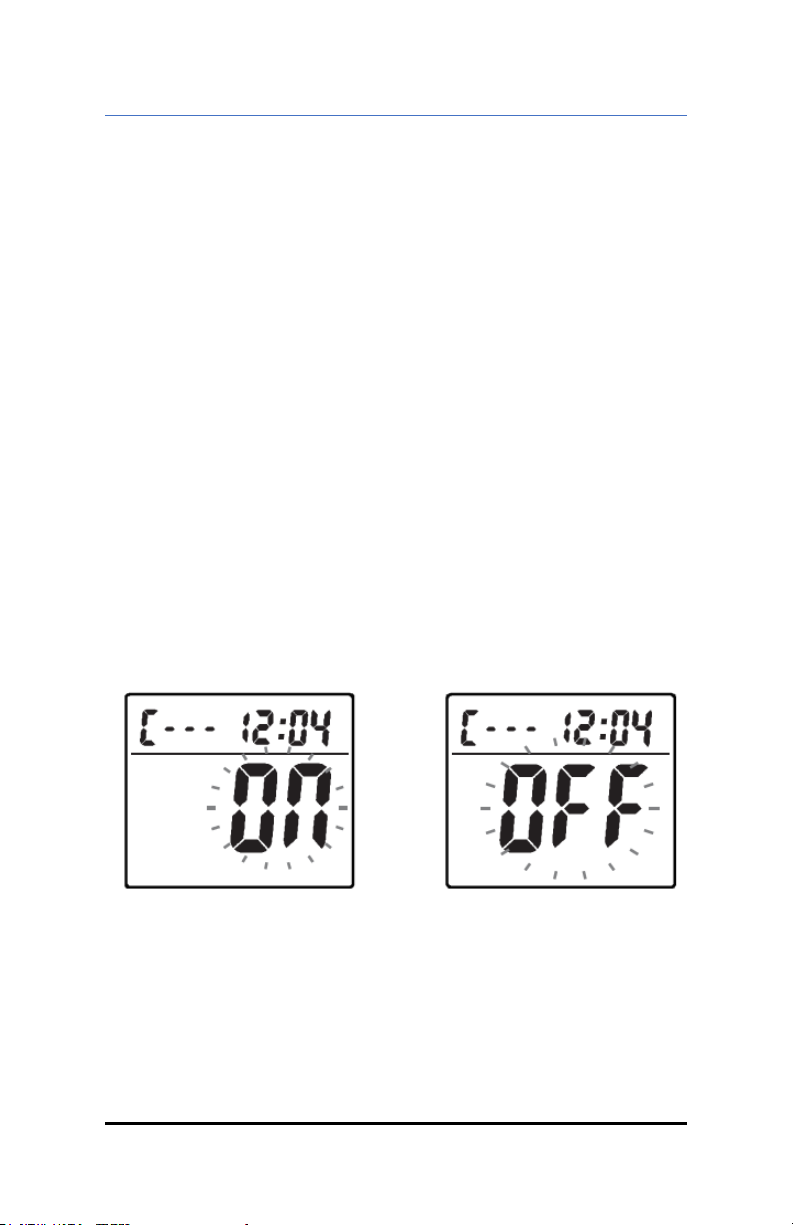

5. You can choose Clock Function "ON" or
"OFF" while the monitor is not in use. Press
the "MEMO " or "" button to select.
Press the"" button to confirm
Note: If you select Clock Function "ON”, you will
continue at the Alarm Setting section. Otherwise,
the settings will end.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 12
Setting the Alarm
Note:
•You will not be able to set the alarm clock
if Clock Function is set to "OFF''.
•You can set a maximum of 4 alarms.
•To disable Alarm, Press the "MEMO " or
"" button to select "OFF" and press the ""
button to confirm.
1. To set 1st Alarm, Press the "MEMO " or ""
button to select "ON''. Press the "" button
to confirm.
2. When the Hour digit flashes, press the
"MEMO" or ""button to select Hour.
Press the "" button to confirm.
3. When Minute digit flashes, press the
"MEMO" or "button to select Minute.
Press the "" button to confirm.
Follow the same steps to set the 2nd, 3rd, and 4th Alarm
Note:
•Press the "⦶" button anytime during clock
setting/ alarm setting to start over if an
error occurs.
•Each alarm clock lasts 45 seconds, or you
can turn it off by pressing the "⦶" button.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 13
TAKING A MEASUREMENT
Note:
•Avoid smoking, eating, or exercising for 30
minutes before taking a measurement.
•Do not move or talk during measurement.
•Measurement can be taken on either arm.
Sitting Correctly
1. Relax
2. Sit upright in a chair with both your feet on
the floor.
3. Remove tight-fitting or thick clothing from
your upper arm. Apply the blood pressure
cuff to the bare skin of your upper arm. Do
not place the cuff over your clothing.
4. Place your arm on a table so that the cuff
will be at the same level as your heart.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 14
Applying the Arm Cuff
1. Place your elbow on a table, palm facing
upward, and wrap the arm cuff around
the upper left arm.
2. Pull on the end of the cuff until it wraps
securely around your upper arm. Do not
overtighten the cuff. Allow ½ inch between
the bottom of the cuff and your elbow
joint.
3. The air tube should run along the inside of
your arm.
4. Make sure the cuff is at the same level as
your heart.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 15
Taking the Measurement
1. Press the "⦶" button. The cuff will
automatically inflate, and the
measurement will start. Do not talk or move
around while the measurement is taking
place.
2. When the measurement is complete, the
cuff will automatically deflate, and your
systolic & diastolic pressure values and
pulse rate will display on Blood Pressure
monitor.
3. The readings will automatically be
transferred to the RCP SmartHub and sent
to your provider.
Note: You can press the "⦶" button to stop
measurement at any time.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 16
Heartbeat Readings
In addition to your systolic and diastolic values,
Your pulse rate will also be displayed after a
measurement

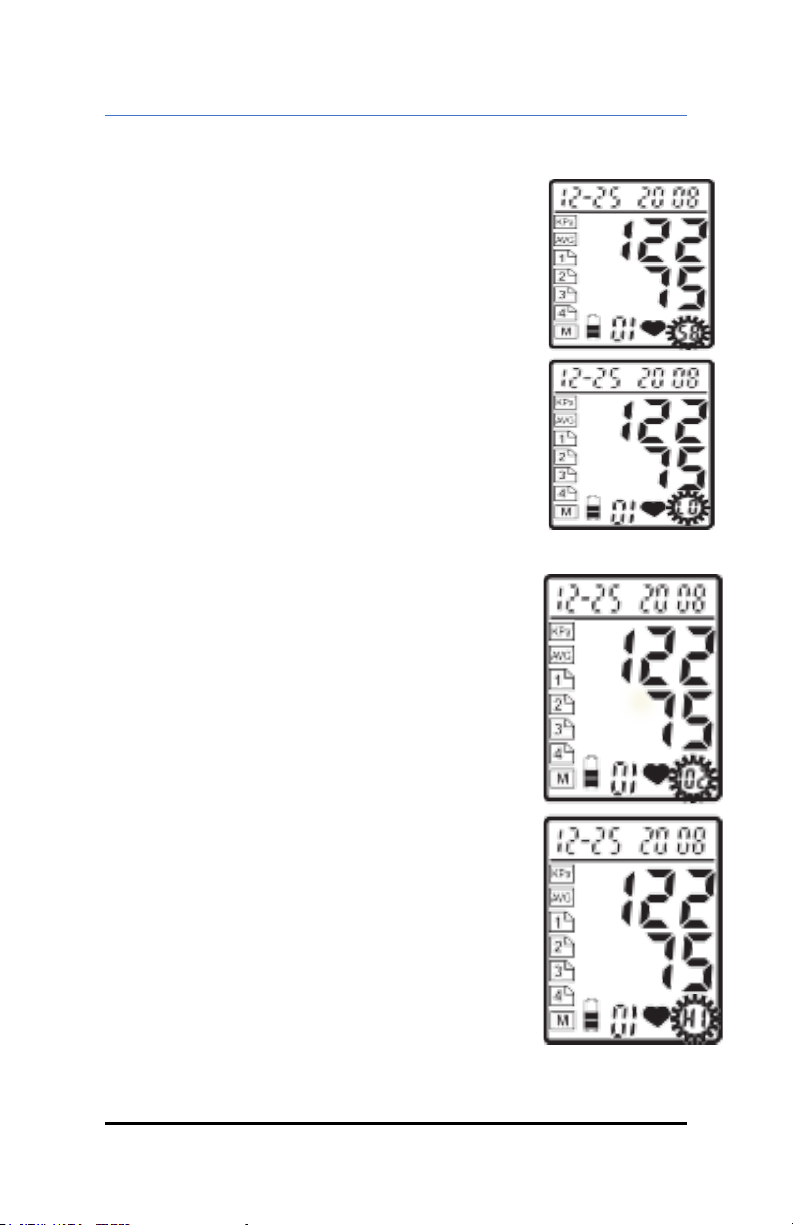

Irregular Heartbeat
This unit has a unique feature that alerts the user
if an irregular heartbeat is detected during
measurement.
An irregular heartbeat is defined as a heartbeat
rhythm that has a variation of more than 25%
from the average rhythm detected
during measurement.
If such irregular rhythm occurs twice
or more during the same
measurement, the display screen
will flash between the pulse value
and “IH” symbol. Example: (90/IH).
Note: Please consult your doctor if
an irregular heartbeat occurs.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 17
Regular but Below Normal Heartbeat
If the monitor detects a pulse rate
below 60 beats per minute during
measurement, the display screen
will flash between the pulse value
and “LO” symbol. Example: (58/LO).
Regular but Above Normal Heartbeat
If the monitor detects a pulse rate
above 100 beats per minute during
measurement, the display screen
will flash between the pulse value
and “HI” symbol. Example: (102/HI).

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 18
MEMORY FUNCTIONS
After the measurement, the last set of measured
values will be saved automatically. You can then
turn off the unit by pressing the “⦶” button. If you
do not press the button, the unit will
automatically turn off after three minutes.
View Past Readings
1. Press the “MEMO” button to enter Memory
function.
2. To select a different User Page, press the “”
button.
3. Press the “MEMO” button to display the
next sets of values. Past readings are
displayed from the most recent to the oldest.
4. The unit stores the last 99 readings for each
user.
View Average Readings
1. Press the “” button to enter Average
function.
2. To select a different User Page, press the “”
button.
3. Press the “” button to view different
Average Values. There are five different

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 19
Average Values available:
Delete Past Readings
You can delete all the past readings stored for each
user.
1. Press the “” button to select the User
Page you want to delete.
2. Press and hold the “MEMO” button and
the “”simultaneously for five sections.
“ALL EE” will be displayed and all past
reading stored in that User Page will be
deleted.

Wireless Arm Type Blood Pressure Monitor
V 1.1 Remote Care Partners Page 20
TROUBLESHOOTING
If you cannot solve your issue using the table
above, please contact your physician or Remote
Care Partners. Do not disassemble the unit.
