Rossmax AK150 f User manual

MODEL: AK150 F
• Superior Accuracy
• Real Fuzzy Technology
• 90 Autimatic Memories
• Easy One Touch Operation
• Easy to Read LCD Display

2
1. Introduction
Blood pressure measurements determined with this unit are equivalent to
those obtained by a trained observer using cuff/stethoscope auscultation
method, within the limits prescribed by the American National Standard, Elec-
tronic or Automated Sphygmomanometers. This unit is to be used by adult
consumers in a home environment. Do not use this device on infants or neo-
nates.
This unit is protected against manufacturing defects by an established Inter-
national Warranty Program. For warranty information, you can contact the
manufacturer, Rossmax International Ltd. or your local distributors.
Attention: Consult the accompanying documents.
Pleasereadthismanualcarefullybeforeuse.Forspecicinformation
on your own blood pressure, contact your physician.
Please be sure to keep this manual.

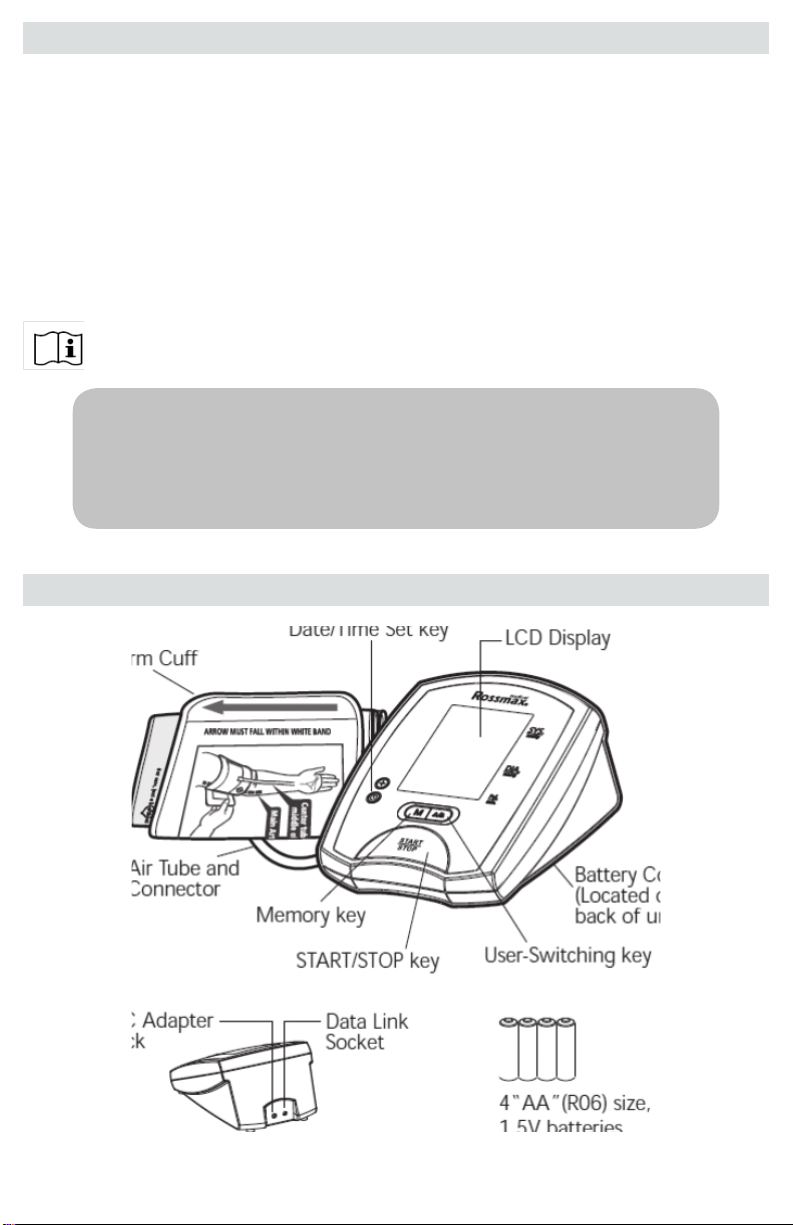

2. Name/Function of Each Part

3
3. Real Fuzzy Measuring Technology
This unit uses the oscillometric method to detect your blood pressure. Be-
forethecuffstartsinating,thedevicewillestablishabaselinecuffpressure
equivalenttotheairpressure.Thisunitwilldeterminetheappropriateination
levelbasedonpressureoscillations,followedbycuffdeation.
During the deation, the device will detect the amplitude and slope of the
pressure oscillations and thereby determine for you the systolic blood pres-
sure, diastolic blood pressure, and pulse.
4. Preliminary Remarks
This Blood Pressure Monitor complies with the European regulations and
bearstheCEmark“CE0366”.Thequalityofthedevicehasbeenveriedand
conforms to the provisions of the EC council directive 93/42/EEC (Medical
Device Directive), Annex I essential requirements and applied harmonized
standards.
This blood pressure monitor was designed for long service time. To ensure
accurate measurements, it is recommended that calibration be completed ev-
ery two years.

4
5. Blood Pressure Standard
The National High Blood Pressure Educa-
tion Program Coordinating Committee has
developed a blood pressure standard, clas-
sifying blood pressure ranges into 4 stages.
(Ref. The Seventh Report of the Joint Na-
tional Committee on Prevention, Detection,
Evaluation, and Treatment of High Blood
Pressure-Complete Report JNC-7, 2004).
This blood pressure classication are
based on historical data, and may not be
directly applicable to any particular patient.
It is important that you consult with your
physician regularly. Your physician will tell
you your normal blood pressure range as
well as the point at which you will be con-
sidered at risk before making any health-
care decision based on the device’s read-
ings.
For reliable monitoring and reference of
blood pressure, keeping long- term re-
cords is recommended. Please download
the blood pressure log (chart for recording
and tracking crucial info: date, time, blood
pressure, pulse rate and body condition) at
www.rossmaxhealth.com.
6. Blood Pressure Standard

5
Memory Mark: Shows the number of stored measurements
Pulse Mark: Shows the pulse rate per minute
Weak Battery Mark: Appears when batteries should be replaced
Measurement Error: Make sure the L-plug is securely connected to the
air socket and measure again quietly. Wrap the cuff correctly and keep arm
steady during measurement. If the error keeps occurring, return the device to
your local distributor or service center.
Air Circuit Abnormality: Make sure the L-Plug is securely connected to
the air socket on the side of the unit and measure again quietly. Another pos-
sible cause can be due to the short circuit of the microphone embedded in the
cuff. If the errors still occur, return the device to your local distributor or service
center for help.
Pressure Exceeding 300 mmHg: Switch the unit off and measure again
quietly. If the error keeps occurring, return the device to your local distributor
or service center.
Data Error: Remove the batteries, wait for 60 seconds, and reload. If
the error keeps occurring, return the device to your local distributor or service
center.
Exceeding Measurement Range: Measure again quietly. If the error
keeps occurring, return the device to your local distributor or service center.
7. Installing Batteries
1. Press down and lift the battery cover in the
direction of the arrow to open the battery
compartment.
2. Install or replace 4 “AA” sized batteries in
the battery compartment according to the
indications inside the compartment.
3. Replace the battery cover by clicking in the
bottomhooksrst,thenpushinthetopendofthebatterycover.
4. As the supplied batteries are for test only, they may be discharged
earlier than batteries you buy in stores. Replace the batteries in pairs.
Remove batteries when unit is not in use for extended periods of time.

6
You need to replace the batteries when:
1. low battery icon appears on display.
2. the ON/OFF/START key is pressed and nothing appears on display.
1. Batteries are hazardous waste. Do not dispose them together with the
household garbage.
2. There are no user serviceable parts inside. Batteries or damage from old
batteries are not covered by warranty.
3. Use exclusively brand batteries. Always replace with new batteries
together. Use batteries of the same brand and same type.
8. Applying the Cuff
1. Unwrap the arm cuff, leaving the end of
the cuff through the D-ring of the cuff.
2. Put your left arm through the cuff loop. The
color strip indication should be positioned
closer to you with the tube pointing in the
direction of your arm (Fig.1). Turn your left palm upward and place the
edge of the arm cuff at approximately 1.5 to 2.5 cm above the inner side of
the elbow joint (Fig.2). Tighten the cuff by pulling the end of the cuff.

7
3. Center the tube over the middle of the arm.
Press the hook and loop material together
securely. Allow room for 2 ngers to t
between the cuff and your arm. Position
the artery mark ( ) over the main artery
(on the inside of your arm). (Fig. 3,4)
Note: Locate the main artery by pressing
with2ngersapproximately2cmabovethe
bend of your elbow on the inside of your left
arm. Identify where the pulse can be felt the
strongest. This is your main artery.
4. Plug in the cuff connecting tube into the unit. (Fig. 5)
5. Lay your arm on a table (palm upward) so the cuff is at the same height as
your heart. Make sure the tube is not kinked (Fig. 6).
6. This cuff is suitable for your use if the arrow
falls within the solid color line as shown on
the right (Fig. 7). If the arrow falls outside the
solid color line, you will need a cuff with other
circumferences. Contact your local dealer for
additional size cuffs.

8
9. Measurement Procedures
Important Notes:
Here are a few helpful tips to help you obtain more accurate readings:
• Bloodpressurechangeswitheveryheartbeatandisinconstantuctuation
throughout the day.
• Blood pressure recording can be affected by the position of the user, his
or her physiological condition and other factors.For greatest accuracy, wait
one hour after exercising, bathing, eating, drinking beverages with alcohol
or caffeine, or smoking to measure blood pressure.
• Before measurement, it’s suggested that you sit quietly for 15 minutes as
measurement taken during a relaxed state will have greater accuracy. You
should not be physically tired or exhausted while taking a measurement.
• Do not take measurements if you are under stress or tension.
• During measurement, do not talk or move your arm or hand muscles.
• Take your blood pressure at normal body temperature. If you are feeling
cold or hot, wait a while before taking a measurement.
• If the monitor is stored at very low temperature (near freezing), have it
placed at a warm location for at least one hour before using it.
• Wait about 5 minutes before taking the next measurement.
1. Press the ON/OFF/START key. All displays will appear for approximately
one second before returning to “0”.
2. Theunitwillautomaticallyinatetotheappropriateinationlevelbasedon
the user’s pulse oscillations. Measurement will then begin. It is important
toremainstillandquietduringmeasurement.Anysignicantmovement
may affect measurement results.
3. When the measurement is completed, systolic, diastolic and pulse will be
shown simultaneously and be saved automatically in memory system. Up
to 90 memories can be saved.
4. Measurement is now completed. Press the ON/OFF/START key to turn

9
off the power. If no key is pressed, the unit will shut off automatically in 1
minute.
Thismonitorwillre-inateautomaticallytoapprox-
imately 220 mmHg if the system detects that your
body needs more pressure to measure your blood
pressure.
Note:
1. This monitor automatically switches off approximately 1 minute after
last key operation.
2. To interrupt the measurement, simply press the Memory or ON/OFF/
STARTkey;thecuffwilldeateimmediately.
3. During the measurement, do not talk or move your arm or hand
muscles.
10. Recalling Values from Memory
1. To recall stored blood pressure readings
from memory, simply press the Memory key.
The last set of memorized readings will be
displayed.
2. Another press of the Memory key will recall
the previous set of readings.
3. All readings stored in memory will be
displayed with its sequence number.
11. Clearing Values from Memory
1. Press and hold the Memory key for
approximately 5 seconds, then the data
in the memory zone can be erased
automatically.

10
12. Troubleshooting
If any abnormality should arise during use, please check the following points.
Symptoms Check Points Correction
No display when the
ON/OFF/START key is
pressed
Have the batteries run
down?
Replace them with four
new batteries.
Have the batteries’ po-
larities been positioned
incorrectly?
Re-insert the batteries
in the correct positions.
EE mark shown on dis-
play or the blood pres-
sure value is displayed
excessively low (high)
Is the cuff placed cor-
rectly?
Wrap the cuff properly
so that it is positioned
correctly.
Did you talk or move
during measurement
Wrap the cuff properly
so that it is positioned
correctly.
Did you vigorously
shake the cuff during
measurement?
13.
Note: If the unit still does not work, return it to your dealer. Under no circum-
stance should you disassemble and repair the unit by yourself.
Cautionary Notes
1. The unit contains high-precision assemblies. Therefore, avoid extreme
temperatures, humidity, and direct sunlight. Avoid dropping or strongly
shocking the main unit, and protect it from dust.
2. Clean the blood pressure monitor body and the cuff carefully with a slightly
damp, soft cloth. Do not press. Do not wash the cuff or use chemical
cleaner on it. Never use thinner, alcohol or petrol (gasoline) as cleaner.
3. Leaky batteries can damage the unit. Remove the batteries when the unit
is not used for a long time.
4. The unit should not be operated by children so to avoid hazardous
situations.
5. If the unit is stored near freezing, allow it to acclimate at room temperature
before use.
6. Thisunitisnoteldserviceable.Youshouldnotuseanytooltoopenthe
device nor should you attempt to adjust anything inside the device. If you
have any problems, please contact the store or the doctor from whom you
purchased this unit or please contact Rossmax International Ltd.

11
7. For users diagnosed with common arrhythmia (atrial or ventricular
prematurebeatsoratrialbrillation),diabetes,poorcirculationofblood,
kidney problems, or for users suffered from stroke, or for unconscious
users, the device may have difculty in determining the proper blood
pressure.
8. To stop operation at any time, press the ON/OFF/START key, and the air
in the cuff will be rapidly exhausted.
9. Oncetheinationreaches300mmHg,theunitwillstartdeatingrapidly
for safety reasons.
10. Please note that this is a home healthcare product only and it is not
intended to serve as a substitute for the advice of a physician or medical
professional.
11. Do not use this device for diagnosis or treatment of any health problem or
disease. Measurement results are for reference only. Consult a healthcare
professional for interpretation of pressure measurements. Contact your
physician if you have or suspect any medical problem. Do not change
your medications without the advice of your physician or healthcare
professional.
12. Electromagnetic interference: The device contains sensitive electronic
components.Avoidstrongelectricalorelectromagneticeldsinthedirect
vicinity of the device (e.g. mobile telephones, microwave ovens). These
may lead to temporary impairment of measurement accuracy.
13. Dispose of device, batteries, components and accessories according to
local regulations.
14. Thismonitormaynotmeetitsperformancespecicationifstoredorused
outsidetemperatureandhumidityrangesspeciedinSpecications.
14. Specications
Measurement Method : Oscillometric
Measurement Range : Pressure: 40~250 mmHg;
Pulse: 40~199 beats/ minute
Pressure Sensor : Semi conductor
Accuracy : Pressure: ± 3mmHg;
Pulse: ± 5% of reading
Ination:PumpDriven
Deation:AutomaticAirReleaseValve
Memory capacity : 90 memories
Auto-shut-off : 1 minute after last key operation
Operation Environment : 10°C~40°C (50°F~104°F); 40%~85% RH max

12
Storage Environment : -10°C~60°C (14°F~140°F); 10%~90% RH max
DCPowerSource:DC6VfourR06(AA)Batteries
Dimensions : 105 (L) X 140 (W) X 74 (H) mm
Weight : 375g (G.W.) (w/o Batteries)
Arm circumference : Adult: 24~36 cm (9.4”~14.2”)
Limited Users : Adult users
: Type BF
Device and cuff are designed to provide special protection against electrical shocks.
*Specicationsaresubjecttochangewithoutnotice.
15. EMC guidance and manufacturer’s declararation
Guidance and manufacturer’s declaration-electromagnetic emissions
The AK150f is intended for use in the electromagnetic environment specied below.
The customer or the user of the AK150f should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1 The AK150f uses RF energy only for its internal function. Therefore, its RF emis-
sions are very low and are not likely to cause any interference in nearby electronic
equipment.
RF emissions CISPR 11 Class B The AK150f is suitable for use in all establishments, including domestic establish-
ments and those directly connected to the public low-voltage power supply network
that supplies buildings used for domestic purposes.
Harmonic emissions
IEC 61000-3-2
Not applicable
Voltage uctuations/icker emissions
IEC 61000-3-3
Not applicable
Guidance and manufacturer’s declaration-electromagnetic immunity
The AK150f is intended for use in the electromagnetic environment specied below.
The customer or the user of the AK150f should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic discharge (ESD) IEC
61000-4-2
± 6 kV contact
± 8 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, concrete or ceramic tile. If
oors are covered with synthetic material, the relative
humidity should be at least 30%
Electrical fast transient/burst IEC
61000-4-4
± 2kV for power supply lines
± 1kV for input/output lines
Not applicable
Not applicable
Mains power quality should be that of a typical
commercial or hospital environment.
Surge IEC
61000-4-5
± 1kV line(s) to line(s)
± 2kV line(s) to earth
Not applicable
Not applicable
Mains power quality should be that of a typical
commercial or hospital environment.
Voltage Dips,
short interruptions and voltage variations
on power supply input lines IEC
61000-4-11
<5% UT
(>95% dip in UT) for 0,5 cycle
40% UT
(60% dip in UT) for 5 cycles
70% UT
(30% dip in UT) for 25 cycles
<5% UT
(>95% dip in UT) for 5 s
Not applicable
Not applicable
Not applicable
Not applicable
Mains power quality should be that of a typical
commercial or hospital environment. If the user of the
AK150f requires continued operation during power
mains interruptions, it is recommended that the
AK150f be powered from an uninterruptible power
supply or a battery.
Power frequency (50/60 Hz) magnetic
eld IEC
61000-4-8
3 A/m 3 A/m Power frequency magnetic elds should be at
levels characteristics of a typical location in a typical
commercial or hospital environment.
NOTE: UT is the a.c. mains voltage prior
to application of the test level.

13
Guidance and manufacturer’s declaration-electromagnetic immunity
The AK150f is intended for use in the electromagnetic environment specied below.
The customer or the user of the AK150f should assure that is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Conducted RF IEC
61000-4-6
Radiated RF IEC
61000-4-3
3 Vrms
150 KHz to 80 MHz
3 V/m
80MHz to 2,5 GHz
Not applicable
3 V/m
Portable and mobile RF communications equipment should
be used no closer to any part of the AK150f, including cables,
than the recommended separation distance calculated from
the equation applicable to the frequency of the transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output power rating of the transmit-
ter in watts (W) according to the transmitter manufacturer and
d is the recommended separation distance in metres (m).
Field strengths from xed RF transmitters, as determined
by an electromagnetic site survey, a should be less than the
compliance level in each frequency range.vv
Interference may occur in the vicinity of equipment marked
with the following symbol:
NOTE1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from structures,
objects and people.
a. Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio,
AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due
to xed RF transmitters, an electromagnetic site survey should be considered. If the measured eld strength in the location in which the AK150f
is used exceeds the applicable RF compliance level above, the AK150f should be observed to verify normal operation. If abnormal performance
is observed, additional measures may be necessary, such as re-orienting or relocating the AK150f.
b. Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m.
Recommended separation distance between portable and mobile RF communications equipment and the AK150f
The AK150f is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the
user of the AK150f can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF com-
munications equipment (transmitters) and the AK150f as recommended below, according to the maximum output power of the communications
equipment.
Rated maximum output
power of transmitter (W)
Separation distance according to frequency of transmitter (m)
150kHz to 80MHz / d=1,2√P 80MHz to 800MHz / d=1,2√P 800MHz to 2,5GHz / d=2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
11,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated
using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W)
according to the transmitter manufacturer.
NOTE1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from structures,
objects and people.
