FOR-A Diamond CUFF BP User manual

Owner’s Manual
Blood Pressure Monitoring System
CUFF BP
TD-3140

3
Dear FORA Diamond Cuff BP Blood
Pressure Monitoring System Owner:
Thank you for purchasing the FORA Diamond Cuff BP Blood Pressure
Monitoring System. This manual provides important information to help
you operate this system correctly. Before using this product, please read
the following contents thoroughly and carefully.
Managing your blood pressure is simple with this device. Itʼs small
enough to take with you anywhere, and auto-uploads all of your readings
to the iFORA smartphone App. In addition, this device will help you and
your healthcare professional, to keep your blood pressure under control
and adjust your treatments plans as needed.
If you have other questions regarding this product, please contact the
place of purchase.
Version 3.0 2015/05
311-3140100-008
English

4
IMPORTANT SAFETY PRECAUTIONS
READ BEFORE USE
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT use the device if it is not working properly or damaged.
3. Do NOT use under any circumstances on newborns.
4. This device does NOT serve as a cure for any symptoms or diseases.
The data measured are for reference only. Always consult your doctor
to have the results interpreted.
5. Keep the equipment away from hot surfaces.
6. Do NOT apply the cuff to areas other than the place directed.
7. Use of this instrument in a dry environment, especially if synthetic
materials are present (synthetic clothing, carpets etc.) may cause
damaging static discharges. This may cause erroneous results.
8. Do not use this instrument in close proximity to sources of strong
electromagnetic radiation, as these may interfere with the accurate
operation.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

5
TABLE OF CONTENTS
BEFORE YOU BEGIN 06
Intended Use 06
Test Principle 06
Contents of System 06
Meter Overview 07
Display Screen 08
HOW TO INSTALL AND UPDATE THE iFORA BP 09
BLUETOOTH PAIRING 10
IMPORTANT INFORMATION ABOUT PERFORMING A BLOOD PRESSURE TEST 14
Before Measurement 14
Apply the Cuff Properly 14
Proper Measurement Position 16
HOW TO TEST YOUR BLOOD PRESSURE 17
Taking Measurement by the Device Itself 17
Taking Measurement with the iFORA BP App 19
VIEWING PREVIOUS RESULTS 22
Reviewing Data Record 22
Reviewing Day Average Results 24
Blood Pressure Classification 26
MAINTENANCE 27
Battery 27
Caring for Your Meter 28
DETAILED INFORMATION 29
SYSTEM TROUBLESHOOTING 30
Error Messages on Meter 30
Troubleshooting 31
SPECIFICATIONS 32
FEDERAL COMMUNICATIONS COMMISION (FCC) STATEMENT 33

6
Test Principle
Blood pressure is measured non-invasively at the arm based on
oscillometric method.
This device is NOT able to take measurements in the presence of
common arrhythmia, such as atrial or ventricular premature beats or
atrial fibrillation. It may produce reading error.

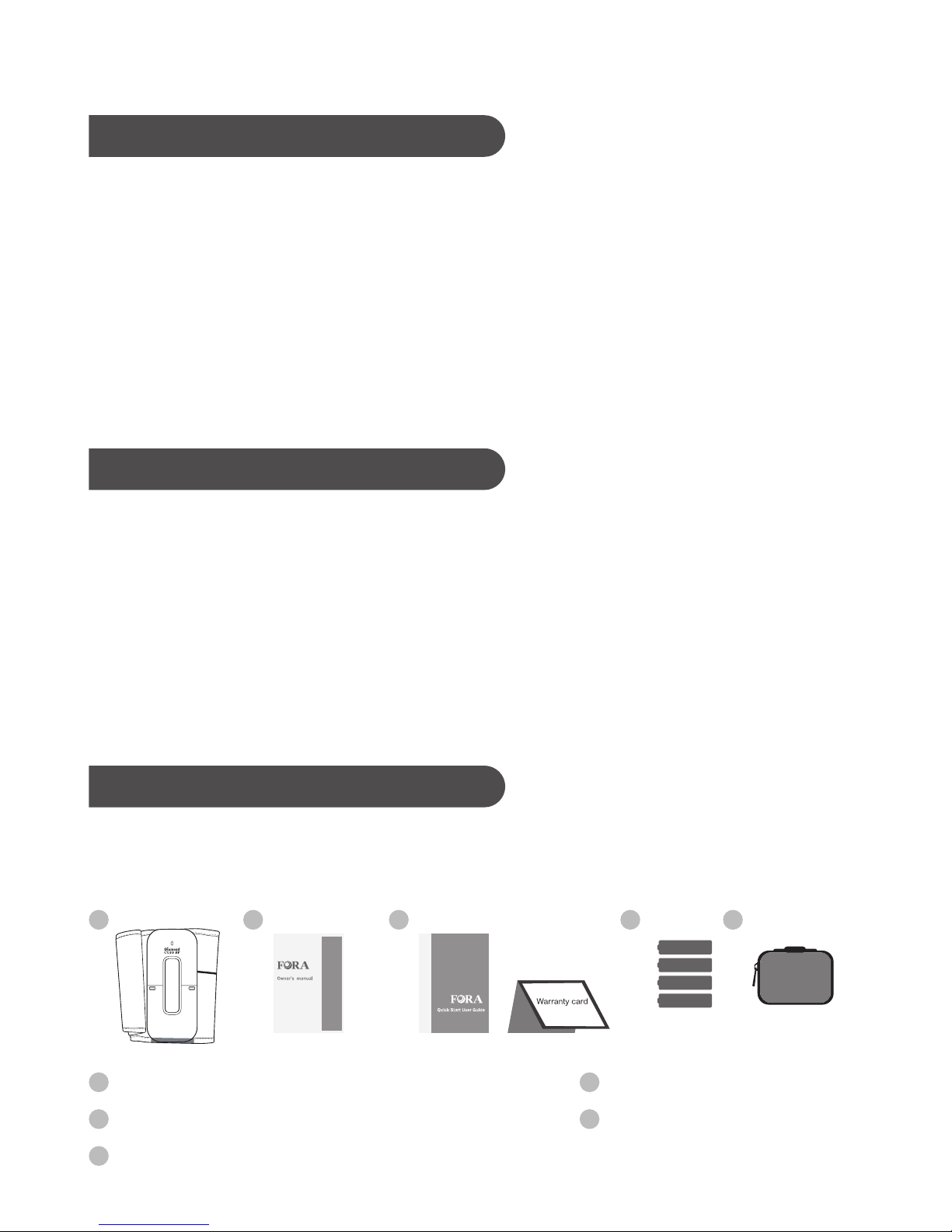

Contents of System
Your new FORA Diamond Cuff BP Blood Pressure Monitoring System
includes:
BEFORE YOU BEGIN
Intended Use
FORA Diamond Cuff BP Blood Pressure Monitoring System is a system
designed to measure the systolic and diastolic blood pressure and pulse
rate by using a non-invasive technique in which an inflatable cuff is
wrapped on the upper arm. It is intended for individuals age 18 and up,
for use in a home or clinical setting. The device is not to be used for the
diagnosis of hypertension or for testing on newborns.
5
44 x AAA Batteries
Protective Wallet
1
2
3
Meter with Cuff
Ownerʼs Manual
Quick Start User Guide / Warranty Card
1 4 52 3

7

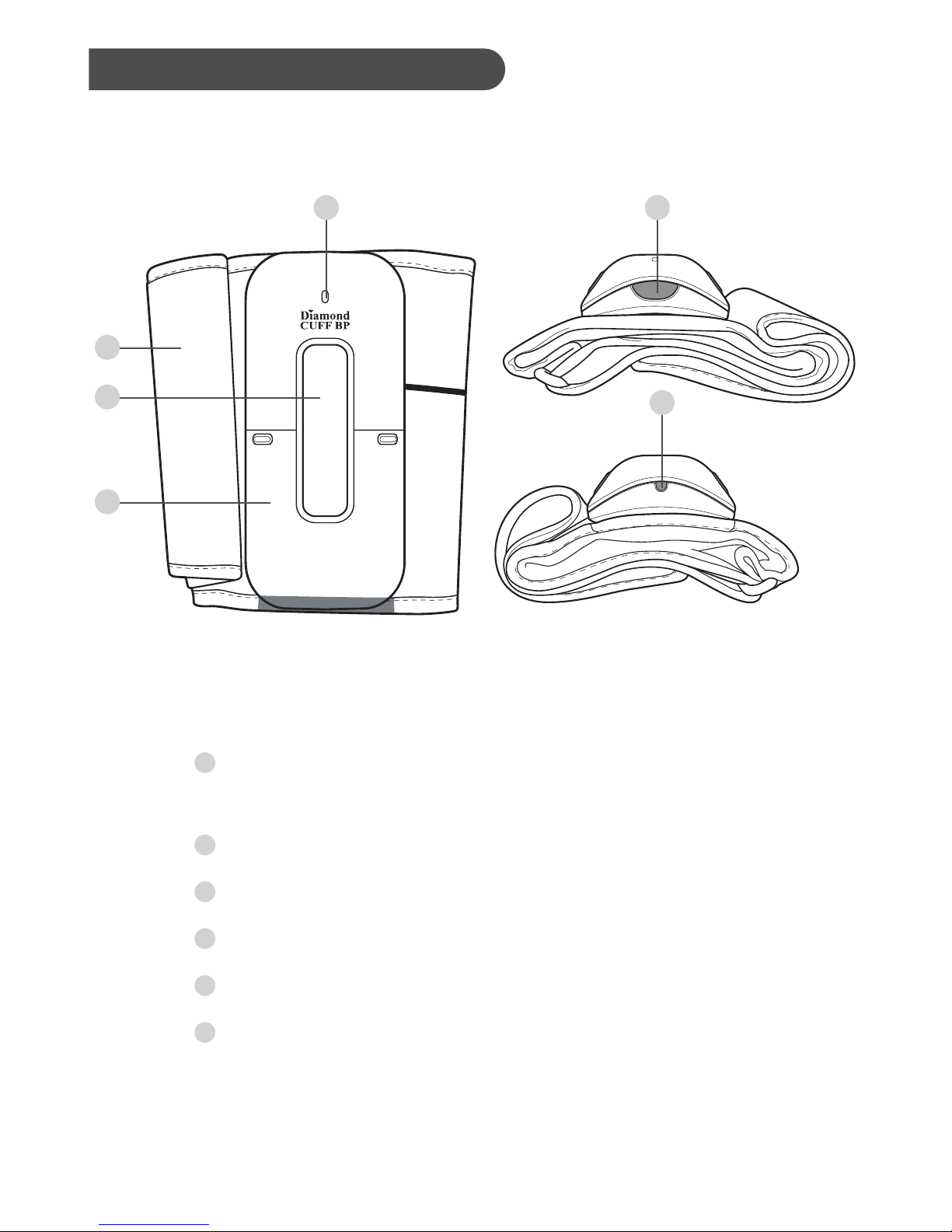

Meter Overview
6
BT Indicator
Download test results with a Bluetooth connection.
Cuff (immovable)
Display Screen
Battery Compartment
ON/OFF Button
BT Pairing Button
1
2
3
5
4
2
1
3
4
6
5
4 x AAA Batteries
Protective Wallet

8

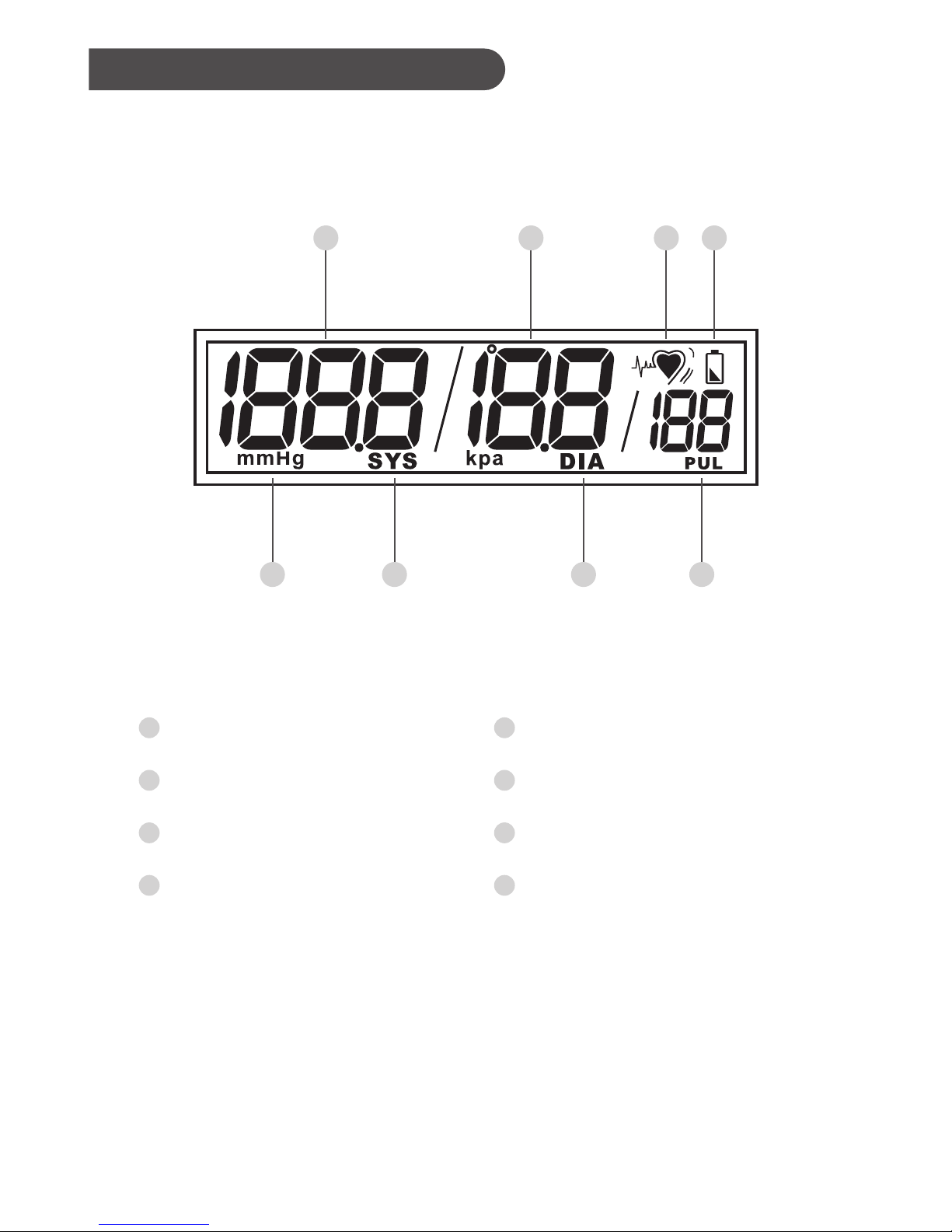

Display Screen
Units of Blood Pressure
Systolic Pressure Symbol
Diastolic Pressure Symbol
Pulse Rate
5
6
7
8
Low Battery Symbol
Pulse Rate Symbol
Diastolic Pressure Value
Systolic Pressure Value
1
2
3
4
4 3 2 1
5 6 7 8

9
HOW TO INSTALL AND UPDATE THE
iFORA BP
System Requirement
iOS version 6 or above
Android version 4.3 or above
Installing
iFORA BP is available on the App Store/Google Play for free download.
Connect your mobile device to the internet to download the iFORA BP and
then install it on your mobile device.
Updating
When new features are added to the iFORA BP App, the App Store/Google
Play will notify you automatically. Please perform the updates accordingly
to provide you with the latest features that we have developed in your
best interest.
You can use the FORA Diamond Cuff BP
Blood Pressure Monitoring System by
itself or with the iFORA BP App.
iFORA BP is designed to assist you in
easily monitoring, recording, and tracking
your blood pressure. The app is simple to
use and helps you to better understand
your current condition as well as control
your hypertension.

10
BLUETOOTH PAIRING
You can transmit your data from the meter to your devices (e.g. smart
phone, tablet, PC...) via Bluetooth. Please contact your local customer
service or place of purchase for assistance. Please note that you must
complete the pairing between meter and Bluetooth receiver before
transmitting data.
Pairing with Your Mobile Device

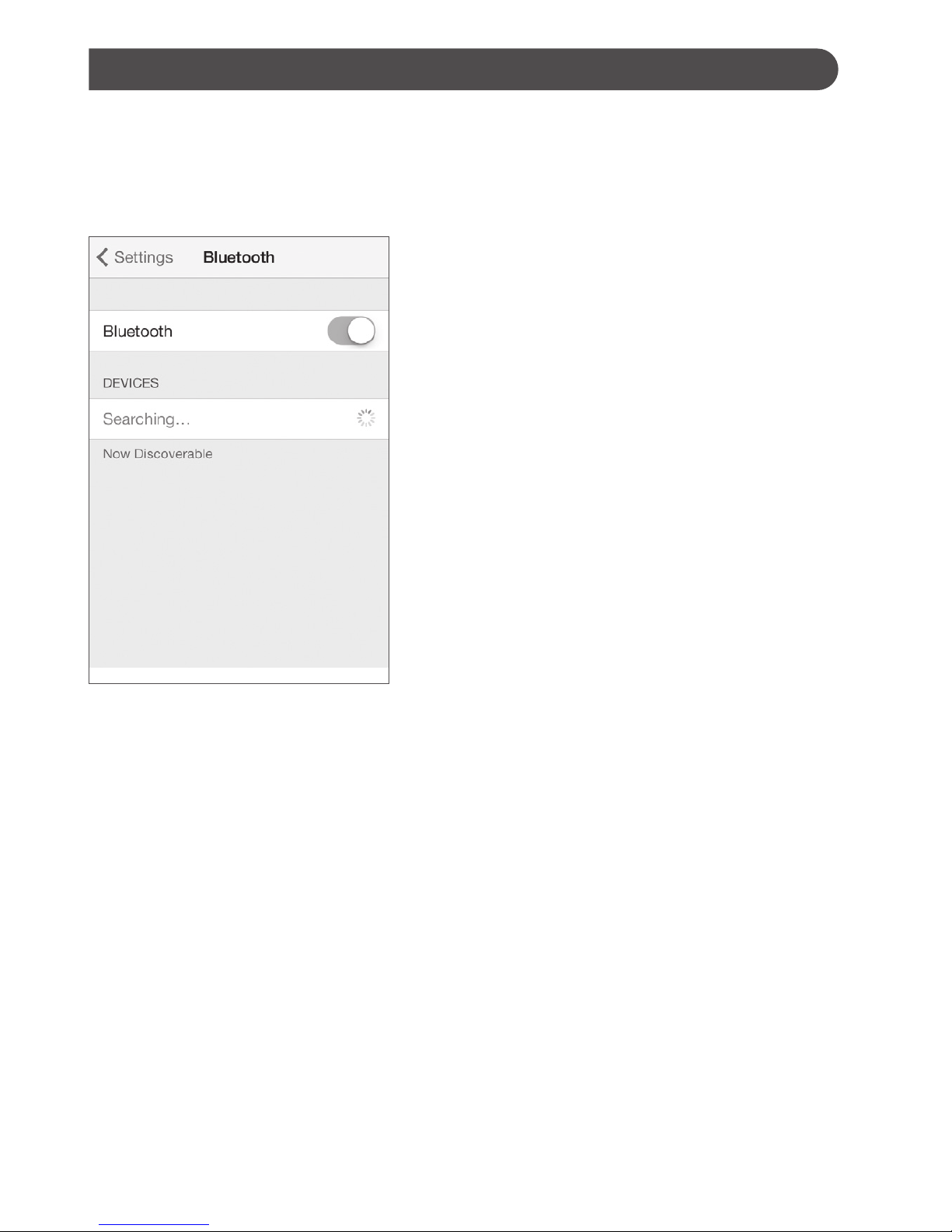

1.Turn on the Bluetooth function on your
mobile device.
2. Press the Bluetooth button on the
meter. “PCL”will be displayed on the
meter screen during the pairing process.
3. On your mobile device, launch the
iFORA BP app. Select the Setting tab on
the bottom right of the screen.

11
5. Tap the Search button to search for
available Bluetooth Smart meters. Wait
for a few seconds, a pop-up window
shows up to display the search results.
6. Select “Diamond Cuff”to start pairing.
4. Tap the Pair button to activate the
Bluetooth function.

12
7. When pairing is complete, “Diamond
Cuff BP”will be displayed in the Current
Meters field on your device.
8. Tap to pop up the message window.
Select Yes to save the setting.

13
Bluetooth indicator on the meter
Mobile Phone Compatibility Issues
The Bluetooth functionality is implemented in different ways by the
various mobile phone manufacturers. Unfortunately, in some mobile
phone models, even with Bluetooth functionality, they may be compatible
only with certain types of devices. If a problem occurs in the connection
between your mobile phone and the meter, or if you are uncertain
regarding your mobile phoneʼs Bluetooth capabilities, please consult
your mobile phone manual or contact your local customer service for
assistance.
Bluetooth Indicator Status
Flashing Blue The Bluetooth function is enabled and waiting for
connection.
Solid Blue The Bluetooth connection is established.
WARNING:
• While the meter is in transmission mode, it will be unable to perform a test.
• Make sure your device with iOS (6 or above) or Android System (4.3 or above)
has the Bluetooth function turned on and the meter is within the receiving
range before transmitting the data.

14
IMPORTANT INFORMATION ABOUT
PERFORMING A BLOOD PRESSURE
TEST
Before Measurement
●Avoid caffeine, tea, alcohol and tobacco for at least 30 minutes before
measurement.
●Wait for 30 minutes after exercising or bathing before measurement.
●Sit or lie down for at least 10 minutes before measurement.
●Do not measure when feeling anxious or tense.
●Take a 5-10 minute break between measurements. This break can be
longer if necessary, depending on your physical condition
●Keep the records for your doctor as reference.
●Blood pressure naturally varies between each arm. Always measure
your blood pressure on the same arm.
Apply the Cuff Properly
1. Stretch your left (right) arm in front of you with your palm facing up.
Slide and place the cuff onto your arm, the arrow should point toward the
upper arm.
2. Wrap and tighten the cuff above your elbow. The red line on the edge
of the cuff should be approximately 0.8” to 1.2” (2 cm to 3 cm) above
your elbow.

15
3. Leave a little free space between the arm and the cuff; you should be
able to fit two fingers between them. Clothing must not restrict the arm.
Remove all clothing covering or constricting the measurement arm.
4. Press the hook material firmly against the pile material. The top and
bottom edges of the cuff should be tightened evenly around your upper
arm.
NOTE:
The cuff is fixed on the blood pressure monitor. Do NOT remove the cuff or
change the size of cuff.

16
WARNING:
If the cuff is relatively lower (higher) than the heart, the obtained blood pressure
value could be higher (lower) than the actual value. A 15 cm difference in height
may result in an error around 10 mmHg.
Proper Measurement Position
1. Sit down for at least 10 minutes before measuring.
2. Place your elbow on a flat surface. Relax your hand with the palm
facing up.
3. Make sure the cuff is about the same height as the location of your
heart.
4. Remain still and do not talk or move during the measurement.

17

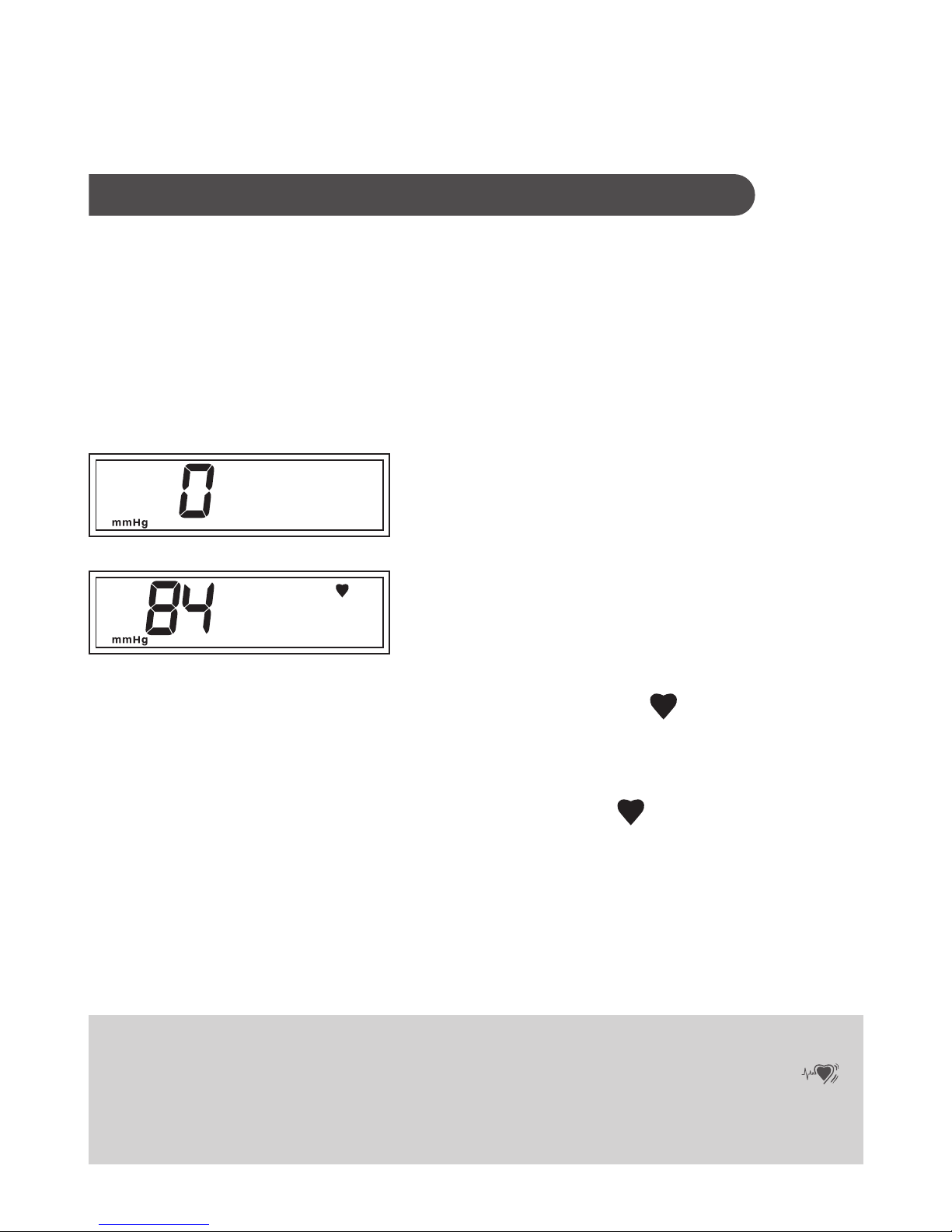

2. Pump starts to inflate. The pressure in
cuff increases to working pressure.
3. The heart symbol “”will show
silently when pulse is detected during
the measurement. When signal of pulse
becomes strong, “”icon starts to
flash.
1. Tap ON/OFF Button. All the LCD
symbols will appear with a long “beeping”
sound. Then the cuff will begin to inflate
automatically.
NOTE:
When the device detects irregular heart beat, the IRB symbol is shown as “”.
This is for your reference only; if the problem still persists or if you feel
uncomfortable, please consult your doctor.
HOW TO TEST YOUR BLOOD
PRESSURE
Taking Measurement by the Device Itself
Always apply the pressure cuff before turning on the meter.

18

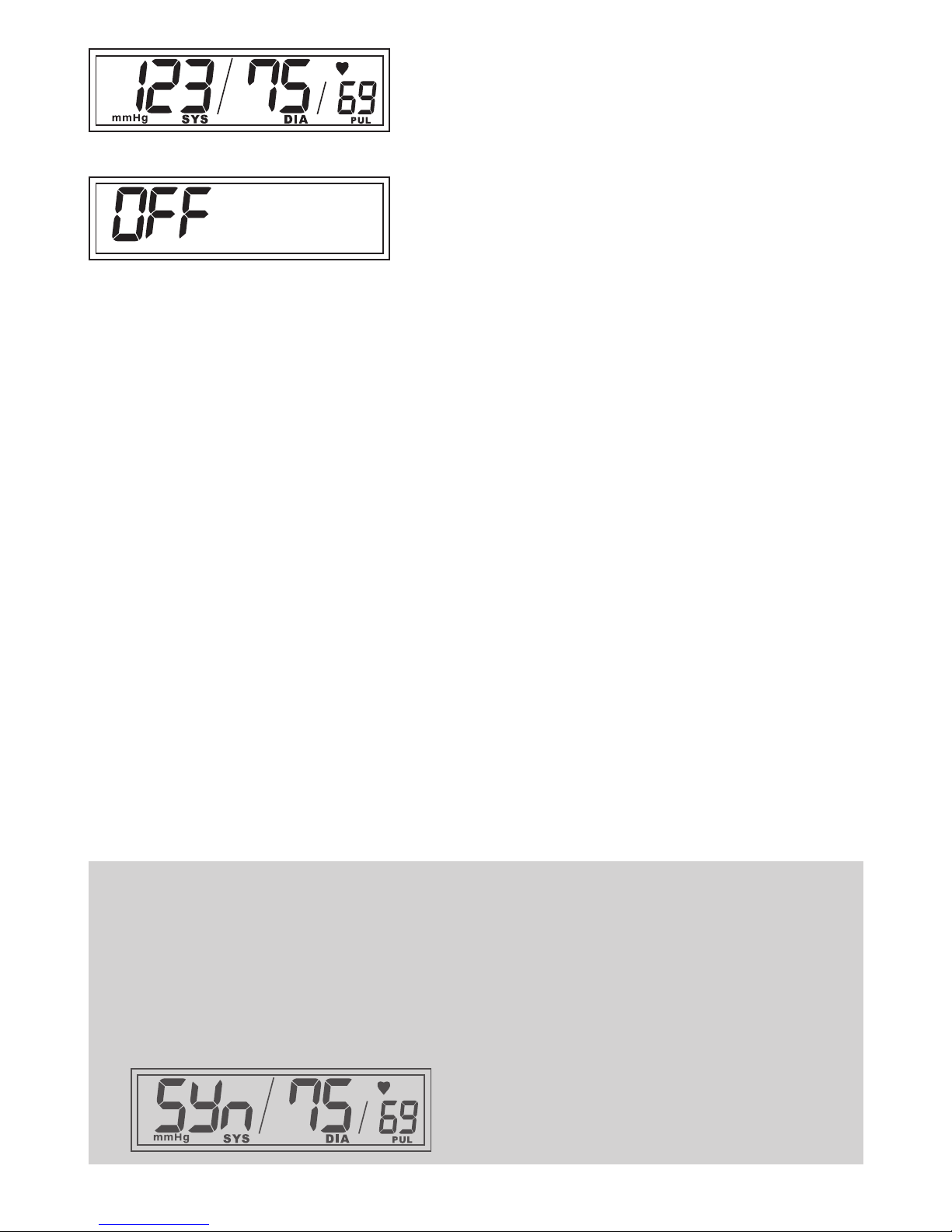

5. Tap ON/OFF Button to switch off. The
meter will switch off automatically after
being idle for 3 minutes.
4. After the measurement, the meter
displays the systolic pressure, diastolic
pressure and pulse rate.
NOTE:
• If you tap ON/OFF Button during measurement, the meter will be turned off.
• When the “Syn”icon appears on the screen, it indicates you have not paired
the meter to your mobile device. You need to synchronize with your
mobile device in order to adjust the date and time settings. In addition, this
measurement will not be stored in meter memory.

19
Taking Measurement with the iFORA BP App
All the screenshots displayed below come from the display screen of
the Bluetooth receiver installed with iFORA BP App, not from the display
screen of the meter.
Single Measurement

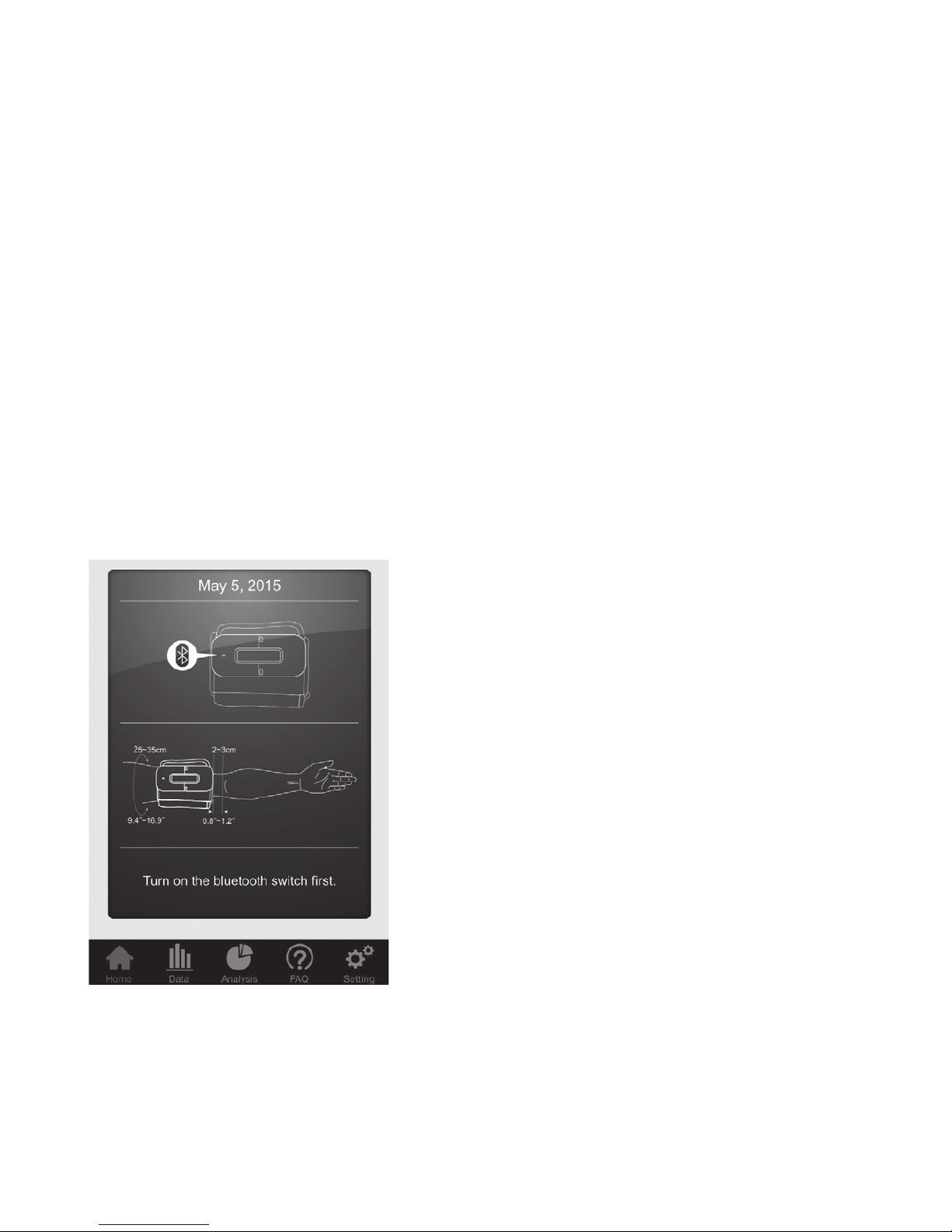

1. Turn on the Bluetooth switch on your
mobile device and launch iFORA BP App.
2. Apply the pressure cuff, and tap ON/OFF Button on the iFORA BP
screen. All the LCD symbols will appear with a long “beeping”sound on
the device monitor. The cuff will begin to inflate automatically until it
reaches the working pressure.
3. The pulse rate is detected during the measurement.
4. After the measurement, the meter displays the systolic pressure,
diastolic pressure and pulse rate.
5. The meter will switch off automatically after being idle for 3 minutes.

20
Average Measurement
This function automatically performs three (3) consecutive blood
pressure measurements and displays the average result in the end. This
function is only available when your meter is connected to your mobile
device.
1. Press the Bluetooth button. The “PCL”icon will appear on the meter
display, indicating that the device is ready to transmit data.
2. Launch iFORA BP App.
NOTE:
When the difference between the first and second systolic pressure is more than
15 mmHg, the time interval for third measurement will be 40 seconds.
4. After the first measurement is complete, the device and iFORA BP app
will start counting down before the second measurement begins. The
device will take three (3) measurements consecutively with an interval of
20 seconds.
3. Select Average Mode and tap ON/OFF
Button on the iFORA BP screen. Then the
cuff will begin to inflate automatically.
