INSTRUCTION MANUAL
INTRODUCTION
This Blood Pressure Monitor is provided to you by
Remote Care Partners (RCP) for use exclusively
with the health monitoring program from your
provider.
Please read this manual carefully and keep it
handy for future reference
NOTES ON SAFETY
Please read this section carefully to familiarize
yourself with features and operations before
using the unit.
Babies, young children, or individuals who cannot
express their consent are not suitable to take
blood pressure measurements.
This device is suitable for use by individuals 12
years old or older.
Individuals with severe arteriosclerosis are not
suitable to take blood pressure measurements.
Blood pressure readings may change in the case
of pregnancy. Pregnant women can consult their
doctor before taking measurements.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 5
Your new digital blood pressure monitor uses the
oscillometric method of blood pressure
measurement. The monitor detects your blood's
movement through your brachial artery and
converts the movement into a digital reading. An
oscillometric monitor does not need a
stethoscope, so the monitor is simple to use.
Intelligent inflation will reduce the uncomfortable
feeling by incorrect inflation, shorten the
measurement time, and prolong the cuff's usage
lifetime.
No modification of this equipment is allowed.
Placing the cuff hose around the neck may
cause suffocation.
Do not use alcohol or any other flammable
cleaning agent on this device. Use only soap and
water.
Do not use the device near a cell phone, as it
may cause incorrect readings.
Do not use the device in direct sunlight.
Do not use the equipment where flammable gas
(such as anesthetic gas, oxygen, or hydrogen)or
flammable liquid (such as alcohol)are present.
Do not touch the output of the AC adapter and

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 6
the patient simultaneously.
Do not touch the live end of the battery and the
patient simultaneously when changing the
batteries.
Self-measurement is not medical treatment.
Normal blood pressure is 120/80 or less
Handling batteries properly
As soon as old batteries run out, replace them
with new batteries.
•Remove dead batteries immediately.
•Do not use old and new batteries together.
•Align the polarities of batteries correctly.
•Remove the batteries when the unit will not
be used for more than 3 months. Otherwise,
batteries may leak and cause damage to the
equipment.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 7
WHEN TAKING A MEASUREMENT
Avoid smoking, eating, or exercising for 30
minutes before taking measurements.
Do not allow other people to use your blood
pressure monitor. The blood pressure monitor is
specifically assigned to you and you only.
Allowing other people to use your monitor can
mislead your provider.
Unless otherwise instructed by your provider, you
can take your blood pressure on either arm.
Remove tight-fitting or thick clothing from your
upper arm. The cuff should be placed on bare
skin.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 8
QUICK START
Avoid smoking, eating, or exercising for 30
minutes before taking measurements.

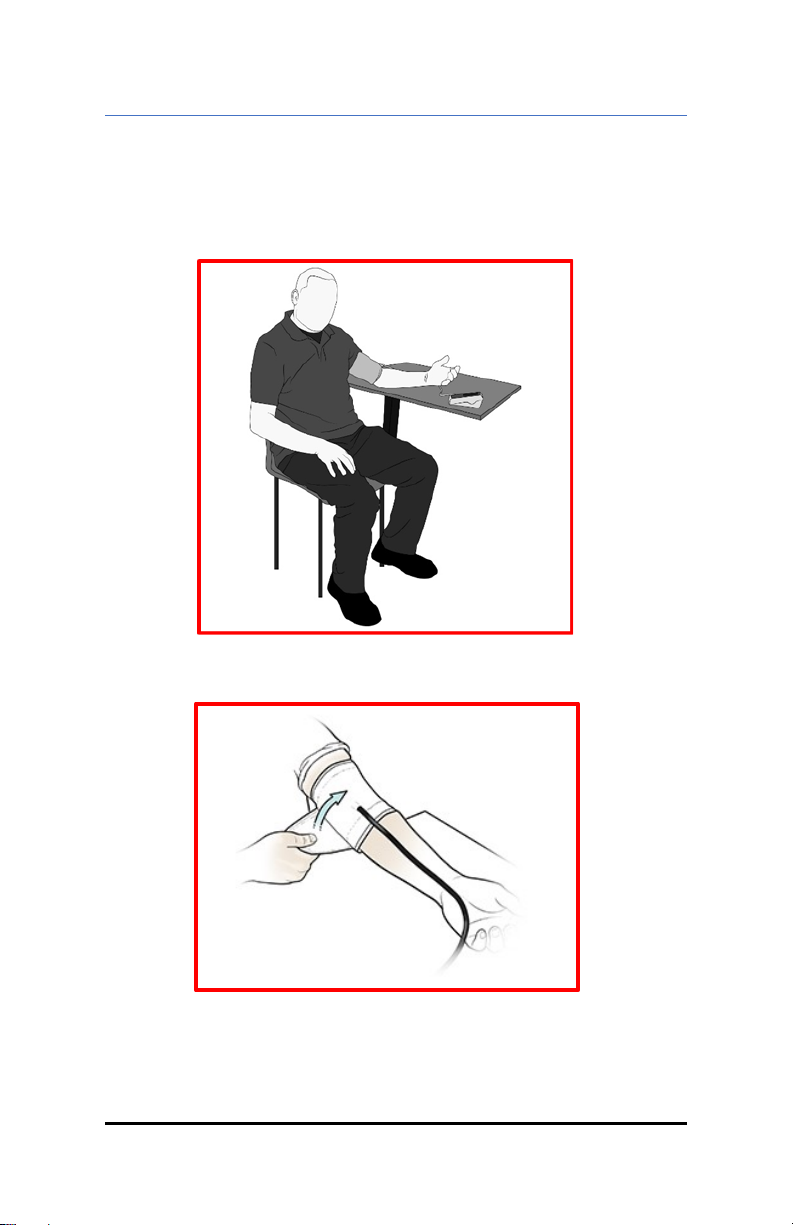

1. Sit upright in a chair with both your feet on the
floor.
2. Apply the blood pressure cuff to the bare skin of
your upper arm. Do not place the cuff over your
clothing.
3. Pull on the end of the cuff until it wraps securely
around your upper arm. Place your arm on a
table so that the cuff is at the same level as your
heart.
4. Press the "Stop/Start" button on the device. The
cuff will automatically inflate, and the
measurement will start. Do not talk or move
around while the measurement is taking place.
5. When the measurement is complete, the cuff will
automatically deflate, and your systolic & diastolic
pressure values plus the pulse rate will display on
the Blood Pressure monitor.
6. The readings will automatically be transferred to
the RCP SmartHub and sent to your provider.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 9
PROPER POSITIONING FOR TAKING A BLOOD
PRESSURE MEASUREMENT

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 10
PRODUCT OVERVIEW
Monitor and Cuff
Display

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 11
Package Contents
Power Adaptor

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 12
PREPARATION BEFORE USE

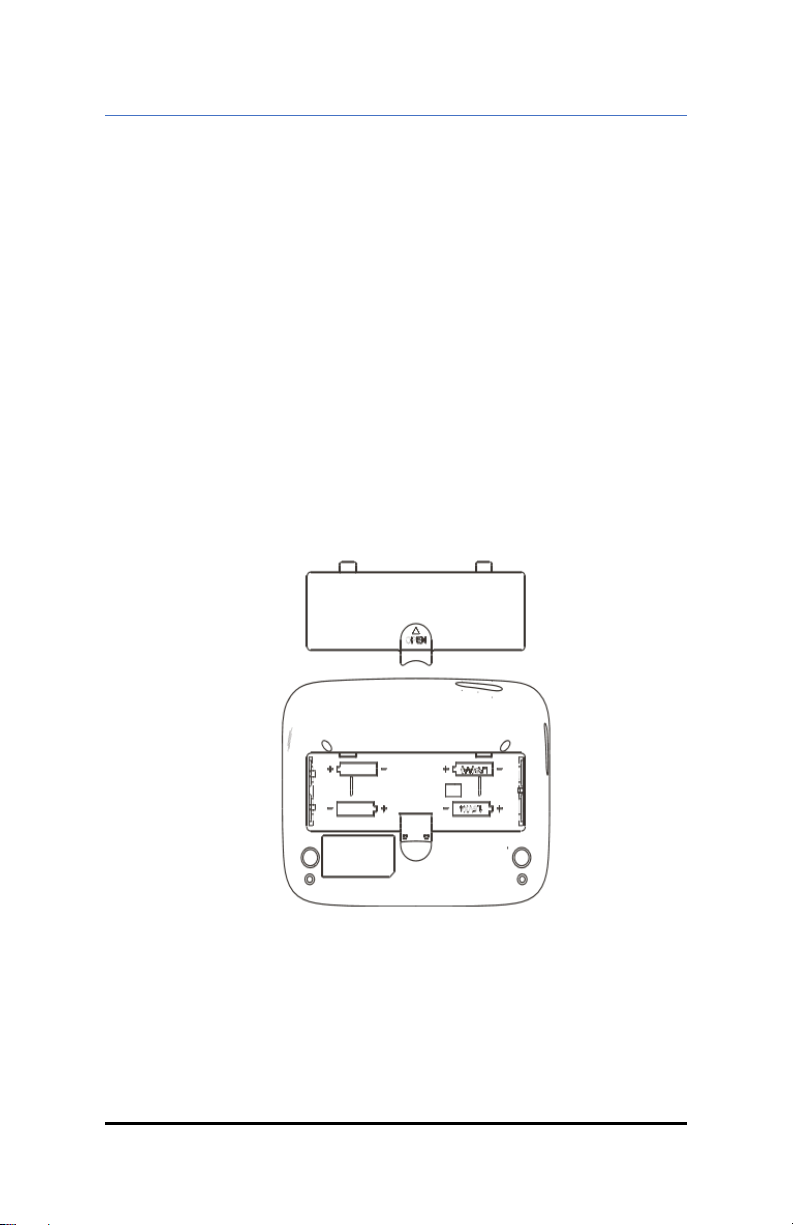

Insert the Batteries
New batteries were installed in your device before
shipping. Unless instructed by a support person, skip
this section
1. Pull and lift on the lock to remove the battery
cover.
2. Insert 4 AA 1.4V alkaline batteries with the
polarities in the correct direction.
3. Replace the battery cover
4. Press the battery cover lightly until the lock
securely clicks into place.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 13
Setting the Date and Time
It is not necessary to set the Date and Time on the
device. The Date and Time of your readings are
provided by the SmartHub.
The Time and Date on the SmartHub are
automatically synchronized with our servers.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 14
TAKING A MEASUREMENT
Note:
•Avoid smoking, eating, or exercising for 30
minutes before taking a measurement.
•Do not move or talk during measurement.
•Measurement can be taken on either arm.
Sitting Correctly
1. Relax
2. Sit upright in a chair with both your feet on
the floor.
3. Remove tight-fitting or thick clothing from
your upper arm. Apply the blood pressure
cuff to the bare skin of your upper arm. Do
not place the cuff over your clothing.
4. Place your arm on a table so that the cuff
will be at the same level as your heart.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 15

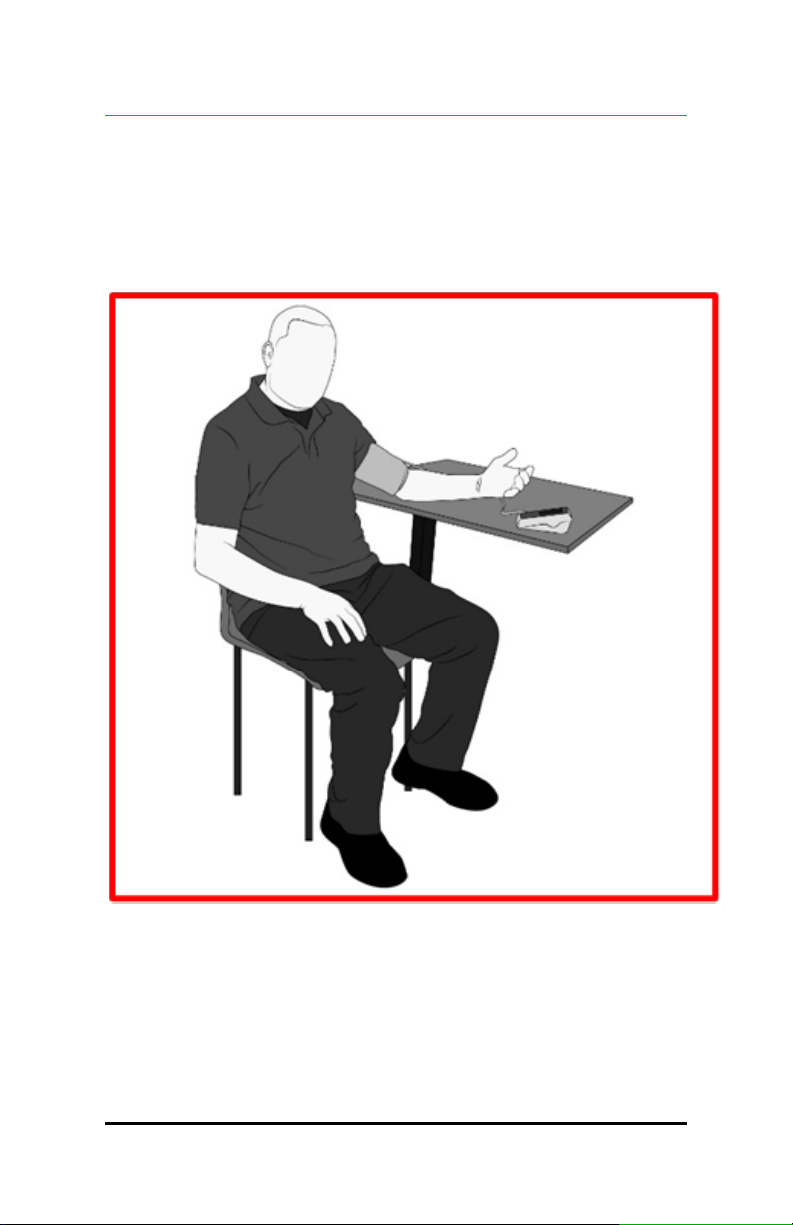

Proper Sitting Position For Taking Your Blood Pressure

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 16
Applying the Arm Cuff
1. Place your elbow on a table, palm facing
upward, and wrap the arm cuff around
the upper left arm.
2. Pull on the end of the cuff until it wraps
securely around your upper arm. Do not
overtighten the cuff. Allow ½ inch between
the bottom of the cuff and your elbow
joint.
3. The air tube should run along the inside of
your arm.
4. Make sure the cuff is at the same level as
your heart.

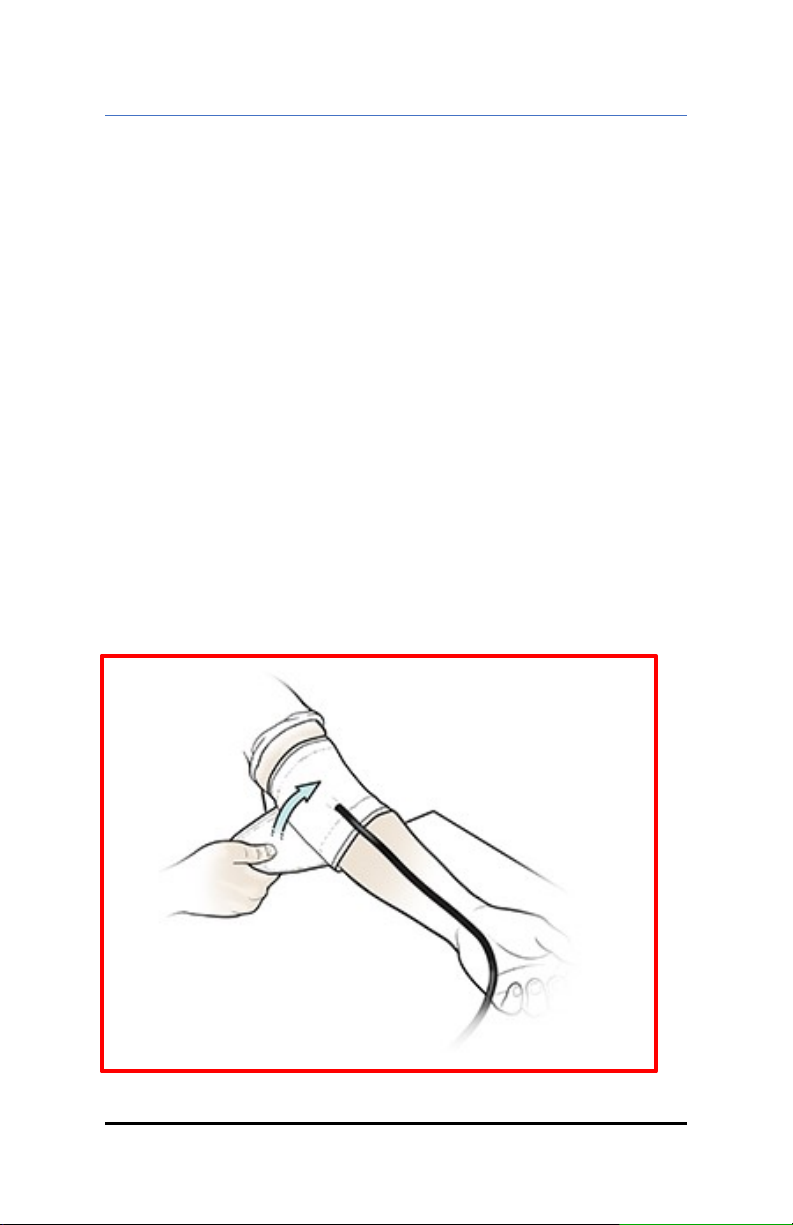

Proper Cuff Placement For Taking Your Blood Pressure

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 17
Taking the Measurement
1. After the cuff is properly placed on your
upper arm, Press the "Start/Stop”Button.
2. The cuff will automatically inflate, and the
measurement will start. The rising pressure
in the cuff is shown on the display. Do not
talk or move around while the
measurement is taking place.
3. When the measurement is complete, the
cuff will automatically deflate, and your
systolic & diastolic pressure values and
pulse rate will display on the Blood Pressure
monitor.
4. The readings will automatically be
transferred to the RCP SmartHub and sent
to your provider.
You can press the "Start/Stop" button at any time
to stop the measurement and deflate the cuff.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 18
MEMORY FUNCTIONS
Although the device does store reading, these
stored reading are not used by the RPM service.
Each measurement is transferred via the
SmartHub as it is taken.
Measurements taken beyond the range of the
SmartHub are lost to the system.

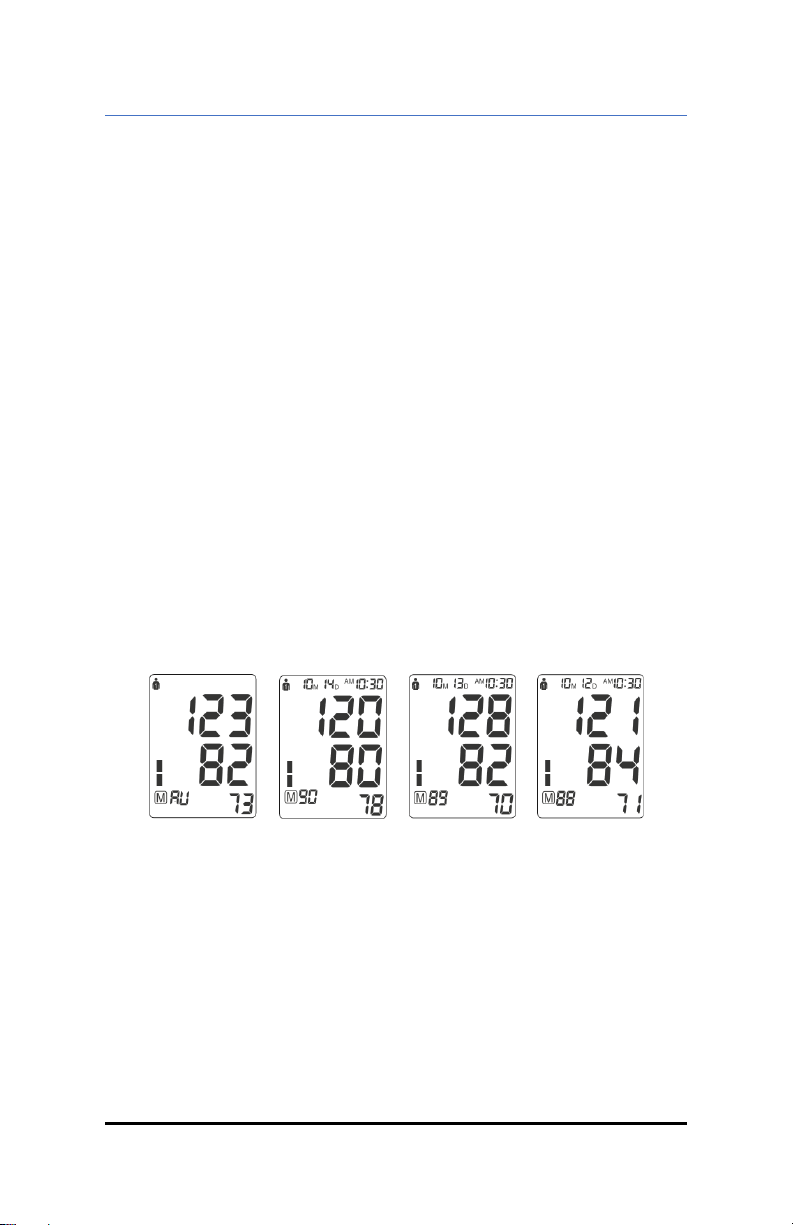

View Past Readings
Press the MEMORY button when power is off. The
latest value will be shown. Press the MEMORY button
again, to see the next stored measurement. Each
time the MEMORY button is pressed, the next
measurement in the memory will be displayed.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 19
Delete Past Readings
If you are sure that you want to permanently remove
all stored readings. press the SETTINGS button 6 times
until CL appears. Press the START/STOP button, CL will
flash 3 times to indicate that all stored measurements
have been erased. If you press the MEMORY button
and "no" is shown on the display, then all stored
measurements have been successfully erased.

Wireless Arm Type Blood Pressure Monitor
V 1.0 Remote Care Partners Page 20
TROUBLESHOOTING
Symbol
Cause
Correction
Weak signal or
pressure change
suddenly
Wrap the cuff properly.
Remeasure with cuff properly positioned
External strong
disturbance
When near a cell phone or other high radiant
device, the measurement may fail.
Keep still and no talking during the
measurement.
Appears error during
inflation
Wrap the cuff properly.
Make sure that the air plug is properly inserted
into the unit.
Remeasure.
Abnormal blood
pressure
Wait 30 minutes. Relax and repeat
measurement. If you get unusual readings
over 3 measurements, contact your doctor.
low battery
Replace all the worn batteries with new ones.
Problem
Check
Cause and solutions
No
power
Check the battery power
Replace new one
Check the polarity position
Reinstall batteries with proper
placement.
No
inflation
Is the cuff connector
inserted into the air socket?
Insert into the air socket tightly
Is the plug, hose, or cuff
leaking?
Change a new cuff
Err and
stop
working
Arm movement during
measurement
Keep still during measurements
Talking during measurement
Keep quiet during measurement.
Cuff leak
Is the cuff wrap too loose
Wrap the cuff tightly
Is the cuff broken
Change a new cuff
If you cannot solve your issue using the tables
above, please contact Support at 855-477-7000.
Do not disassemble the unit.
