RDA LIGHTING RAY8-LED User manual

INSTALLATION INSTRUCTIONS
RDA Lighting inc. 2019/09/11 Page 1of 2
RAY8-LED
ELECTRICAL SHOCK HAZARD
READ, UNDERSTAND
, and
FOLLOW
these instructions
before installing the equipment.
WARNING
SAFETY
Proper grounding is required to ensure personal safety.
Fixture should be mounted in locations where unauthorized personnel will not readily subject it to tampering.
Do not use this equipment for anything other than its intended purpose.
Servicing this equipment should be performed by qualified service personnel.
Save these instructions.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
Changes or modifications to this unit not expressly approved by the party responsible for compliance Could void the user
authority to operate the equipment.
INSTALLATION

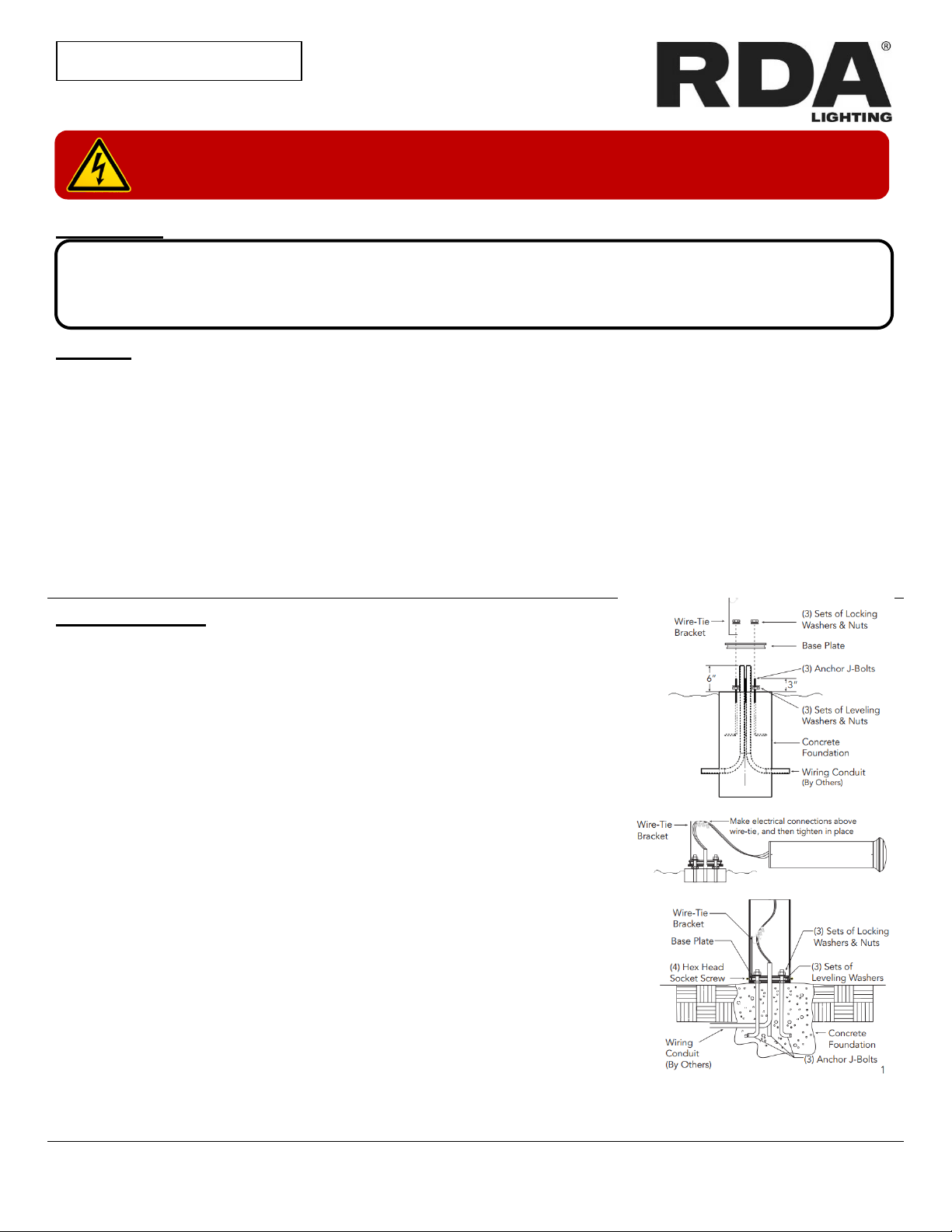

BOLLARD INSTALLATION
1. Attach the anchor bolts to the concrete with a bolt centred diameter of
5.118” and the thread should protrude at least 3” from the concrete.
2. Insert a nut followed by a washer to each anchor bolts.
3. Place base plate over the over the bolts.
4. Install wire and tie bracket on the base plate to one of the anchor bolts.
5. Loosely tighten the flat washer and the nuts onto the bolts.
6. Level the base plate by adjusting the leveling nuts under the base plate. Then
tighten the upper nuts on top of the base plate.
7. Place the conduit wires through the wire-tie in the wire-tie bracket, Do the
connection through the zip-tie and tighten the wire –tie to make sure the
wires are above the ground level.
8. Make wiring connection as per the wiring diagram.
9. Place the fixture above the base plate and tighten the four hex head socket
screws at the bottom of column.
ROTATING THE HEAD WITH CUTOFF SHEILD
1. Loosen the four set screws under the head and rotate the head to desired
position
2. Re- tightens the screws.
Disconnect the Electrical supply power at the service panel (fuse or circuit breaker box). Failure to do so could result in serious
injury or death. Only qualified electricians should install this fixture and the installation MUST conform to the Electrical Code
and all local codes and ordinances. Ensure that only proper tools, materials, and equipment are used to complete the
installation.

INSTALLATION INSTRUCTIONS
RDA Lighting inc. 2019/09/11 Page 2of 2
RAY8-LED
WIRING
Check that the line voltage is correct.
Connect fixture GROUND (green) wire to power supply GROUND (green) wire.
Connect fixture WHITE wire to power supply NEUTRAL wire.
Connect fixture BLACK wire to power supply LINE wire
If the fixture includes 0-10V dimming functionality, connect GREY and VIOLET
wires to the dimming controller.
