Real Spirit Ionic Mist User manual

Humidifies Purifies Refreshes
••
OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS:
Please exercise caution when using the Ionic Mist or any other electrical
device!
BEFORE
This manual describes the safety precautions which should be observed in
relation to your humidifier. Please review carefully using this product.
The voltage rating for humidifiers sold in the USA, Japan and Canada is AC100-
120V, 50/60Hz and in Europe is AC 230V, 50Hz. Using the wrong current may
result in unit damage, electrical shock or fire.
Do NOT attempt to dismantle, repair or modify this device on your own. Doing so
could result in In the event of malfunction,
contact an authorized maintenance facility.
electrical shock or damage to the unit.
RATED
VOLTAGE
DO NOT
DISMANTLE
Do NOT place the unit in direct sunlight or near lit fireplaces, furnaces, ovens or
other high temperature objects. Doing so can damage the humidifier and may
pose a fire hazard. Avoid operating the unit when the air temperature is below
32 F/0 C or exceeds 113 F/45 C.°° ° °
AVOID DIRECT
SUNLIGHT
The inner nebulizer (item #9 under Parts & Supplies below) is a sophisticated
ultrasonic transducer and is highly sensitive. Do not touch it with bare fingers or
scrape with metal tools. Doing so can significantly reduce the unit’s misting
output.
DO NOT
TOUCH
Do not use hot water or unfiltered tap water in your humidifier. Use only purified
or distilled water to prevent clogging and damage to the misting components.
NO TAP
WATER
Unplug your Ionic Mist Humidifier whenever you clean, service or move the unit
or when you will not be using your humidifier for an extended period of time.
UNPLUG
1. Water Tank
2. Mist Outlet
3. Negative Ion/Activated Oxygen On/Off Button
4. Blue Light Illuminator
5. Mist On/Off Switch
6. Negative Ion/Activated Oxygen Outlet
7. N Indicator
8. Water-Position Sensor
9. lnner Nebulizer/Ultrasonic Transducer
10. Water-Storage Tank
egative Ion/Activated Oxygen
PARTS:
1

KEY FEATURES:
•
•
•
•
•
Releases negative ions that clean and freshen the air as it humidifies!
Quiet, energy-efficient ultrasonic vibration misting technology.
Portable and powerful compact design humidifies over 200 Sq. Ft.
Large misting reservoir provides over 8 hours of refreshing, moist air.
Dual speed operation, with intuitive controls and built-in night light
OPERATING INSTRUCTIONS:
Fill Water Tank
Turn Unit On
Turn Unit Off After Use
Negative Ion & Activated Output

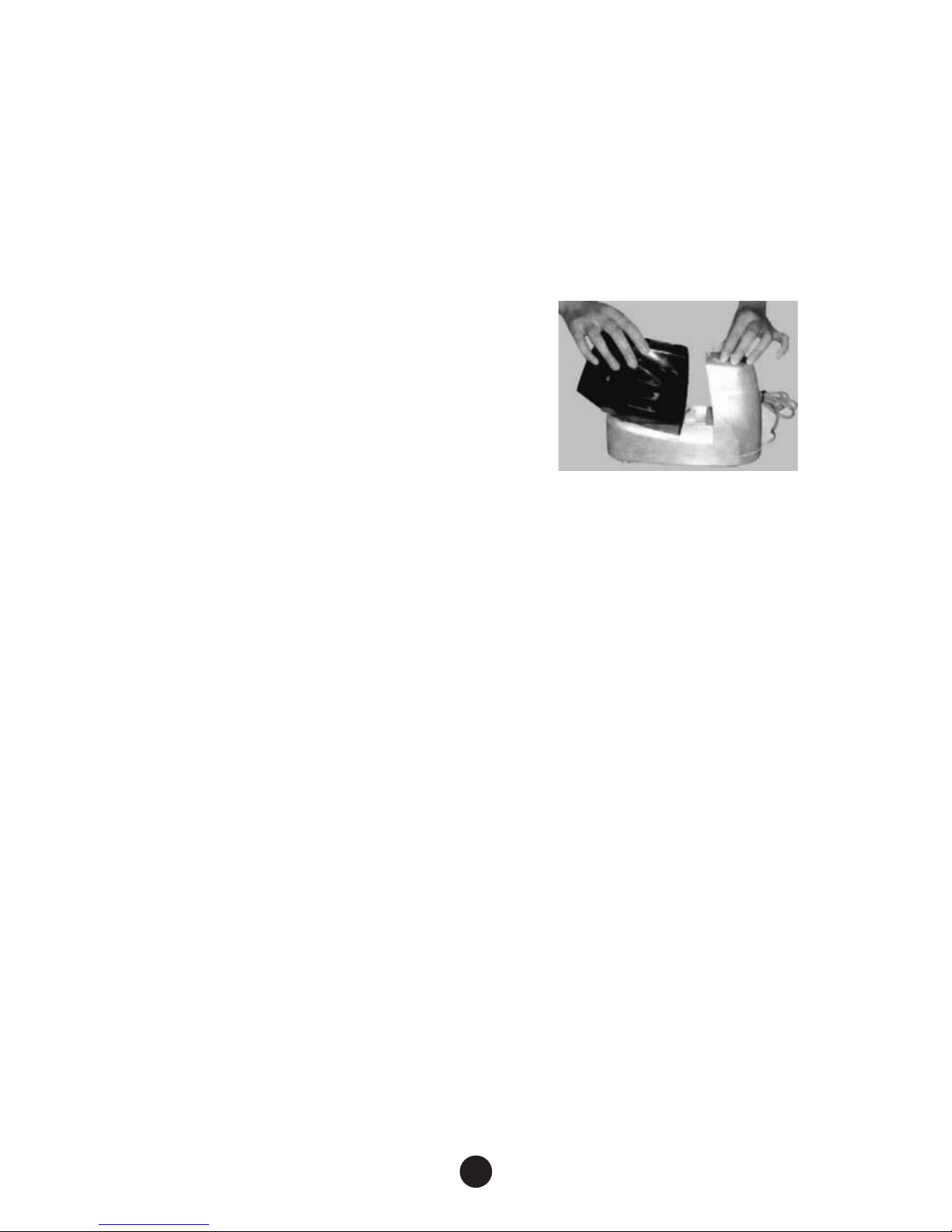

Handle the water tank firmly when removing it
from the base (See Photo). Turn upside down and
unscrew filling cap. Fill tank with pure water only.
Return tank to base and replace the cap firmly.
Plug into a power outlet. Turn Mist Switch to LOW level clockwise then the blue light
is on, the unit begins misting operation. The mist amount can beset arbitrarily
according to the humidity status in the room. The mist amount will be increased by
turning Mist Switch clockwise and will be reduced by the opposite direction.
The unit should be placed on flat, level surface and do not move it
around when operating to prevent the overflow of water inside tank.
Aim mist outlet away from furniture and walls.
The humidifier will run up to 12 hours on Low level and 8 hours on
High level.
urn the humidifier off immediately after tank runs
out off water (Switch to OFF).
The humidifier has independent negative ion and activated output
functions. In seasons that do not require humidified ambience, it can be used as an
independent air purifier. To start the air purification, press the Negative Ion and
Activated Oxygen On/Off Button. The indicator will illuminate at this time. To stop
the function, press the button again. The maximum activated oxygen output is
limited to less than 0.04 parts per million (ppm) which provides effective air
purification capability but falls well within Federal safety standards.
•
•
•
This product has an auto shut off feature that cuts off misting after the tank runs out
of water. However, because other functions of the unit will continue to operate, we
encourage you to manually still t
oxygen (ozone)
Oxygen
2

Caution! Always unplug the humidifier before maintenance!
Storing the Humidifier
When to Clean the Humidifier
Cleaning Steps
•
•
•
•
Before you begin cleaning your humidifier, first r
Every third day during summer seasons.
Before storing or after long time of storage.
1. emove tank from base and
empty it.
2. Use the brush provided within box to clean off scale and debris from nebulizer
and water sensor. Do not use tools that have metal parts to scrape nebulizer and
sensor.
3. Do not use detergent to clean any water containing parts of the machine.
Detergent dissolved in the water can reduce misting efficiency.
4. The nebulizer (ultrasonic transducer) is most sensitive and precision part in this
machine. It is important to keep this part clean and correctly serviced.
5. When sanitizing the water tank, a mild bleach and water solution is
recommended. Never use detergent. Exterior can be wiped with a damp cloth
when unit is off. Remember not to allow the cleaning water run into electrical
controlling parts.
6. The water-position sensor inside of the tank is an important component for stop
misting automatically, needs frequent taking off for cleaning and maintenance.
Please do not use too much force when opening the cover fixed on the top of the
water-position sensor pole, remove the sensor and clean it with water, and fix it
correctly.
Be sure all parts are completely dry.
Leave the tank’s fill cap loose to prevent the cap sticking to its gasket.
CARE AND MAINTENANCE:
Humidifies Purifies Refreshes
••
3

Problem Cause Suggested Solution
No Power
(LED is OFF)
•Unit not plugged in.
No power at outlet.•
•Plug in unit.
Check circuits, fuses, and
test outlet with a tester.
•
No Mist
(LED is OFF)
•No water in tank.
Inoperative fan.
Inoperative components.
•
•
•
Contact us for service
Fill tank with water
Contact us for service
•
•
No Mist
When Water Tank
is Full.
•Mist setting is on low.
Unit is not level.
Scale on nebulizer or sensor.
Detergent used in water tank.
Nebulizer may be damaged.
•
•
•
•
•Use a higher setting
Place unit on a level surface
Clean nebulizer and sensor
with brush attached and fill
with pure water.
Rinse the unit thoroughly
with clean water.
Send to service center
•
•
•
•
White Powder
Accumulation
•High mineral-tap water or
hard water condition
•Use distilled water or at least
½ distilled and ½ tap water.
Voltage
Supply
Activated
Oxygen Emission
Mist
Capacity
Ion
Output
Power
Levels
Applicable
Area
Power
Rating
AC 100-120-60Hz<0.04 ppm75ml/h( 10%)+10,000/cm3 2215 sq ft 30 W
SPECIFICATIONS:
Length Height Width Weight
9.5 inches 6.3 inches 4.4 inches 3 lbs, 6 oz.
Notes: sq ft: square feet | cm : cubic meters | ml/h: milliliters per hour | ppm: parts per million | W: watts
3
DIMENSIONS:
TROUBLESHOOTING:
4
AFTER SALES SERVICE:
In case of malfunction, please review the troubleshooting steps outlined in the section
above. If the problem remains unresolved after taking the suggested applicable
actions, please email Real Spirit USA, Inc. at com or telephone
us at .
If you elect to email us please be sure to include the name of the product,
nature of the problem
along with your name and phone number so we may contact you. If you elect to phone
us, please have this same information readily available when placing your call.
info@RealSpiritUSA.
[phone]
the date and
location of purchase, e.g., store name, internet site, etc.; the

Real Spirit USA, Inc. • 9447 De Soto Ave • Chatsworth, CA 91311
Phone [phone] • Fax [phone]
www.AdvancedPureLiving.com • [email protected]
(1) This product passes strict tests prior to leaving the factory. Customers could,
within one year from the date of purchase, enjoy free repair or replacement of
parts if it is checked by our company that malfunction or damage to the device
and/or parts occurred under normal running condition.
(2) Guarantee does not cover damages that are attributed to self dismantling and
assembling, unauthorized operation not found in the instructions, random
change of power source and/or voltage, artificial causes and natural disasters.
(3) The date(s) on this guarantee and the purchase invoice will be used to
determine the validity of one year free maintenance.
LIMITED WARRANTY
PRODUCT
INFORMATION:
CUSTOMER
INFORMATION:
PLACE OF
PURCHASE:
Ionic•Mist
Humidifier
Date of Purchase
Warranty Period One year from the
date of purchase
Name:
Address:
Phone #:
Name & Address of
Store or Website URL
As Applicable
Manufactured in China
5
